Autel | SKU: Kia-20 / 4.33

Autel | Kia 20-pins OBD1 - 16-pins OBD2 Adapter | Passenger Car

Name: Autel | Kia 20-pins OBD1 - 16-pins OBD2 Adapter | Passenger Car
Brand: Autel
SKU: Kia-20 / 4.33
Price: 19.95 EUR
Availability: InStock

€34,95 incl.

€19,95 incl.

€16,49 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

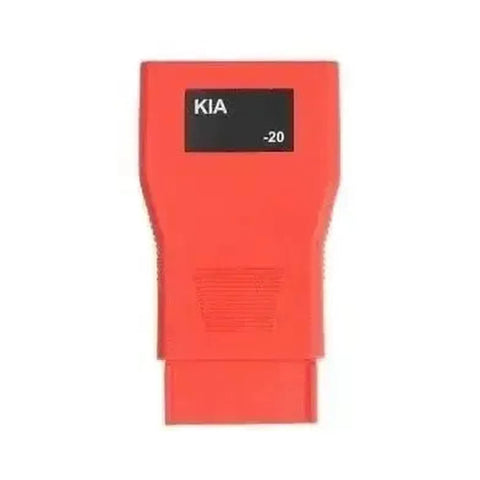

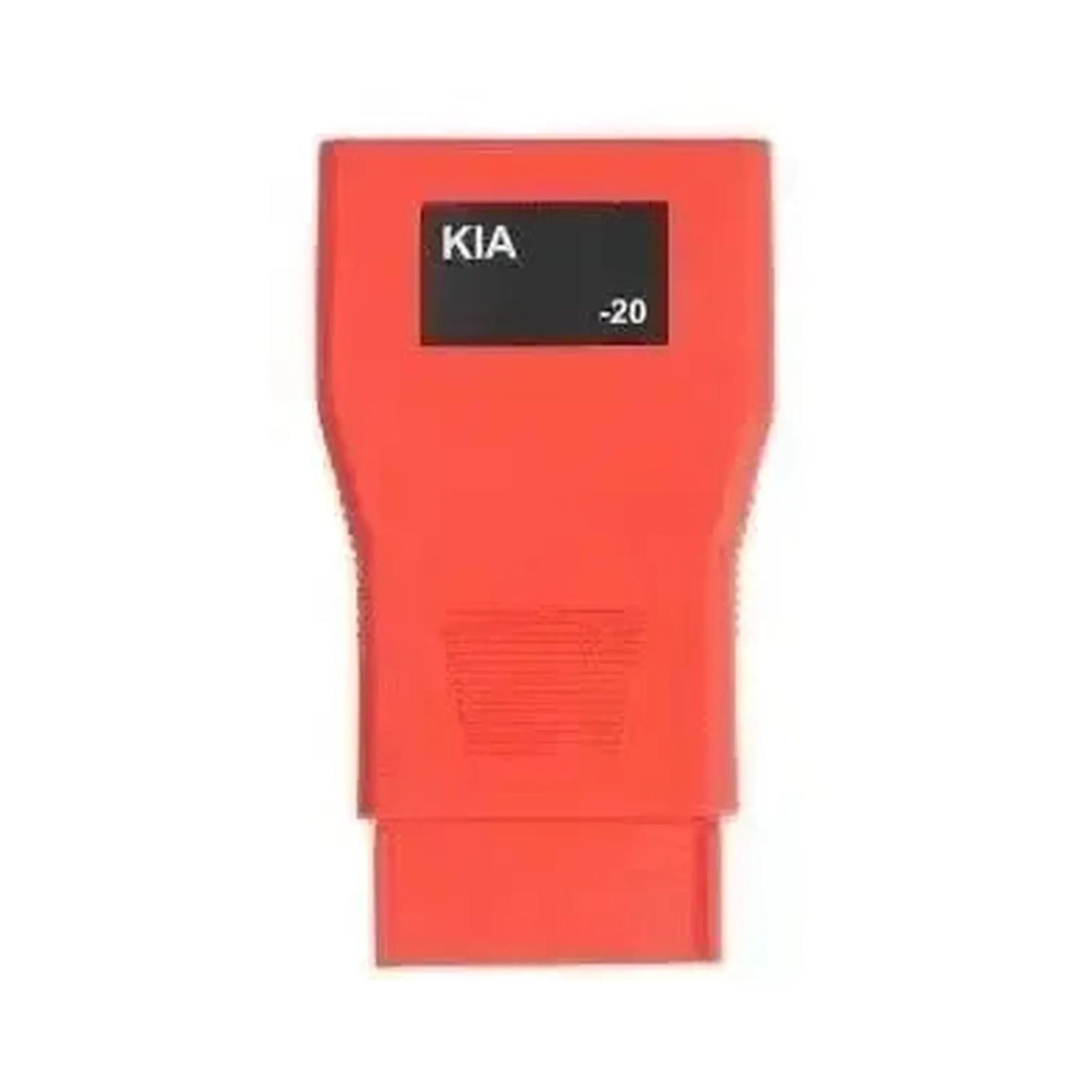

The Autel Kia 20-pin to 16-pin OBD2 adapter is specifically developed to connect older Kia vehicles to modern diagnostic equipment. This compact Adapter links the model-specific rectangular 20-pin diagnostic port, commonly found in pre-OBD2 era vehicles, to the universal 16-pin connector of the diagnostic tester.

The internal circuit of the Adapter ensures correct pin-to-pin mapping between the proprietary vehicle connector and the diagnostic device interface. This enables stable signal transmission and communication with older vehicle networks and control units. The Adapter is made from high-quality plastic and is designed to withstand intensive workshop use, with the fit guaranteeing a reliable connection without signal loss.

ADVANTAGES

✔ Original Autel design for seamless integration with Autel diagnostic systems.

✔ Compact housing without cables, eliminating the risk of cable breakage.

✔ Specific fit for the Kia 20-pin diagnostic connector.

✔ Robust construction suitable for daily workshop use.

KEY POINTS

✕ Only suitable for older Kia models with the rectangular OBD1 connector.

✕ Requires diagnostic software that supports older communication protocols.

✕ The diagnostic port on these models is often located under the hood, not inside the cabin.

Applications and functionalities

This adapter allows communication between the vehicle-specific connector and universal diagnostic equipment. The adapter functions as a passive pin converter.

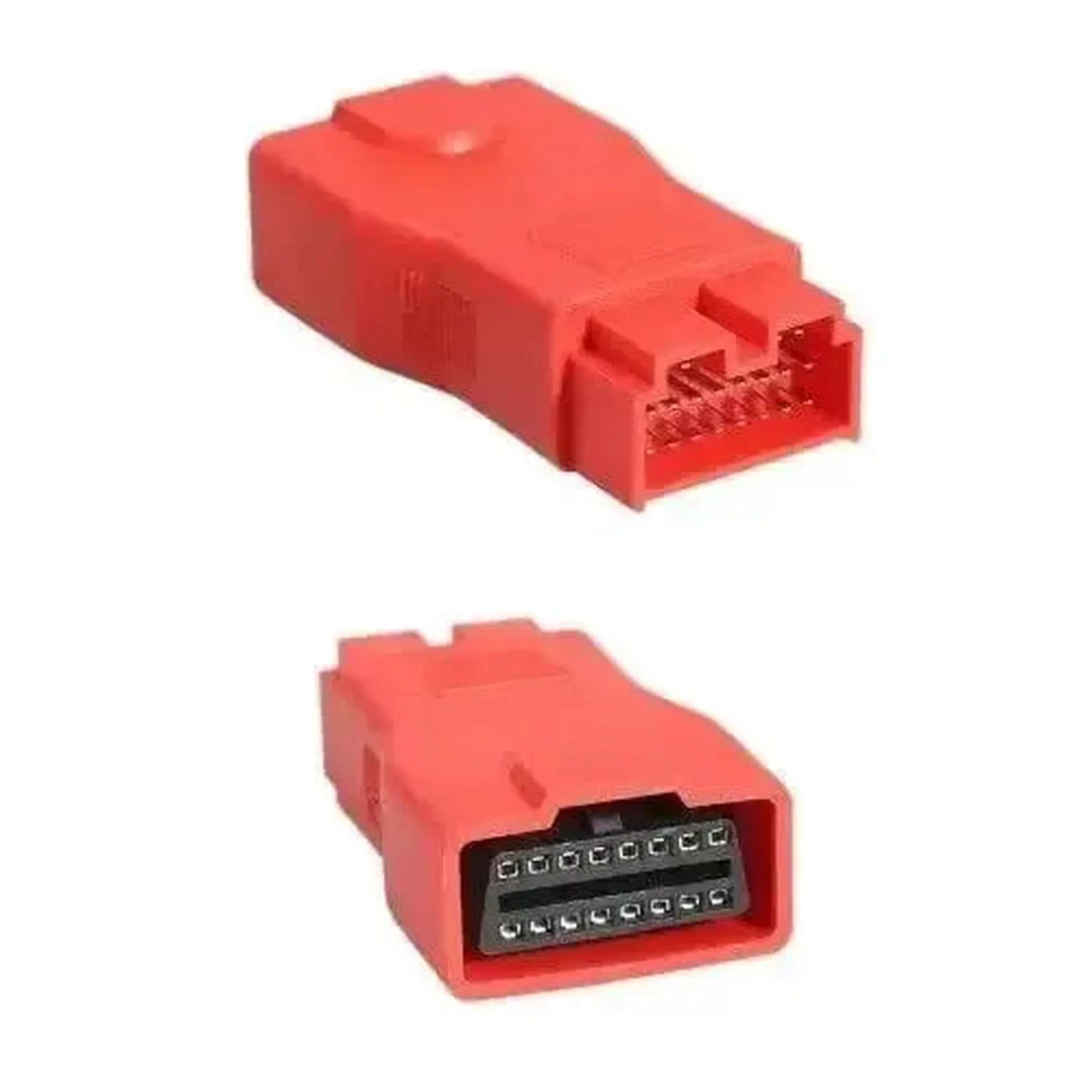

Physical interface conversion: Converts the Kia-specific 20-pin connector to a standard 16-pin OBD2 female connector.
Access to vehicle systems: Enables communication with ECUs such as engine, transmission, and ABS on older vehicles.
Error code analysis: Supports reading and clearing fault codes (DTCs) via compatible diagnostic testers.
Compatibility: Designed for use with the Autel MaxiSys, MaxiDAS, and MaxiCheck series (when used with the main module).

Compatible vehicles and applications

This Adapter is suitable for Kia vehicles produced approximately between 1996 and 2004 that are not yet equipped with the standardized 16-pin EOBD port but use the Kia 20-pin diagnostic connector.

Kia:

Carens: (1999 - 2002)
Carnival: (1998 - 2001)
Clarus: (1996 - 2001)
Pride: (1996 - 2000)
Retona: (1998 - 2003)
Rio: (2000 - 2003)
Sephia: (1996 - 2001)
Shuma: (1997 - 2003)
Sportage: (1996 - 2003)

💡

Good to know: The 20-pin diagnostic connector on these Kia models is usually located under the hood, often near the battery, fuse box, or mounted against the firewall.

Package Contents

1x Autel | Kia 20-pin OBD1 - 16-pin OBD2 Adapter | Passenger Car
