GoDiag GT107+ | Data Adapter

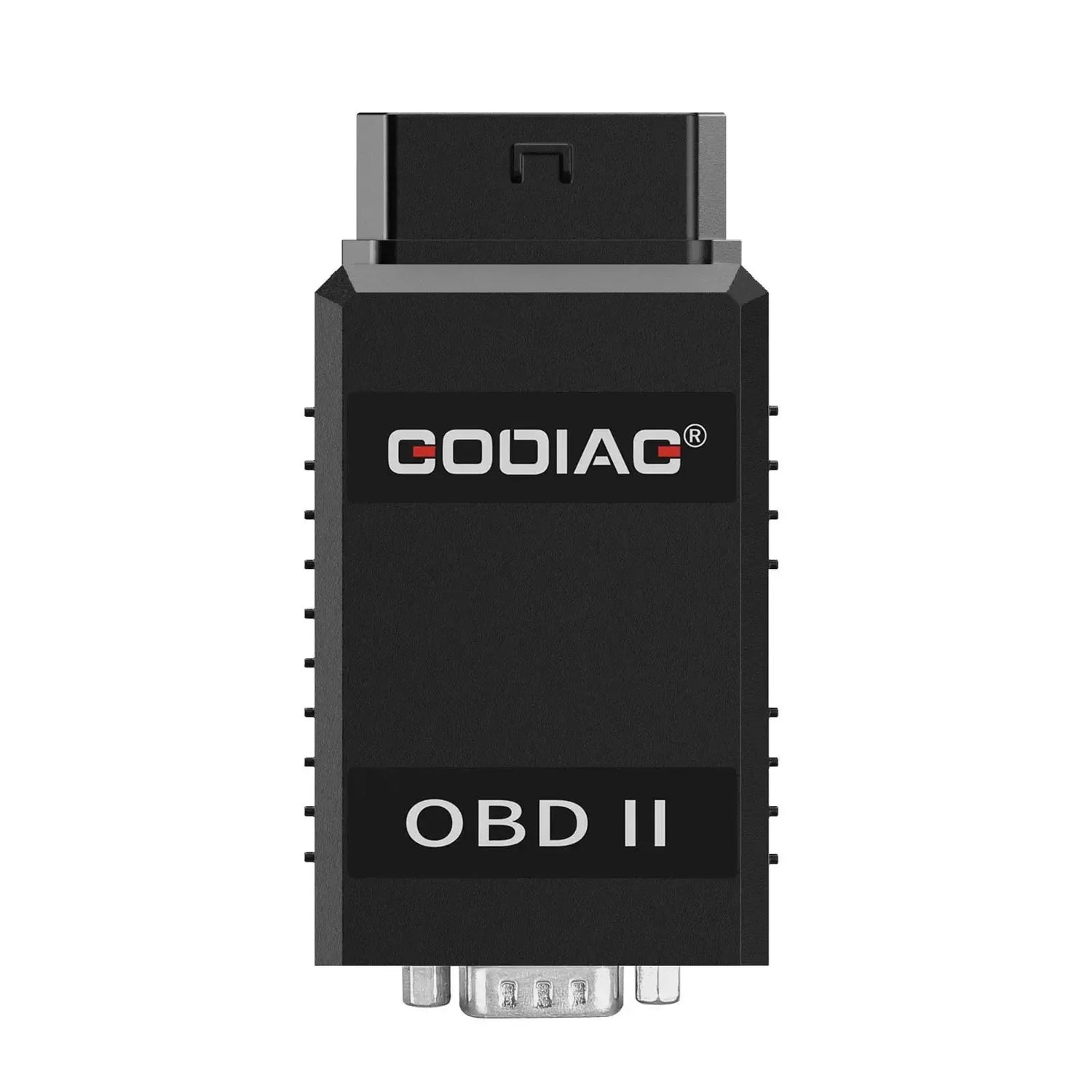

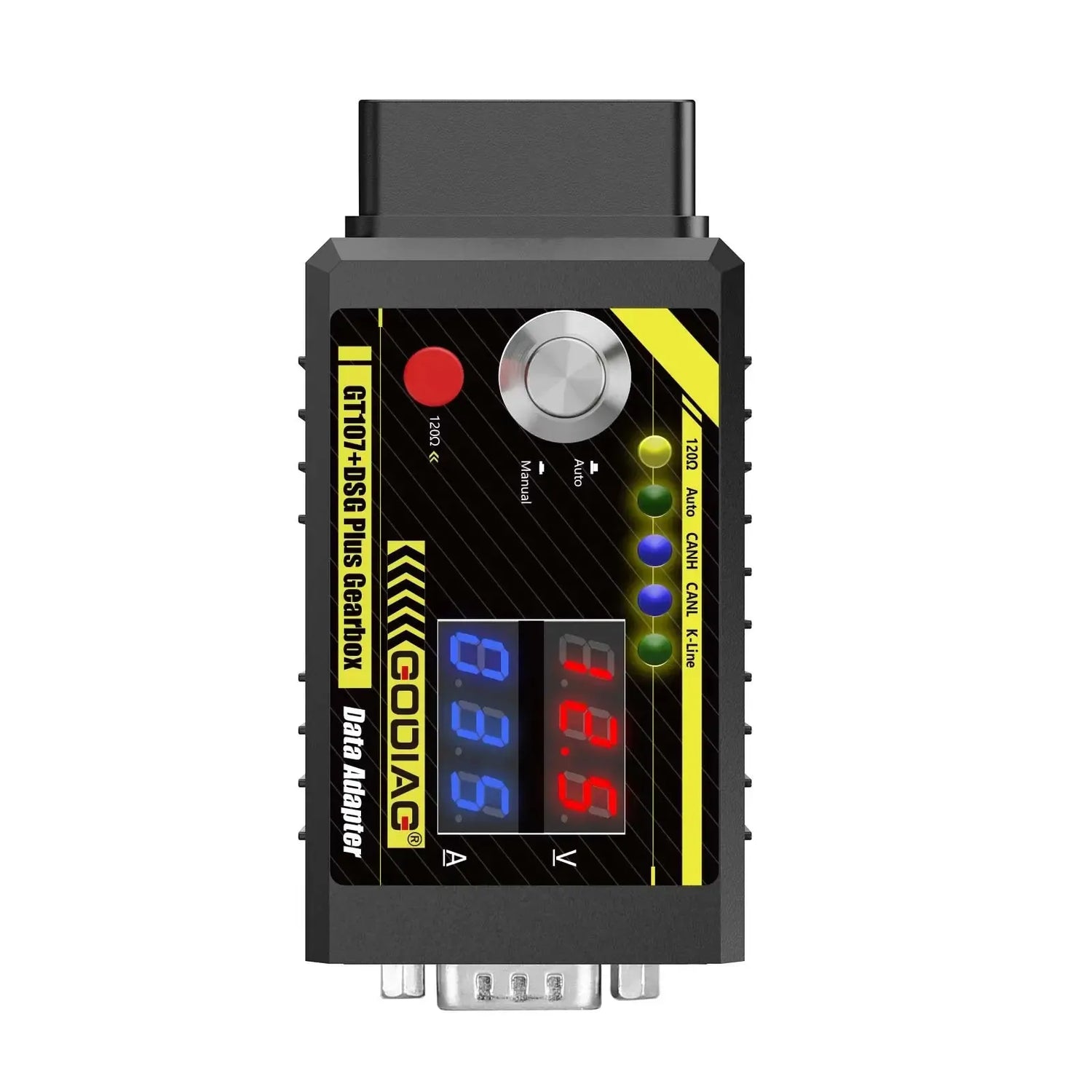

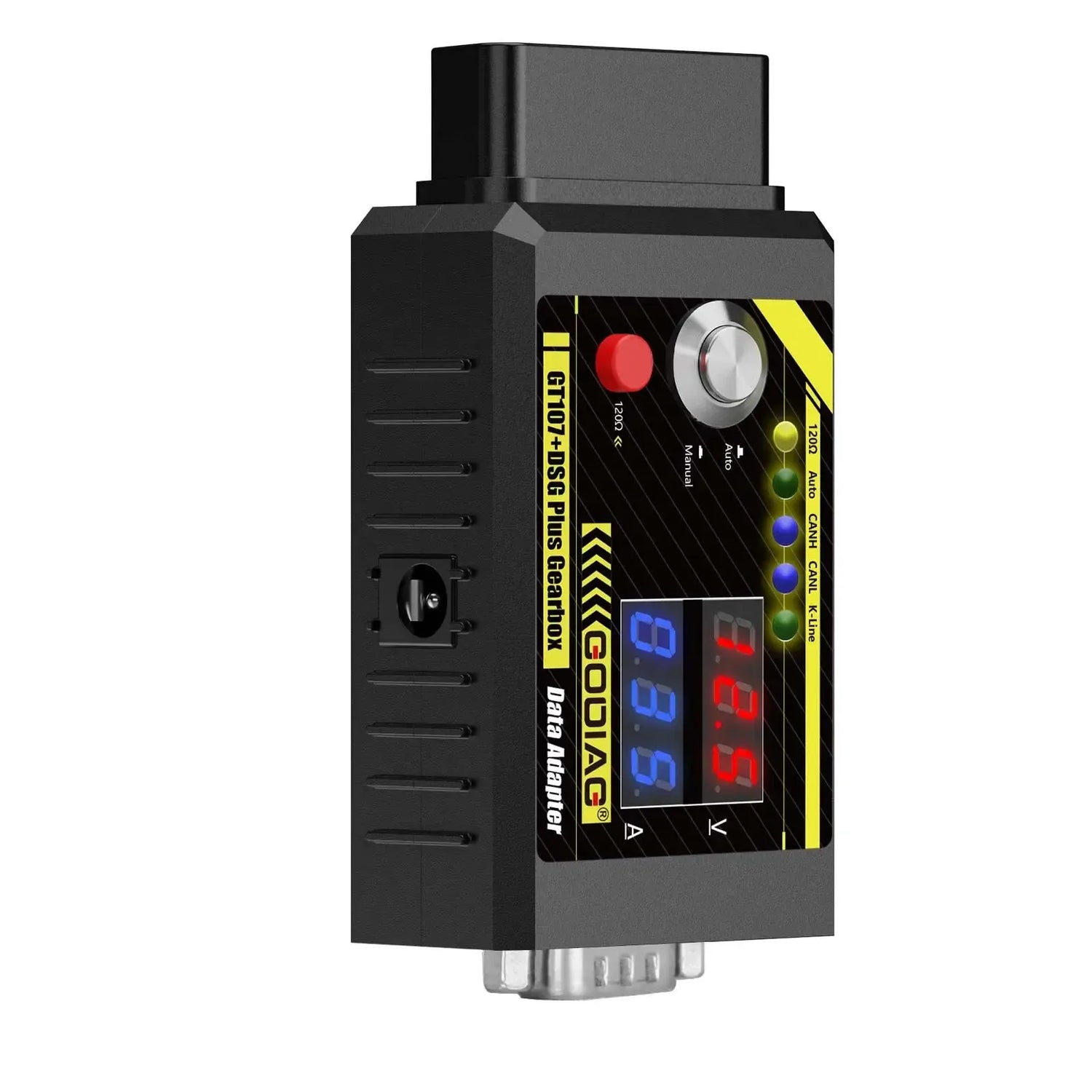

The GoDiag GT107+ is a data-Adapter specifically designed for connecting to the ECU of various DSG transmissions. This device is compatible with a range of transmission ECUs, including the VAG series (DQ200, DQ250, VL381, VL300, DQ500, DL501) and models from brands like Benz and BMW. The Adapter features an integrated digital display showing the current voltage (V) and current (A) of the connected ECU, which helps monitor the status during operation.
The GT107+ offers both an automatic and manual mode for selecting the correct communication protocols, improving compatibility with software such as PCMflash. The automatic mode is available for reading and writing data, while the manual mode can be chosen for diagnostics. The Adapter is equipped with indicator lights for CANbus and K-Line communication, a switchable 120 ohm resistor, and a detachable, gold-plated DB9 connector for a stable connection. Power is supplied via an included cable with battery clamps.
Application and functionality:
The GT107+ is developed for technicians working on the workbench (bench mode) or in the vehicle with transmission ECUs. The Adapter facilitates reading, writing, and diagnosing the ECU.
- ECU connection on the workbench: Enables a direct connection to the transmission ECU for diagnostics, reading, and writing data outside the vehicle, using programming tools such as PCMtuner, PCMflash, or KessV2.
- Voltage and current display: The digital displays show the current operating voltage and current of the ECU, providing an indication of the operational state.
- Communication status: LED indicators show the status of CANbus and K-Line communication during the data transfer process.
- Mode selection: A rotary knob allows switching between automatic mode (for reading/writing with PCMflash) and manual mode (for diagnostics).
- 120 Ohm resistor: A built-in switch activates the 120 ohm resistor, which is necessary for proper CAN communication.
- Wide compatibility: Supports a wide range of transmission ECUs, including models for VAG, Benz, BMW, Renault, and Honda.

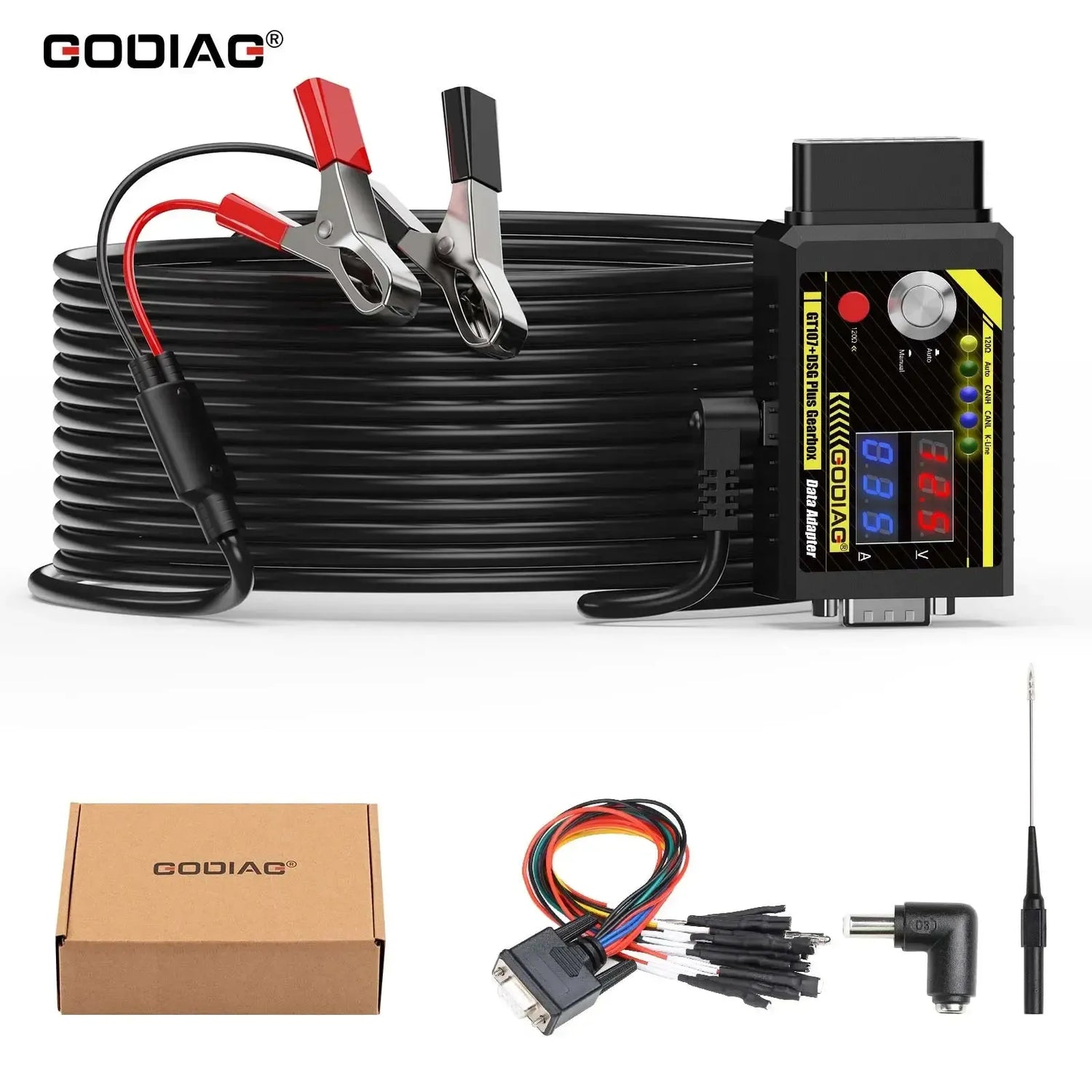

Package Contents:
- 1x GoDiag GT107+ DSG Plus data-Adapter
- 1x DB9 DSG transmission conversion jumper
- 1x Power cable with battery clamps
- 1x Probe
- 1x Manual
Technical specifications:
| Specification | Description |
|---|---|
| Brand | GoDiag |
| Model | GT107+ |
| Product type | DSG transmission data-Adapter |
| Display | Digital display for voltage (V) and current (A) |
| Connections | OBDII, DB9 (gold-plated) |
| Power supply | External 12V DC via battery terminals |
| Supported protocols | CANbus, K-Line |
| Function switches | Automatic/manual mode, 120 ohm resistor |
| Compatibility | VAG (DQ200, DQ250, DQ500, DL501, VL381, VL300), Benz, BMW, Renault, Honda |
