GoDiag | BMW CAS4/CAS4+ | Test platform

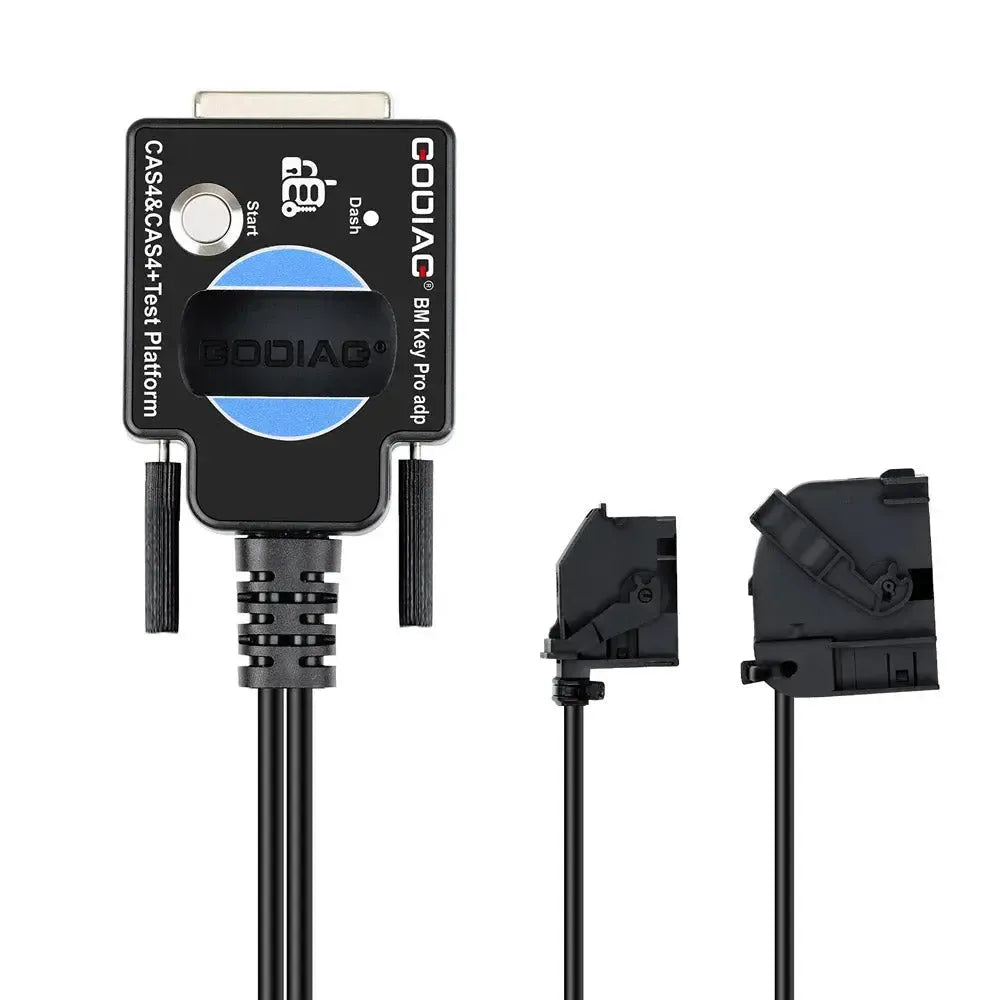

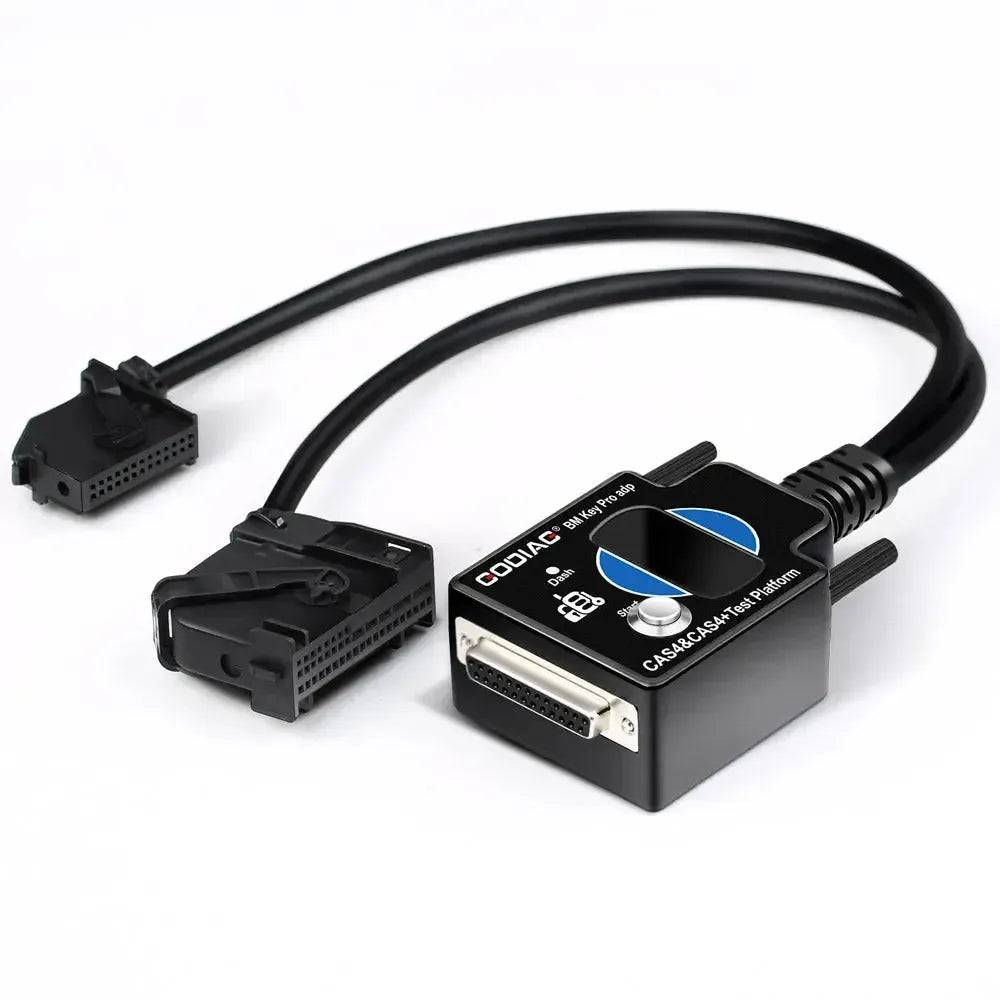

The GoDiag BMW CAS4/CAS4+ test platform is designed for testing and programming BMW CAS4 and CAS4+ immobilizer modules on the bench. This platform enables diagnostic tasks and key programming without the module being installed in the vehicle. The device simulates the vehicle environment and allows direct communication with the CAS module via a OBD2 interface, simplifying the process of data reading and writing.
The test platform is equipped with an indicator that displays the communication status between the key and the CAS module, allowing quick determination of whether a key is correctly synchronized and functioning. It is compatible with various programming devices and provides a stable connection for reading D-Flash and P-Flash data. By testing the module outside the car, problems can be efficiently identified and resolved, for example after a repair or when creating new keys.
Application and functionality:
The platform is used to verify and program the functionality of the CAS module and associated keys on the bench.
- Key programming: Enables adding new keys or programming all keys when they are lost, in combination with a compatible programming device.
- Module testing: Verifies the correct operation of the CAS4/CAS4+ module after repair or data modification by confirming communication with the key.
- Synchronization check: A built-in indicator shows whether the key successfully communicates with the CAS module, helping diagnose synchronization issues.
- Data reading and writing: Provides a stable connection for reading and writing data from the 9S12XDP512(1L15Y) and 9S12XEP100(5M48H) microcontrollers.
- Bench diagnosis: Performs programming and testing functions without the module needing to be installed in the car, speeding up the workflow for technicians.
Compatibility:
This test platform is compatible with specific BMW models equipped with a CAS4 or CAS4+ module.
- BMW 5 Series: F07, F10, F11, F18 (2010-2014)
- BMW 6 Series: F12, F13 (2011-2013)
- BMW 7 Series: F01, F02 (2009-2013)
The platform operates in combination with various key programming tools, including:
- Autel IM608
- CGDI Prog BMW
- GoDiag VVDI2
- Xhorse VVDI2
- Yanhua ACDP

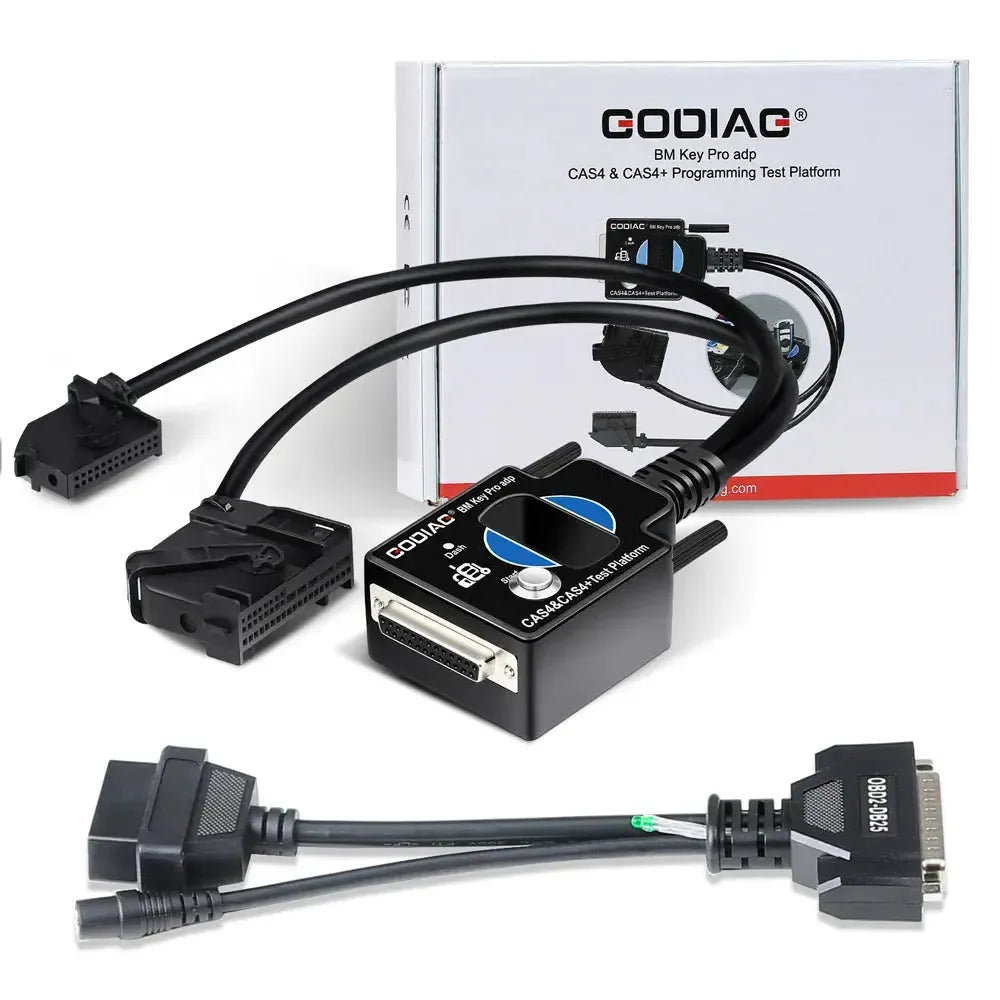

Package Contents:
- 1x GoDiag BMW CAS4/CAS4+ test platform

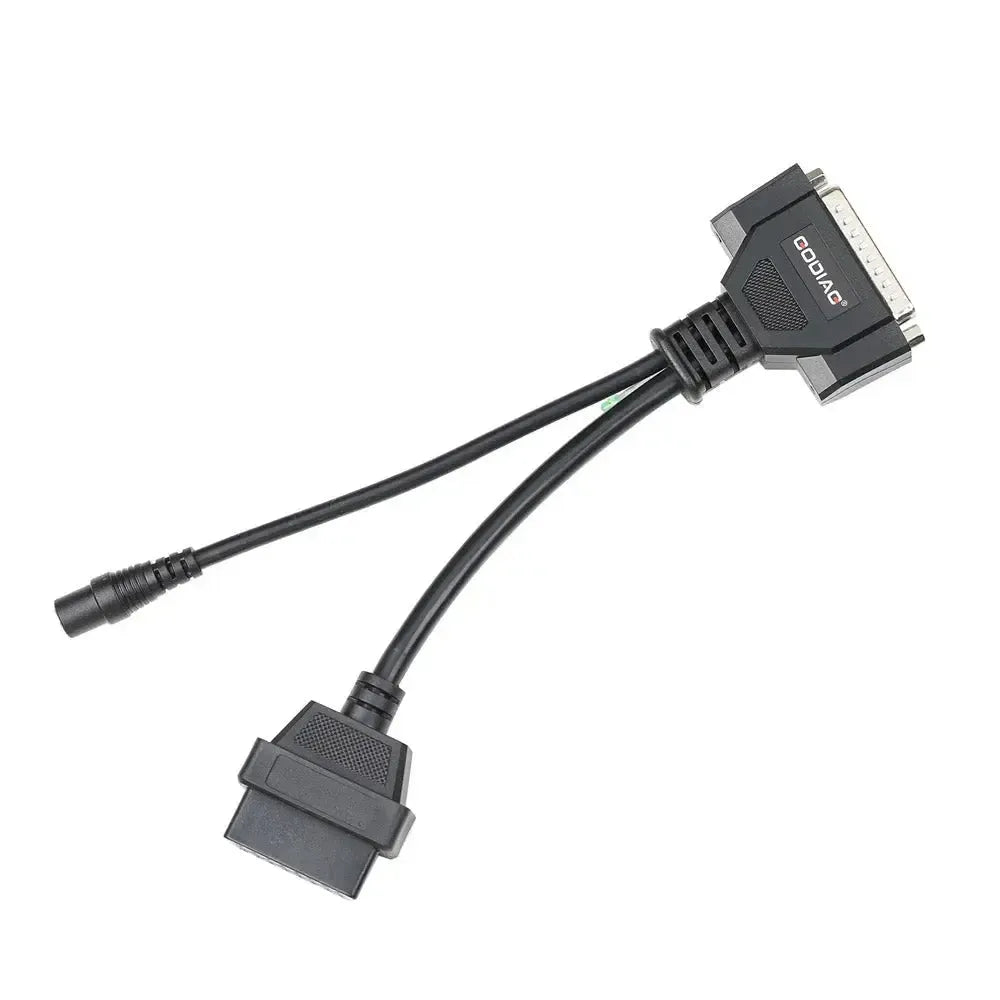

- 1x OBD2 to DB25 cable
Technical specifications:
| Specification | Description |
|---|---|
| Brand | GoDiag |
| Model | BMW CAS4/CAS4+ Test Platform |
| Application | Testing and programming of immobilizer modules |
| Supported modules | BMW CAS4, CAS4+ |
| Supported MCUs | 9S12XDP512 (1L15Y), 9S12XEP100 (5M48H) |
| Connections | DB25, OBD2 |
