OTOFIX IM2 | Key Programmer | Car

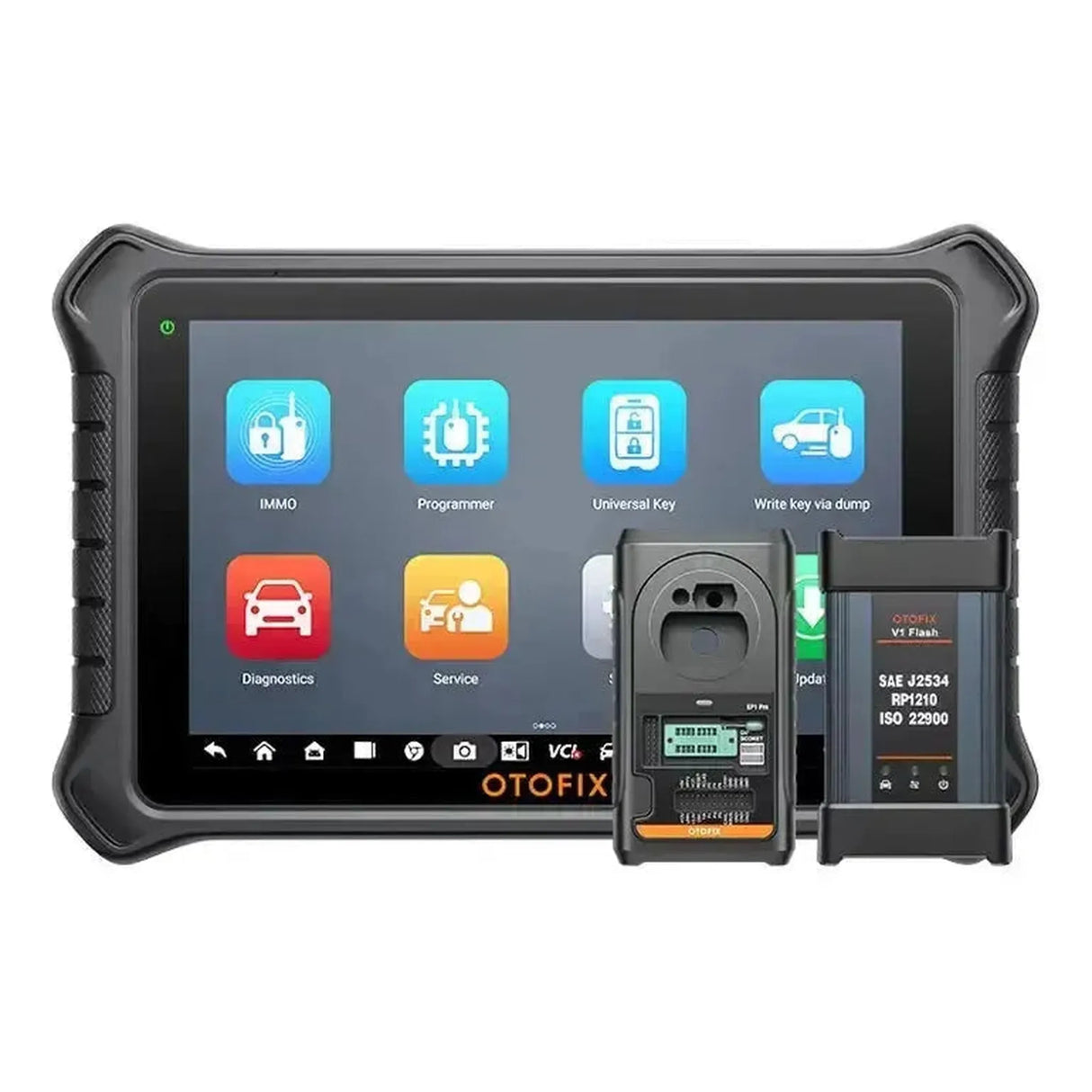

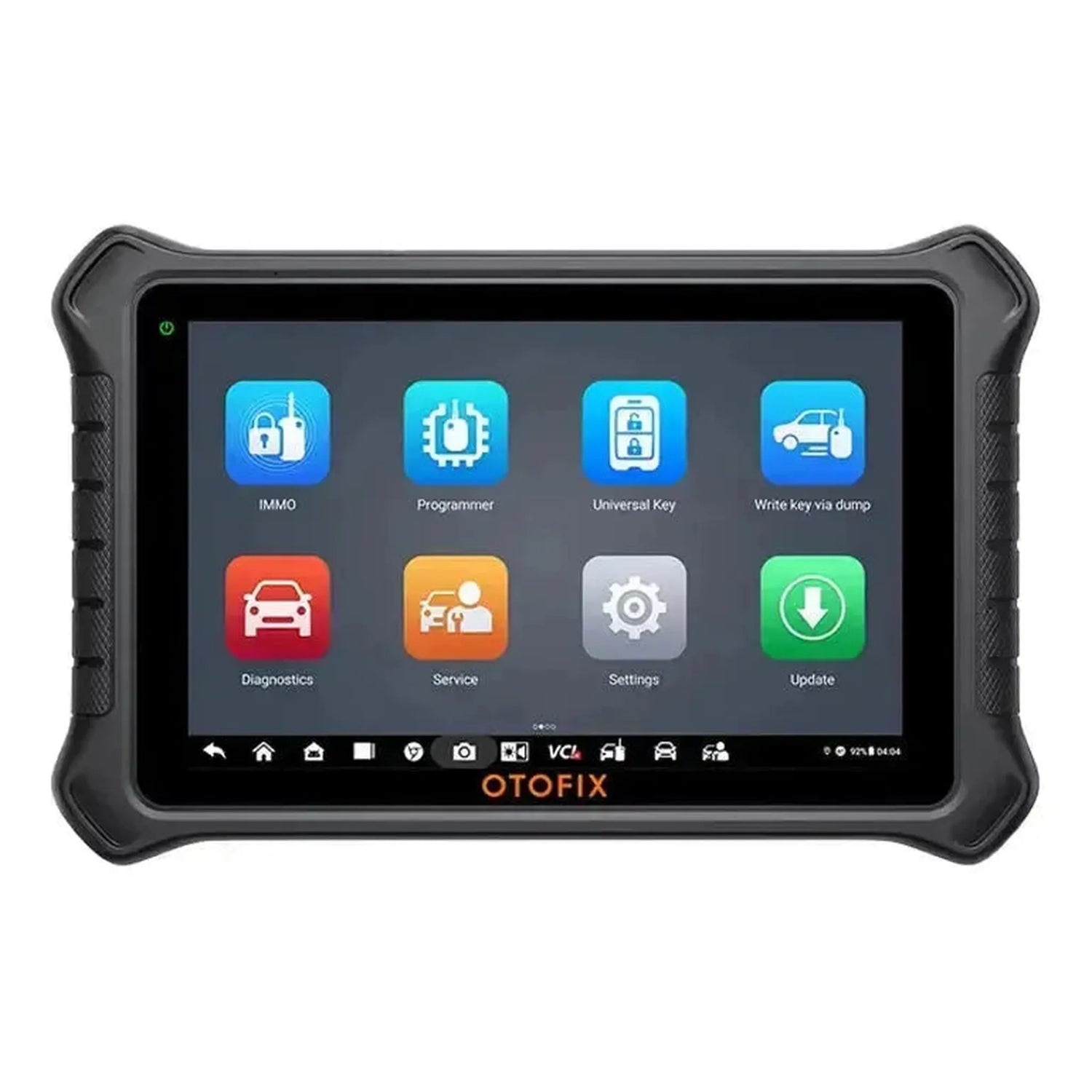

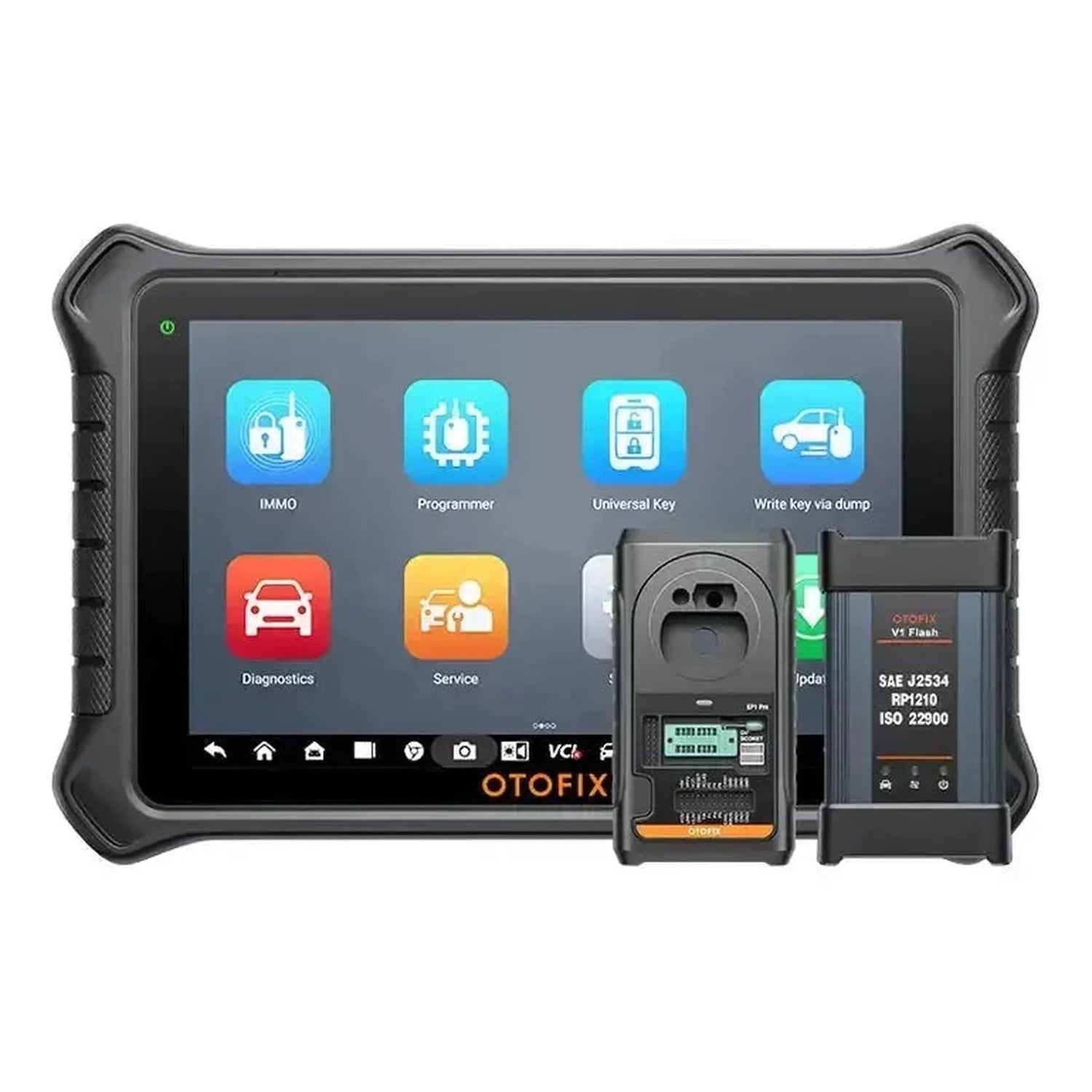

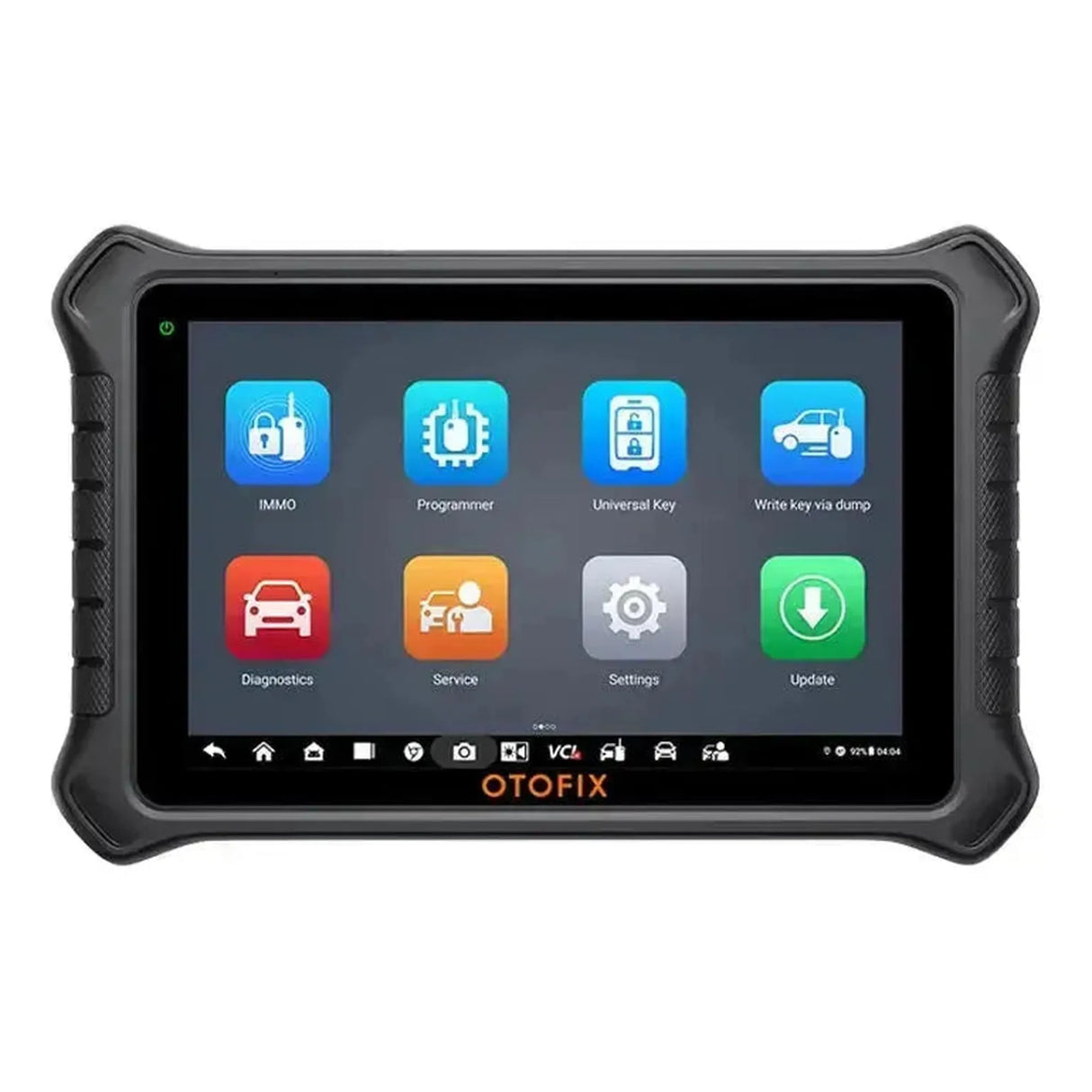

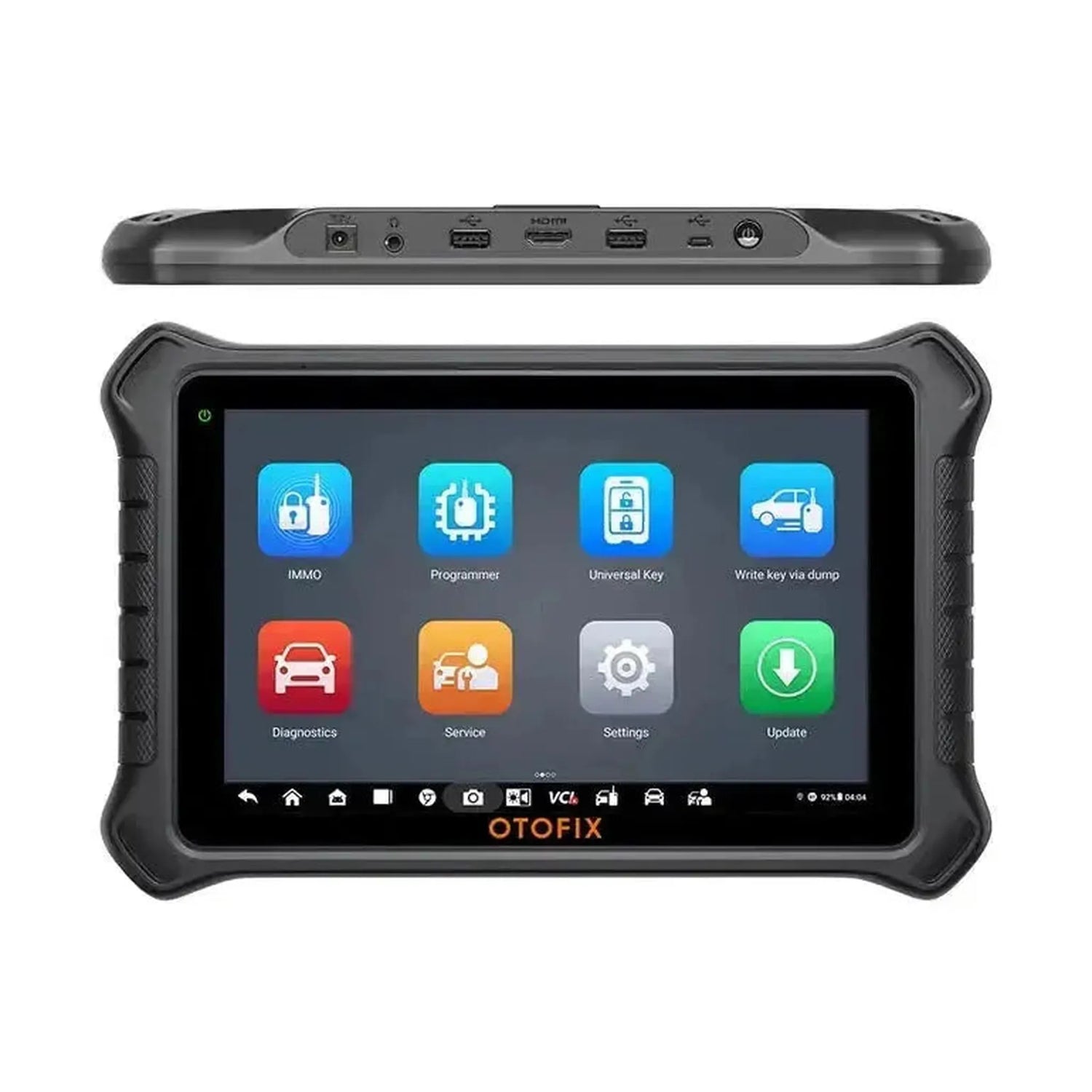

The OTOFIX IM2 is a reading device focused on key and immobilizer functions. The system combines advanced IMMO and key programming with diagnostic functions and service and maintenance functions for a wide range of vehicle brands. The hardware includes a 10.1-inch tablet with Android 10, the XP1 Pro key and chip programmer, and the V1 Flash J2534 VCI. A software license for 2 years is included with purchase.

In addition to the core functions for key management, the OTOFIX IM2 offers the capability for ECU coding and programming. The device can be expanded with optional modules such as the GBOX3 for Mercedes-Benz and BMW, the APB112 Smart Key Emulator, and the IMKPA Adapter Kit for specific programming tasks. The V1 Flash VCI supports the J2534 and DoIP protocols, enabling communication with recent vehicle models.

---

Diagnostic functions:

The OTOFIX IM2 performs full system diagnostics on all present vehicle modules. Functionality includes reading and clearing fault codes, displaying live data, and controlling actuators.

• Read and clear fault codes: Reads and clears fault codes (DTCs) from all available systems such as engine, transmission, ABS, and airbags.
• Actuator control: Performs bi-directional tests to control components such as relays, injectors, and fans and check functionality.
• Live data: Displays real-time data from sensors and modules in text, graph, and meter formats.

---

Key and EEPROM functions:

The OTOFIX IM2 is equipped with the XP1 Pro programmer for extensive key and chip-related tasks. The availability of functions may vary by vehicle brand and model.

Key functions:

• Key learning: Adds new keys, even when all keys are lost (All Keys Lost).
• Key generation: Generates universal keys for various vehicle brands.
• IMMO ECU reset/adaptation: Resets, adapts, or replaces the immobilizer module.
• IMMO data backup/restore: Backs up and restores immobilizer data.
• PIN/CS read: Reads the PIN code (PIN) or component security (CS) data, even when all keys are lost.
• Remote learning: Programs the remote control of the key.

EEPROM functions:

• EEPROM and MCU data read/write: Reads and writes data from EEPROM and MCU chips without desoldering.
• Engine control unit (ECU) read/write: Clones or replaces the engine control unit.
• Immobilizer data read/write: Reads and writes immobilizer data.

---

Service and maintenance functions:

The OTOFIX IM2 supports more than 40 service and maintenance functions. The availability of specific functions may vary by vehicle brand, model, and year of manufacture.

Engine and drivetrain:

• Injector coding: Registers new injectors in the engine control unit (ECU) after replacement for correct fuel injection.
• Throttle valve learning: Resets the throttle valve actuator to default settings, necessary after cleaning or replacement.
• Transmission adaptation: Adjusts the shift points of the automatic transmission for smoother performance.
• Crankshaft position sensor learning (TEC): Learns the tolerances of the crankshaft position sensor to accurately detect misfires.
• Variable geometry turbo (VGT) learning: Calibrates the actuator of the variable geometry turbo.
• Camshaft learning: Synchronizes the position of the camshaft with the ECU.
• Clutch learning: Adjusts the clutch actuator after replacement or maintenance.
• Start/stop system: Configures and deactivates the automatic start/stop system.
• Relative compression test: Performs a compression test via the starter motor to check the mechanical condition of the engine.
• Cylinder deactivation: Tests the functionality of the cylinder deactivation.
• Start electronic water pump: Activates the electronic water pump, for example, to bleed the cooling system.
• Adjust air/fuel ratio: Resets the adaptive values for the air-fuel ratio.

Brakes:

• Electronic parking brake (EPB) service: Sets the electronic parking brake to service mode for replacing brake pads and calibrates it after installation.
• Brake bleeding (ABS): Performs an automated bleeding procedure for the ABS system to remove air from the brake lines.

Exhaust systems:

• Diesel particulate filter regeneration (DPF): Forces the regeneration of the DPF to burn off accumulated soot and clear blockages.
• AdBlue/SCR system reset: Resets the Selective Catalytic Reduction (SCR) system after refilling AdBlue or after maintenance.
• EGR learning: Relearns the Exhaust Gas Recirculation (EGR) valve after cleaning or replacement.

Steering and suspension:

• Initialize steering angle sensor (SAS): Calibrates the steering angle sensor, necessary after alignment or replacement of steering components.
• Calibrate air suspension: Adjusts the ride height of the air suspension and calibrates the level sensors.

Body and electronics:

• Reset oil service: Resets the service interval indicator after an oil change.
• Register Battery Management System (BMS): Registers a new Battery in the BMS to optimize lifespan and prevent error messages.
• Tire Pressure Monitoring System (TPMS) service: Reads and programs TPMS sensors and resets the system after a tire change.
• Reset FRM (Footwell Module): Restores the footwell module (known in BMW/Mini) after short circuit or malfunctions.
• Adjust headlights: Performs basic adjustment for adaptive headlights.
• Initialize sunroof: Calibrates the basic settings and end positions of the sunroof.
• Calibrate seats: Sets the memory positions of electrically adjustable seats.
• Initialize rain/light sensor: Calibrates the sensitivity and operation of the rain and light sensor.
• Adjust tire size: Corrects the speedometer and other systems after fitting a different tire size.
• Adjust odometer reading: Corrects the odometer on the instrument panel after replacement.
• Deactivate transport mode: Turns off transport mode, which limits vehicle functionality during transport.
• Change language: Adjusts the display language of the instrument panel and infotainment system.

Safety systems:

• Reset Airbag (SRS): Resets the airbag module and clears crash data after an accident (if supported).
• Calibrate Adaptive Cruise Control (ACC): Calibrates the radar sensor of the ACC system.

Hybrid and electric:

• High Voltage Battery Diagnosis: Checks the status and performance of the high voltage Battery.
• Deactivate/Activate High Voltage System: Safely switches off the high voltage system for maintenance and then reactivates it.

Other functions:

• Manage VIN (Vehicle Identification Number): Reads, writes, or modifies the VIN in various modules.
• Speed Limiter: Sets or adjusts a maximum speed limit.

---

Special features and capabilities:

The OTOFIX IM2 offers various advanced functions for coding, programming, and remote support.

Coding and programming:

• Guided Functions: Provides step-by-step instructions for complex procedures for VAG and BMW vehicles.
• Offline Programming: Programs modules without connection to the manufacturer’s servers.
• Online Coding: Performs online coding for modules after replacement.

Cloud and reporting functions:

• Diagnostic Reports: Generates, stores, and shares diagnostic reports via the cloud.
• Remote Expert: Provides the ability to get remote assistance from an external technician.

---

Optional expansion modules:

The functionality of the OTOFIX IM2 can be expanded with various optional modules. These expansions depend on the specific application and vehicle brand.

Hardware modules and accessories:

• APB112 Smart Key Emulator: A module for identifying coil issues, decoding vehicle key chip data, and emulating the vehicle key chip. This supports, among others, data collection for 46 and 4D chips, password calculation for 46 smart keys, and emulation of various Toyota smart keys.
• GBOX3 Key Programming Adapter: An Adapter for programming keys for Mercedes-Benz and BMW. Functions include programming Mercedes-Benz DAS3 CAN EIS/EXS in case of loss of all keys (AKL) and reading and writing the ISN of BMW DME/DDE in boot mode.
• IMKPA Key Programming Adapter Kit: A set with 12 Adapters for advanced key programming tasks. The kit supports functions such as reading, writing, and erasing the Mercedes-Benz ESL, learning BMW EWS3 keys, and unlocking keys for VAG, BMW, and Mercedes-Benz vehicles.

---

Supported vehicle brands:

The OTOFIX IM2 supports a wide range of vehicle brands for various key programming tasks. The coverage is divided into different regions.

• European: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Cupra, Dacia, DS Automobiles, Ferrari, Fiat, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, MAN, Maserati, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volvo
• Asian: Acura, Daewoo, Daihatsu, Fuso, Genesis, Hino, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Mazda, Mitsubishi, Nissan, Perodua, Proton, Renault Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota, UD Trucks
• American: Chevrolet, Chrysler, Dodge, Ford, General Motors, Jeep

---

Package Contents:

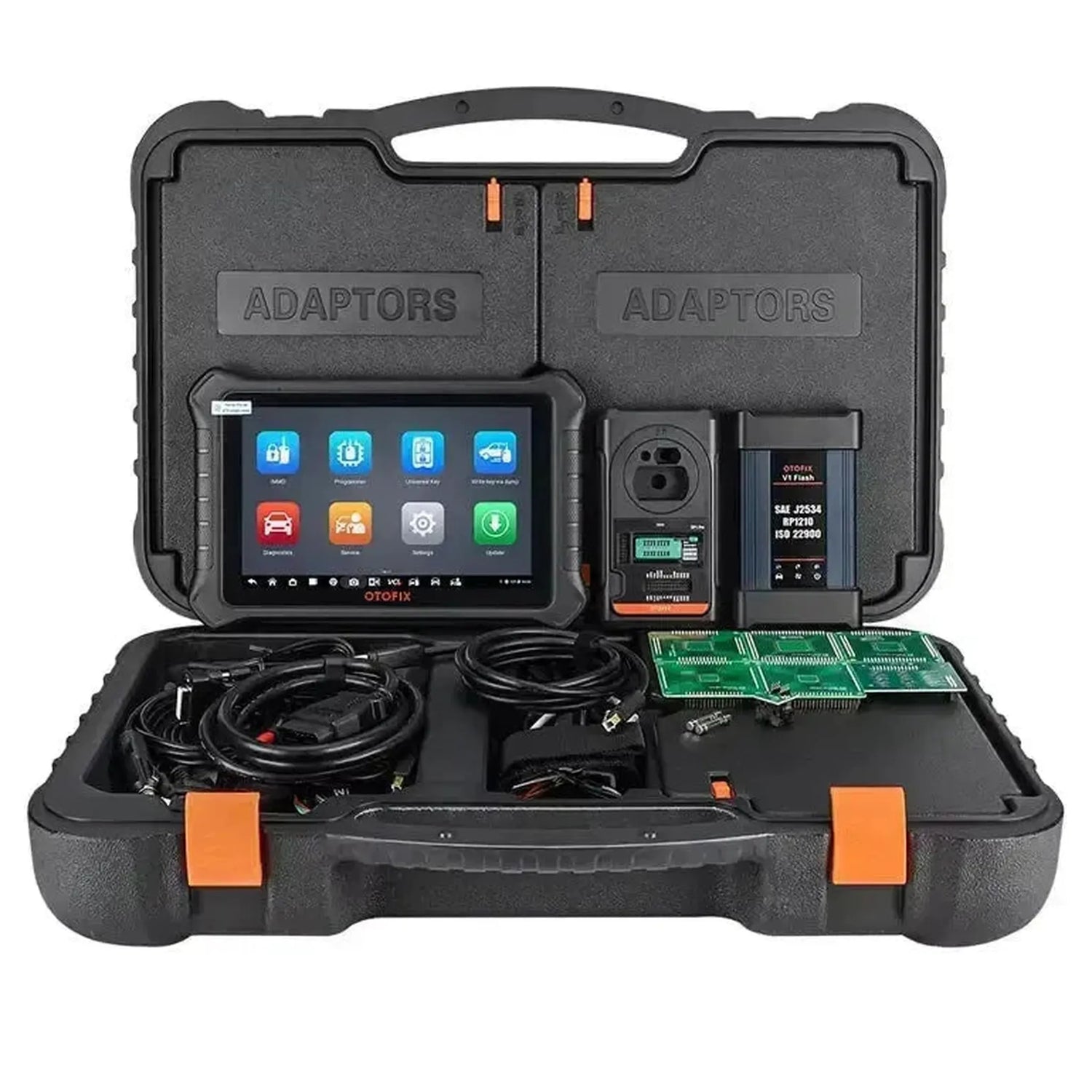

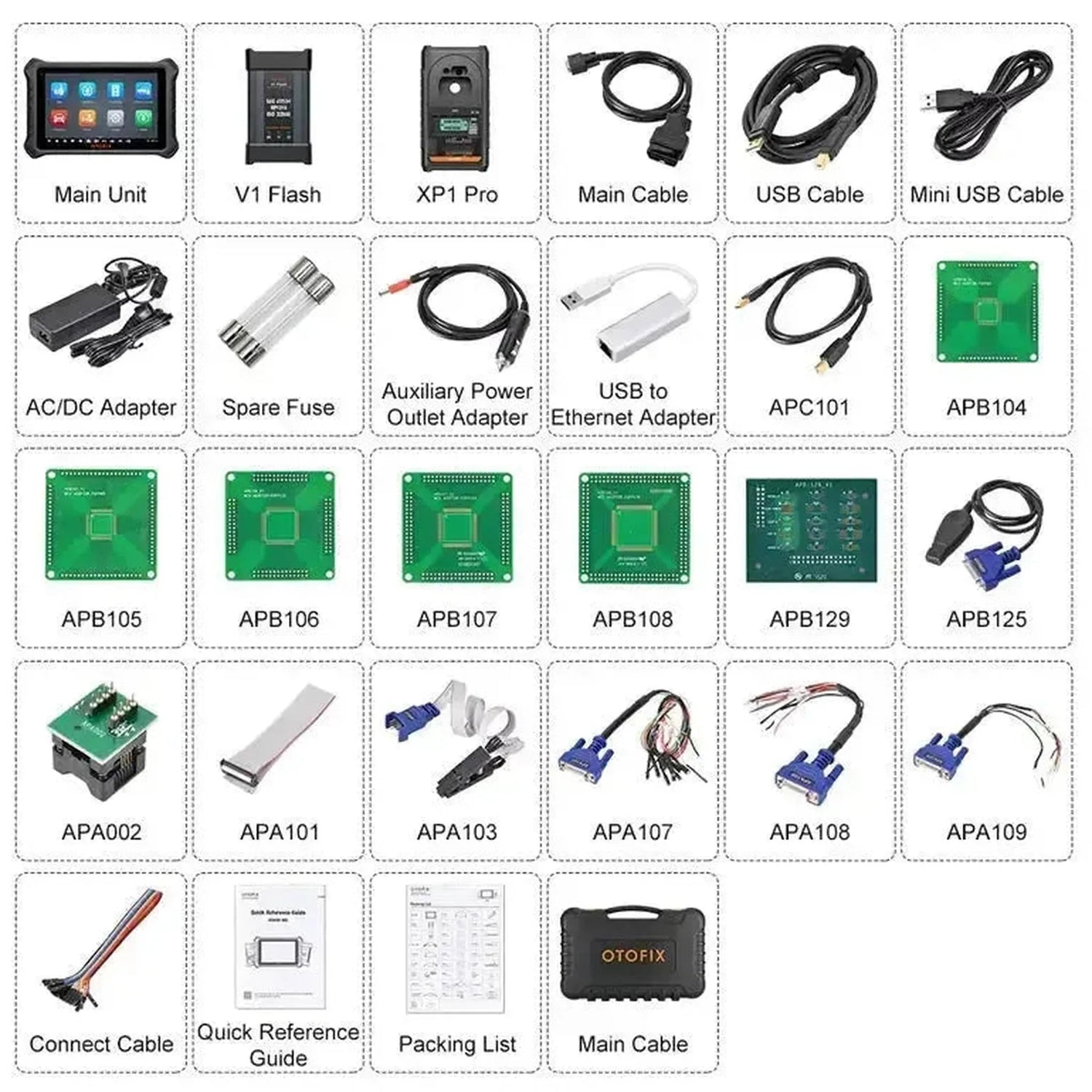

• 1x OTOFIX IM2 tablet
• 1x XP1 Pro key and chip programmer
• 1x V1 Flash (J2534 VCI)
• 1x AC/DC power Adapter
• 1x Main cable
• 1x Auxiliary power Adapter (cigarette lighter)
• 1x Mini-USB cable
• 1x USB cable
• 1x USB to Ethernet Adapter
• 1x Connection cable
• 1x APA002 (EEPROM connector)
• 1x APA101 (Signal cable)
• 1x APA103 (EEPROM clip)
• 1x APA107 (ECU cable)
• 1x APA108 (MCU cable)
• 1x APA109 (MC9S12 cable)
• 1x APB104 (MCU_FQFP64) Adapter
• 1x APB105 (MCU_FQFP80) Adapter
• 1x APB106 (MCU_FQFP112) Adapter
• 1x APB107 (MCU_FQFP144) Adapter
• 1x APB108 (MCU_FQFP176) Adapter
• 1x APB125 (Mercedes infrared collector)
• 1x APB129 (EEPROM Adapter)
• 1x APC101 (USB cable)
• 2x Spare fuse
• 1x Package Contents
• 1x Quick start guide
• 1x Storage case

---

License information:

• Includes 2 years of updates: A software update license for 24 months is included with the purchase.

After the license period expires, the basic functions of the device remain active. Access to online features, software updates, and new vehicle data will be lost. Renewing the license is optional.

---

Technical specifications:

Specification	Description
Product brand	OTOFIX
Product model	IM2
Operating system	Android 10.0
Screen size	10.1 inch
Screen resolution	1920x1200 pixels
Processor	Qualcomm SDM660 Octa-core
RAM memory	4 GB
Package Contents	128 GB
Connectivity	Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 (Type A + Type C), Bluetooth 5.0 + BR/EDR
Camera	16 Megapixel (rear) with flash
Battery	18000 mAh lithium-polymer
