OTOFIX D1 Lite Car Diagnostic Tool

The OTOFIX D1 Lite is a powerful and user-friendly Diagnostic Tool, developed by OTOFIX – the sister brand of Autel. The system is designed for both professional workshops and the serious DIYer who needs reliable vehicle diagnosis and extensive service functionality. Thanks to the combination of Autel software and modern hardware, the device offers a professional experience in a compact and affordable format.

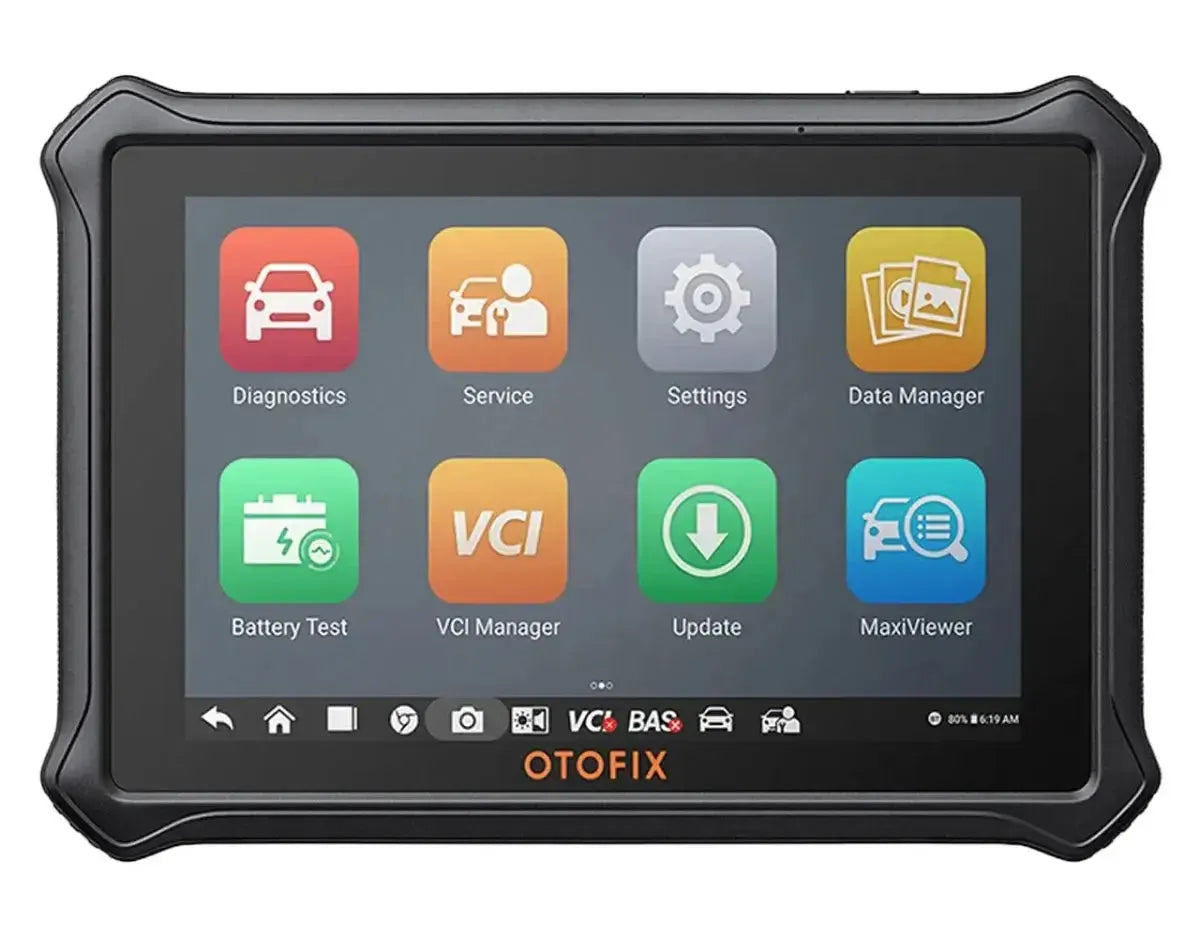

The system is built around a 7-inch Android 9.0 tablet, with an intuitive touchscreen interface and a stable operating system. Communication with the vehicle is wireless via the supplied OTOFIX V1 Bluetooth VCI, which supports modern protocols such as CAN-FD and DoIP. This guarantees a fast and stable diagnosis of even the newest vehicle models. The OTOFIX D1 Lite comes standard with two years of free software updates for more than 80 vehicle brands. After this period, the device remains fully usable with the last installed software, without mandatory renewal.

Diagnostic functions:

The OTOFIX D1 Lite offers extensive diagnostic capabilities at OE level, allowing all electronic systems of the vehicle to be read, analyzed, and tested. Thanks to the fast hardware and wireless VCI, the diagnosis is quick, stable, and suitable for vehicles from more than 80 brands worldwide.

• Complete system diagnosis (OE-level): Access to all control units present in the vehicle, including engine, transmission, ABS, airbag (SRS), body control module (BCM), steering, climate control, dashboard, lighting and more. Reads and clears fault codes with full description.
• Live datastream: Displays real-time sensor data in various display formats, such as text, graphs and analog format. Ideal for monitoring parameters during tests or comparing data between systems.
• AutoVIN technology: Automatically recognizes the vehicle based on the chassis number (VIN) and automatically selects make, model, and year. This speeds up the diagnostic process and prevents input errors.
• Active tests (bidirectional control): Sends commands to components such as cooling fans, pumps, locking motors or EGR valves to check their operation. This function is essential for verifying system functionality without physical disassembly.

Maintenance and service functions:

The OTOFIX D1 Lite supports more than 30 maintenance and service functions, allowing important vehicle systems to be reset, calibrated, or relearned after replacement or maintenance. These functions are suitable for a wide range of makes and models.

• Oil service reset (Service): Resets the maintenance interval and service light after an oil change.
• Electronic parking brake (EPB): Releases and initializes the electric handbrake for safe brake maintenance.
• Battery management system initialization (BMS): Registers a new Battery for correct charging strategy and energy management.
• Steering angle sensor initialization (SAS): Calibrates the steering angle sensor after alignment or steering component replacement.
• Diesel particulate filter regeneration (DPF): Performs a forced regeneration of the soot filter and clears fault codes.
• ABS pump bleeding (ABS): Activates the ABS system to remove air from the brake circuits.
• TPMS reset: Recognizes and learns new tire pressure sensors after replacement.
• Throttle body learning (ETC): Calibration of the throttle position after cleaning or replacement.
• Injector coding: Programs the identification codes of new injectors into the ECU.
• Transmission adaptation (CVT): Resets learning values of the automatic transmission for improved shifting performance.
• Crankshaft sensor learning (TEC): Relearns the crankshaft position after sensor replacement.
• AdBlue reset: Resets the urea injection system after refilling or component replacement.
• Air suspension calibration: Resets the ride height on vehicles with adaptive air suspension.
• Headlight adjustment (AFS): Calibration of adaptive or steering headlights.
• Start/stop settings: Enables or disables the automatic start/stop system.
• Windows and roof initialization: Restores automatic functions of electric windows or sunroofs.
• Seat occupancy sensor initialization (SRS): Calibration of passenger detection for correct airbag activation.
• Transport mode: (De)activates transport mode, for example when delivering new vehicles.

Cloud and reporting functions:

The OTOFIX D1 Lite is equipped with cloud functionality and smart reporting services that accelerate workshop processes and facilitate communication.

• OTOFIX Cloud Report Management: All diagnostic reports are automatically saved in the OTOFIX Cloud, allowing them to be easily managed, archived, and accessed from any device with internet access.
• Easy sharing and printing: Reports can be directly shared via email or wirelessly printed via Wi-Fi from the tablet, without the intervention of a PC. This speeds up customer communication and internal documentation.

Additional features and special capabilities;

The OTOFIX D1 Lite features functions that usually only appear in higher price ranges. This makes the device a future-proof choice for universal workshops and demanding users.

• Support for CAN-FD & DoIP: The included OTOFIX V1 VCI supports modern communication protocols such as CAN-FD and DoIP. This makes the device suitable for the latest vehicle models from among others GM, Ford, BMW, Volvo and Land Rover. This support is exceptional in this price category.
• FCA AutoAuth access: Through a linked AutoAuth account, the system provides authorized access to the Secure Gateway (SGW) of vehicles from Fiat, Chrysler, Jeep and Alfa Romeo. This allows diagnostic and maintenance functions to be fully performed without physical detours.

Optional expansions and modules:

The OTOFIX D1 Lite offers expansion options that further enhance functionality for targeted maintenance and diagnosis.

• Battery analysis (Diagnostic Tool BT1 Lite): Supports direct connection with the Diagnostic Tool BT1 Lite battery tester, which allows a complete diagnosis of the starting, charging, and battery circuit. The results are transmitted wirelessly and displayed on the screen of the D1 Lite.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

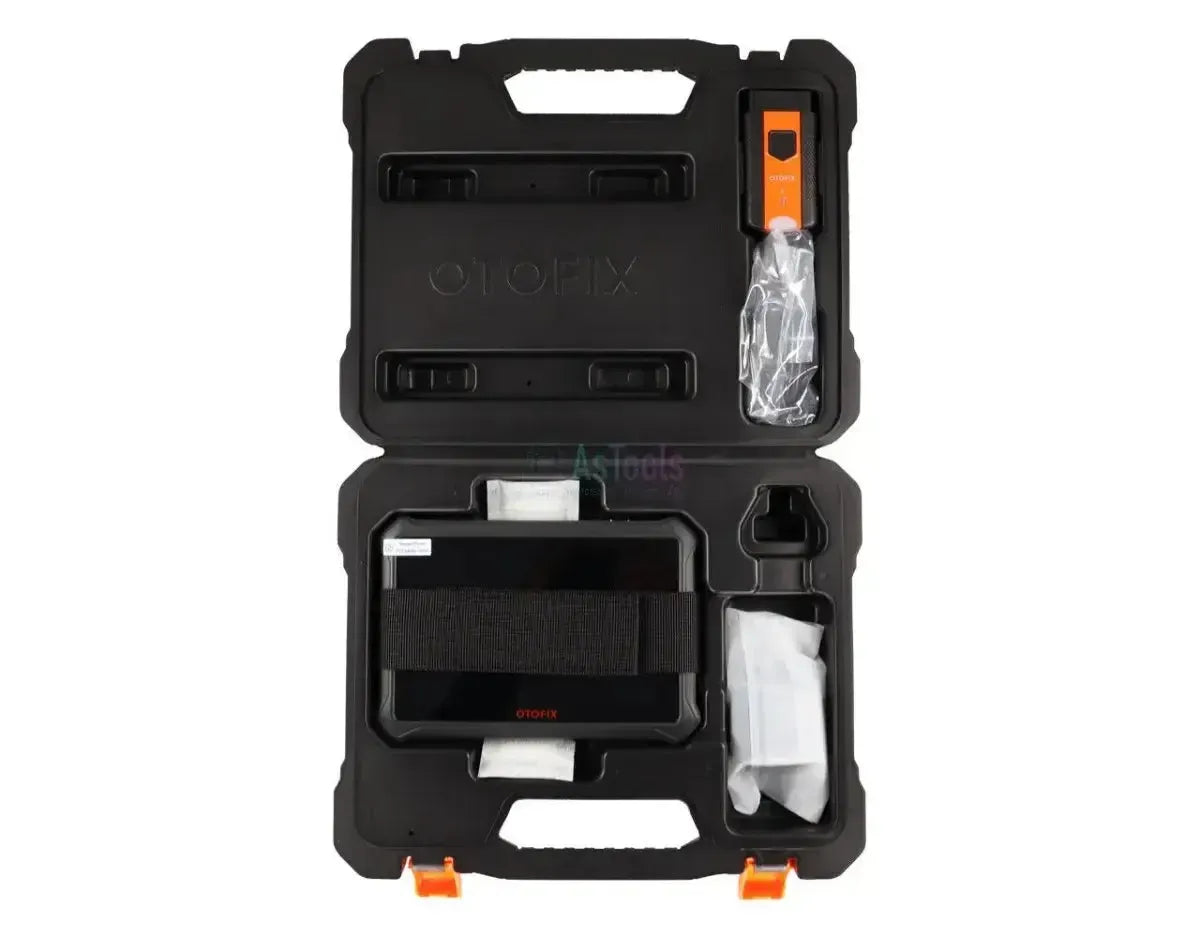

Package contents:

• OTOFIX D1 Lite Diagnostic Tool
• OTOFIX V1 Interface
• USB-A - USB-C Adapter Cable
• USB-C - USB-A/RJ45 Network Adapter Cable
• Charging plug
• Manual

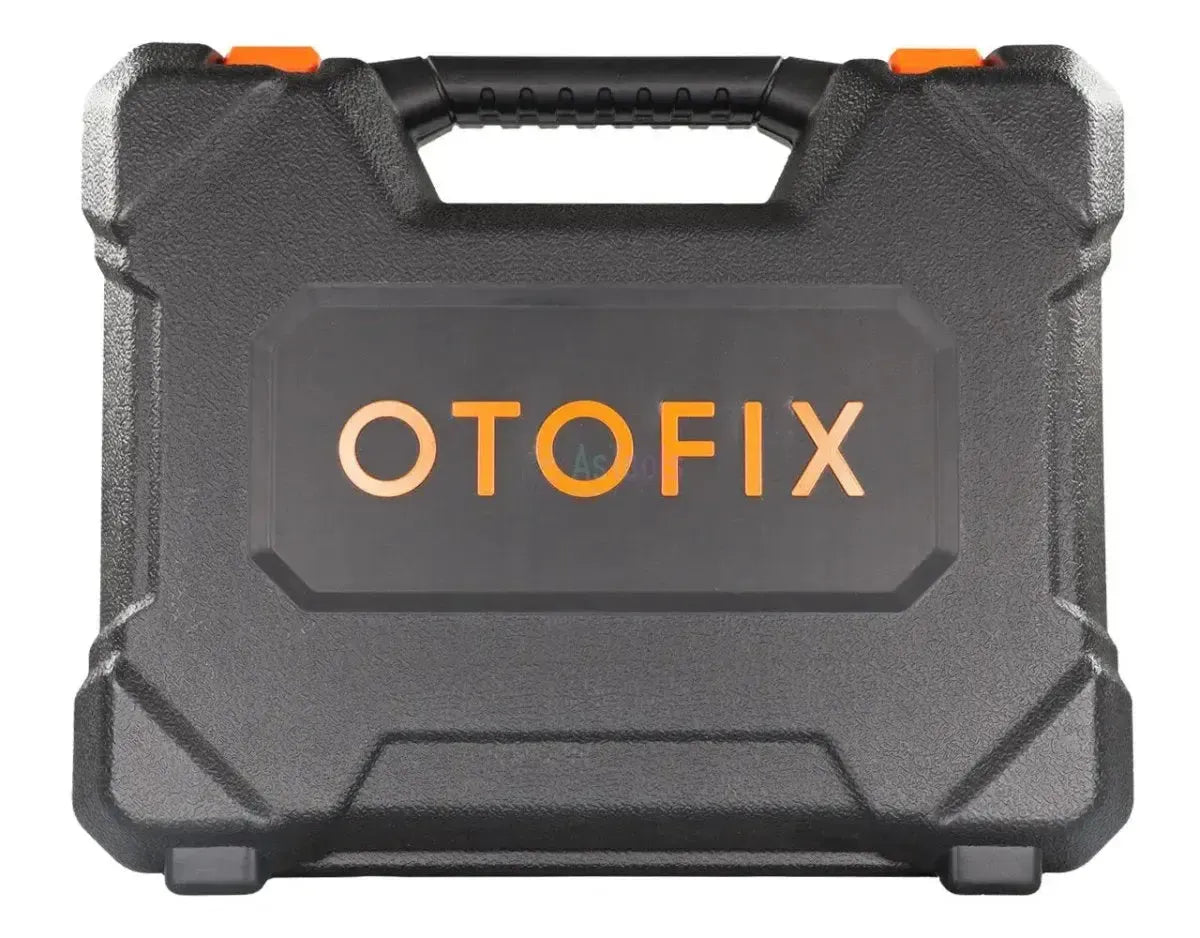

• Storage case

License information:

• Including 2 years of updates: A 24-month update license is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.

Technical specifications
