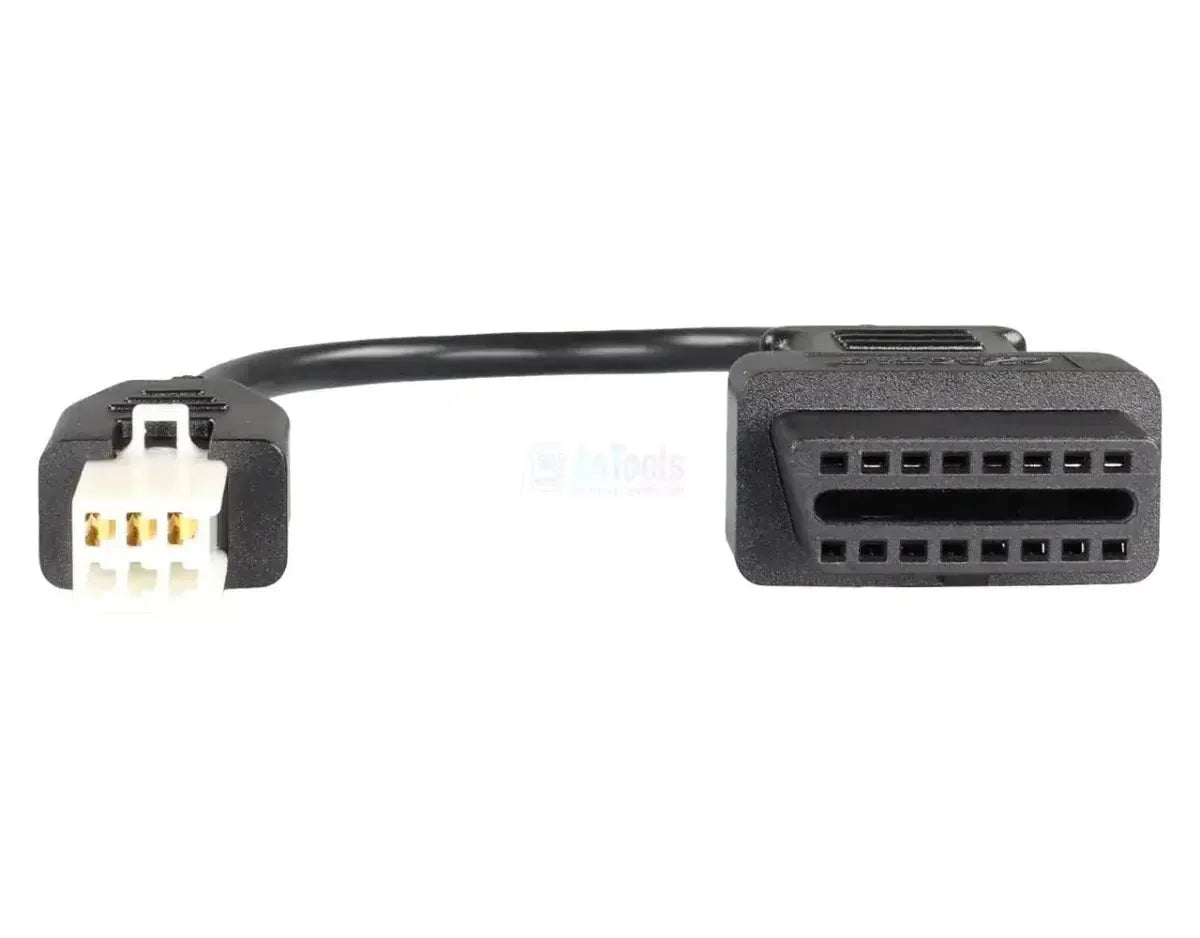

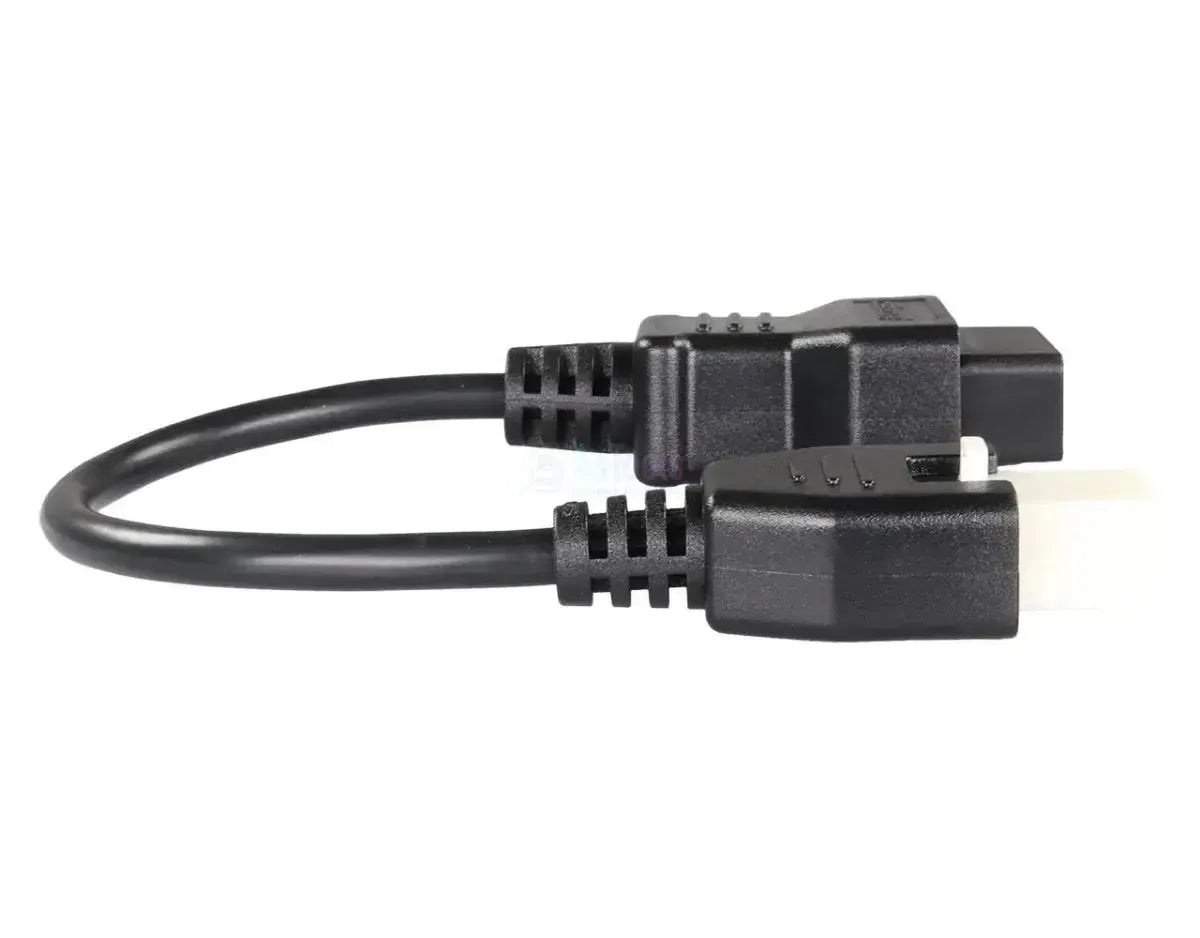

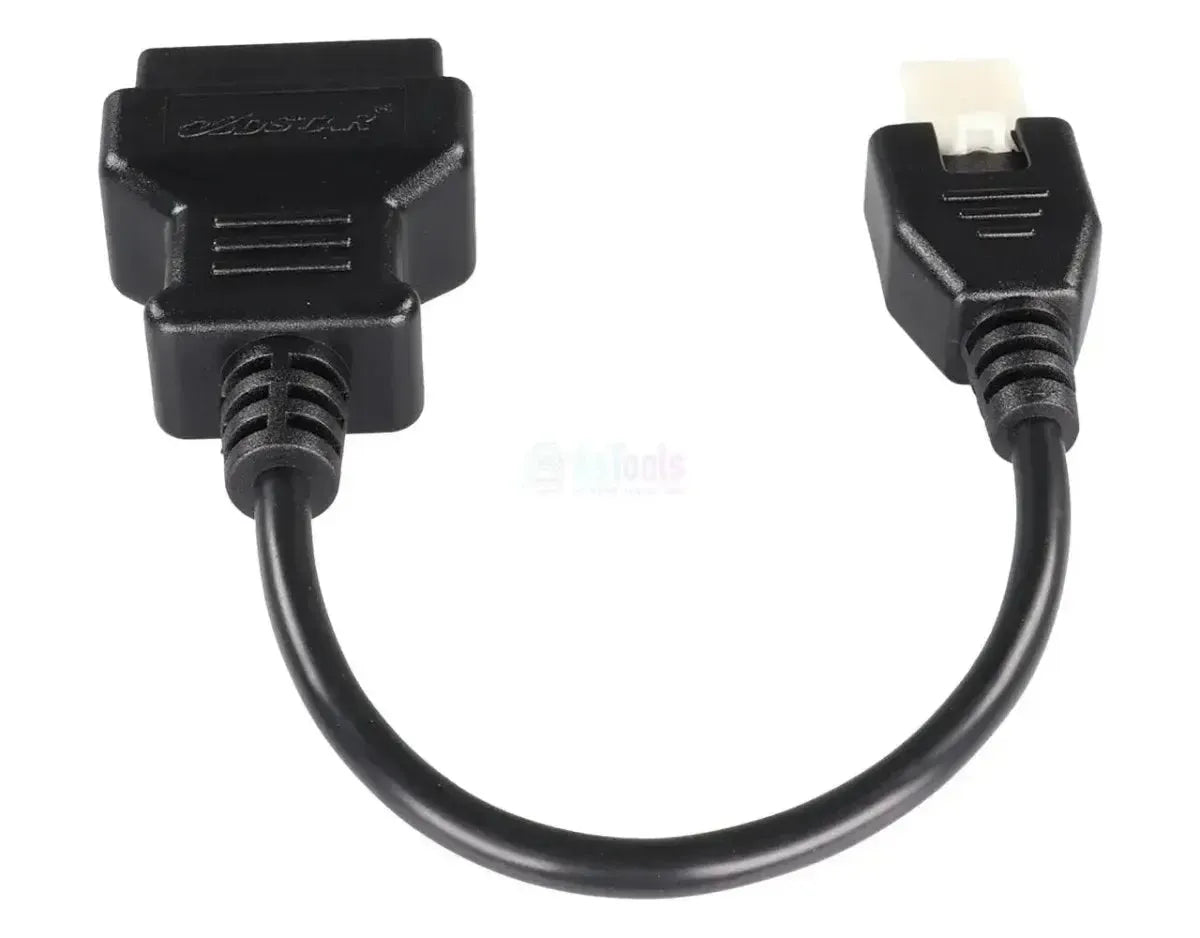

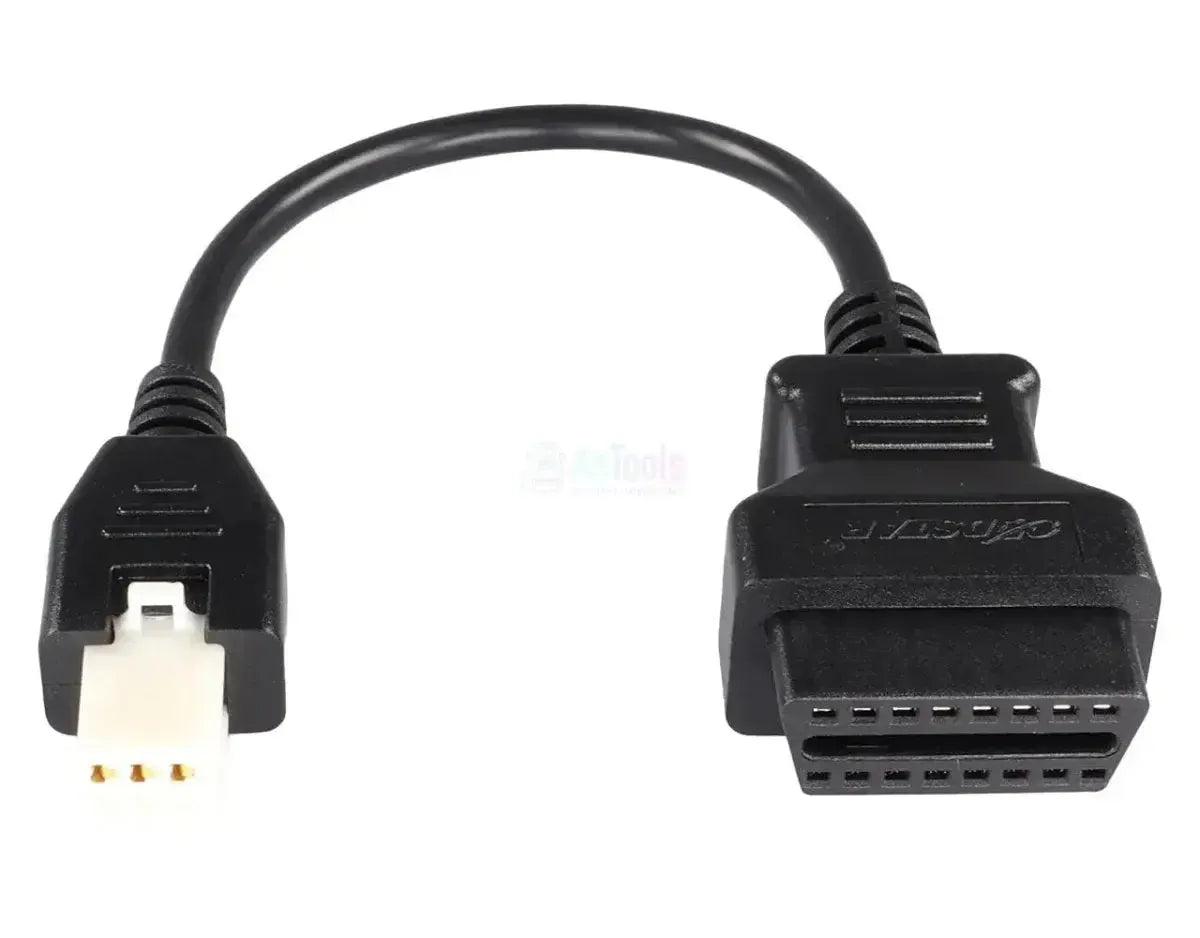

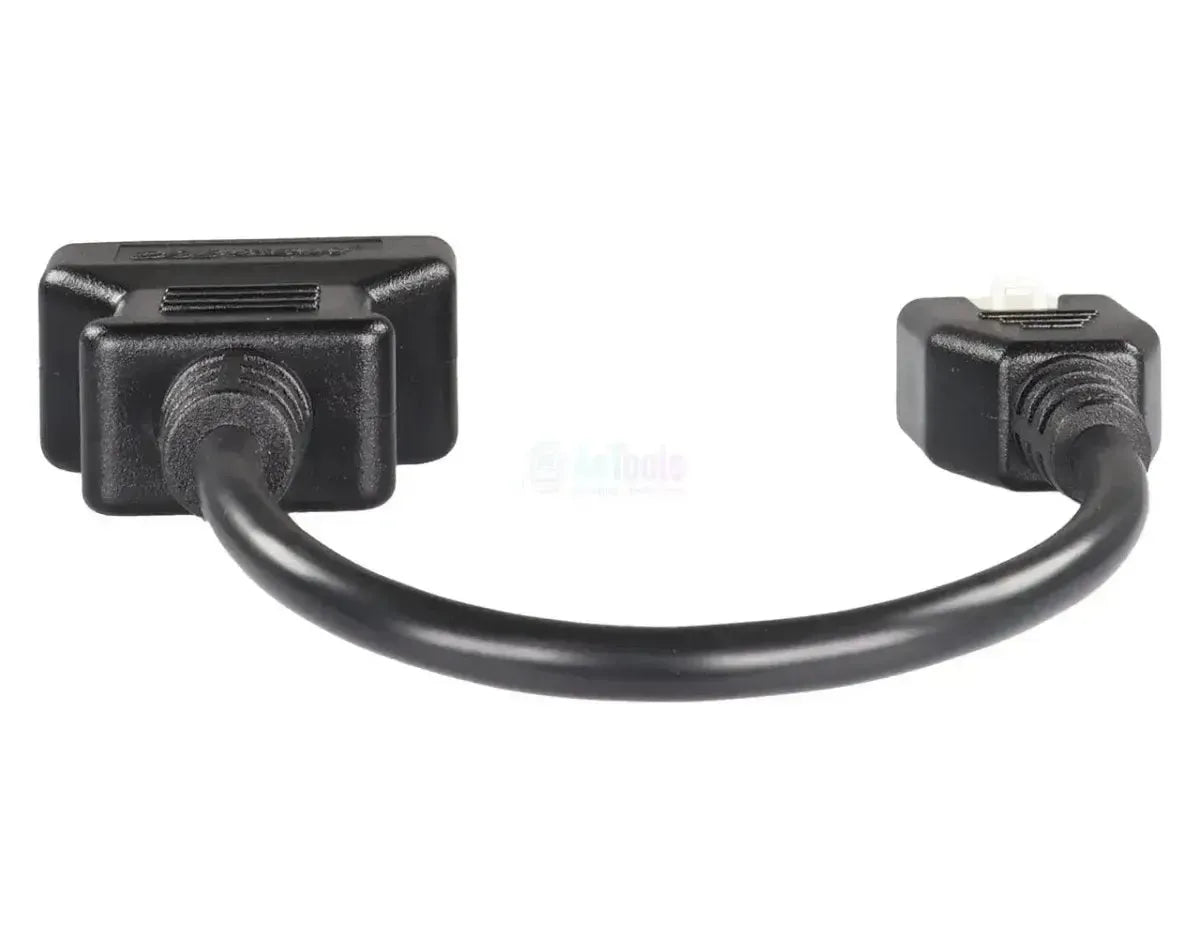

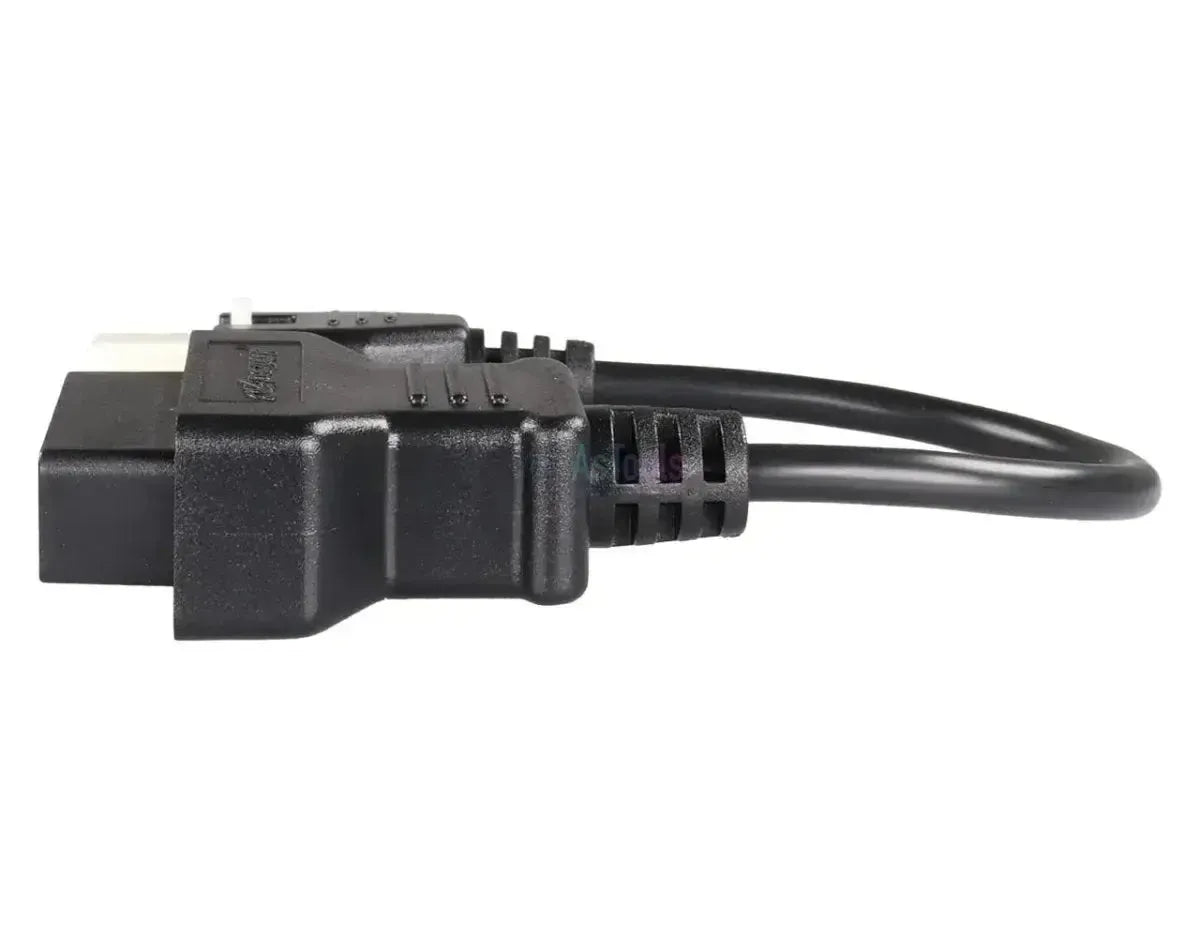

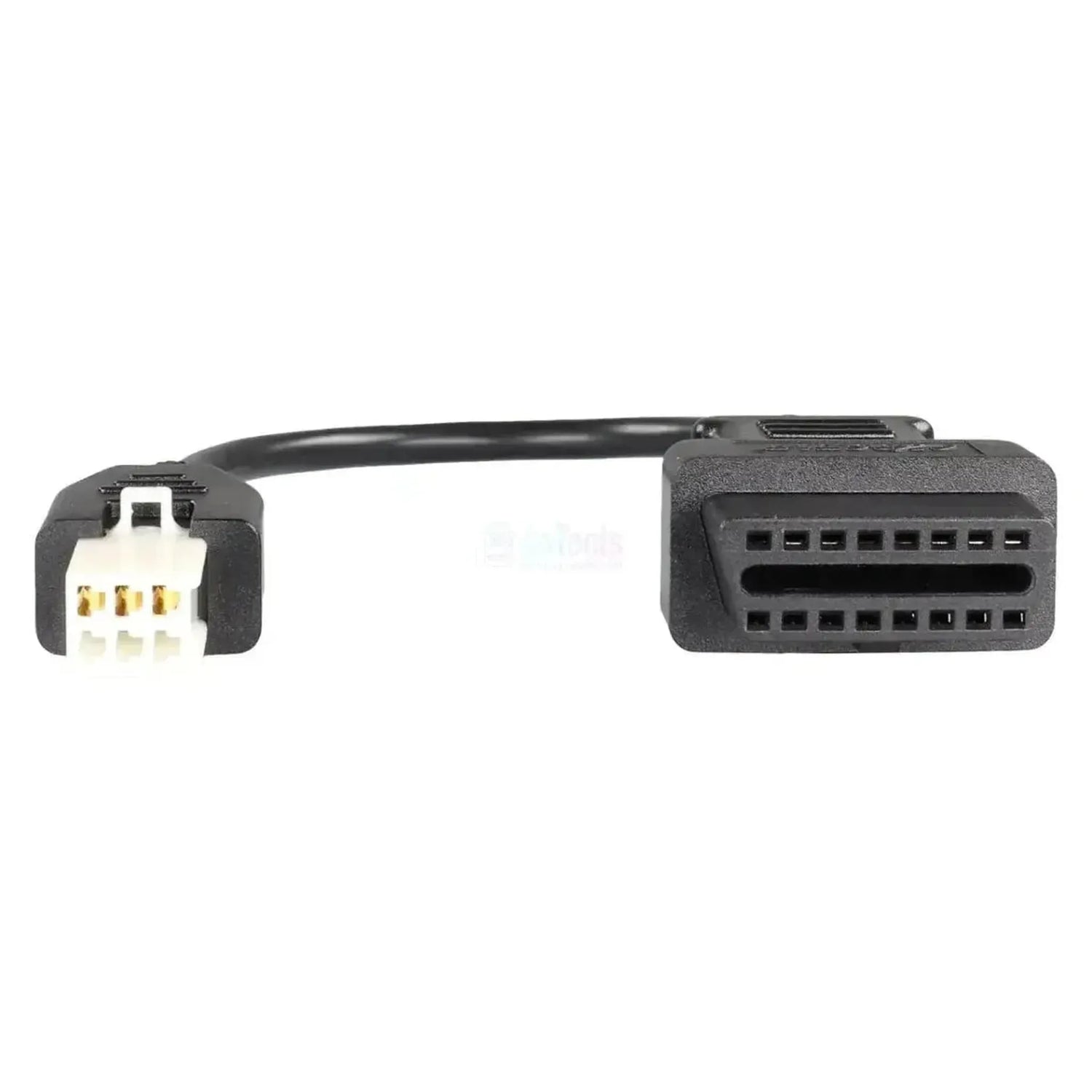

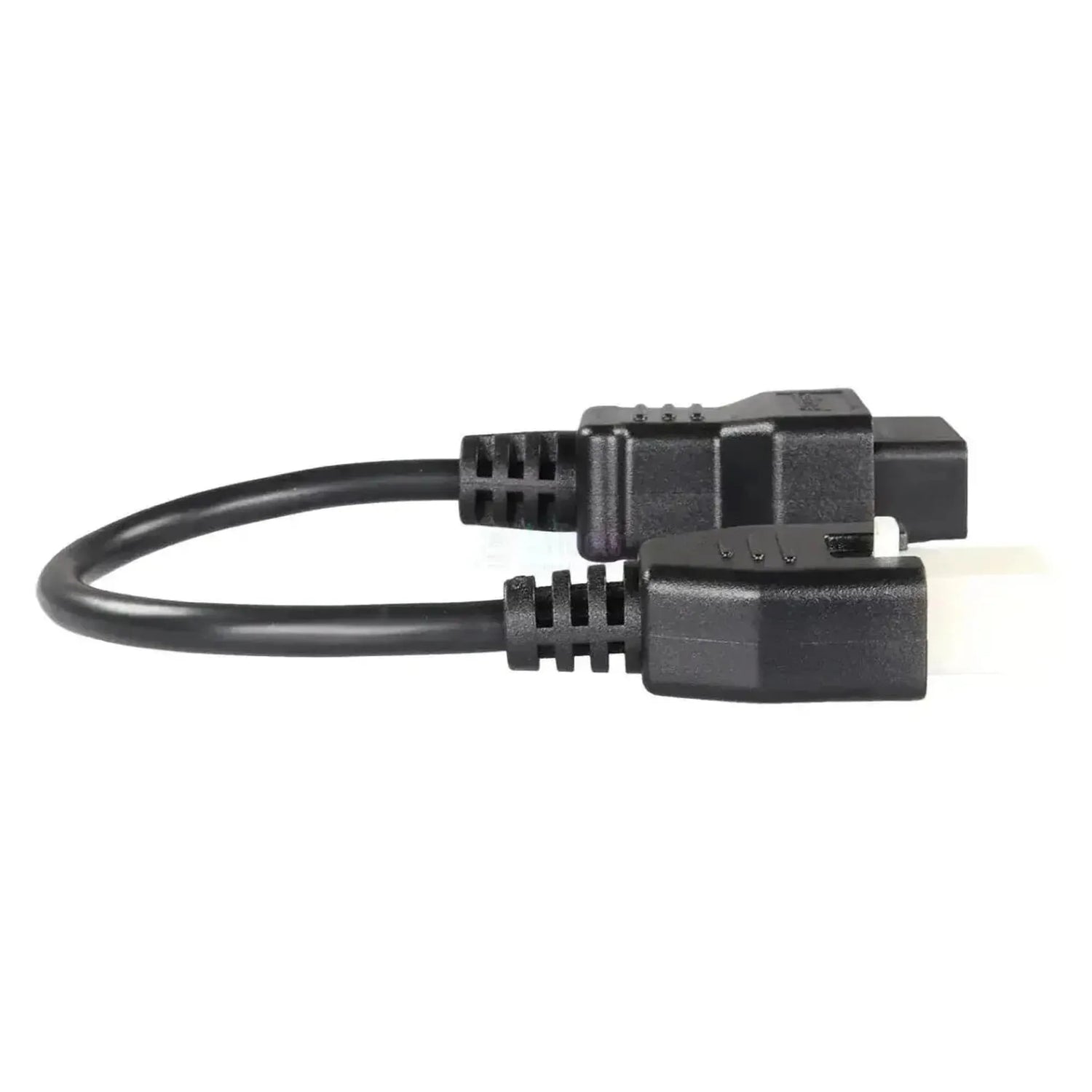

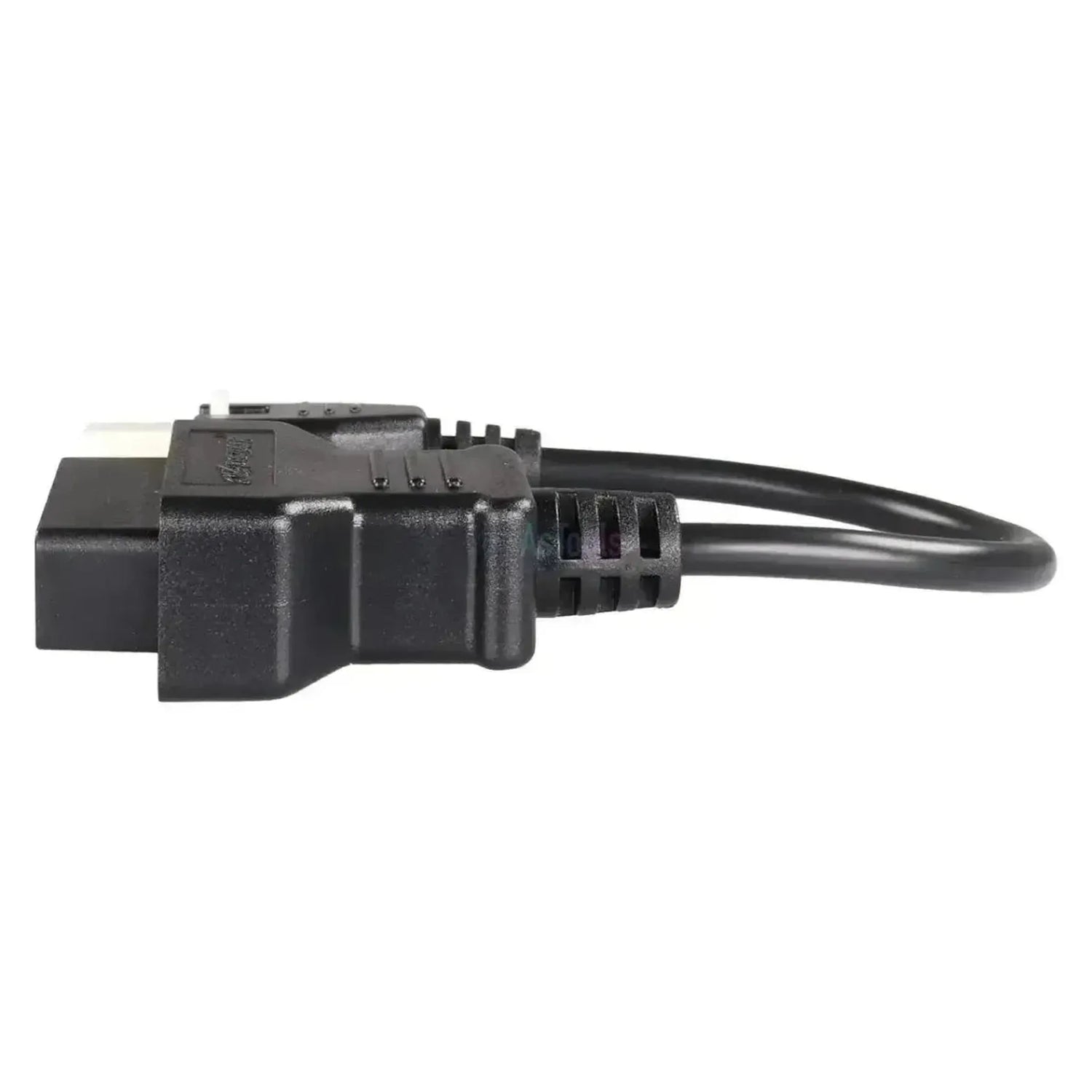

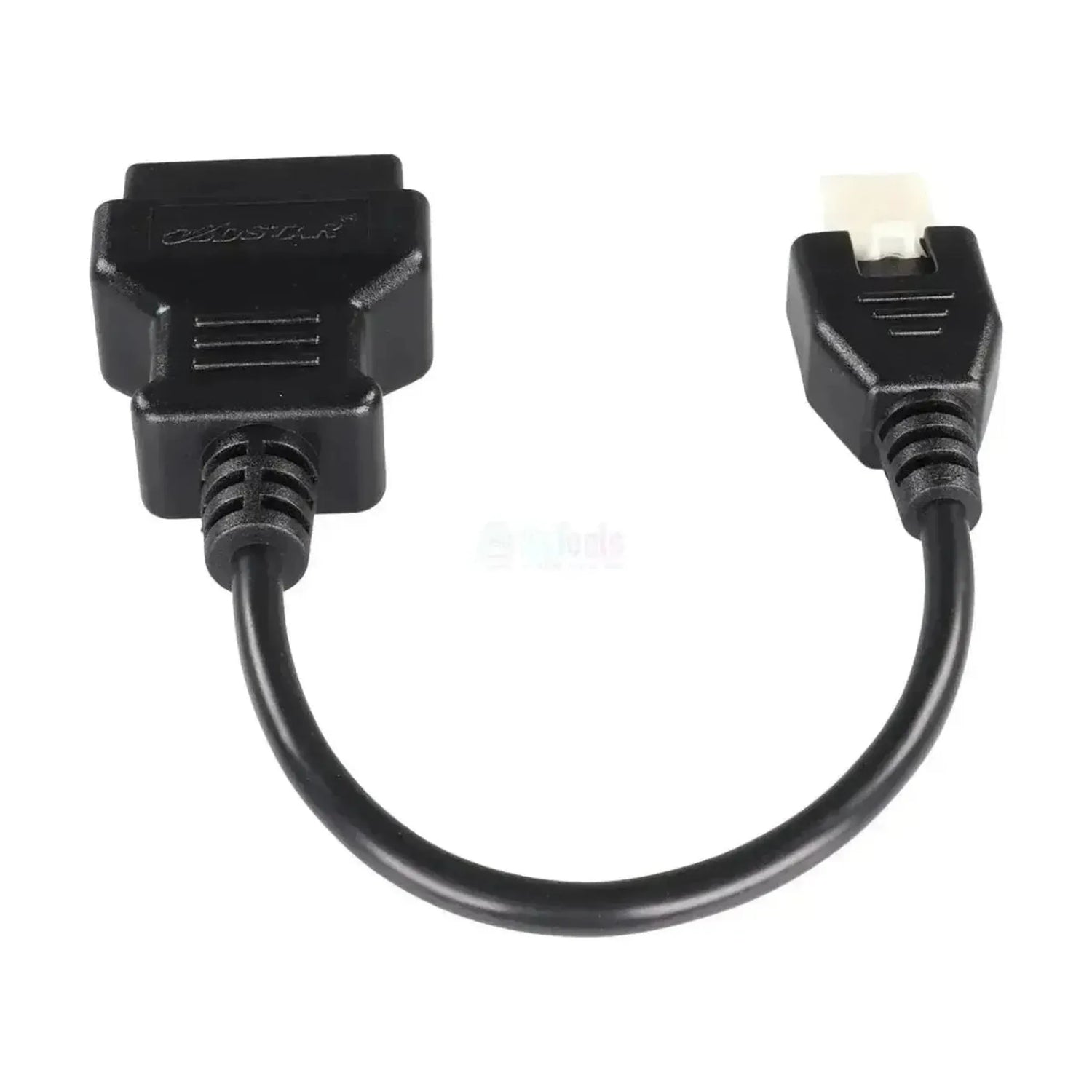

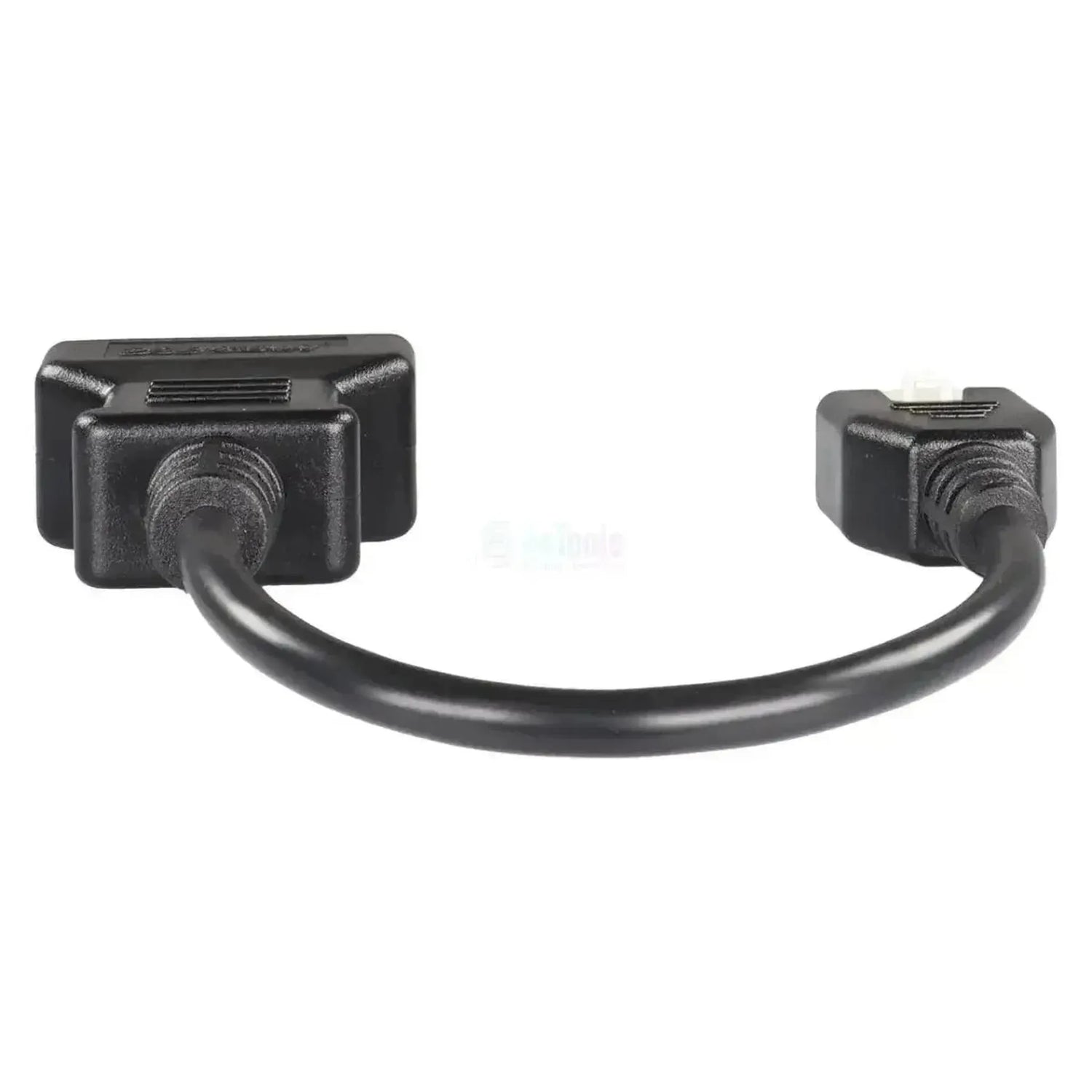

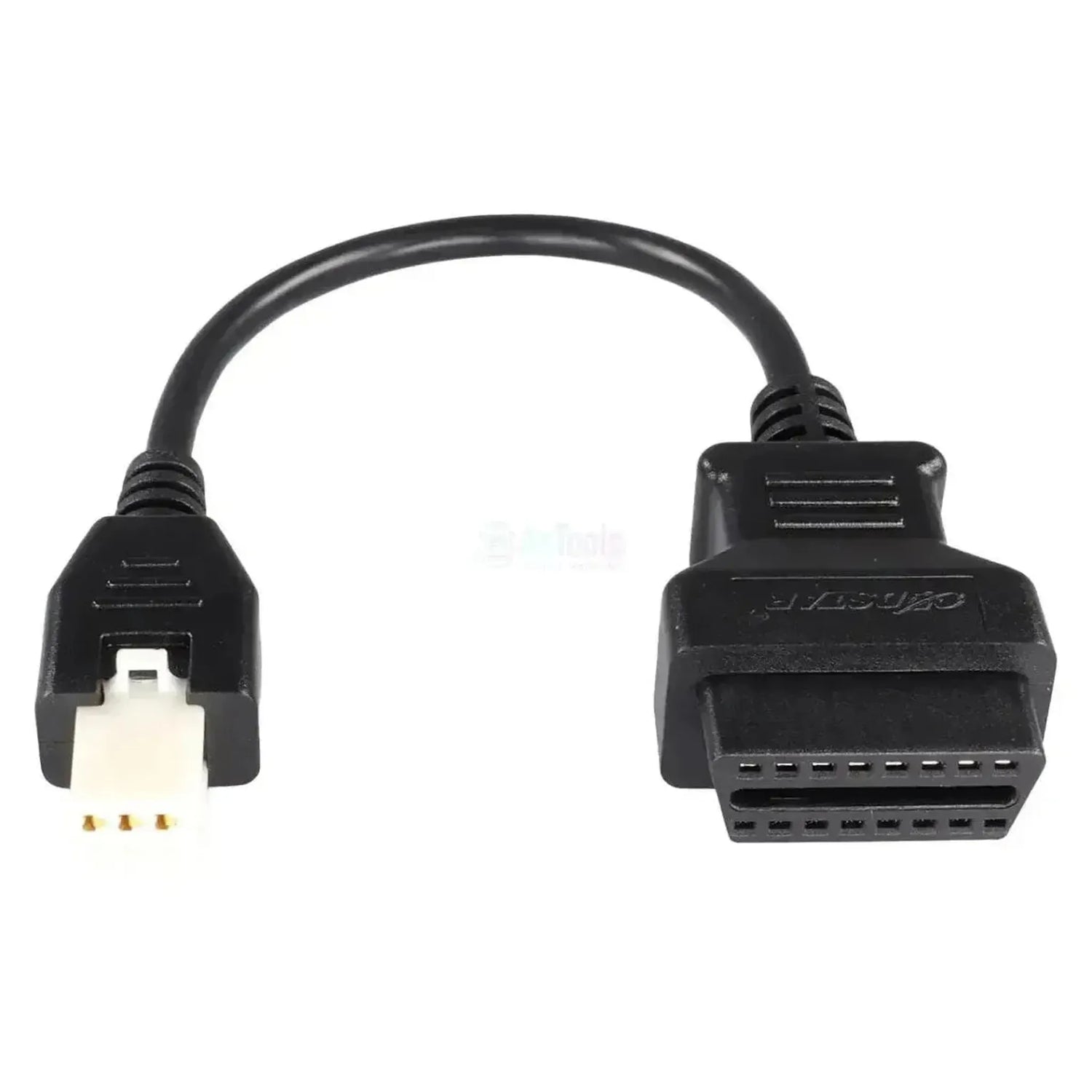

The OBDSTAR M045 is the diagnostic adapter cable for the 6-pin diagnostic connector found on Shineray motorcycles. The vehicle-side connector is a 6-pin plug with a locking mechanism that fits the factory port, whilst the device-side features a 16-pin OBD2 (J1962) connector.
Shineray uses a proprietary 6-pin connector format that differs from the standard automotive OBD2 socket. This cable translates that format to the standardised OBD2 layout, functioning as a mechanical and electrical interface: diagnostic signals are transmitted using the communication protocol present in the vehicle, with no signal processing occurring within the cable itself. The cable establishes the connection to the vehicle's electronic control units. Which models and functions are actually readable depends on your diagnostic device's software.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
This connection provides access to the motorcycle's electronic control units.
Control units you can reach
- Engine control unit: The control unit that communicates via the 6-pin diagnostic port.
- Additional control units: Whether modules beyond the engine system are accessible depends on the motorcycle model and your diagnostic device.
What you can do
- Read fault codes: Retrieve stored diagnostic trouble codes from the motorcycle's electronic control unit.
- Clear fault codes: Erase the fault memory once the fault has been resolved.
- View live data: Read sensor values and operating parameters in real time during diagnostics.
- Perform system diagnosis: Establish communication with available control units for comprehensive system diagnostics.
- Please note: Available functions are determined by your diagnostic device's software and vehicle coverage.
Compatible vehicles and applications
The 6-pin Shineray diagnostic connector type is the determining factor, not the model. No model-specific list with production years has been recorded for this brand; compatibility is based on connector type.
Shineray:
- Shineray motorcycles with 6-pin diagnostic port: Consult the OBDSTAR vehicle list for confirmed models and production years.
Package contents
- 1x OBDSTAR (M045) | Shineray 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | M045 |
| Type | Adapter cable |
| Application | Shineray 6-pin diagnostic port |
| Vehicle-side connection | Shineray 6-pin OBD |
| Device-side connection | 16-pin OBD2 (J1962) |
| Control units | Electronic control units behind the 6-pin port |
| Segment | Motorcycle |
| Supported brands | Shineray |
| Model range | Shineray motorcycles with 6-pin diagnostic port; not specified by model or year of manufacture |
| Required to use | OBDSTAR diagnostic reader with motorcycle coverage, such as the MS50, MS70 or MotoMaster |
| Additional requirements | None; the cable operates without adapter or power supply |
| Weight | 0.1 kg |
