OBDSTAR P50 | Crash Data Programmer

Diagnostic Functions

The P50 offers advanced features for reading and editing SRS modules after a crash. The functions below form the foundation for restoring airbag modules.

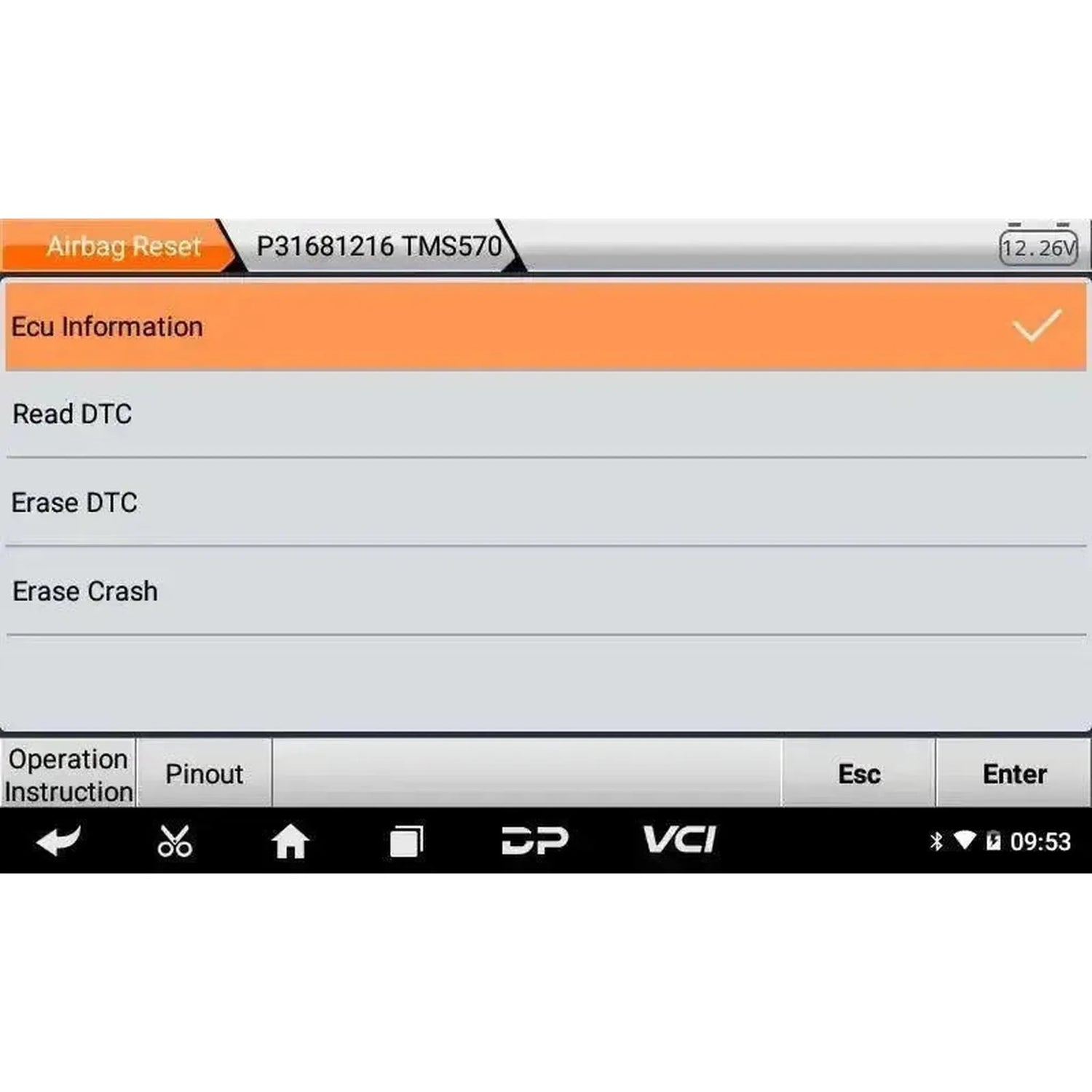

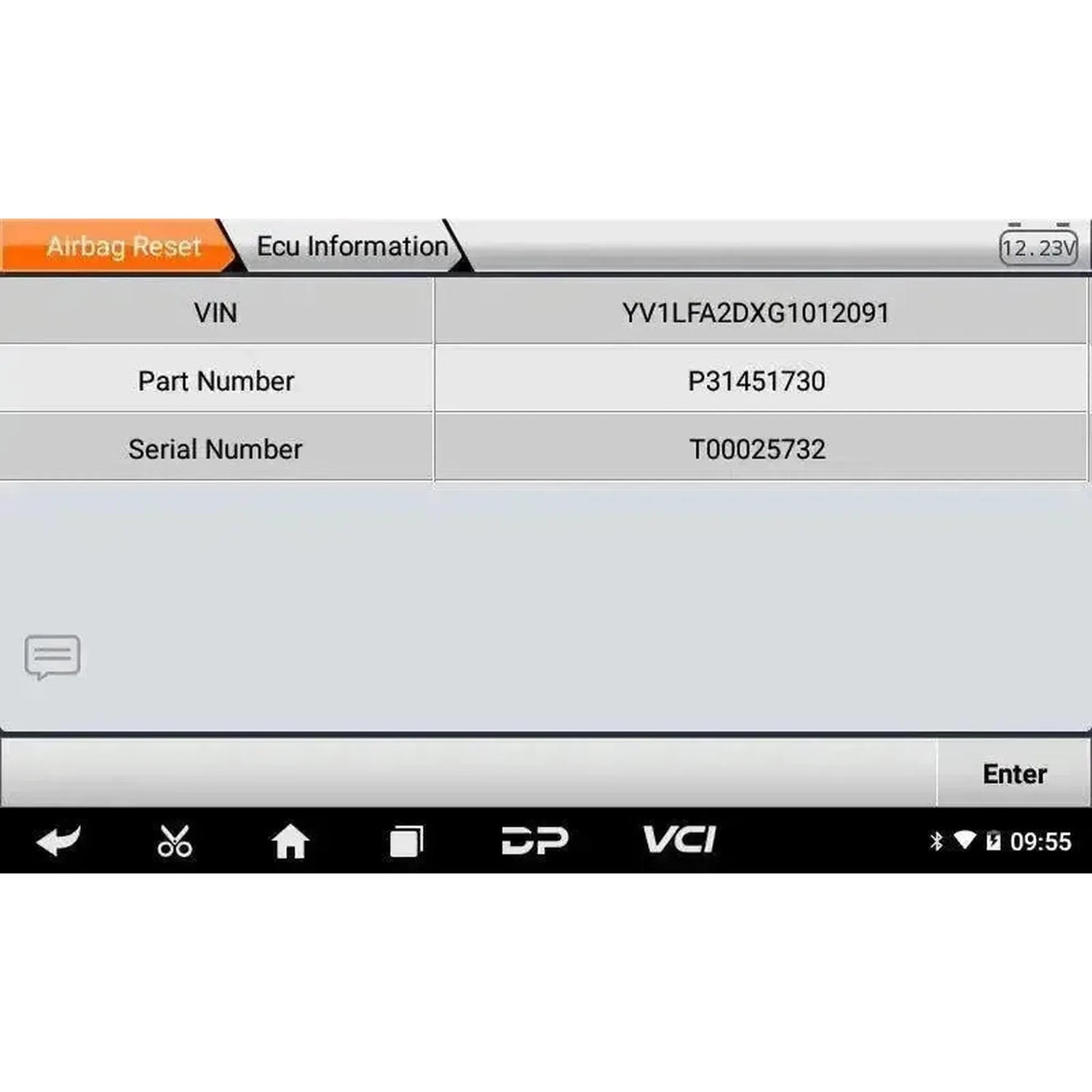

• ECU Info: Read identification data and version numbers from the connected SRS module.

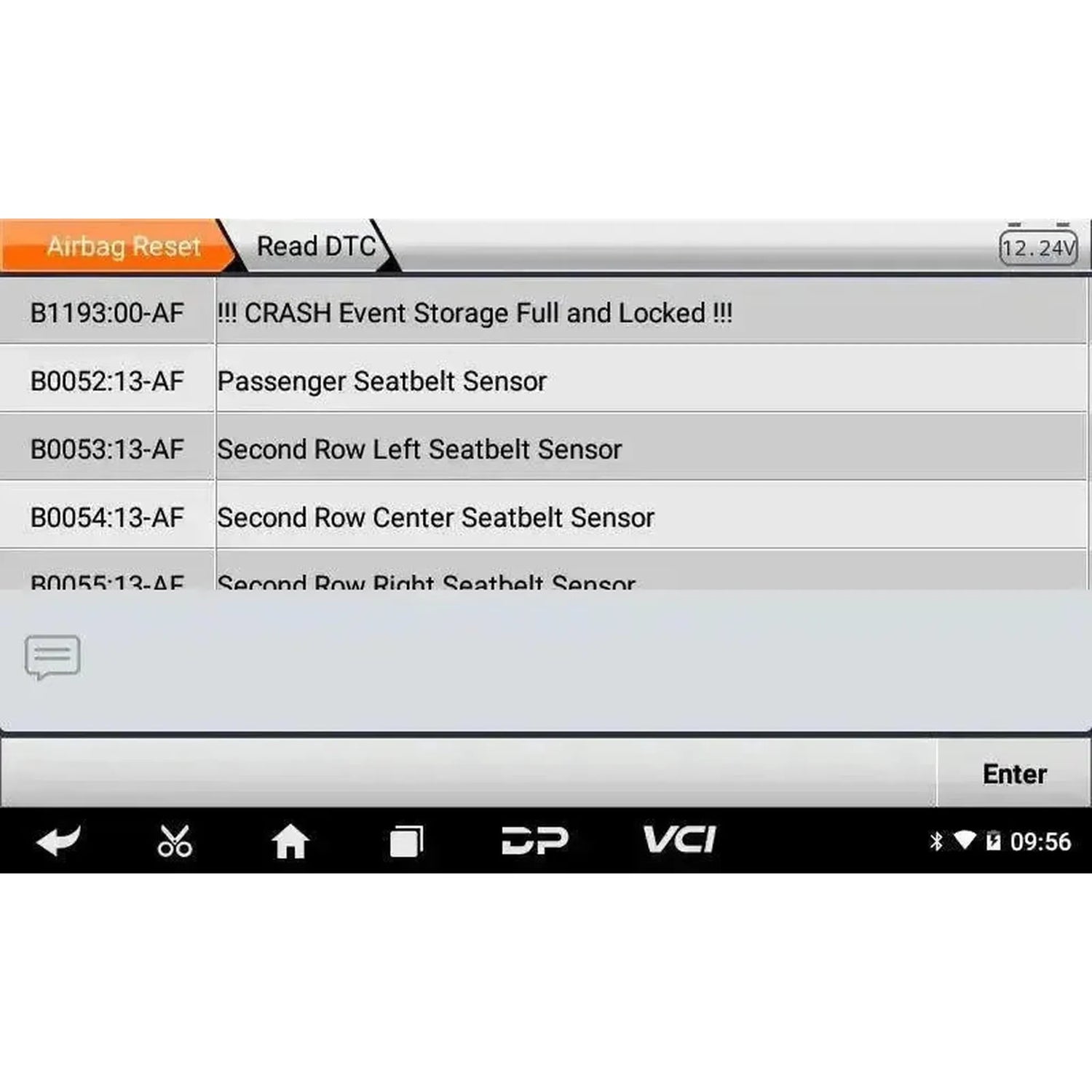

• Read DTC: Read stored fault codes in the airbag module following a collision.
• Erase DTC: Clear fault codes after performing the crash data reset.
• Read EEPROM: Read EEPROM data from the SRS module for backup and analysis.
• Write EEPROM: Write modified EEPROM data back to the airbag module.
• Read FLASH: Reading FLASH memory from the SRS module.
• Write FLASH: Writing data to the module's FLASH memory.

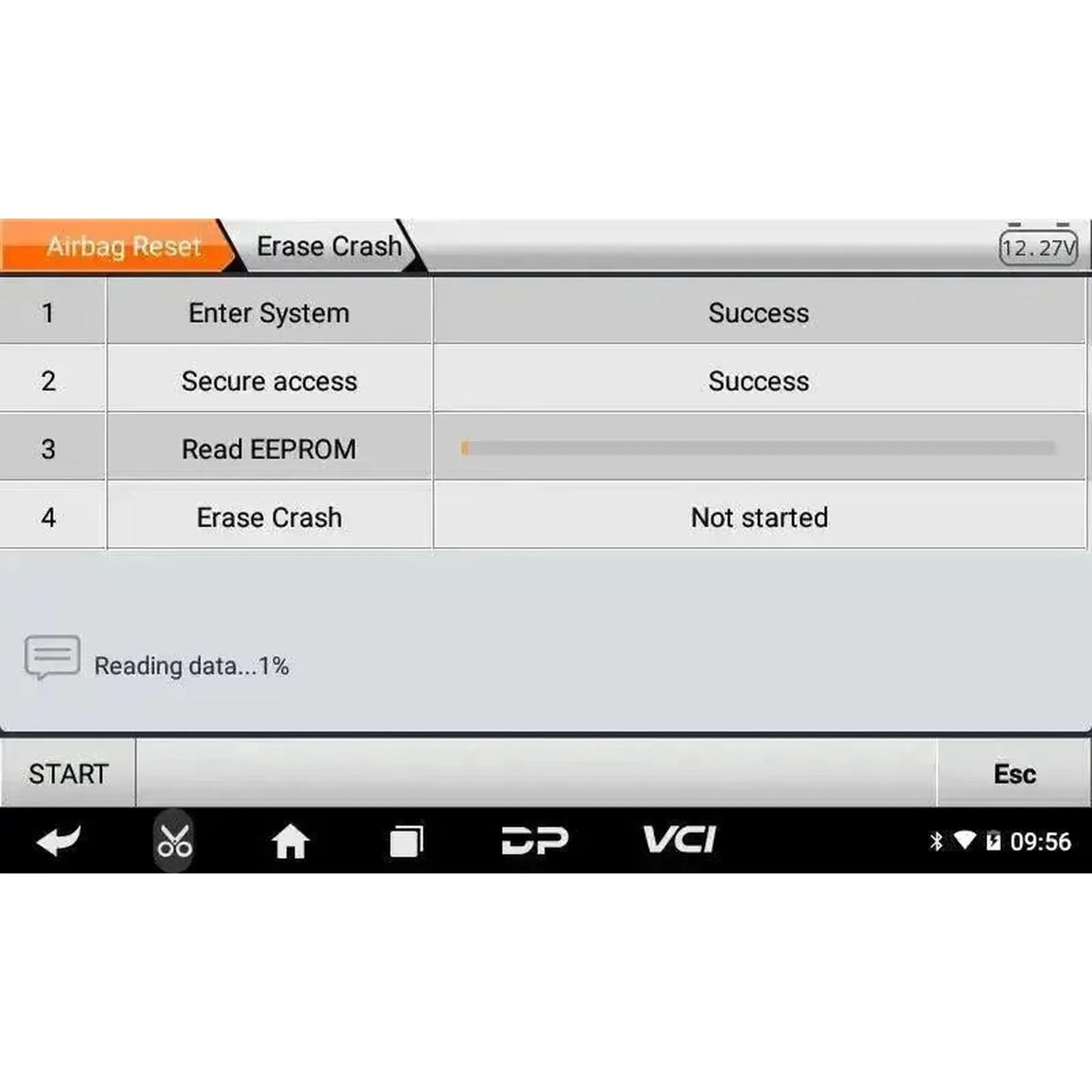

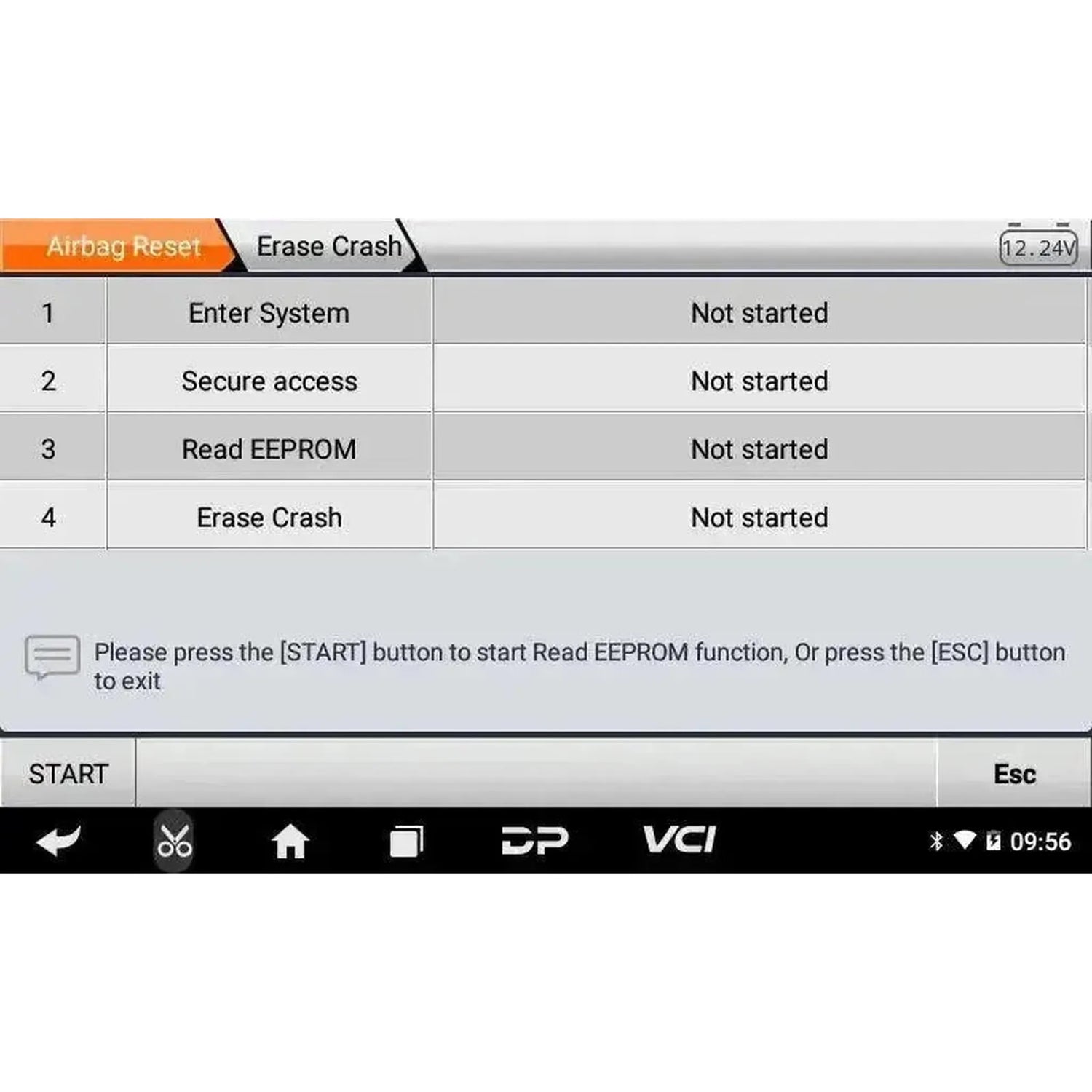

• Erase Crash: Clearing crash data from the airbag module so it can be reused.
• Write VIN: Programming the vehicle identification number to the module after reset or replacement.

Key and EEPROM Functions

For work on EEPROM and FLASH memory of SRS modules, the P50 supports the following functions. These are designed for reading and editing memory data for airbag crash data reset.

• Read EEPROM: Reading EEPROM memory from the SRS module.
• Write EEPROM: Writing custom EEPROM data back to the module.
• Read FLASH: Reading FLASH memory from the airbag module.
• Write FLASH: Writing edited FLASH data to the module.

Service and Maintenance Functions

The P50 supports multiple service and maintenance functions for airbag and related systems. Available functions may vary by vehicle make, model, and year.

Brake and Stability Systems

• SAS reset: Calibrating the steering angle sensor after steering system work or SRS-related procedures.

Electrical and Safety Systems

• Airbag crash data reset: Clearing crash data from the SRS module after a collision, allowing the module to function normally again.
• Battery reset (MVBM): Registering a replaced battery in the battery management system.

Special Functions and Features

In addition to standard reset functions, the P50 offers several tools that speed up and simplify work on SRS modules.

• One-click airbag reset: Performing complete crash data reset with a single command, without manual intermediate steps.

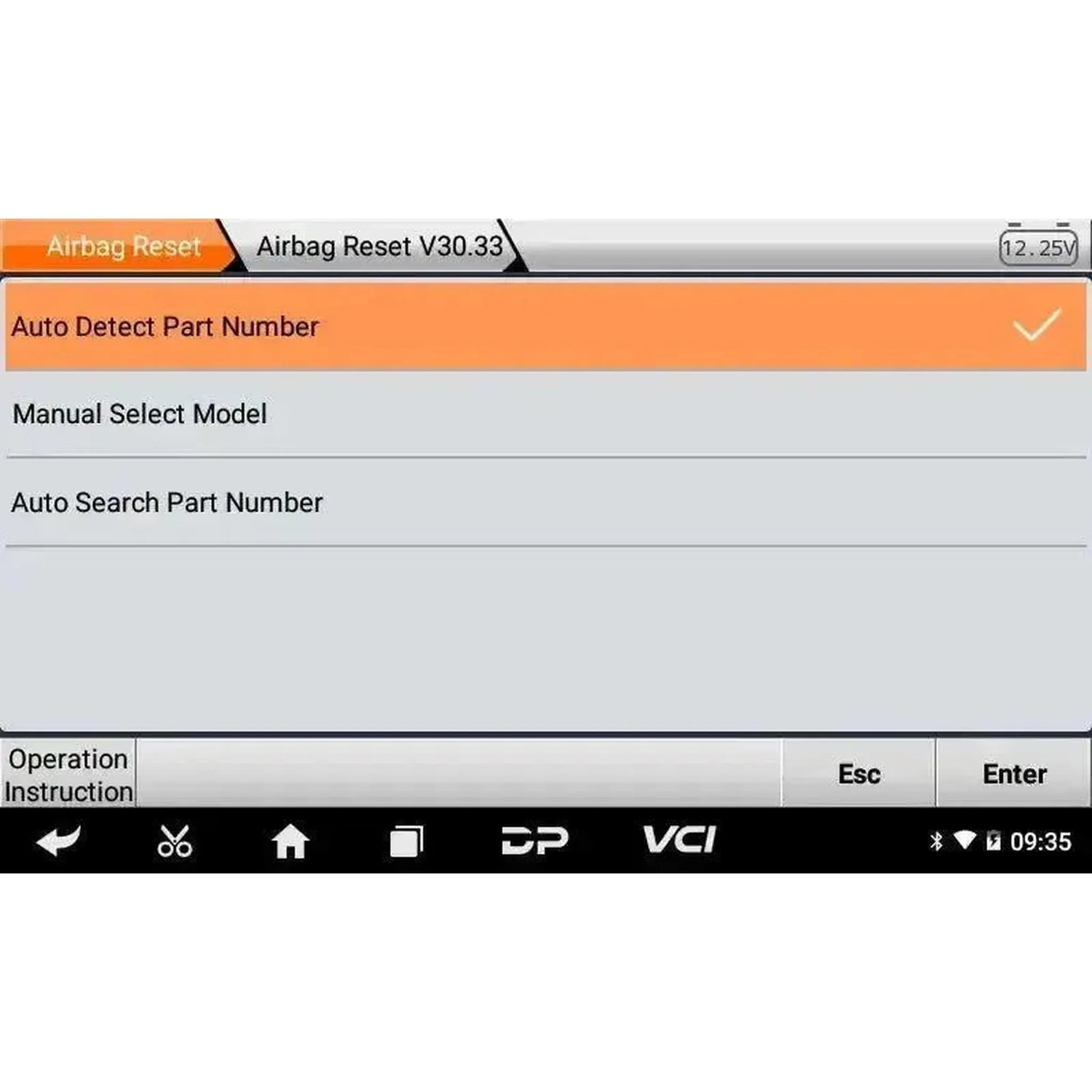

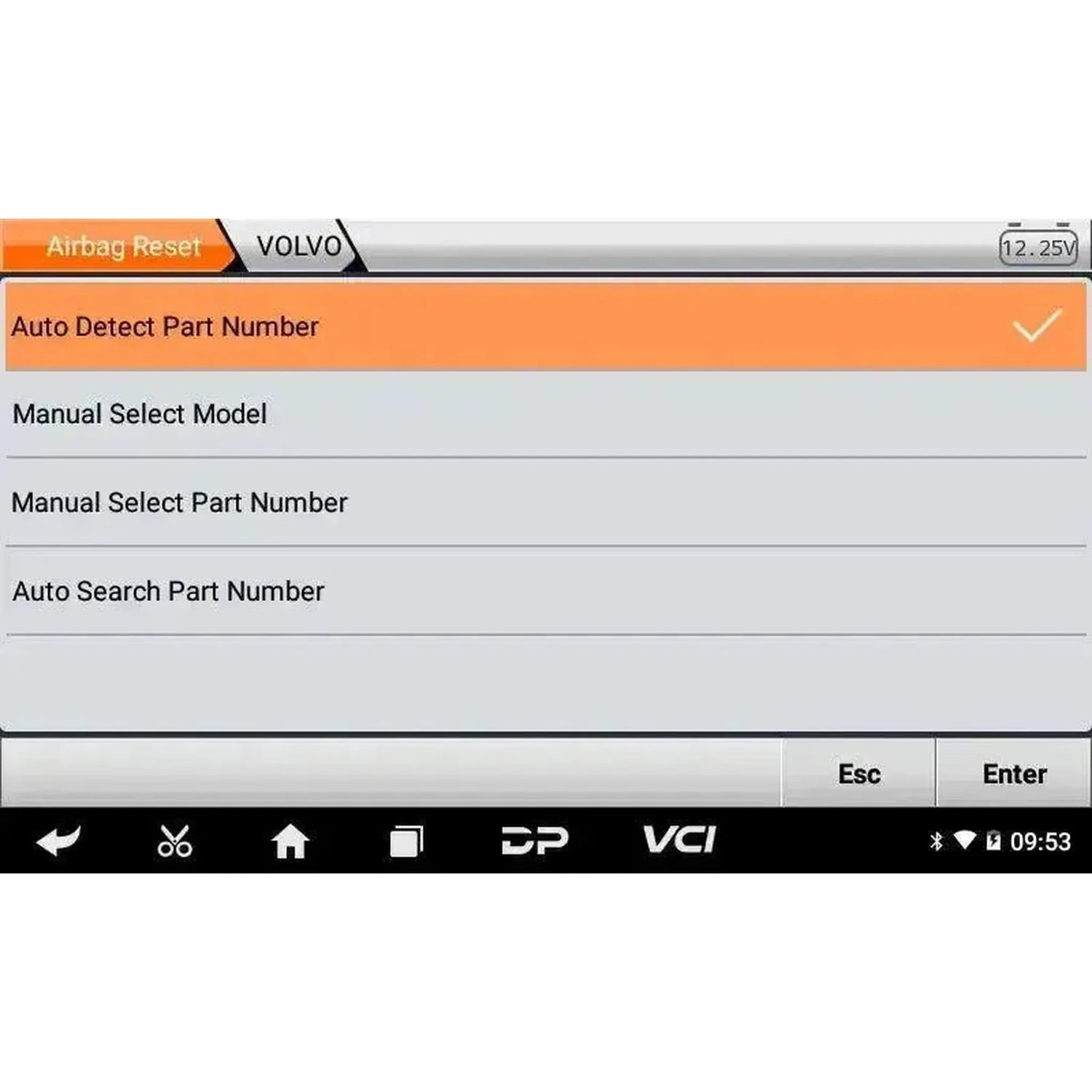

• Fuzzy search for ECU part numbers: Searching by partial part numbers to quickly find the correct procedure within the database of 16,600+ ECUs.

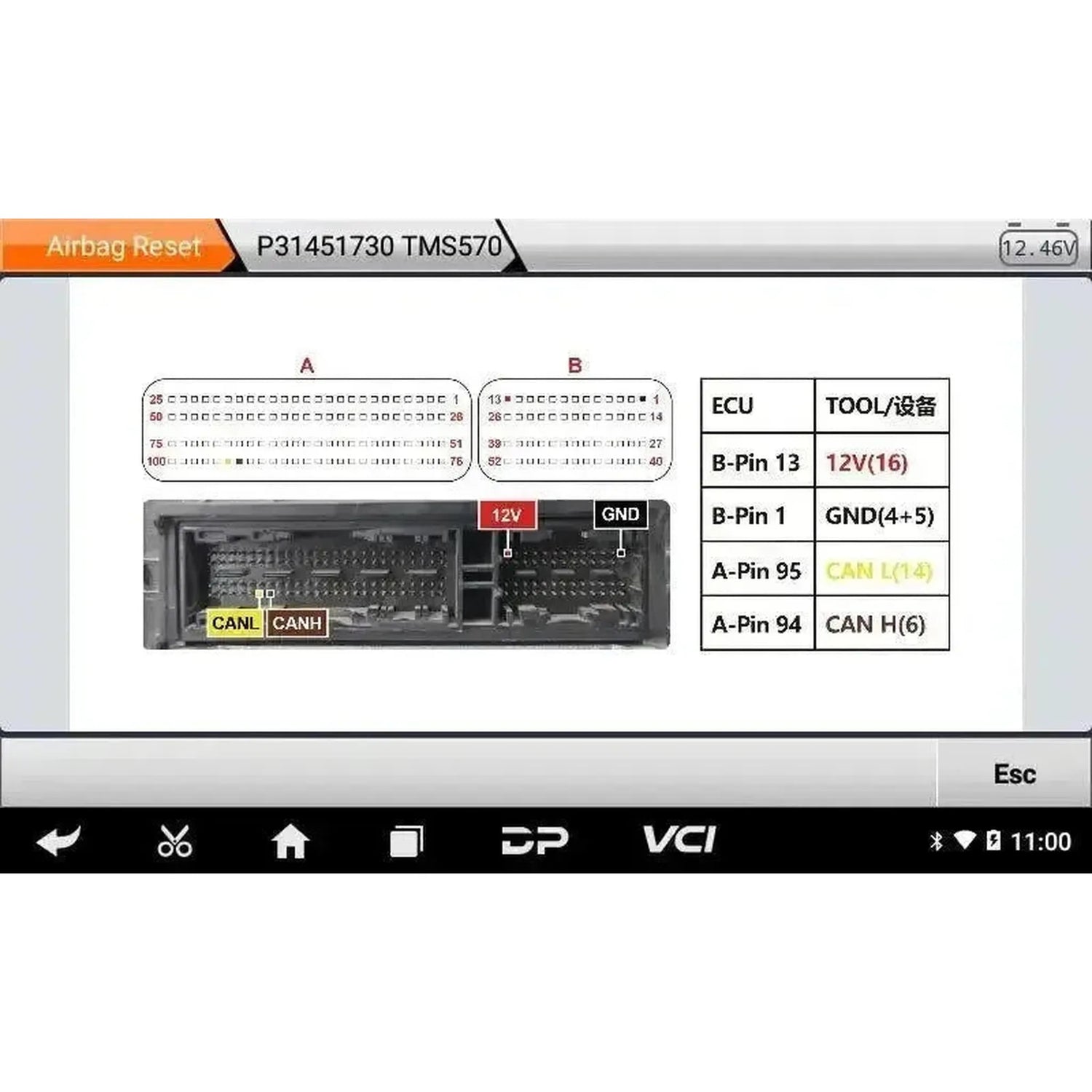

• BENCH mode wiring diagrams: Built-in schematics showing connections for working on removed SRS modules on the workbench.
• Comprehensive fault code descriptions: Complete description files for fault codes related to airbag and SRS systems.

Supported Vehicle Makes

The P50 supports airbag crash data reset on 108 vehicle makes worldwide, distributed across the following regions.

• European: Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Citroën, Dacia, Ferrari, Fiat, Iveco, Jaguar, Lada, Lamborghini, Lancia, Land Rover, Maserati, Mercedes-Benz, MG, MINI, Opel, Peugeot, Polestar, Porsche, Renault, Seat, Skoda, Smart, UAZ, Volvo, Volkswagen
• Asian: Acura, Datsun, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Jeep, Lincoln, Tesla
• Chinese: Aeolus, Baic, Brilliance, Changan, Chery, FAW, Foton, Geely, Great Wall, Haima, Hongqi, Jinbei, JMC, Leopaard, Luxgen, Roewe, SGMW, Zotye

Supported control unit brands:

• Autoliv, Bosch, Chrysler, Continental, Delphi, Denso, Fomoco, Fujitsi, GM, Keihin, Mercedes-Benz, Mobis, Mobis Continental, Mopar, Mopar Bosch, Mopar Continental, Mopar TRW, Naldec, Siemens, Takata, Temic, TRM, TRW, Veoneer, Visteon, ZF

Optional add-ons and expansions

The P50 can be expanded with various hardware accessories that extend its capabilities to bench programming of SRS modules and reading encrypted processors.

Hardware modules and accessories

• BENCH-A V3 Harness: Harness for connecting an SRS ECU on the workbench (bench mode) with the MP001 for diagnostics and programming.
• C4-01 Adapter: Adapter for reading and writing data from common encrypted Microcontroller Units (MCU) and Integrated Circuits (IC).
• C4-06 Adapter: Adapter board for reading data from SRS ECUs equipped with RH850 or V850 processors.
• C4-06-C01 Soldering Adapter: Specialized adapter board for soldering to and reading data from specific types of RH850/V850 processors in SRS modules.
• C4-06-C02 Soldering Adapter: Alternative adapter board for soldering to and reading data from specific types of RH850/V850 processors in SRS modules.
• CAN FD Adapter: Enables communication with vehicles using the faster CAN Flexible Data-Rate protocol for airbag module diagnostics.
• Decryption Jumper Set (5 pieces): Set of specialized jumper wires for establishing a decryption connection on SRS ECUs.
• J-E *6 Jumper Cable: Specialized jumper cable for making specific connections on an ECU circuit board during bench programming.
• MP001 Programming Module: Multifunctional programmer that works with the P50 for reading and writing data from various automotive ICs and MCUs.
• W004 Connection Cable: Connection cable with a 10-pin connector for connecting ECUs or adapters for reading and writing MCU data.
• W005 Connection Cable: Connection cable with a 6-pin connector, used for connecting specific ECUs or adapters for data reading.
• W010 Connection Cable: Connection cable for connecting adapters from the RH850/V850 kit to the programmer for reading SRS data.
• W010A Adapter Board: Specialized adapter board used within the RH850/V850 kit for soldering and reading encrypted processor data.

License information

When you purchase the OBDSTAR P50, a software license is included that provides access to the airbag crash data database and related features. The license is tied to your device's serial number and is activated after registration.

• License period: Valid for 1 year from the date of purchase and device activation.
• Software updates: Access to new ECU part numbers, additional vehicle makes and models, expanded wiring diagrams for BENCH mode, and improvements to existing reset procedures.
• Advanced features: An active license is required to access the latest airbag database, error code description updates, and new vehicle support.
• After license expiration: The device remains fully functional with the last installed software version, but new updates and feature expansions become available again only after renewing your license.

Package contents

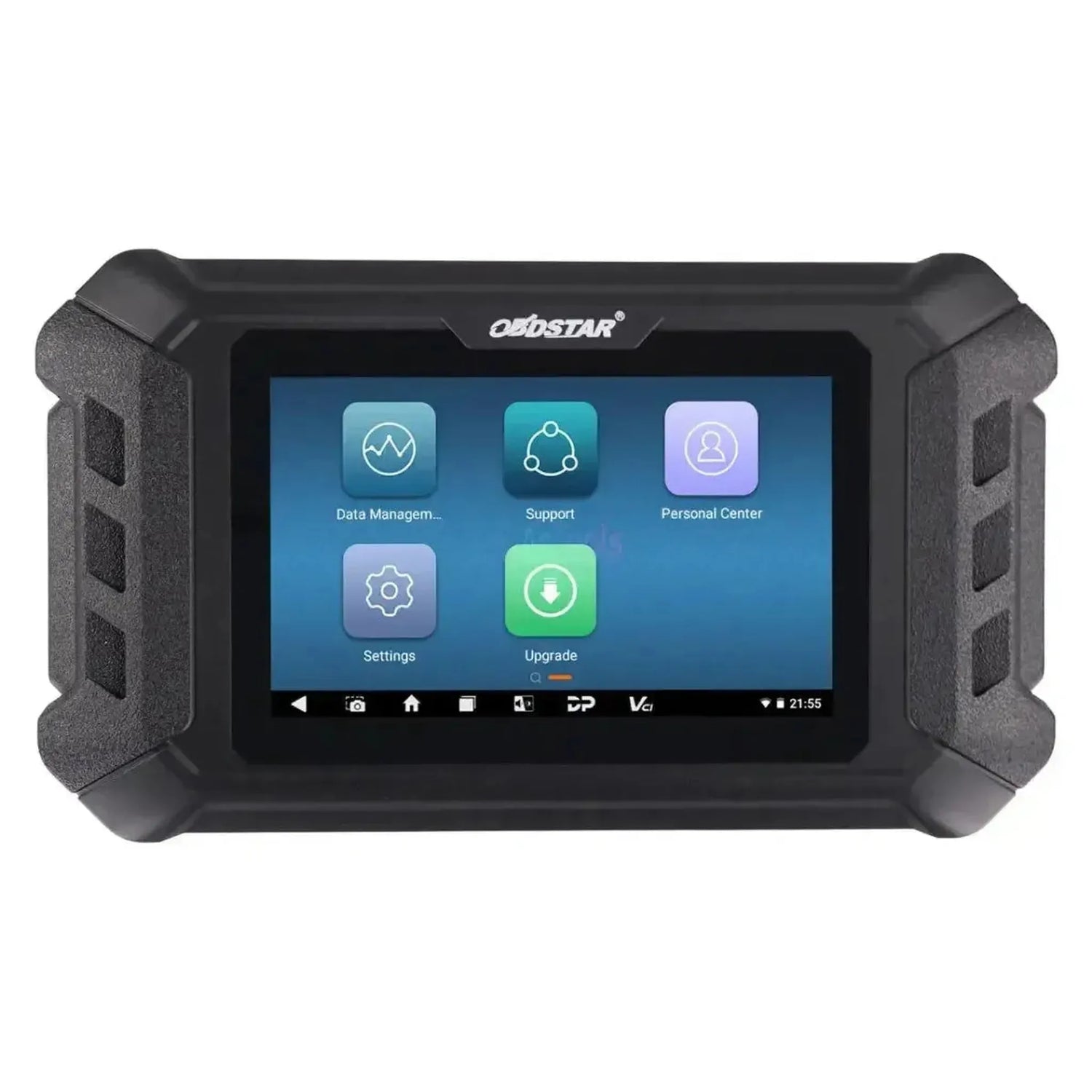

• 1x OBDSTAR P50 crash data programmer
• 1x DP50 main cable
• 1x P004 adapter
• 1x P004 jumper set (C1024)
• 1x 12V2A charger
