The OBDSTAR MK70 is a motorcycle key programmer that works exclusively on two-wheelers: no cars, no vans. That's a deliberate choice, not a limitation — the entire database focuses on motorcycles. The device programmes keys via OBD and bench methods, reads the PIN code for Honda, Suzuki and Yamaha when an original key is present, creates keys from dump data and recalibrates the odometer.

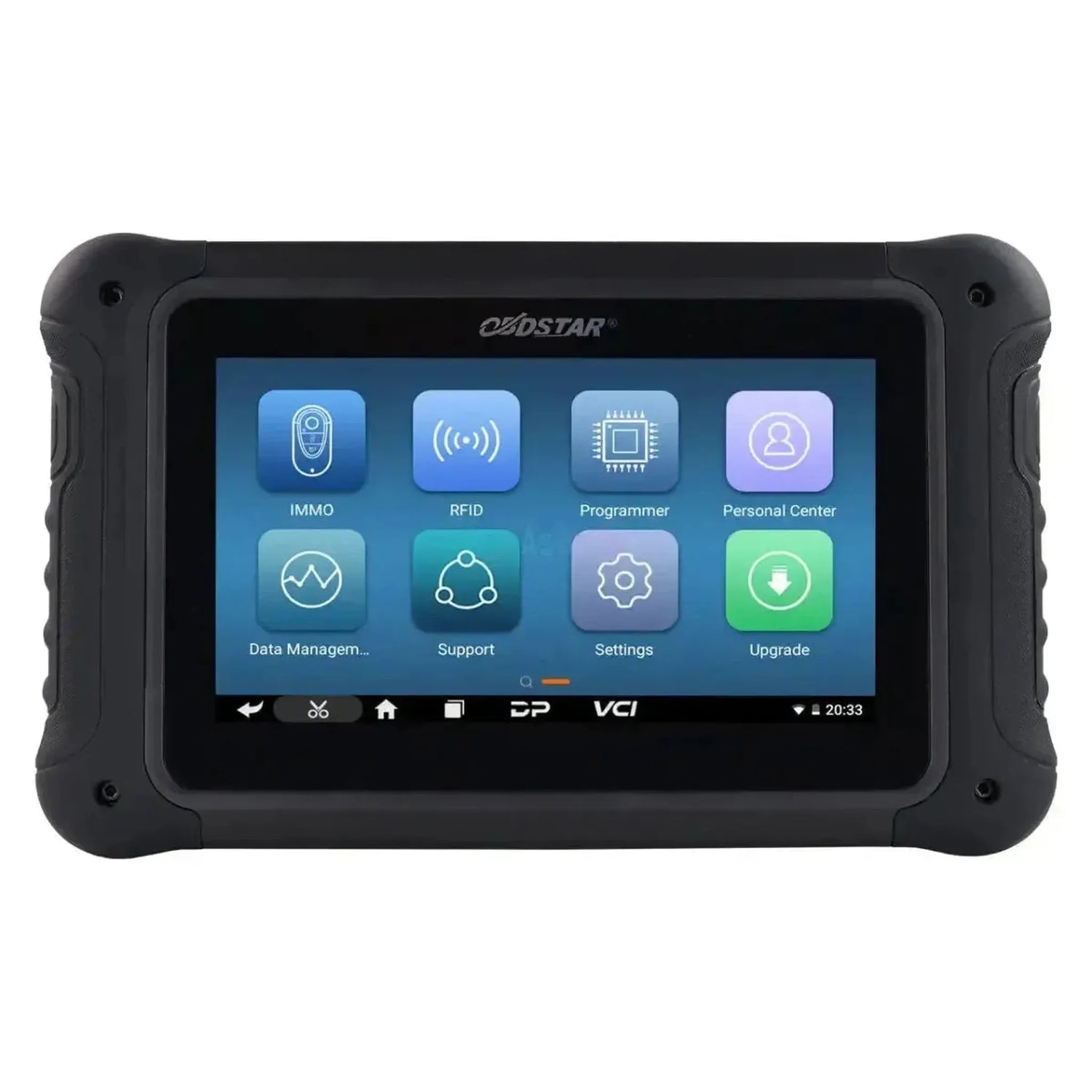

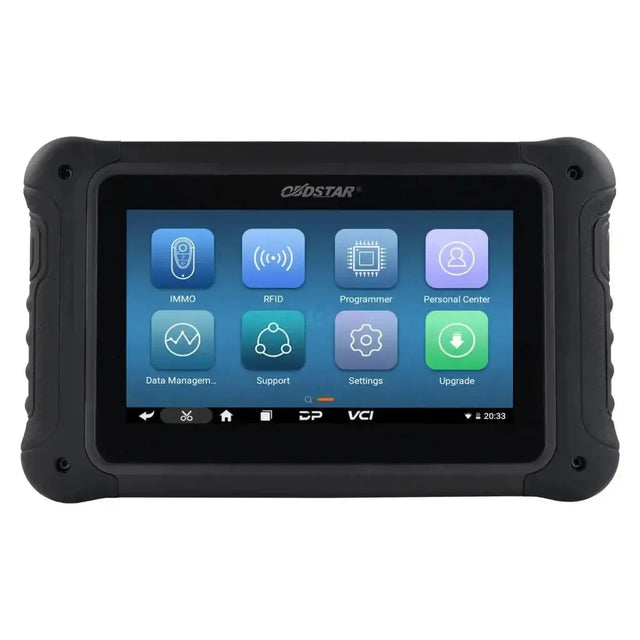

It's a 7-inch Android tablet with a RK3128 quad-core ARM Cortex A7 processor, 16 GB storageexpandable via micro SD card up to 32 GB, and a 3700 mAh battery. The box includes the P001 IMMO kit for PIN code operations, plus brand-specific adapters for Harley-Davidson, Indian and BRP. Purchase includes one year of software updates and remote support via TeamViewer.
KEY BENEFITS
KEY POINTS
Applications and Features
OBDSTAR distributes the MK70 across four applications. Three are included as standard; the fourth is optional.
The four apps
- IMMO — via OBD and bench:Key programming on the ignition switch, both via the diagnostic port and on the bench. Included as standard with the device.
- RFID — creating keys from dump:Creating a key based on read memory. Included as standard with the device.
- Programmer — counter via dump:The odometer recalibration based on read memory. Included as standard in the device.
- ODO Meter — reading via OBD and bench:Mileage programming without reading the memory.Optional: a separate odometer kit is required for this.
What you can do with it
- Key programming:A key learning function on the motorcycle ignition switch, via OBD or on the bench.
- Read PIN code with original key:At Honda, Suzuki and Yamaha, read the PIN code when a working key is still available. This is done via the supplied P001.
- Key programming via dump:Create a key based on the module's memory, on models where this is the applicable method.
- Odometer recalibration via dump:Reset the mileage following instrument cluster replacement or repair.
- Odometer adjustment via OBD or bench:The same operation without reading the memory — with the optional odometer kit, on Aprilia, BRP, Ducati and KTM.
Supported motorcycle brands
The combination of make, model and year of manufacture is decisive, not the make alone. OBDSTAR divides MK70 coverage across four separate lists. A brand appearing in the key programming list may not appear in the odometer list — therefore check the specific function you require. Each list is organised by region and in alphabetical order.
Key programming
19 brands.
- European:BMW, Ducati, Italjet, Peugeot, Piaggio, Triumph
- Asian:Honda, Kawasaki, Suzuki, Yamaha
- American:BRP, Harley-Davidson, Indian, Polaris
- Chinese:CFMOTO, Haojue, QJMotor, Souo, Voge
Key creation via dump
8 brands.
- European:Aprilia, BMW, Ducati, Piaggio
- Asian:Honda, Kawasaki, Suzuki, Yamaha
Odometer adjustment via dump
Twenty brands; this function is standard on the device.
- European:Aprilia, Benelli, BMW, Cagiva, Ducati, KTM, MV Agusta, Peugeot, Piaggio, Triumph, Vespa
- Asian:Honda, Kawasaki, Kymco, Suzuki, Yamaha
- American:Buell, Harley-Davidson
- Chinese:Haojue
- Generic:Generic
Odometer adjustment via OBD or bench
Four brands.This function is optional and requires a separate odometer kit.
- European:Aprilia, Ducati, KTM
- American:BRP
Note the difference between the lists.Benelli, Buell, Cagiva, KTM, Kymco, MV Agusta and Vespa appear exclusively in the odometer list: the MK70 performs no key programming on these. Conversely, CFMOTO, Indian, Italjet, Polaris, QJMotor, Souo and Voge are listed only for key programming.

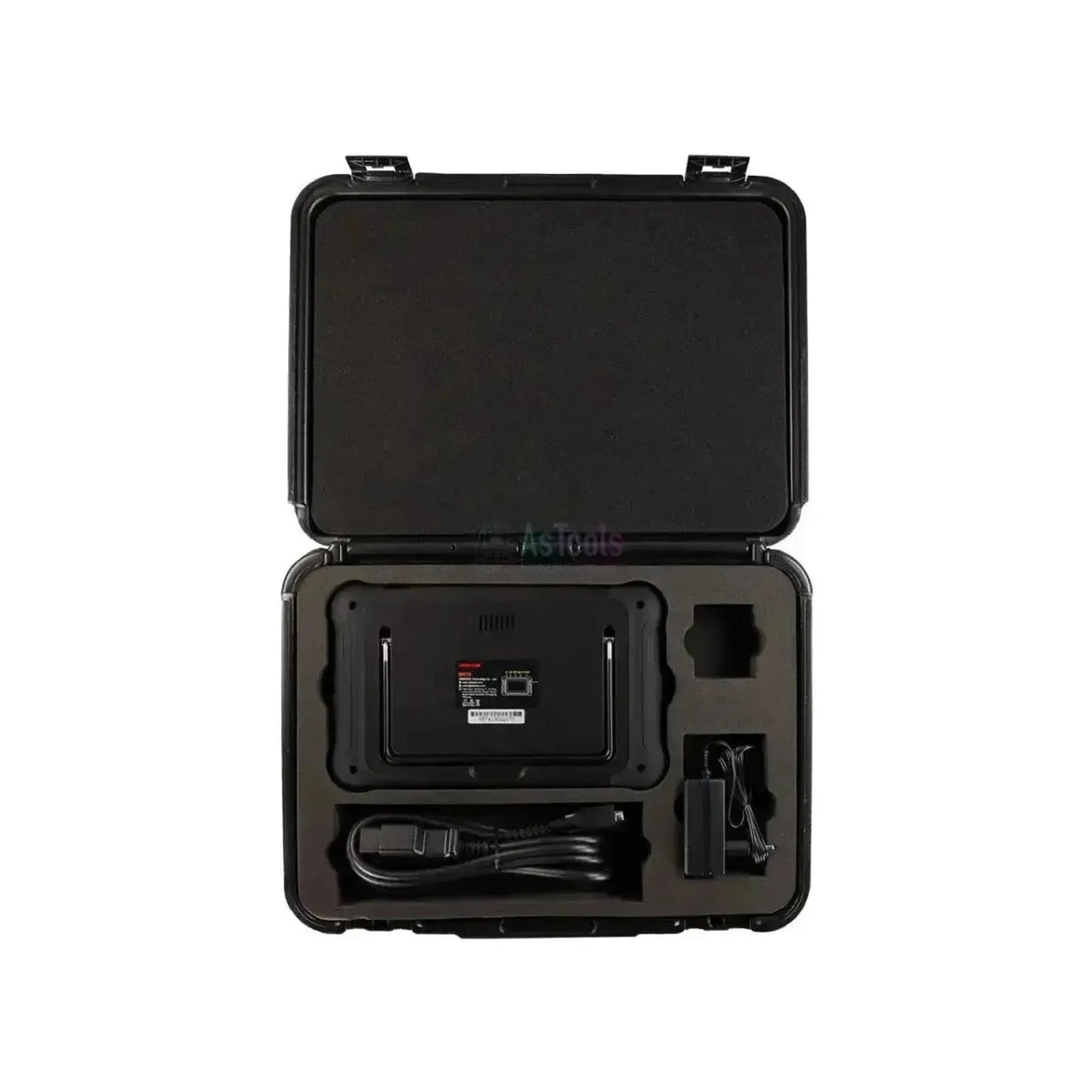

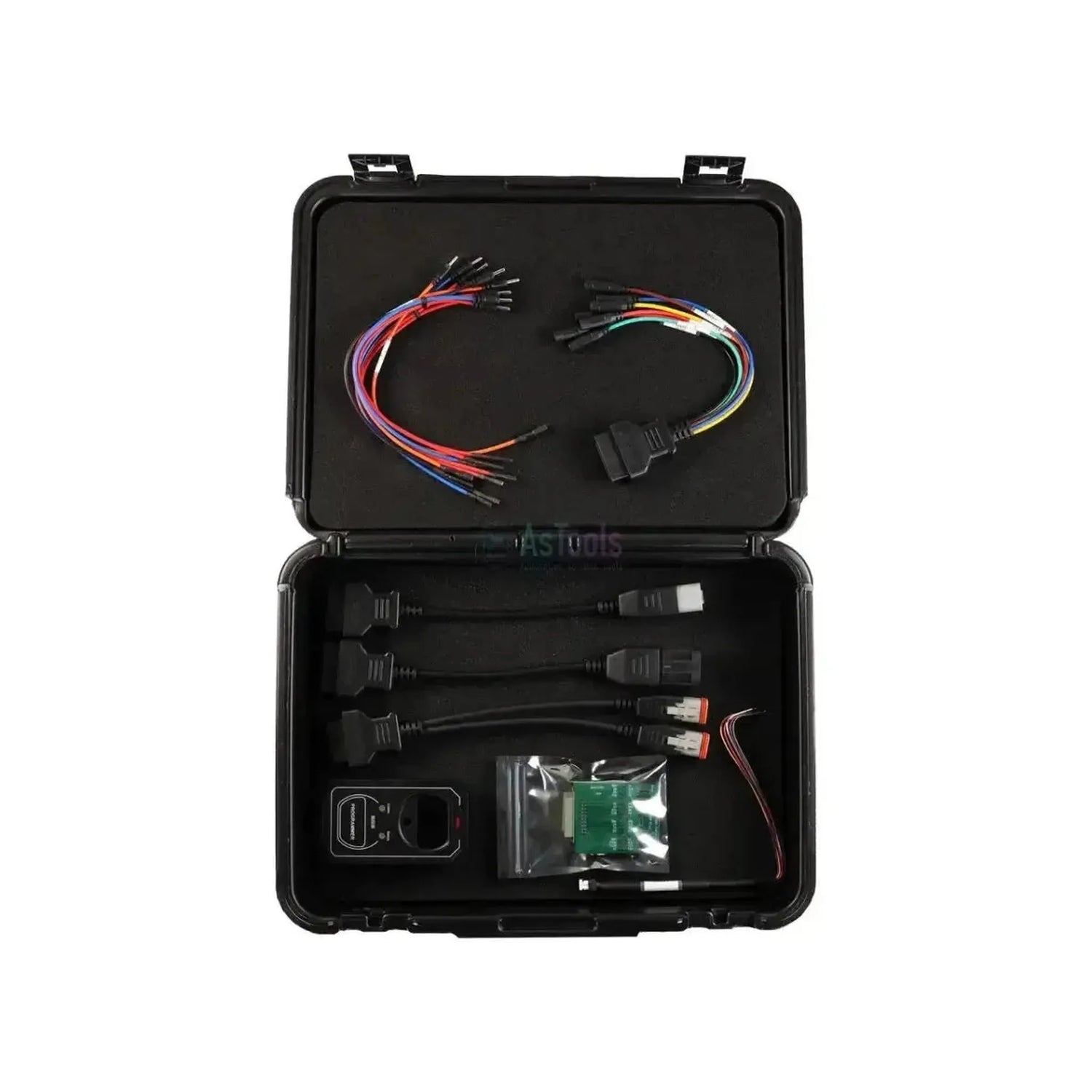

Package contents
The P001 IMMO kit is included; alongside this runs PIN code work for Honda, Suzuki and Yamaha.
- 1x OBDSTAR MK70 key programmer
- 1x 12V2A charger
- 1x M001A main cable
- 1x M003A multifunctional jumper cable
- 1x M034 adapter (Harley-Davidson)
- 1x M042A adapter (Indian/Victory)
- 1x M043 adapter (BRP)
- 1x P001 Kit (IMMO kit)
Optional additions and expansions
The device is complete for the work it was designed for. The items below extend its capabilities.
Hardware modules and accessories
Some odometer work and connections outside the supplied adapters require additional hardware.
- Odometer kit: Required for odometer adjustment via OBD or bench on Aprilia, BRP, Ducati and KTM. Without this kit, only the dump method works, which requires removing the instrument cluster.
- MP001 programmer: As an alternative to the supplied P001 for some dump and odometer work.
- Brand-specific diagnostic adapters: For connections not included in the box, including BMW, Ducati, Kawasaki, Honda, Suzuki and Yamaha.
Licence information
- Duration: One year of software updates from first activation, plus remote support via TeamViewer with purchase.
- What updates to add:New motorcycle models, expansion of existing brands, additional key and odometer procedures and corrections.
- After completion:The device will continue to operate with the last installed version; new models and features will only be added after renewal.
- Extending:With the OBDSTAR MK70 update licence, available separately in our online shop.
Technical specifications
Key specifications
- Type of device Whether it is a tablet with its own screen, a standalone programmer operated via an app, or an add-on for a diagnostic tablet.
- Tablet with screen
- Vehicle types Which types of vehicles the device can program keys and systems for. A motorcycle programmer does not work on cars.
- Motorcycle
- Number of brands How many vehicle brands the device supports. More brands mean broader use in the workshop.
- 19 brands
- Screen size The screen size, measured diagonally. A larger screen is easier to read.
- 7 inch
- Free updates How long you receive free new software and vehicle coverage. Renewal is often chargeable afterwards.
- 1 year
All specifications (22)
General
- Brand The manufacturer of the key programming device.
- OBDSTAR
- Type of device Whether it is a tablet with its own screen, a standalone programmer operated via an app, or an add-on for a diagnostic tablet.
- Tablet with screen
- Vehicle types Which types of vehicles the device can program keys and systems for. A motorcycle programmer does not work on cars.
- Motorcycle
- Number of brands How many vehicle brands the device supports. More brands mean broader use in the workshop.
- 19 brands
Key functions
- Key programming (IMMO) Programming a new key to the vehicle's immobiliser so the engine will start with it.
- Yes
- PIN code reading Reading the vehicle's security code, often required before a key can be programmed.
- Yes
- Transponder creation or copying Creating a new key chip or copying an existing one, allowing you to make a spare key.
- Yes
Additional functions
- Odometer adjustment Restoring the mileage reading, for example after replacing the instrument cluster.
- Yes
Screen and hardware
- Screen size The screen size, measured diagonally. A larger screen is easier to read.
- 7 inch
- Resolution The number of pixels on the screen. More pixels mean sharper text and images.
- 1024 x 600 pixels
- Touchscreen Whether the screen is operated by touch.
- Yes
- Operating system The software the device runs on. A newer version usually receives updates for longer.
- Android 5.1.1
- Processor The device's processing chip. More cores and a higher clock speed make it faster.
- 4-core
- Storage How much space is available for software, vehicle data and stored files.
- 16 GB
Connectivity and battery
- Wi-Fi Wi-Fi allows updates to be downloaded and online functions to be used without a cable.
- Yes
- Battery capacity How much energy the built-in battery stores. A higher capacity means longer use without a power socket.
- 3,700 mAh
Software
- Free updates How long you receive free new software and vehicle coverage. Renewal is often chargeable afterwards.
- 1 year
- Dutch language Whether the software is available in Dutch.
- Yes
- Remote assistance Whether a specialist can view and assist remotely via the internet if you get stuck.
- Yes
Dimensions and weight
- Dimensions The length, width and height of the device.
- 243 x 148 x 36 mm
- Weight How heavy the device itself is. A lighter device is easier to hold inside the vehicle.
- 0.766 kg
- Operating temperature The temperature range in which the device operates correctly, for example in a cold workshop.
- -10 to 55 °C
Other specifications (14)
- I'm ready to translate e-commerce content from Dutch to English. However, I notice you've provided a placeholder "Segment" rather than actual Dutch text to translate. Please provide the Dutch text you'd like me to translate, and I'll deliver a professional, natural English translation following all the guidelines you've specified (British English, technical accuracy, SEO-appropriate terminology, no word-for-word translation, and preservation of brand names and technical codes).
- Motorcycles only; not suitable for cars or commercial vehicles
- Processor
- RK3128 quad-core ARM Cortex A7
- Memory expansion
- Micro SD (TF) up to 32 GB
- Connectivity
- WiFi
- Standard apps
- IMMO (OBD and bench), RFID (key generation via dump) and Programmer (odometer via dump)
- Optional app
- ODO Meter (odometer via OBD and bench), requires separate odometer kit
- Key generation via dump
- 8 brands
- Odometer adjustment via dump
- 20 brands
- Odometer adjustment via OBD or bench
- 4 brands, with odometer kit
- PIN code reading
- Honda, Suzuki and Yamaha, with an original key included, via the supplied P001
- Included
- P001 IMMO kit and adapters for Harley-Davidson, Indian/Victory and BRP
- Supported languages
- Dutch, English, German, Czech, Russian and Greek
- Storage temperature
- -20 °C to 70 °C
- Shipping weight
- 3.2 kg (complete case)
