OBDSTAR  |  SKU: C4-09 Kit / 3.30

OBDSTAR (C4-09) | Adapter Kit (MB91F526) | Accessories

€134,95 incl.
€111,53 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

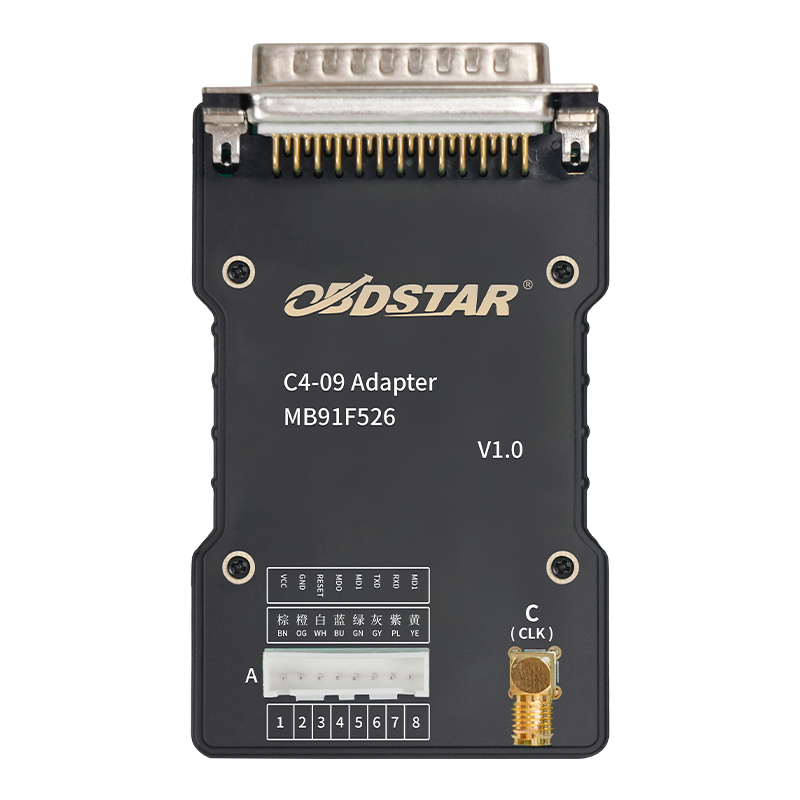

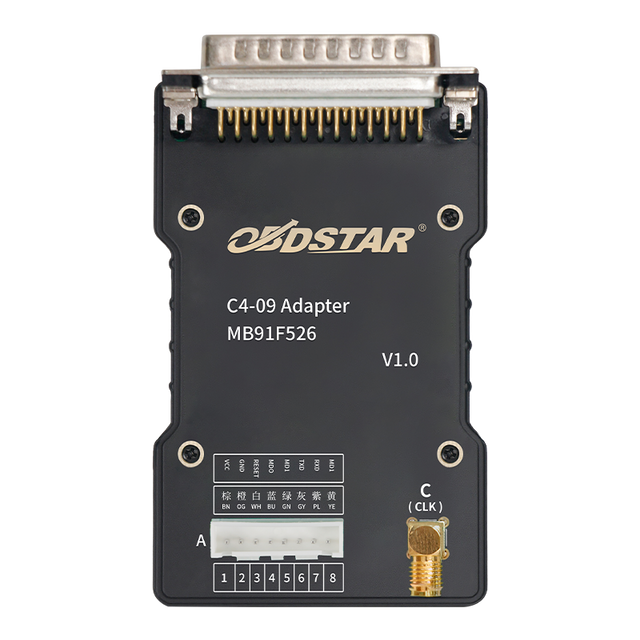

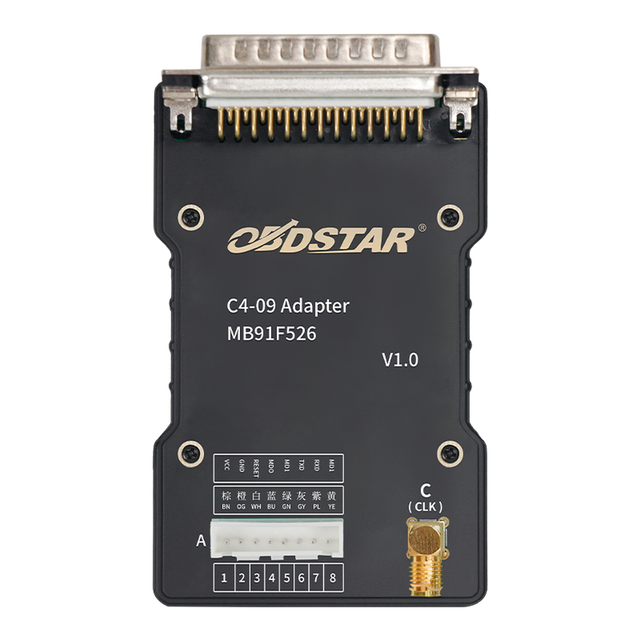

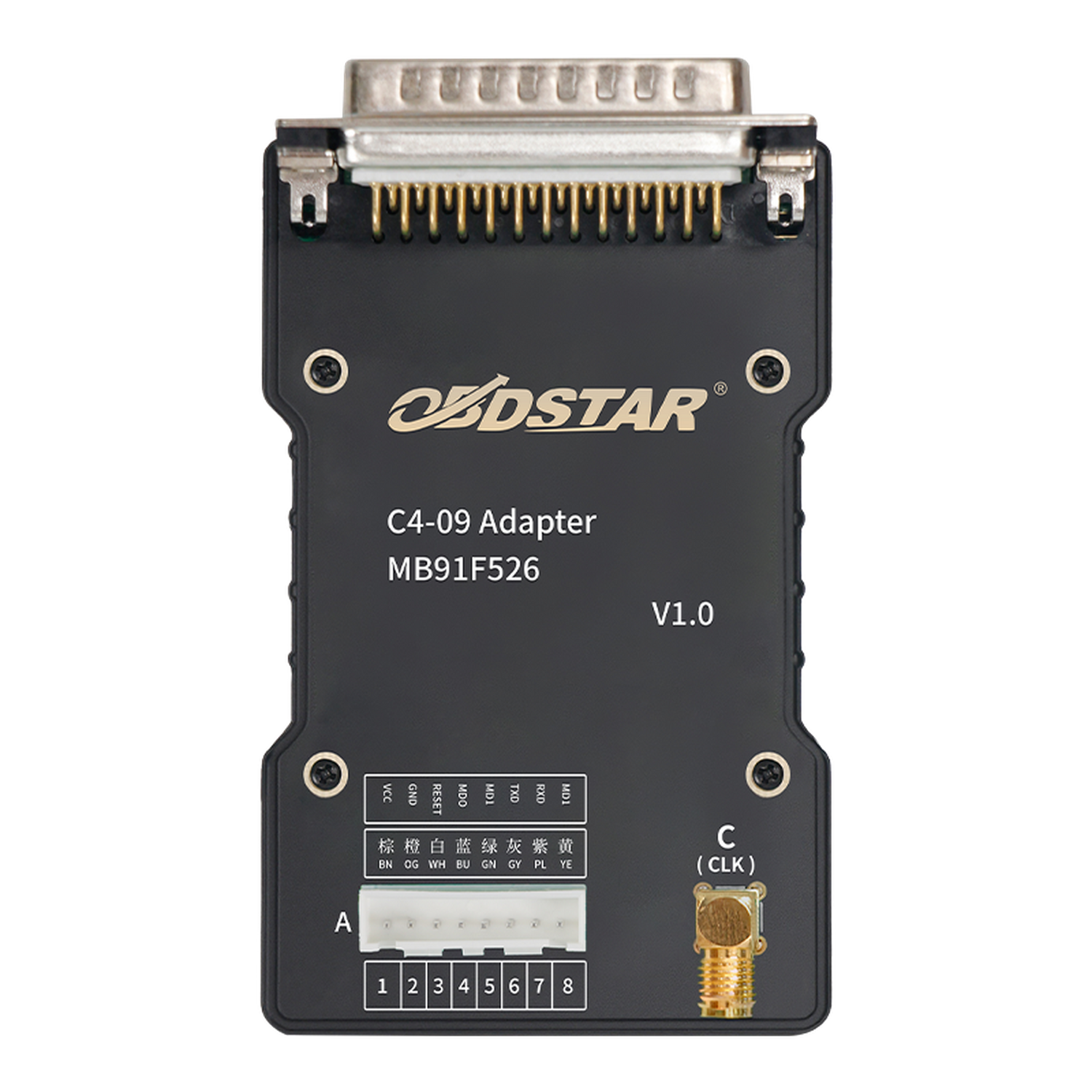

The OBDSTAR C4-09 (MB91F526) Adapter kit is an accessory set within the OBDSTAR adapter line for reading and writing MB91F526-based control modules. The kit focuses on FLASH and DFLASH operations and on decrypting immobilizer data in BCM modules with a Magneti Marelli MB91F526 controller. Additionally, the adapter supports FLASH access to the MAZDA 3 DENSO MB91F526 BDMC. The set consists of a C4-09 adapter board with a 25-pin connector on the top and a connection block on the bottom, supplemented with the W004 and W006 solder cables.

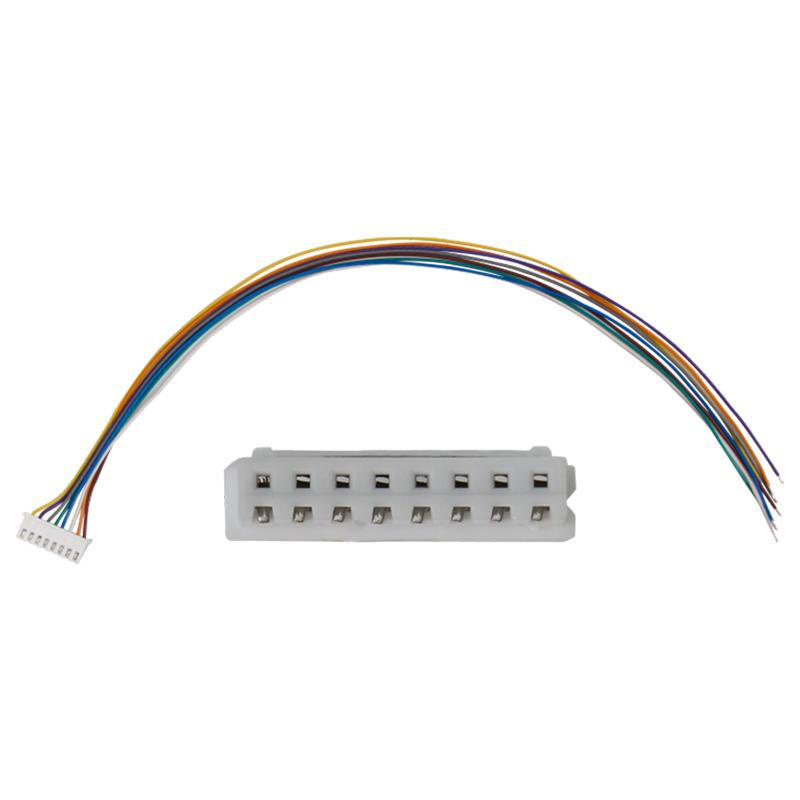

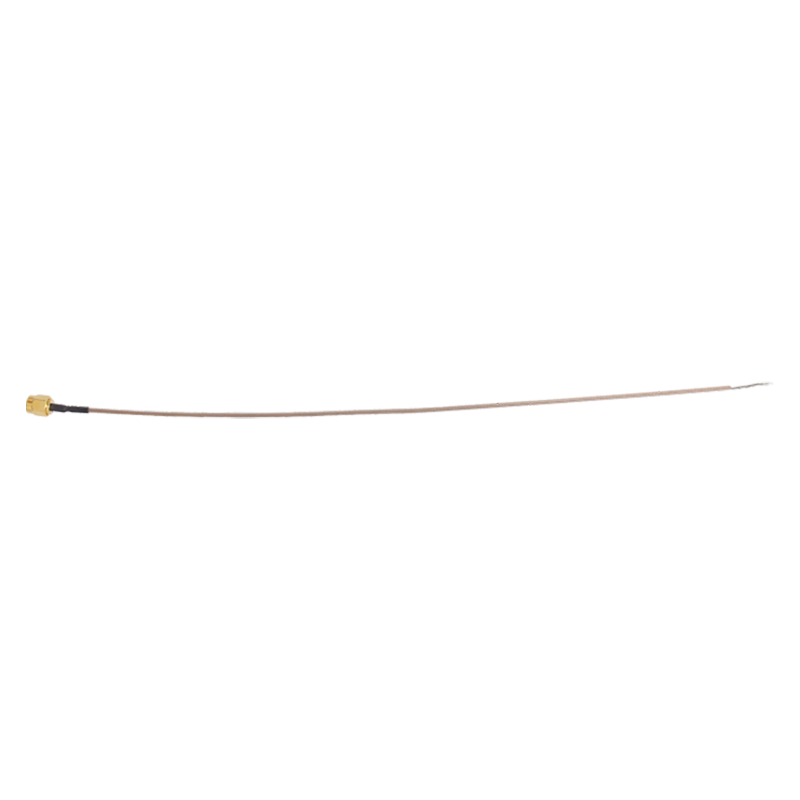

Connection is made via the OBDSTAR KeyMaster G3 or DC706: the main device communicates with the C4-09 adapter, which acts as an interface between the programming tool and the desoldered or in-circuit accessed BCM. The W004 cable provides the multi-wire read/write connection to the designated pads of the MB91F526, while W006 is used as an additional solder wire for specific connection points on the board. After establishing the connection, FLASH and DFLASH content can be read and written, and immobilizer data can be decrypted for further processing within the OBDSTAR software. The work process requires disassembly of the BCM and correct wiring according to the supplied connection diagram.

ADVANTAGES

✔ Covers a wide range of Magneti Marelli MB91F526 BCM applications within Alfa Romeo, Ferrari, Fiat, and Jeep with one adapter.
✔ Combines FLASH and DFLASH access with immobilizer data decryption on a single hardware interface.
✔ Includes both the W004 and W006 solder cables, allowing different connection points on the BCM to be served without separate purchase.

IMPORTANT NOTES

✕ Works exclusively in combination with the OBDSTAR KeyMaster G3 or DC706 and cannot be used as a standalone programmer.
✕ For the MAZDA 3 DENSO MB91F526 BDMC, only FLASH read/write is supported, no DFLASH or immobilizer decryption.
✕ Connection is made via solder joints on the BCM board, requiring disassembly and soldering work at the module level.

Applications and functionalities

The C4-09 (MB91F526) Adapter kit supports the following operations on MB91F526-based modules:

  • FLASH read/write: Reading and writing the FLASH memory of Magneti Marelli MB91F526 BCM modules and the MAZDA 3 DENSO MB91F526 BDMC for data adjustment and repair.
  • DFLASH read/write: Access to the DFLASH memory of the supported Magneti Marelli BCM modules for reading and writing configuration and calibration data.
  • Immobilizer data unlocking: Unlocks immobilizer-related data from the BCM, useful for key learning and immo procedures within the OBDSTAR software.
  • BCM connection via solder cables: Connects the adapter to the BCM board via the W004 and W006 cables on the designated pads.

Vehicle coverage

FLASH, DFLASH, and immobilizer data unlocking are supported on the following BCM applications:

  • Alfa Romeo Giulia — Magneti Marelli MB91F526 BCM
  • Alfa Romeo Stelvio — Magneti Marelli MB91F526 BCM
  • Ferrari 488 GTB — Magneti Marelli MB91F526 BCM
  • Ferrari Portofino — Magneti Marelli MB91F526 BCM
  • Fiat Argo (Brazil) — Magneti Marelli MB91F526 BCM
  • Fiat Cronos (Brazil) — Magneti Marelli MB91F526 BCM
  • Fiat Ducato (2023->) — Magneti Marelli MB91F526 BCM
  • Fiat Fastback (Brazil) — Magneti Marelli MB91F526 BCM
  • Fiat Pulse (Brazil) — Magneti Marelli MB91F526 BCM
  • Fiat Toro (Brazil) — Magneti Marelli MB91F526 BCM
  • Fiat Rampage (Brazil) — Magneti Marelli MB91F526 BCM
  • Jeep Renegade (Brazil) — Magneti Marelli MB91F526 BCM

FLASH read/write is also supported on:

  • Mazda 3 — DENSO MB91F526 BDMC

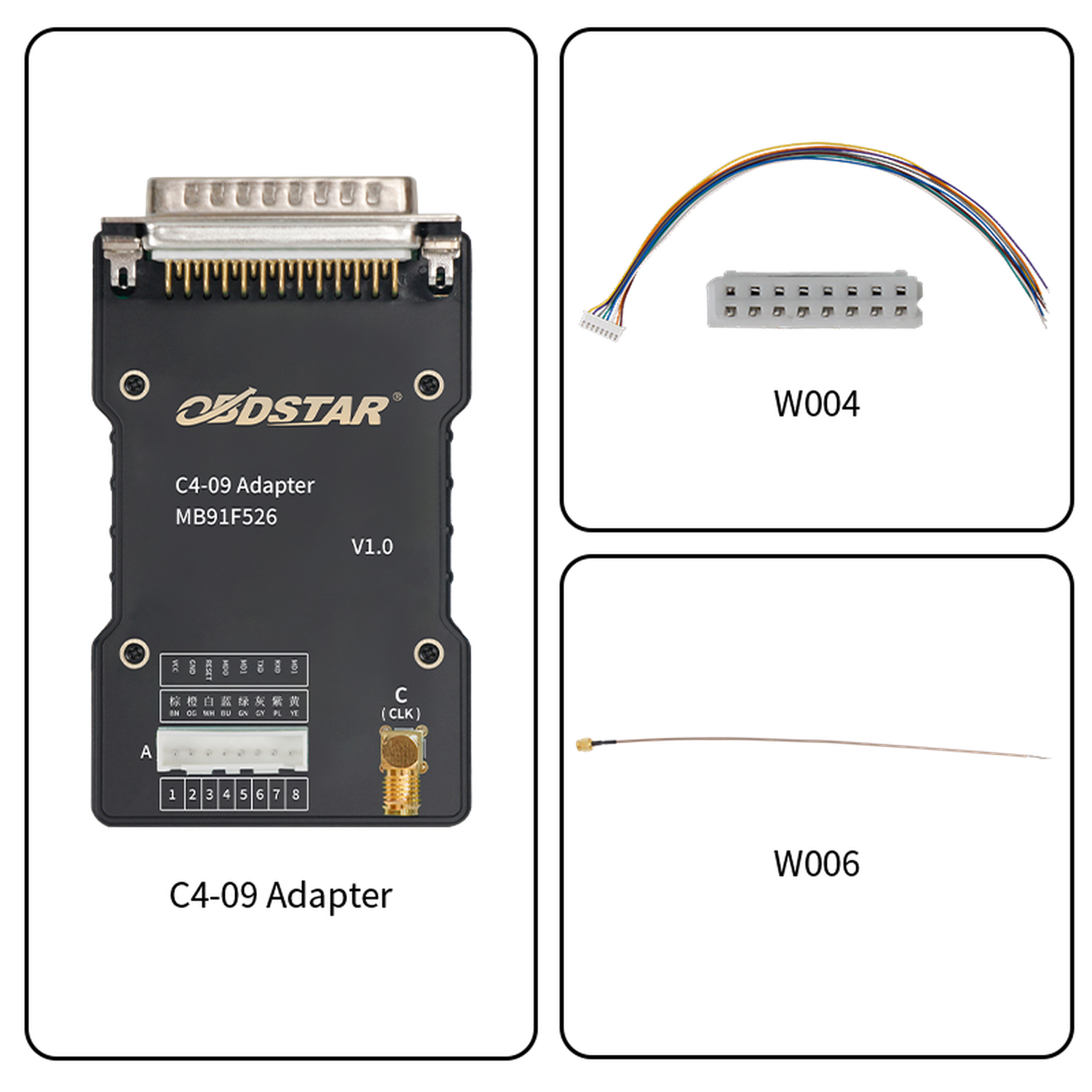

Package Contents

  • 1x OBDSTAR C4-09 (MB91F526) Adapter
  • 1x W004 solder cable
  • 1x W006 solder cable
💡
Good to know: The C4-09 adapter works exclusively in combination with the OBDSTAR KeyMaster G3 or DC706. Before use, check that the host tool has the correct software authorization and firmware version for MB91F526 operations.

Technical specifications

Specification Description
Product brand OBDSTAR
Product model C4-09 (MB91F526) Adapter kit
Type Adapter kit for BCM and BDMC operations
Target IC Fujitsu/Cypress MB91F526
Supported operations FLASH read/write, DFLASH read/write, immobilizer data unlocking
Compatible tools OBDSTAR KeyMaster G3, OBDSTAR DC706
Connection 25-pin connector towards host tool, solder cables towards BCM
Included cables W004 read/write solder cable, W006 solder cable
