OBDSTAR C4-02 Adapter | Accessories

Name: OBDSTAR C4-02 Adapter | Accessories
Brand: OBDSTAR
SKU: C4-02 / 3.35
Price: 14.95 EUR
Availability: InStock

€14,95 incl.

€12,36 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

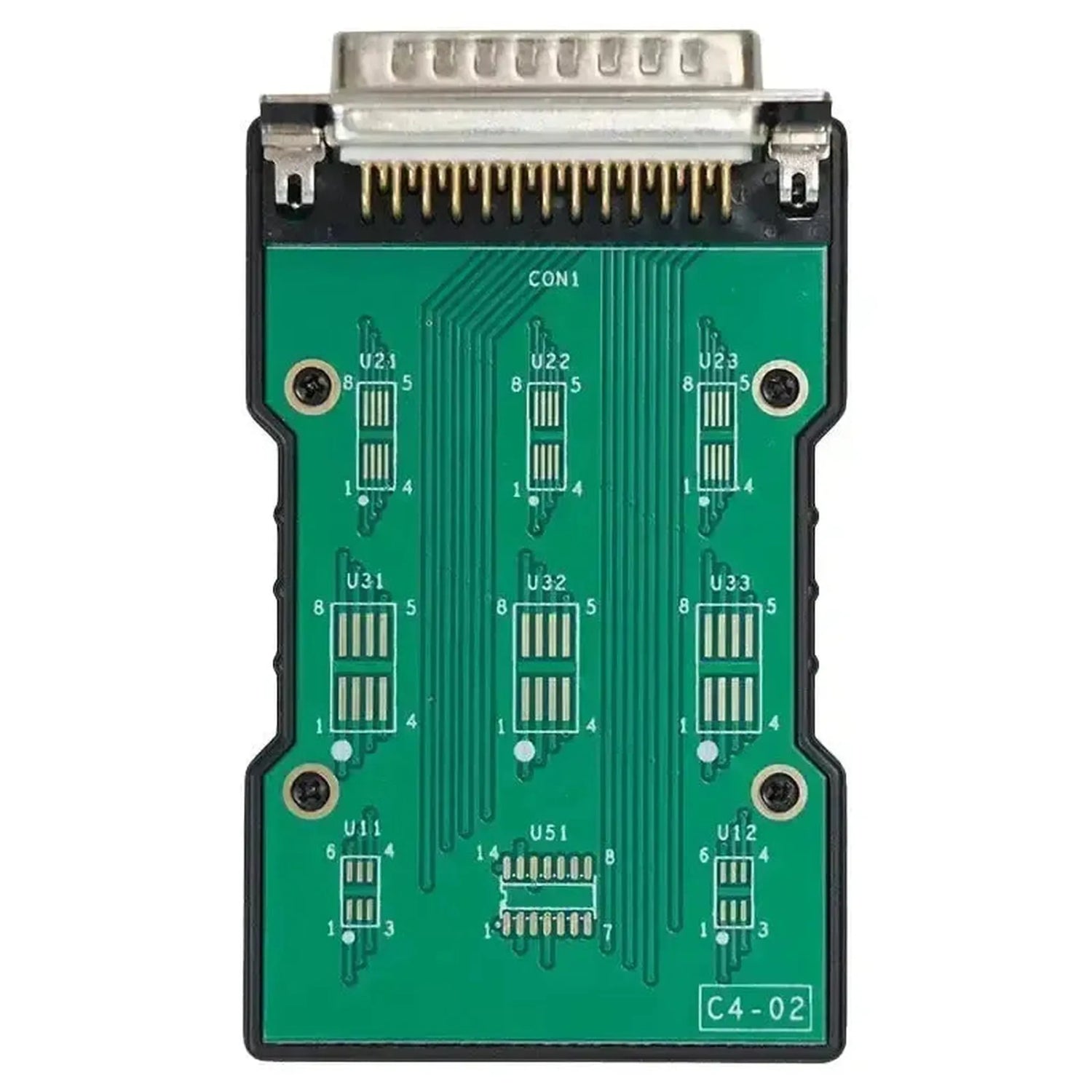

The OBDSTAR C4-02 Adapter is a circuit board adapter used in combination with the OBDSTAR P003 toolkit and the associated jumper cables. The adapter has a DB25 connector on the top and contains multiple pre-printed contact positions (U11, U12, U21, U22, U23, U31, U32, U33, and U51) for reading and editing EEPROM and MCU chips at the component level.

During use, the C4-02 is connected via the DB25 connector to the P003 interface. The chip to be accessed is connected with the supplied or optional solder or jumper wires to the corresponding pin positions on the adapter. Then the OBDSTAR programmer communicates with the chip to read, write, or erase data via the programming function of the host device.

ADVANTAGES

✔ Multiple chip positions (U11–U51) on one adapter, allowing access to various EEPROM and MCU types on the same circuit board.

✔ Fixed DB25 connection ensures a stable link with the P003 programmer without loose cables between the adapter and host.

✔ Clearly printed pin numbering on the circuit board speeds up the correct connection of jumper wires during chip operations.

IMPORTANT POINTS

✕ The Adapter is only usable in combination with the OBDSTAR P003 toolkit; standalone use with other programmers is not supported.

✕ For component-level connection, soldering techniques and loose jumper or solder wires are required; these are not included.

Applications and functionalities

The C4-02 supports the following component-level tasks in combination with the P003 programmer:

Read EEPROM: Read memory contents of EEPROM chips via the pre-printed contact positions, making data available as backup or for analysis.
Write EEPROM: Restore or modify data on EEPROM chips, for example to repair dashboard or immobilizer data.
Access MCU data: Connect to MCU chips on the selected pin positions (U11, U12, U51) for read and write operations via the P003.
Chip identification via pin mapping: The numbered pin positions allow correct wiring per chip type supported by OBDSTAR software.

Package Contents

1x OBDSTAR C4-02 Adapter

💡

Good to know: Before each chip operation, check the pin orientation (pin 1 marking on the PCB) and compare it with the datasheet of the target chip to avoid incorrect wiring and possible chip damage.

Technical specifications

Specification	Description
Product brand	OBDSTAR
Product model	C4-02 Adapter
Product type	PCB adapter for chip programming
Connector	DB25
Contact positions	U11, U12, U21, U22, U23, U31, U32, U33, U51
Compatibility	OBDSTAR P003 toolkit
Application	Reading and writing EEPROM and MCU chips
