Autool DM400 Multimeter

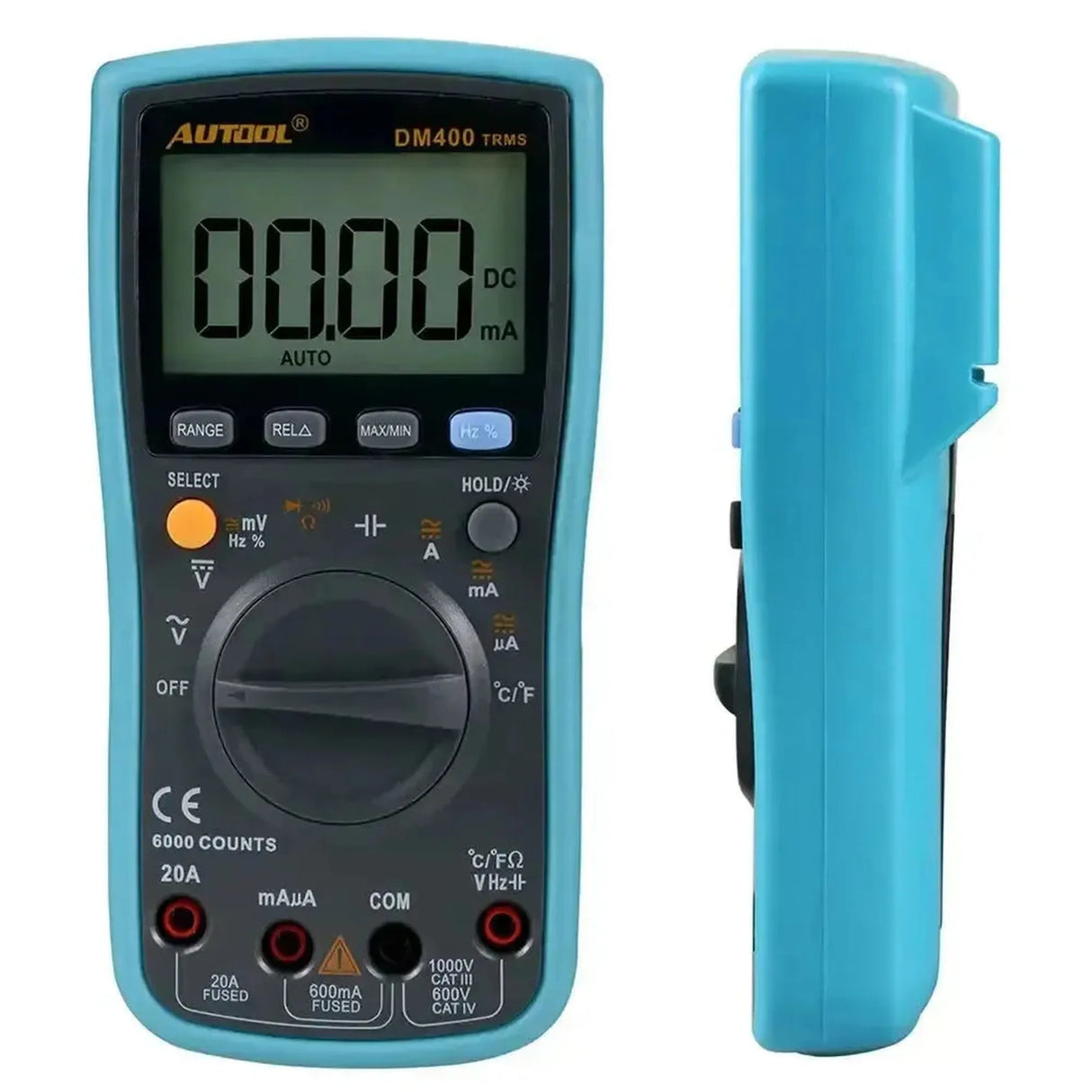

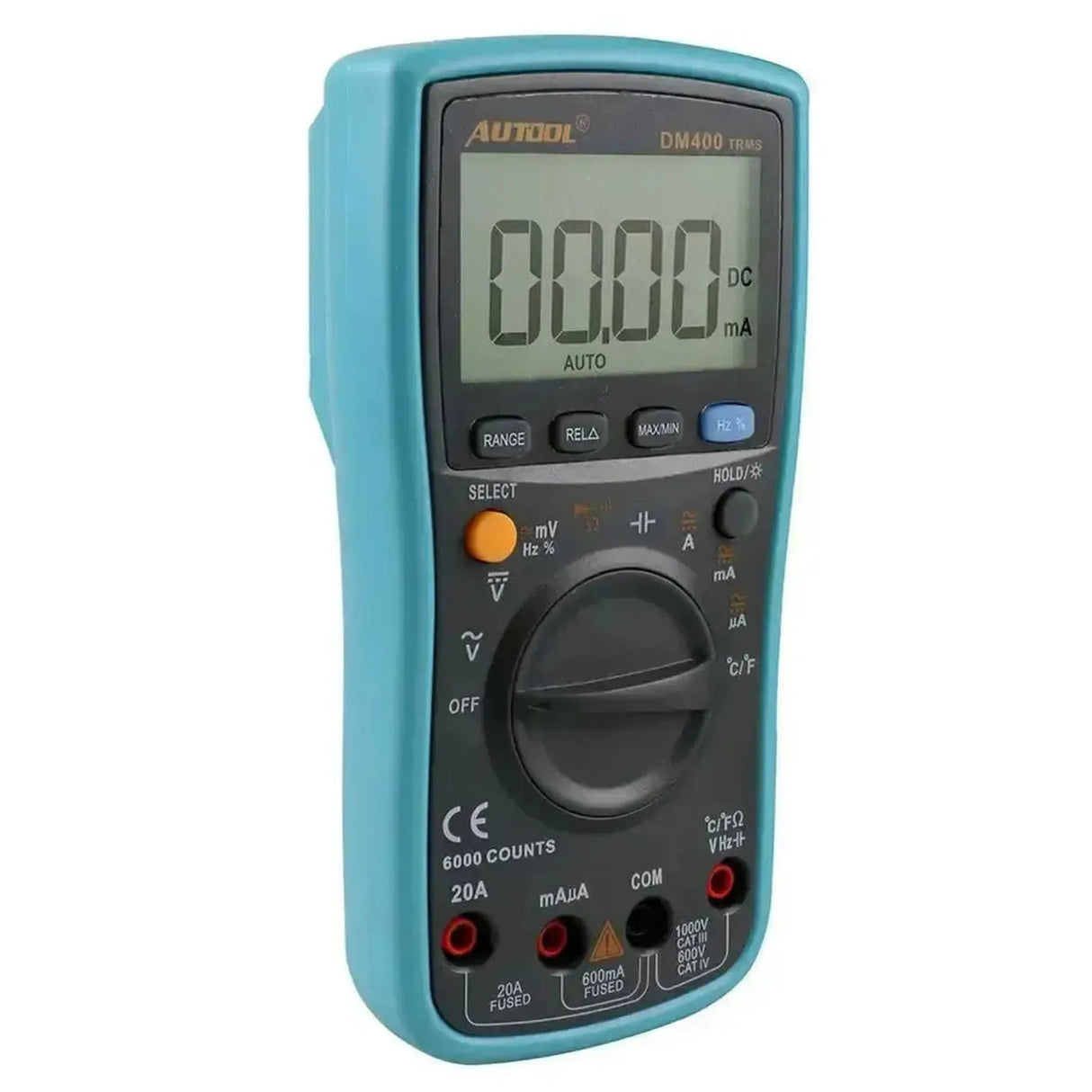

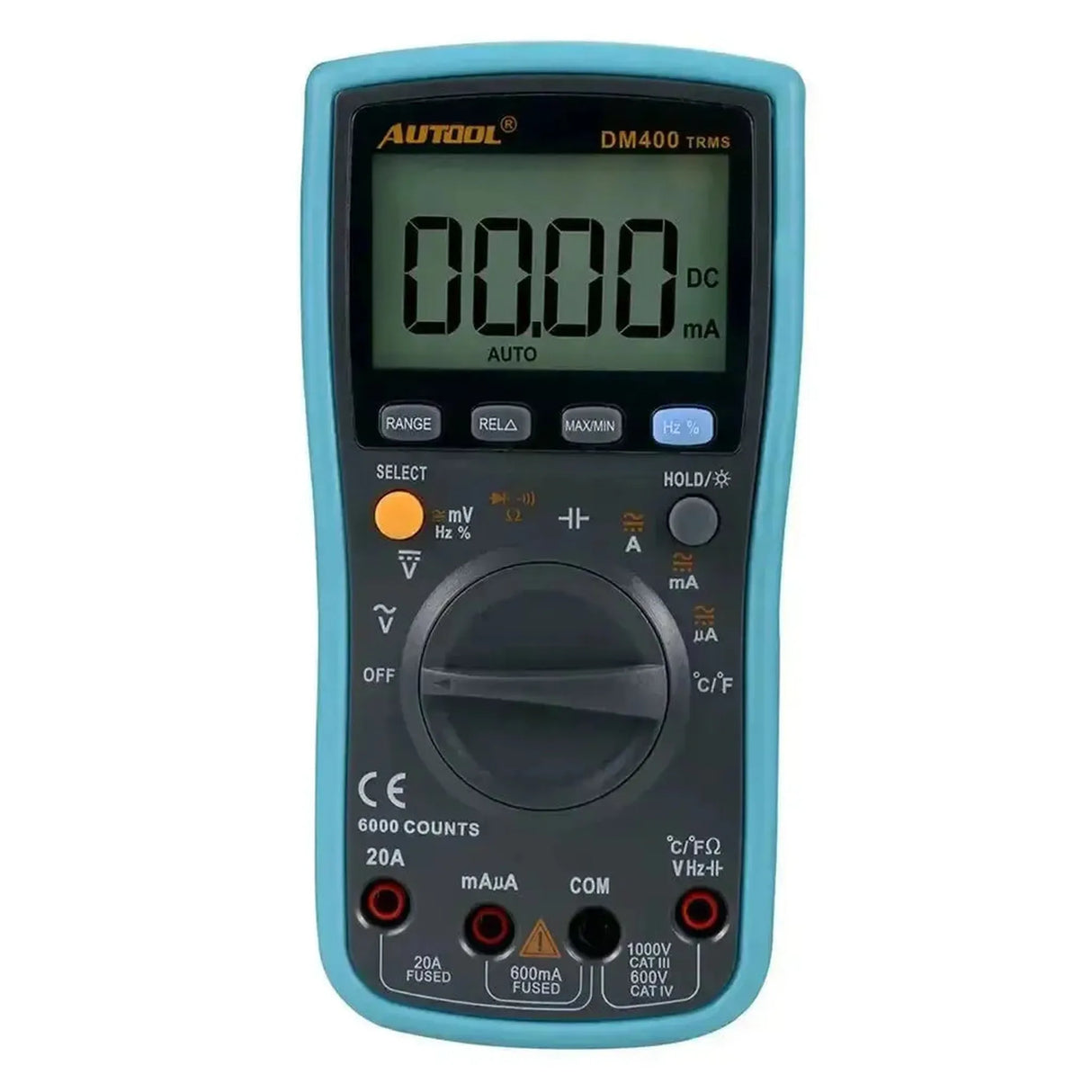

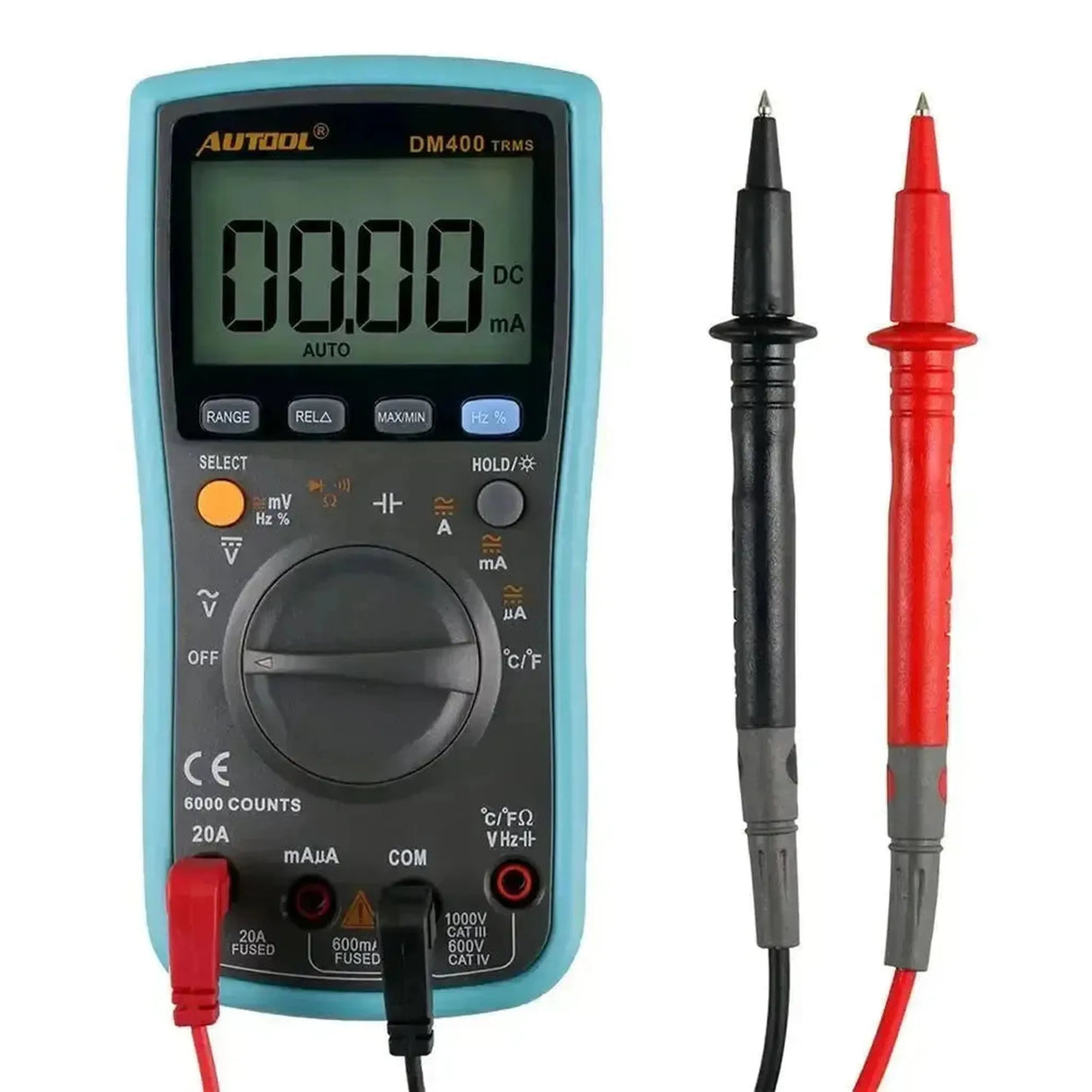

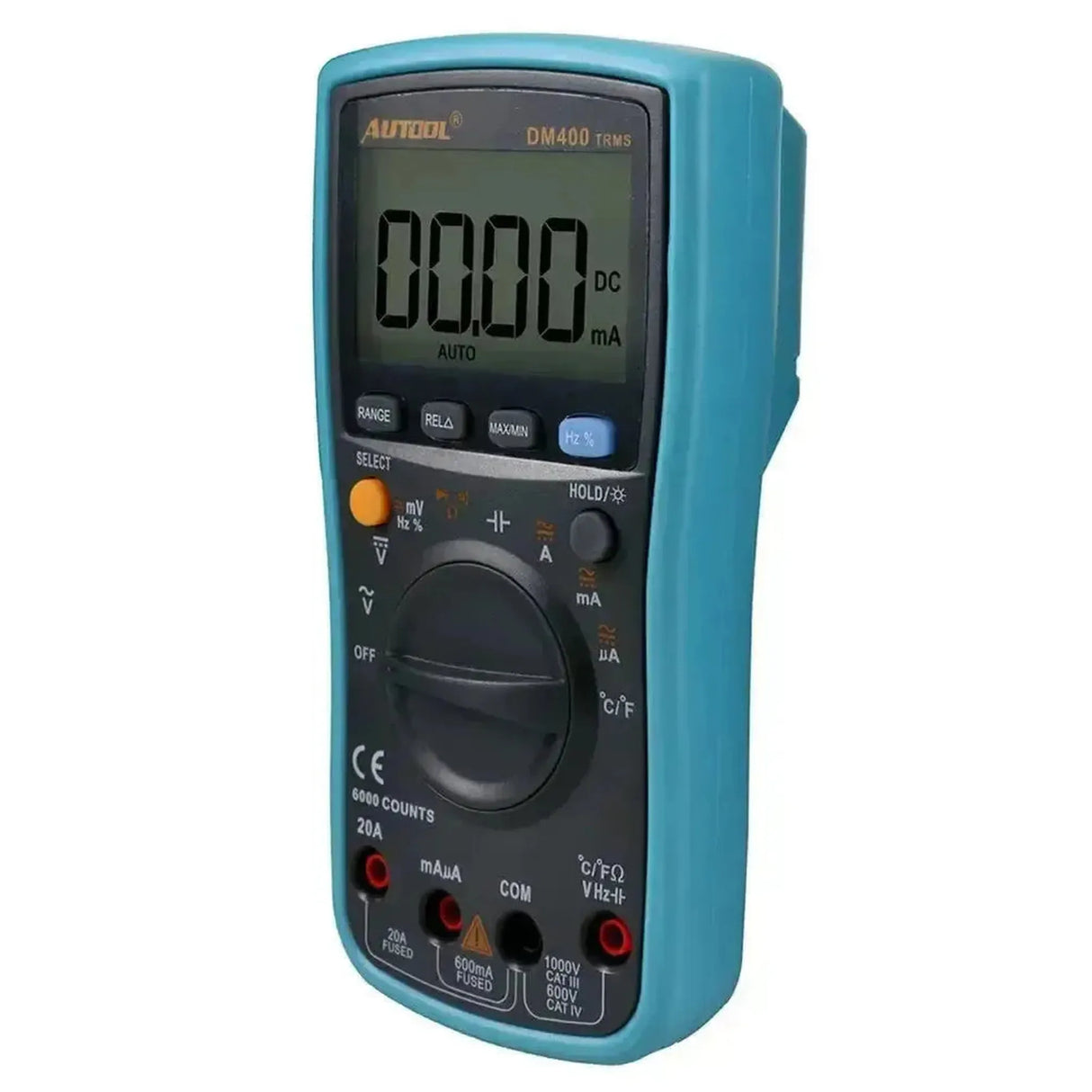

The Autool DM400 is a digital multimeter with automatic and manual range selection, designed for measuring electrical parameters such as voltage, current, resistance, capacitance, frequency, and temperature. The device features a large LCD screen with backlighting and a maximum display of 6000 counts, ensuring clear readings under various lighting conditions.
With True RMS technology, the DM400 provides accurate measurements even with non-sinusoidal signals. Additionally, the device is equipped with features such as data logging (MAX/MIN), automatic shutdown (with the option to disable this feature), and a low battery indicator. The robust housing and included accessories, including test leads and a TP01K thermocouple, make it a suitable choice for both professional use and DIY enthusiasts.
Functions:
- AC/DC voltage measurement: Measures AC voltage up to 750V and DC voltage up to 1000V.
- AC/DC current measurement: Measures AC and DC current up to 20A.
- Resistance measurement: Measures resistances up to 60MΩ.
- Capacitance measurement: Measures capacitances from 10pF to 6000μF.
- Frequency measurement: Measures frequencies from 1Hz to 10MHz.
- Duty cycle measurement: Measures duty cycles from 1% to 99%.

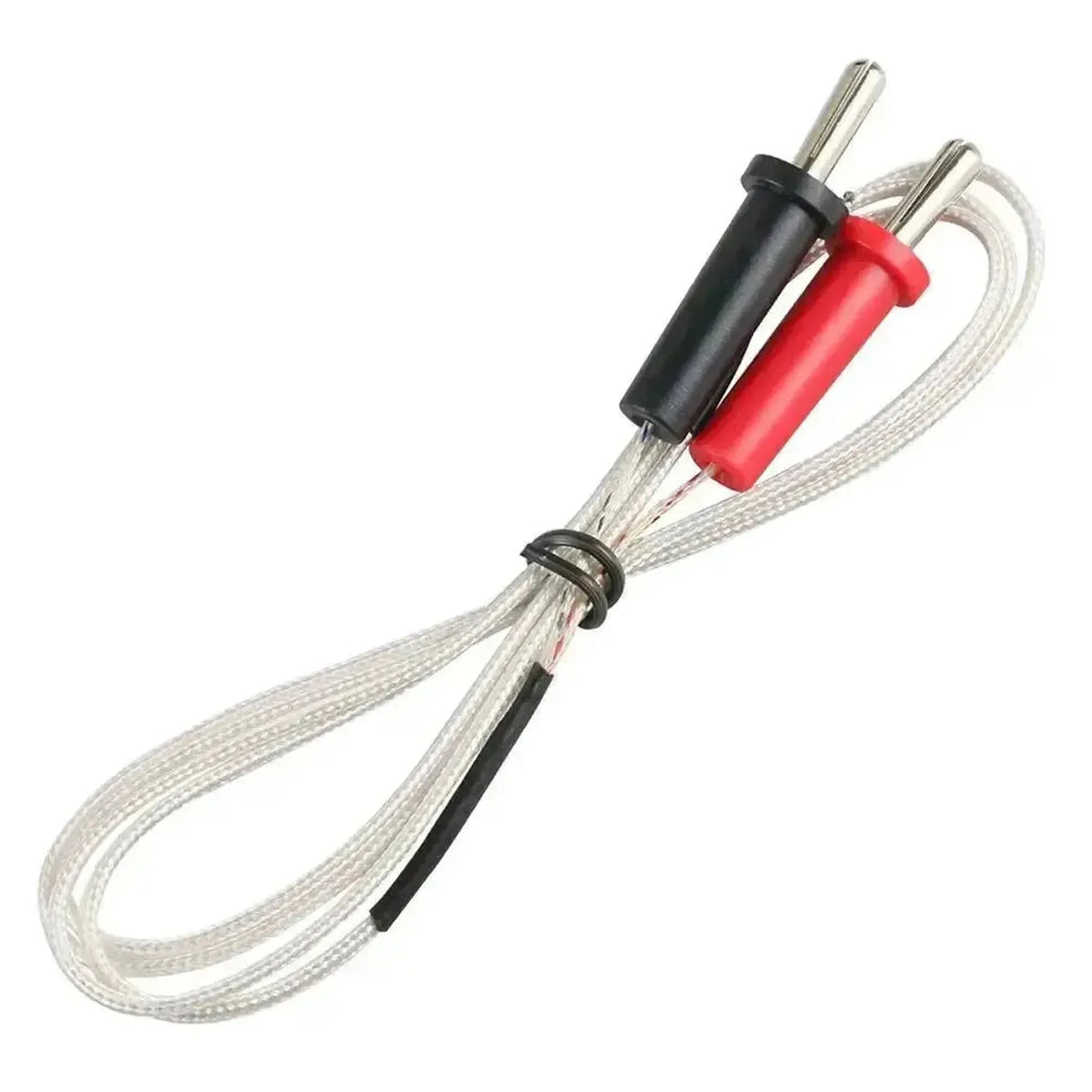

- Temperature measurement: Measures temperatures from -20°C to 1000°C with the included TP01K thermocouple.
- Diode and continuity test: Tests diodes and checks circuit continuity with an acoustic signal.
Special functions:
- True RMS measurements: For accurate results with complex signals.
- Automatic and manual range selection: For flexibility in various measurement conditions.
- Large LCD screen with backlight: For better readability under different lighting conditions.
- Data logging (MAX/MIN): For tracking measurement values.
- Automatic shutdown: To save battery, with the option to disable this function.
- Polarization indication and low battery indicator: For extra ease of use and safety.
- Protection up to 550V: In the resistance, capacitance, and frequency ranges.

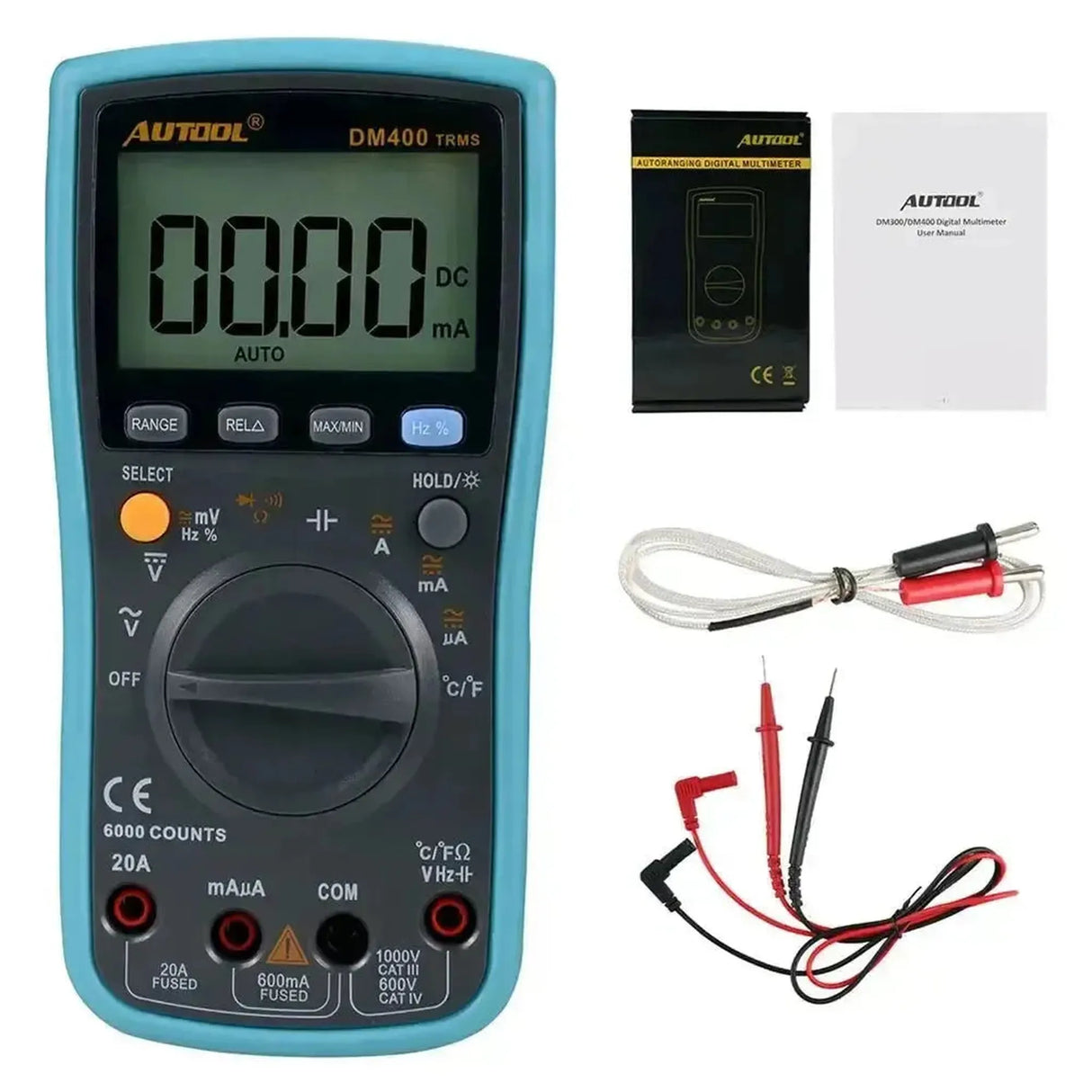

Package contents:
- Autool DM400 Multimeter

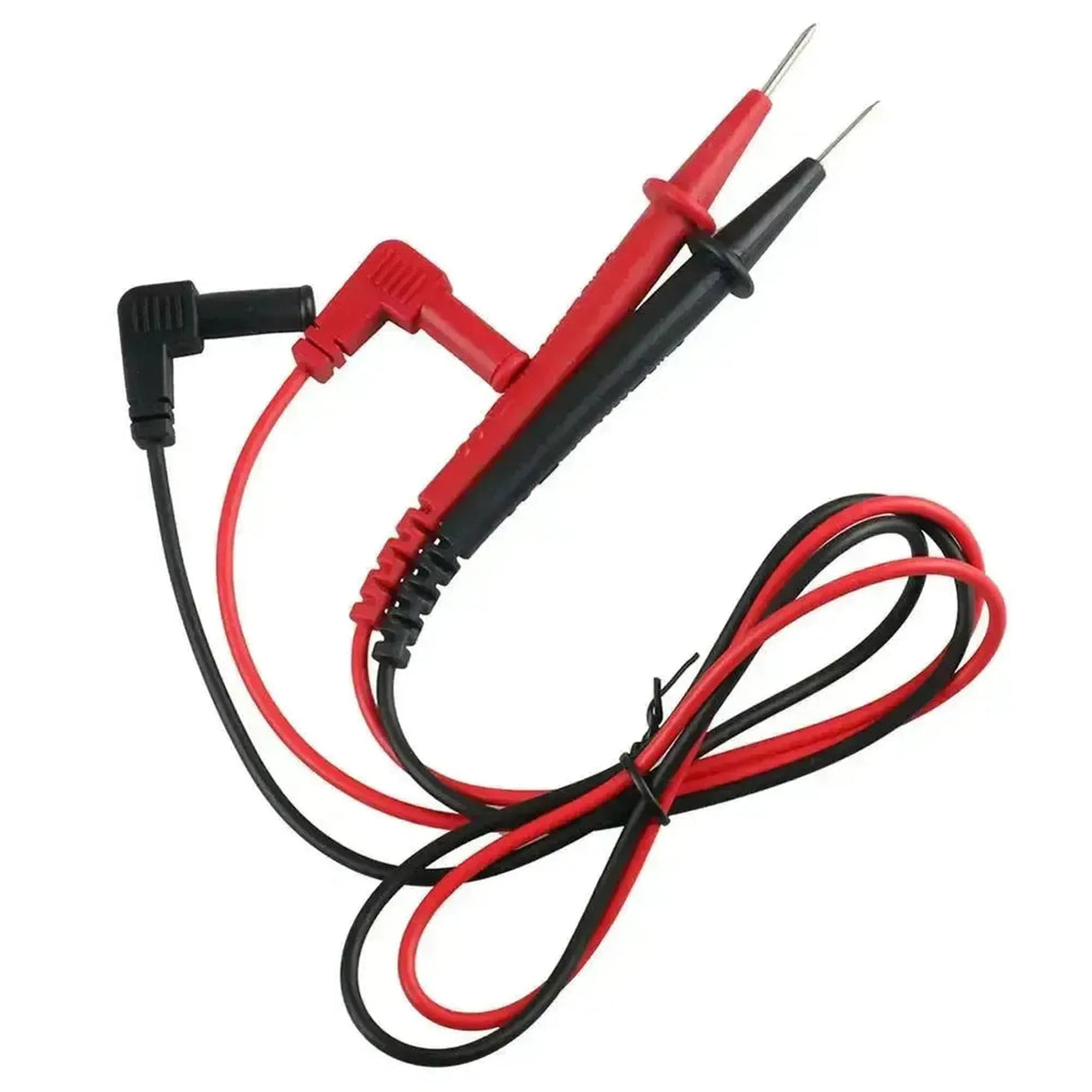

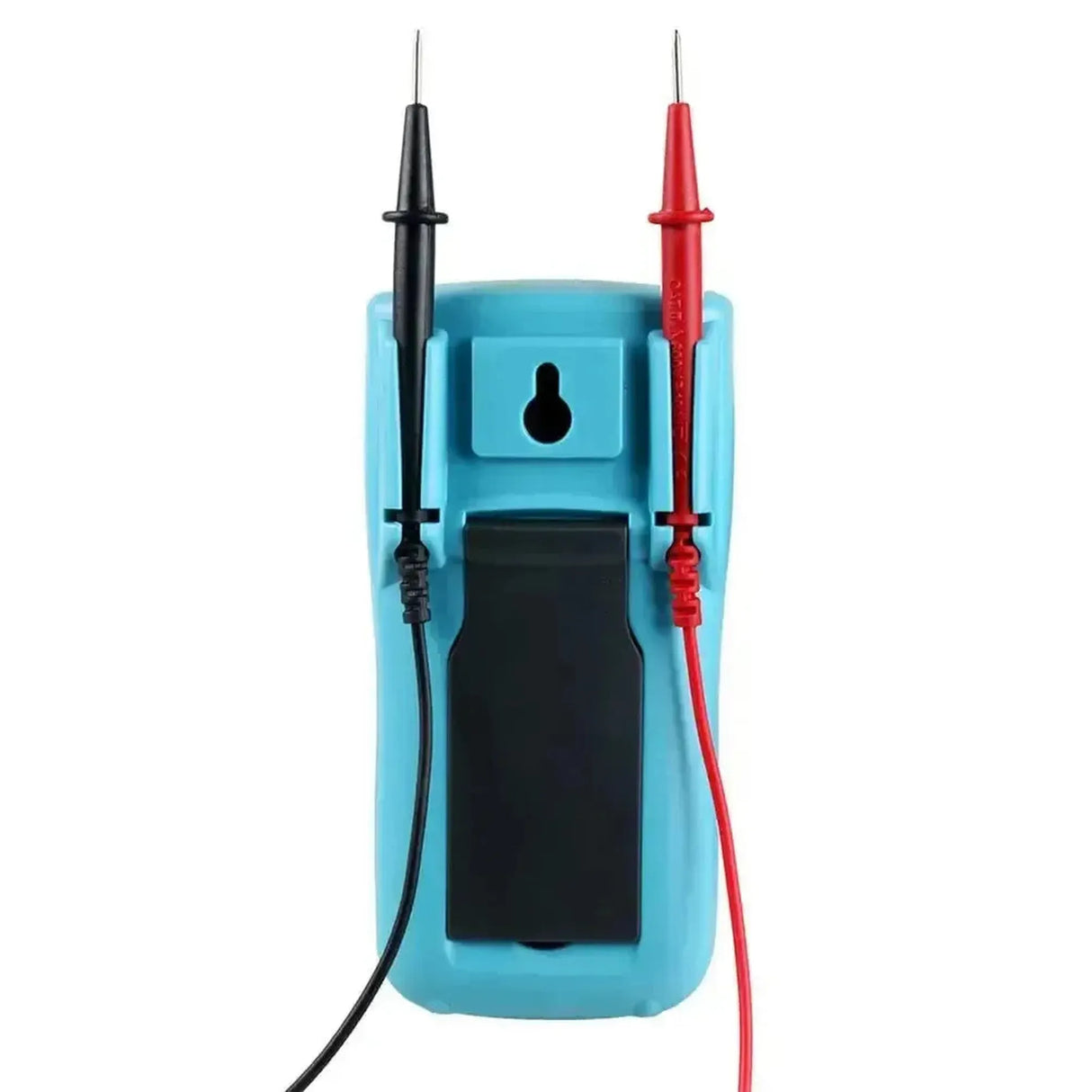

- Test lead (Red)
- Test lead (Black)
- Manual
Technical specifications
| Specification | Range | Accuracy |
|---|---|---|
| DC voltage | 0.1mV – 1000V | ±(0.5% + 3 digits) |
| AC voltage | 0.1mV – 750V | ±(1.0% + 3 digits) |
| DC current | 0.1μA – 20A | ±(1.0% + 3 digits) |
| AC current | 0.1μA – 20A | ±(1.5% + 3 digits) |
| Resistance | 0.1Ω – 60MΩ | ±(0.5% + 2 digits) |
| Capacitance | 10pF – 6000μF | ±(2.0% + 5 digits) |
| Frequency | 1Hz – 10MHz | ±(0.1% + 3 digits) |
| Duty cycle | 1% – 99% | ±(1.0% + 2 digits) |
| Temperature | -20°C – 1000°C | ±(1.0% + 5 digits) |
| Display | 6000 counts LCD with backlight | |
| Power supply | 2 x 1.5V AA batteries | (not included) |
| Dimensions | 180 x 90.5 x 45 mm | |
| Weight | 500 g |
