<strong>Duty cycle measurement:</strong> The Autool DM2...

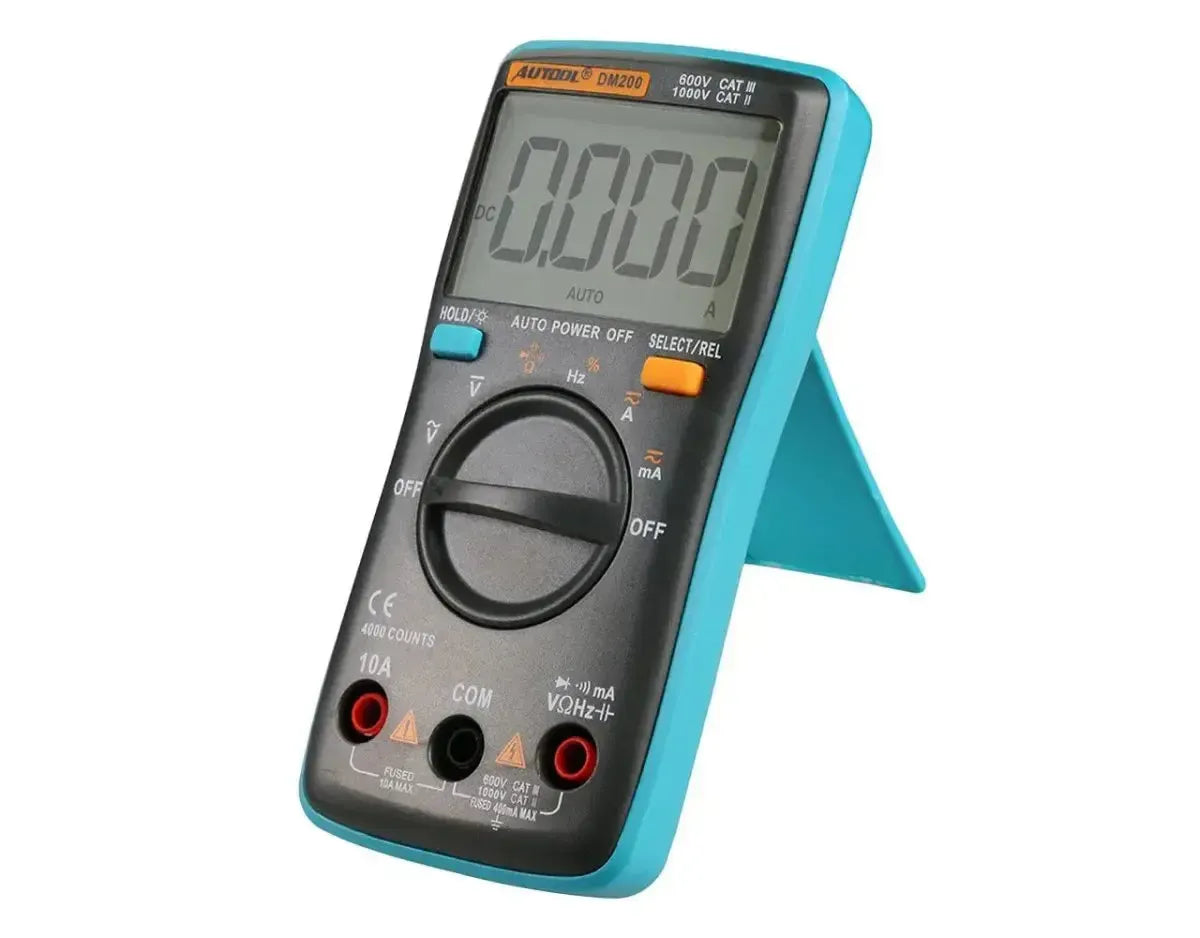

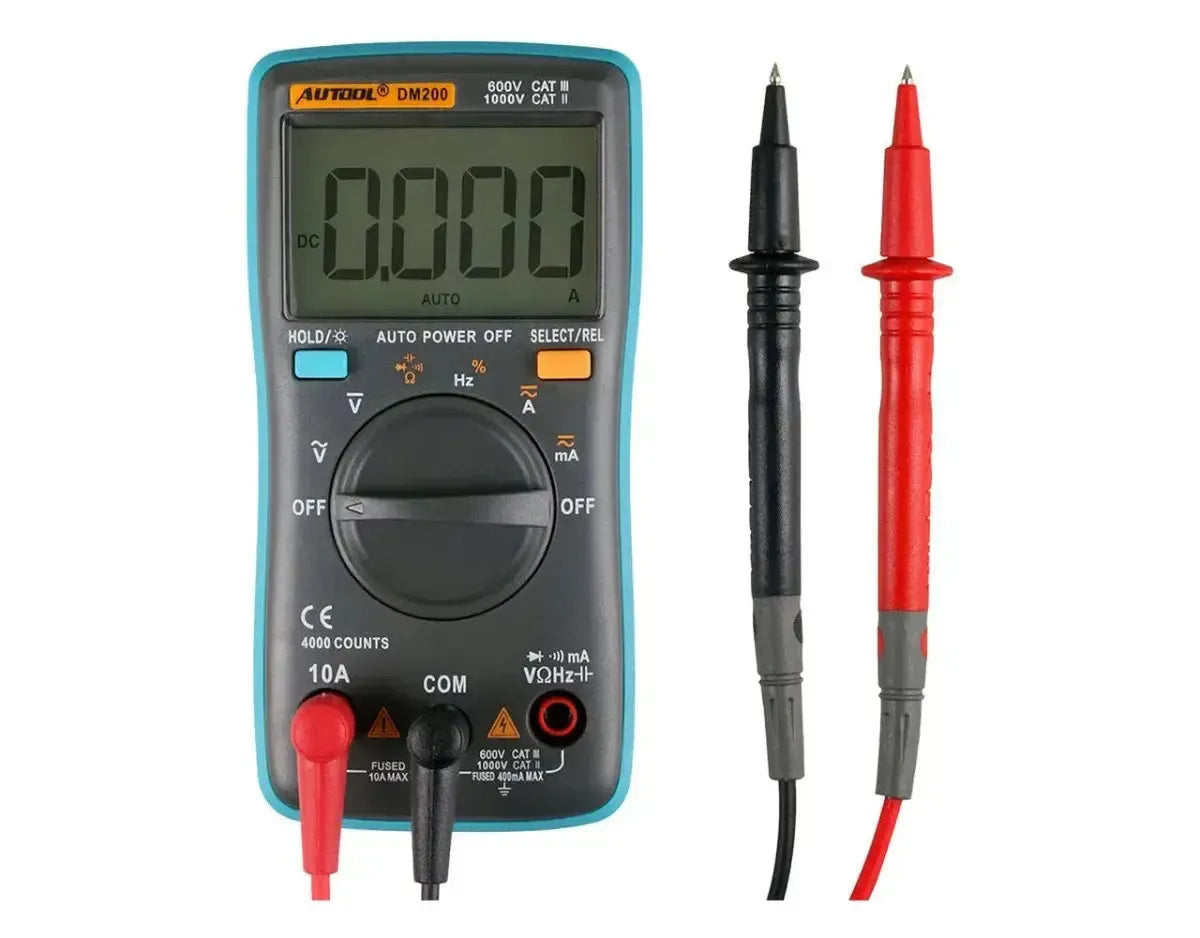

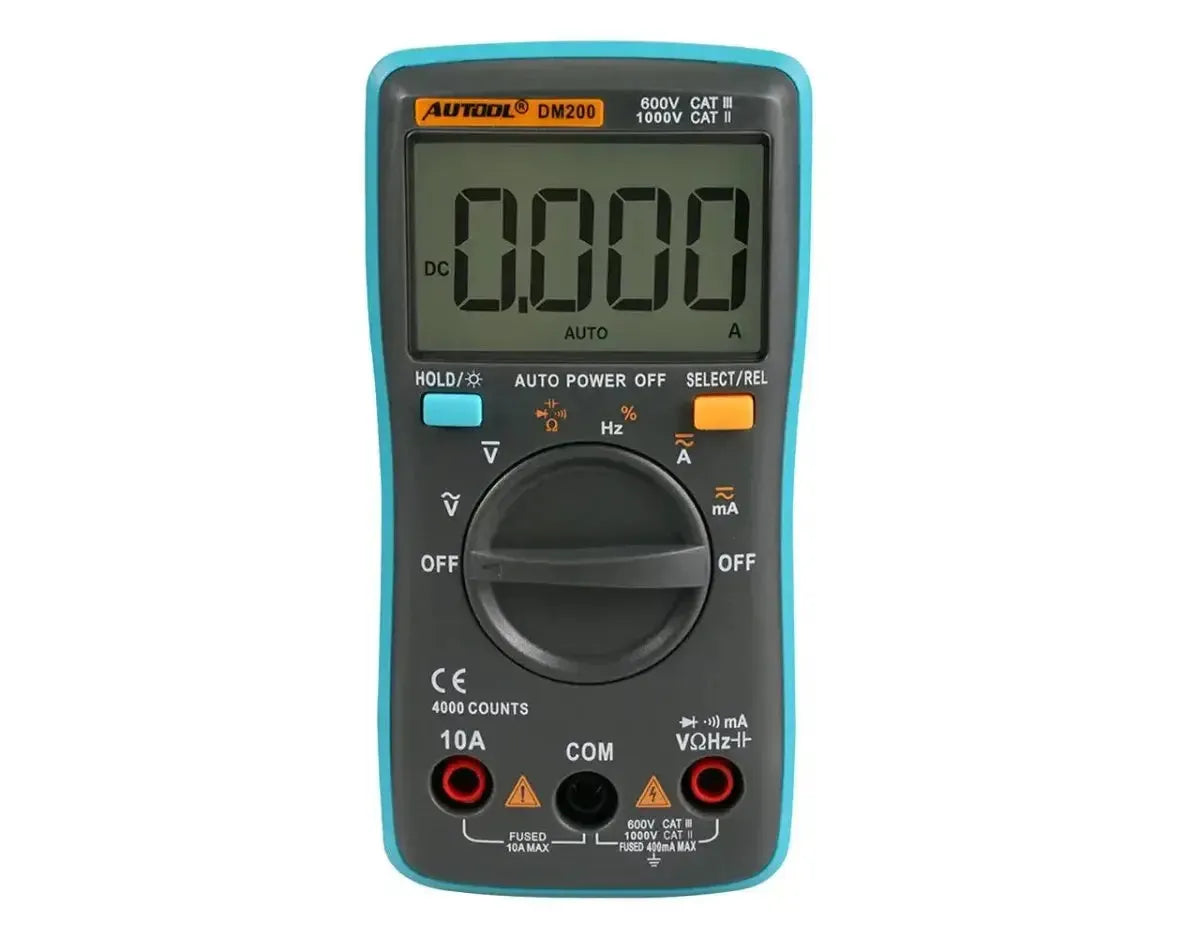

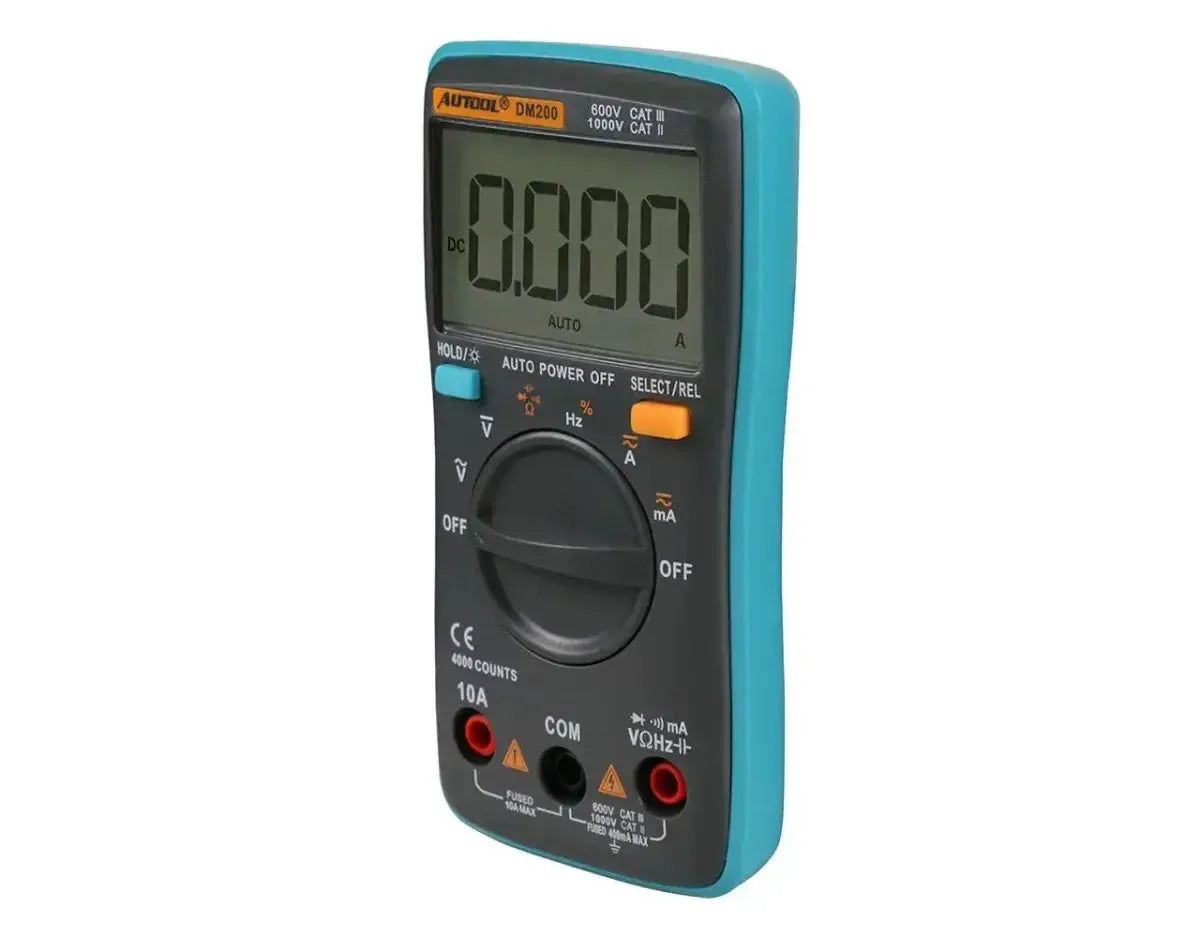

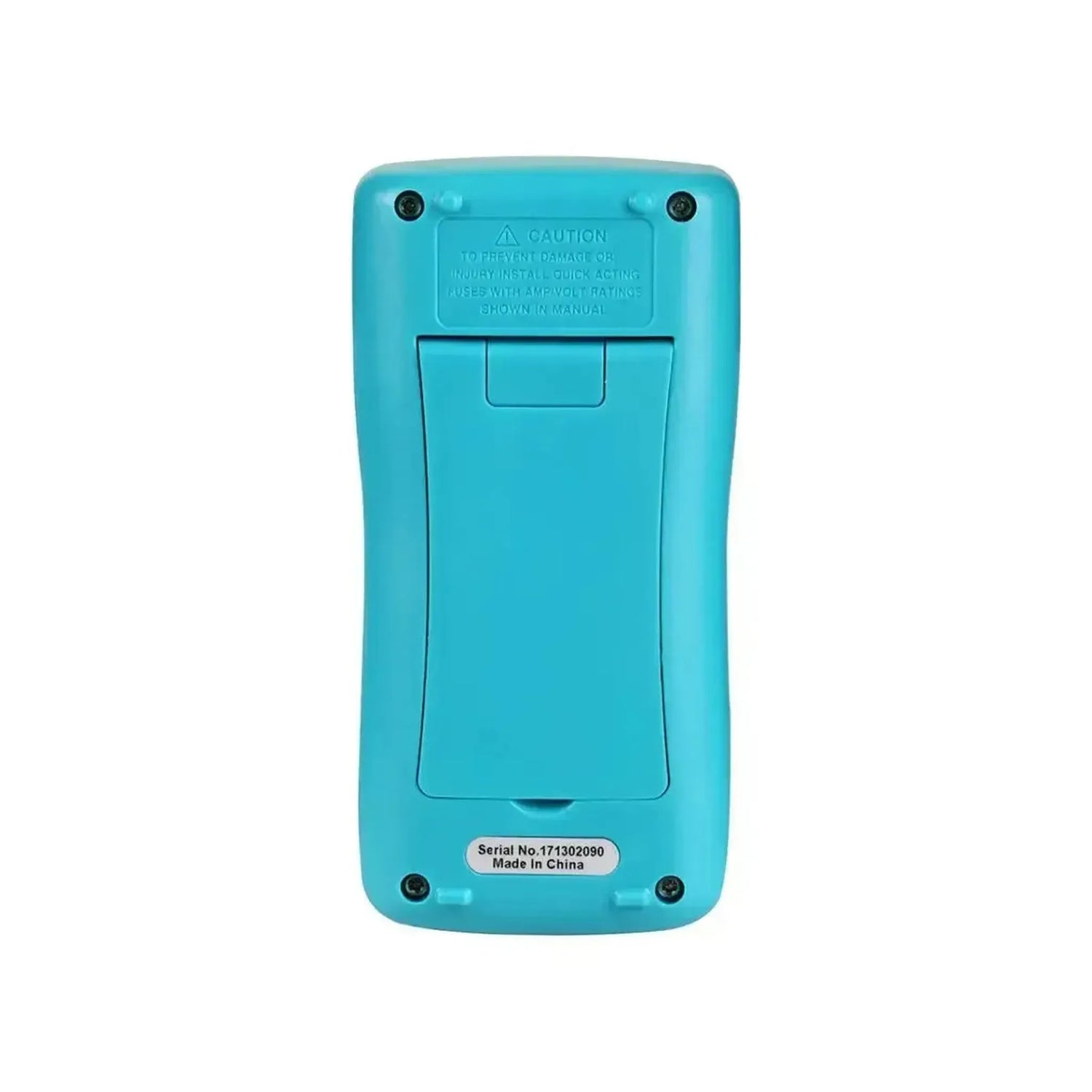

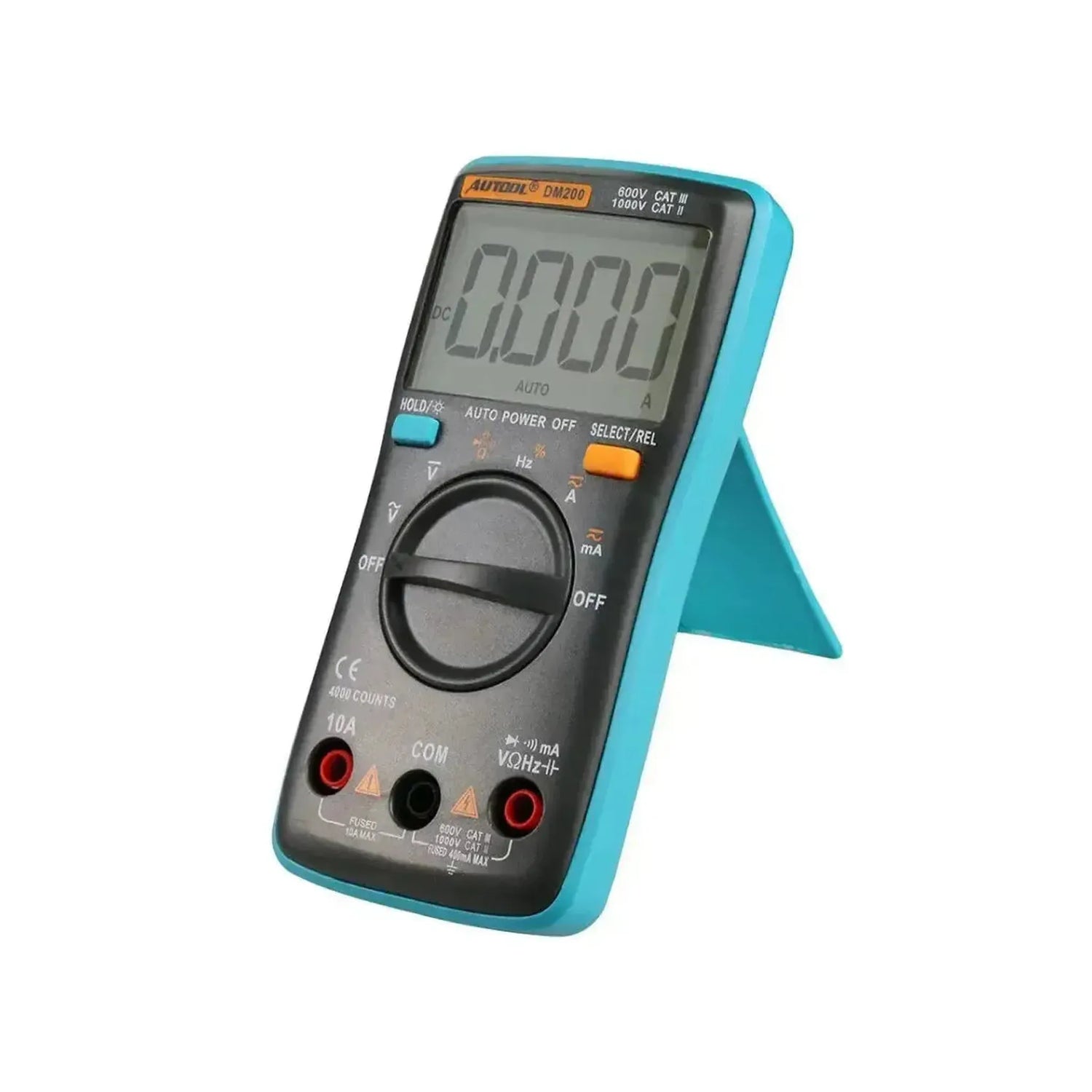

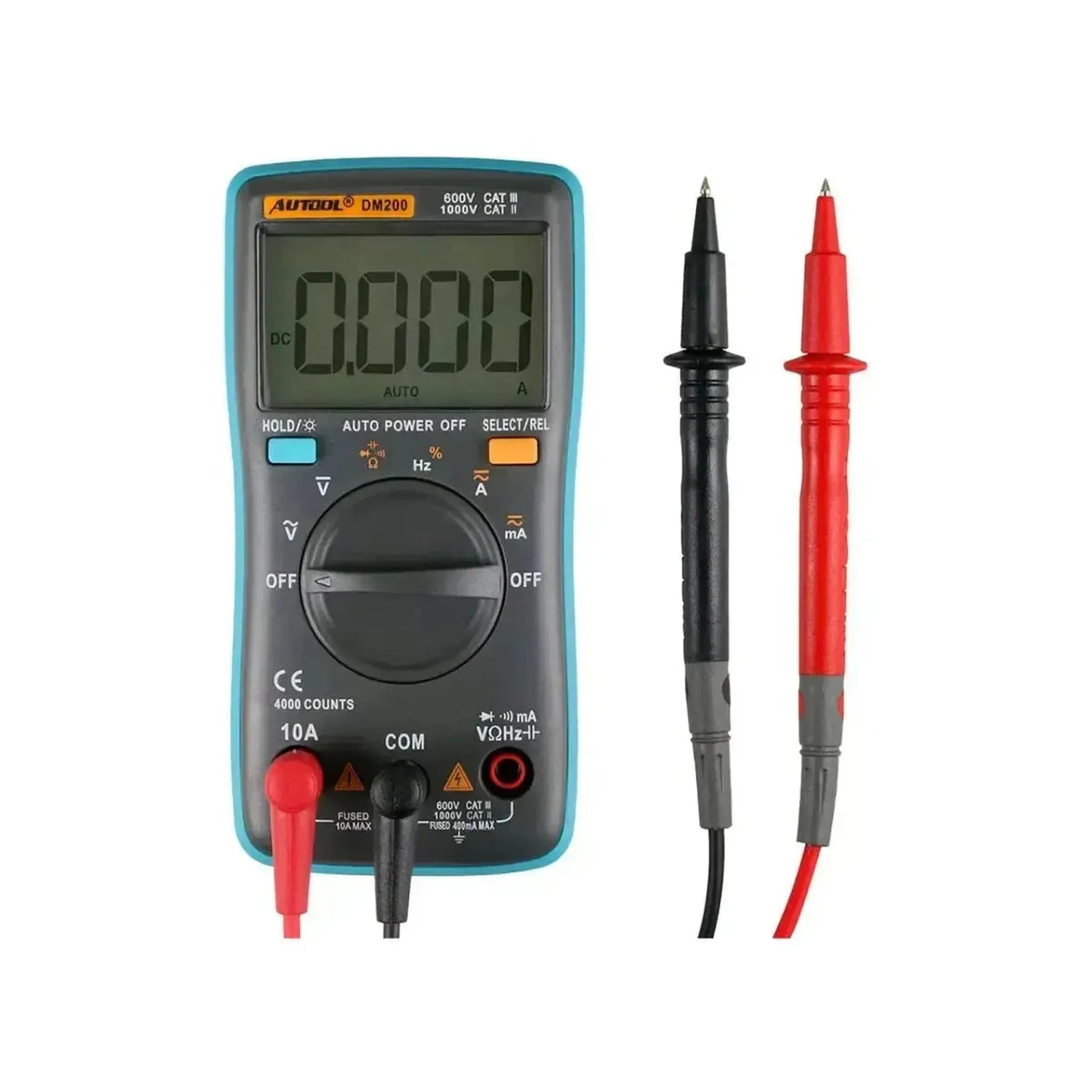

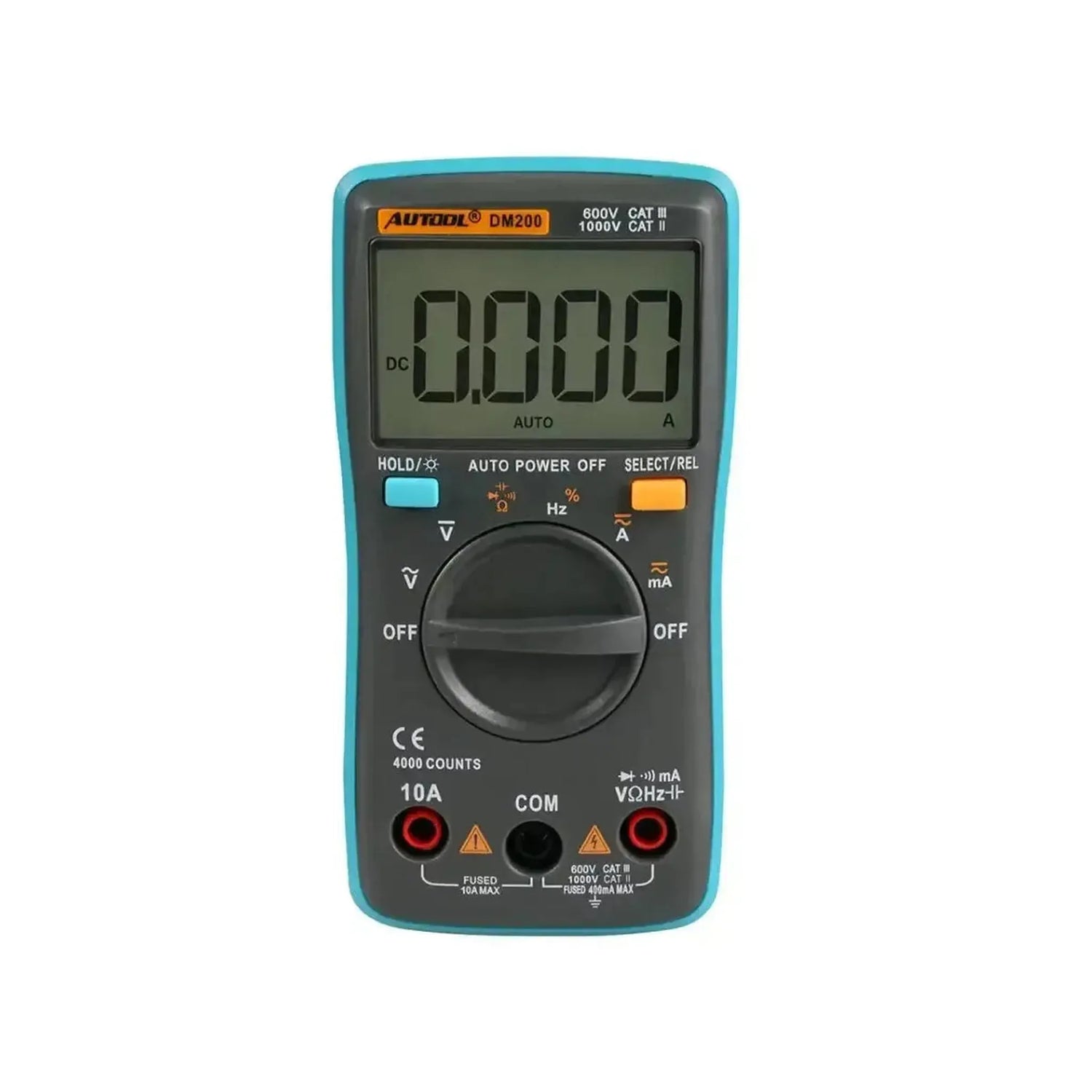

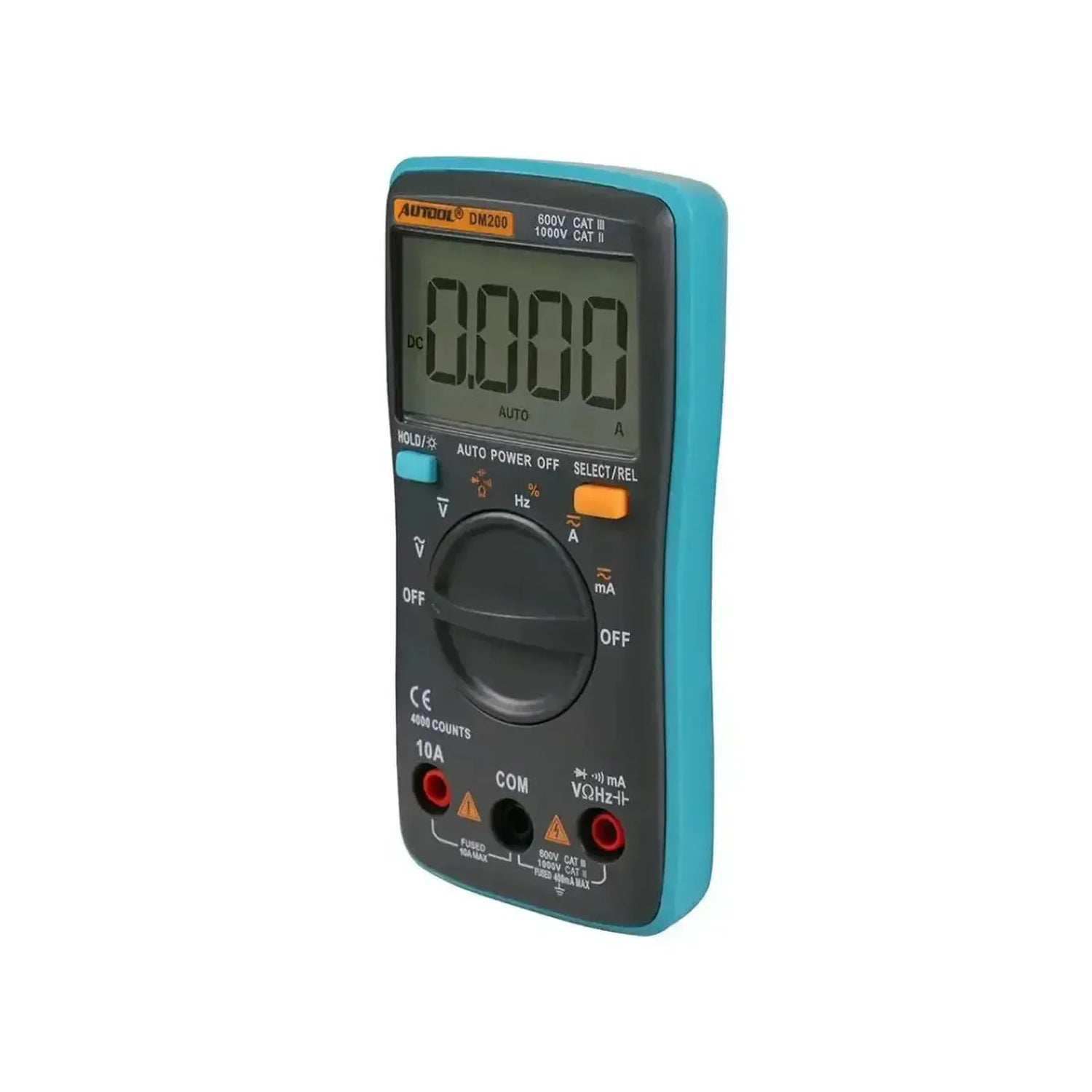

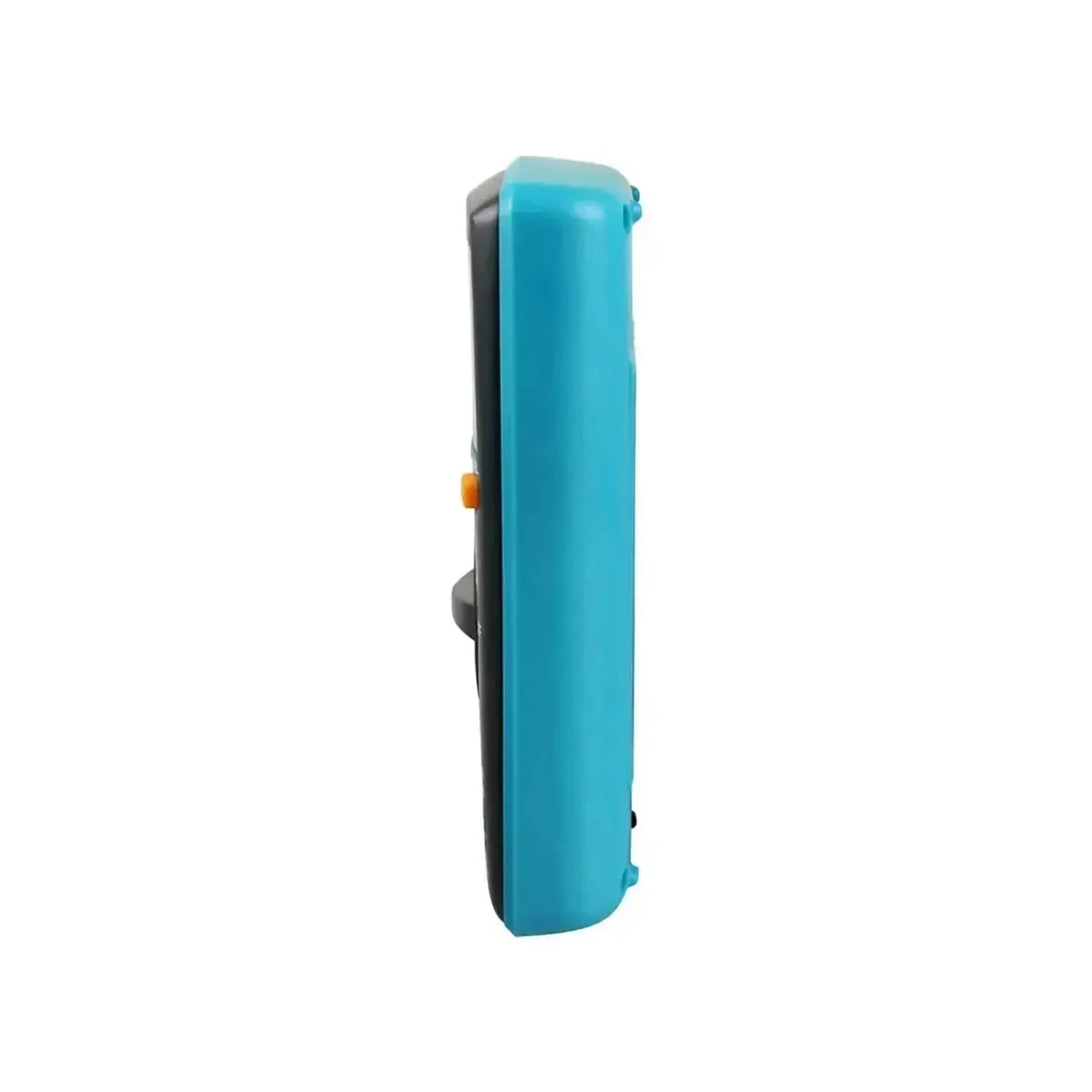

The Autool DM200 is a compact digital multimeter with seven measurement functions, suitable for measuring, among other things, voltage, current, resistance, capacitance, frequency, and duty cycle. The device offers a wide measurement range and is equipped with features for diode and continuity testing. Thanks to the automatic shut-off function after fifteen minutes of inactivity, the device is energy-efficient.
Functions:
-
AC/DC voltage measurement: The Autool DM200 can measure alternating voltage (AC) from 0.1mV to 750V and direct voltage (DC) from 0.1mV to 1000V, making it suitable for a wide range of applications.
-
AC/DC voltage measurement: The Autool DM200 can measure alternating voltage (AC) from 0.1mV to 750V and direct voltage (DC) from 0.1mV to 1000V, making it suitable for a multitude of applications.
-
AC/DC current measurement: The Autool DM200 has the capacity to measure alternating current (AC) and direct current (DC), both from 0.1uA to 10A, making it a versatile choice for various current measurements.
-
Resistance measurement: With a measurement range of 0.1Ω to 40MΩ, the Autool DM200 can measure a wide range of resistance values, which is essential for testing and troubleshooting in electrical circuits.
-
Capacitance measurement: The Autool DM200 can measure capacitances from 10pF to 4000uF, making it suitable for testing a variety of capacitors.
-
Diode and continuity testing: These functions are crucial for diagnosing the status of diodes and verifying electrical connections within a circuit.
-
Frequency measurement: With a measurement range of 1Hz to 10MHz, the Autool DM200 is suitable for measuring the frequency of both low and high frequency signals.
Package contents:
-
Duty cycle measurement: The Autool DM200 can measure the duty cycle from 1% to 99%, which is essential for analyzing pulse width modulation (PWM) signals.
-

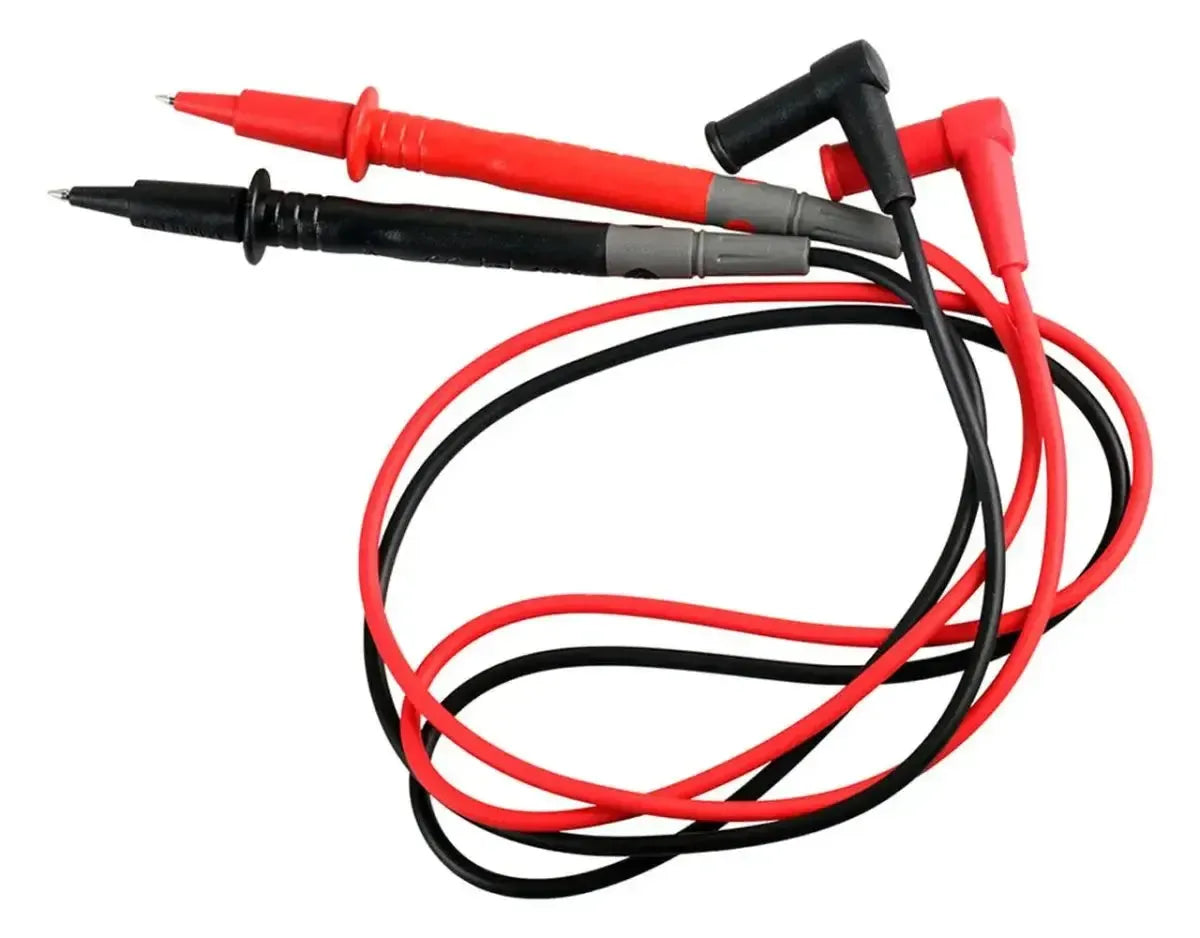

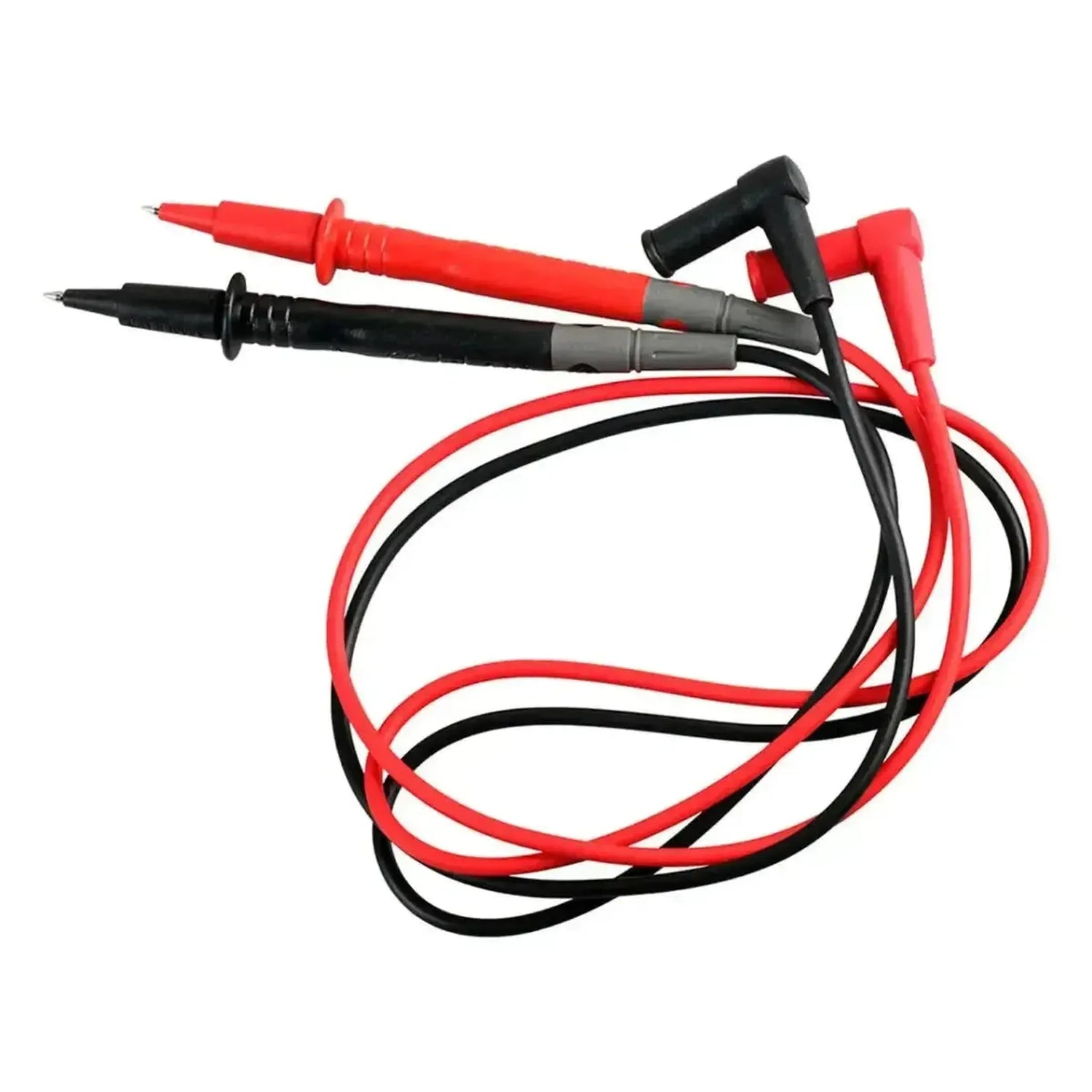

Test lead (Red)
-
Test lead (Black)
-

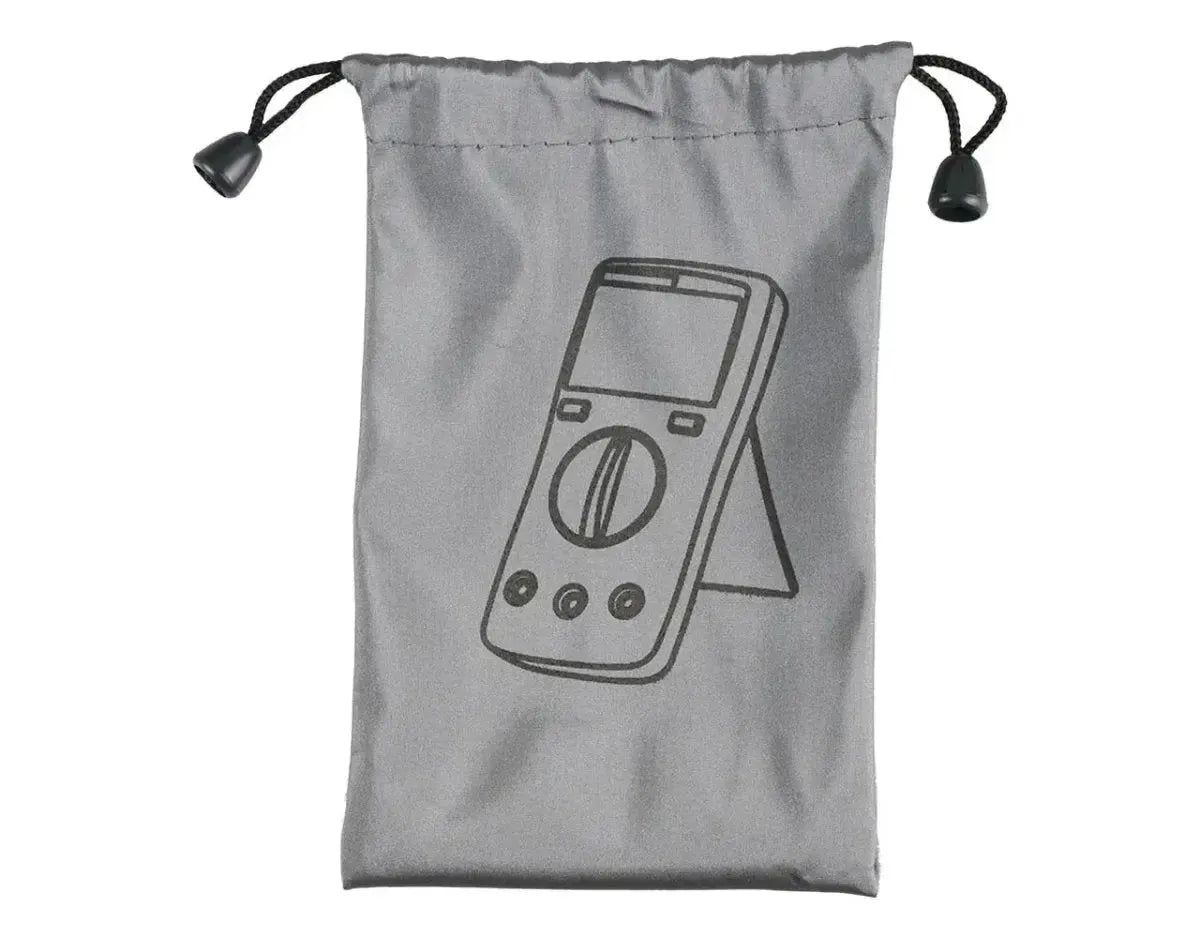

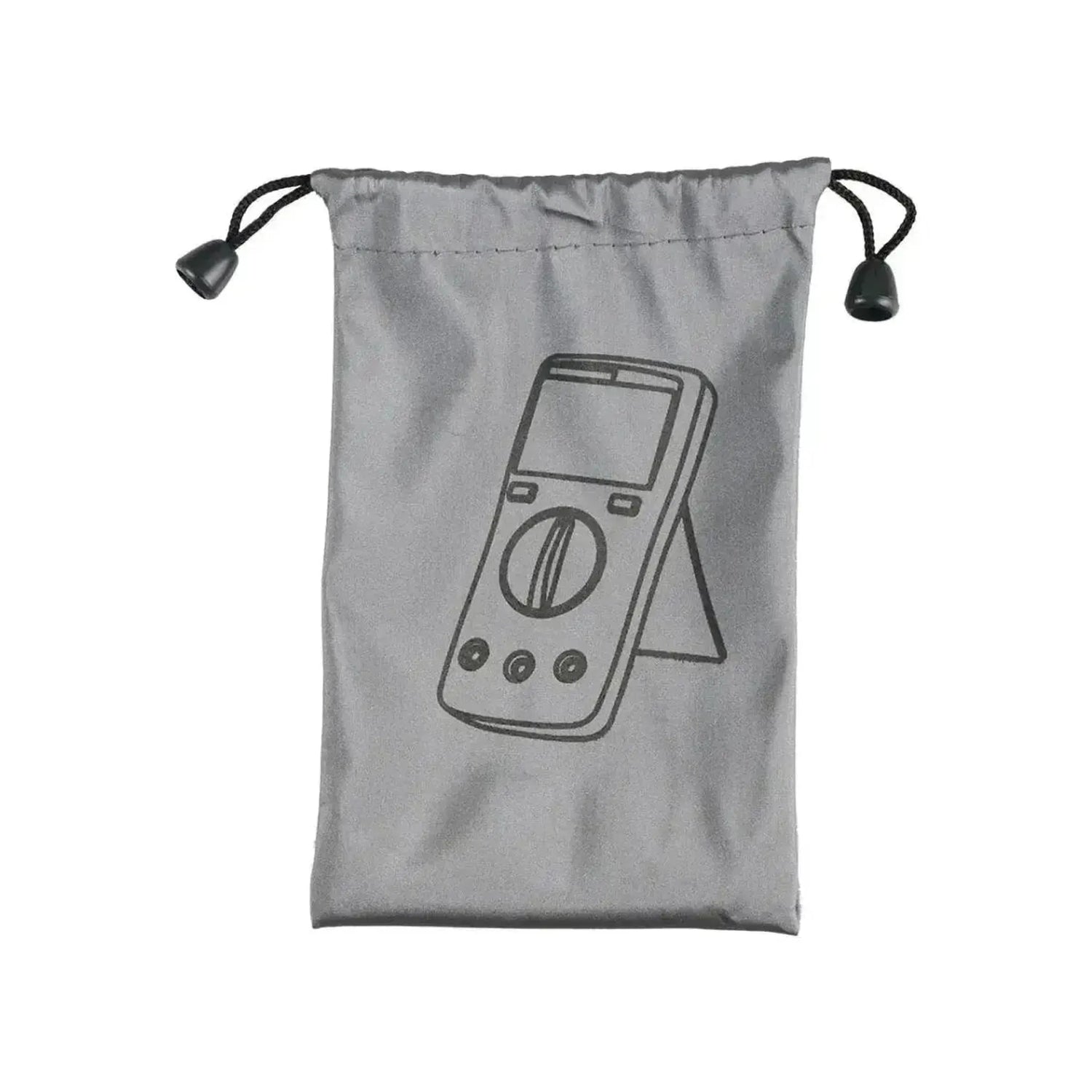

Carrying case
-
Manual
Technical specifications
|
Function |
Range |
|---|---|
|
Autool DM200 Multimeter |
Voltage (AC/DC) |
|
Current (AC/DC) |
0.1 µA – 10 A |
|
Resistance |
0.1 Ω – 40 MΩ |
|
Capacitance |
10 pF – 4000 µF |
|
Frequency |
1 Hz – 10 MHz |
|
Duty cycle |
1% – 99% |
|
Display |
4000 counts, sample rate 3x/sec |
|
Power supply |
2× AAA batteries |
|
Protection |
CAT II 1000 V / CAT III 600 V |
