Launch X-431 Pro 5 | Diagnostic Tool | Car

Diagnostic Functions

The Launch X-431 Pro 5 provides comprehensive system diagnostics across all available control modules of supported vehicles. The functions below form the foundation of diagnostic capabilities.

• Full system diagnostics: Reading and clearing fault codes across all available control modules such as engine, transmission, ABS, airbag, climate control and body modules.
• Live data stream: Real-time reading of sensor values and actuator statuses with the ability to display and compare multiple parameters graphically.
• Actuator test: Activation of components such as injectors, valves, pumps and relays to verify operation without disassembly.
• Intelligent Diagnose: Automatic vehicle identification via VIN with direct access to vehicle-specific reports, linked fault codes and service history from the Launch cloud.
• Topology Mapping: Graphical display of the vehicle network structure with visual indication of modules with active fault codes.
• Remote Diagnose: Remote diagnostics via internet, allowing a second technician to observe and assist during a diagnostic session.
• CAN-FD and DoIP: Support for modern communication protocols to access newer vehicles from manufacturers including GM, Ford, VAG and Mercedes-Benz.
• Diagnostic History: Storage of previous diagnostic sessions with the ability to resume a previously interrupted session directly.
• Feedback function: Reporting of diagnostic issues or missing functions directly to Launch technicians for support.

Service and Maintenance Functions

The Launch X-431 Pro 5 supports a comprehensive range of service and maintenance functions for various vehicle systems. The availability of individual functions may vary depending on vehicle make, model and year of manufacture.

Engine and Powertrain

• Oil service reset:Resetting the oil service interval indicator after an oil and filter change.
• Throttle body learning:Relearning the base position of the electronic throttle valve after cleaning or replacement.
• Injector coding:Coding new or replacement fuel injectors based on calibration values.
• Crankshaft position sensor learning:Calibration of the crankshaft reference position for precise engine control.
• Motor angle sensor calibration:Calibrating the angle sensor for correct ignition and injection timing.
• Air/fuel ratio reset:Resetting mixture learning values after modifications to the intake or fuel system.
• Turbo learning:Relearning the variable turbo geometry actuator after replacement or cleaning.
• EGR adaptive values reset:Resetting the adaptive values of the exhaust gas recirculation system.
• Diesel particulate filter regeneration:Manually initiate forced regeneration of the diesel particulate filter.
• Petrol particulate filter regeneration:Manual initiation of a regeneration cycle for the OPF/GPF on petrol engines.
• Adblue reset:Resetting the AdBlue system after topping up or servicing the SCR system.
• Nox sensor reset:Resetting NOx sensor learning values after replacement.
• Cooling system bleeding:Activating the coolant pump for bleeding the cooling system.

Transmission and Drivetrain

• Transmission adaptive value reset:Resetting the shift strategy of automatic and DSG transmissions.
• Pairing procedure:Clutch engagement point learning for automated transmissions.

Braking and stability systems

• Abs brake system bleeding:Activating the ABS pump to bleed the hydraulic brake circuit.
• Electronic parking brake service:Resetting and actuating the electronic parking brake for brake pad replacement.

Steering and chassis

• Steering angle sensor calibration:Calibrating the steering angle sensor following wheel alignment or component replacement.
• Air suspension calibration: Calibration of the air suspension system and ride height sensors.
• Adaptive cruise control calibration: Calibration of the radar or camera sensor in the adaptive cruise control system.
• Adaptive headlight adjustment: Calibration and initialisation of cornering lights and levelling control.

Body and comfort systems

• Window control initialisation: Initialisation of the electric window system following battery replacement or module reset.
• Sunroof initialisation: Initialisation of the sunroof after power interruption.
• Air conditioning system learning/initialisation: Learning of valve positions and initialisation of the climate control system.
• Footwell module reset: Reset of the footwell module for comfort and lighting functions.
• Language setting adjustment: Modification of the menu language in the instrument cluster or infotainment system.

Electrical and safety systems

• Battery registration: Registration of a new battery in the energy management system.
• Start interrupt reset: Reset of the start interrupt following module or key replacement.
• Start/stop system reset: Reset of the start-stop system learning values.
• Seat occupancy mat calibration: Calibration of seat occupancy detection for the airbag system.
• High-voltage battery service: Service functions for the high-voltage battery in hybrid and electric vehicles.

Tyre pressure and other functions

• Tyre pressure sensor reset: Reset and learning of TPMS sensors following wheel change or replacement.
• Tyre size reset: Adjustment of the tyre size setting following a wheel size change.
• Transport mode deactivation/activation: Activation or deactivation of the factory transport setting on new vehicles.

Special functions and capabilities

In addition to diagnostic and service functions, the X-431 Pro 5 offers supplementary capabilities for workshop use and remote collaboration.

• Intelligent Diagnose: Automatic vehicle identification via VIN with direct access to cloud-based diagnostic reports.
• Remote Diagnose: Remote support between technicians via the internet, suitable for complex vehicles or remote assistance.
• Topology Mapping: Visual representation of the vehicle network structure with colour-coded fault status indicators for each module.
• TPMS Menu: Dedicated menu for tyre pressure sensors with readable sensor information and reset functions.
• ADAS Calibration: Support for calibration of advanced driver assistance systems in conjunction with optional Launch ADAS hardware.
• Software Update: Online vehicle software and application updates via WiFi.
• Diagnostic History: Complete archiving of diagnostic sessions with the ability to resume.
• Feedback: Direct communication with Launch technicians for reporting software issues or missing vehicle support.

Supported Vehicle Brands

The Launch X-431 Pro 5 supports a wide range of vehicle manufacturers from various regions worldwide. Available functions per brand may vary depending on model and year of manufacture.

• European: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Cupra, Dacia, DR Automobiles, Ferrari, Fiat, GAZ, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, MAN, Maserati, Maybach, Mercedes-Benz, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, Skoda, Smart, UAZ, VAZ, Vauxhall, Volkswagen, Volvo
• Asian: Acura, Ashok Leyland, Daihatsu, FUSO, Genesis, HINO, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Saipa, SsangYong, Subaru, Suzuki, Tata, Toyota, VinFast
• American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, Jeep, Lincoln
• Chinese: Brilliance, BYD, Changan, Changhe, Chery, FAW, Foton, Gonow, GWM, Hafei, Haima, JAC, JMC, Jinlong, Joylong, Lifan, Luxgen, Maxus, MG, Polarsun, Qoros, SAIC-GM, SAIC-GM-Wuling, Trumpchi, ZX Auto, Zotye

Licence Information

The Launch X-431 Pro 5 is supplied with a 2-year software licence from the date of activation. This licence provides access to all vehicle software, diagnostic functions and online features of the device.

• Licence Period: 2 years of free software updates included from device activation.
• Software Updates: Regular updates via WiFi with new vehicle models, new service functions, expansion of existing brand support and bug fixes.
• Extended Features: Cloud-based functions such as Intelligent Diagnose, Remote Diagnose and online vehicle reports require an active licence.
• After Licence Expiry: The device remains functional with the last downloaded software version, but new updates and cloud features become available again only after licence renewal.

Package Contents

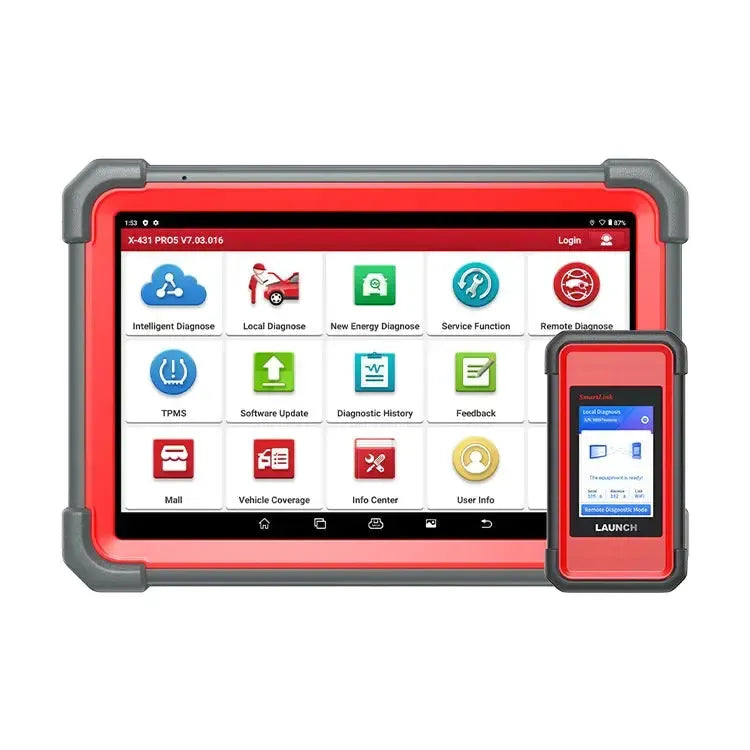

• 1x Launch X-431 Pro 5 diagnostic device (tablet)
• 1x SmartLink C V2.0 VCI module
• 1x OBD-II diagnostic cable
• 1x USB charging cable
• 1x Power adapter
• 1x Storage and transport case
