Autel MaxiIM IM608 II Car Key Programmer

The Autel MaxiIM IM608 II (also known as IM608 Pro II or IM608S II) is a leading key programmer and diagnostic platform, designed for automotive key experts and professional workshops. The device runs on Android 10 and features a large 10.1-inch 1920×1200 touchscreen, powered by a Qualcomm SDM660 octa-core processor, 4 GB RAM, 128 GB storage, and a powerful 15,000 mAh Battery. With the included XP400 Pro key programmer and MaxiFlash JVCI+ (J2534/DoIP/CAN FD/D-PDU/RP1210), the IM608 II offers both advanced key and IMMO programming as well as full OE-level vehicle diagnosis.

The IM608 II supports, among others, key generation, PIN/CS reading even with all-key-lost, transponder reading/writing, EEPROM/MCU access, and IMMO ECU reset/adaptation. It covers about 80% of all vehicles worldwide via OBD key programming, including specialized systems such as BMW FEM/BDC, Mercedes SCN coding, and Volvo smart keys. Besides key management, the platform offers OE-level diagnosis, more than 36 service functions, active tests, live data analysis, ECU coding, and remote support via Autel Remote Expert

---

Diagnostic functions:

The Autel IM608 II offers full OE-level vehicle diagnosis for more than 80 vehicle brands, alongside its extensive key and IMMO functionality. The system supports all major communication protocols, including CAN FD and DoIP, and is suitable for both standard and specialized diagnostic tasks.

• Complete system diagnosis: Scans all electronic modules of the vehicle, such as engine, transmission, ABS, SRS, body control, steering, ADAS, etc.
• Active tests (bi-directional control): Allows the user to directly control components (e.g., pumps, valves, headlights) for functional checks.
• Live data stream: Displays real-time data in text, graph, or analog format, with support for recording, comparison, and rewinding of data streams.
• AutoVIN & AutoScan: Automatically identifies the vehicle via the chassis number (VIN) and immediately performs a full system scan.
• Pre- and post-scan reports: Generates clear reports of vehicle status before and after work, suitable for customers, insurance, and workshop archiving.
• OBDII modes 1 through 10: Supports full access to generic OBD2 data, including Mode 6 for emission tests.
• ECU information & freeze frame: Displays detailed ECU data and stored measurements at fault code storage.

---

Key and immobilizer functions:

The Autel IM608 II offers a complete and professional key and IMMO programming platform, designed for workshops and car key specialists. In combination with the included XP400 Pro and MaxiFlash JVCI+, the system supports advanced functions for programming, reading, resetting, and learning keys and immobilizers.

• Key programming via OBD: Programs new keys or transponders for more than 80 vehicle brands, including in all-key-lost situations.
• PIN code reading: Reads security PINs via OBD or EEPROM/MCU, even in vehicles with high security (e.g., Opel, Peugeot, Hyundai).
• EEPROM/MCU programming: Supports reading and writing data from immobilizer chips, ECUs, BCMs, and dashboards via solder points or adapters.
• Transponder reading/writing: Recognizes and copies transponders, supports functions such as ID46/ID48 cloning, unlock/reset.
• IMMO ECU reset & learning: Resets or replaces immobilizer ECUs and performs synchronization with engine or starter blocking units.
• Smart key programming: Supports programming of proximity and smart keys, including BMW CAS/FEM/BDC, Mercedes FBS3/FBS4, Volvo, and other systems.
• Key generation: Generates new keys or transponders from eeprom data or based on vehicle selection.
• Remote control programming: Programs remote controls for vehicles that require this as a separate step.
• Read Key ID & lock information: Reads information about existing keys, including ID, status, battery, and lock position.
• System recognition & vehicle identification: Automatically detects the correct IMMO system based on vehicle selection or AutoVIN.

---

Maintenance and service functions:

In addition to key and immobilizer applications, the IM608 II also provides access to more than 36 maintenance and service functions, making the device usable as a full diagnostic tool for daily workshop use.

• Oil reset (Service): Resets the maintenance interval and oil change notification after periodic service.
• Electronic parking brake (EPB): Opens and closes the brake calipers electronically for brake maintenance and performs calibration.
• Initialize Battery Management System (BMS): Registers a new Battery in the vehicle management system after replacement.
• Initialize steering angle sensor (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
• Initialize diesel particulate filter (DPF): Performs forced regeneration and clears stored soot filter data.
• Bleed ABS pump (ABS): Activates the ABS system for automatic bleeding of the brake circuit.
• Initialize injectors: Codes new injectors and registers IMA codes in the ECU.
• Initialize throttle body (ETC): Relearns the throttle actuator after cleaning or replacement.
• Initialize air suspension: Calibrates air suspension systems after replacement or adjustment.
• Initialize transmission (CVT): Resets and relearns the adaptive transmission settings.
• Initialize adaptive headlights (AFS): Performs basic setting and calibration after replacement or reset.
• Door window/panoramic window initialization: Initializes electric windows, sunroofs, and doors after reset or replacement.
• AdBlue system initialization: Resets the urea dosing system after maintenance or refill.
• Seat occupancy sensor initialization (SRS): Calibrates passenger detection for airbag functionality.
• Start/stop initialization: Activates or deactivates the start-stop system where applicable.
• Crash data reset (SRS): Removes stored crash information after airbag module replacement.
• TPMS initialization: Detects and initializes tire pressure sensors, where supported.
• Transport mode initialization: Deactivates the transport settings of vehicles upon delivery.
• Exhaust Gas Recirculation initialization (EGR): Restores the EGR function after cleaning or replacement.

---

Programming and coding functions:

The Autel IM608 II combines key programming with extensive capabilities for ECU coding and (re)programming, supported by the powerful MaxiFlash JVCI+ Pass-Thru interface, with full support for protocols such as J2534, DoIP, CAN FD, RP1210 and D-PDU.

• ECU programming (online & offline): Supports online reprogramming for e.g. BMW and Mercedes-Benz, and offline programming for brands like Ford, Mazda, Jaguar, Opel, etc. via OE software.
• ECU coding: Changes software parameters in ECUs to configure new modules, activate or adjust functions.
• Offline coding: Enables adjustment without internet connection for, among others, VAG, BMW, Mercedes, and other brands.
• Component matching: Recognizes and initializes new components such as steering angle sensors, headlight modules, injectors, gearboxes, etc.
• Adaptations & resets: Performs resets for systems such as transmission, brakes, steering, and suspension after replacement or overhaul.
• Vehicle settings personalization: Activates or deactivates functions such as start/stop, comfort locking, lighting functions, or welcome lighting, depending on vehicle support.
• IMMO ECU coding: Supports coding and synchronization of immobilizer ECUs as part of the IMMO program.

---

Cloud and reporting features:

The IM608 II offers extensive capabilities for reporting, cloud synchronization, and remote support, making workshop processes more efficient and documentation easy to share.

• Pre- and post-scan reports: Generates professional reports of vehicle status before and after maintenance, suitable for customer communication or insurance.
• Data Manager: Manages stored vehicle information, fault codes, test results, customer data, and screenshots in one clear system.
• Wi-Fi export and report sharing: Diagnostic data can be easily shared or exported to a PC or printer via Wi-Fi, USB, or email.
• Autel Cloud Report Management: Supports cloud storage of reports, allowing them to be accessed from other devices via the Autel account.
• Remote Expert (optional): Enables remote assistance from an external technician via Autel’s own support platform.

---

Extra features:

The IM608 II includes various smart extra features that enhance ease of use and simplify the workflow for key and diagnostic work.

• AutoVIN recognition: Automatically recognizes the vehicle via the VIN number, making manual entry unnecessary and reducing error risk.
• ScanVIN / ScanPlate: Uses the built-in 8 MP camera to quickly scan the chassis number or license plate for vehicle identification.
• Key Fob Test: Tests the frequency and signal strength of car keys to verify remote control operation.
• TSB integration (Technical Service Bulletins): Displays vehicle- and fault code-related service messages from the OE database (if supported).
• Multitasking interface: Performs multiple processes simultaneously, such as viewing live data during key programming or ECU coding.
• Screen recording and screenshot function: Visually captures diagnostic or IMMO data for documentation, training, or customer reporting.
• Live update notifications: Automatically alerts for available software or vehicle updates during use.
• OTA updates via Wi-Fi: Software updates are loaded wirelessly via Wi-Fi, without the need for a PC or additional license server.
• Integrated Remote Expert: Remote support via Autel’s cloud platform or TeamViewer (depending on region and registration).

---

Special communication protocols:

The Autel IM608 II supports both conventional and modern diagnostic protocols, making the device suitable for diagnostics of vehicles from the 1990s to the latest models.

• CAN FD (Flexible Data Rate): Supports faster communication via CAN FD, required for diagnostics on recent vehicles from, among others, GM, Hyundai, Kia, and other brands.
• DoIP (Diagnostics over Internet Protocol): Ethernet-based protocol required for fast communication with vehicles from, among others, BMW, Jaguar, Land Rover, Volvo and other premium brands.
• J2534 (Pass-Thru): Supports communication and reprogramming via OE manufacturer software (e.g., Toyota Techstream, Ford IDS, Honda HDS).
• D-PDU & RP1210: Full support for manufacturer-specific software and heavy-duty vehicles.

---

Optional expansions and modules:

The IM608 II can be expanded with various accessories and modules to extend functionality to key operations, signal analysis, and ADAS calibration.

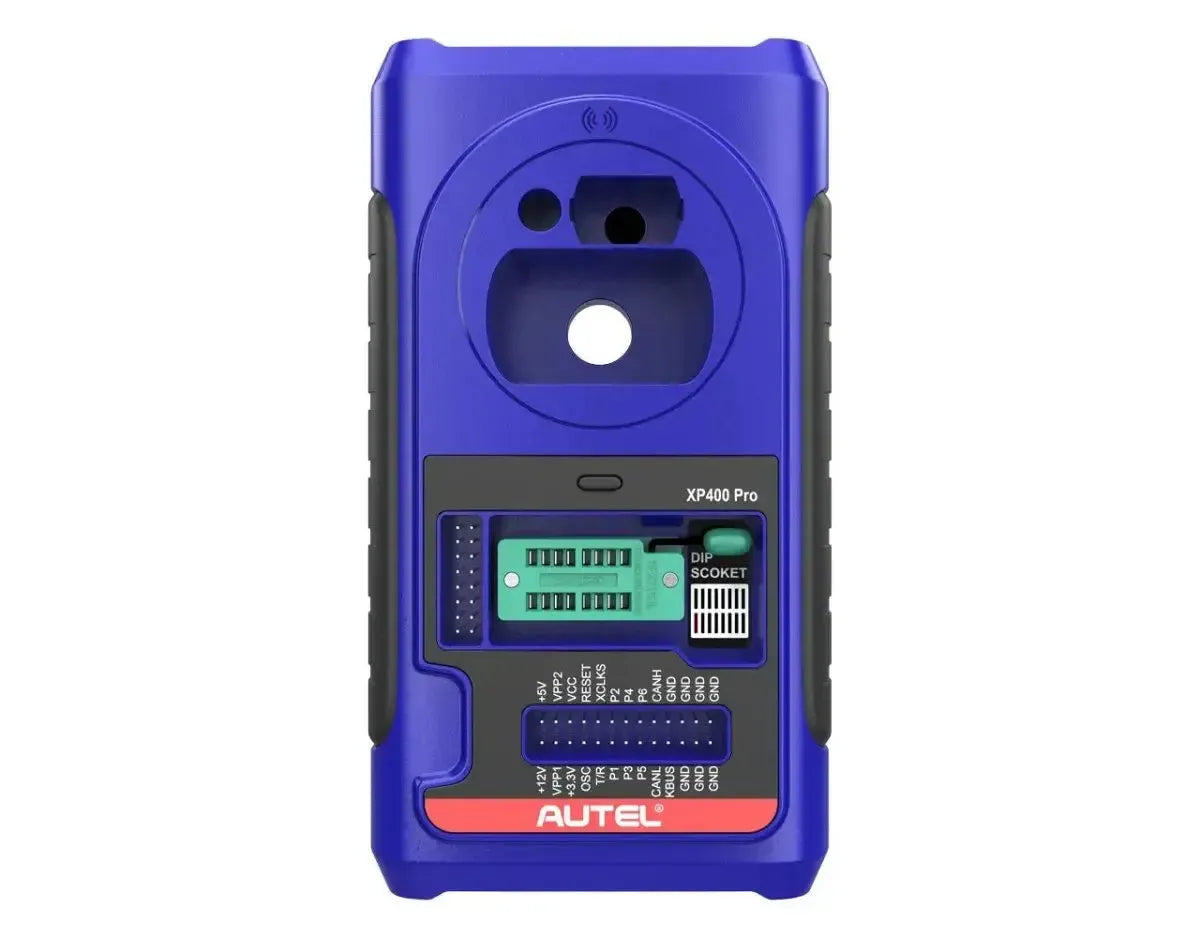

• XP400 Pro (standard included): Programming module for EEPROM, MCU, IMMO ECU’s, and transponders, supporting more than 95% of all immobilizers worldwide.
• G-Box3: Supports key programming for Mercedes (All Keys Lost) via OBD and ECU data recovery for vehicles with Bosch ECUs (e.g., VW/Audi).
• APB112: Emulator for smart keys, used by Toyota and Lexus to bypass smart key verification in case of key loss.
• IMKPA Key Programming Adapter Kit: Adapter set for direct connection to various IMMO systems and EEPROM chips.
• Accutester (MaxiBAS BT506): Measures battery voltage, starting capacity, and charging system status, directly connected to the diagnostic tablet.
• Digital inspection camera (MV105/MV108): For visual inspection of hard-to-reach vehicle components.
• Oscilloscope (MaxiScope MP408): Provides 4-channel signal analysis for measuring electrical signals within ECUs, sensors, and actuators.
• Secure Gateway access (AutoAuth): For access to secured vehicles from FCA via a AutoAuth account or 12+8 FCA adapter.
• OBD-I adapters: For vehicles from before 1996 with brand- and model-specific diagnostic connectors.

---

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

---

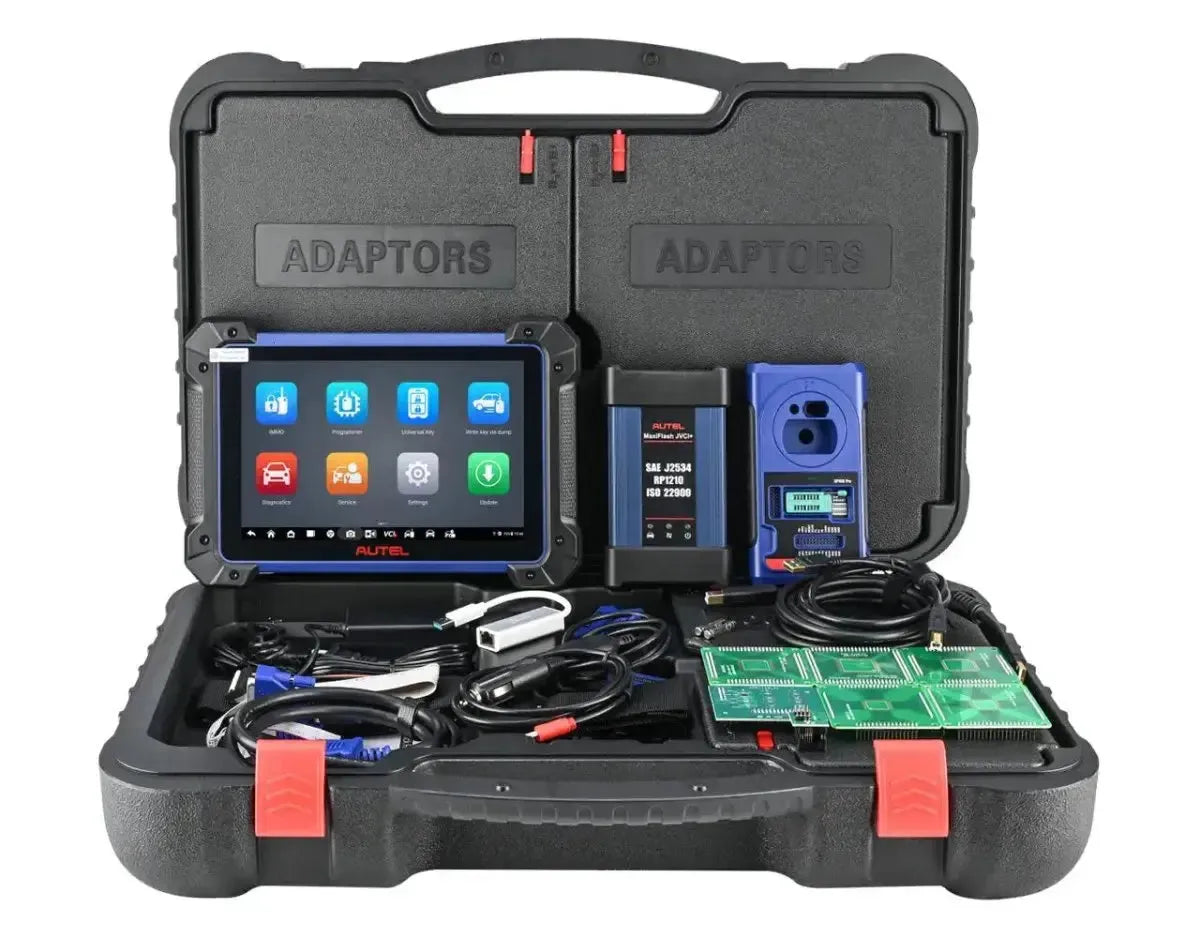

Package Contents:

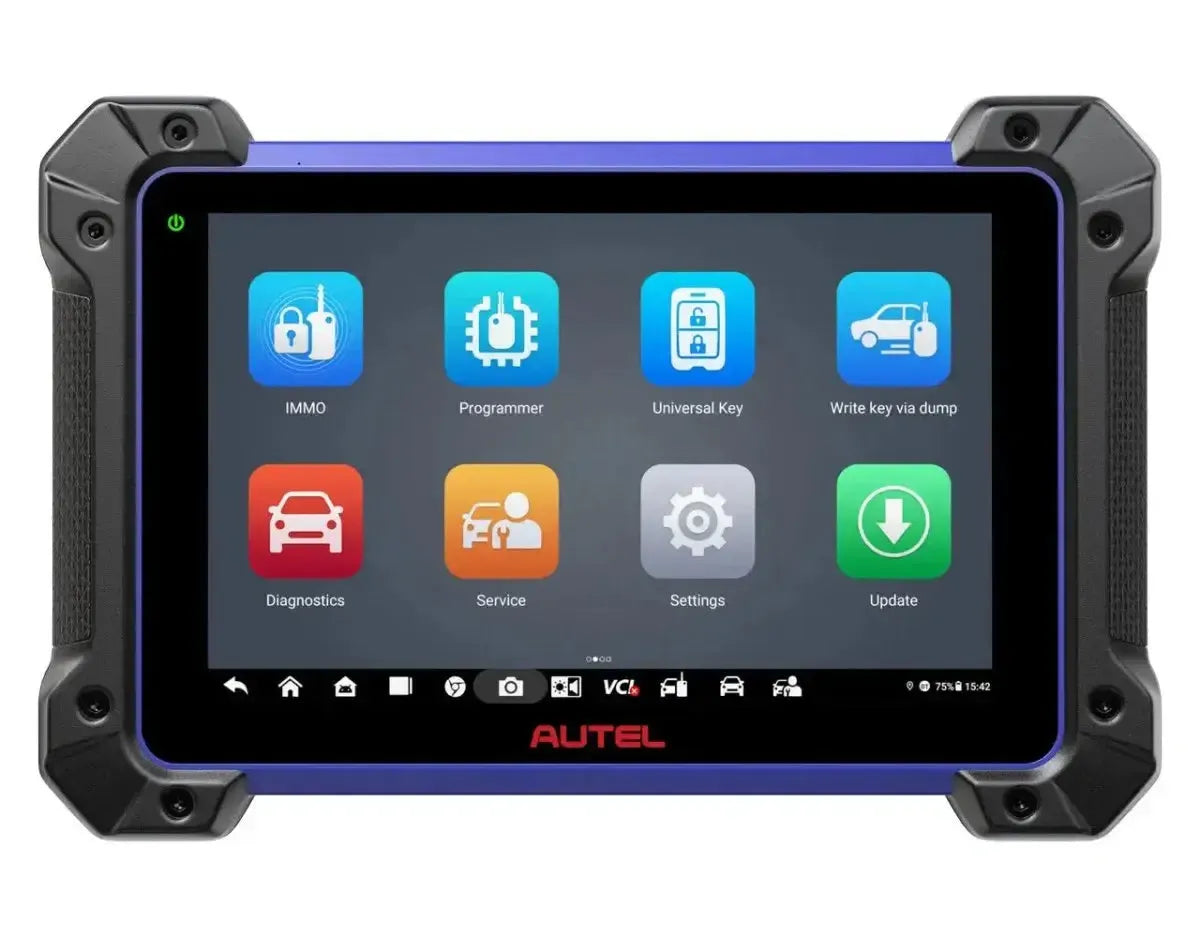

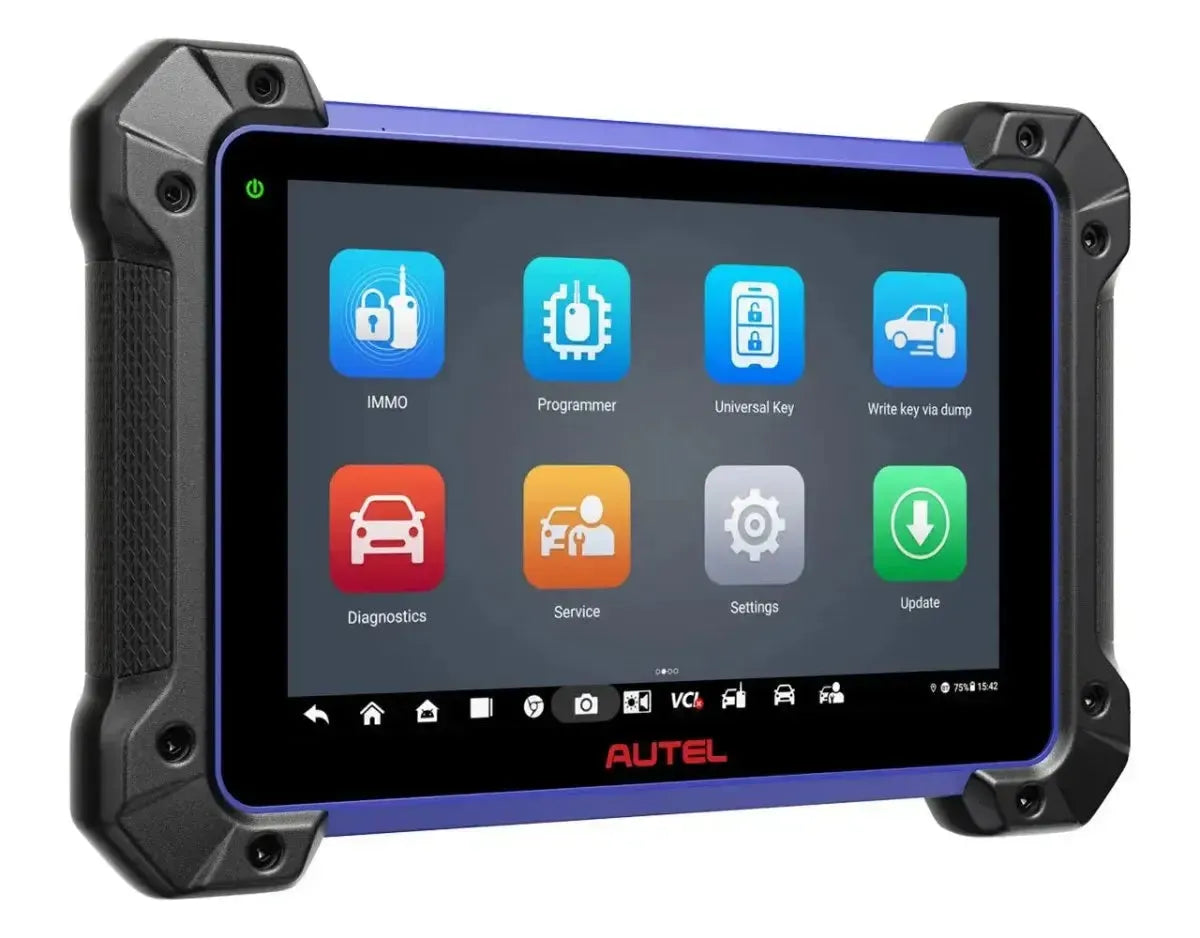

• Autel MaxiIM IM608 II Key Programmer

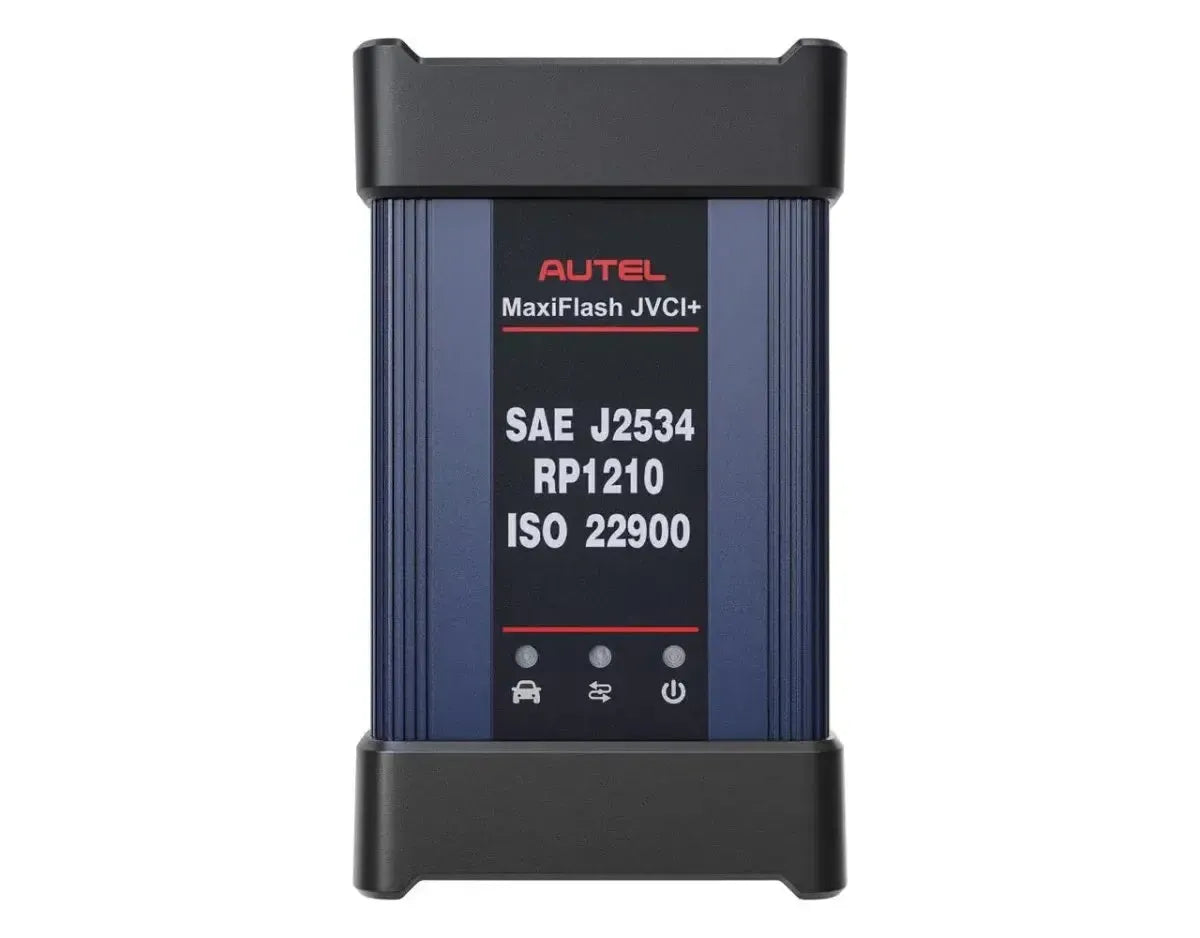

• Autel MaxiFlash JVCI++ Interface
• Autel XP400 Pro Key Programmer
• Autel 26 Pins DB26 - 16 Pins OBD2 Adapter Cable
• USB-A - USB-B Adapter Cable
• USB-A - Mini USB-B Adapter Cable
• USB-A - RJ45 Network Adapter Cable
• Power adapter
• Manual

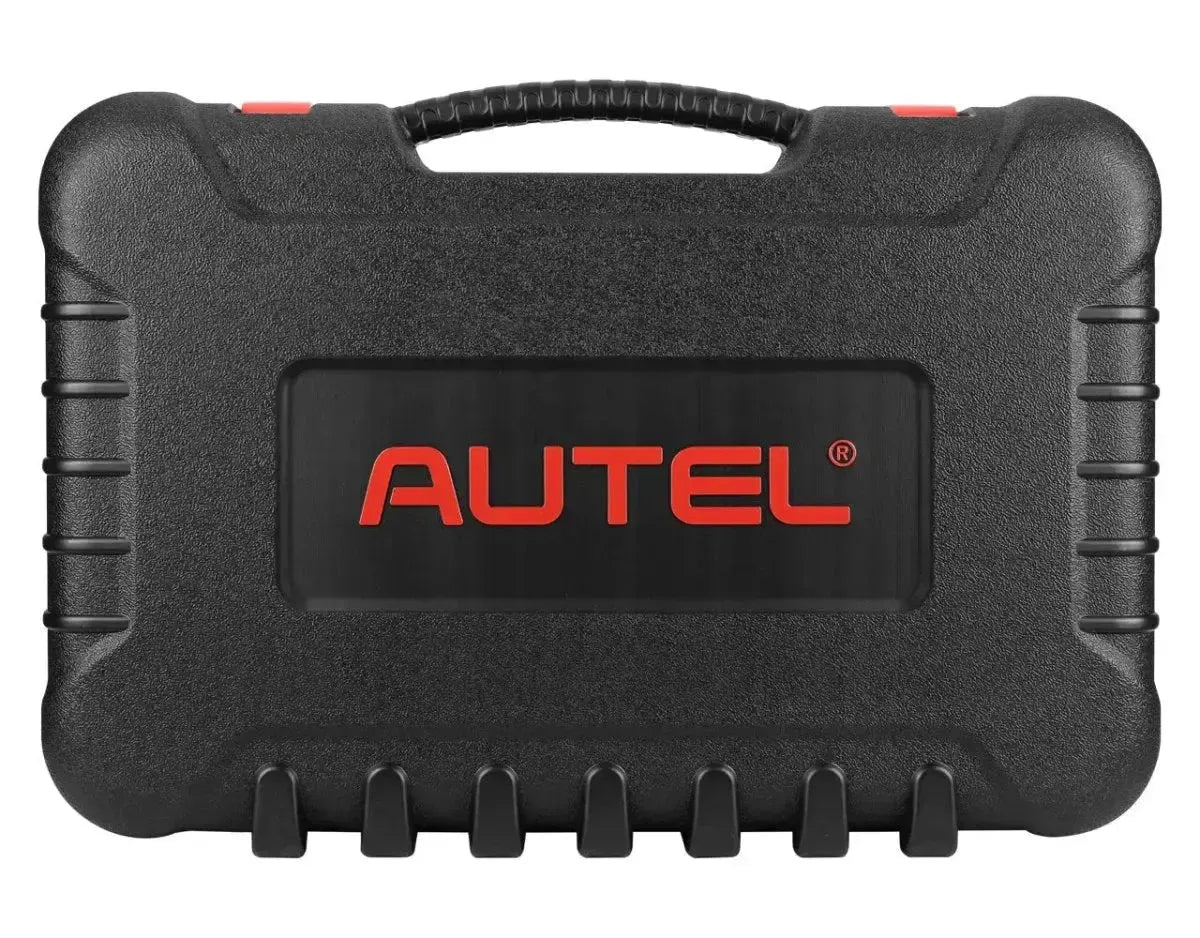

• Storage Case
• Cleaning Cloth
• Autel Battery Clamps Power Cable
• Autel Cigarette Lighter Power Cable
• Autel AAC001 - (MED17) Adapter Cable
• Autel APA002 - (EEPROM) Socket
• Autel APA101 - (Signal) Adapter Cable
• Autel APA103 - (EEPROM Clamp) Adapter Cable
• Autel APA107 - (ECU) Adapter Cable
• Autel APA108 - (MCU) Adapter Cable
• Autel APA109 - (MC9S12) Adapter Cable
• Autel APB104 - (MCU_FQFP64) Adapter
• Autel APB105 - (MCU_FQFP80) Adapter
• Autel APB106 - (MCU_FQFP112) Adapter
• Autel APB107 - (MCU_FQFP144) Adapter
• Autel APB108 - (MCU_FQFP176) Adapter
• Autel APB125 - (Mercedes Infrared Collector)
• Autel APB129 - (EEPROM) Adapter
• Autel APC101 - (USB cable)
• Autel Connection Cables

---

License Information:

• Includes 2 years of updates: An update license for 24 months is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional with the last installed software version, even without an active license. However, new software updates, extended vehicle coverage, and access to certain cloud-based features (such as Remote Expert) are only available with a valid update license.

---
