Autel APB112 Smart Key Emulator | Accessories

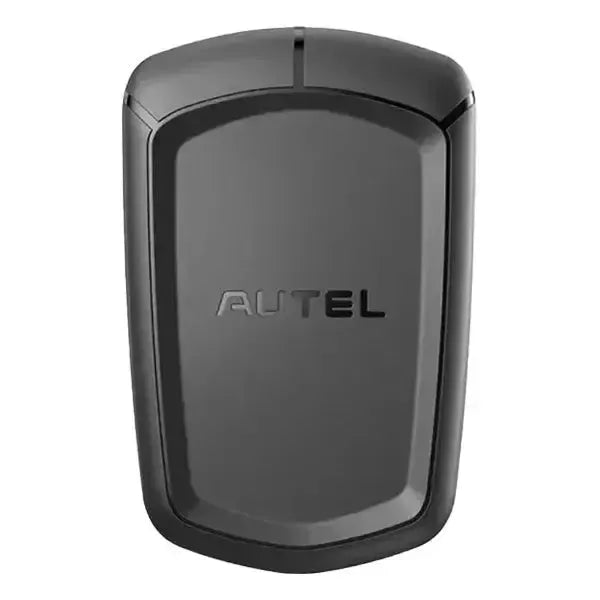

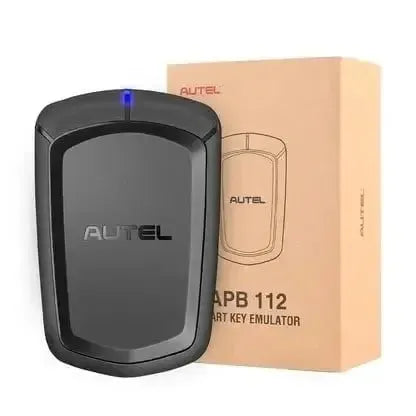

The Autel APB112 is a smart key emulator designed to collect data from the coil. This data is used to identify faults in the coil and decode the data of the car key chip. The emulator works in conjunction with the Autel XP400 or XP400 Pro programmer and a compatible Autel diagnostic device.
The APB112 can emulate the chip of the car key, which is especially applicable in situations where all keys are lost. The device supports data collection from 46 and 4D chips and can calculate the password of type 46 smart keys. Additionally, it is suitable for the emulation of Toyota 4D (94/D4.98) and H (88/A8.A9.39) smart keys. The functionality is continuously expanded via software updates. The emulator is compatible with the Autel MaxiIM IM508, MaxiIM IM608, and MX808IM.
Application and functionality:
The APB112 is used for various tasks related to key programming and analyzing transponder signals.
- Data collection: Collects data from the transponder for type 46 and 4D chips.
- Password calculation: Calculates the password required for programming type 46 smart keys.
- Chip simulation: Simulates the operation of a type 46 chip.
- Key emulation: Emulates a working key based on the collected data, which can be used when programming a new key if all original keys are lost.
- Toyota smart key emulation: Supports the emulation of Toyota 4D (94/D4.98) and Toyota H (88/A8.A9.39) smart keys.
- Coil analysis: Detects and identifies problems with the coil by analyzing the received data.

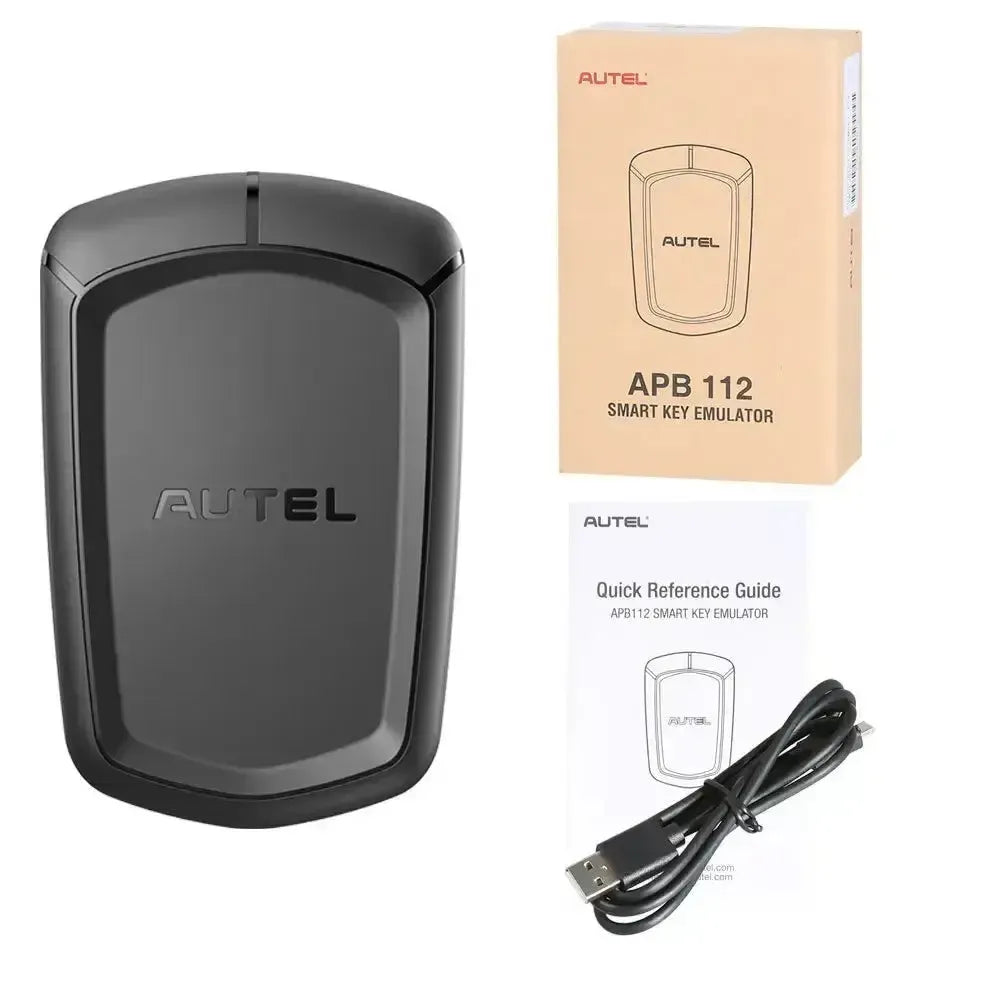

Package Contents:
- 1x Autel APB112 smart key emulator
- 1x USB cable
- 1x Quick start guide
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autel |
| Model | APB112 |
| Product type | Smart key emulator |
| Connectivity | USB |
| Compatible diagnostic devices | Autel MaxiIM IM508, MaxiIM IM608, MaxiIM IM608 Pro, MX808IM |
| Compatible programmers | Autel XP400, Autel XP400 Pro |
| Supported chip types | 46, 4D |
| Supported smart keys | Toyota 4D (94/D4.98), Toyota H (88/A8.A9.39) |
