Topdon V2200Plus | Jump Starter

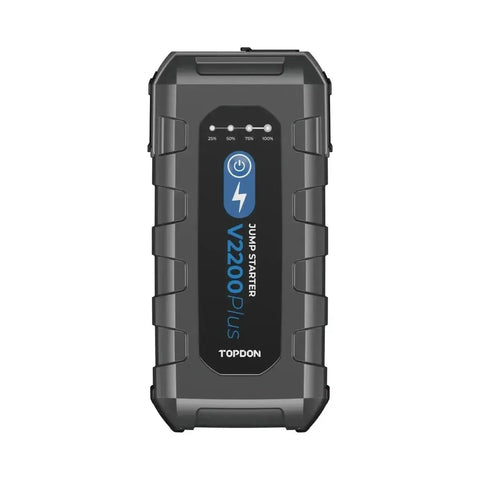

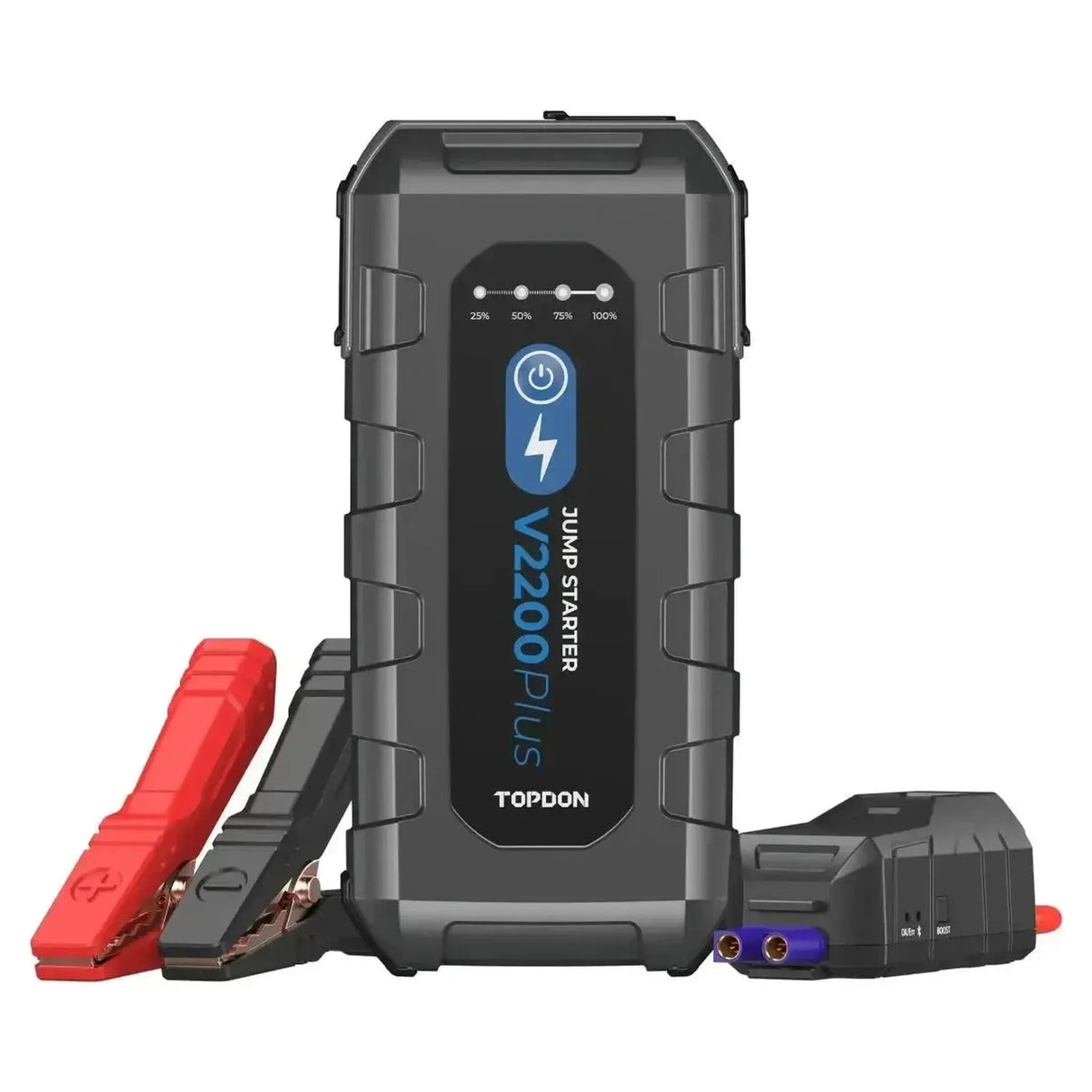

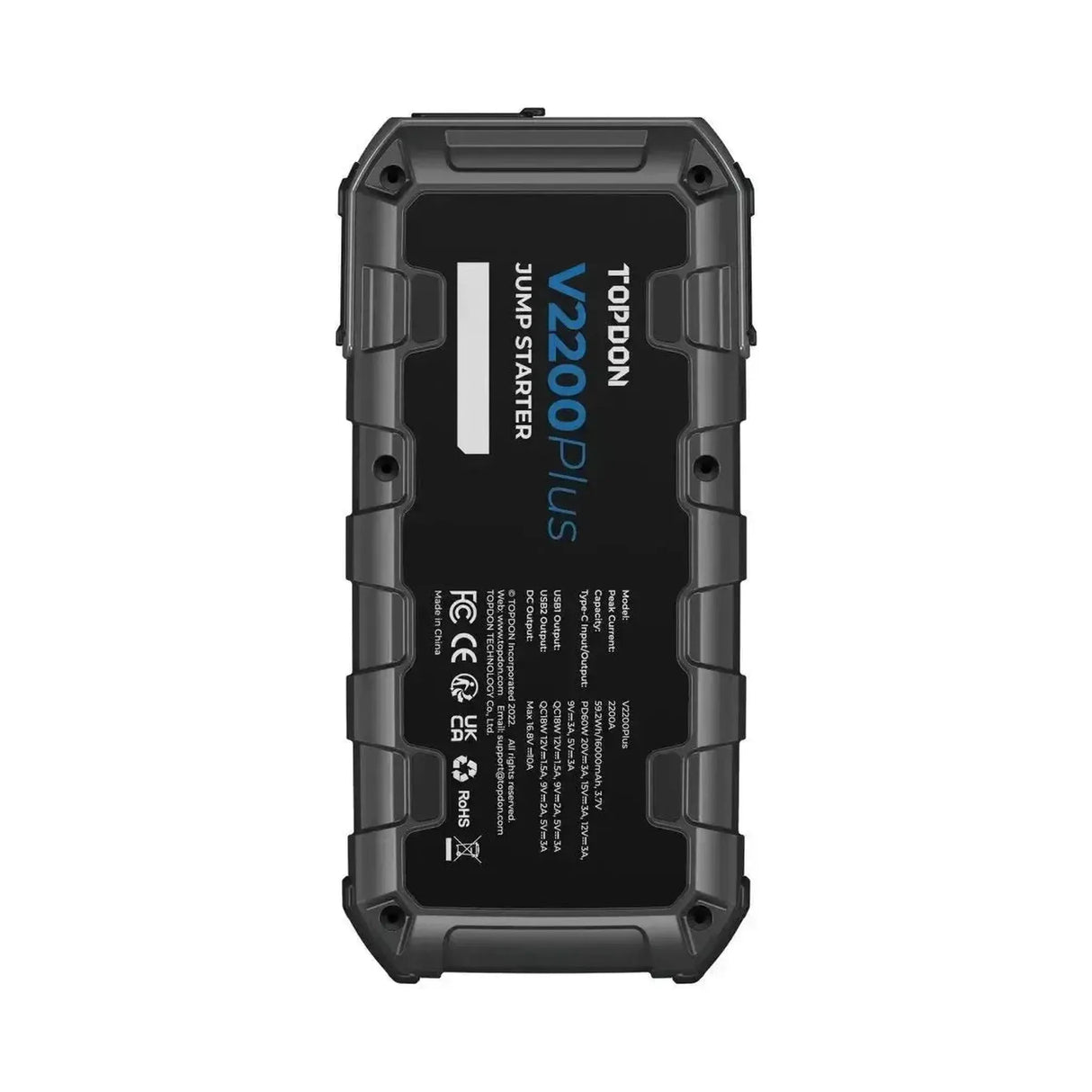

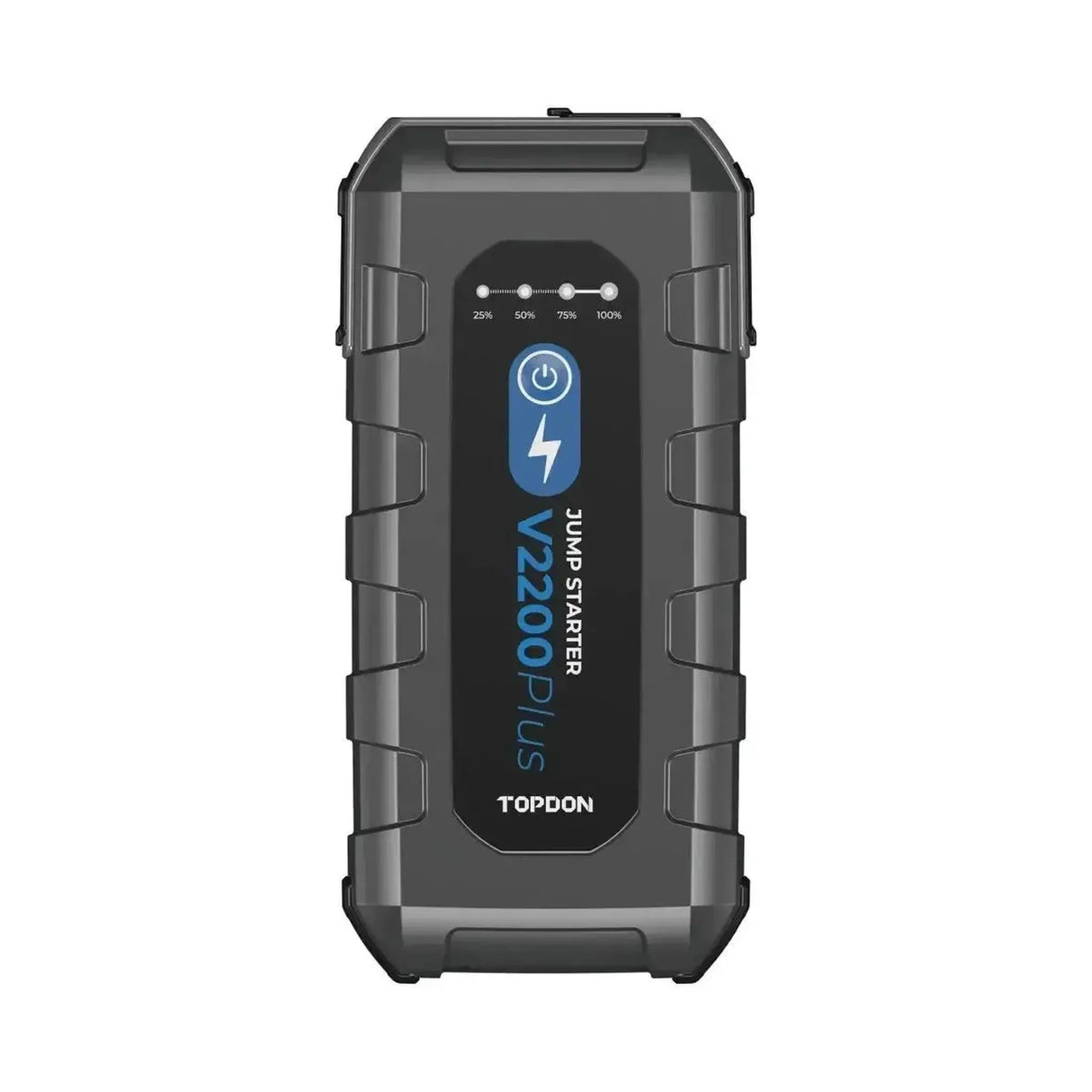

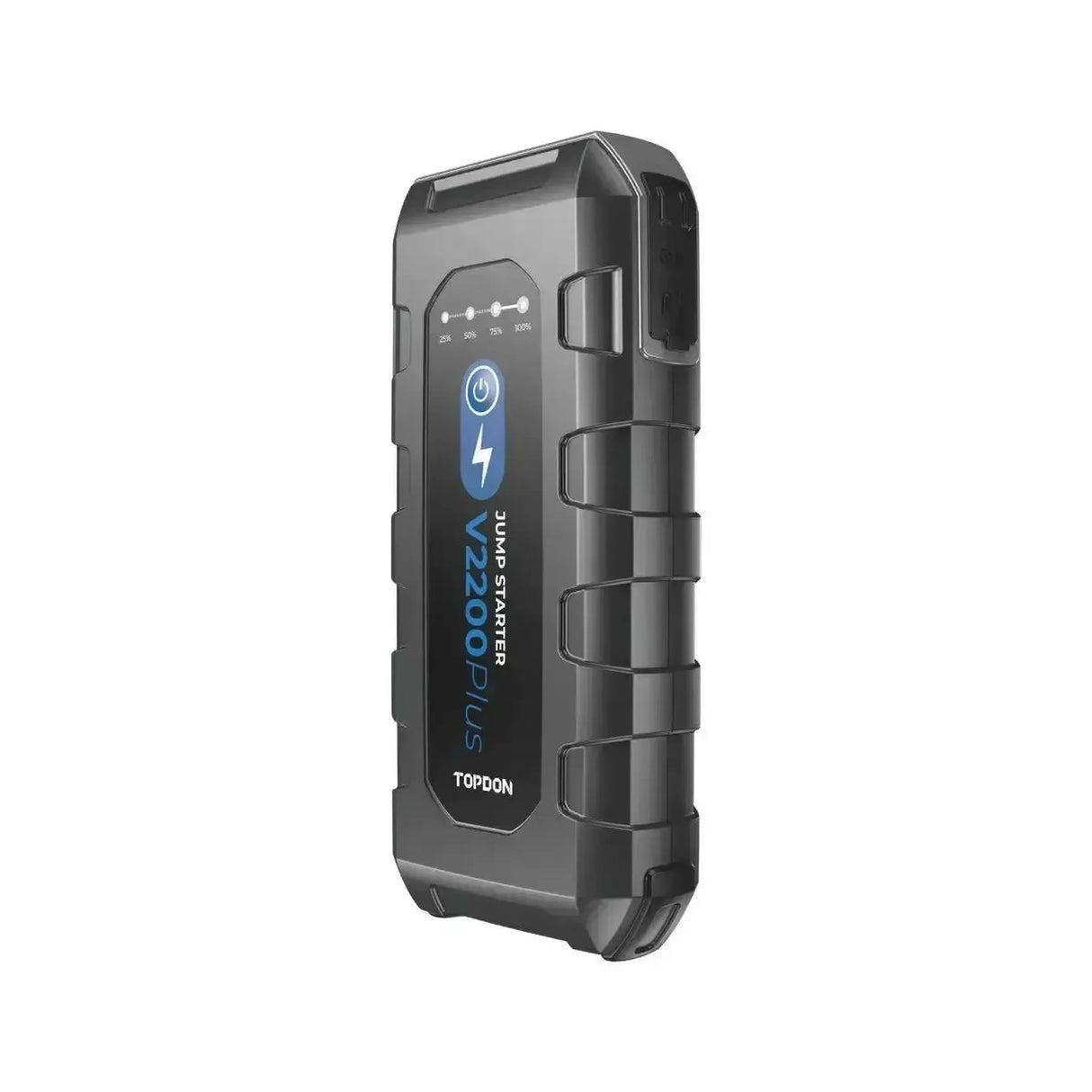

The Topdon V2200Plus is a battery booster and Battery Tester designed to start 12V vehicles. This device delivers a peak current of 2200 A and has a battery capacity of 16000 mAh (59.2 Wh). It is suitable for starting gasoline engines up to 8.0 liters and diesel engines up to 6.0 liters. With a fully charged battery, the V2200Plus can perform up to 35 start attempts.
In addition to the starting function, the V2200Plus functions as a battery tester via a Bluetooth connection with an app, allowing the battery status to be monitored and reports to be generated. The accubooster also serves as a powerbank with multiple outputs, including a bidirectional Type-C PD60W port, two USB ports, and a DC output. An integrated LED flashlight offers three light modes: continuous light, strobe, and SOS.
Application and functionality:
The V2200Plus combines multiple functions in one housing, focused on vehicle maintenance and mobile charging.

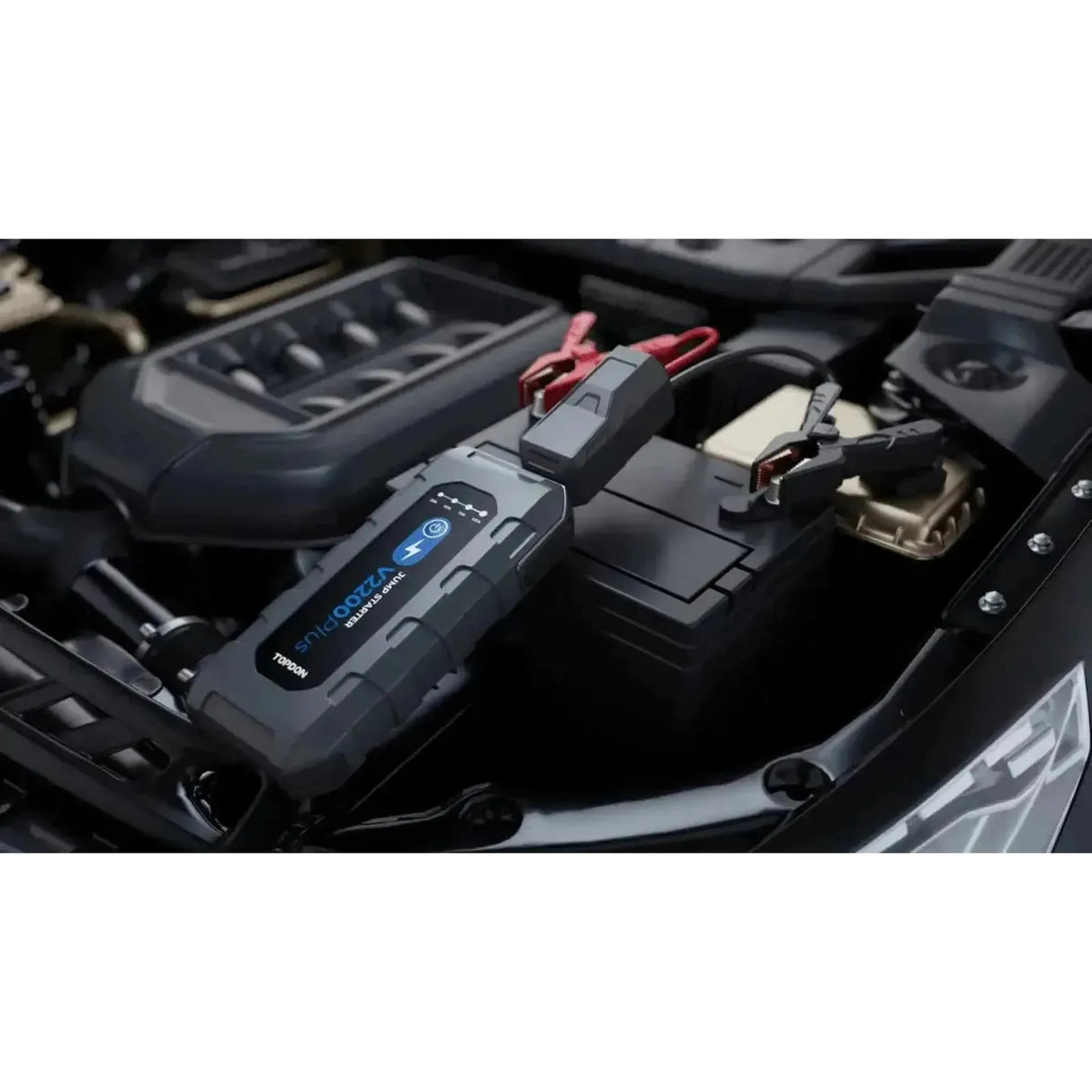

- Jump start: The device offers the ability to start vehicles with a dead 12V battery. The BOOST mode can be activated to provide extra power to deeply discharged or damaged batteries for 30 seconds.

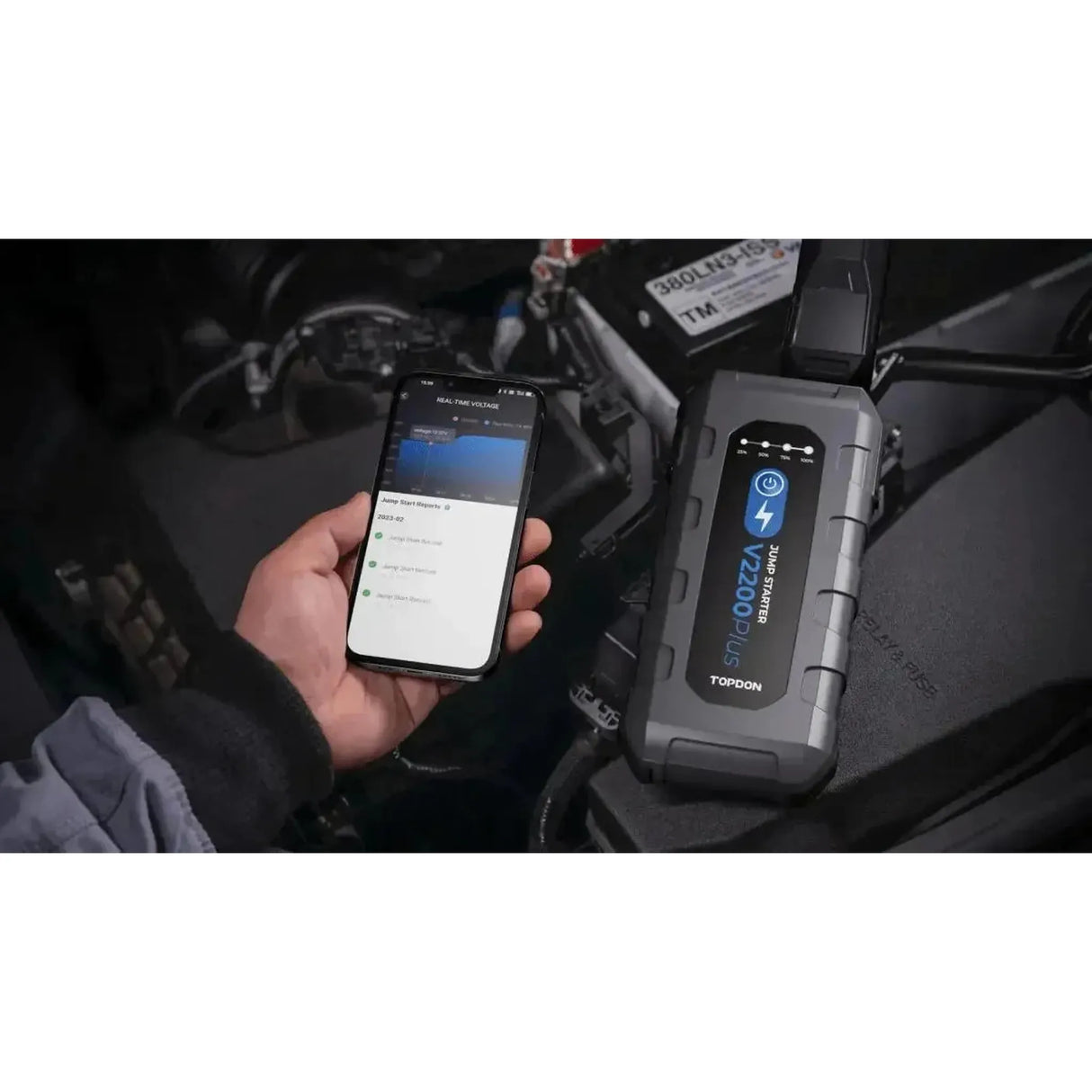

- Battery Tester: Via Bluetooth, the V2200Plus can connect to a smartphone app. This functionality allows testing of lead-acid batteries, monitoring real-time voltage, and generating detailed diagnostic reports.
- Powerbank: The accubooster is equipped with various charging ports. The Type-C port supports Power Delivery (PD) up to 60W and is bidirectional, meaning it can be used both for charging the accubooster itself and for charging external devices. Additionally, there is a USB QC18W port, a standard USB 5V/2A port, and a DC output available.
- LED flashlight: The built-in flashlight has three modes for different situations: a constant beam, a strobe for signaling, and an SOS function for emergencies.
Protection features:
The system is equipped with various protection mechanisms to safeguard the user and connected equipment.
- Polarity reversal protection: Prevents damage if the battery clamps are connected incorrectly to the battery terminals.
- Reverse charging protection: Ensures that the vehicle battery cannot charge the accubooster after the vehicle has started.
- Short-circuit protection: Protects the device from damage caused by short circuits.
- Overcurrent protection: Prevents damage from excessive current during starting or charging.
- Over-discharge protection: Protects the internal battery of the accubooster against deep discharge.
- IP64 protection: The housing provides protection against dust ingress and splashing water.
Package Contents:
- 1x Topdon V2200Plus accubooster
- 1x Battery Tester Clamps
- 1x USB Cable
- 1x Carrying Bag
- 1x Manual
- 1x Package Contents Box
Technical Specifications:
| Specification | Description |
|---|---|
| Product Brand | Topdon |
| Product Model | V2200Plus |
| Peak Current | 2200 A |
| Battery Capacity | 16000 mAh / 59.2 Wh |
| Input | Type-C Bidirectional PD60W: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A |
| Output | Type-C PD60W: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A USB1 QC18W: 5V 3A, 9V 2A, 12V 1.5A USB2: 5V 2A DC: 16.8V Max 10A |
| Start capacity gasoline engines | Up to 8.0 liters |
| Start capacity diesel engines | Up to 6.0 liters |
| Number of starts per charge | Up to 35 |
| Cable length | Positive: 250 mm Negative: 150 mm |
| Operating temperature | -10°C to 40°C |
| Protection rating | IP64 |
| Dimensions | 207 x 97 x 54 mm |
| Weight | 1480 g |
