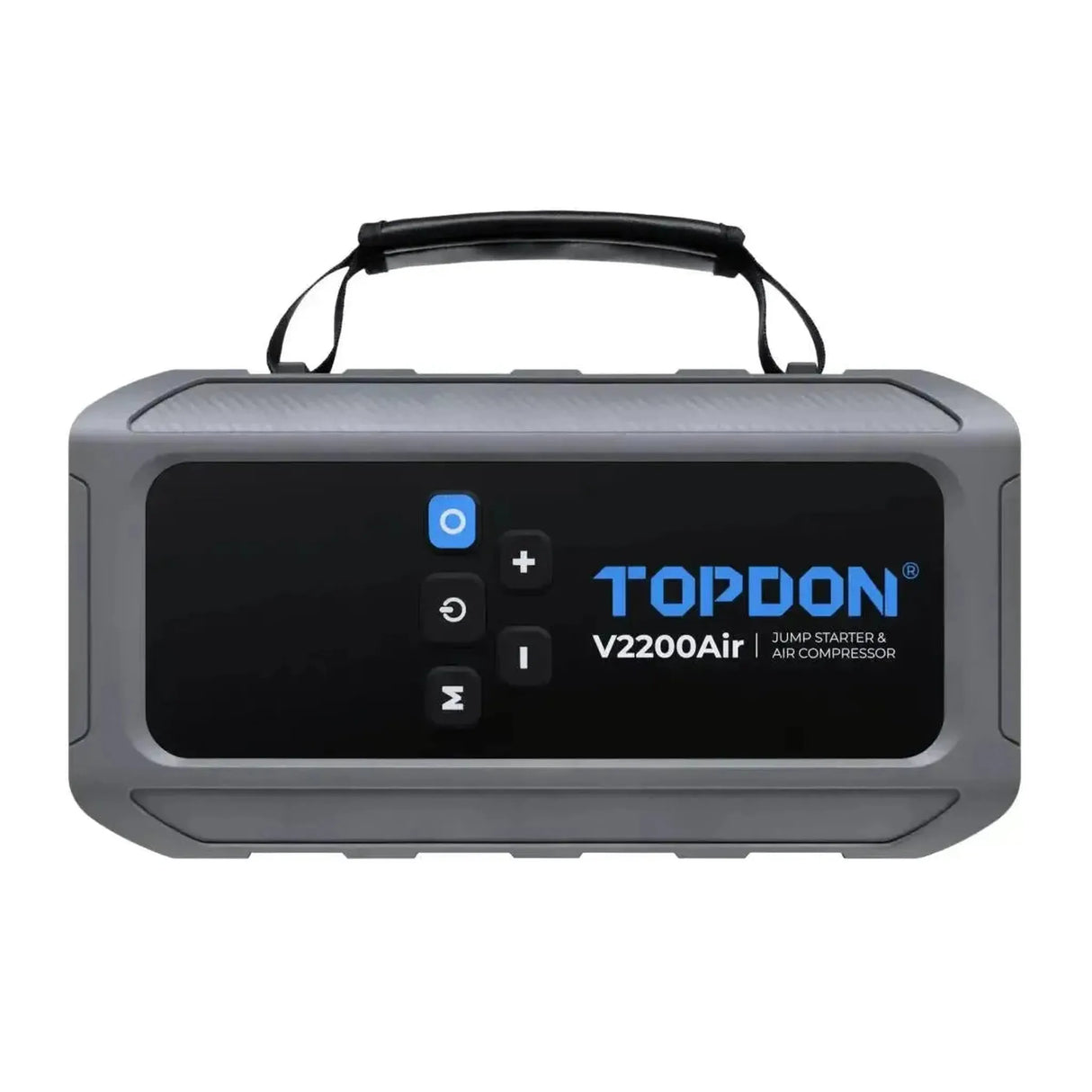

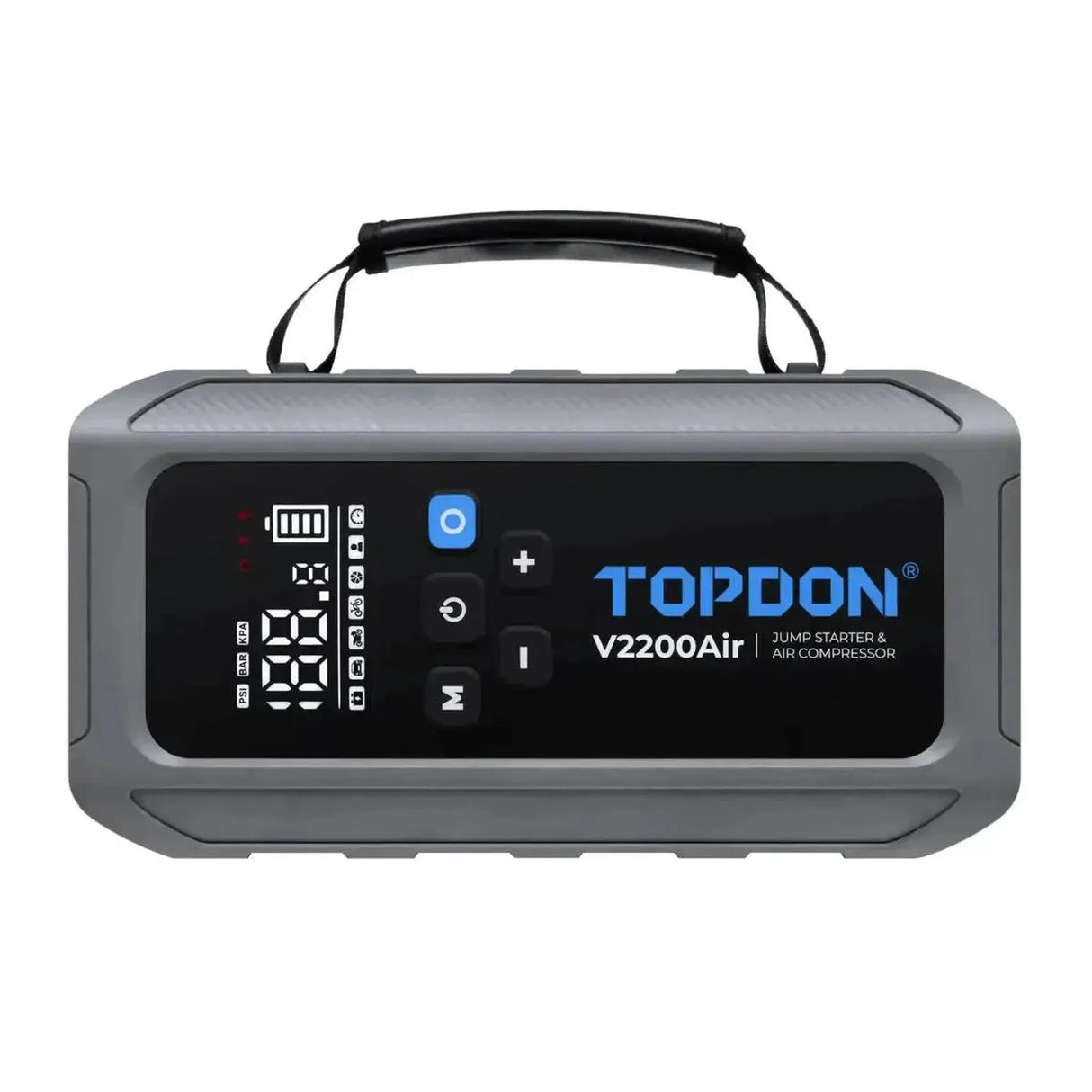

The Topdon V2200Air is a professional battery booster with a built-in air compressor, designed for mechanics, diagnostic technicians, and roadside assistance services. This 2-in-1 system delivers a peak current of 2200A and is suitable for starting 12V vehicles with gasoline engines up to 8.0 liters and diesel engines up to 6.0 liters. The internal battery has a capacity of 59.2Wh and supports standard starter batteries, including lead-acid, AGM, and gel types. Thanks to its robust construction and IP54 rating, the device is resistant to dust and splashes, making it a reliable tool for intensive use in workshops and on-site.
The battery booster operates based on advanced protection systems, including protection against reverse polarity, short circuit, overload, and deep discharge. Besides starting vehicles, the device functions as a portable power supply via the bidirectional USB-C port with PD45W fast charging technology, a USB-A port, and a DC output (16.8V/10A) for powering external 12V equipment. The integrated compressor provides real-time tire pressure display via the digital LCD screen and offers preset work modes for various applications. The unit is also equipped with a 400 lumen LED work light with multiple lighting modes, enhancing usability in low light conditions and emergencies.
ADVANTAGES
IMPORTANT NOTES
Applications and Features
The booster is designed with various technical features for vehicle maintenance, diagnostics, and on-site emergencies.
- Vehicle Start (Jumpstart): Provides a high starting current up to 2200A to jumpstart 12V vehicle batteries and start the engine during voltage loss.

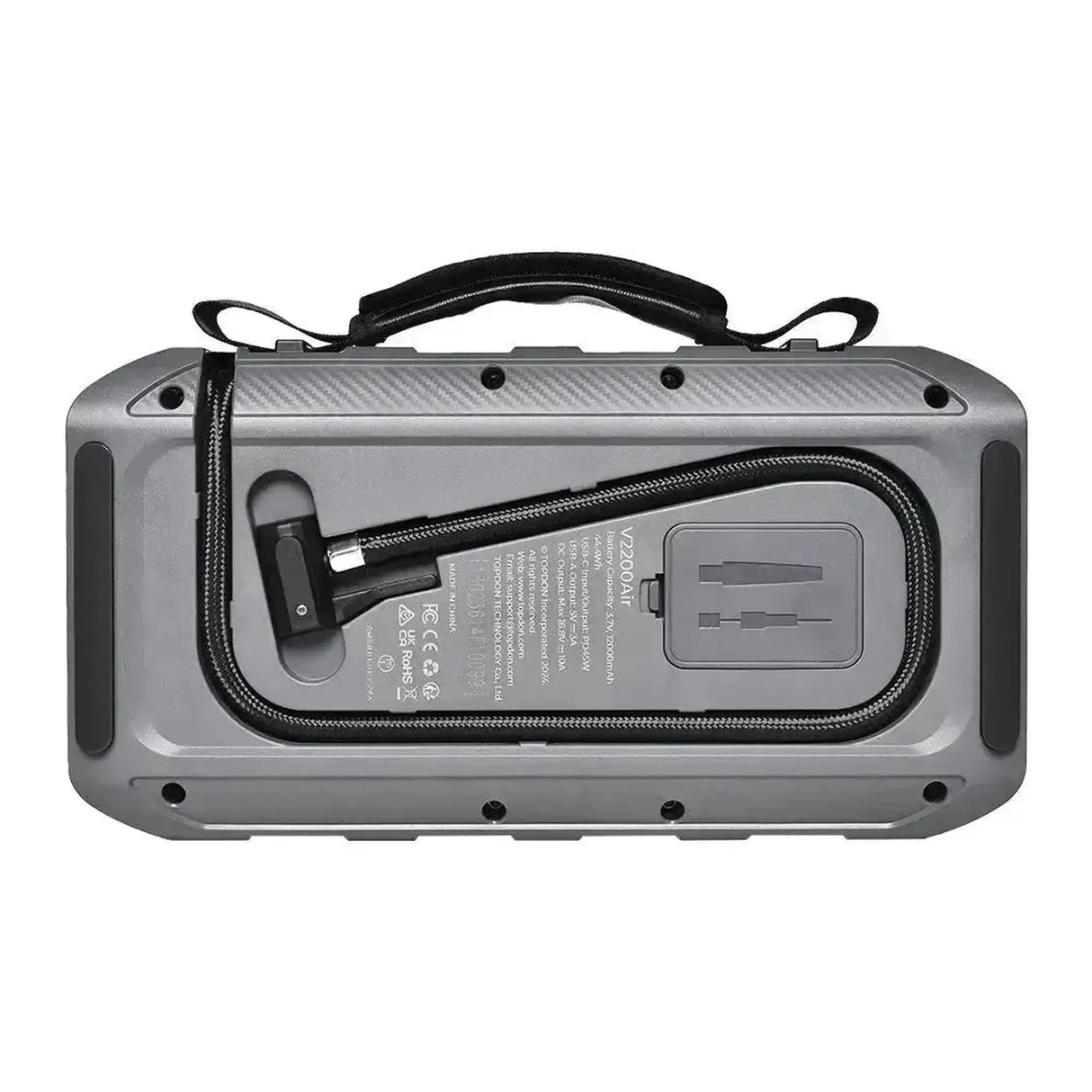

- Tire pressure regulation: An integrated air compressor inflates vehicle tires to the desired pressure, automatically shutting off when the set value is reached.
- Power supply (Power bank): Charges external diagnostic equipment or mobile devices via the 45W USB-C or 18W USB-A ports.
- 12V DC power supply: Powers external 12V equipment, such as workshop lighting or memory retention systems, via the max 16.8V/10A DC output.
Special features and capabilities
This model features specific properties that enhance usability and accuracy in professional environments.
- Boost mode: A manual override function (active for 30 seconds) that allows a vehicle with a fully discharged or faulty battery to be forcibly started by temporarily bypassing the standard voltage protection.
- Digital pressure monitoring: The LCD screen functions as a digital pressure gauge displaying current tire pressure values, allowing technicians to quickly diagnose deviations and pressure loss.
- Integrated LED work light: A 400 lumen light source with steady, strobe, and SOS modes to work safely and accurately in dark engine compartments or roadside.
Compatible vehicles and applications
This device is specifically designed for use with the following vehicle and battery systems.
- Vehicle category: Passenger cars, light commercial vehicles, SUVs, and motorcycles.
- Engine capacity: Gasoline engines up to 8.0 liters and diesel engines up to 6.0 liters.
- Battery voltage: Only compatible with 12V systems.
- Battery type: Suitable for standard lead-acid, AGM, EFB, and gel starter batteries.

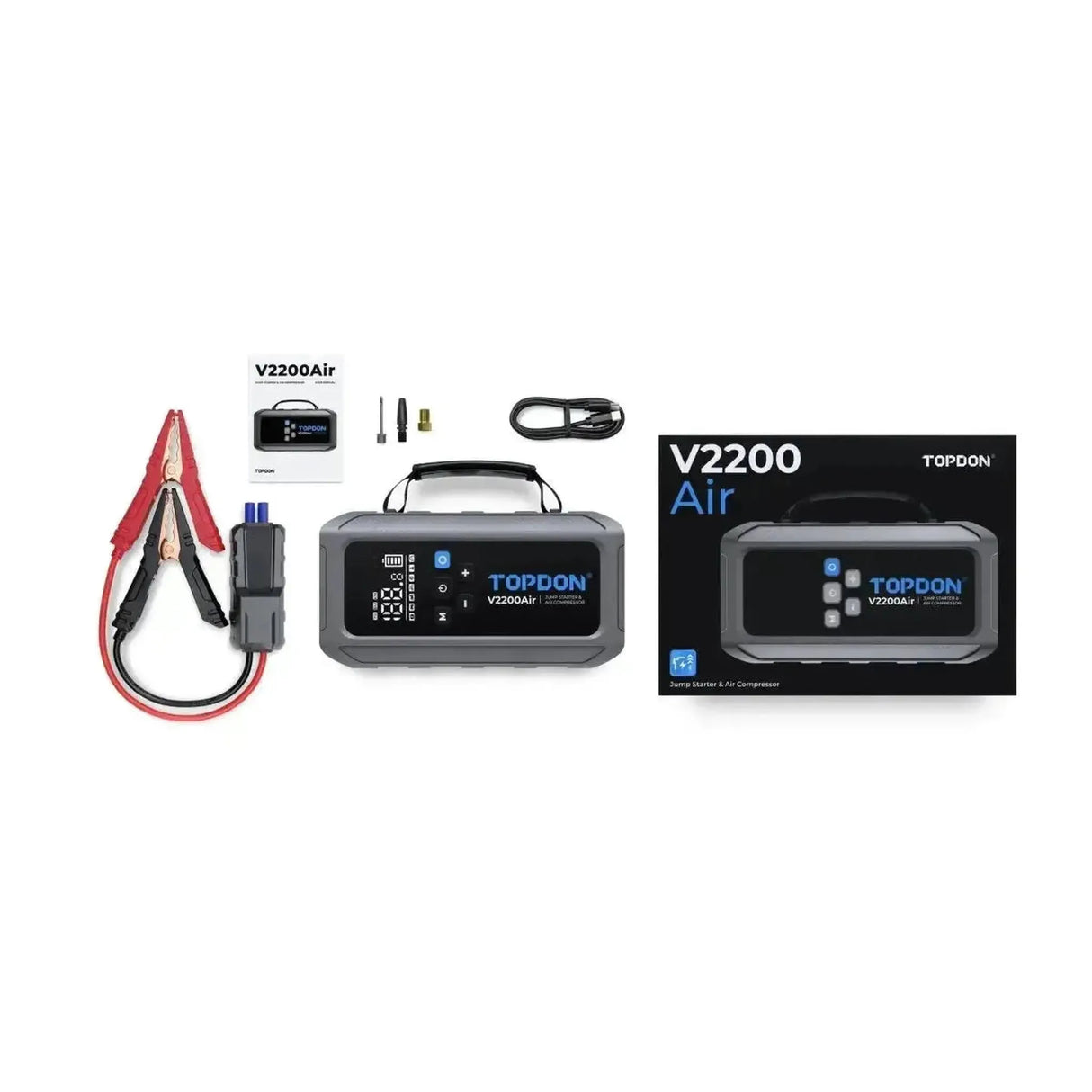

Package Contents
- 1x Topdon V2200Air

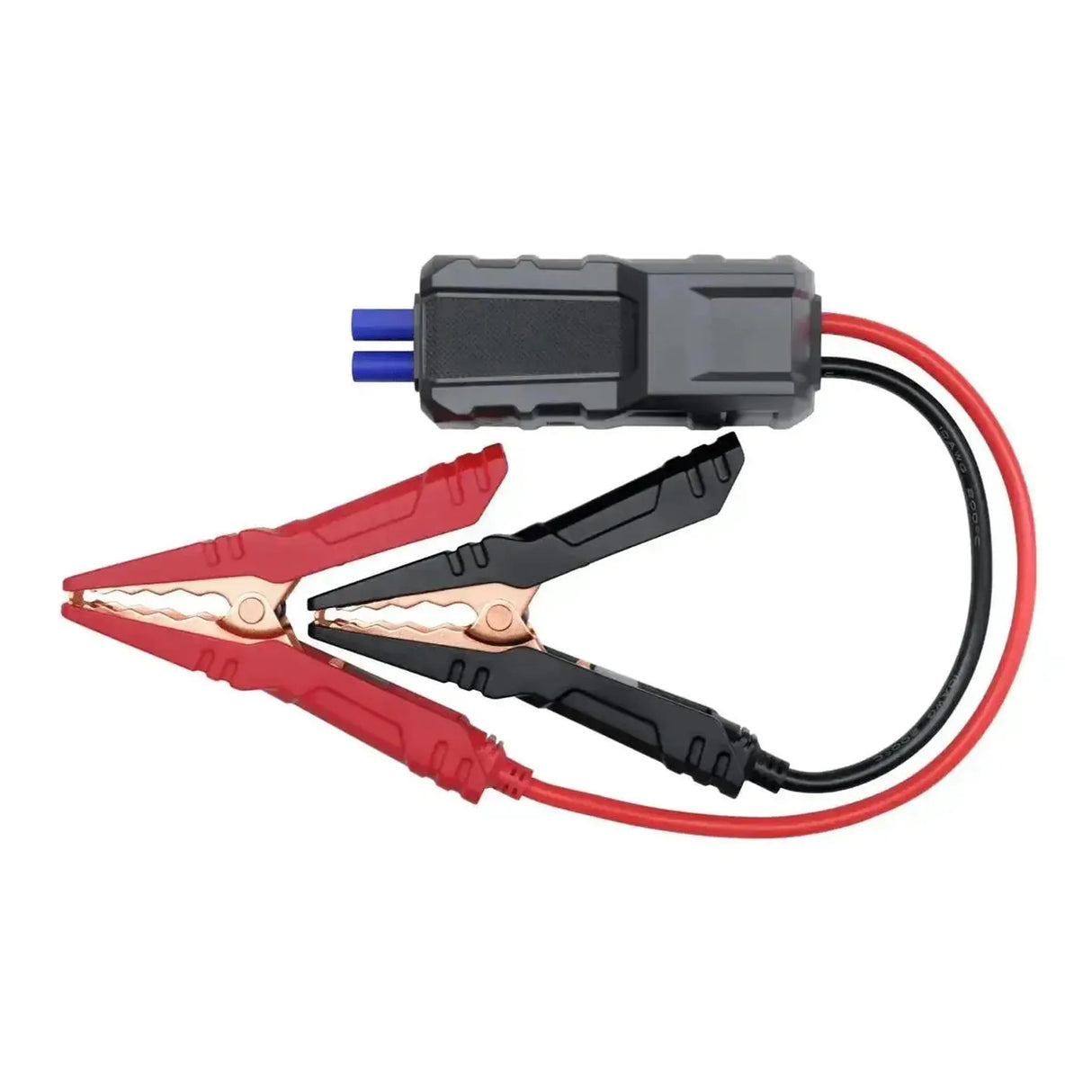

- 1x Jump Clamps (Jump cables with battery clamps)

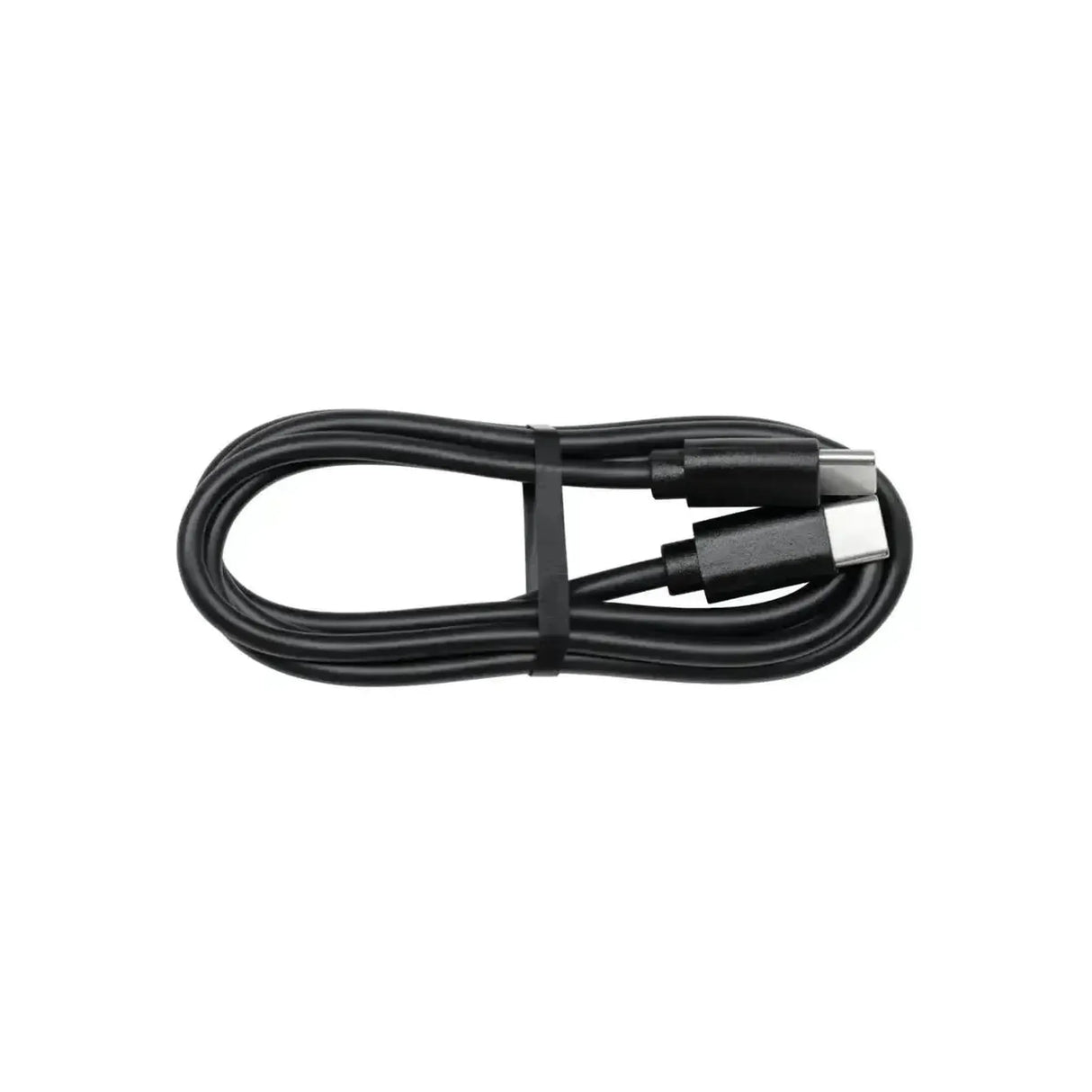

- 1x USB-C to USB-C cable

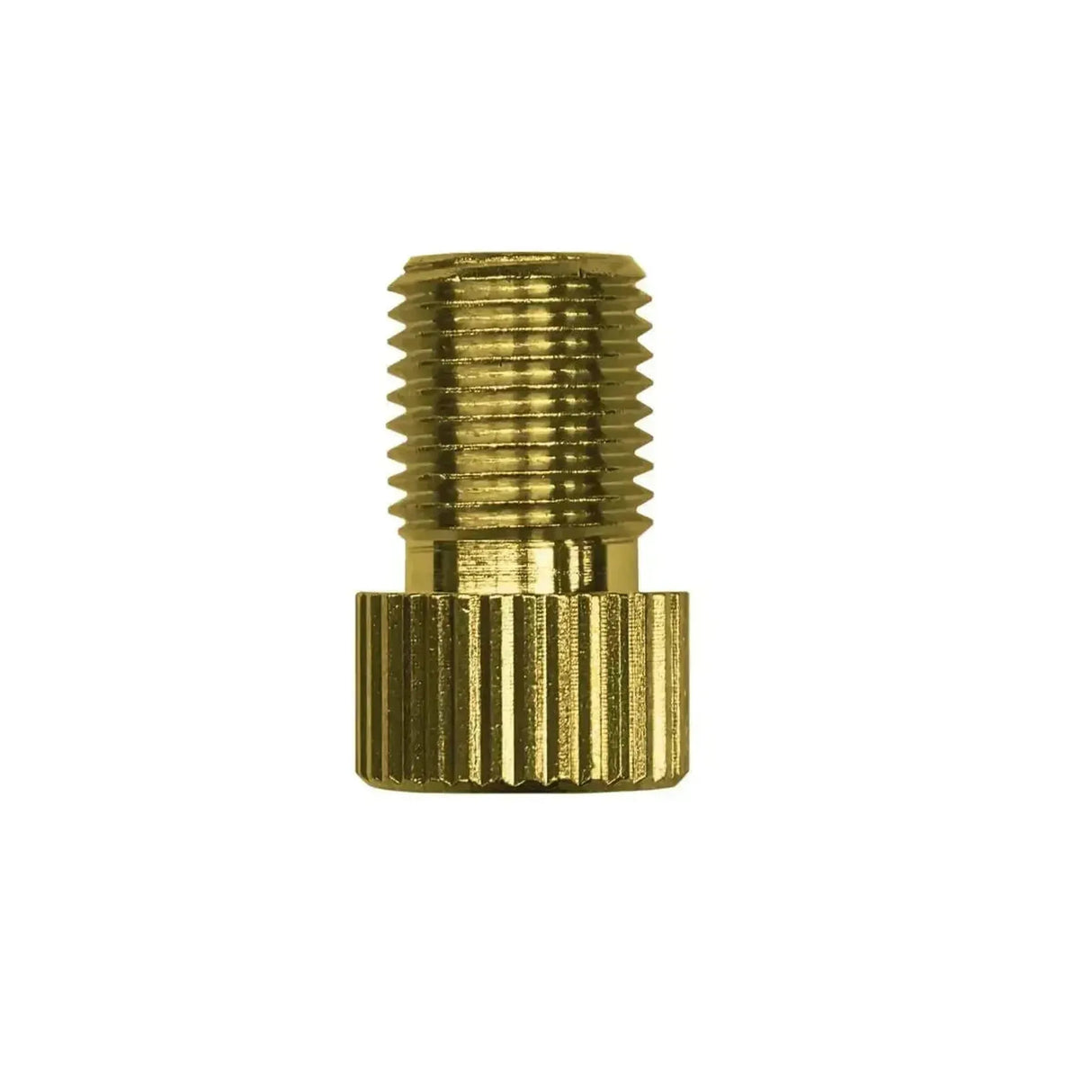

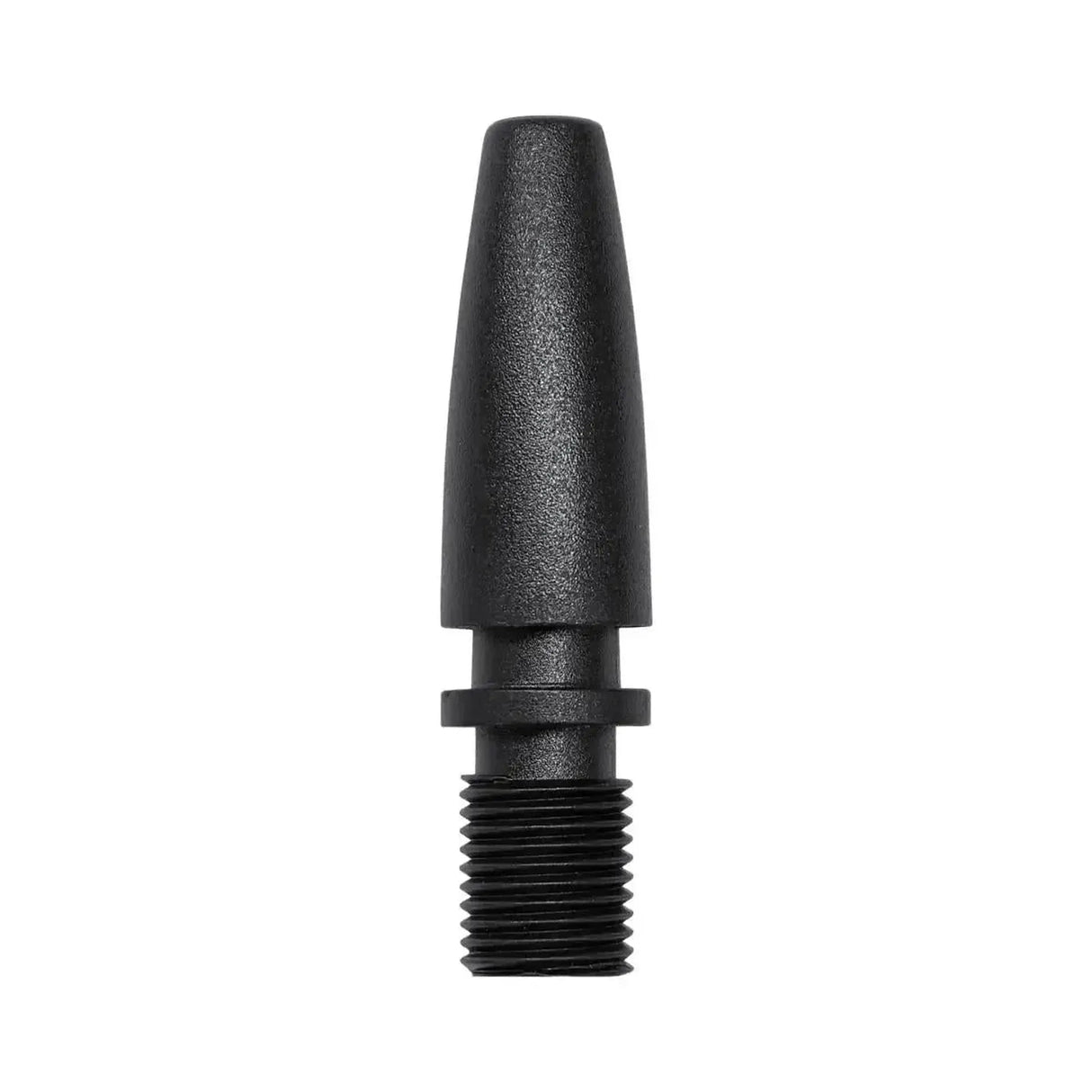

- 1x Set of Inflation Nozzles (Valve adapters)

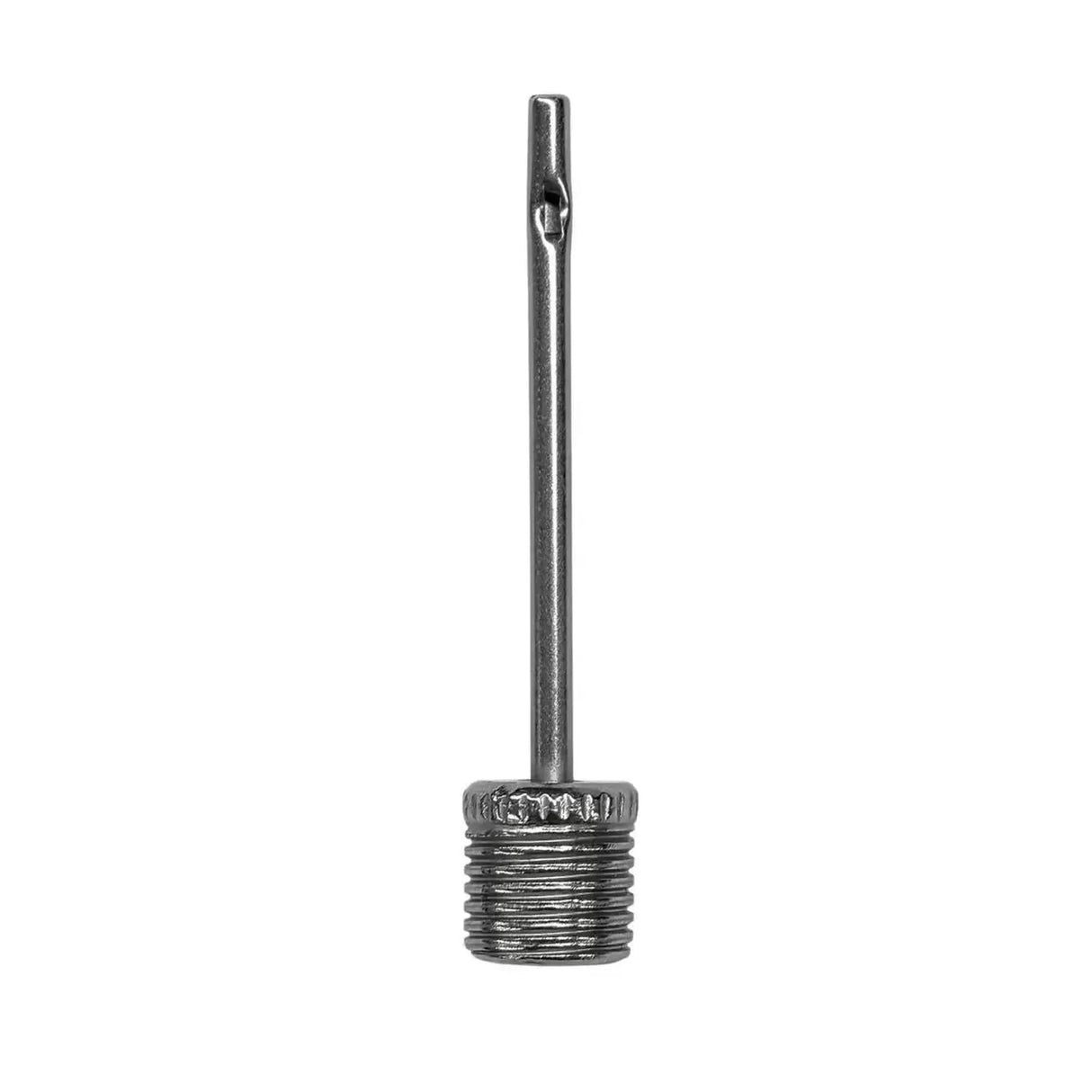

- 1x Inflation Needle (Valve needle)
- 1x User manual
- 1x Storage case
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Topdon |
| Product model | V2200Air |
| Peak current | 2200A |
| Supported battery voltage | 12V |
| Internal battery capacity | 59.2Wh (16000mAh) |
| Maximum engine capacity (gasoline) | 8.0 liters |
| Maximum engine capacity (diesel) | 6.0 liters |
| USB-C Input / Output | Bidirectional PD45W |
| USB-A Output | QC18W (5V/3A, 9V/2A, 12V/1.5A) |
| DC Output | Max 16.8V - 10A |
| Light output | 400 Lumens |
| IP protection rating | IP54 |
| Operating temperature | -10°C to 55°C |
| Dimensions | 265 x 139 x 70 mm |
| Weight | 1400 grams |
