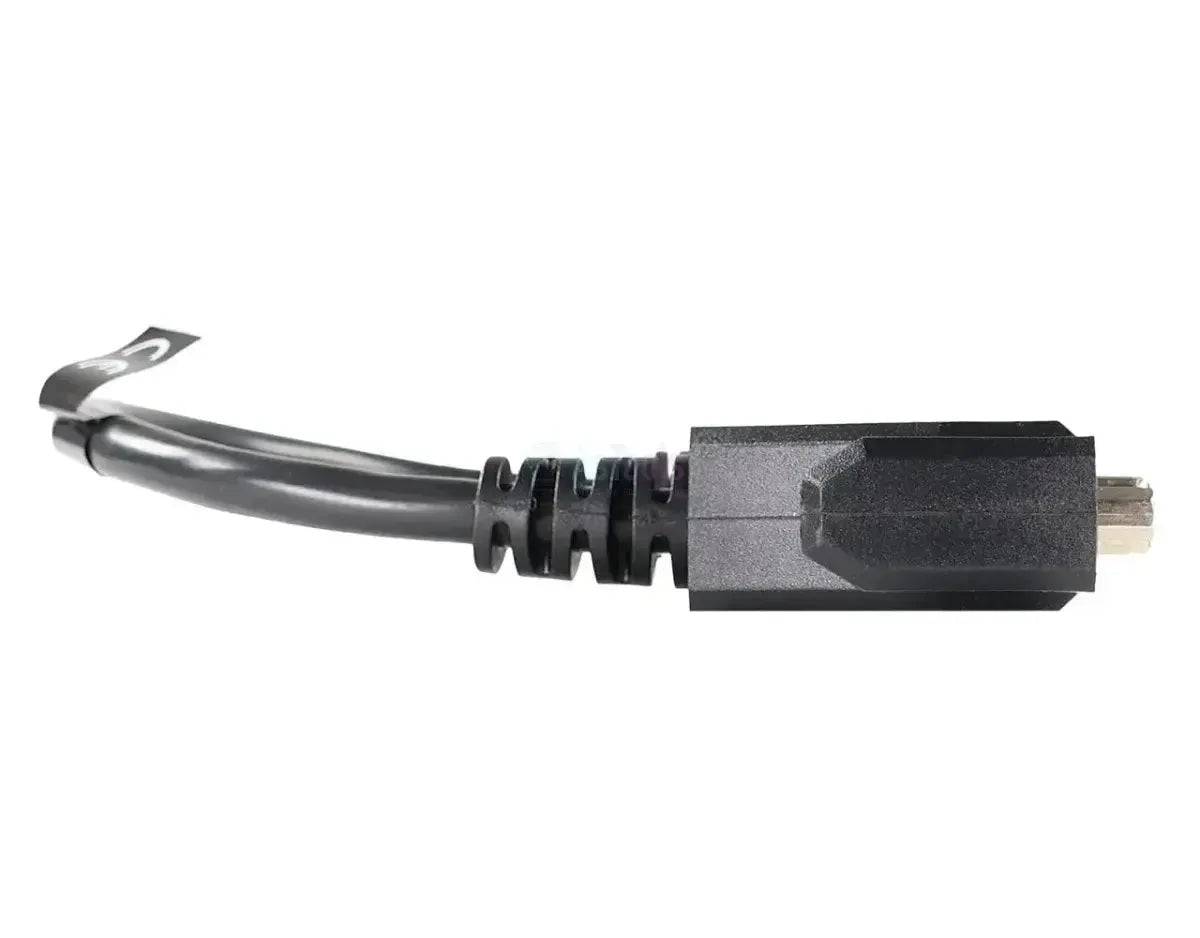

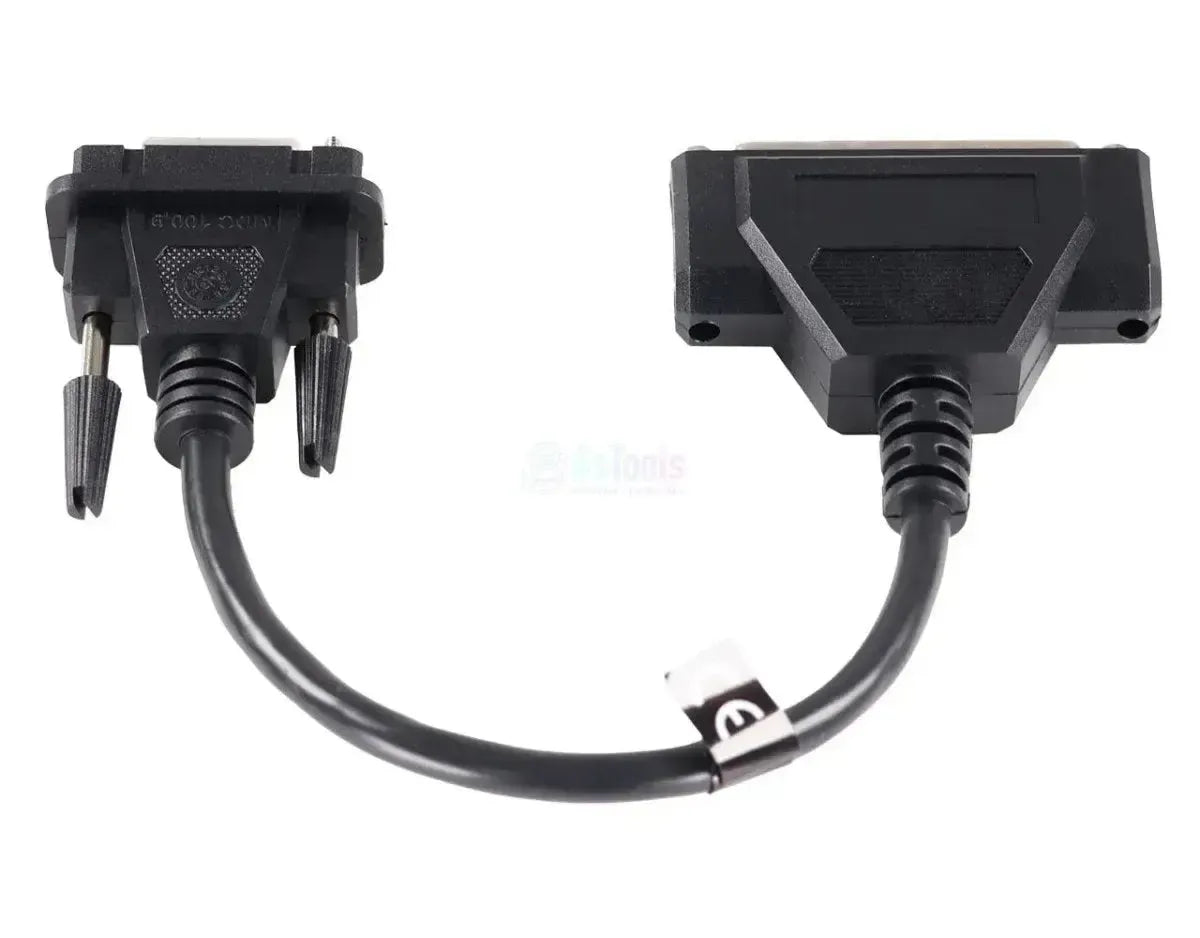

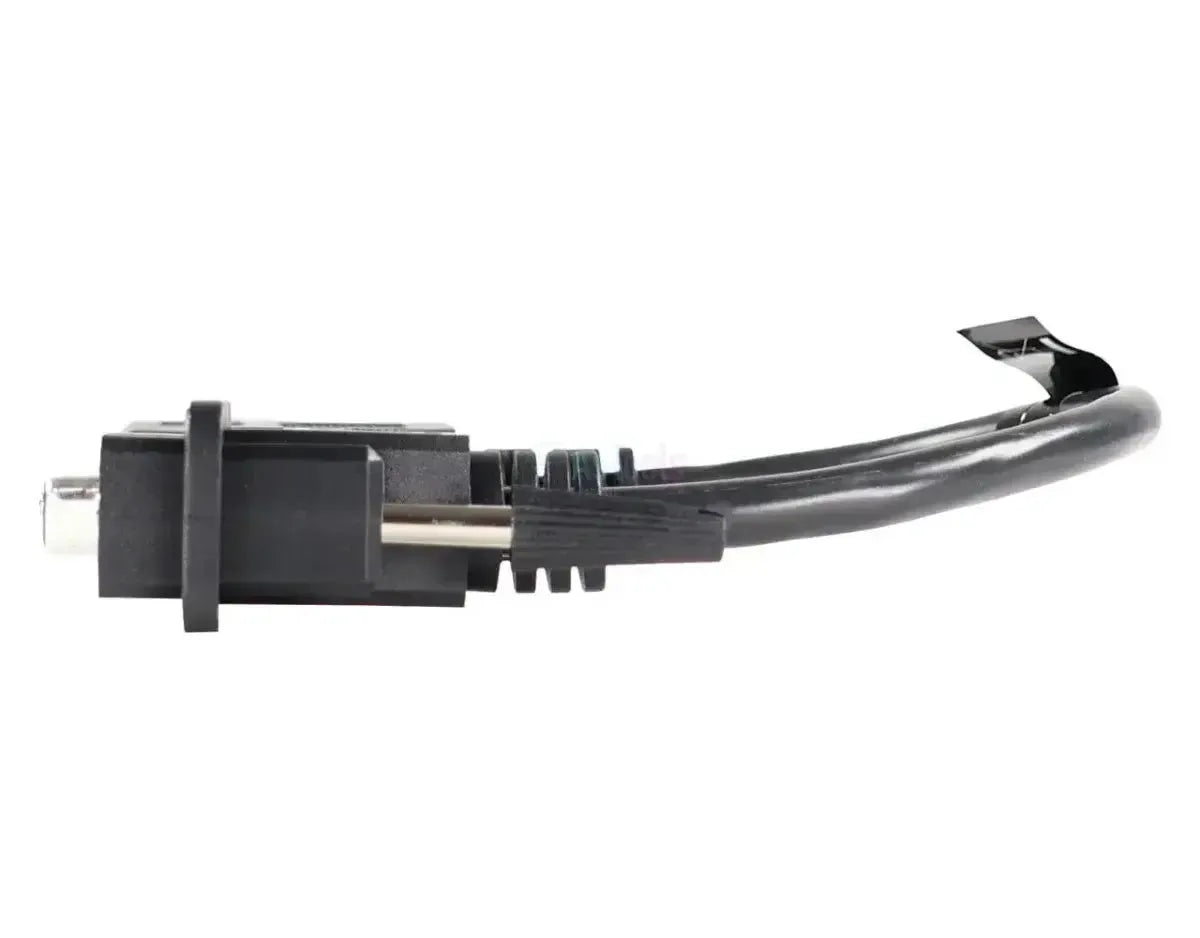

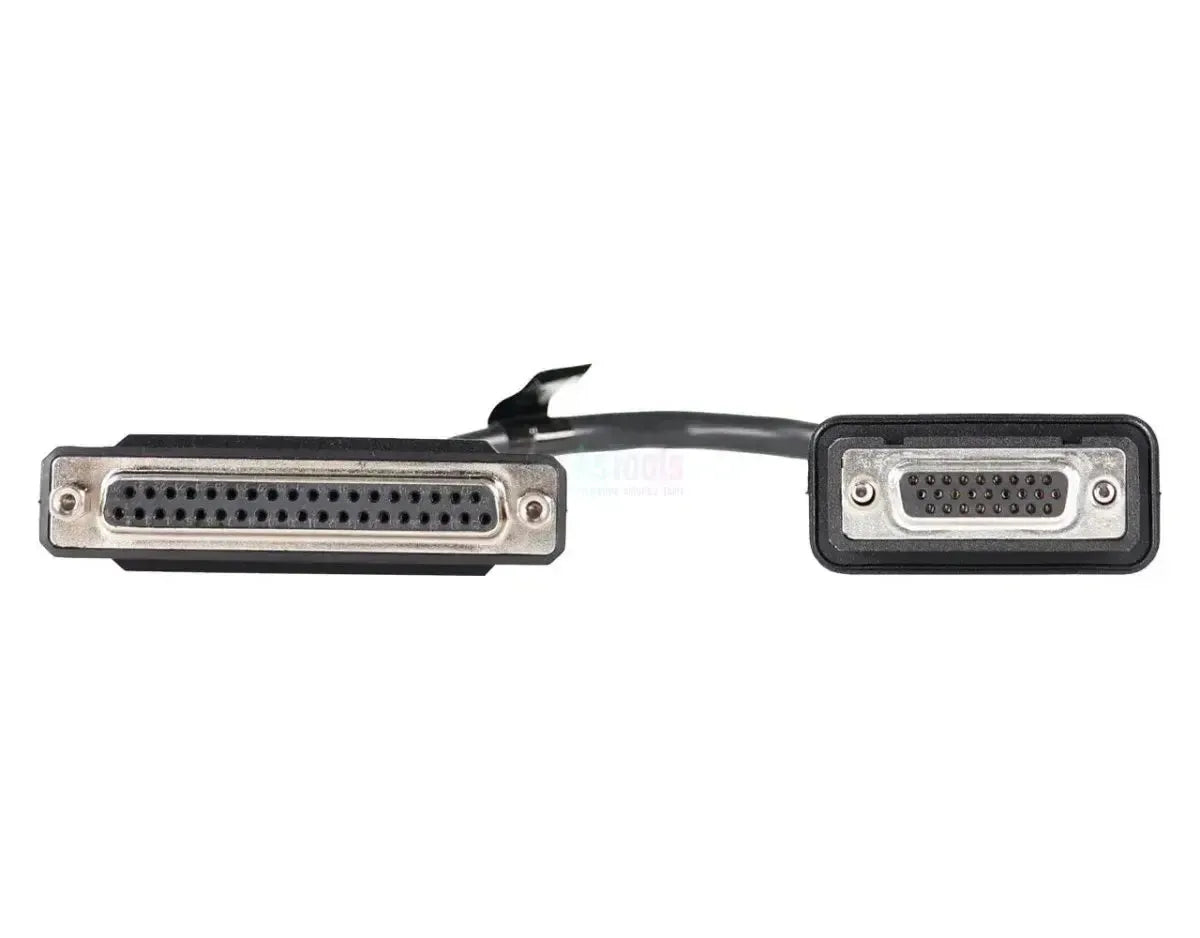

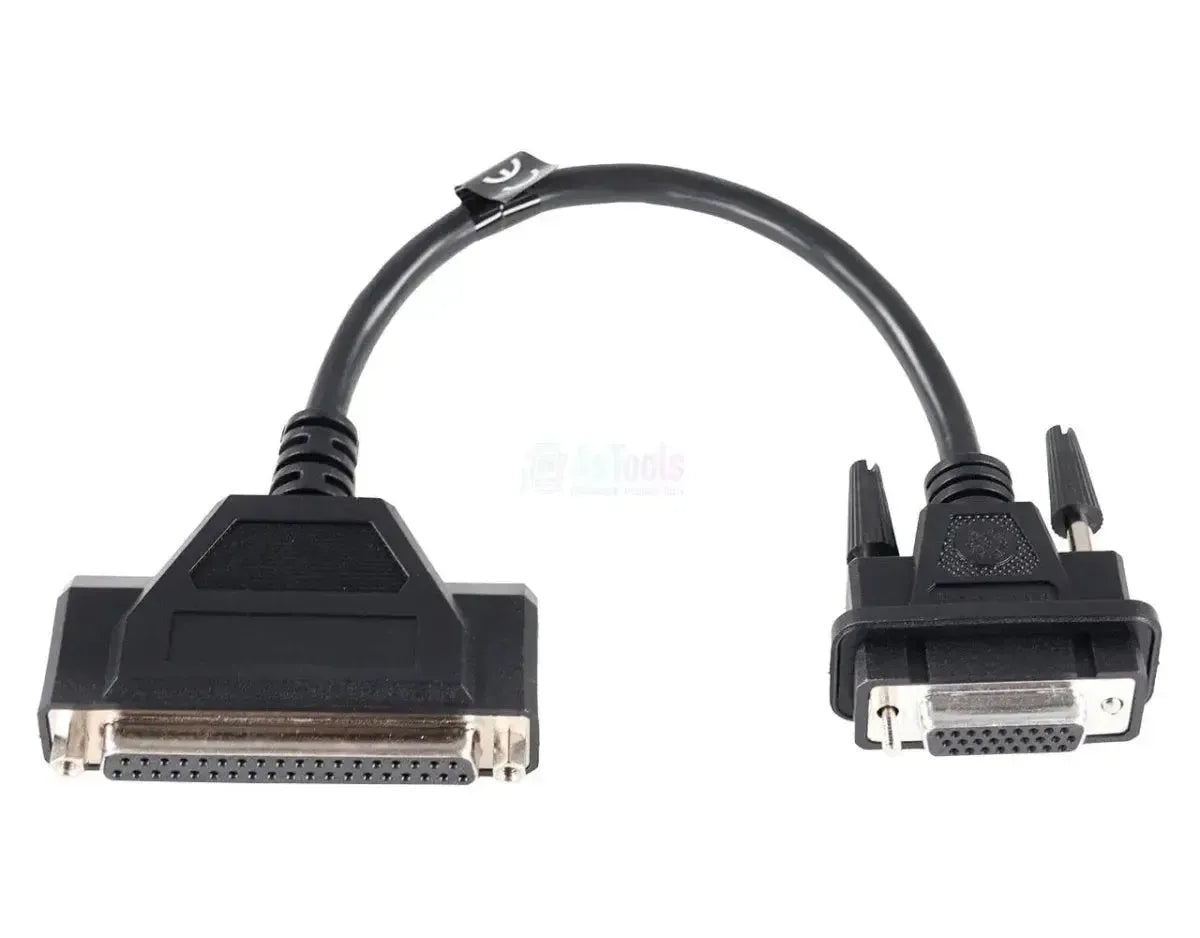

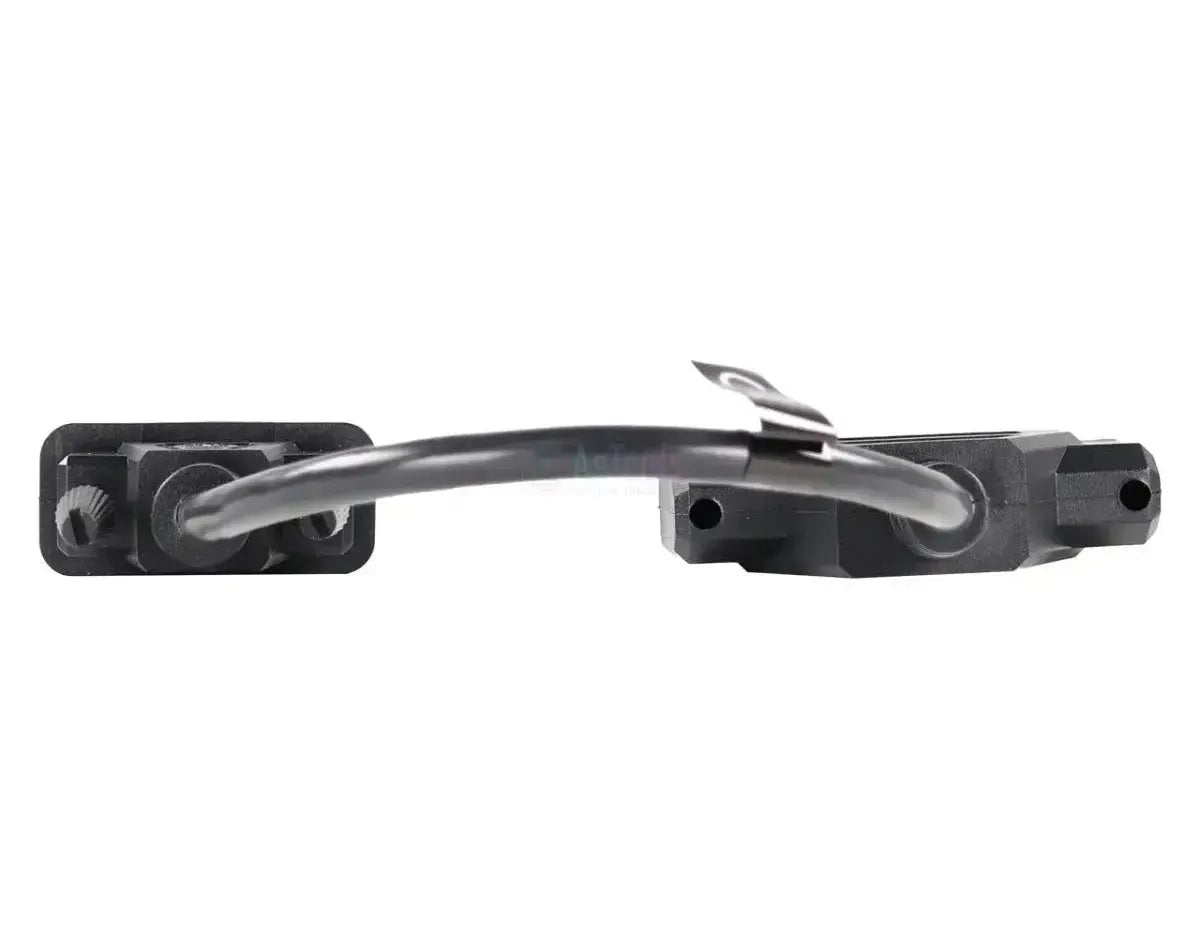

The Jaltest MDC100.9 is the adapter cable between the 26-pin Sub-D of the Jaltest Link V9 and the 37-pin Sub-D of an earlier version of the Jaltest ETM. It is a short cable of 28 to 30 cm, with a narrow 26-pin socket at one end with the contacts in three rows, and a wider 37-pin socket at the other end with the contacts in two rows. Both ends are female and have jackscrews.
You do not connect it to a vehicle, but between the interface and the test module. If you have switched from an existing ETM to the Link V9, the test module remains in use with this cable. You also need the ETM itself, the test cable for the component you are measuring, an ETM licence and an active CV or Modular software licence.
HIGHLIGHTS
POINTS TO NOTE
Applications and functions
This cable makes an earlier ETM connectable again to the Jaltest Link V9. With the ETM you then test a component separately from the rest of the system.
What the cable connects
- Link side: 26-pin Sub-D, three rows.
- ETM side: 37-pin Sub-D, two rows.
- Application: Earlier ETM to the Link V9.
What you can do
- Isolated testing: ETM as control unit.
- Isolating a fault: Whether the component works or not.
- EBS modulator: Full measurement.
- End of Line test: Confirm correct operation.
How to use it
- Check the connection: See whether your ETM has a 37-pin Sub-D.
- Connect the Link: Screw the 26-pin end onto the Link V9.
- Connect the ETM: Screw the 37-pin end onto the ETM.
- Connect the test cable: Attach the MDC test cable to the component.
- Testing: Start the ETM test in Jaltest on the PC.
Compatible devices and applications
The connection on your ETM is decisive. If the ETM has a 37-pin Sub-D and the Link has a 26-pin Sub-D, this cable is the link between them. Below is what the complete setup requires.
Required components:
- Jaltest ETM: An earlier version, with 37-pin Sub-D.
- Jaltest Link V9: The interface to which you connect the ETM.
- Test cable: MDC02 up to and including MDC14, per component.
Licences:
- ETM licence: Without this licence the ETM does not start; the annual renewal has reference 29701.
- Software licence: An active CV or Modular licence.
Package contents
- 1x Jaltest (MDC100.9) | ETM 26-pin DB26 - 37-pin Sub-D Adapter Cable | Interface
Technical specifications
General
- The manufacturer of the cable or set. This confirms that it is suitable for your Jaltest equipment.Brand
- Jaltest (Cojali)
- The type of item: a component test cable, an adapter, an interface cable or a complete set.Product type
- Adapter cable
- The version of the Jaltest Link with which the cable works. Please select the version you use in your workshop.Compatible with Jaltest Link
- Jaltest Link V9
Connections
- The connector used to attach the cable to the Jaltest ETM or Link. It must match your device.Interface-side connection
- 26-pin Sub-D, female (to the Jaltest Link V9)
Licence
- The Jaltest licence required to use the ETM with this cable. It will not work without the correct licence.Required software licence
- CV
- Modular
- Whether this cable is already included in the ETM kit. If not, it can be purchased separately as an addition.Part of the ETM kit
- No
Dimensions
- The length of the cable. A longer cable allows more freedom to reach the component.Cable length
- 28 to 30 cm
- Reference number
- MDC100.9
- ETM licence renewal
- 29701 (Jaltest ETM, renewal for 1 year)
Other specifications
- Application
- Connection between an earlier ETM version and the Jaltest Link V9
- Machine-side connection
- 37-pin Sub-D, female (to the Jaltest ETM)
- Part of cable set
- No, additional ETM cable
- Not available for
- Jaltest handheld devices
- Required for use
- Jaltest ETM with ETM licence and an active CV or Modular software licence
