Jaltest  |  SKU: JDC513A

Jaltest (JDC513A) | Massey Ferguson 16-pins OBD – 16-pins OBD2 Adapter Cable | Agricultural Vehicle

€104,95 incl.
€86,74 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

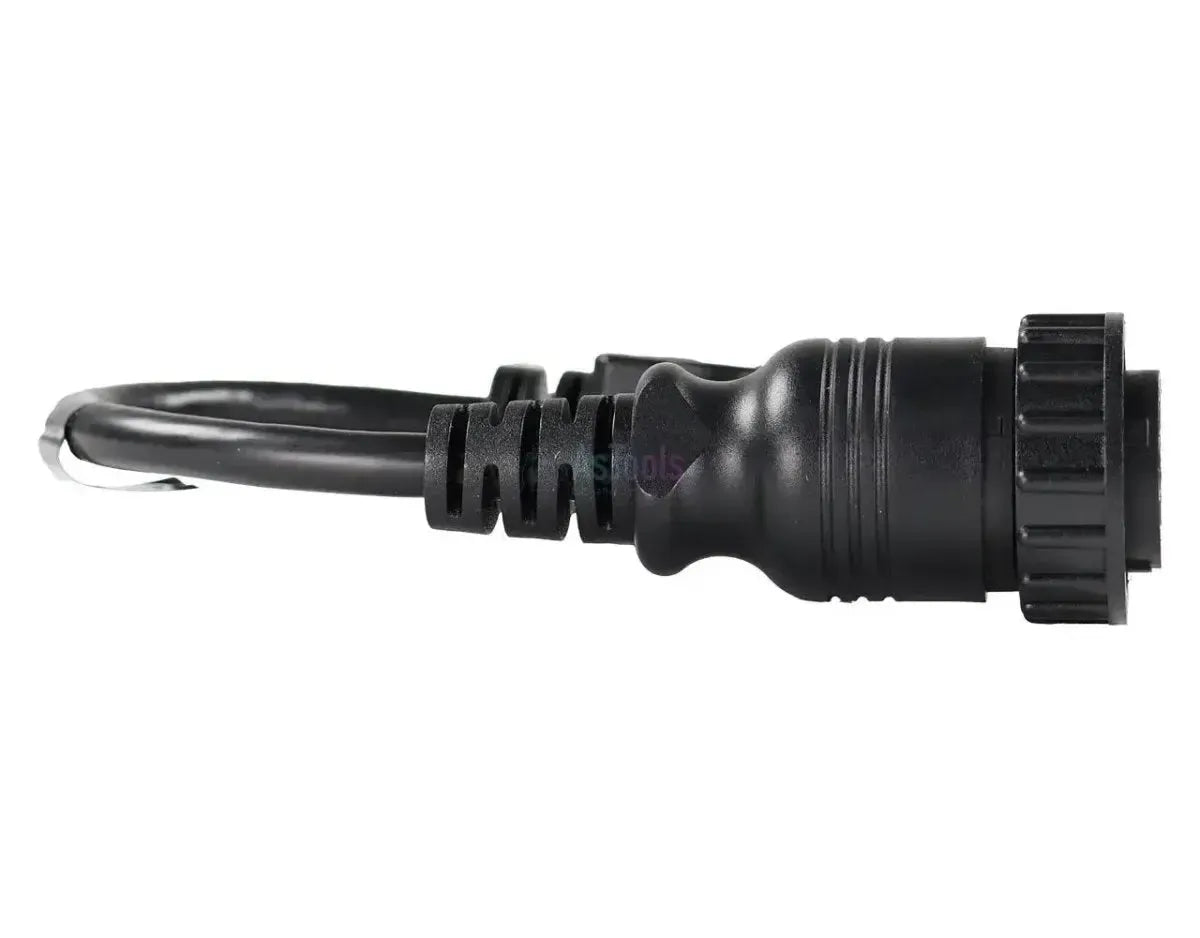

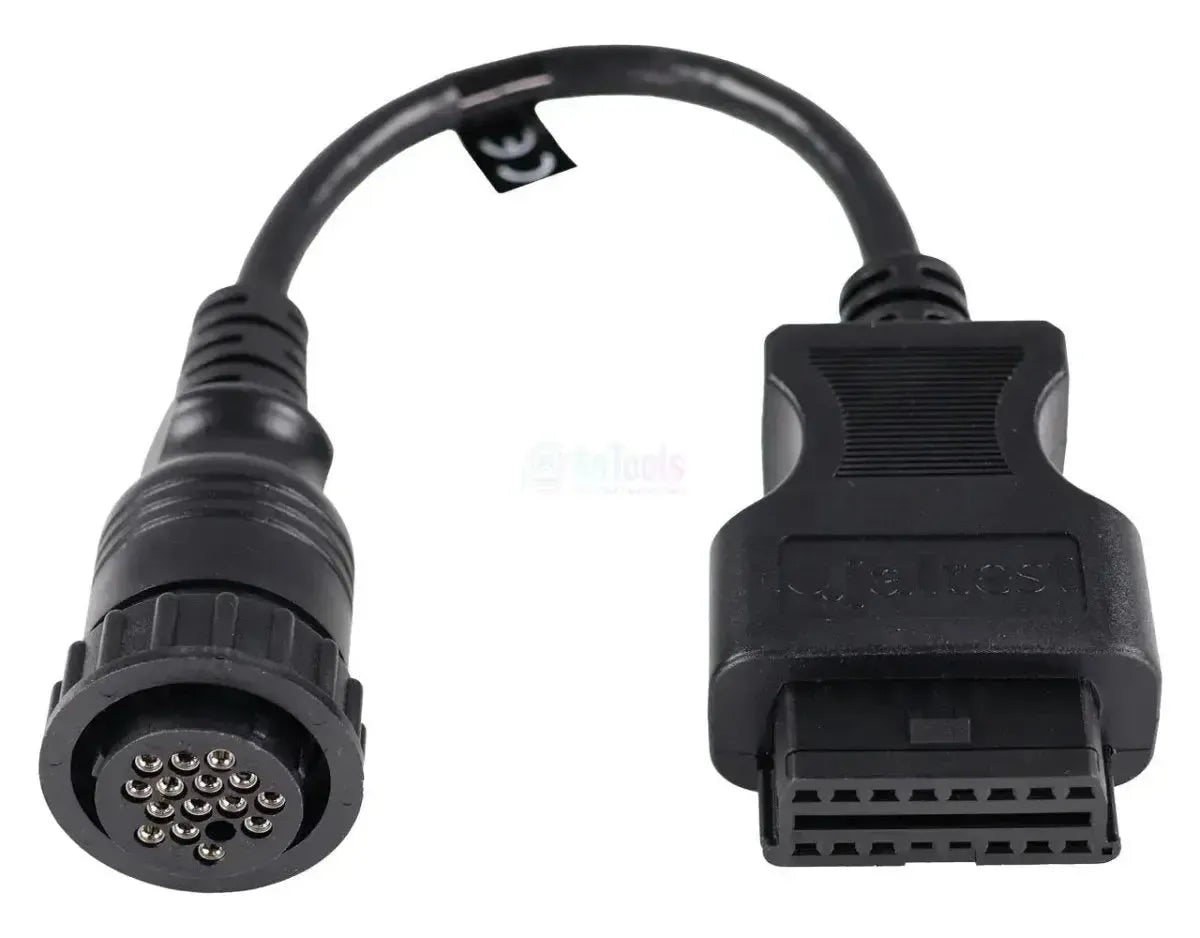

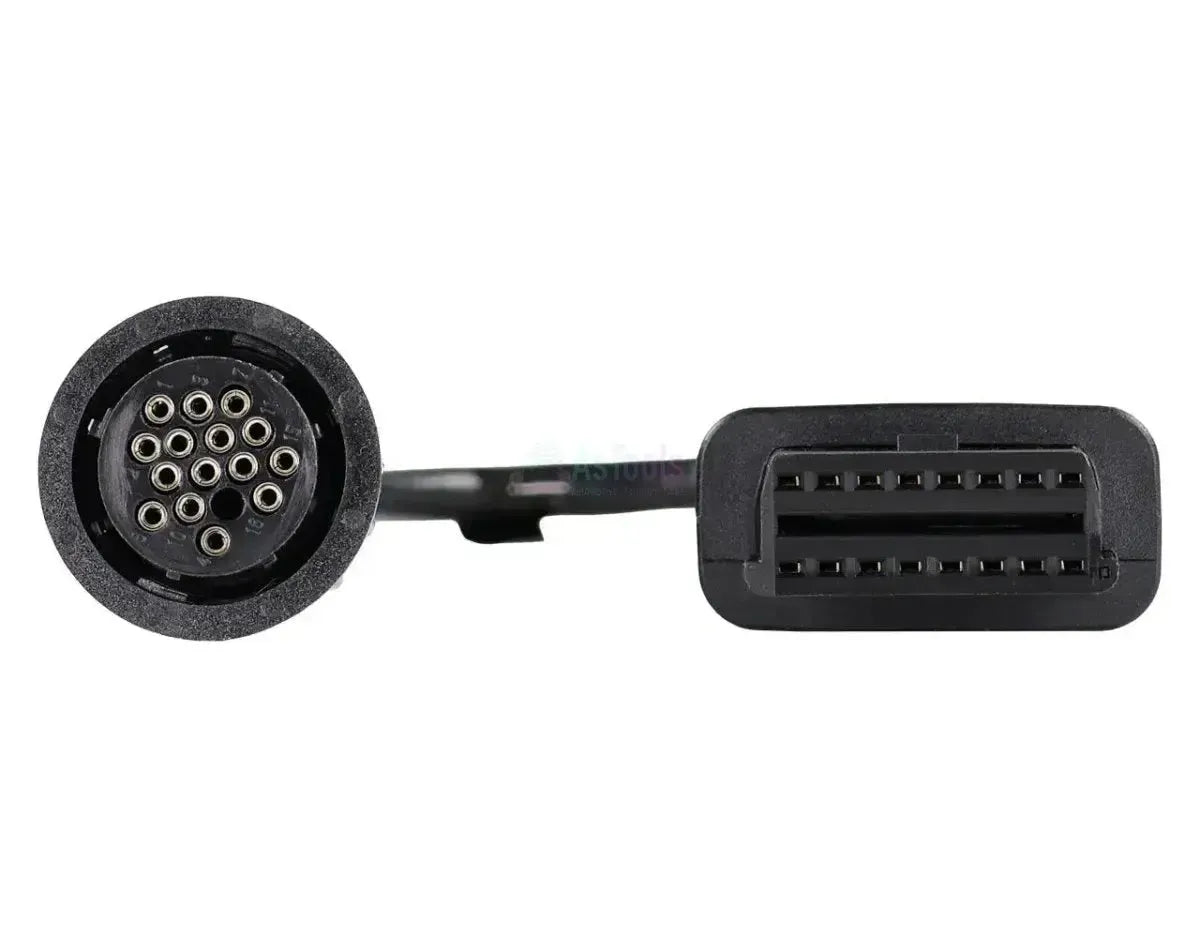

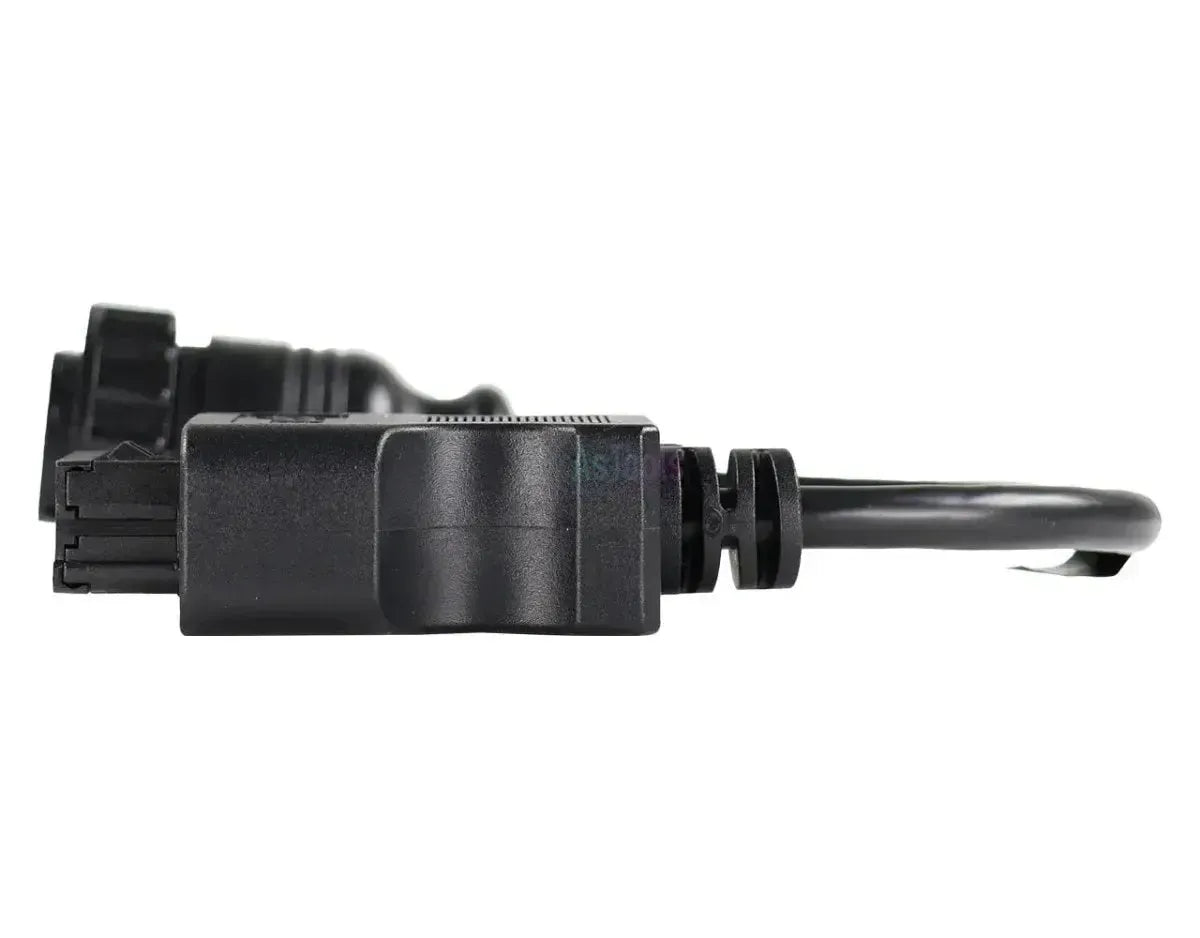

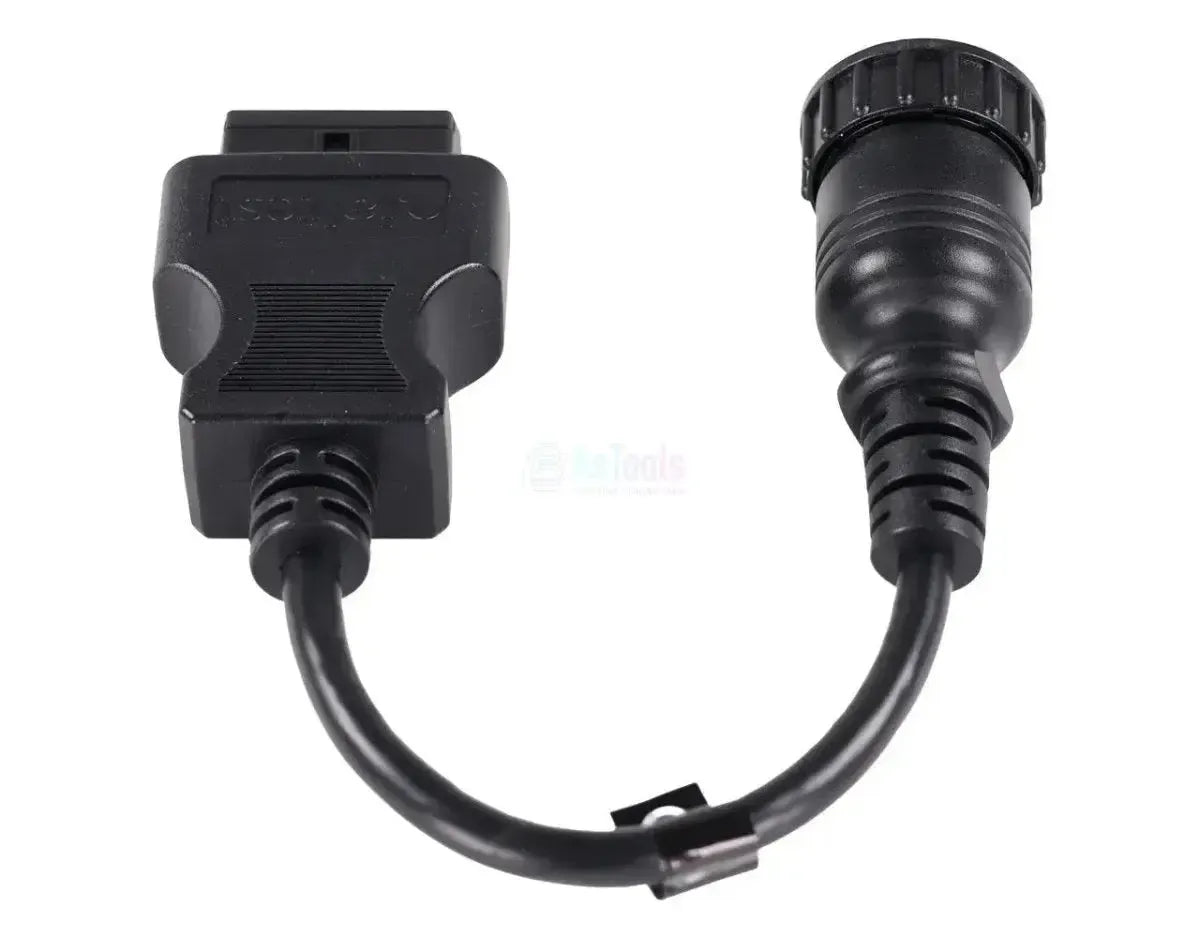

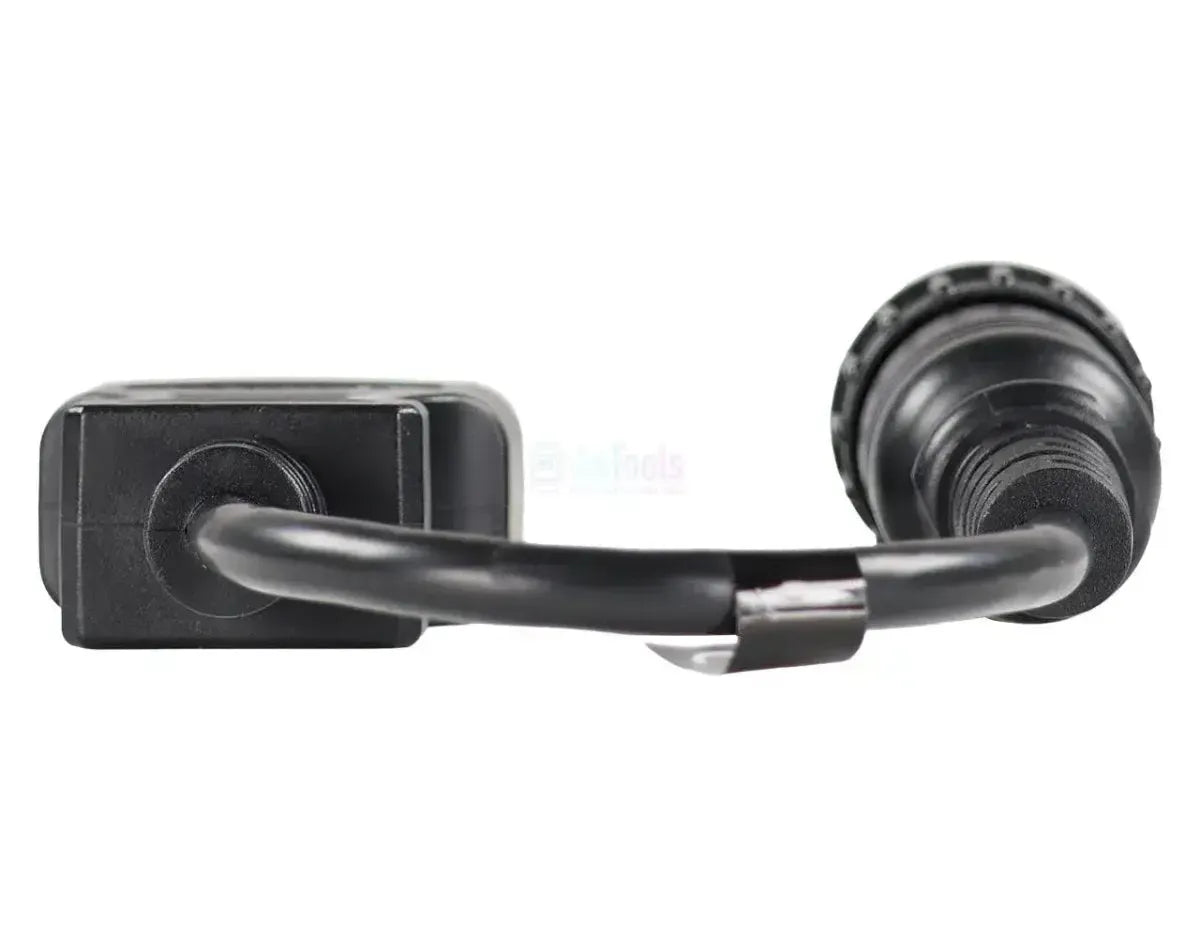

The Jaltest JDC513A connects the proprietary 16-pin diagnostic socket on Massey Ferguson tractors to the 16-pin OBD2 port of your Jaltest diagnostic cable. On the machine side, there is a round black connector with sixteen pins, numbered 1 to 16 in the housing and fitted with a ribbed coupling ring; this connection has a different pin assignment than a standard OBD2 connector. The OBD2 side is a female connector with a white label JDC 513A, and the cable measures 28 to 30 cm in length.

The cable provides diagnostic access to five engine control units — from the EEM2 with VP30/VP44 distributor pump through to the ECM 1100D with common rail injection — to the complete Autotronic family for transmission, lift and suspension, plus the ATC climate control and DCC2 instrument cluster. Service intervals are available only for the engine control units; for the transmission, lift and suspension modules, you get fault codes, live data and ECU information. This version works with Jaltest Link V8.1 and V9 and falls under Jaltest AGV (agricultural vehicles).

KEY FEATURES

✔Five engine control units in the same coverage: EEM2 - VP30/VP44, EEM3 - EDC 7 UC31 and the ECM 1100, 1100C and 1100D series.
✔The complete Autotronic family: Autotronic 3 PowerControl, Autotronic 4 Dyna VT and Autotronic 5 (Dynashift, Dyna 6).
✔Also lift, suspension and comfort: EHRC and Autotronic 5 Lifting, Autotronic 5 Suspension, Rexroth Valves, the ATC-climate control and the DCC2-instrument panel.
✔One connectionfor the 6200, 6400, 7400, 5400, 4400, 4200, 3400, 8200 and 8400 series, on both theJaltest Link V8.1as theV9.

IMPORTANT NOTES

✕Maintenance intervals are only on the engine management systemsavailable; for the transmission, lift and suspension units, it remains limited to fault codes, measured values and ECU data.
✕Which Autotronic generation is fitted in your tractor depends on the transmission you've selected: for example, the 7400 series features Autotronic 4 Dyna VT, whilst the 6400 series is equipped with Autotronic 3 and 5.
✕Exclusively for the brand's own 16-pin Massey Ferguson connectorThis is a round connector with numbered pins, not a flat trapezoidal OBD2 connector.
✕For the8200- and 8400 seriesno specific model years are listed; only the connection point in the cab will confirm compatibility.

Applications and functionality

Via this 16-pin connection contact us with the Jaltest software accesses the control units of the tractor. Which units are present varies depending on the model series , engine and transmission . The control units listed below are covered by Jaltest AGV's Massey Ferguson coverage .

Control units you can access

  • Engine Management EEM2 - VP30/VP44: Engine control with distributor injection pump.
  • Engine Management EEM3 - EDC 7 UC31: Engine control with common rail injection.
  • Engine Management ECM 1100 series (PDL), ECM 1100C (Tier 2/Stage II, J1939) and ECM 1100D (Tier 3/Stage IIIA, J1939, common rail injection): Perkins-based engine management systems.
  • Transmission Autotronic 3 - PowerControl: Gearbox control for earlier versions.
  • Transmission Autotronic 4 - Dyna VT: Continuously variable transmission used in the 7400 series and others.
  • Transmission Autotronic 5 - Dynashift and Dyna 6: Powershift transmission variants.
  • Hydraulics EHRC, Autotronic 5 - Lifting and Rexroth Valves: Lifting mechanism and external hydraulic valves.
  • Suspension Autotronic 5 - Suspension: Front axle suspension management.
  • Climate Control ATC: Automatic air conditioning.
  • Instrument Panel DCC2: Dashboard displaying operational data.

What you can do

  • Read and clear fault codes: Access the fault memory of the control unit with descriptions of detected faults.
  • View live data: Monitor current sensor values managed by the control unit, with the ability to set alarm thresholds.
  • Check service intervals: Review scheduled maintenance and required work, with a report for workshop administration. Available on Massey Ferguson EEM2 and EEM3 engine management systems.

Compatible vehicles and applications

Massey Ferguson has retained this proprietary 16-pin connector across a long range of series. The series listed below are covered by Jaltest AGV, with the model years where they have been documented. The round connector with numbered pins indicates whether this cable is compatible.

The connector is what matters, not the model. This cable fits any Massey Ferguson tractor with the proprietary 16-pin diagnostic connector.

Massey Ferguson:

  • Massey Ferguson 6200 series: (1999 - 2003)
  • Massey Ferguson 6400 series: (2003 - 2013)
  • Massey Ferguson 7400 series: (2004 - 2012)
  • Massey Ferguson 5400 series: (2004 - 2013)
  • Massey Ferguson 4400 series: (2004 - 2011)
  • Massey Ferguson 4200 series: (1997 - 2001)
  • Massey Ferguson 3400 series: (2005 - 2010)
  • Massey Ferguson 8200 and 8400 series
💡
Good to know: The 16-pin Massey Ferguson connector is located in the cab and has a different pin assignment than a standard OBD2 connector. Agricultural vehicles are not subject to OBD requirements, so this proprietary connector has remained in use across a long range of model years. Verify the connector on the machine itself before ordering: it is a round connector with sixteen numbered pins.

Package contents

  • 1x Jaltest (JDC513A) | Massey Ferguson 16-pin OBD – 16-pin OBD2 Adapter Cable | Agricultural Vehicle

Technical Specifications

Specification Description
Brand Jaltest (Cojali)
Reference Number JDC513A
Type Adapter Cable
Application Massey Ferguson (16-pin connector)
Vehicle-side Connection 16-pin OBD, round black plug with numbered sockets and ribbed coupling ring
Interface-side Connection 16-pin OBD2, female connector
Length 28 to 30 cm
Interface Jaltest Link V8.1 and V9
Control Units EEM2, EEM3 and ECM 1100/1100C/1100D (engine), Autotronic 3, 4 and 5 (transmission), EHRC, Autotronic 5 Lifting and Rexroth Valves (hydraulics), Autotronic 5 Suspension (suspension), ATC (climate) and DCC2 (instrument panel)
Segment Agricultural Vehicle
Jaltest Module Jaltest AGV (agricultural vehicles)
Part of Cable Set AGV Cable Set (70002003)
