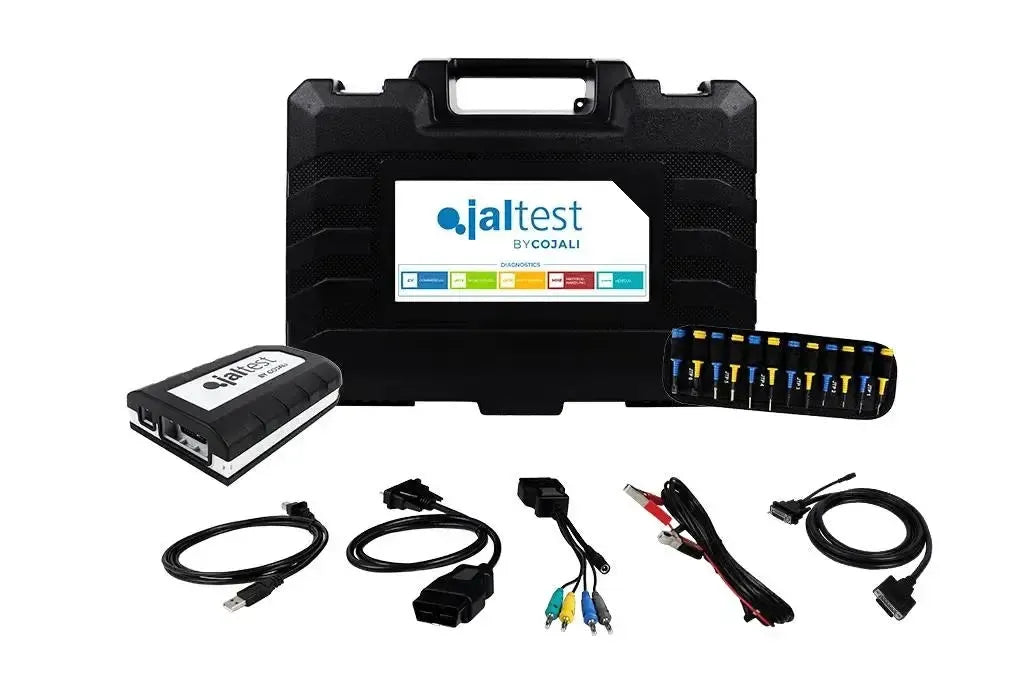

The Jaltest Marine Kit (70001053) is the hardware platform for diagnostics on boat and marine engines. The case contains the Jaltest Link V9 (70001015), the Multipin Kit 70002007, the OBD2 cable JDC213.9, the connection cable JDC107.9B to the PC and the extension cable JDC100B of 250 cm. Everything is housed in the Compact Hardcase 70003015, measuring 505 × 381 × 146 mm.
What makes this kit suitable for use on the water is the JDC100B extension cable of 250 cm. On board, the engine is rarely within easy reach of where you can place the laptop. The multi-pin kit 70002007 contains twenty multi-pins and the power cable JDC10AM2 for the battery. The diagnostics themselves are performed by the Jaltest software with a Marine module on a Windows PC.
ADVANTAGES
POINTS TO NOTE
Applications and functions
This kit connects a Windows PC with Jaltest software to the control units of boat and marine engines. The Jaltest Link V9 passes the engine signal on to the PC; the cables determine where you connect, either to a 16-pin OBD2 port or via the multi-pins to a non-standard connector.
What is in the case
- Link V9 (70001015): Interface, DB26 and USB-C.
- Multipin Kit (70002007): Multi-pins and JDC10AM2.
- JDC213.9: DB26 to 16-pin OBD2.
- JDC107.9B: Link V9 to USB-C.
- JDC100B: Extension cable, 250 cm.
- 70003015: Compact case.
What you can do
- Fault codes: Read and clear.
- Live data: At the quayside or during a sea trial.
- Components: Driving valves and relays.
- Multipins: Probing a non-standard connector.
- Power supply: Battery voltage.
How to use it
- Starting the software: Open Jaltest on the Windows PC.
- Linking the Link: Connect the Link V9 via the JDC107.9B.
- Choosing a cable: Use the JDC213.9 or the multipins.
- Connecting: Connect, via the JDC100B if necessary.
- Reading: Select the brand and engine in the Marine module.
Compatible vehicles and applications
The software module matters, not the case. This hardware supports all Jaltest Marine modules. Which brands and systems you can read depends on the selected module; on engines with a proprietary connector, the multi-pins or a separate JDC cable are useful.
Vessels and engines:
- Inboard engines: Inboard or Complete module.
- Outboard engines: Outboard or Complete module.
- Personal watercraft: Jet Ski or Complete module.
- Stationary engines on board: Generators and auxiliary engines.
Package contents
- 1x Jaltest Link V9 interface (70001015)
- 1x Multipin Kit Jaltest Marine (70002007)
- 1x Jaltest (JDC213.9) | Link V9 26-pin DB26 – 16-pin OBD2 Adapter Cable | Interface
- 1x Jaltest (JDC107.9B) | Link V9 – USB-C Adapter Cable | Interface
- 1x Jaltest (JDC100B) | Link V9 26-pin DB26 Extension Cable (250 cm) | Interface
- 1x Jaltest (70003015) | Compact Hardcase
Technical specifications
General
- The manufacturer of the diagnostic set. This shows which software and components are compatible.Brand
- Jaltest (Cojali)
- The type of product, for example a complete hardware set for reading out vehicle data.Set type
- Hardware set for vehicle diagnostics
- The types of vehicles and machinery the set is intended for. Choose the set that suits the work you carry out in your workshop.Vehicle types
- Boats
Contents
- The number of separate components in the set, such as the interface, cables and the case.Number of components
- 6 components
- Which set of loose pins is included. It allows connection to plugs for which no ready-made cable is available.Multi-pin kit
- Multipin Kit 70002007
- The length of the extension cable supplied. A longer cable makes it easier to reach the connector in large vehicles.Extension cable length
- 250 cm
- Whether a cable is included to power the interface separately, useful if the vehicle itself supplies no power.Separate power cable
- Yes
Case
- Length, width and height of the storage case. Useful for checking whether it fits in your workshop or service van.Case dimensions
- 505 x 381 x 146 mm
- The type of case in which the set is supplied and stored.Case type
- Compact case
- Reference number
- 70,001,053
Other specifications
- Contents
- Jaltest Link V9 (70001015), Multipin Kit 70002007, JDC213.9, JDC107.9B, JDC100B, case 70003015
- Interface
- Jaltest Link V9, 26-pin DB26 to cable, USB-C to PC
- Multi-pin kit 70002007
- Twenty multi-pins JTP01 to JTP10, JTP101, JDC10AM2
- Required to use
- Jaltest software with licence for a Marine module, Windows PC
- Part of
- Marine Complete, Inboard, Outboard and Jet Ski diagnostic devices
