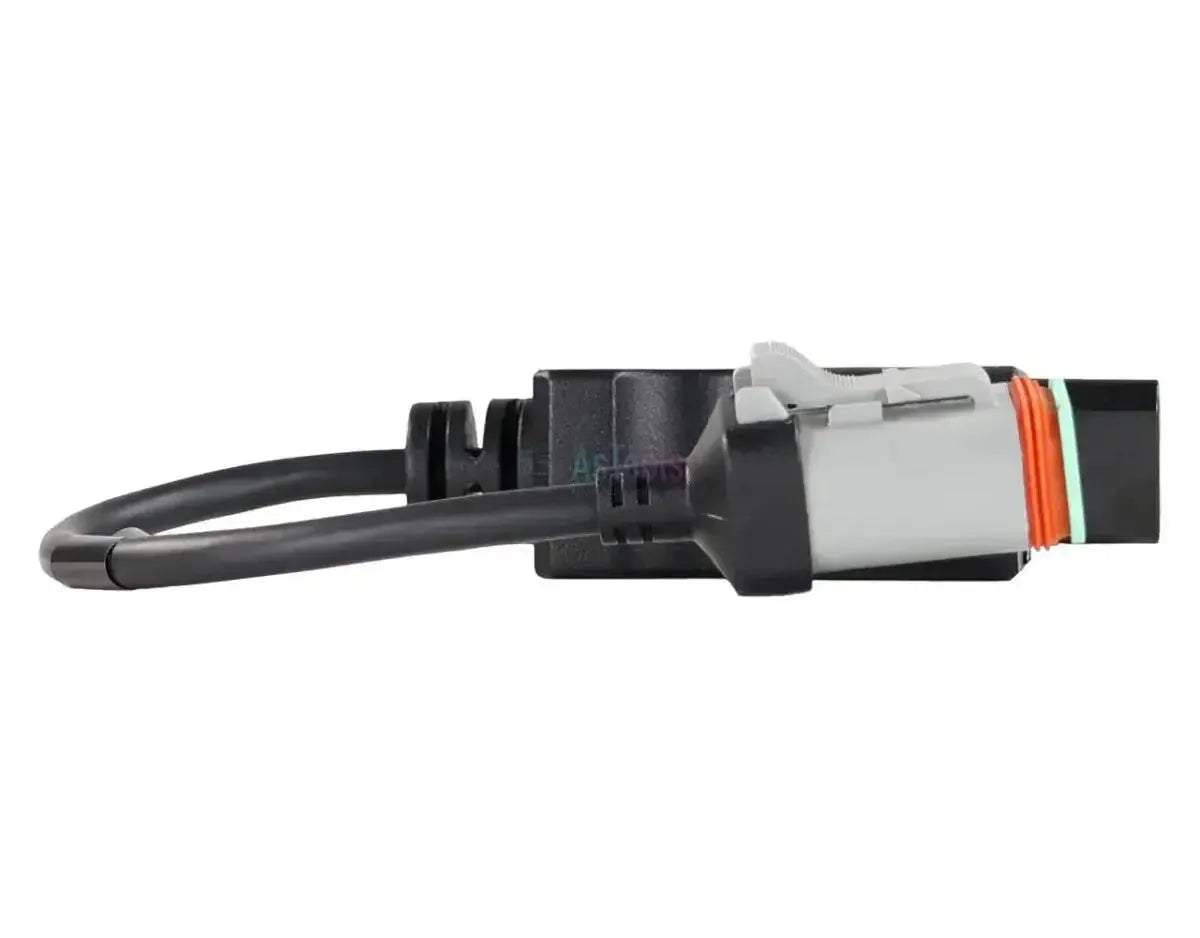

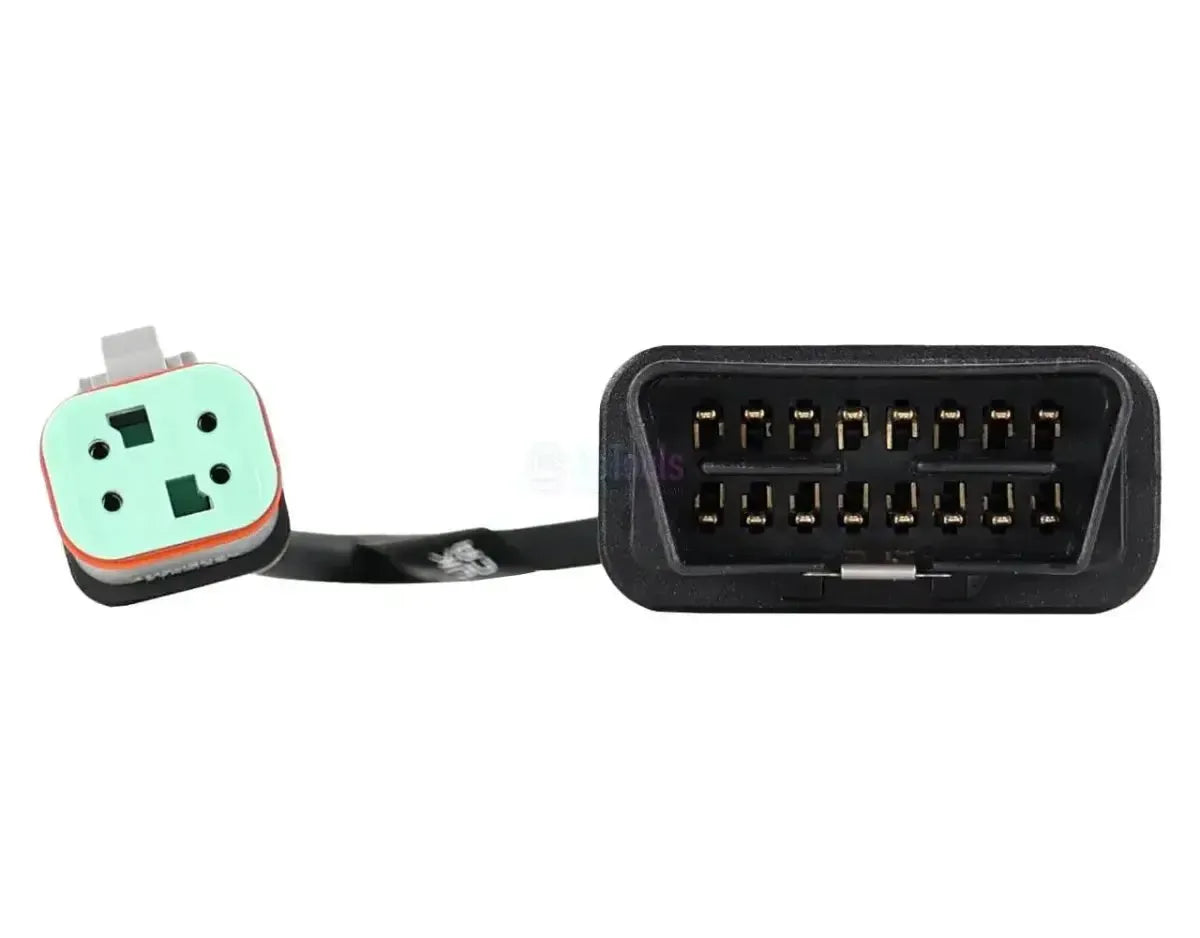

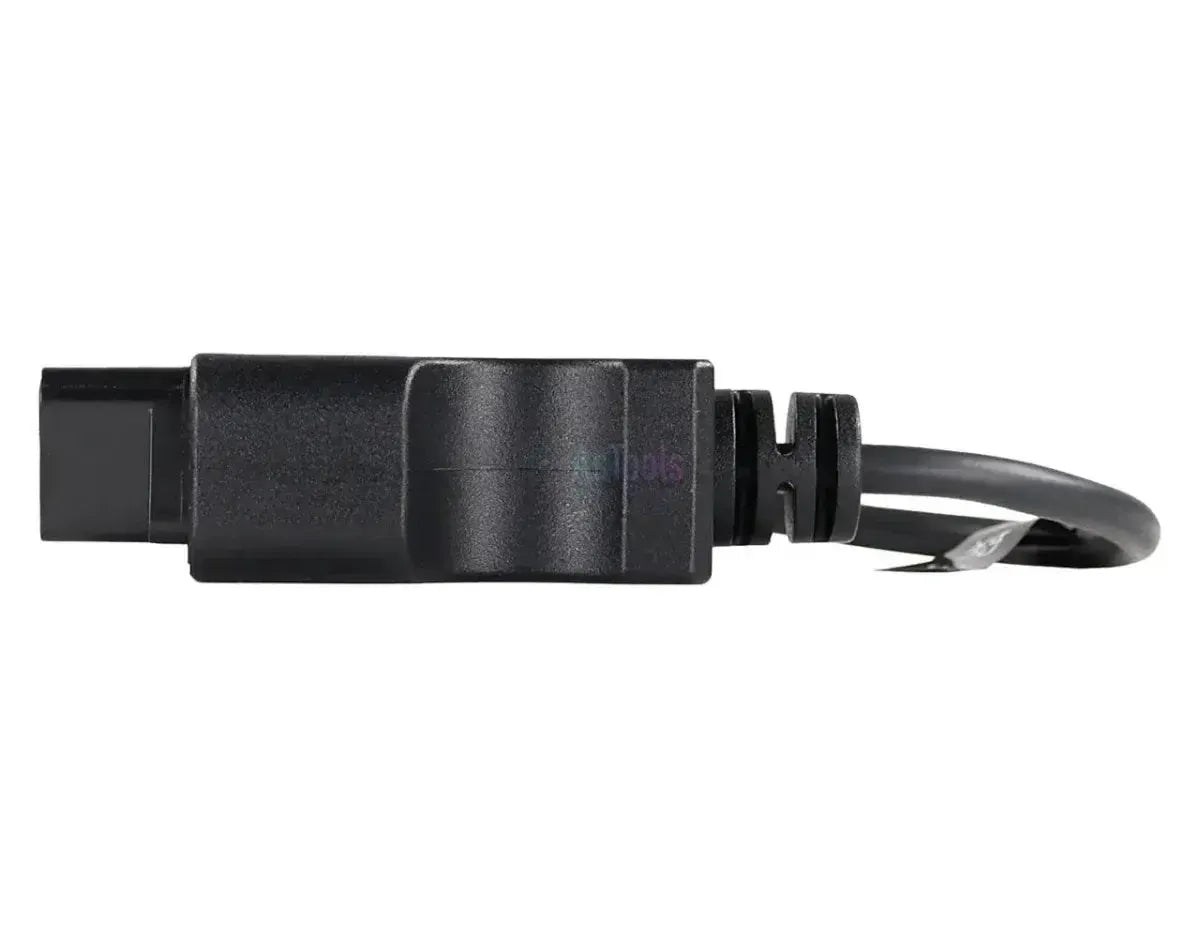

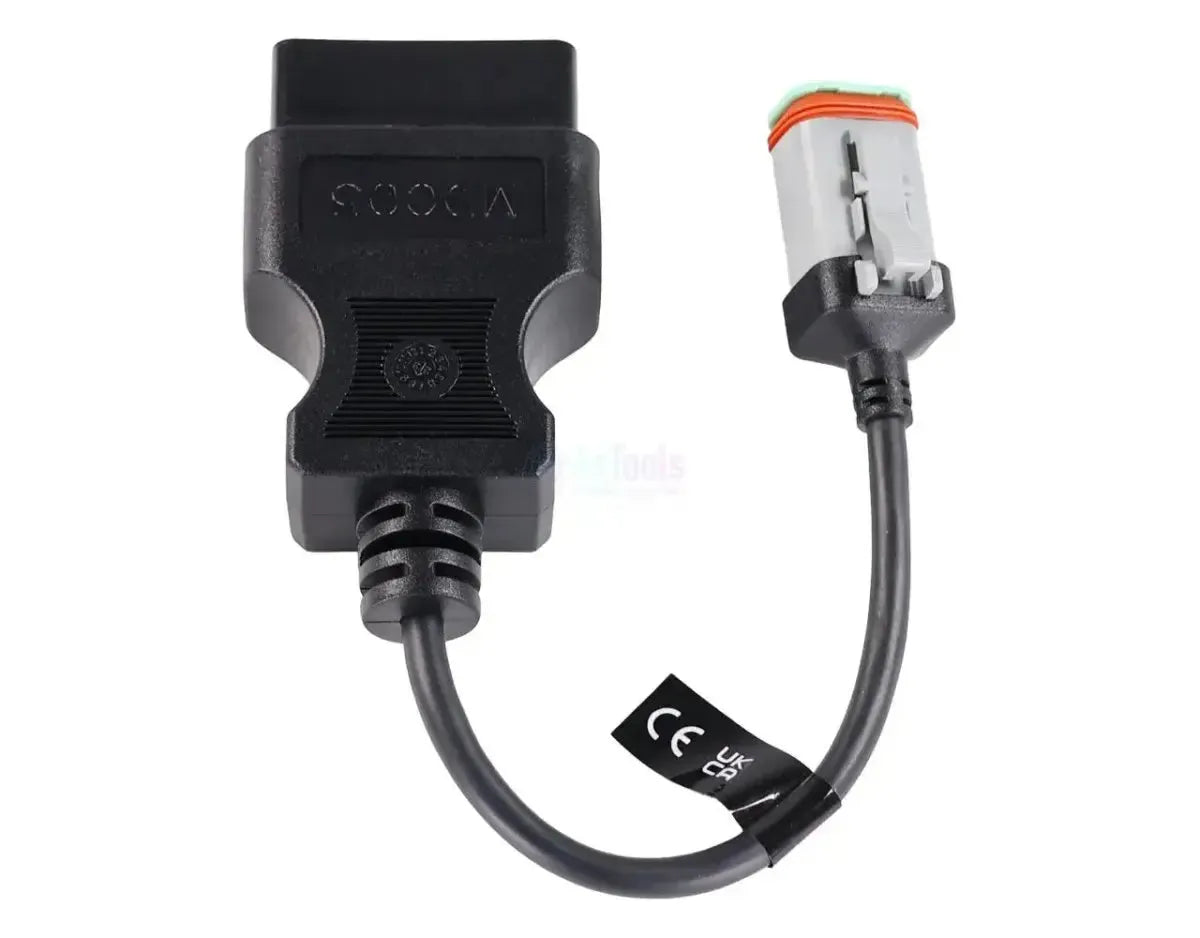

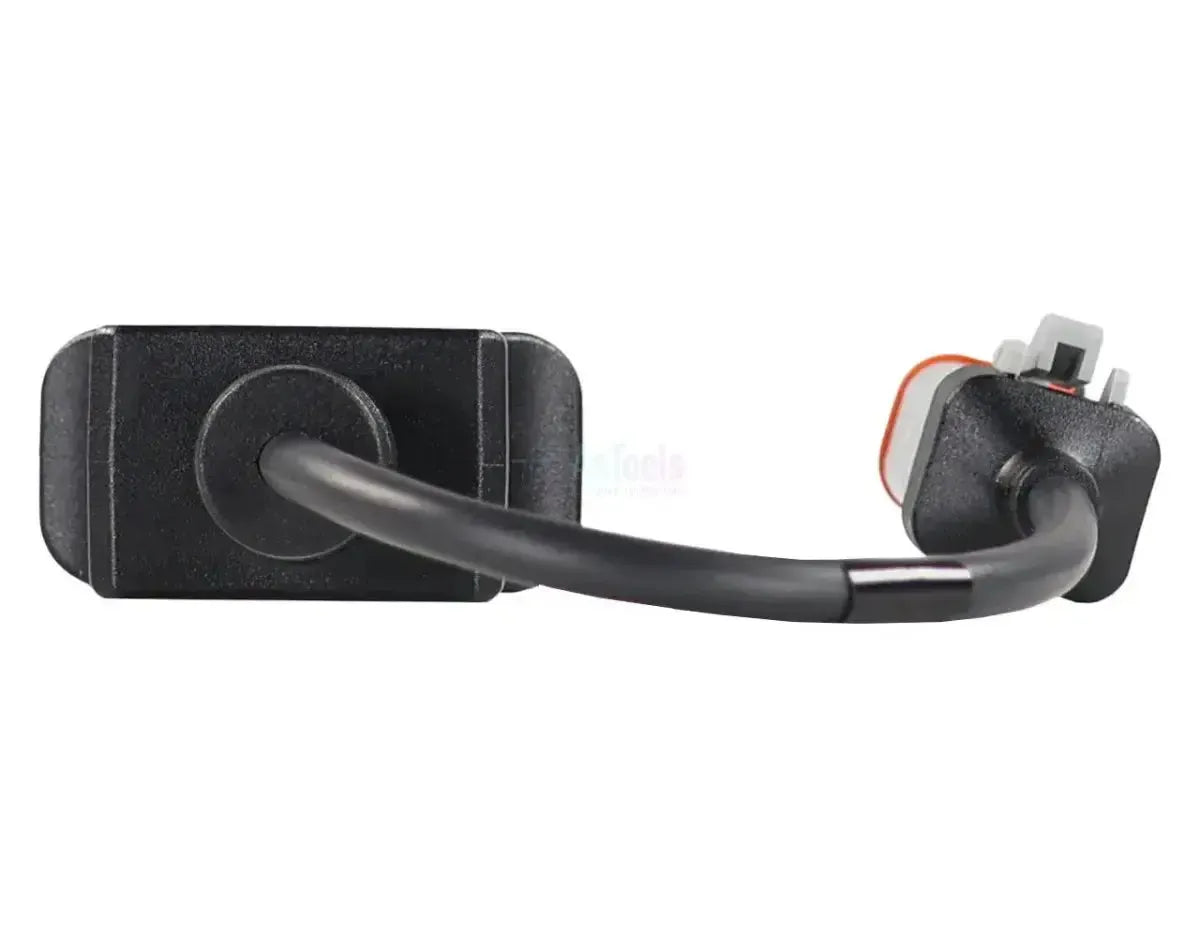

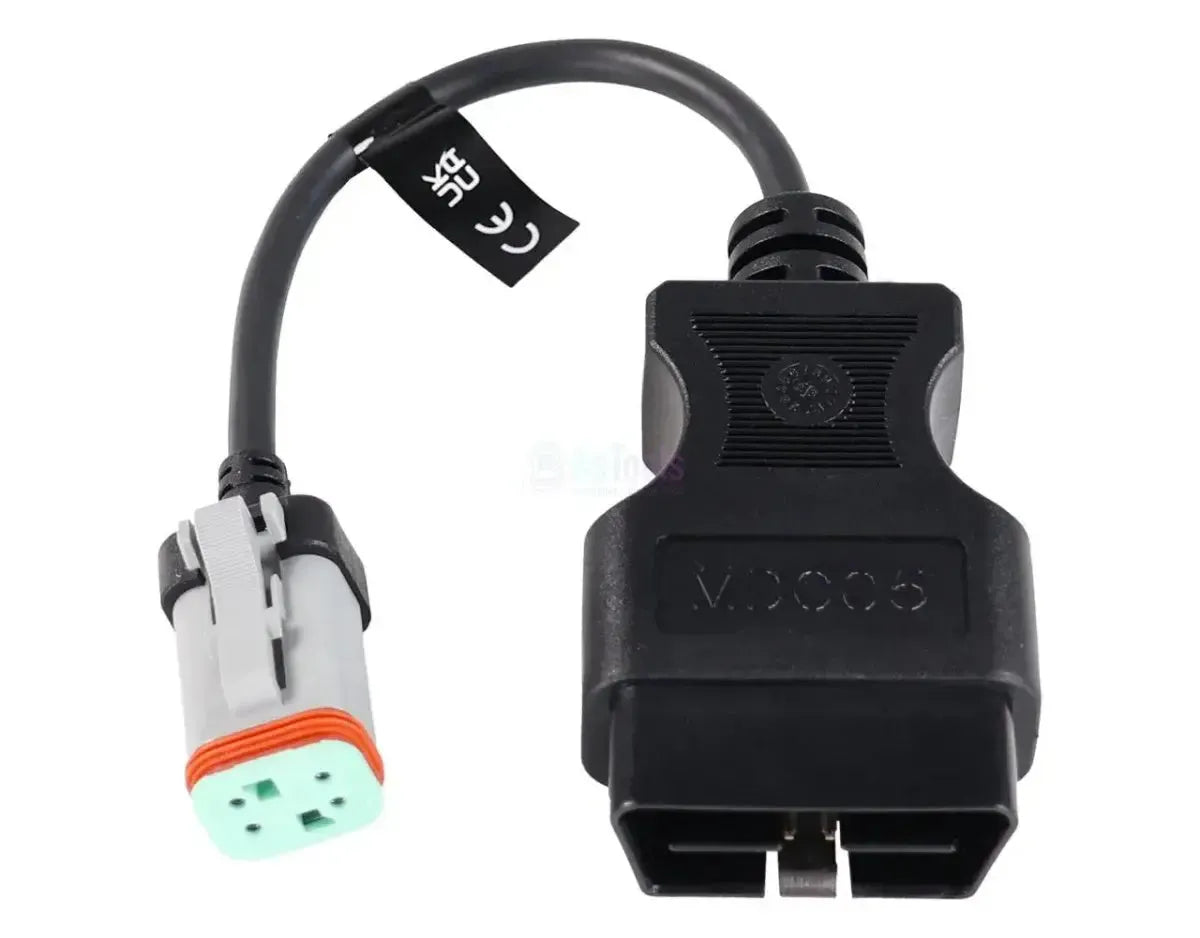

The Jaltest MDC05 is the test cable between the 4-pin EBS connector of a Knorr-Bremse EBS module, except for MAN, and the 16-pin OBD2 connector of the Jaltest ETM. On the module side there is a 4-pole Deutsch-type connector with a grey housing, a green contact holder, an orange-brown sealing ring and a locking bracket that keeps the plug in place.
With this connection, the Jaltest ETM takes over the role of the control unit and builds the communication with the modulator itself. This shows whether the component is actually faulty, or whether the fault lies in the wiring or the control unit. To do this, the ETM runs the full measurement of the modulator and an End of Line test. In addition to this cable, you need the ETM itself, with an ETM licence and a current CV or Modular software licence.
HIGHLIGHTS
POINTS TO NOTE
Applications and functionality
Through this cable, the Jaltest ETM communicates directly with the component, without the vehicle's control unit. The cable connects to the modulator, not to the vehicle's diagnostic connector.
Components you can test
- EBS module: Knorr-Bremse, except MAN.
- Connection: Deutsch 4-pole, green holder.
What you can do
- Isolated testing: Without the control unit.
- Establish a fault: Whether the fault lies elsewhere.
- Measure through: The modulator as a whole.
- End of Line test: Confirm that it works correctly.
How to use it
- Start software: Open Jaltest on the PC or laptop.
- Connect ETM: Connect the OBD2 side to the ETM.
- Clear the connector: Disconnect the vehicle plug from the modulator.
- Connect: Plug the cable into the modulator.
- Test: Start the measurement or the End of Line test.
Compatible components and applications
The colour of the contact holder is decisive, not just the vehicle make. The MDC05 fits EBS modules of Knorr-Bremse except MAN with a green contact holder.
Knorr-Bremse except MAN:
- EBS module: Deutsch connector with green contact holder.
Other connections:
- MDC04: Same cable, grey contact holder with coding A.
- MDC02 and MDC03: Knorr-Bremse EBS modules in MAN.
What you need in addition
- Jaltest ETM: The test module itself. For the Jaltest Link V9, this is the ETM interface with reference 70001007; the complete ETM kit is 70001008.
- ETM licence: Without that licence the ETM will not start. The annual renewal has reference 29701.
- A current Jaltest software licence: A CV licence or a Modular licence. Other modules cannot be combined with the ETM.
- Term: The ETM licence runs in line with the expiry date of your Jaltest software licence. If that licence has more than one year remaining, you only pay for the remaining period. If the Jaltest licence expires, the ETM will not work until it is renewed.
- Power supply: The ETM is powered from the vehicle's batteries.
Package contents
- 1x Jaltest (MDC05) | Knorr-Bremse 4-pin EBS – 16-pin OBD2 Adapter Cable | Commercial Vehicle
Technical specifications
General
- The manufacturer of the cable or set. This confirms that it is suitable for your Jaltest equipment.Brand
- Jaltest (Cojali)
- The type of item: a component test cable, an adapter, an interface cable or a complete set.Product type
- Test cable
- The version of the Jaltest Link with which the cable works. Please select the version you use in your workshop.Compatible with Jaltest Link
- Jaltest Link V8.1
- Jaltest Link V9
Connections
- The connector used to attach the cable to the Jaltest ETM or Link. It must match your device.Interface-side connection
- 16-pin OBD2
Test functions
- The ETM takes over the role of the control unit. This shows whether the component itself is faulty or the fault lies elsewhere.Test component off the vehicle
- Yes
- A final check to confirm that the component works correctly, for example after a repair.End of Line test (EOL)
- Yes
Licence
- The Jaltest licence required to use the ETM with this cable. It will not work without the correct licence.Required software licence
- CV
- Modular
- Whether this cable is already included in the ETM kit. If not, it can be purchased separately as an addition.Part of the ETM kit
- Yes
Dimensions
- The length of the cable. A longer cable allows more freedom to reach the component.Cable length
- 24 to 26 cm
- Reference number
- MDC05
- ETM licence renewal
- 29701 (Jaltest ETM, renewal for 1 year)
- Jaltest module
- Jaltest ETM, alongside Jaltest CV or Modular
Other specifications
- Application
- Knorr-Bremse EBS modules except MAN
- Machine-side connection
- 4-pole Deutsch connector with green contact holder
- Control units
- None; the ETM takes over the role of the control unit
- Part of cable set
- ETM kit (70001008)
- Required for use
- Jaltest ETM with ETM licence and an active CV or Modular software licence
- Not available for
- Jaltest handheld devices
