Jaltest JT2008 | Tachometer

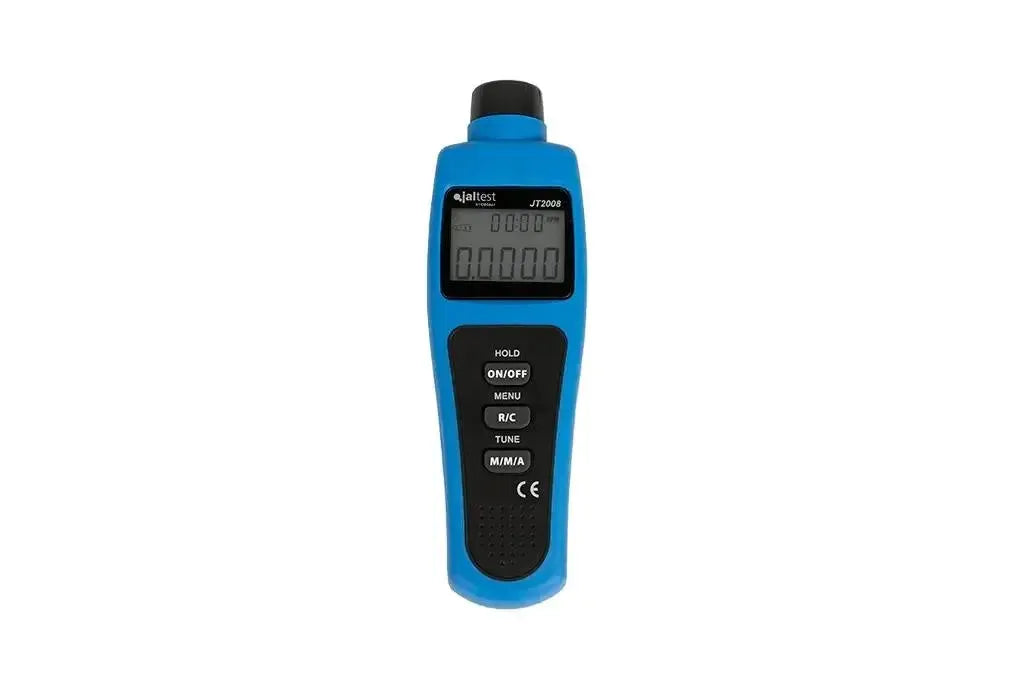

The Jaltest JT2008 is a digital tachometer, designed for measuring both rotational speed (RPM) and surface speed. This speedometer offers two measurement methods: a contactless optical measurement via a laser and a measurement through physical contact with the rotating object. The measurement range for the optical method is from 2.5 to 99,999 RPM, while the contact method has a range of 0.5 to 19,999 RPM.

The tester is equipped with a clearly readable LCD screen with backlighting that displays the measurement results. The built-in memory function automatically saves the last measured value, the maximum value, and the minimum value, so they can be recalled later. Additionally, the JT2008 features a data hold function to freeze the current measurement on the screen and an automatic range selection for correct display.

Application and functionality:

The Jaltest JT2008 is suitable for measurements on engines, machines, and other rotating parts in a workshop environment.

• Non-contact measurement: Using a laser beam and reflective tape, the rotational speed can be measured at a distance of 50 to 500 mm without physical contact.
• Contact measurement: With the included adapters, the tachometer can be placed directly on a rotating object to measure rotational speed or surface speed (in m/min).
• Memory function: Stores the minimum, maximum, and last measured value for analysis and comparison.
• Data hold function: Allows the current measurement value to be locked on the screen for easy reading.
• Automatic range selection: The tester automatically selects the correct measurement range for an accurate display.

Package Contents:

• 1x Jaltest JT2008 Digital tachometer
• 1x Storage case
• 1x Set of contact adapters (conical, funnel, wheel)
• 1x Roll of reflective tape
• 1x Manual

Technical specifications:
