Jaltest (JDC542A) | Liebherr 9-pins OBD - 16-pins OBD2 Adapter Cable | Internal combustion engine
Sign up and receive an email as soon as it is back in stock.
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

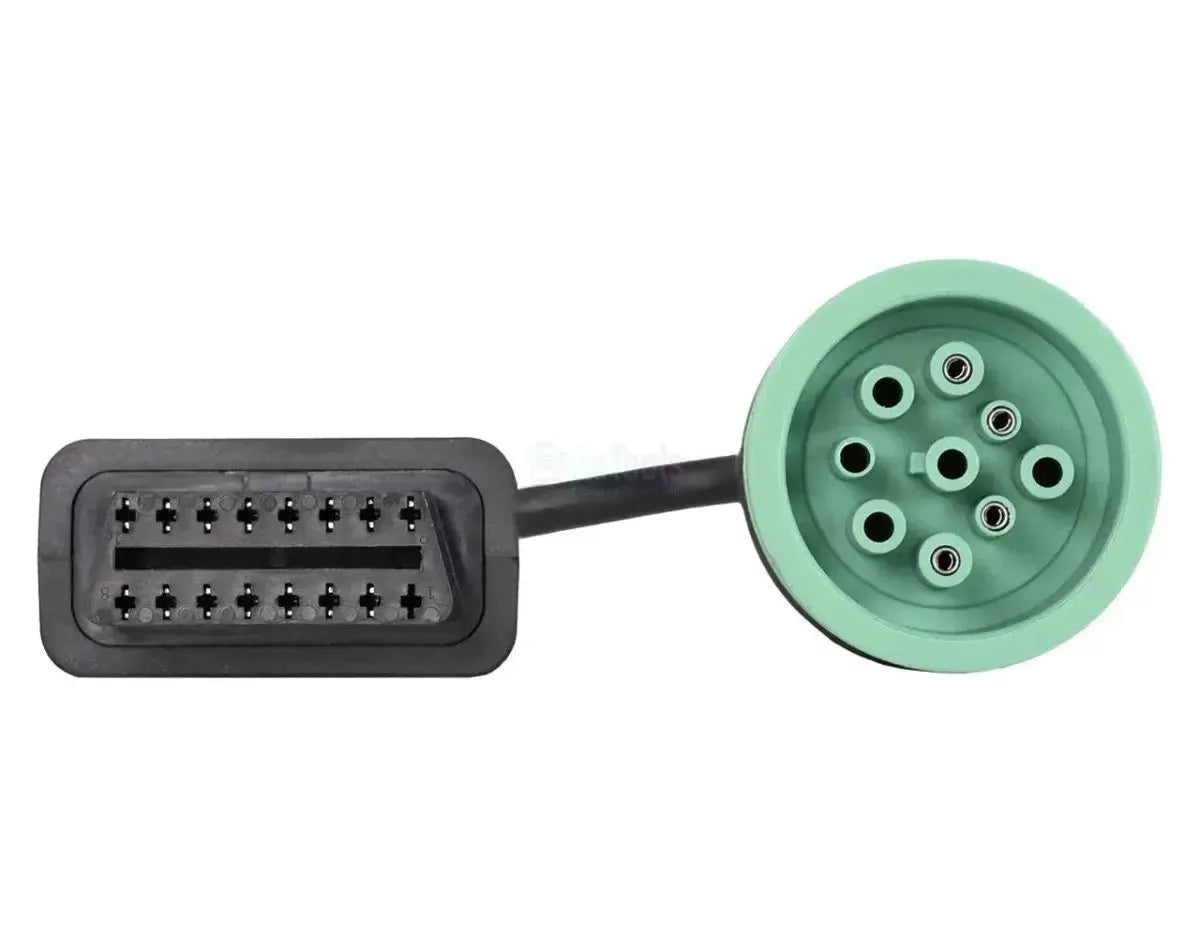

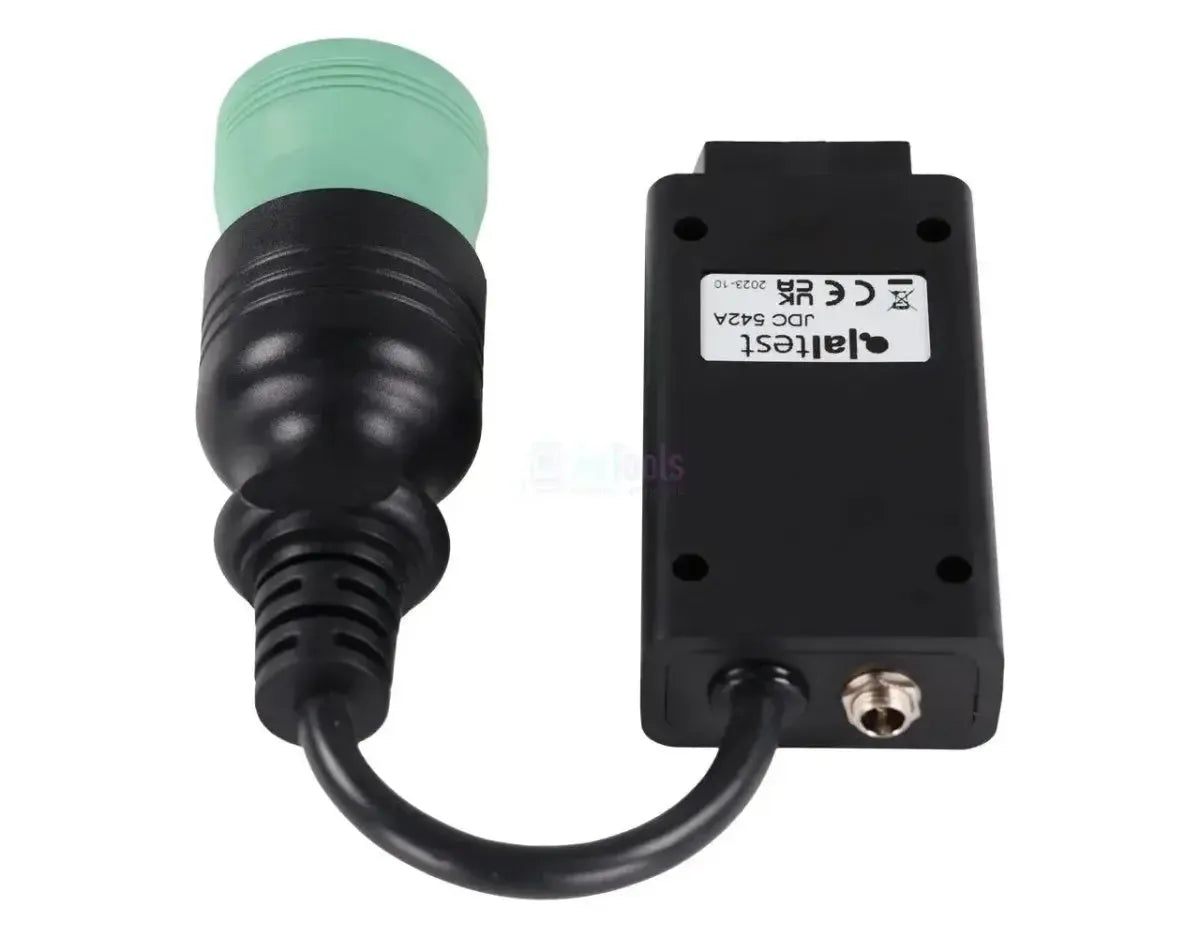

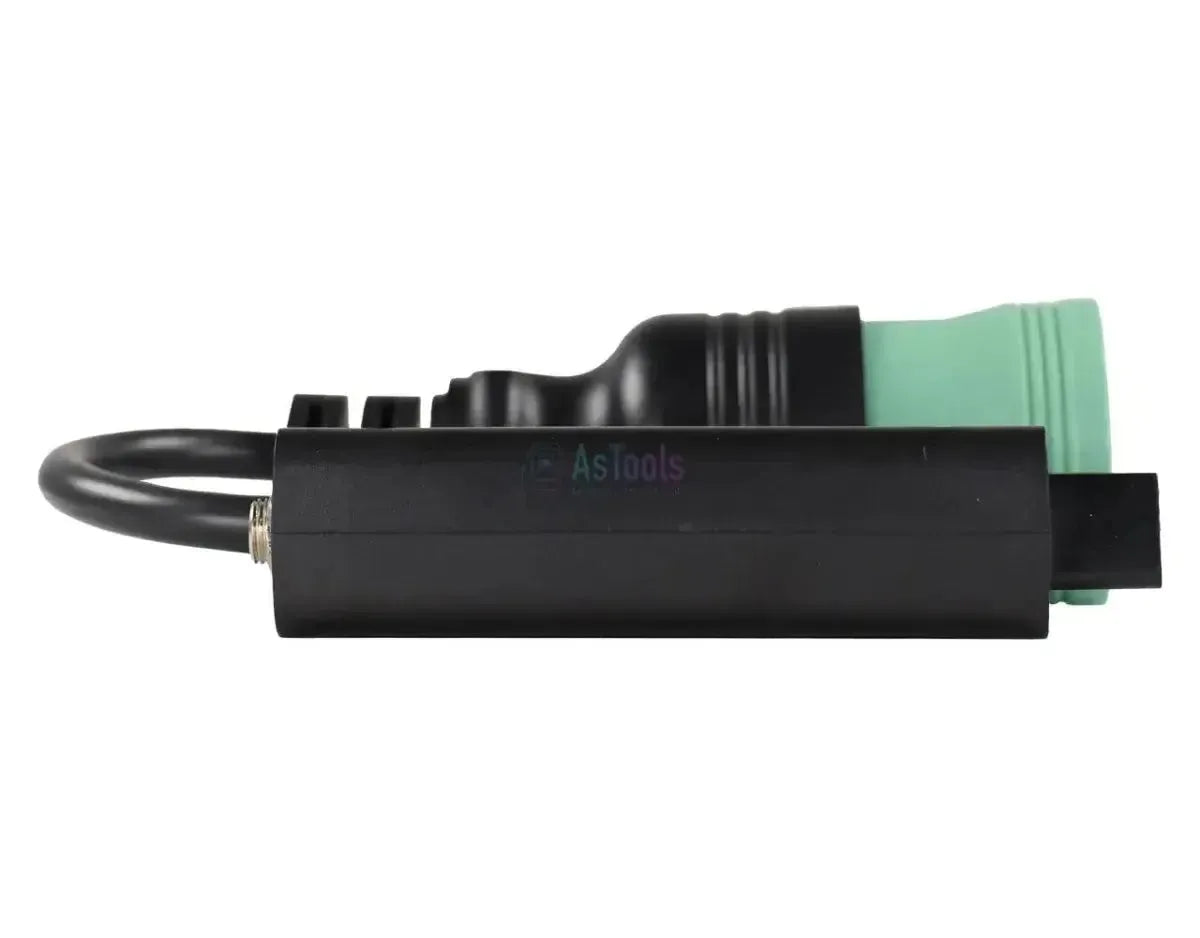

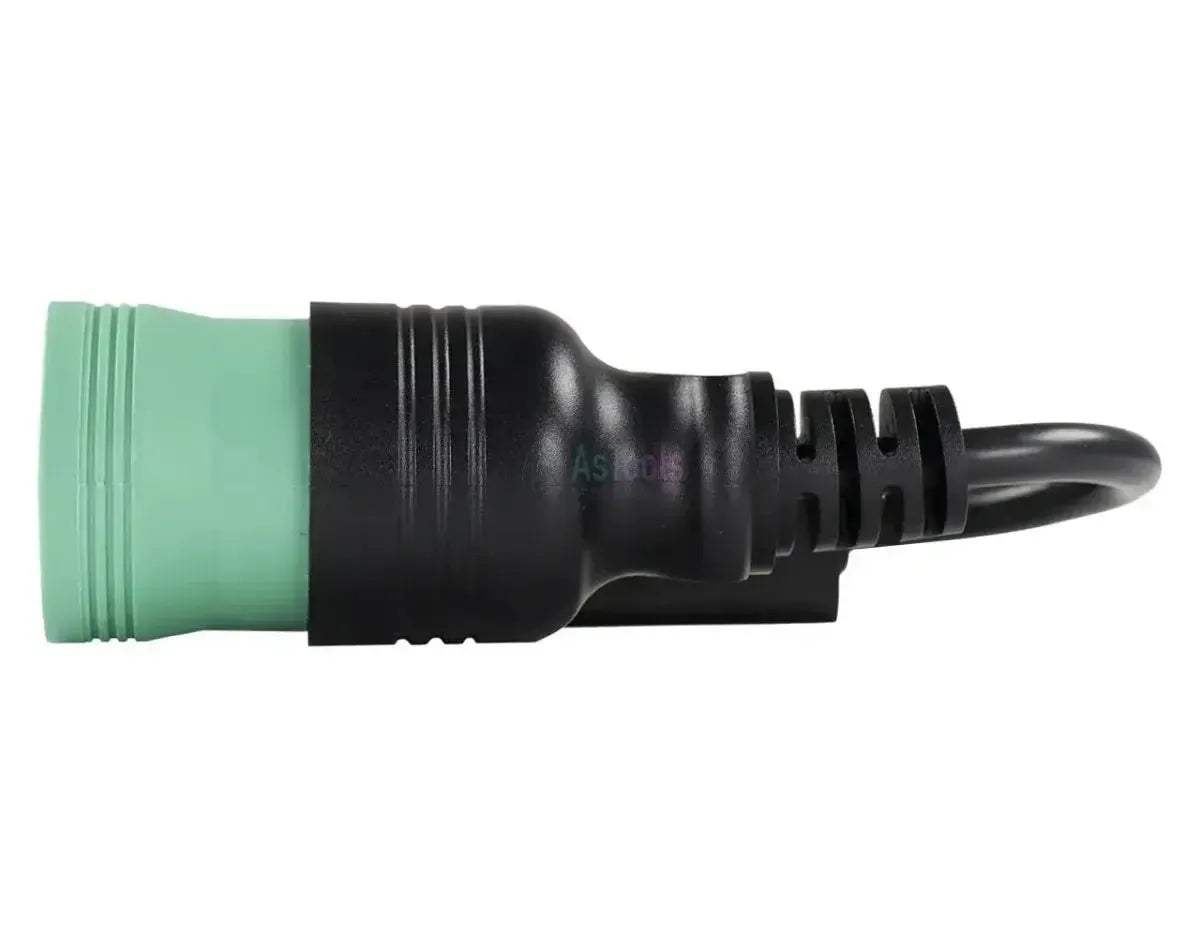

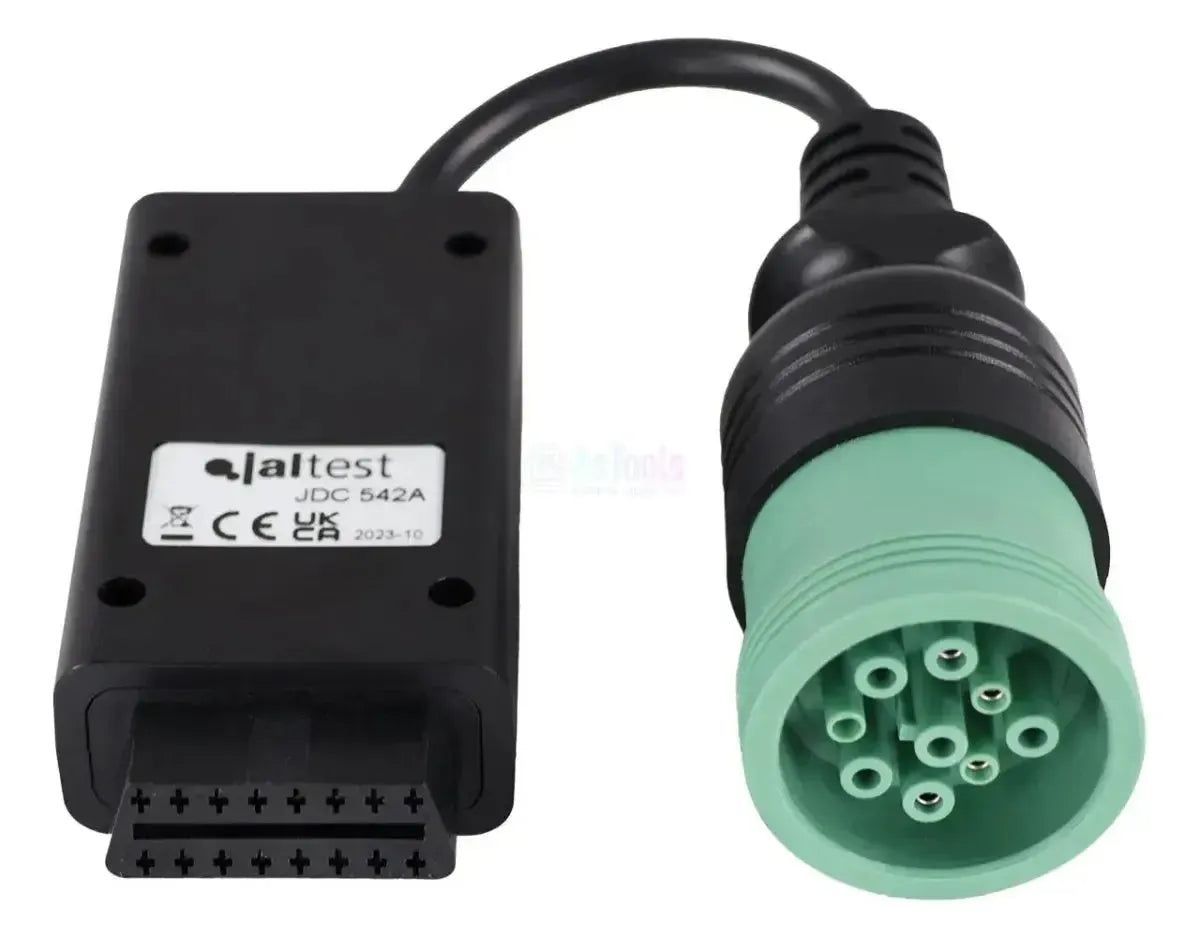

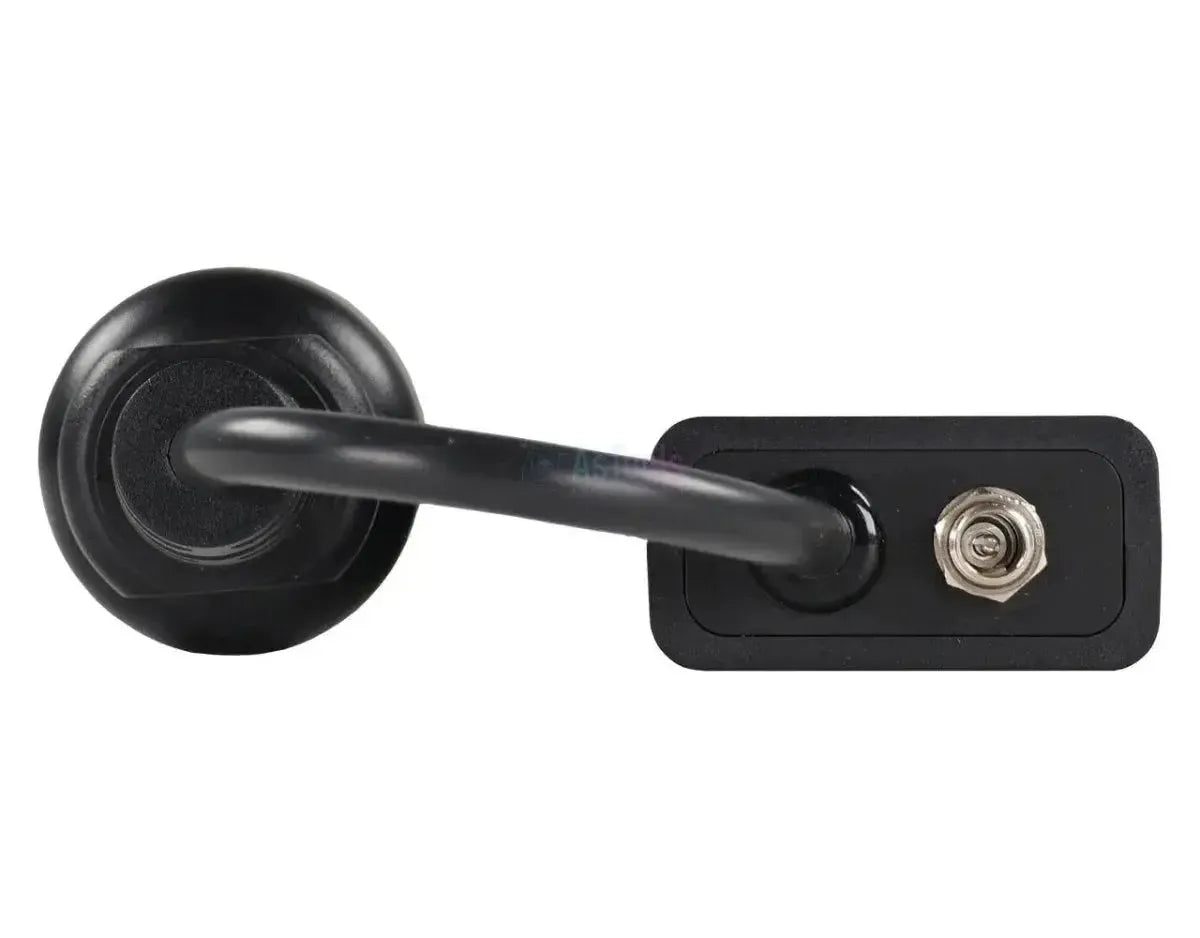

\nThe Jaltest JDC542A connects the round 9-pin diagnostic connectorof industrial diesel engines fromLiebherr to your Jaltest equipment. On the machine side, there is a round connector with a mint green contact holder and nine contact sockets, which you secure with the locking ring. On the interface side, the cable terminates in the 16-pin OBD2 and the length is 28 to 30 cm.\n
\nThis connection is located on the engine block or in the associated wiring harness, so you can access it stationary installations and aggregates without vehicle diagnostic connector. Behind this, the Jaltest software opens the engine control unit: ECU2-HD, ECU3, LIDEC1 of LH ECU UPCR, depending on the engine type and generation. With the first three, alongside fault codes, measured values and ECU data, there are also the maintenance data in the cover; the LH ECU UPCR lacks these. The cable falls under Jaltest OHW.\n
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Through this connection, you can access the engine control unit of the Liebherr engine block using Jaltest software. Which of the four control systems is present depends on the engine type and generation. The units listed below are included in the Liebherr coverage, with each unit offering the functions available for that module.
Control units you can access
- ECU2-HD, engine control unit: With fault codes, live data, ECU information and service data.
- ECU3, engine control unit: The next generation, with identical functions.
- LIDEC1, engine control unit: The Liebherr engine controller with service data included in coverage.
- LH ECU UPCR, engine control unit: With fault codes, live data and ECU information, but without service data.
What you can do
- Read and clear fault codes: Access the fault memory of the control unit, including fault descriptions.
- View live data: Current sensor readings displayed as numerical values and graphs.
- Access service data: Available on ECU2-HD, ECU3 and LIDEC1; not available on the LH ECU UPCR.
Compatible vehicles and applications
The connector type determines compatibility, not the engine model. This cable is designed for industrial diesel engines from Liebherr with the round 9-pin connector. You can identify it by the mint-green contact holder with nine contact sockets; verify this on the engine itself before ordering. The engine models listed below are covered by Liebherr coverage.
Liebherr:
- D 834 (four-cylinder industrial engine)
- D 846 and D 856 (V-engines)
- D 924 (four-cylinder industrial engine)
- D 934 (four-cylinder industrial engine)
- D 936 (six-cylinder industrial engine)
- D 944 and D 946 (V-engines)
- D 964 and D 976 (V-engines)
- D 95xx-, D 96xx- and D 98xx-series (large V-engines, including D 9508, D 9512, D 9612 and D 9816)
Package Contents
- 1xJaltest (JDC542A) | Liebherr 9-pin OBD to 16-pin OBD2 Adapter Cable | Internal Combustion Engine
Technical specifications
| Specification | Product Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC542A |
| Product Type | Adapter cable |
| Application | Liebherr industrial diesel engines (D-series) |
| Length | 28 to 30 cm |
| Interface | Jaltest Link V8.1 |
| Connection on engine side | 9-pin OBD (round, mint-green connector housing, nine contact pins) |
| Connection interface side | 16-pin OBD2 |
| Control units | ECU2-HD, ECU3, LIDEC1 and LH ECU UPCR (engine control) |
| Jaltest (JDC542A) | Liebherr 9-pin OBD to 16-pin OBD2 Adapter Cable | Petrol Engine This adapter cable enables connection between Liebherr 9-pin OBD diagnostic ports and standard 16-pin OBD2 interfaces. Designed for use with Jaltest diagnostic equipment, the JDC542A facilitates seamless communication with petrol engine vehicles equipped with legacy Liebherr diagnostic connectors. The cable supports full OBD2 protocol compatibility, allowing technicians to access engine diagnostics, fault codes and vehicle data on compatible Liebherr models. Constructed to professional workshop standards, this connector cable is an essential accessory for diagnostic work on vehicles with non-standard OBD port configurations. Specifications: - Model: JDC542A - Input: Liebherr 9-pin OBD - Output: 16-pin OBD2 - Application: Petrol engines - Compatible with: Jaltest diagnostic systems | Internal combustion engine |
| Jaltest module | Jaltest OHW (construction and earthmoving equipment) |
| Part of cable set | OHW cable set complete (70002026) |
