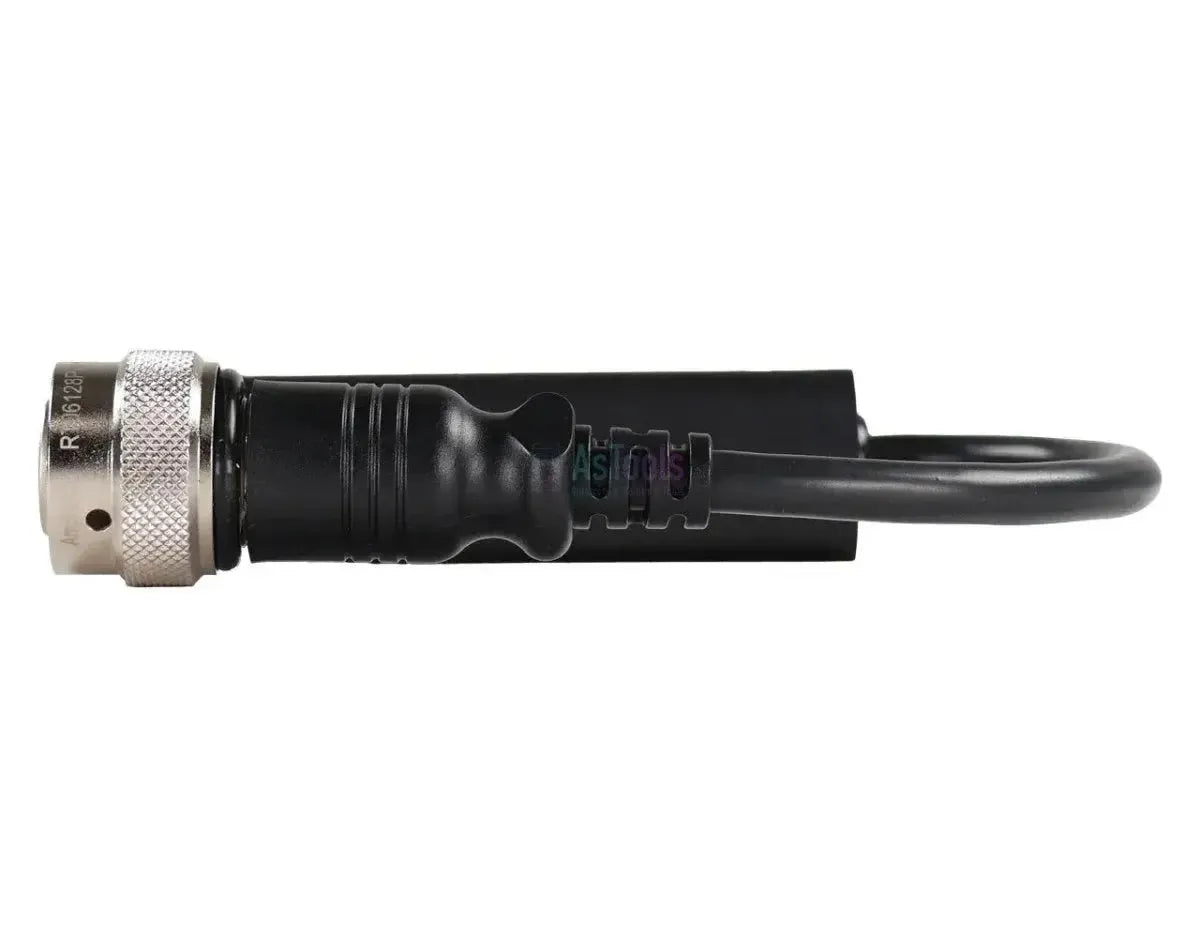

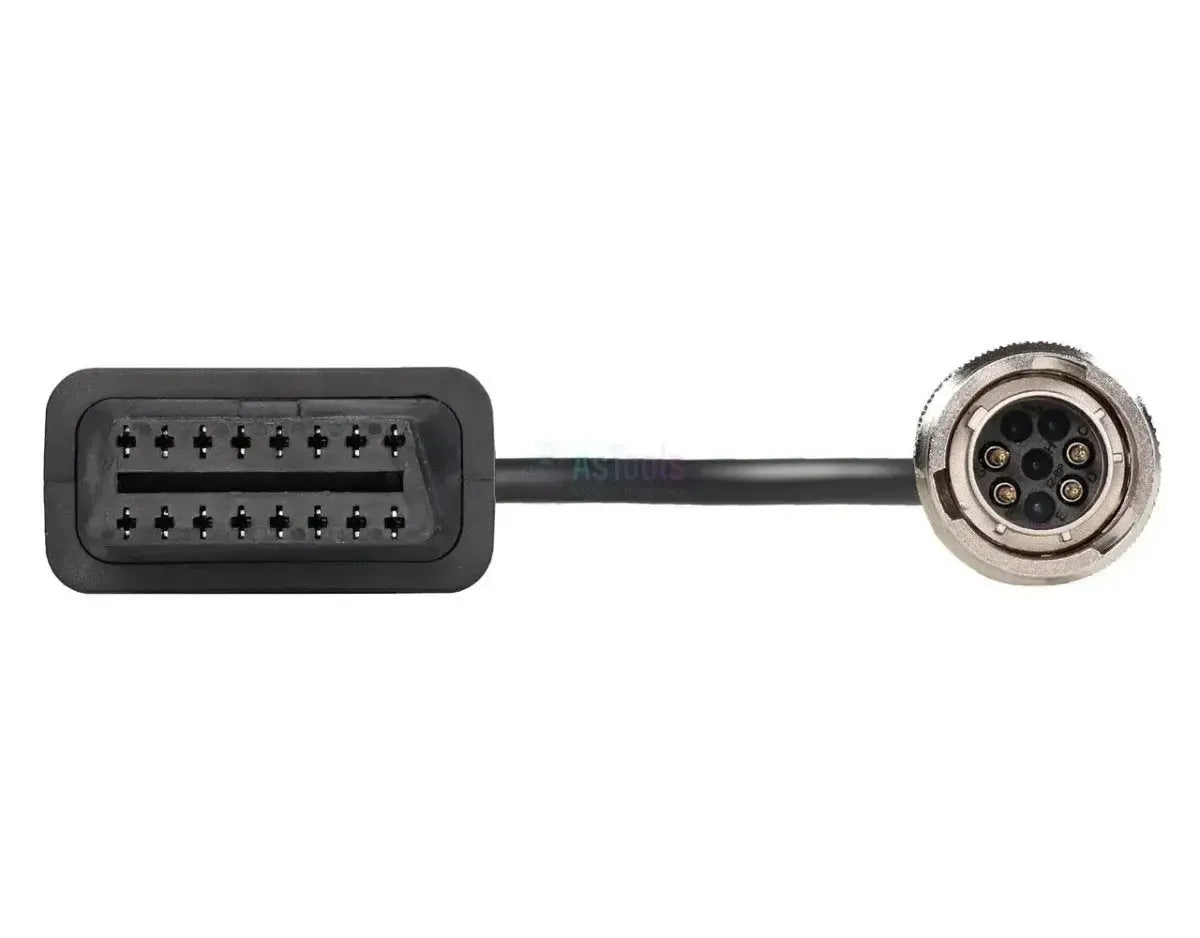

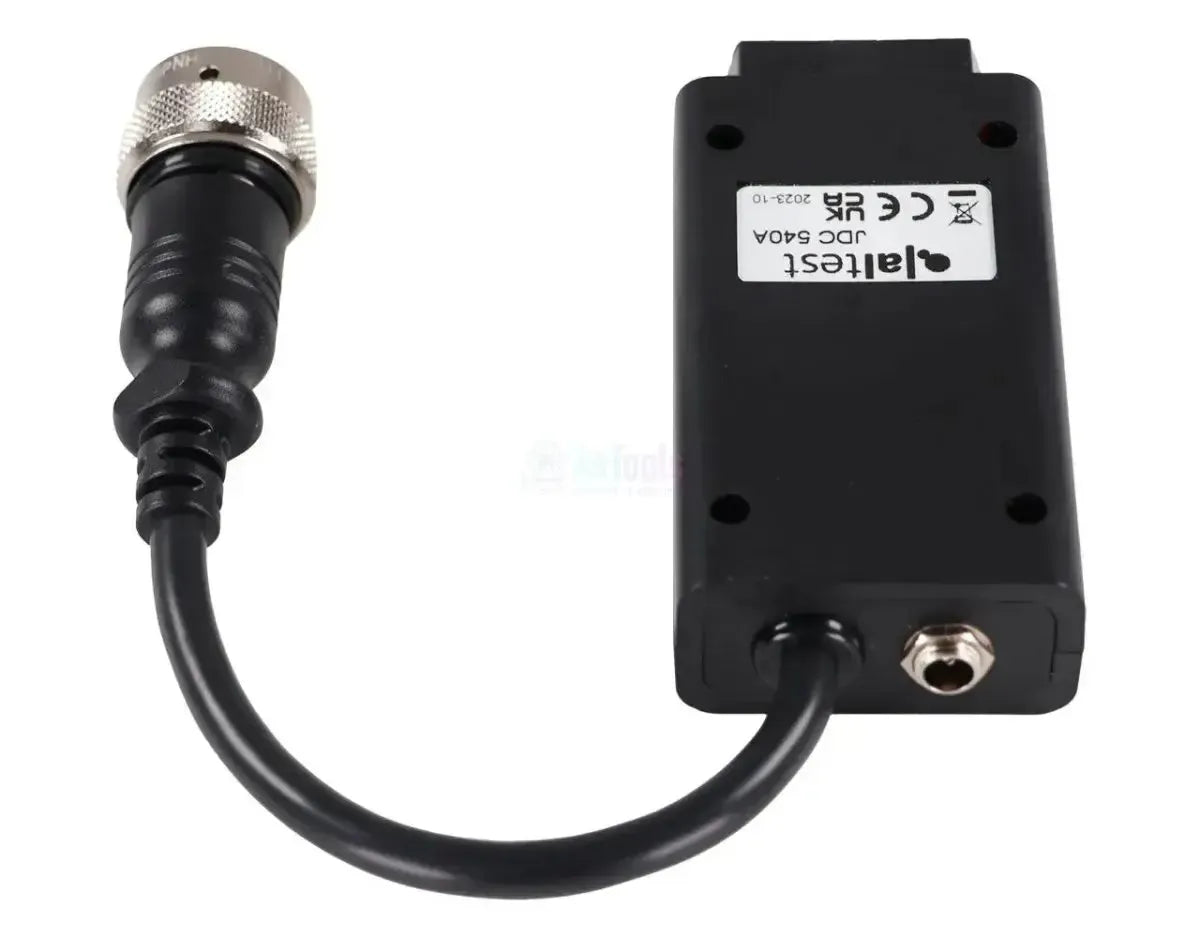

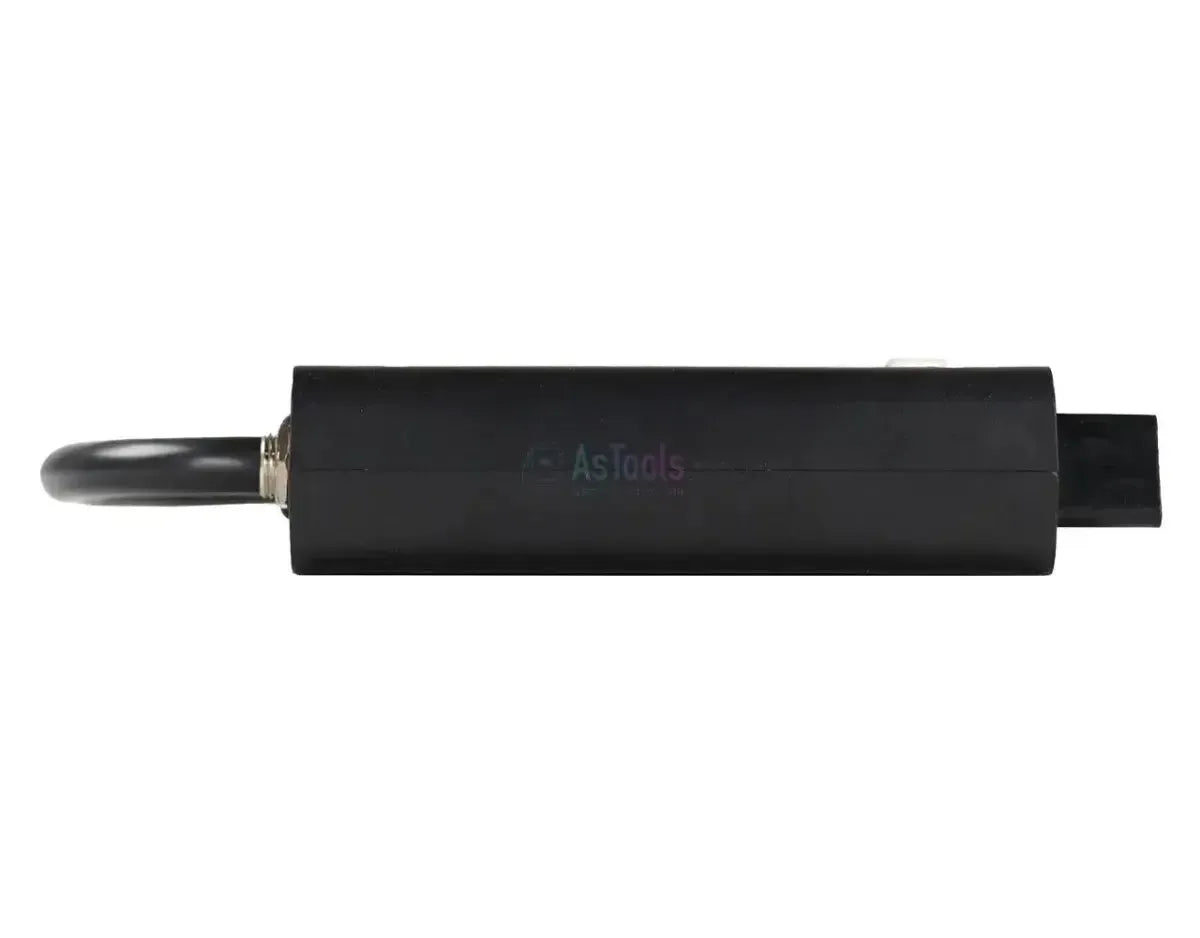

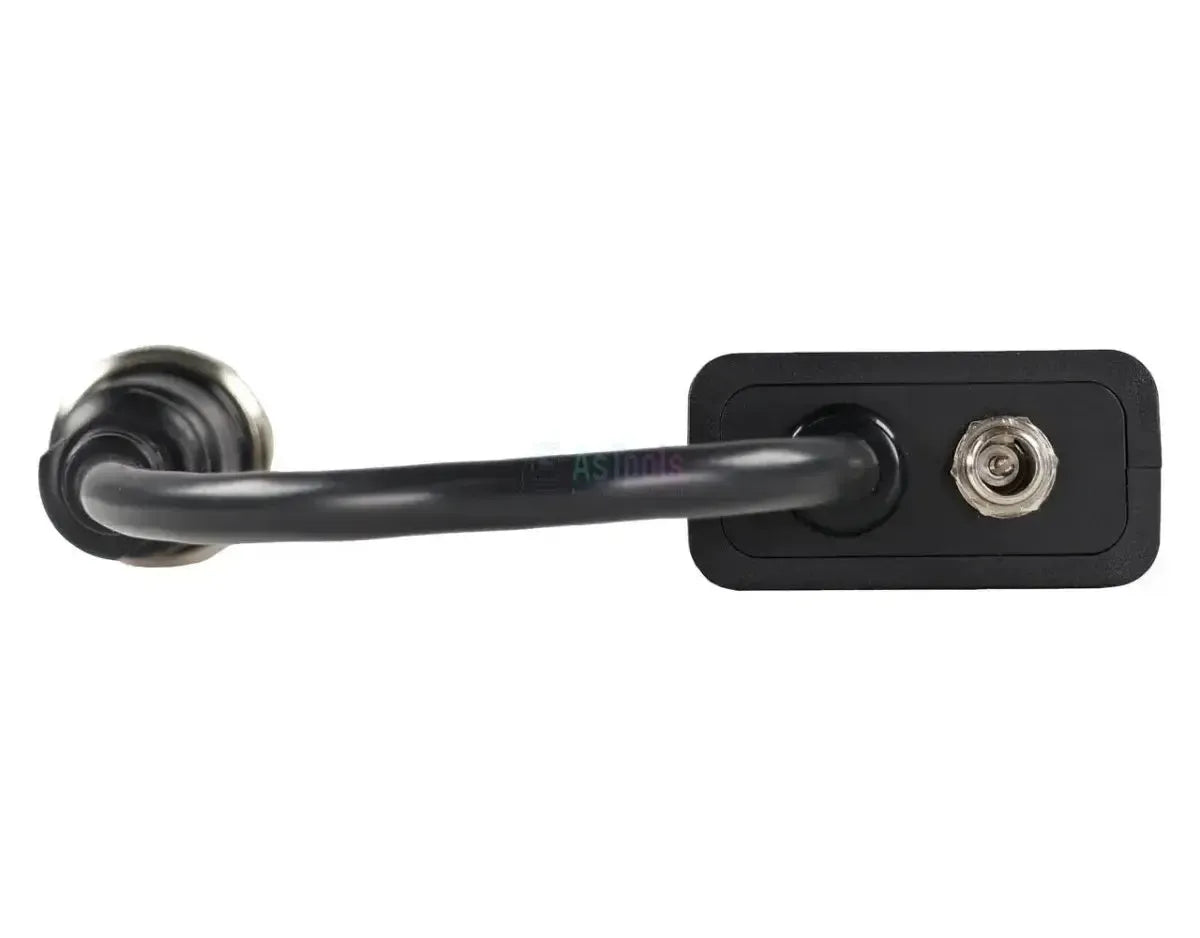

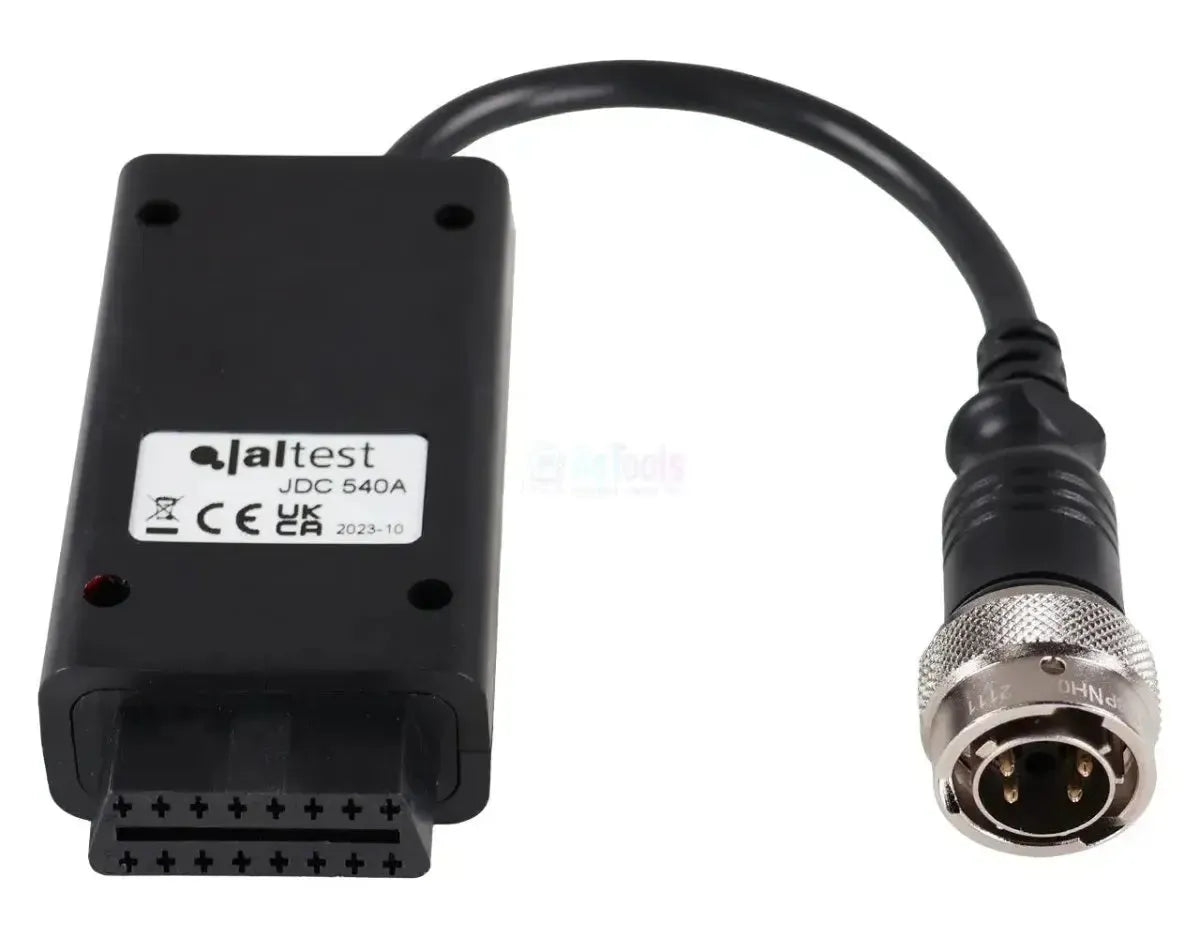

The Jaltest JDC540A is the RS232 diagnostic cable for Bosch Rexroth BODAS control units and measures 28 to 30 cm. On the vehicle side is a round metal connector with a knurled coupling ring that you twist over the connection point. Halfway along the cable sits a black plastic module with a threaded power connection, onto which an angled connector is fitted. The cable therefore has three branches: the 16-pin OBD2 connector for your Jaltest diagnostic cable, the round 8-pin RS232 connector and the power branch.
RS232 is a serial connection and not a CAN-bus; the module in the cable establishes that communication and requires its own power connection for this. With that connection, the Jaltest equipment reads out the BODAS RC Series (RS232), the programmable machine controller that manages the hydrostatic drive and work functions. In addition to fault codes, measured values, ECU data, parameters and live data monitoring are covered. The cable is specified for Jaltest Link V8.1 and falls under Jaltest OHW and Jaltest MHE.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Using this connection, you access the programmable BODAS machine controller from Bosch Rexroth with Jaltest software. This is the serial version of that control unit, which exchanges its data over an RS232 line instead of over the CAN bus. What you can retrieve is broken down by function below.
Control units you can access
- BODAS RC Series (RS232), programmable machine control:The version this cable is designed for, featuring the most comprehensive function set in the BODAS family.
What you can do
- Read and clear fault codes:Read and clear the fault memory of the BODAS control unit after repair.
- View measurement values:The current sensor values connected to the machine control unit.
- Configure parameters:Read and adjust the BODAS control system configuration.
- Live data monitoring:Monitor system values during operation in both numerical and graphical format.
Compatible vehicles and applications
The control unit is what matters, not the machine brand.This cable is compatible with Bosch RexrothBODAS RC-control unit with RS232 diagnostic port, and Bosch Rexroth incorporates this into various machinery manufacturers. For work machines, there is no mandatory diagnostic connection, so the connector remains in use on newer machines as well. Which adapter cable in your machine, you'll recognise it by the round connector with the knurled coupling ring.\n
Application:
- Work and construction equipment:With a Bosch Rexroth BODAS RC control unit featuring RS232 diagnostics.
- Machine make not applicable:BODAS is integrated as a control system by various machinery manufacturers.
- Model year not applicable:For work vehicles, there is no mandatory diagnostic connection requirement, so this connector remains in widespread use.
Package contents
- 1x Jaltest (JDC540A) | Bosch Rexroth 8-pin R232 to 16-pin OBD2 Adapter Cable | Commercial Vehicles
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC540A |
| Type | Adapter cable (with module and power lead) |
| Application | Bosch Rexroth BODAS RC Series with RS232 diagnostic port |
| Length | 28–30 cm |
| Interface | Jaltest Link V8.1 |
| Vehicle-side connector | 8-pin RS232 (round metal plug with threaded coupling ring) |
| Interface-side connector | 16-pin OBD2 |
| Control units | BODAS RC Series (RS232), programmable machine control |
| Segment | Commercial Vehicles |
| Jaltest module | Jaltest OHW (Off-Highway machines) and Jaltest MHE (Material Handling Equipment) |
