Jaltest  |  SKU: JDC301A

Jaltest (JDC301A) | Volvo (ECS) 9-pins OBD - 16-pins OBD2 Adapter Cable | Bus

€103,95 incl.
€85,91 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

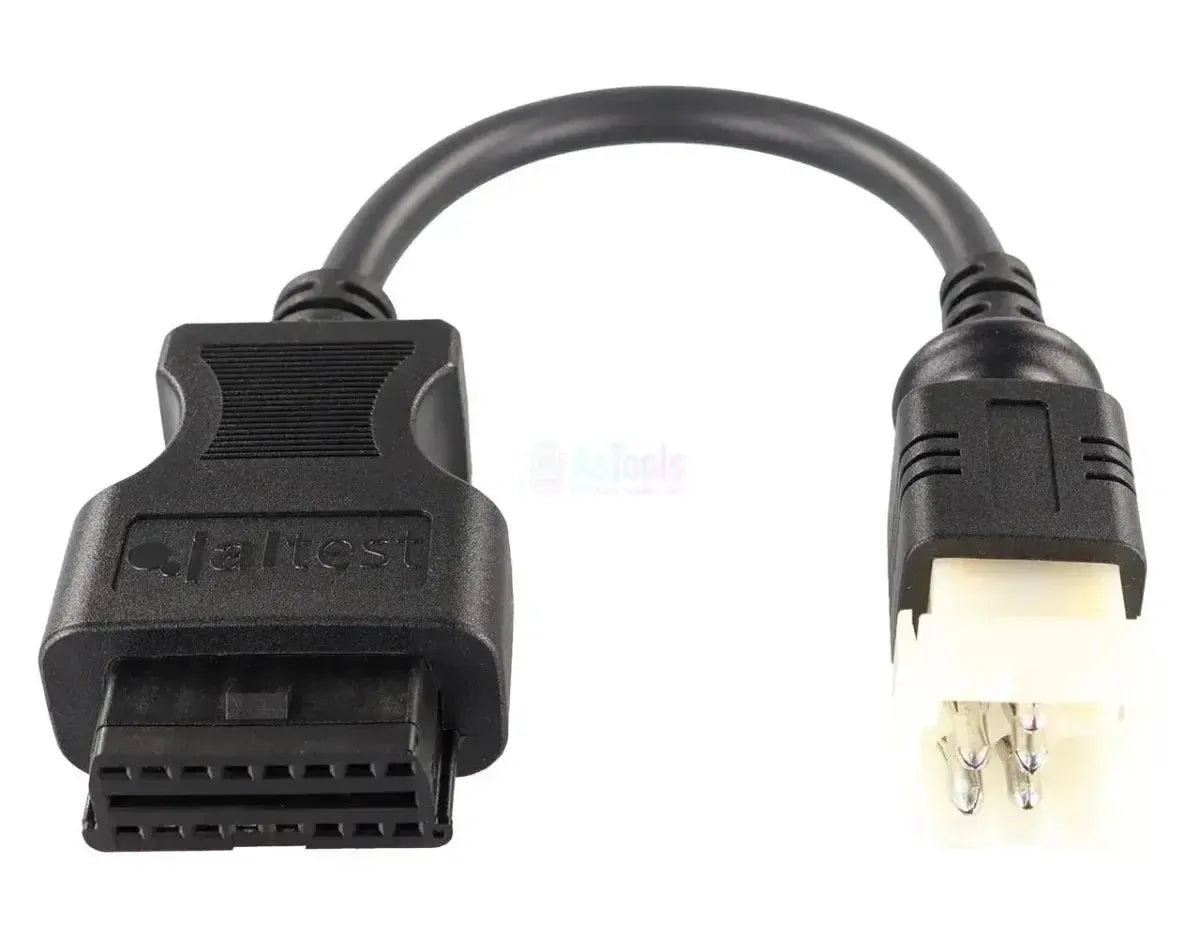

The Jaltest JDC301A connects the 9-pin ECS diagnostic connector of Volvo bus chassis to the 16-pin OBD2 port of the Jaltest Link. On the vehicle side there is a white, rectangular connector with nine positions in three rows of three, in a black overmould; five positions are in use, and the remaining four are sealed with yellow blanking plugs.

Via this cable, the Jaltest software accesses the ECS suspension control and the second suspension variant ELF, the electronically controlled air suspension. Because the connection point is located on the chassis, the bodybuilder is not decisive. The cable works with the Jaltest Link V8.1 and V9 and is covered by Jaltest CV.

ADVANTAGES

✔Designed for ECS, the electronic suspension control of the bus chassis, including level control and kneeling function.
✔The ELF variant, the electronically controlled air suspension, is also included in the same Volvo bus coverage.
✔Connects to the chassis, so independent of the bodybuilder who built the bus.
✔Works with the Jaltest Link V8.1 and V9, with a short lead of 28 to 30 cm.

POINTS TO NOTE

✕The JDC302A, which looks almost identical, is intended for the ABS connection point on the same chassis, with four instead of five positions in use.
✕The other units in the Volvo bus coverage (EDC Euro 3 / Euro 4-5, VECU, TECU, EBS 5, ABS and IC) have their own connection point on these chassis and cannot be reached with this cable.
✕From Euro IV (October 2005) onwards, buses were fitted with the standardised 16-pin OBD connector; you do not need this cable for that.
✕Four of the nine positions are closed off with yellow blanking plugs; this cable does not carry through those contacts.

Applications and functionality

The cable is intended for workshops that read the air suspension of older Volvo bus chassis with the Jaltest Link. The units listed below come from the Volvo bus coverage of Jaltest CV.

Control units you can access

  • ECS: Suspension control, level and kneeling.
  • ELF: Electronically controlled air suspension.

What you can do

  • Fault codes: Read and clear per system.
  • Measured values: View in figures and graph.
  • Components: Activate and test parts.
  • Parameters: Write settings to the control unit.
  • Calibrations: Where Jaltest offers a procedure.

How to use it

  1. Locate the connector: Find the 9-pin connection on the chassis.
  2. Connect: Plug the JDC301A into the connection.
  3. Link pairing: Connect the OBD2 side to the Jaltest Link.
  4. Ignition on: Switch the ignition on.
  5. Read out: Select Volvo Bus and the series in Jaltest.

Compatible vehicles and applications

The connector is decisive, not the model. This cable fits any Volvo bus chassis with the 9-pin ECS connection. Jaltest CV covers the series listed below; check on the chassis which connection is fitted to your vehicle.

Volvo Bus:

  • B7L (low floor): 2000 - 2005
  • B10B / B10BLE: 1992 - 2001
  • B10M: 1978 - 2003
  • B7R / B7RLE: 1997 - 2005
  • B12B: 1997 - 2005
  • B12M: 1999 - 2005
💡
Good to know: The 9-pin connection is located on the bus chassis, near the suspension electronics. You can recognise it by the white connector with nine positions, of which five are in use. The almost identical ABS connection for the JDC302A has four in use.

Package contents

  • 1x Jaltest (JDC301A) | Volvo (ECS) 9-pin OBD - 16-pin OBD2 Adapter Cable | Bus

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Jaltest
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • Jaltest
The version of the Jaltest Link interface the cable fits. Some cables only work with the latest V9.Jaltest Link version
  • Link V8.1
  • Link V9
The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module
  • CV commercial vehicles

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
9-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2

Diagnostic functions

Shows the current sensor readings while the vehicle is running. Useful for tracing faults.View live data
Allows you to activate components yourself to test whether they are faulty. This saves time when fault finding.Component activation

Size and weight

Control units
ECS and 11 (electronically controlled air suspension)
Reference number
JDC301A

Other specifications

Application
Volvo bus chassis, ECS connection (air suspension)
Length
28 to 30 cm
