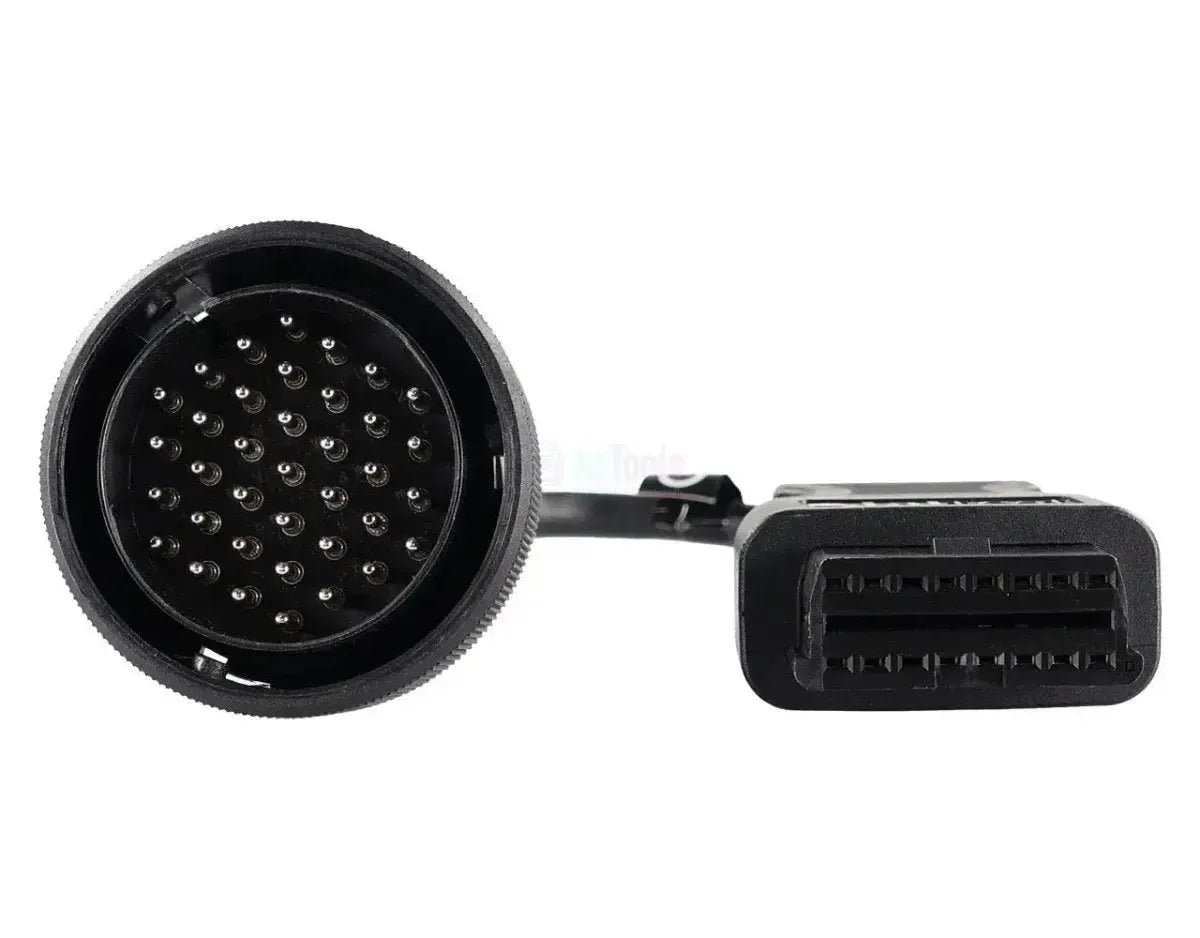

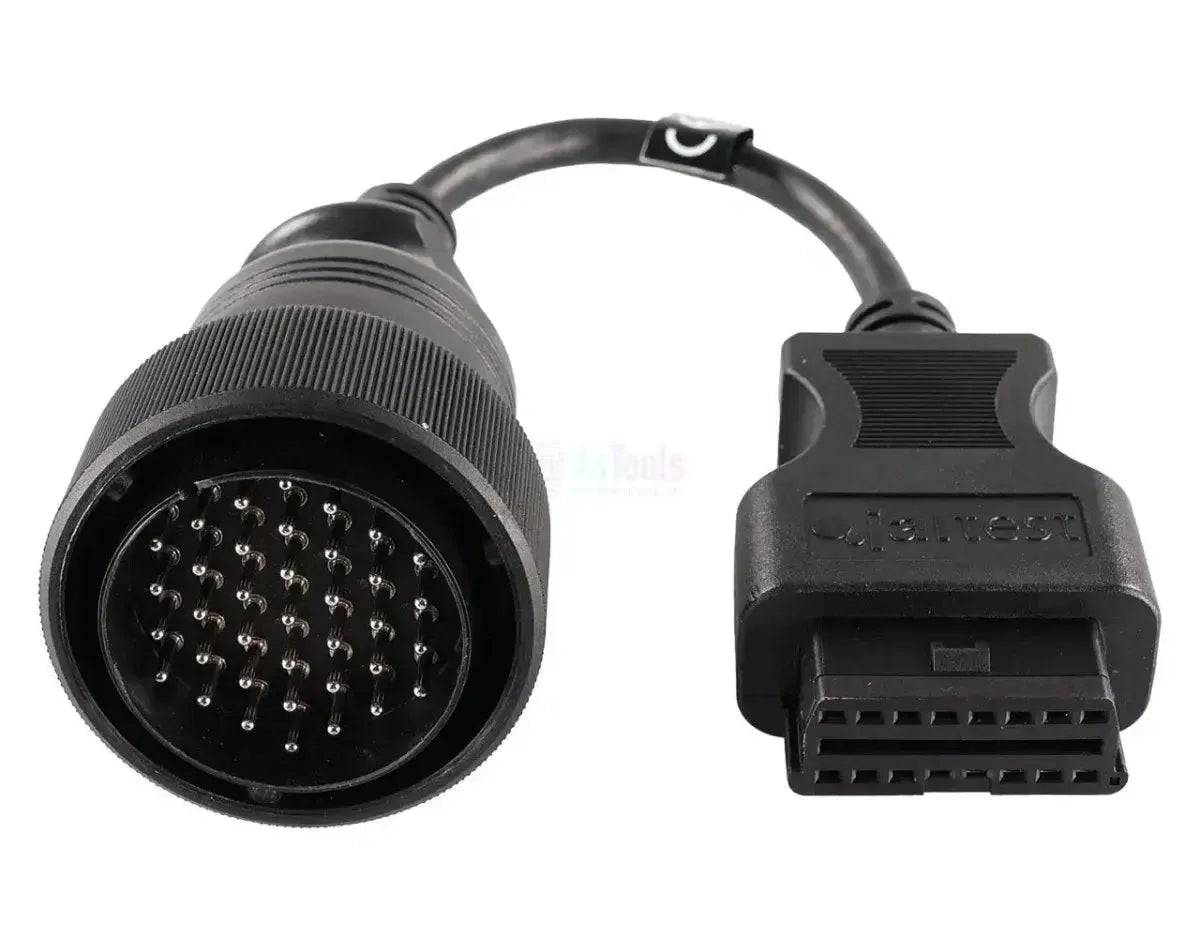

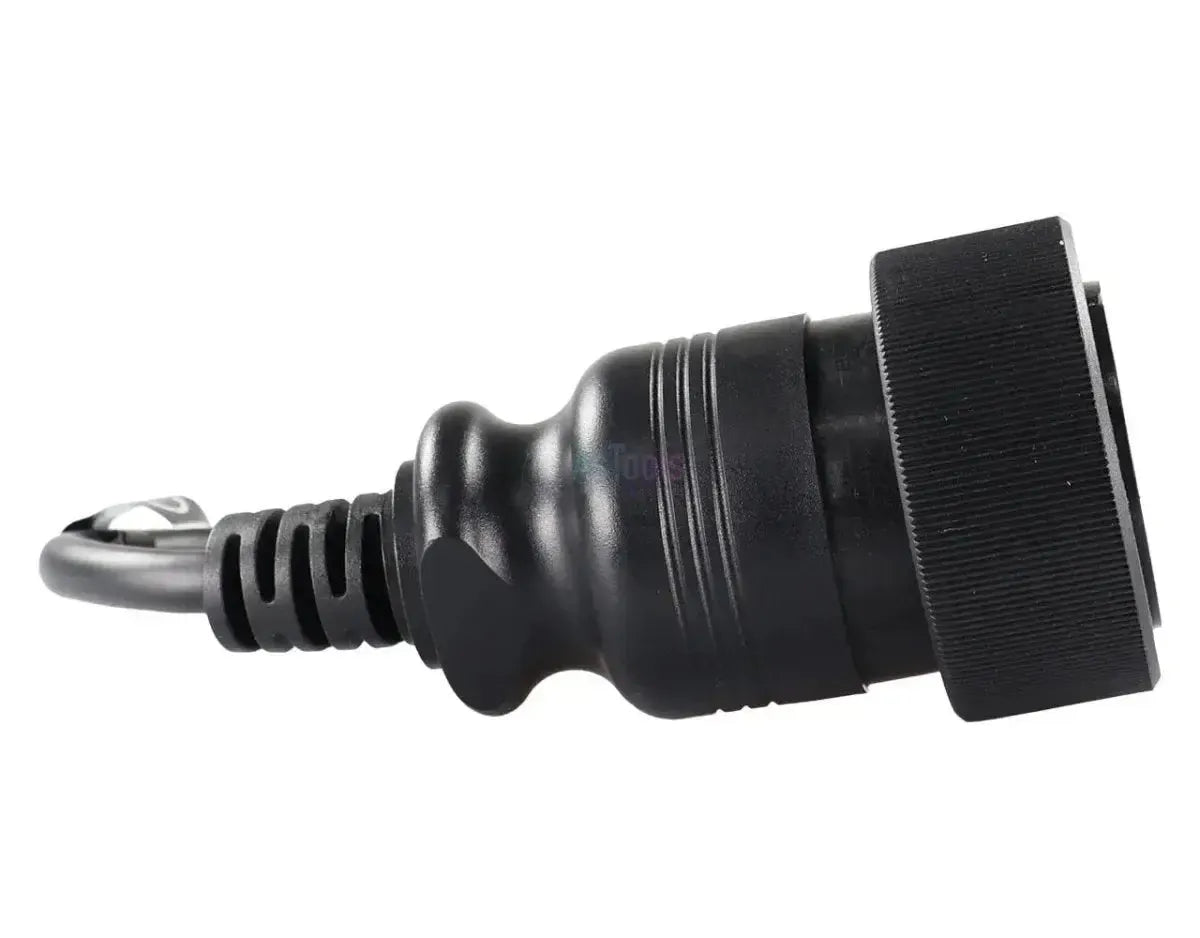

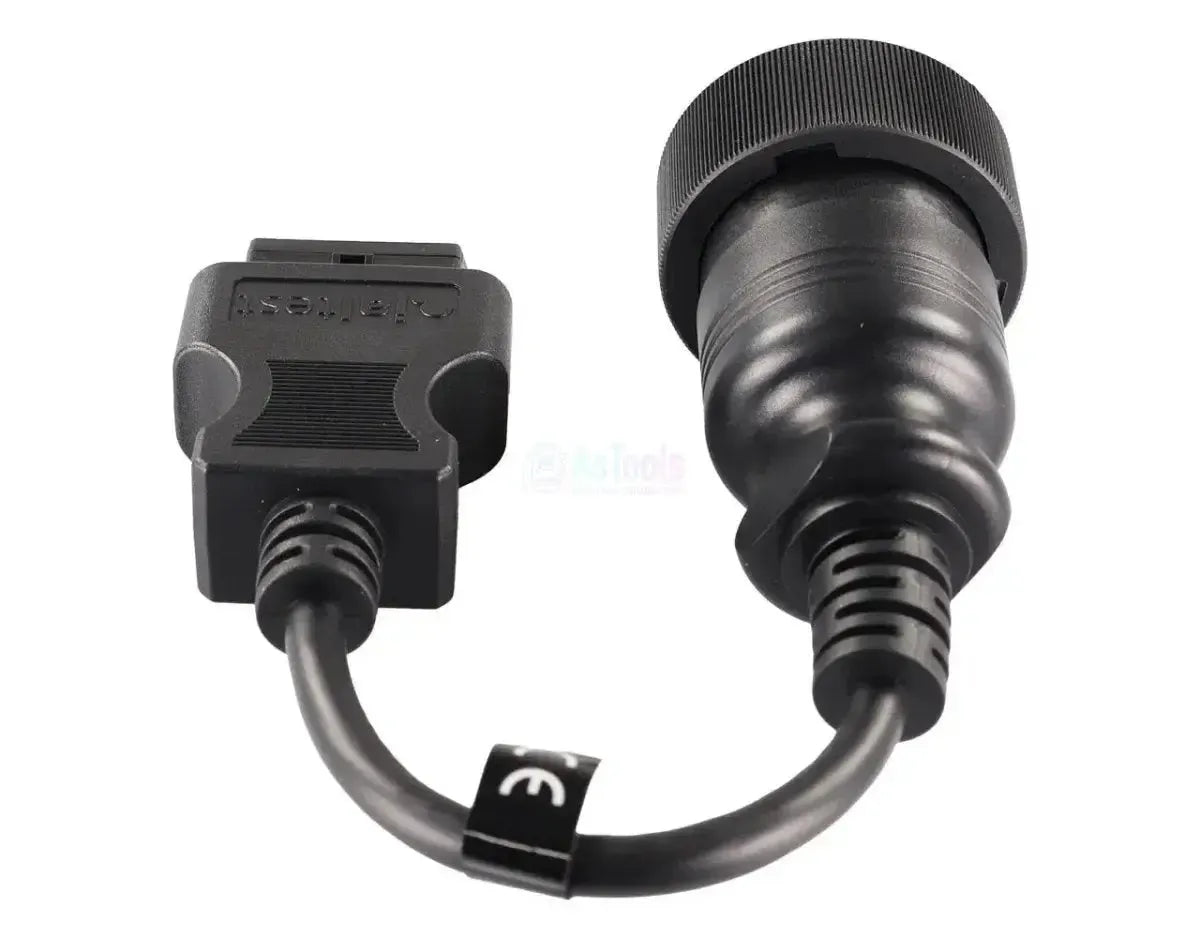

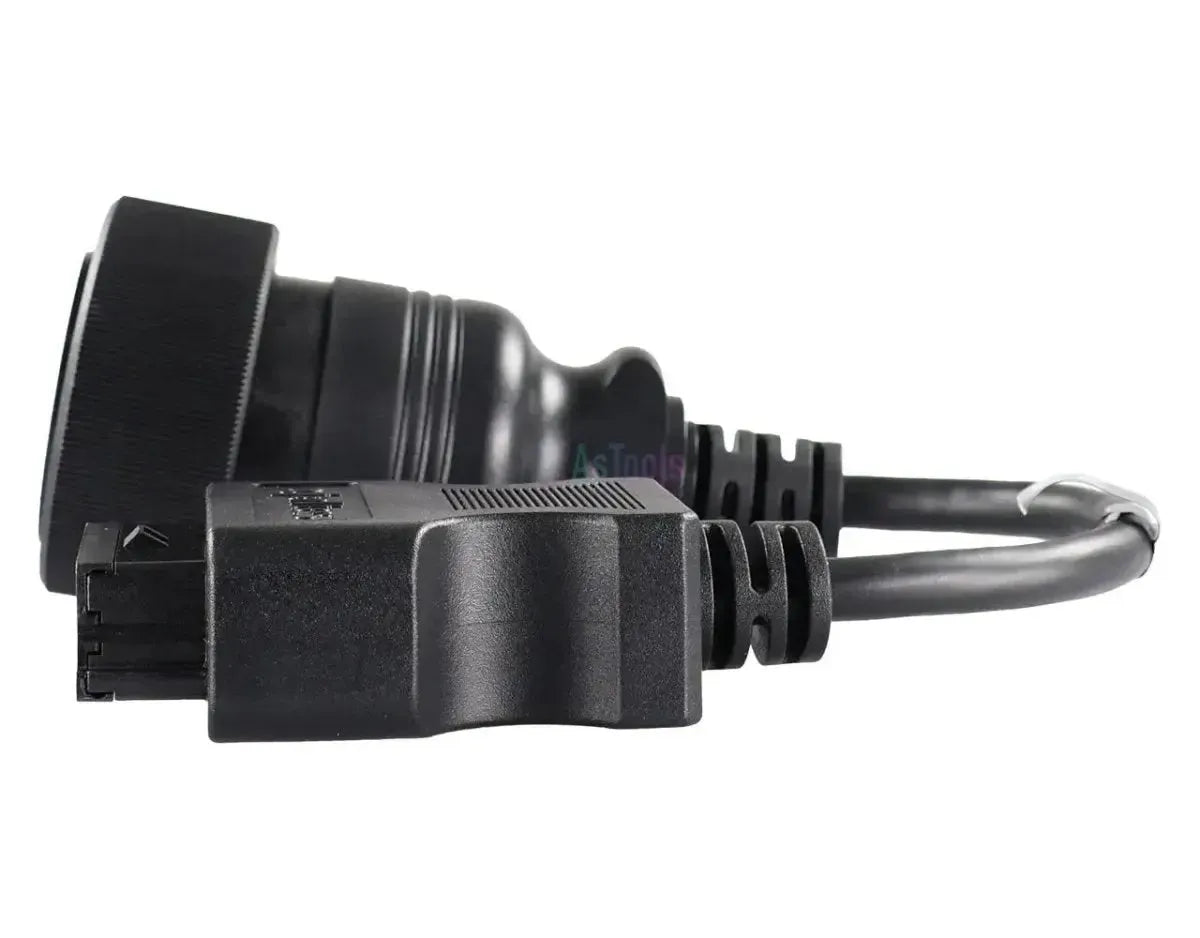

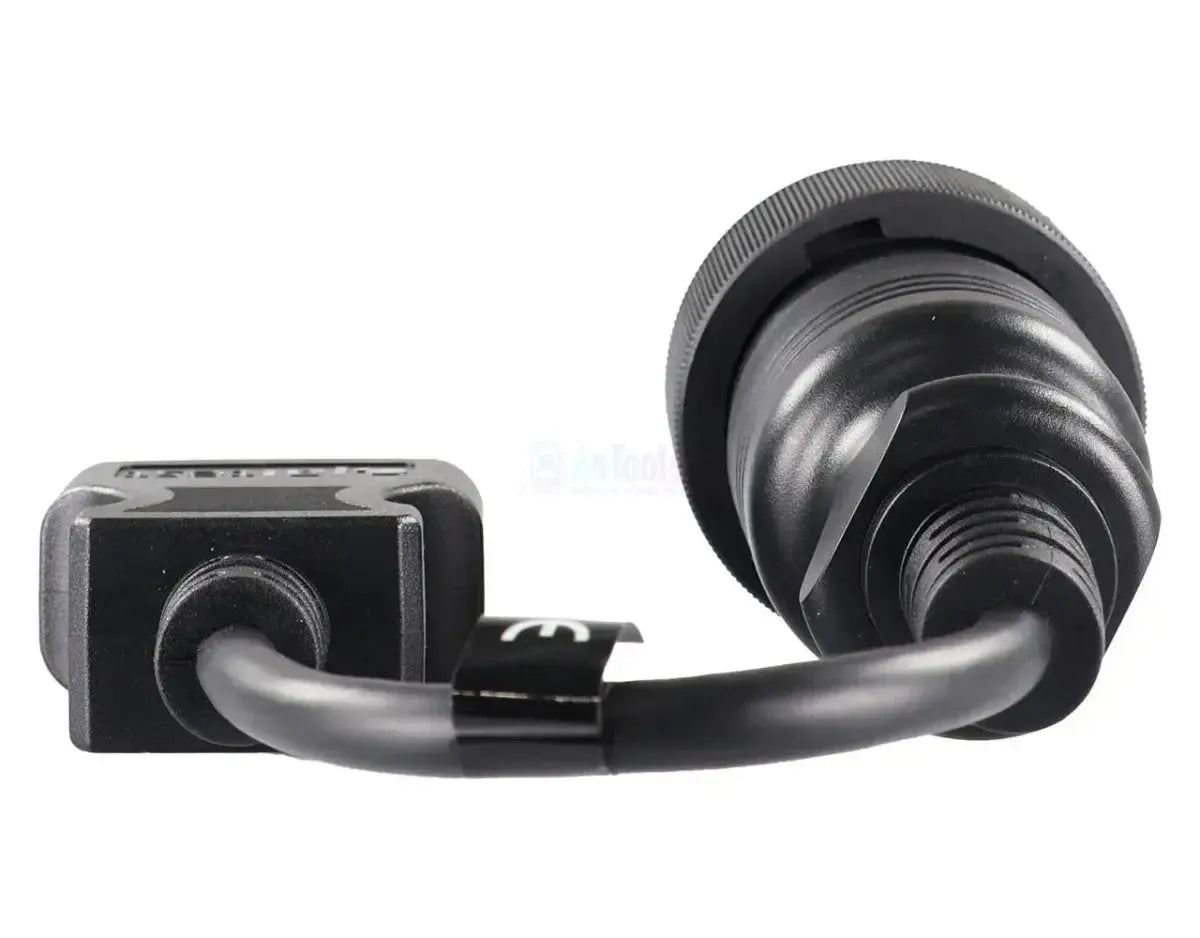

\nThe Jaltest JDC210A connects the 37-pin diagnostic connectorof the classicMAN-series on the 16-pin OBD2-input of your Jaltest diagnostic cable. On the vehicle side there is a broad round connectorwith a coarse knurled coupling ring and adense 37-pin connector field; the cable exits straight out. The cable measures 28 to 30 cmand the cable works withJaltest Link V8.1 and V9This connector is found on generations prior to the TG series.
\nThe cable opens the diagnostic line to the loose control units of these trucks: The engine management systems EDC M7 and EDC MS5, the anti-lock braking systems ABS Ci12, ABS Gamma 2E/2M, ABS KB3A and ABS/ASR C, the retarder control EST-32 and EST-42, the ECAS-air suspension per axle configuration, rear axle steering RAS EC1 and climate control ATC. These generations did not yet have a central vehicle computer like theFFRfrom the later TG series, so you diagnose each control unit individually. The cable falls under Jaltest CV (commercial vehicles).\n
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Using this connection, you can access the truck's control units with Jaltest software. Unlike the later TG series, the units here are not linked via a central computer, so you select them individually in the software. The control units listed below are from the MAN coverage of the 90 and 2000 series.
Control units you can access
- EDC M7 and EDC MS5: The electronic engine management with in-line injection pump.
- ABS Ci12, ABS Gamma 2E/2M, ABS KB3A and ABS/ASR C: The anti-lock braking systems from this period.
- EST-32 and EST-42, retarder: The auxiliary braking control.
- ECAS 4x2 A, 4x2 N, 4x2-6x2, 6x2 and ECAS-ESAC 6x2: The electronically controlled air suspension in configurations for each axle setup.
- RAS EC1, rear axle control: The regulation of the steerable rear axle.
- ATC, automatic climate control: The regulation of heating and air conditioning.
What you can do
- Read and clear fault codes: Access the control unit's fault memory and view detailed descriptions of detected faults.
- View live data: Monitor real-time sensor values connected to the control unit, displayed as numerical readings and graphs.
- Actuate components: Activate individual components directly to determine whether the fault originates from the component itself or from the wiring.
- Configure parameters: Write configurations and settings to the control unit.
- Perform calibrations: For systems where Jaltest offers a calibration procedure, such as following component replacement.
Compatible vehicles and applications
The connector type determines compatibility, not the model. This cable is designed for MAN generations prior to the TG series: the 90 range and the 2000 family. All these models date from well before October 2005, when the standardised 16-pin OBD2 connector became mandatory for commercial vehicles; the 2000 series production ended at this point. From the TGA from 2000 onwards, the 4-pin connector applies, requiring the JDC207A.
MAN:
- F 90: (1986 - 1994)
- G 90: (1987 - 1993)
- M 90: (1988 - 1995)
- F 2000 (19T - 41T): (1992 - 2005)
- E 2000 (19T - 50T): (1992 - 2005)
- L 2000 (7.5T - 10.5T): (1992 - 2005)
- M 2000 (12T - 26T): (1992 - 2005)
- LE / ME (derivatives of L 2000 and M 2000): (1994 - 2005)
Package contents
- 1x Jaltest (JDC210A) | MAN 37-pin OBD1 - 16-pin OBD2 Adapter Cable | Commercial and Work Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC210A |
| Type | Adapter cable |
| Application | MAN F 90, G 90, M 90 and 2000-series with 37-pin diagnostic connector |
| Length | 28 - 30 cm |
| Interface | Jaltest Link V8.1 and V9 |
| Vehicle-side connector | 37-pin OBD1 (wide round plug, thirty-seven pins) |
| Interface-side connector | 16-pin OBD2 |
| Control units | EDC M7 and EDC MS5 (engine), ABS Ci12, ABS Gamma 2E/2M, ABS KB3A and ABS/ASR C (braking), EST-32 and EST-42 (retarder), ECAS (air suspension), RAS EC1 (rear axle steering) and ATC (climate control) |
| Segment | Commercial and Work Vehicle |
| Jaltest module | Jaltest CV (commercial vehicles) |
| Part of cable set | Truck and bus cable set (29362) |
