Jaltest  |  SKU: JDC209A

Jaltest (JDC209A) | DAF 16-pin OBD1 - 16-pin OBD2 Adapter Cable | Truck

€109,95 incl.
€90,87 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

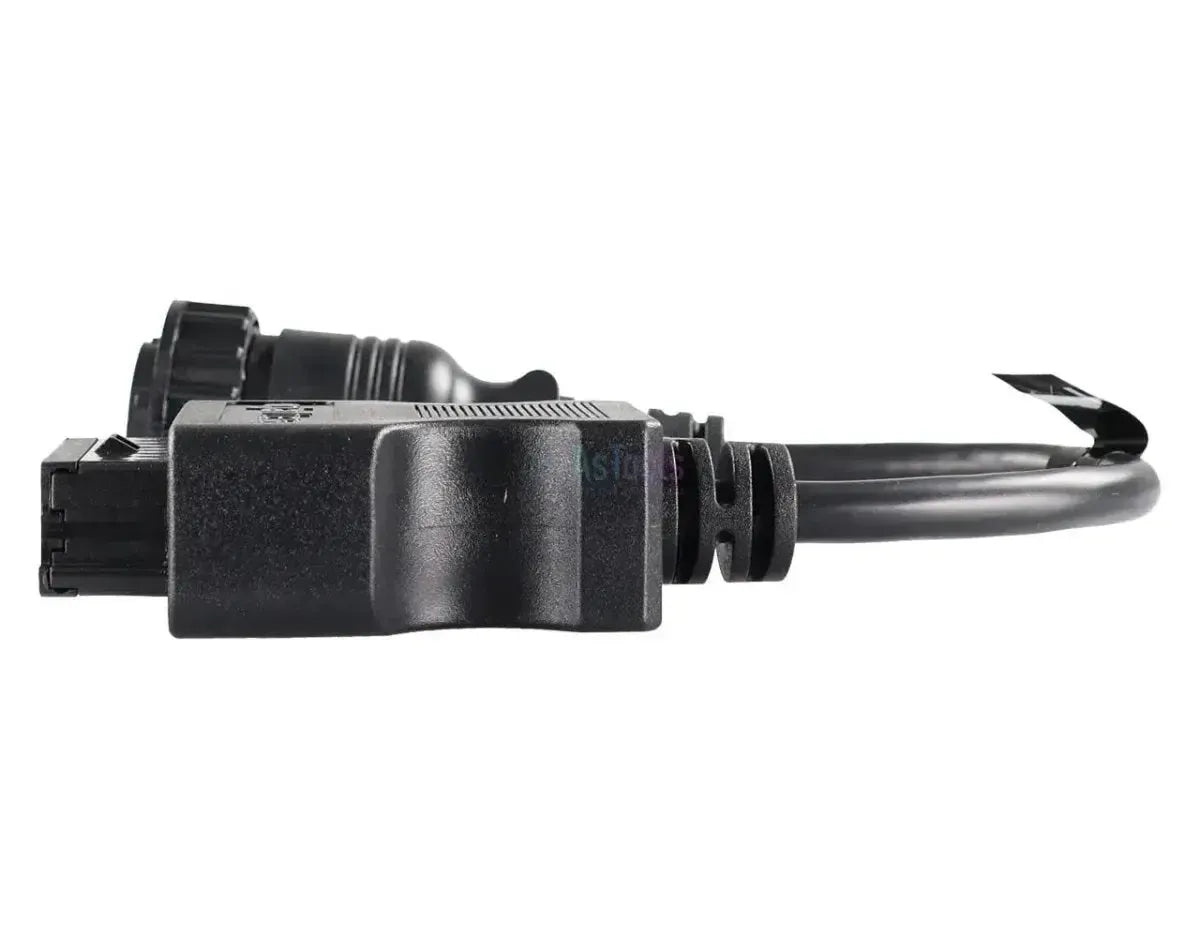

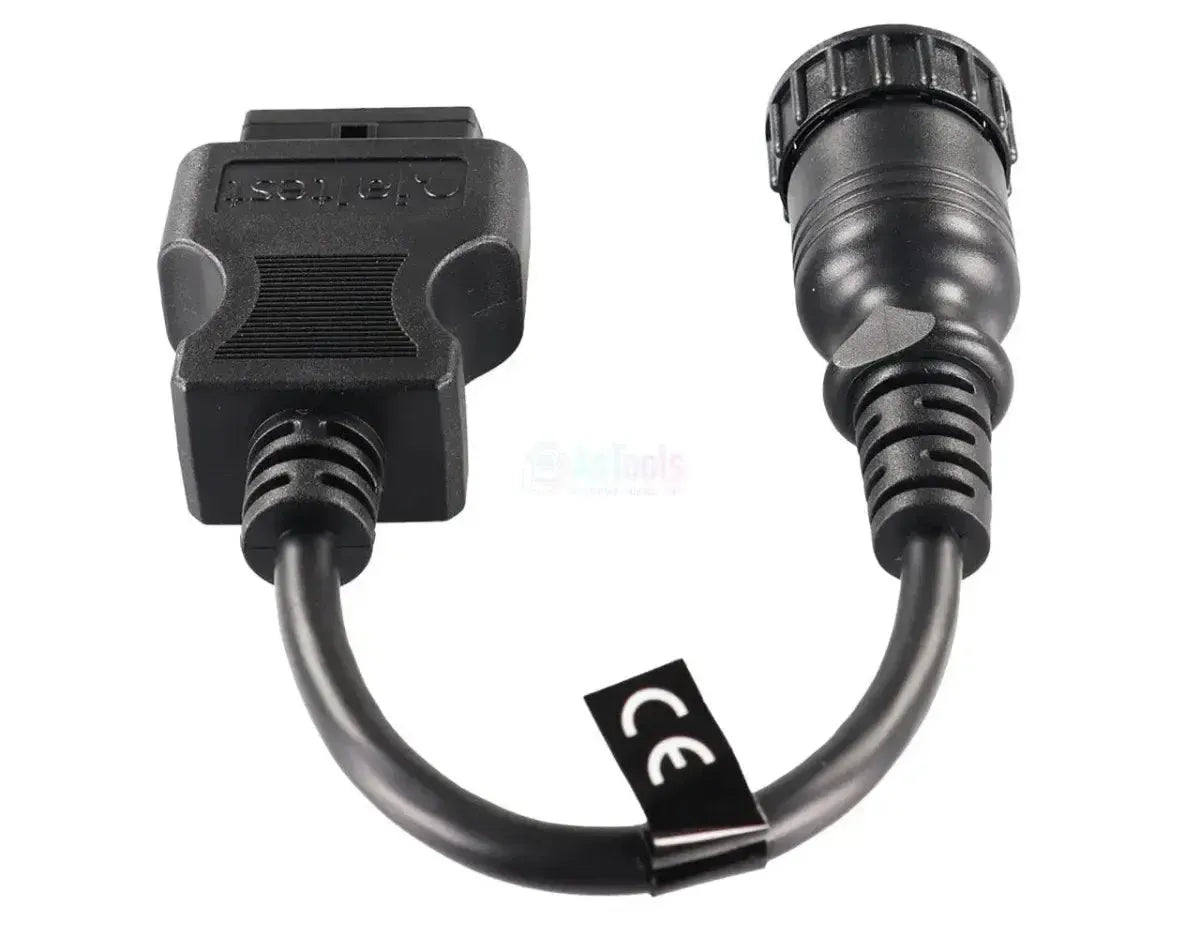

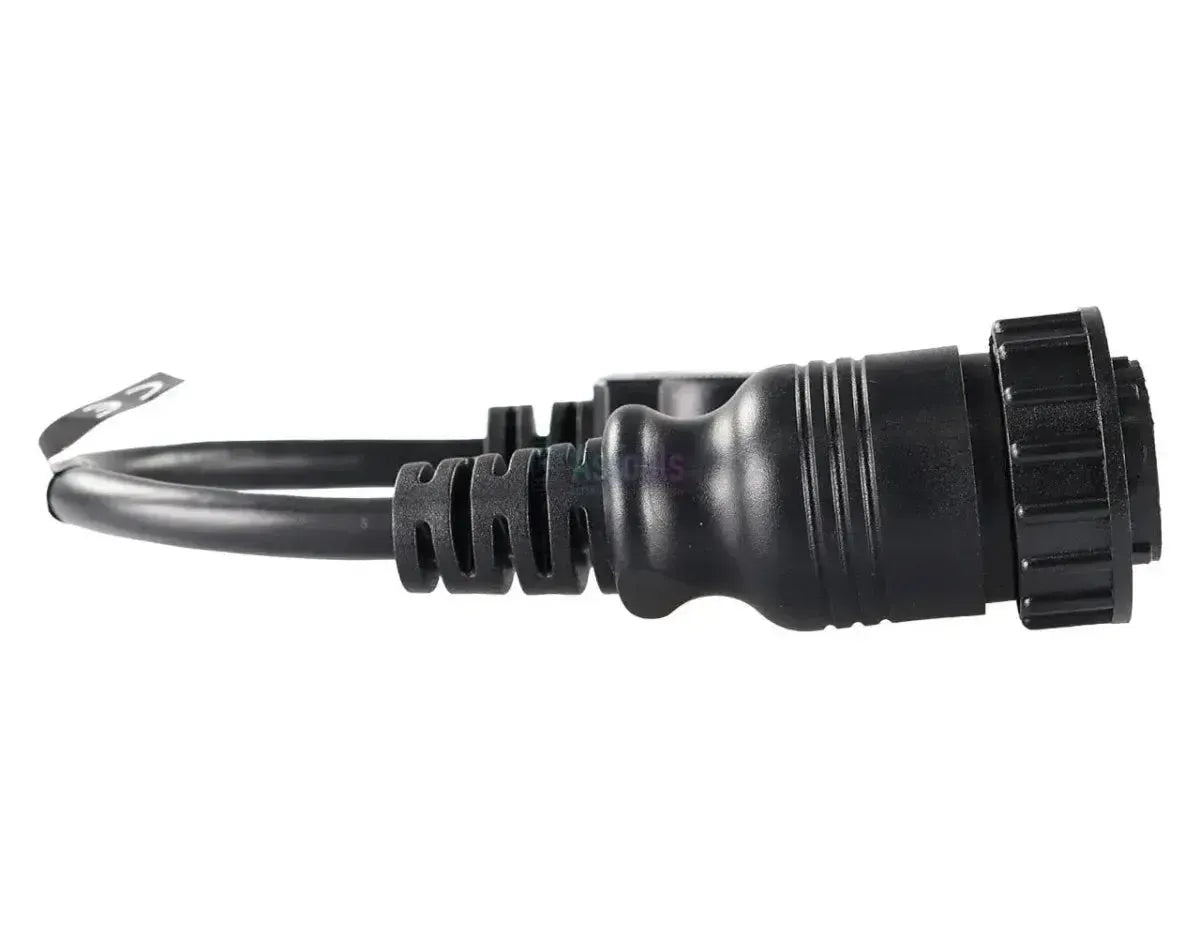

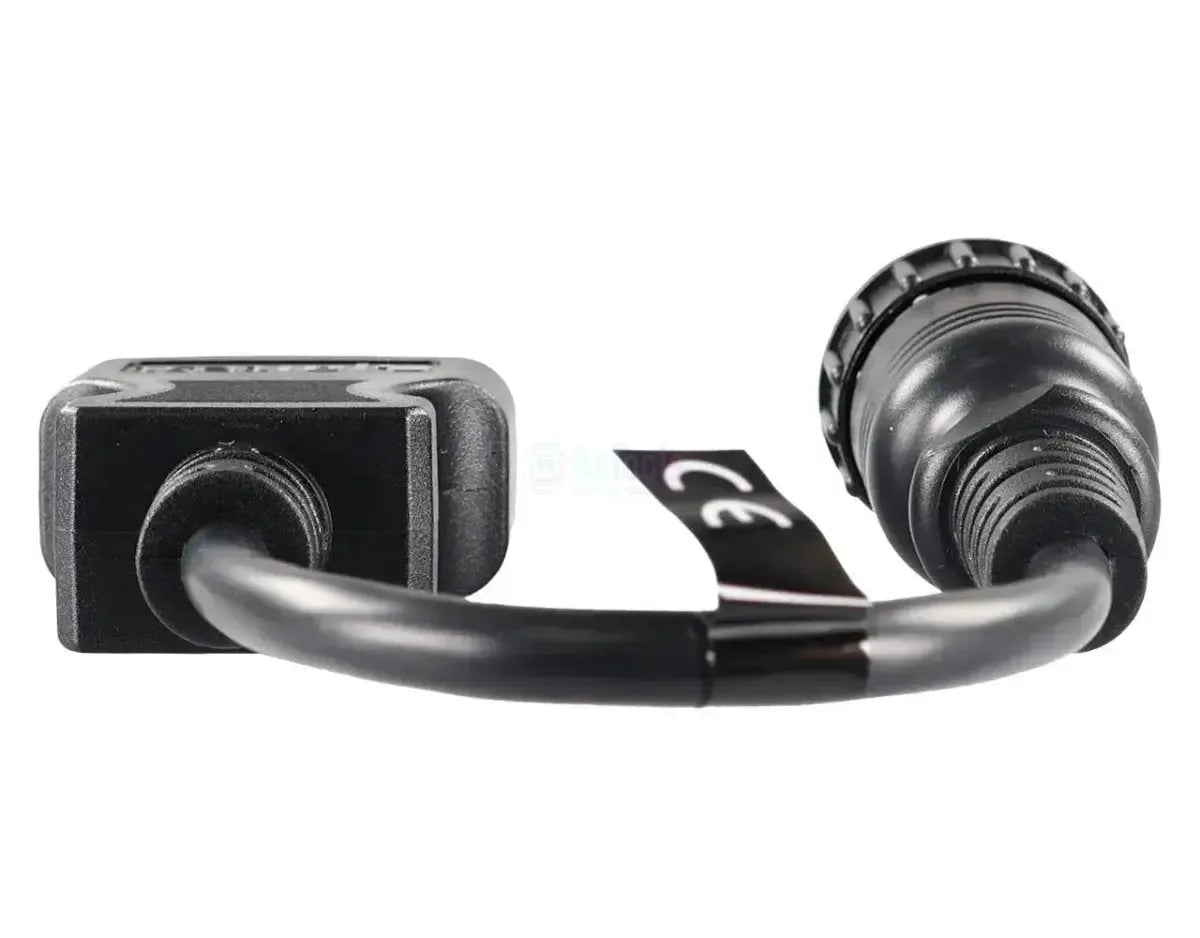

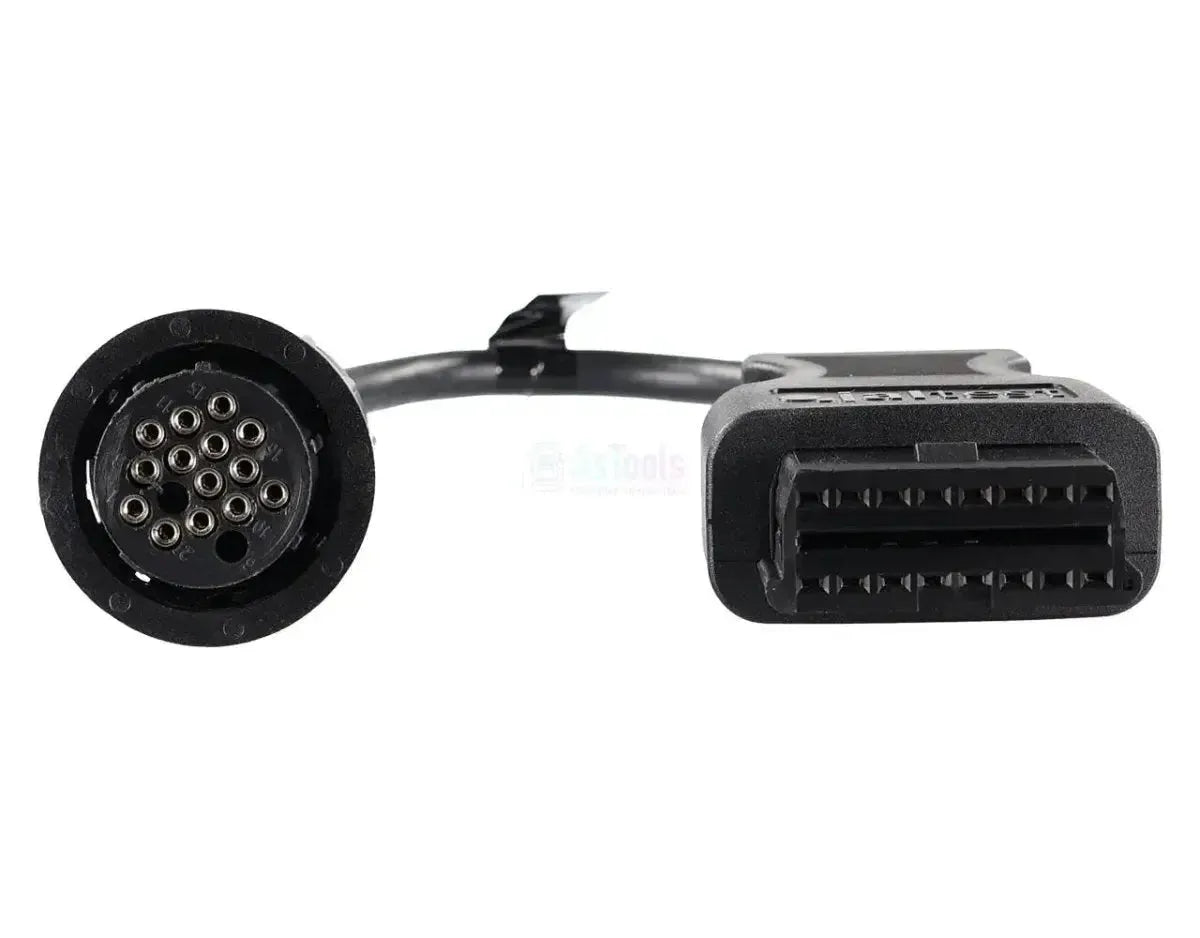

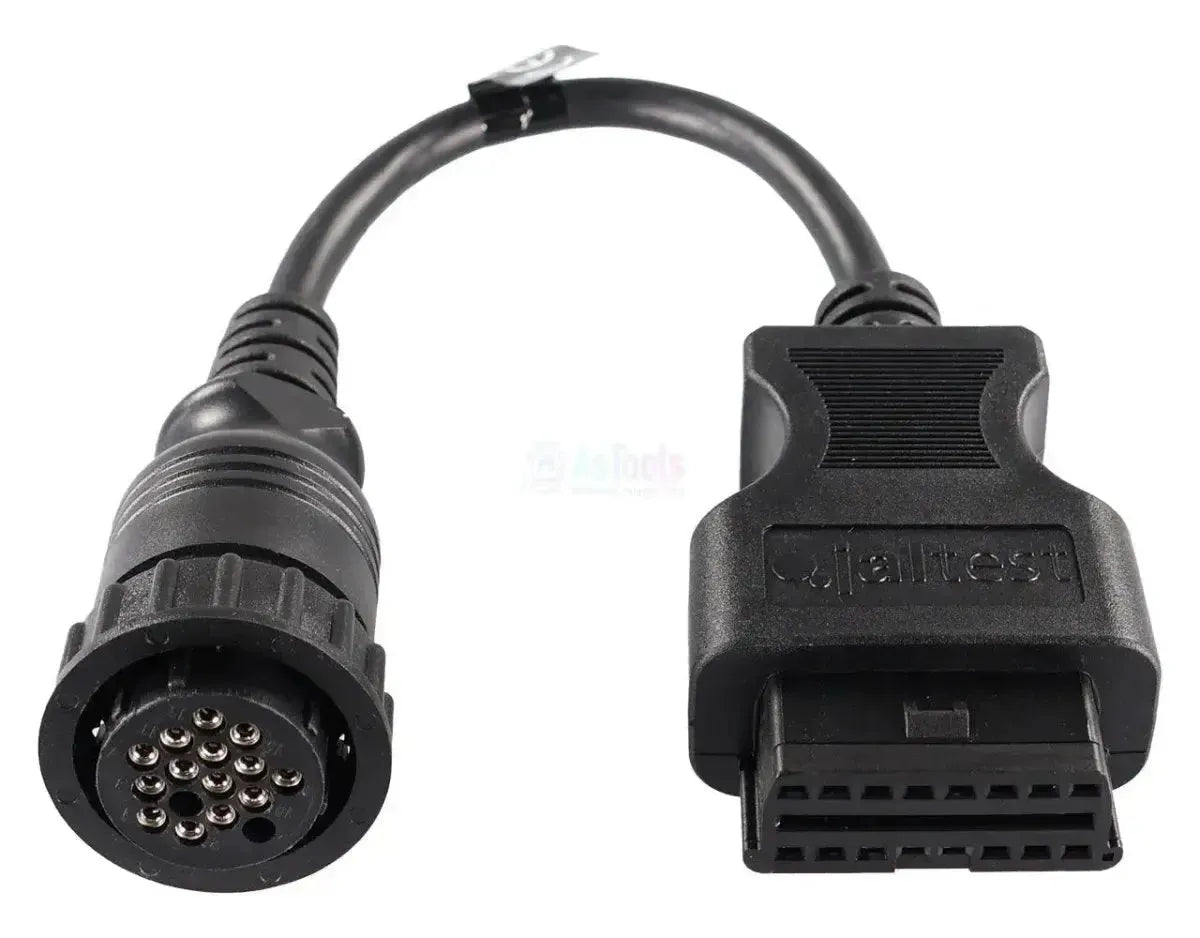

The Jaltest JDC209A connects the proprietary 16-pin diagnostic connector of older DAF trucks to the 16-pin OBD2 input of your Jaltest diagnostic cable. On the vehicle side is a round black connector with a ribbed coupling ring that you screw tight. The grey face contains sixteen numbered positions, fourteen of which hold a socket. The cable measures 28 to 30 cm.

With the cable connected, the Jaltest software accesses the control units of the DAF generations that predate the standardised connector. Depending on model and year of manufacture, these include the engine controls UPEC and EDC Cummins Celect of the 95XF, on the CF series the central vehicle computer VIC and the AS Tronic gearbox, and further brake, air suspension and tachograph systems. The cable works with the Jaltest Link V8.1 and V9 and falls under Jaltest CV.

HIGHLIGHTS

✔Reaches the UPEC engine controls with unit pumps and the EDC Cummins Celect of the 95XF.
✔On the CF series also the central vehicle computer VIC, the AS Tronic gearbox and the DIP-4 instrument panel.
✔Brakes (ABS and EBS), air suspension (ECAS-2 and ECAS-3) and the tachograph (MTCO and DTCO) are covered in the same scope.
✔One cable for the 95XF and XF95 and for the first CF and LF generations with this round connector.

POINTS TO NOTE

✕The vehicle side is round with a coupling ring, not the flat D-shaped OBD2 plug; the number 16 refers to the number of positions in that round face.
✕From Euro IV (October 2005) DAF switched to the 16-pin OBD2 connector; for Euro 4 or newer you do not need this cable.
✕Coverage differs by generation: the 95XF has no central vehicle computer, the CF85 does, plus a maintenance system and additional heating modules.
✕A Jaltest Link and a licence for Jaltest CV are required for use; these are not included with the cable.

Applications and functions

The cable is intended for workshops that read out older DAF trucks with the Jaltest Link. Which units are present depends on model and year of manufacture: a 95XF carries clearly less electronics than a CF85. The units below come from the DAF coverage of Jaltest.

Control units you can access

  • UPEC: Engine control with unit pumps.
  • EDC Cummins Celect: Engine with unit injectors.
  • VIC: Central vehicle computer.
  • AS Tronic: Automated gearbox.
  • ABS C / D / D-E, EBS / EBS 2: Brakes.
  • EST-32 / EST-42: Auxiliary brake, retarder.
  • ECAS-2 4x2 / 6x2, ECAS-3: Air suspension.
  • MTCO and DTCO: Tachograph.
  • DIP-4 and Service: Instruments and maintenance.
  • EMAS: Electro-hydraulic multi-axle steering.
  • ACH-EA and ACH-EW: Air and water heating.
  • Starter interrupt: With ALS-S and CDS-3.

What you can do

  • Fault codes: Read and clear per system.
  • Measured values: View in figures and graphs.
  • Components: Activate and test parts.
  • Parameters: Settings sent to the control unit.
  • Calibrations: Where Jaltest offers a procedure.
  • Maintenance: Reset counter via Service.

How to use it

  1. Check the plug: Locate the round 16-pin connector in the cab.
  2. Connect: Tighten the coupling ring of the JDC209A.
  3. Link pairing: Connect the OBD2 end to the Jaltest Link.
  4. Start the software: Open Jaltest CV on the PC.
  5. Read out: Select DAF, the series and the system.

Compatible vehicles and applications

The plug is decisive, not the model. The cable fits any DAF with the round 16-pin diagnostic connector. The series below are included in the Jaltest CV coverage. The end year follows the Euro IV transition (type approval October 2005, all registrations October 2006), after which the 16-pin OBD2 connector took over.

DAF:

  • 95XF: 1997 - 2002
  • XF95: 2002 - 2006
  • CF65: 2001 - 2006
  • CF75: 2001 - 2006
  • CF85: 2001 - 2006
  • LF45: 2001 - 2006
  • LF55: 2001 - 2006
💡
Good to know: The DAF connector is round, with a ribbed coupling ring and a grey face on which the positions are numbered. Of the sixteen positions, fourteen are occupied. The flat, D-shaped OBD2 plug also has sixteen positions, but belongs to DAF trucks from Euro IV onwards. Check the connector in your cab before ordering.

Package contents

  • 1x Jaltest (JDC209A) | DAF 16-pin OBD1 to 16-pin OBD2 Adapter Cable | Heavy-duty Vehicle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Jaltest
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable
The cable set that also includes this cable. If you already own that set, you do not need to buy the cable separately.Part of cable set
Truck and bus cable set

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • Jaltest
The version of the Jaltest Link interface the cable fits. Some cables only work with the latest V9.Jaltest Link version
  • Link V8.1
  • Link V9
The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module
  • CV commercial vehicles

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
16-pin OBD1
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2

Diagnostic functions

Shows the current sensor readings while the vehicle is running. Useful for tracing faults.View live data
Allows you to activate components yourself to test whether they are faulty. This saves time when fault finding.Component activation
Allows you to reset the service message or service interval after maintenance.Service reset

Size and weight

The length of the cable. A longer cable gives more freedom of movement with a port that is difficult to reach.Cable length
30 cm
Reference number
JDC209A

Other specifications

Application
DAF 95XF, XF95, CF and LF series with the round 16-pin diagnostic connector
Vehicle-side connection
16-pin OBD1 (round plug with ribbed coupling ring, 14 of the 16 positions occupied)
Control units
UPEC and EDC Cummins Celect (engine), VIC (vehicle computer), AS Tronic (transmission), ABS and EBS (brakes), EST-32 and EST-42 (retarder), ECAS (air suspension), DIP-4 (instrument panel), MTCO and DTCO (tachograph)
Part of cable set
Truck and bus cable set (29362)
Required for use
Jaltest Link V8.1 or V9 with Jaltest diagnostic cable and a licence for Jaltest CV
