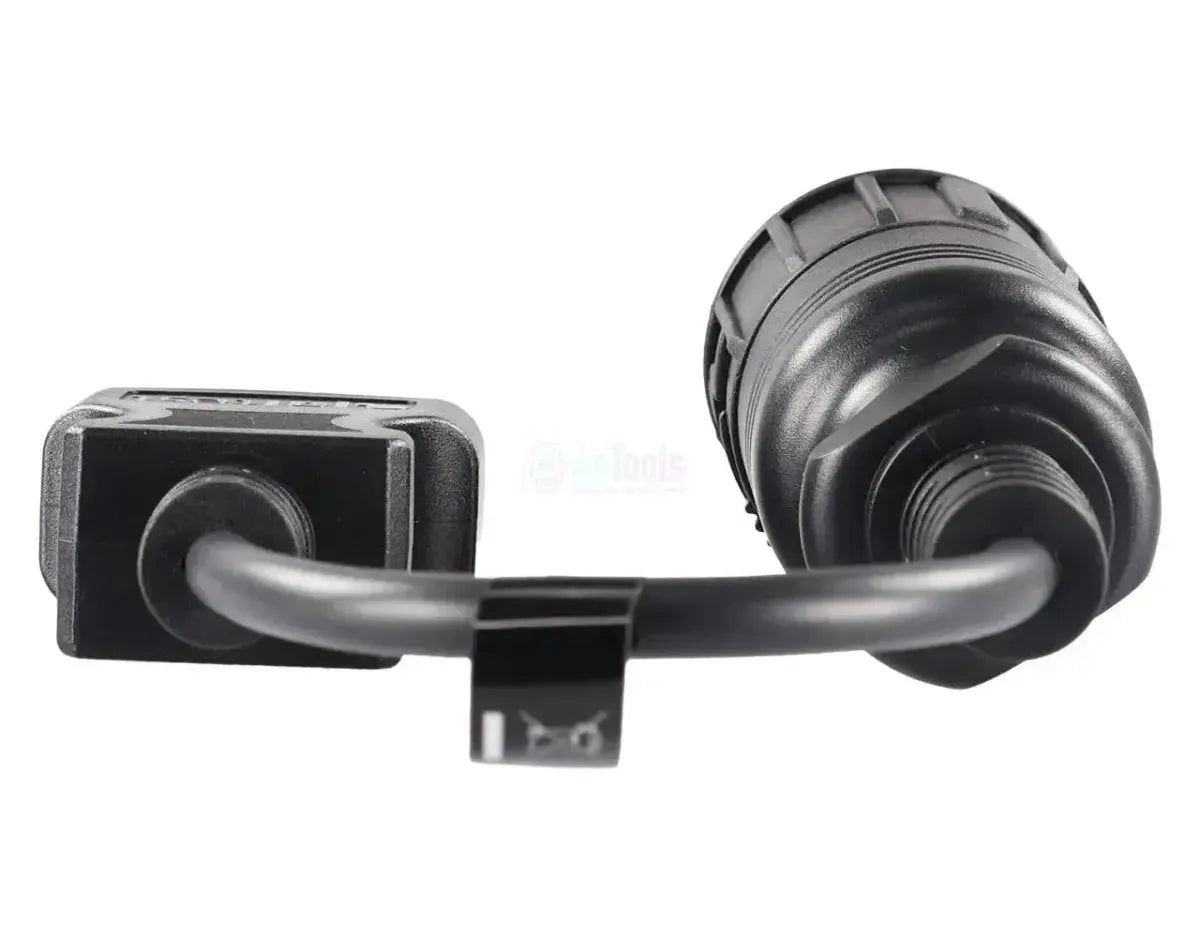

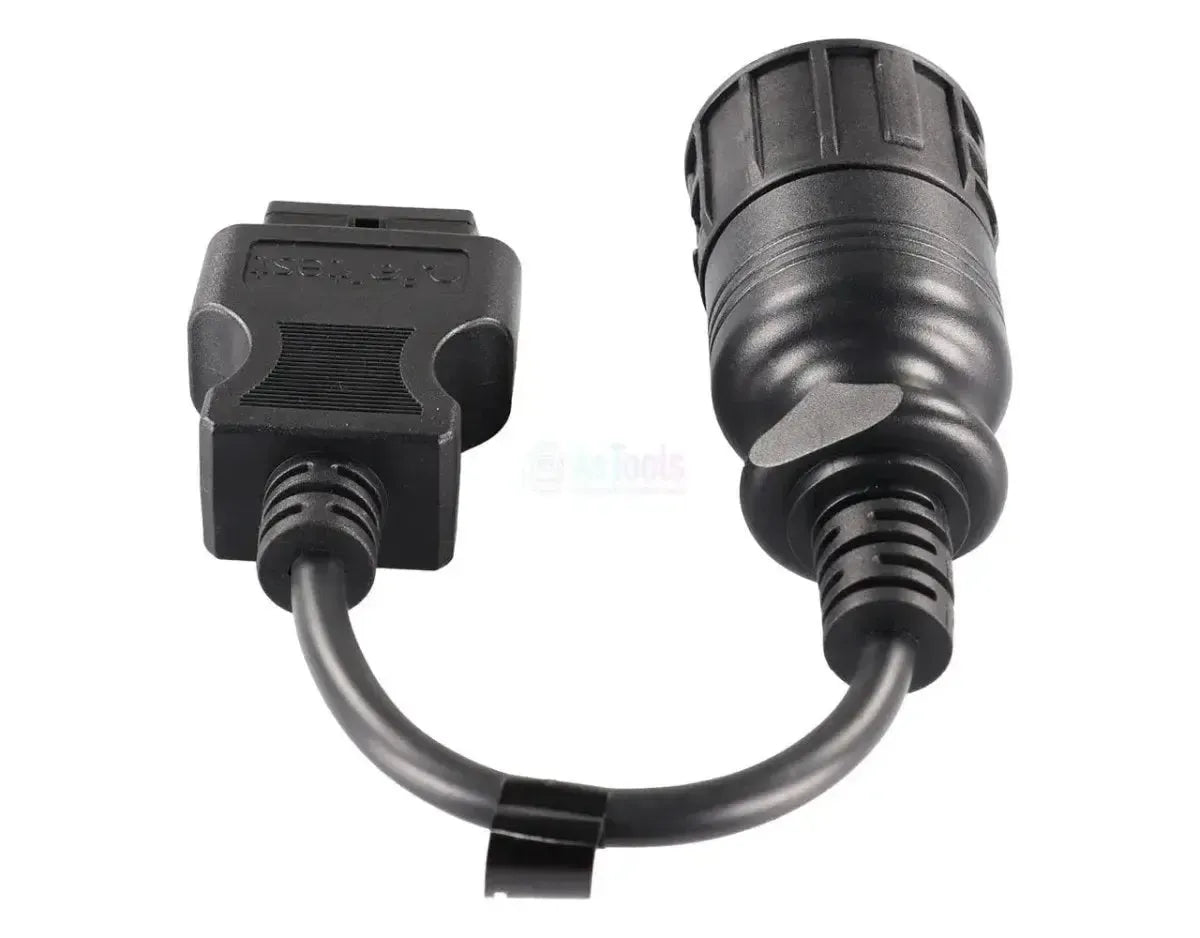

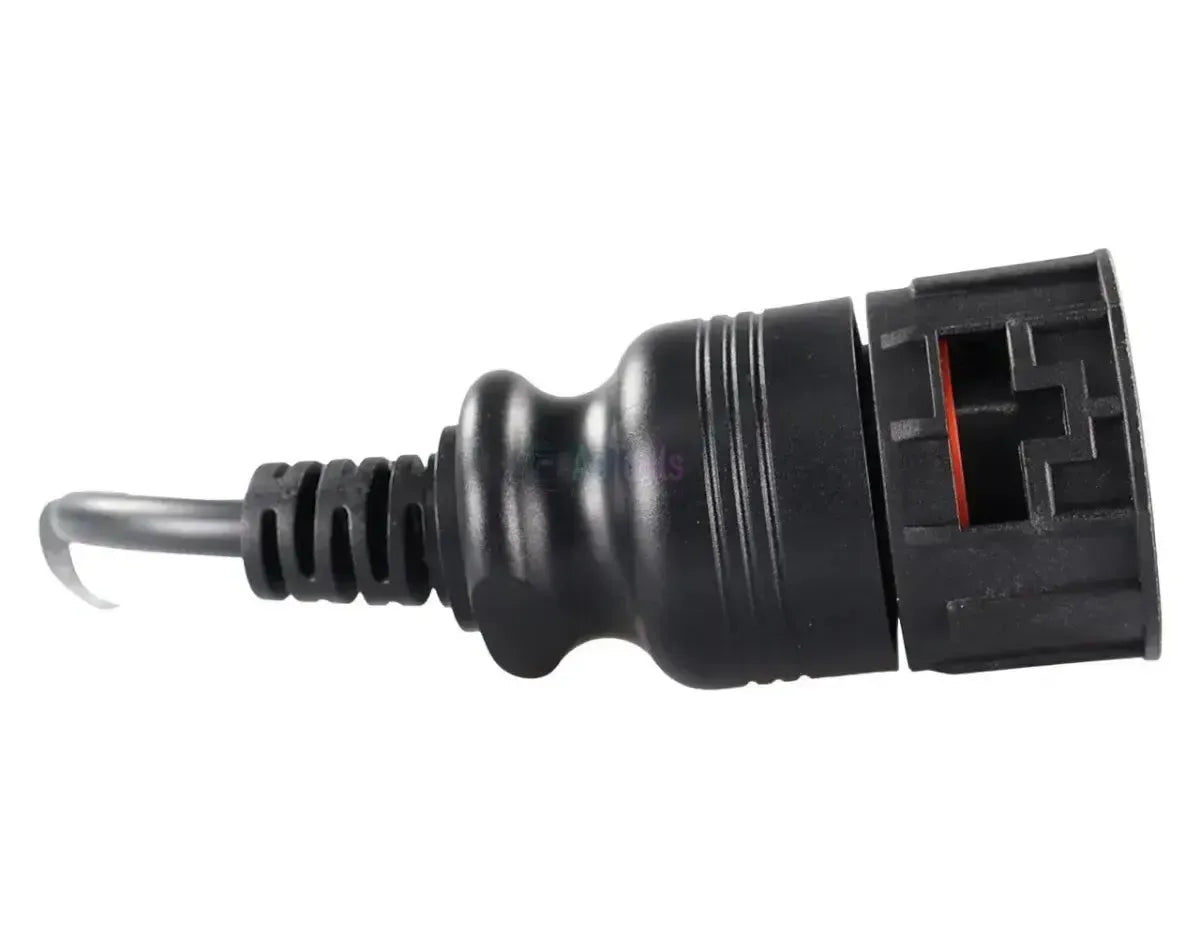

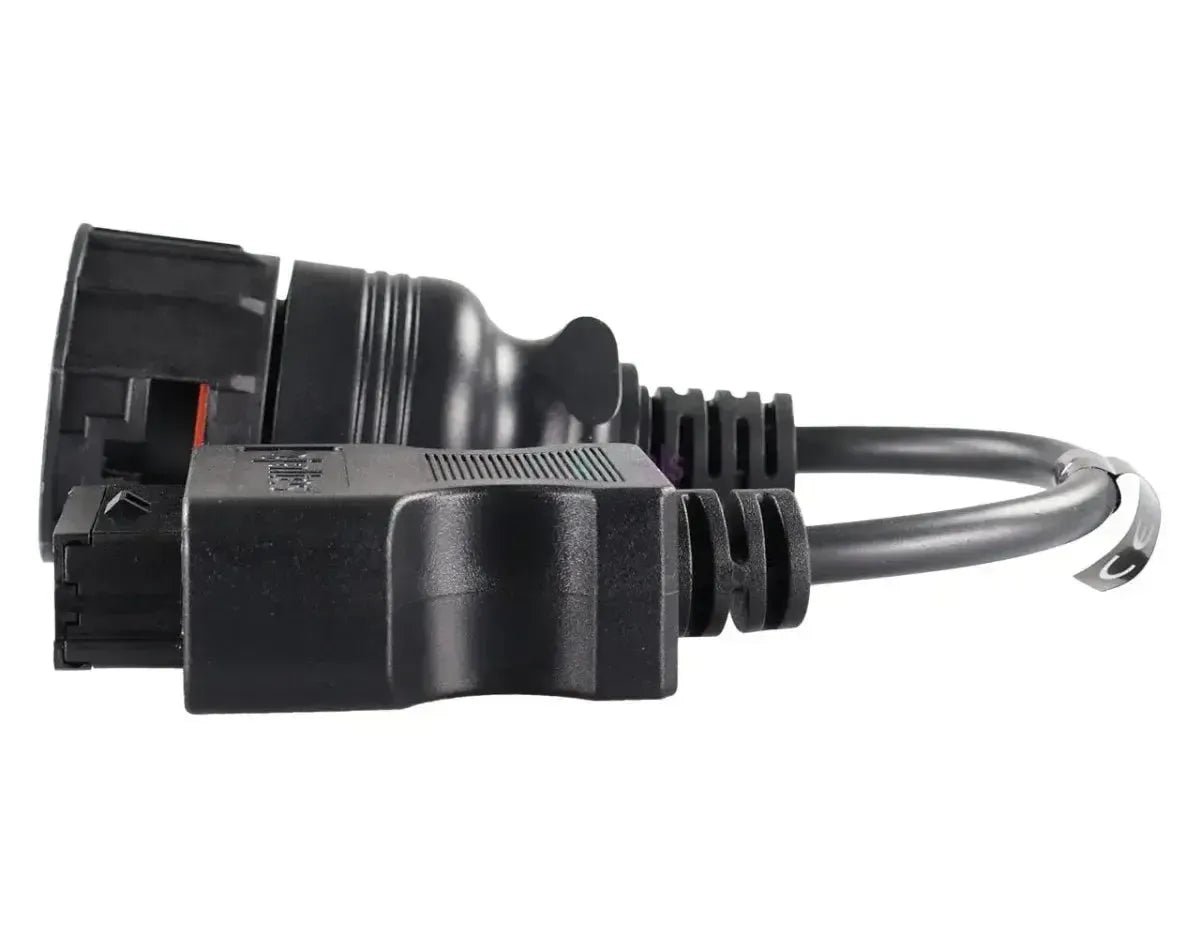

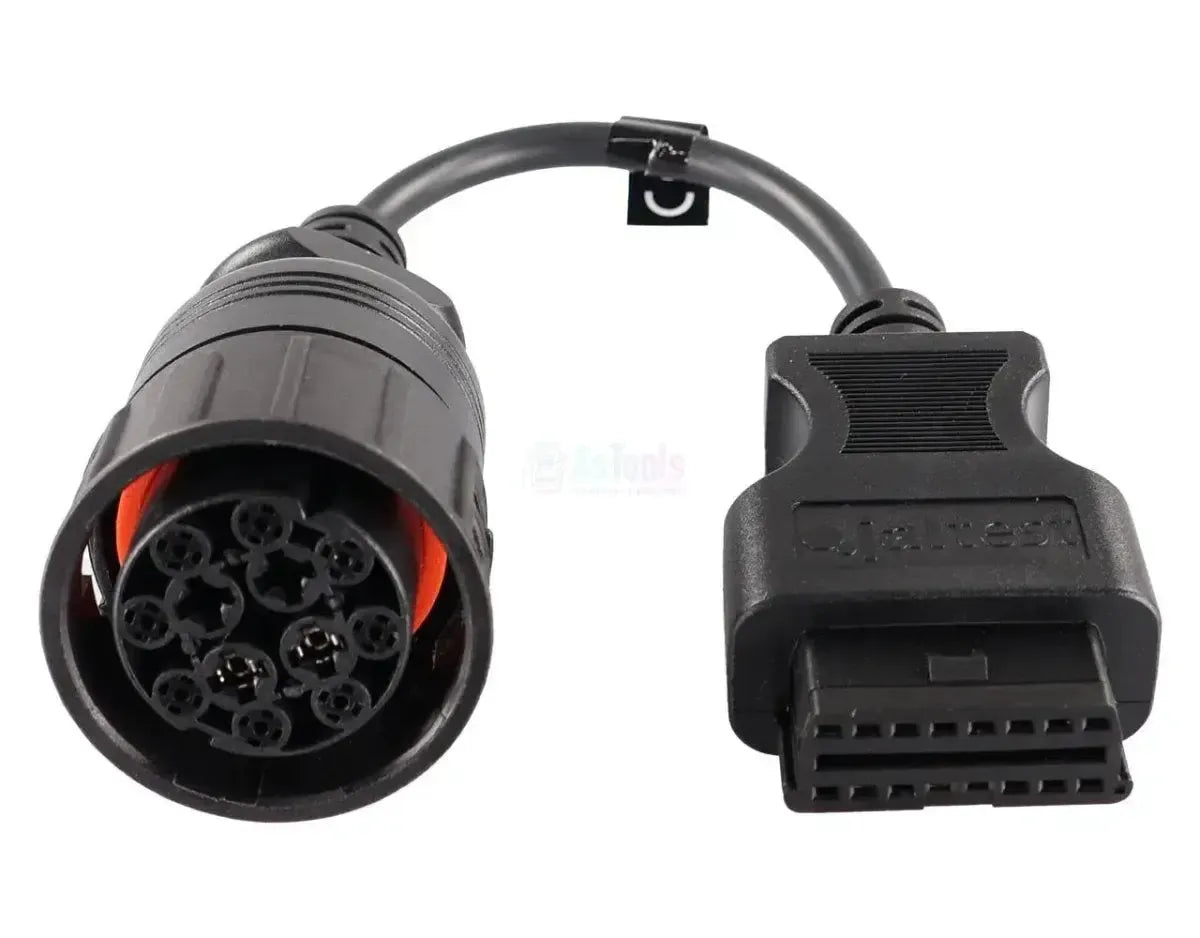

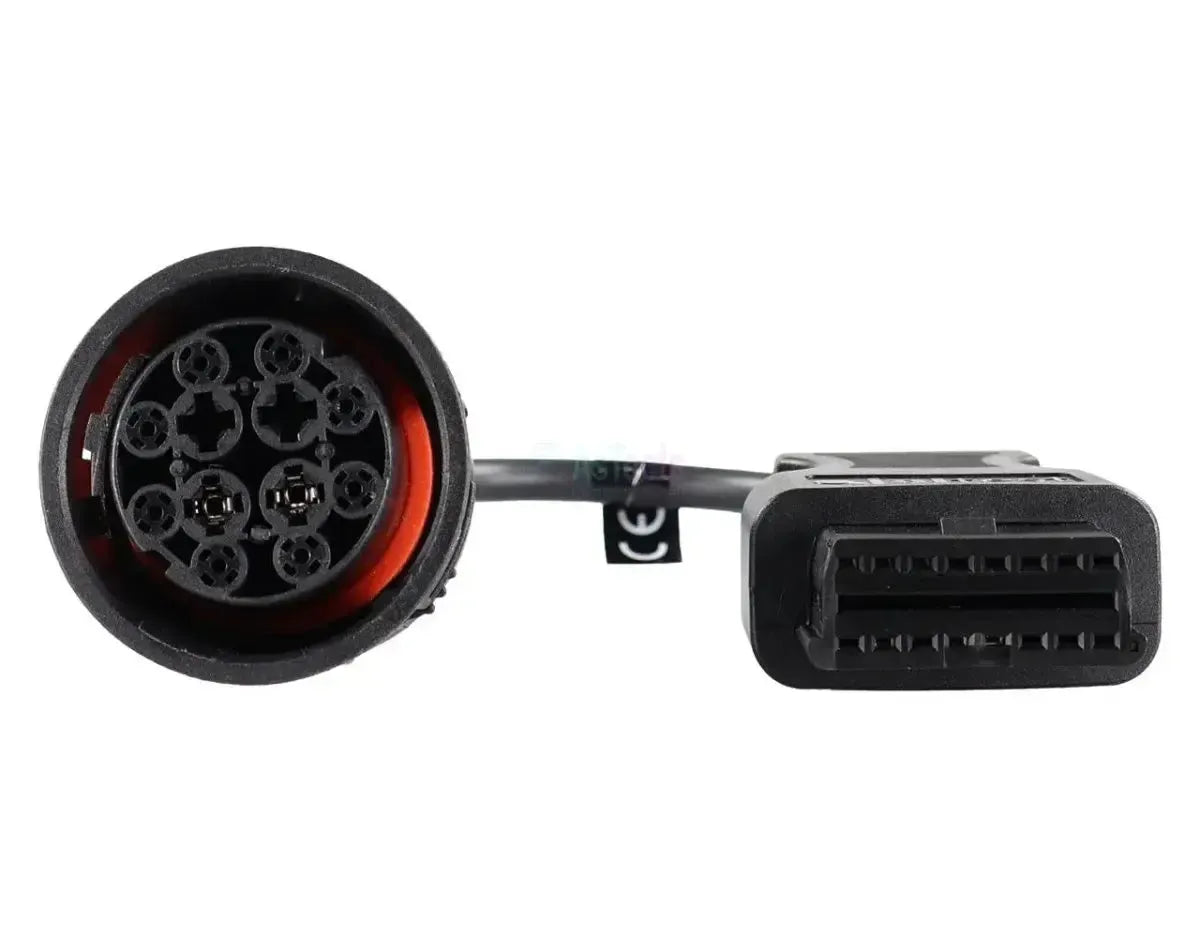

The Jaltest JDC207A connects the 4-pin diagnostic connector of the MAN TG series to the 16-pin OBD2 input of your Jaltest diagnostic cable. The vehicle-side end is a compact round plug with a bayonet ring and a red inner ring; in the black pin holder, twelve positions are recessed, of which four are occupied. The cable is 28 to 30 cm long and the connector is located in the cab.
The TG series has a fully CAN-based vehicle network built around the central control unit FFR. With the cable connected, the Jaltest software reaches the FFR, the common rail injection EDC 7 C3/C32, the older EDC MS 6.1, the AS Tronic gearboxes and Ecomat 2, and the brake, retarder, air preparation and exhaust gas systems. The cable works with the Jaltest Link V8.1 and V9 and falls under Jaltest CV.
ADVANTAGES
POINTS TO NOTE
Applications and functionality
The cable is intended for workshops reading early MAN TG trucks with the Jaltest Link. Because the units are linked via the central vehicle control unit, the list is longer than for the 37-pin predecessors. Which units are present depends on specification and year of manufacture.
Control units you can access
- EDC 7 C3/C32: Common rail, also Master-Slave.
- EDC MS 6.1: Engine, inline injection pump.
- FFR: Central vehicle control unit.
- ZBR2 and ZFR: Body computers.
- OBDU: On-board diagnostic unit.
- AS Tronic and Ecomat 2: Gearboxes.
- EBS 2.2-2.3 Knorr-Bremse: Electronic brake system.
- EBS 5 (CAN/K) and EBS 5/5X MAN: Electronic brake system.
- EST-48, EST-52 and PriTarder: Auxiliary brake systems.
- Voith and VERA: Auxiliary brake systems.
- ECAM: Air preparation.
- HDS/SCR AdBlue and CRT filter: Exhaust gas aftertreatment.
- ATC, BHTC and GKR: Climate control systems.
- KSM VDO: Programmable body module.
What you can do
- Fault codes: Reading and clearing per system.
- Measured values: View in figures and graphs.
- Components: Activate and test parts.
- Parameters: Write settings back.
- Calibrations: Where Jaltest offers a procedure.
How to use it
- Check the connector: Look for the 4-pin connector with red ring.
- Connect: Plug the JDC207A on and tighten the bayonet ring.
- Link connection: Connect the OBD2 end to the diagnostic cable.
- Ignition on: Switch the ignition on without starting the engine.
- Reading: Select MAN, the TG series and the system.
Compatible vehicles and applications
The connector is what counts, not the model. The cable matches the TG generation of MAN, which began in 2000 with the TGA. The end year is October 2005, when the 16-pin OBD2 connector became mandatory for trucks. What MAN built before the TG series has the 37-pin plug and falls under the JDC210A.
MAN:
- TGA: 2000 - 2005.
- TGL: 2004 - 2005.
- TGM: 2004 - 2005.
Package contents
- 1x Jaltest (JDC207A) | MAN 4-pin OBD1 - 16-pin OBD2 Adapter Cable | Commercial & Work Vehicle
Technical specifications
General
- The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
- Adapter cable
- The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
- CV commercial vehicles
Connections
- The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
- Jaltest Link V8.1
- Jaltest Link V9
- The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
- 16-pin OBD2
- The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
- 4-pin OBD1
- The length of the cable. A longer cable allows more room to work.Cable length
- 28 to 30 cm
Diagnostics
- Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes
- Yes
- Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
- Yes
- Whether components can be activated from the device. This shows whether the fault lies with the component or the wiring.Activate components
- Yes
- Whether control unit settings can be adjusted. Required after replacement or to change the behaviour of a system.Set parameters
- Yes
Usage
- The Jaltest cable set that also contains this cable. If you already own that set, you may already have this cable.Part of cable set
- Truck and bus cable set
- Reference number
- JDC207A
Other specifications
- Application
- MAN TG series (TGA, TGL and TGM) with 4-pin diagnostic connector
- Control units
- EDC 7 C3/C32 and EDC MS 6.1 (engine), FFR (vehicle control unit), ZBR2, ZFR and OBDU, AS Tronic and Ecomat 2 (transmission), EBS (brakes), EST-48/52, PriTarder, Voith and VERA (retarders), ECAM, HDS/SCR AdBlue and CRT filter, ATC, BHTC, GKR and KSM VDO
- Segment
- Commercial & Work Vehicles
- Part of cable set
- Truck and bus cable set (29362)
- Required for use
- Jaltest Link V8.1 or V9 with OBD2 diagnostic cable, Jaltest software with licence for Jaltest CV
