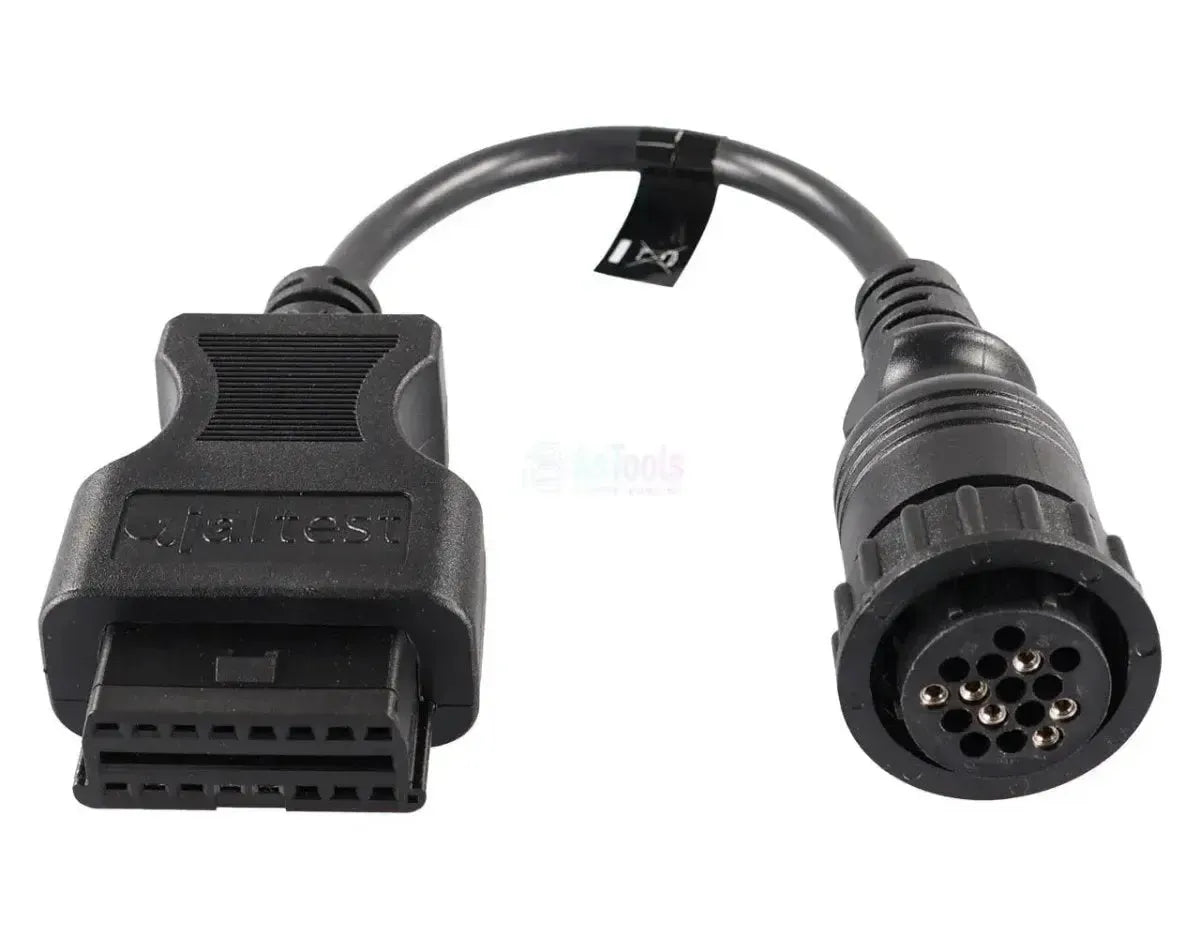

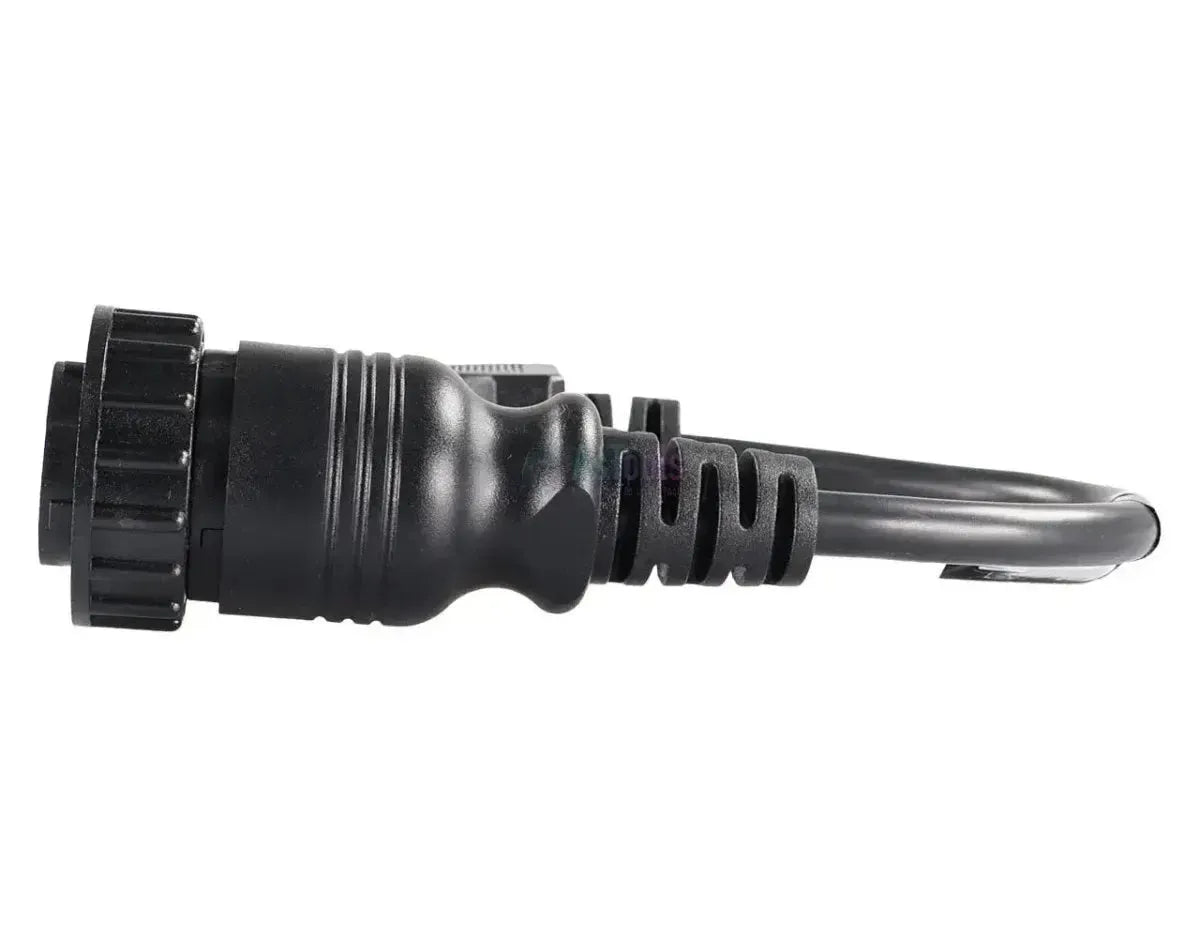

The Jaltest JDC204A connects the 16-pin diagnostic connector of Wabco brake systems to the 16-pin OBD2 input of your Jaltest diagnostic cable. On the vehicle side is a round plug with a knurled coupling ring and a numbered pin holder with sixteen positions, of which six are occupied. It is a serial connection, not a CAN connection, and the cable is 28 to 30 cm long.
The plug is located on or near the brake control unit, not at the vehicle's OBD location. With the cable connected, the Jaltest software reaches the ABS/ASR family, the EBS family and the hydraulic brake systems HABS D and HBS AddOn-E. The cable works with the Jaltest Link V8.1 and V9 and falls under Jaltest CV.
ADVANTAGES
POINTS TO NOTE
Applications and functions
The cable is intended for workshops that read out the Wabco brake control unit of trucks, buses and work machines with the Jaltest Link. Because the cable follows the control unit and not the chassis builder, you find the same connector on different brands. The systems below are from the Wabco coverage of Jaltest.
Control units you can access
- ABS SAE: Anti-lock braking system.
- ABS/ASR C and D/E: Anti-lock braking system.
- ABS/ASR E: K Line and CAN version.
- EBS Asia and EBS ZM: Electronic braking system.
- EBS Euro Gen 2 and Gen 3: Electronic braking system.
- HABS D: Hydraulic braking system.
- HBS AddOn-E: Hydraulic braking system.
What you can do
- Fault codes: Read and clear after repair.
- Measured values: View in figures and graphs.
- Valves: Control and test directly.
- Live monitoring: Follow values during a test.
- Parameters: Where Jaltest offers this.
- Calibrations: Where Jaltest offers this.
How to use it
- Locating the plug: Find the round connector at the brake control unit.
- Connecting: Plug in the JDC204A and tighten the coupling ring.
- Link connection: Connect the OBD2 end to the diagnostic cable.
- Ignition on: Switch the ignition on without starting the engine.
- Reading out: Select the vehicle and the Wabco brake system.
Compatible vehicles and applications
The brake control unit matters, not the vehicle make. The cable fits any truck, bus or work machine with a Wabco brake control unit with a 16-pin diagnostic connector. Because that plug is on or at the control unit and not at the OBD location, it remains in use on newer vehicles too.
Application:
- Trucks, buses and work vehicles: With a Wabco brake control unit with a 16-pin diagnostic connector.
- Vehicle make: Not decisive; the cable follows the Wabco control unit, not the chassis builder.
- Older vehicles: The ABS/ASR generations of Wabco belong to earlier build years.
Package contents
- 1x Jaltest (JDC204A) | Wabco 16-pin OBD - 16-pin OBD2 adapter cable | Commercial and work vehicle
Technical specifications
General
- The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
- Adapter cable
- The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
- CV commercial vehicles
Connections
- The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
- Jaltest Link V8.1
- Jaltest Link V9
- The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
- 16-pin OBD2
- The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
- 16-pin OBD
- The length of the cable. A longer cable allows more room to work.Cable length
- 28 to 30 cm
Diagnostics
- Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes
- Yes
- Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
- Yes
- Whether components can be activated from the device. This shows whether the fault lies with the component or the wiring.Activate components
- Yes
Usage
- The Jaltest cable set that also contains this cable. If you already own that set, you may already have this cable.Part of cable set
- Truck and bus cable set
- Reference number
- JDC204A
Other specifications
- Application
- Wabco brake systems with 16-pin diagnostic connector
- Control units
- Wabco ABS/ASR family, EBS family and the hydraulic brake systems HABS D and HBS AddOn-E
- Segment
- Commercial & Work Vehicles
- Part of cable set
- Truck and bus cable set (29362)
- Required for use
- Jaltest Link V8.1 or V9 with OBD2 diagnostic cable, Jaltest software with licence for Jaltest CV
