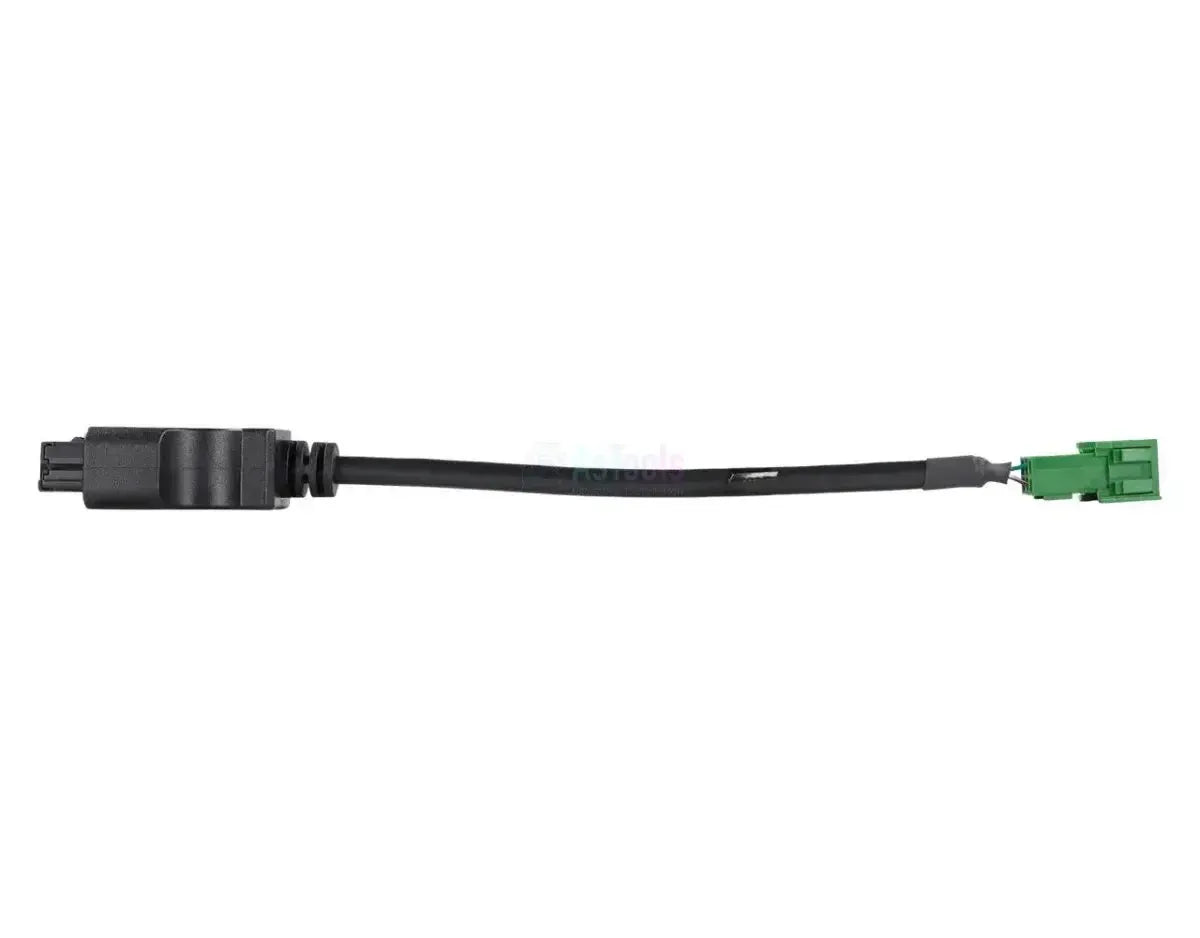

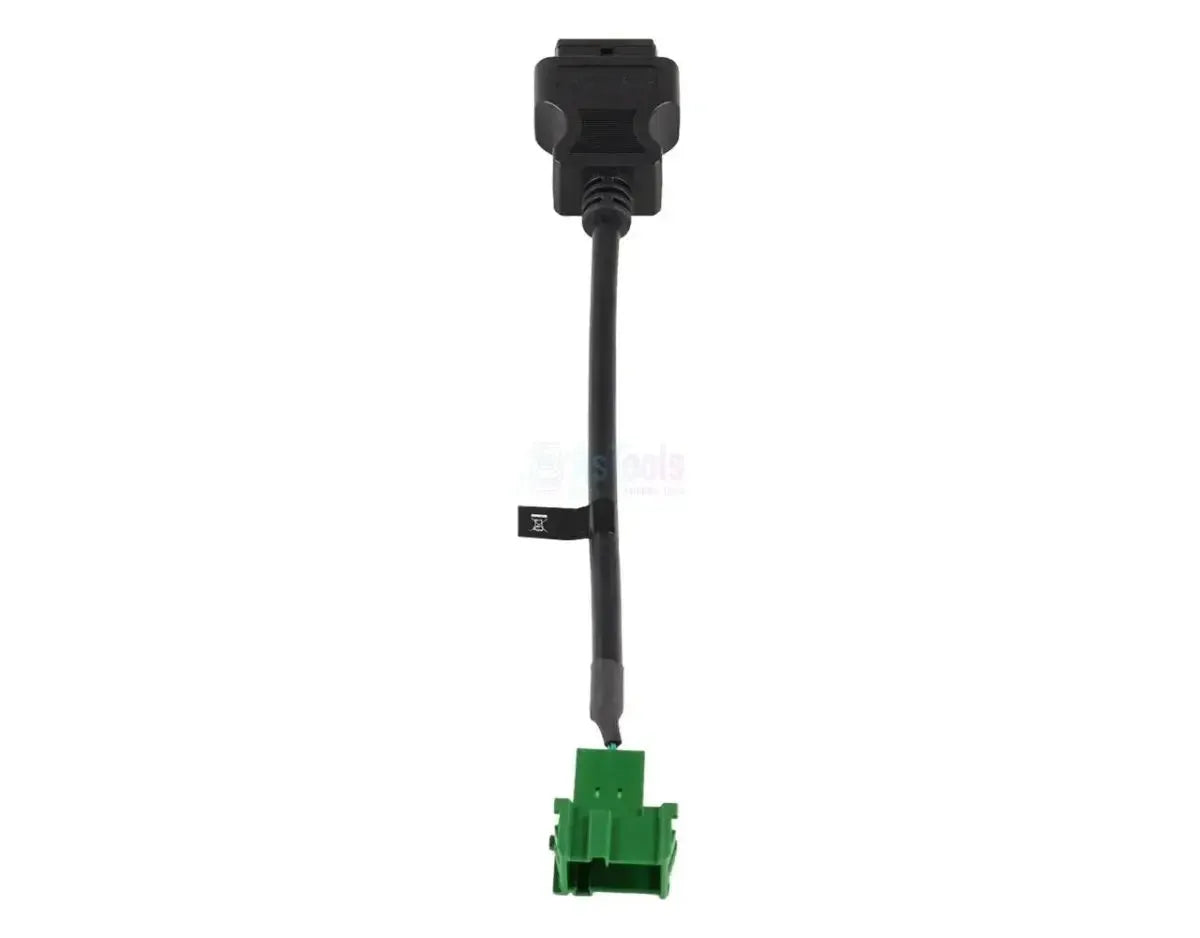

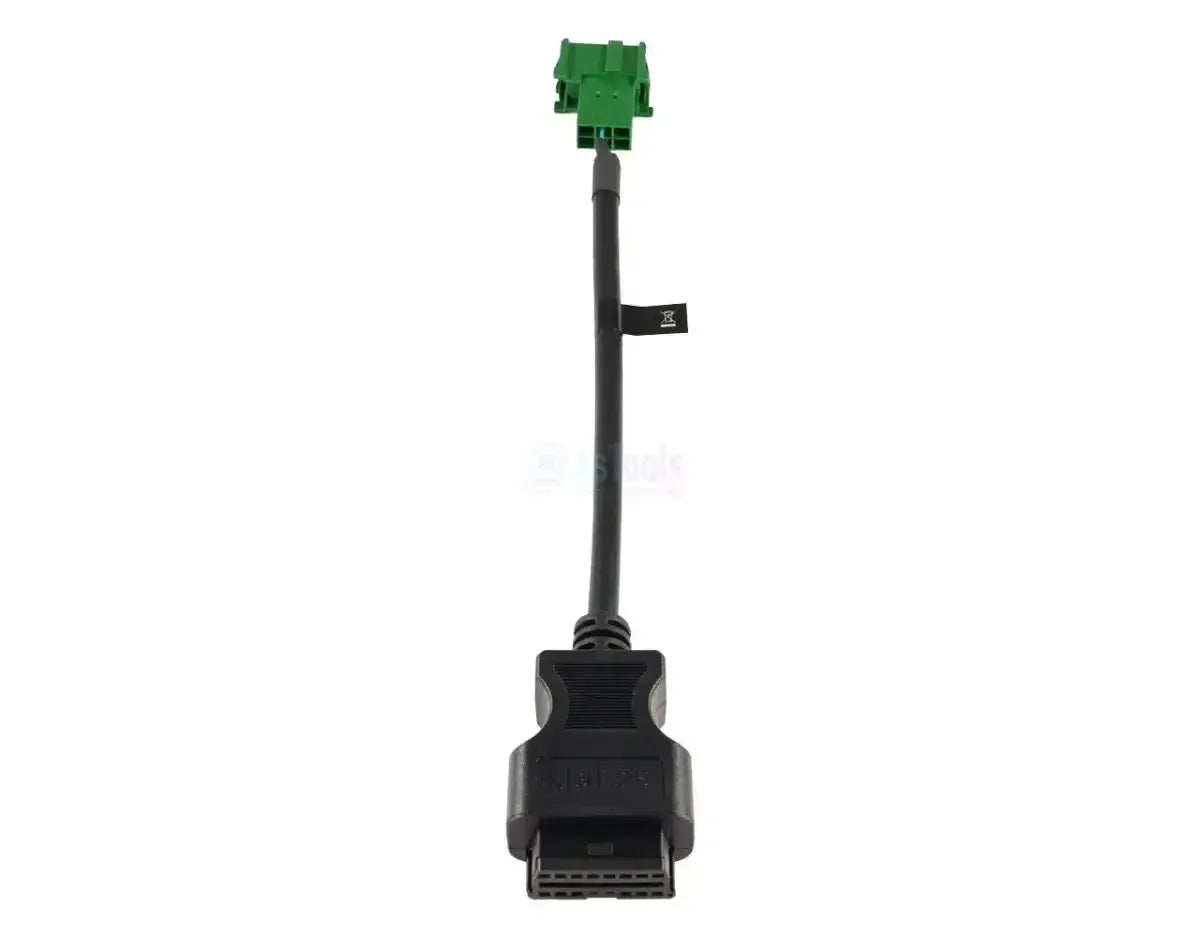

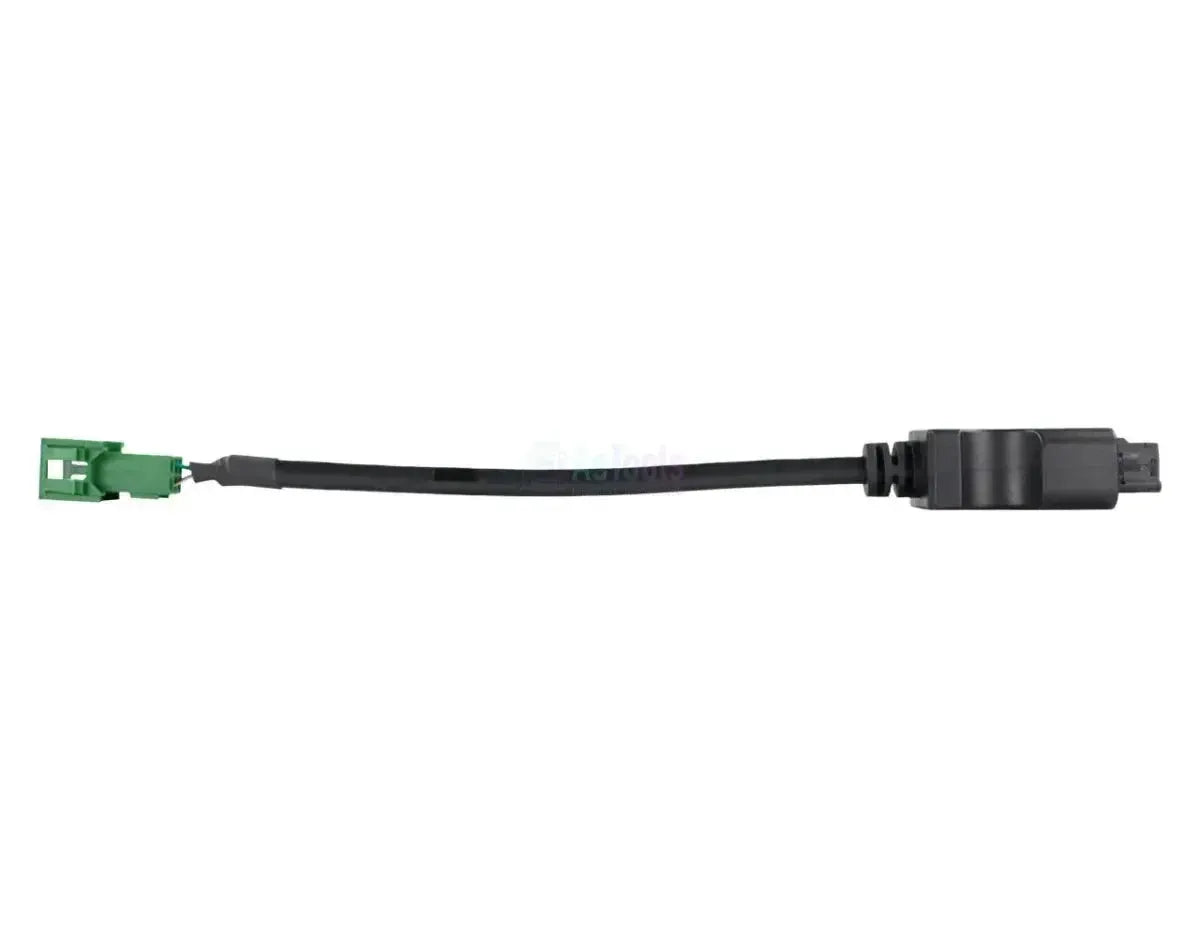

The Jaltest JDC221A converts the ST14D connector of the security gateway (SGW) in heavy Iveco trucks to the standard 16-pin OBD2 connection. You do not connect it to the vehicle's diagnostic port, but directly to the security gateway connector in the wiring harness. At the other end is your Jaltest diagnostic cable.
Behind that gateway lies the vehicle network of the S-WAY, T-WAY and X-WAY. With the cable connected, the Jaltest software accesses, among others, the engine control EDC MD1 with Denox 6-HD, the brake control BSM, the body computer BCM, the Hi-TroniX TraXon gearbox and the predictive driveline control E-HORIZON. The cable belongs to Jaltest CV.
ADVANTAGES
POINTS TO NOTE
Applications and functionality
The cable is intended for workshops that read out heavy Iveco trucks with a security gateway. The control units listed below come from the coverage of the S-WAY, T-WAY and X-WAY, the versions on which the security gateway is covered.
Control units you can access
- SGW: The security gateway itself.
- EDC MD1 + Denox 6-HD: Engine and aftertreatment.
- BSM: Central brake control.
- Hi-TroniX TraXon: Automated gearbox.
- Allison 3000/4000 5th Gen: Automatic transmission.
- Intarder 3 EST-54: Retarder.
- BCM, EM and ACM: Bodywork, expansion, climate.
- VCM and PCM: Start lock, communication.
- E-HORIZON: Predictive driveline.
- AHW and IPC: Water heating, instruments.
What you can do
- Fault codes: Reading and clearing per system.
- Measured values: View in figures and graph.
- Components: Control and test components.
- Parameters: Where Jaltest offers this.
- Calibrations: Where Jaltest offers this.
- Maintenance: Resets where Jaltest offers this.
How to use it
- Finding the port: Locate the security gateway in the wiring harness.
- Checking the connector: Check that it is the ST14D.
- Connecting: Connect the JDC221A to the ST14D connector.
- Linking the Link: Connect the OBD2 end to the diagnostic cable.
- Reading out: Select Iveco and the range in Jaltest CV.
Compatible vehicles and applications
The connector determines it, not the model. The cable belongs to the ST14D version of the security gateway. The Iveco ranges listed below feature that gateway in the Jaltest CV coverage.
Iveco:
- S-WAY: 2019 - present, including the S-WAY NP on natural gas
- T-WAY: 2020 - present
- X-WAY: 2019 - present, including the X-WAY NP on natural gas
Package contents
- 1x Jaltest (JDC221A) | Iveco (SGW) ST14D - 16-pin OBD2 Adapter Cable | Truck
Technical specifications
General
- The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
- Adapter cable
- The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
- CV commercial vehicles
Connections

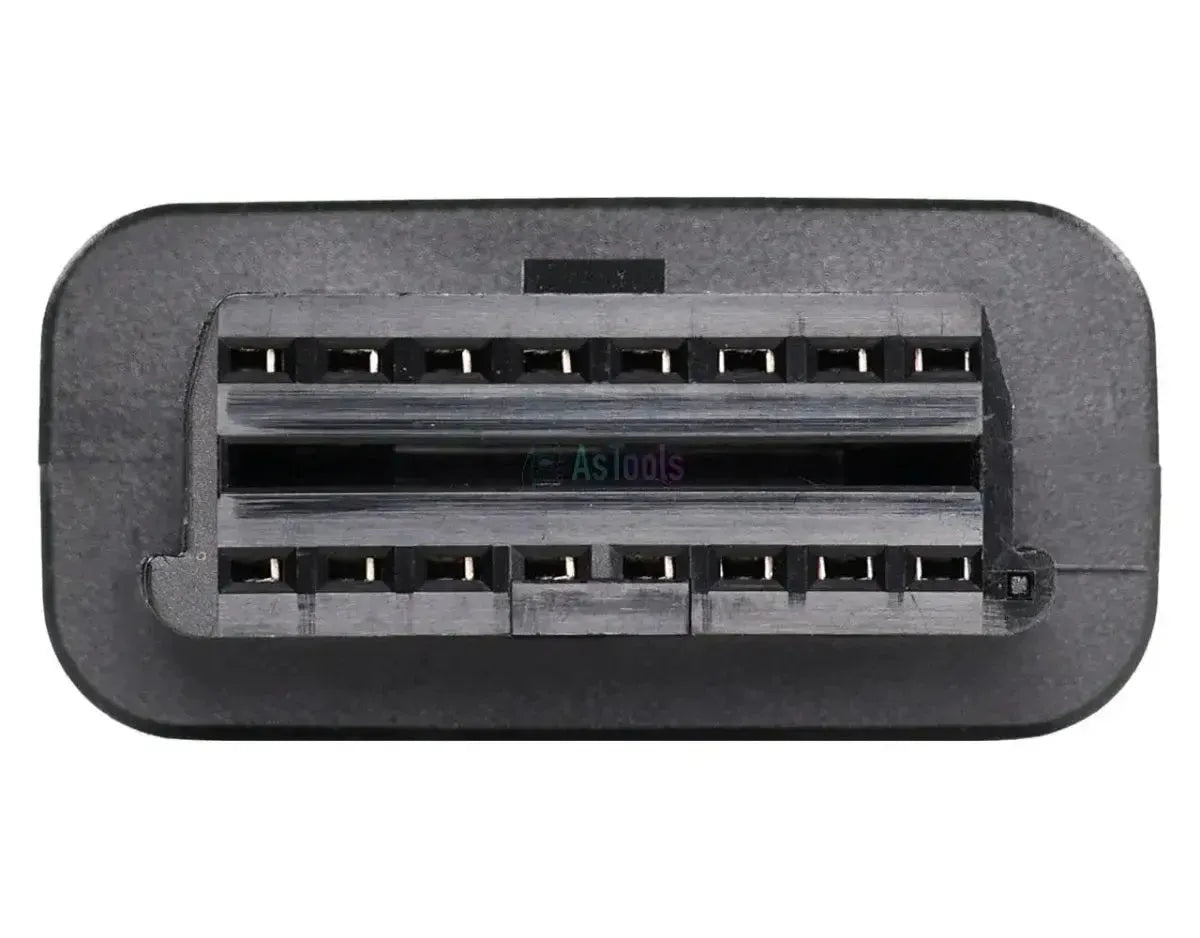

- The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
- 16-pin OBD2

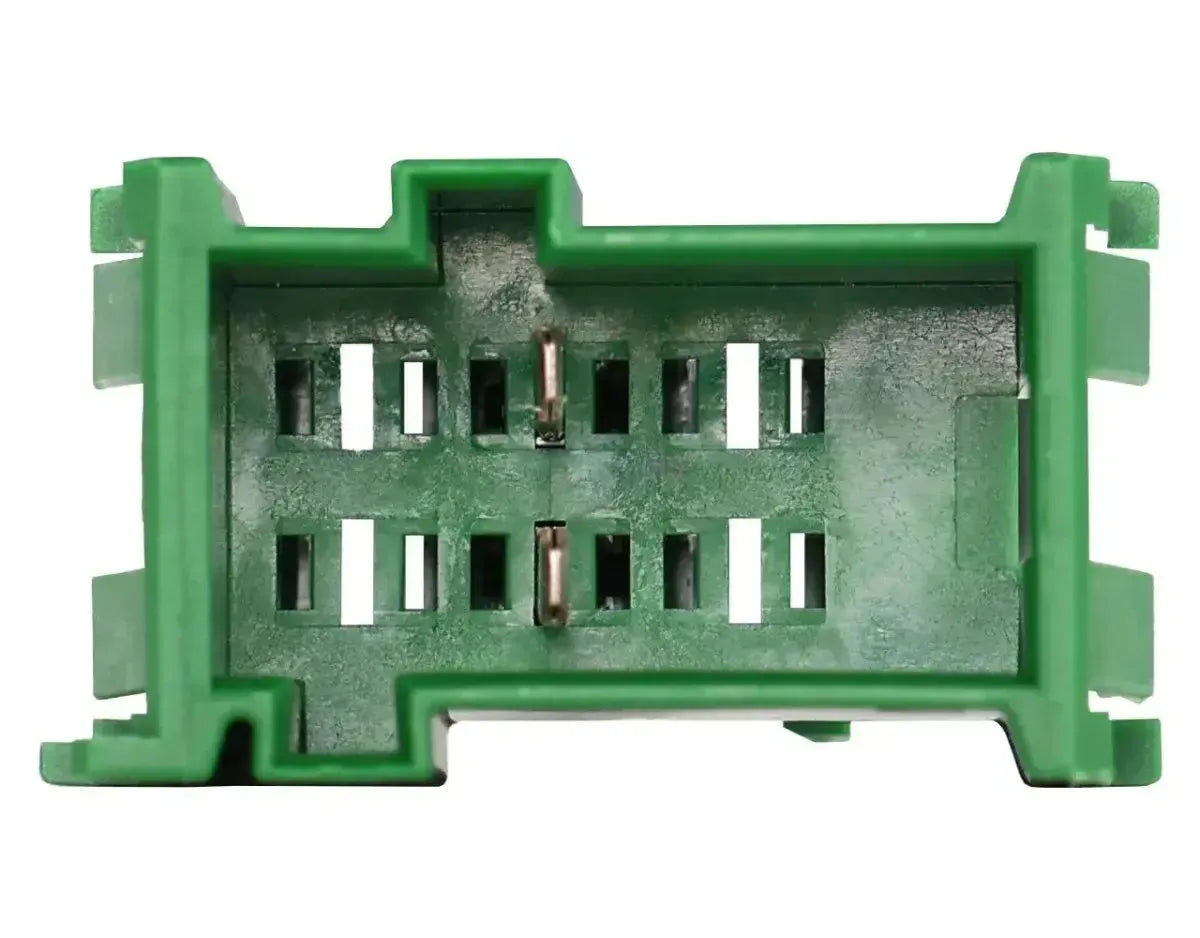

- The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
- ST14D
Diagnostics
- Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes
- Yes
- Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
- Yes
- Whether components can be activated from the device. This shows whether the fault lies with the component or the wiring.Activate components
- Yes
Usage
- Reference number
- JDC221A
Other specifications
- Application
- Iveco trucks with security port, ST14D version
- Control units
- SGW, EDC MD1 + Denox 6-HD, BSM, BCM, EM, ACM, PCM, VCM Immobilizer, E-HORIZON, Intarder 3 EST-54, Hi-TroniX TraXon, Allison 3000/4000 5th Gen, AHW, IPC
- Version for ST48
- JDC222A (not interchangeable)
- Required for use
- Jaltest Link with Jaltest diagnostic cable and a licence for Jaltest CV
