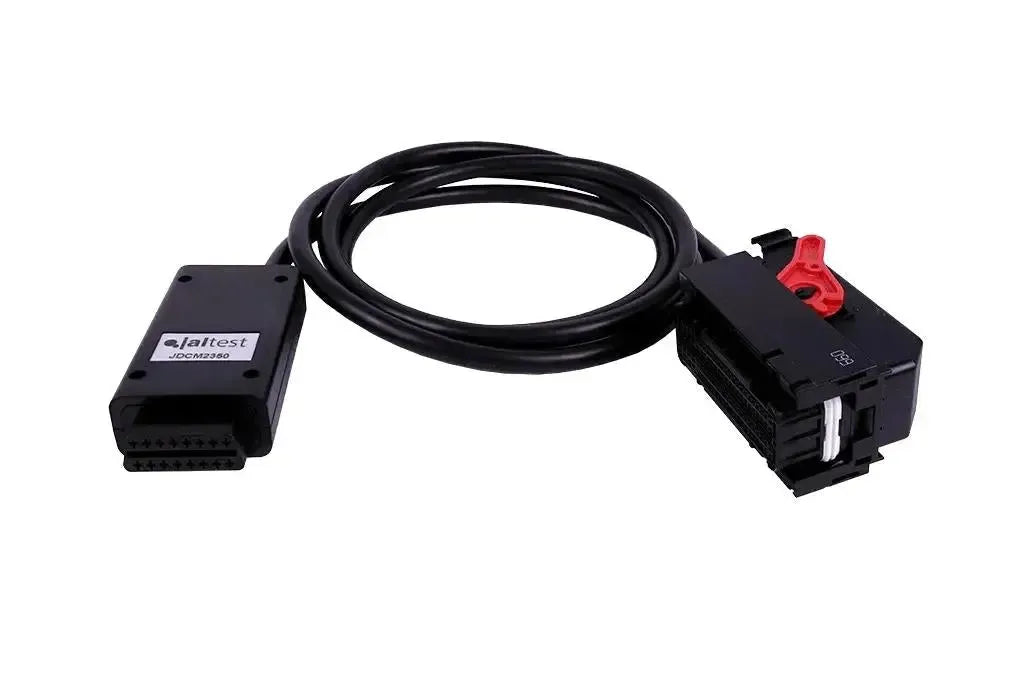

\nTheJaltest JDCM2350/2450 is the isolation cable harnessfor theCummins ECM CM2350 and CM2450. On the engine side there is one wide, flat 96-pin connectorthat you can use with ared lever locks onto the control unit. On the other end is a black plastic housing with the 16-pin OBD2-connection and the label JDCM2350. The cable between them is short and is shown looped once in the product photograph.\n
This is aphysical componentthat we send you and it is included withJaltest Central Services: A service based on pay per use, whereby Jaltest technicians can remotely perform functions that are not possible with a standard diagnostic device, such as reprogramming certain control units. For Cummins, that is the Cummins calibration update (70810000), for which a minimum ofsoftware version 24.1 is required. The ATS department may require you to have such a cable harness. To subscribe to Central Services, your Jaltest Link version V7 or newer are; the services are charged at credits (71101082).\n
KEY FEATURES
IMPORTANT NOTES
Applications and features
TheJDCM2350/2450 is a connector: He connects theCummins ECM CM2350 and CM2450directly to yourdiagnostic interface, apart from thevehicle wiring. What you then have carried out is part of Jaltest Central Services and runs via the ATS-team.
What the cable harness is used for
- Connection to the control unit:The96-pin connector with red lever connects to the Cummins ECM CM2350 and CM2450.
- Connection to the interface:The16-pin OBD2-side connects to the Jaltest Link.
- Tool for Central Services:TheATS Department may require you to have such a cable.
- One connector per cable harness: This version is compatible with the CM2350 and CM2450; for a different ECM type, there is a different isolation harness.
What Jaltest Central Services offers for Cummins
- Remote operation:Jaltest technicians perform functions that are not possible with a universal diagnostic device, such as reprogramming certain control units.
- Cummins calibration update (70810000): The service that Jaltest provides for Cummins requires a minimum of software version 24.1 .
- Pay-per-use billing: You purchase a service on a case-by-case basis and settle using credits; for Cummins, the reference is 71101082.
- Jaltest Link V7 or later: You cannot access Central Services with an older interface version.
- Through the ATS team: They will advise during your request whether a service is available for your control unit.
The Cummins range at a glance
The range includes five isolation cable harnesses. They differ in the number of pins, in the number of loose connectors on the engine side and in the cable length. Find the control unit you are working with; the version on this page is shown in bold.
| Reference | Control unit | Engine-side connection |
|---|---|---|
| JDCM850 | Cummins ECM CM850 | 4+50-pin |
| JDCM2150 | Cummins ECM CM2150 | 4+60-pin, two loose connectors |
| JDCM2250 | Cummins ECM CM2250 | 60-pin, one connector |
| JDCM2350/2450 | Cummins ECM CM2350 and CM2450 | 96-pin, single connector with red lever lock |
| JDCM2670/2880 | Cummins ECM CM2670 and CM2880 | 94+96-pin, two connectors behind a split |
Compatibility
The ECM type is what matters, not the engine series or vehicle make.This cable harness is designed for the Cummins ECM CM2350 and CM2450 with the 96-pin connection. With these isolation cable harnesses, no engine or vehicle coverage is specified: there is no list of engine series or vehicle makes to check whether the cable harness will work in your situation. What counts is the control unit nameplate and the number of pins on the connector.
- What does matter: The ECM type (Cummins ECM CM2350 and CM2450) and the number of pins on the ECM connector (96-pin).
- What does not matter: The engine series, vehicle make and year of manufacture; these are not specified for this cable harness.
- Check yourself: Read the control unit type from the nameplate and count the pins on the connector.
- Recognisable by the connector: One wide connector with a red lever belongs to this version; if there are two connectors on the control unit, you need the JDCM2670/2880.
Package contents
- 1x Jaltest (JDCM2350/2450) | Cummins (ECU) 96-pin – 16-pin OBD2 Adapter Cable | Commercial Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDCM2350/2450 |
| Type | Shielded cable harness |
| Engine-side connector | Cummins 96-pin, single wide plug with red lever lock |
| Interface-side connector | 16-pin OBD2 |
| Length | Not specified; the product photo shows the short version, noticeably shorter than the JDCM2150 and JDCM2250 |
| Interface | Jaltest Link, version V7 or later for Central Services |
| Compatible ECM | Cummins ECM CM2350 and CM2450 |
| Intended for | Jaltest Central Services — Cummins calibration update (70810000) |
| Requires | Software version 24.1 or higher for the Cummins calibration update |
| Segment | Commercial vehicles |
