With the Jaltest pressure test kit (50007006) you pressurise the cooling system. Using the hand pump, you bring the cold circuit up to pressure via the filler opening or the expansion tank, and the pressure gauge shows whether that pressure holds. If the needle drops, coolant is escaping somewhere: from a hose, a gasket, the radiator or a water jacket.

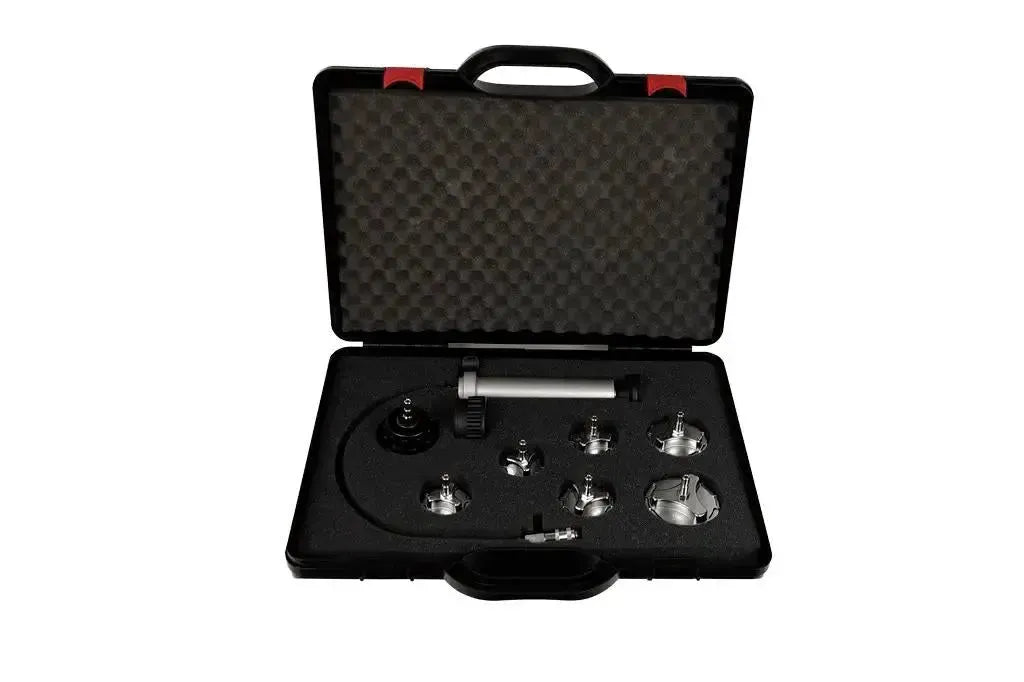

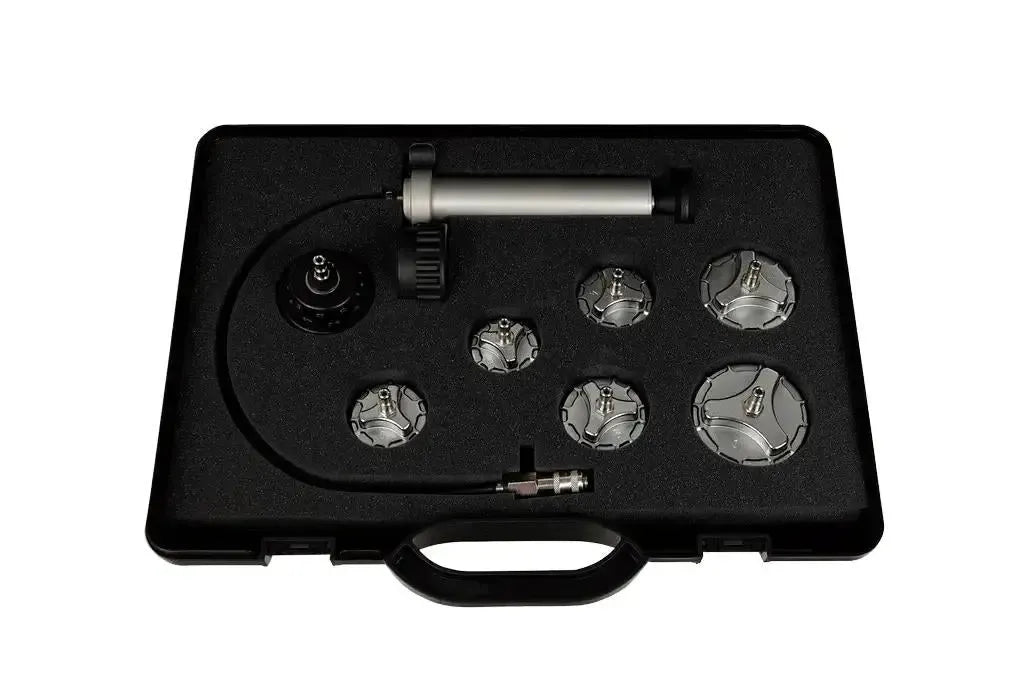

The case contains the pump with pressure hose and quick coupling, plus seven adapters: Six aluminium screw-in adapters of increasing diameter and a differently designed black adapter. The set is intended for trucks from DAF, MAN, Mercedes-Benz, Scania and Volvo, and for agricultural machines from New Holland. The case weighs 3,000 grams.
ADVANTAGES
POINTS TO NOTE
Applications and functionality
A loss of pressure in the cooling system is often not visible with the engine off: the leak may be too small, or it may be behind a heat shield. By pressurising the cold circuit to overpressure, you force the leak to show, while the pressure gauge indicates whether the system remains sealed.
What's in the case
- Hand pressure pump: With pressure gauge and pressure hose.
- Quick coupling: At the end of the pressure hose.
- 6 aluminium adapters: Increasing diameter, with nipple.
- Black adapter: Plastic housing, with nipple.
- Storage case: 470 x 400 x 115 mm.
What you can do
- Pressurise: Build up test pressure with the pump.
- Monitor pressure: If the needle drops, something is leaking.
- Locate the leak: The wet spot becomes visible.
- Assess the filler cap: Does the cap still seal?
How to use it
- Let it cool: Only work on a cold system.
- Select adapter: Choose the adapter that fits the filler neck.
- Connect hose: Attach the pressure hose with the quick coupling to the adapter.
- Build up pressure: Pump up to the pressure specified by the manufacturer.
- Read: Follow the needle and look for the wet spot.
Compatible vehicles and applications
The filler neck is decisive, not the model. The adapter must fit the filler opening or the expansion tank; the badge on the grille says little about this. For this reference, the following brands are listed as applications.
Commercial vehicle:
- DAF: Truck programme.
- MAN: Truck programme.
- Mercedes-Benz: Truck programme.
- Scania: Truck programme.
- Volvo: Truck programme.
Agricultural machine:
- New Holland: Tractors and harvesting machines.
Package contents
- 1x Hand pressure pump with pressure gauge, pressure hose and quick coupling
- 6x Aluminium screw adapter
- 1x Black adapter with plastic housing
- 1x Storage case
Technical specifications
General
- The brand of the tool. A well-known brand says something about the quality and the service.Brand
- Jaltest
- The type of tester. A refractometer measures the fluid; a pressure test kit finds leaks in the cooling system.Tester type
- Cooling system pressure test
Dimensions and weight
- Reference number
- 50,007,006
- Segment
- Commercial vehicle and agricultural machinery
Other specifications
- Type
- Workshop tool (cooling system pressure test kit)
- Design
- Hand pump with pressure gauge and interchangeable adapters
- Number of parts
- Eight: One hand pressure pump and seven adapters
- Contents
- Hand pressure pump with pressure gauge and pressure hose, six aluminium screw adapters, one black adapter and a storage case
- Application
- Pressurising the cooling system and checking for leaks
- Working pressure
- As specified by the vehicle manufacturer, guideline approximately 1 bar
- Pressure gauge measuring range
- Not documented
- Weight
- 3,000 grams
- Dimensions
- 470 x 400 x 115 mm
