\nThe Jaltest 50105190is the tool with which you can clear a blockedAdBlue or DEF dosing module flushes through rather than replaces. The case contains a stainless steel pressure vessel, 1.5 litre capacity that fluid to 60 °C can, two green EPDM flushing hoseswith quick couplings, two black connection hoses and eightloose adapters and couplings in various sizes. The case weighs 4,800 gram and measure 380 x 430 x 154 mm.\n
AdBlue and AdBlue are the same fluid: a urea solution in water. Once that solution has settled or dried, crystallisesthe urea deposits and accumulates as a white crust in the dosing module, the injector line and the injector itself. The result is ablockage, a fault message from the SCR aftertreatment systemand a power limitation. With this kit you pressurise the pressure vessel and flush through those three locations, so that theflow-through and the spray pattern returns to normal without needing to remove the module.\n
KEY FEATURES
IMPORTANT NOTES
Applications and functionality
Urea crystallisation always occurs at the same three locations in the dosing circuit. This kit addresses those points sequentially, using the pressure vessel as the source, the green flushing hoses as the connection to the dosing module and the spray bottle for targeted rinsing. How to use it is described below.
How to use the kit
- Flushing the dosing module: The pressure vessel forces the rinsing fluid through the internal channels of the module, loosening hardened urea deposits and restoring valve movement.
- Clearing the injector line: The line between module and injector clogs first, as fluid sits stagnant there and dries out.
- Cleaning the injector: A blocked spray nozzle produces an incorrect spray pattern in the exhaust; flushing restores proper atomisation.
- Targeted rinsing: The spray bottle with angled nozzle is designed for precise dosing and rinsing at your work location.
Which AdBlue and DEF systems this kit is suitable for
- NoNOx with Emitec: MAN TGL, TGM, TGS and TGX, and Euro 6 buses equipped with the Emitec system.
- Emitec with Cummins: The Emitec system in vehicles powered by a Cummins engine.
- Albonair: Volvo, Renault, UD Trucks and other Euro 6 vehicles.
- Bosch Denoxtronic 2.2 and 6-HD: DAF, Iveco, MAN, other Euro 6 vehicles, agricultural machinery and off-road equipment.
- Cummins Ecofit UL2: DAF, Mercedes-Benz, Scania, other Euro 6 vehicles, agricultural machinery and off-road equipment.
Compatible vehicles and applications
The AdBlue or DEF system is the determining factor, not the vehicle manufacturer. The following manufacturers are listed for this product, divided into commercial vehicle, bus and agricultural vehicle.
Commercial vehicle:
- European tractors and box vans: Including DAF, Iveco, MAN, Mercedes-Benz, Renault, Scania and Volvo.
- North American trucks: Including Freightliner, International, Kenworth, Mack, Peterbilt, Volvo USA and Western Star.
Bus:
- Coaches and city buses: Including Irizar, Iveco, MAN, Mercedes-Benz, Neoplan, Setra, Solaris, Van Hool, VDL Bus and Volvo.
Agricultural vehicles:
- Tractors and combine harvesters: Including Case IH, Claas, Deutz-Fahr, Fendt, JCB, Landini, Massey Ferguson, New Holland, Steyr, Valtra and Zetor.
Engine manufacturers:
- Standalone engines: Caterpillar, Cummins, Detroit Diesel - MBE, Hino, Iveco - FPT, Mack, Mercedes-Benz, Navistar, Paccar and Volvo.

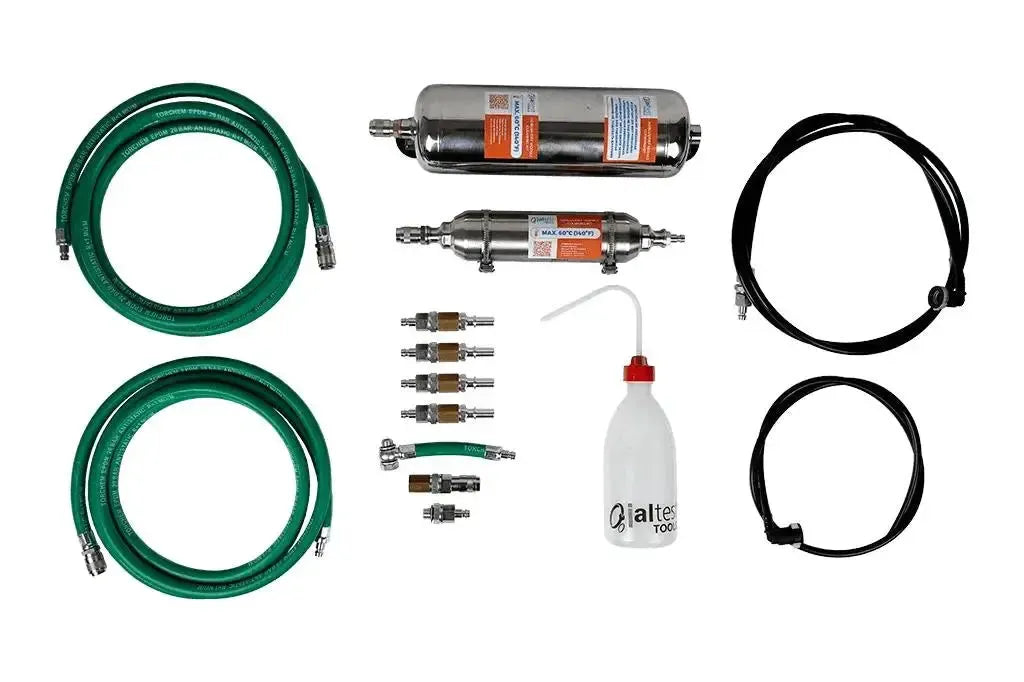

Package contents

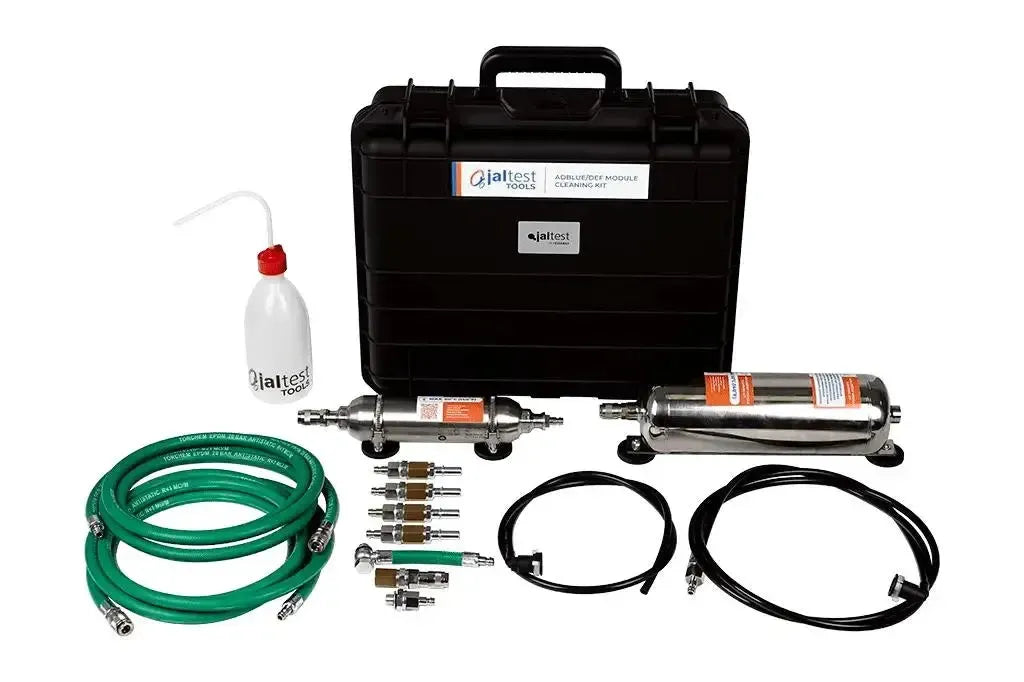

- 1x Case with foam insert, labelled AdBlue/DEF Module Cleaning Kit
- 1x Stainless steel pressure vessel, 1.5 litre capacity, labelled MAX. 60 °C (140 °F)
- 1x Green EPDM flushing hose with quick couplings, labelled TORCHEM EPDM 20 BAR ANTISTATIC
- 1x Green EPDM flushing hose with quick couplings, labelled TORCHEM EPDM 20 BAR ANTISTATIC
- 1x Black connection hose with angled coupling
- 1x Black connection hose with straight coupling
- 1x Straight adapter nipple
- 1x Straight adapter nipple
- 1x Straight adapter nipple
- 1x Straight adapter nipple
- 1x Angled adapter with short length of green hose
- 1x Transition adapter with copper-coloured sleeve
- 1x Loose quick coupling
- 1x Loose quick coupling
- 1xSpray bottle with angled nozzle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | 50105190 |
| Type | Cleaning kit for AdBlue and DEF metering module |
| Cleans | Metering module, injector line and injector |
| Systems | NoNOx with Emitec, Emitec on Cummins, Albonair, Bosch Denoxtronic 2.2 and 6-HD, Cummins Ecofit UL2 |
| Pressure vessel | 1.5 litre, stainless steel |
| Maximum fluid temperature | 60 °C (140 °F) |
| Number of components | 15 |
| Measuring instrument | Not included |
| Segment | Commercial vehicle, bus and agricultural vehicle |
| Weight | 4,800 grams |
| Dimensions | 380 x 430 x 154 mm |
| Related version | 50105219, with refractometer and without loose adapters |
| Diagnostic equipment required | No, this is a tool |
