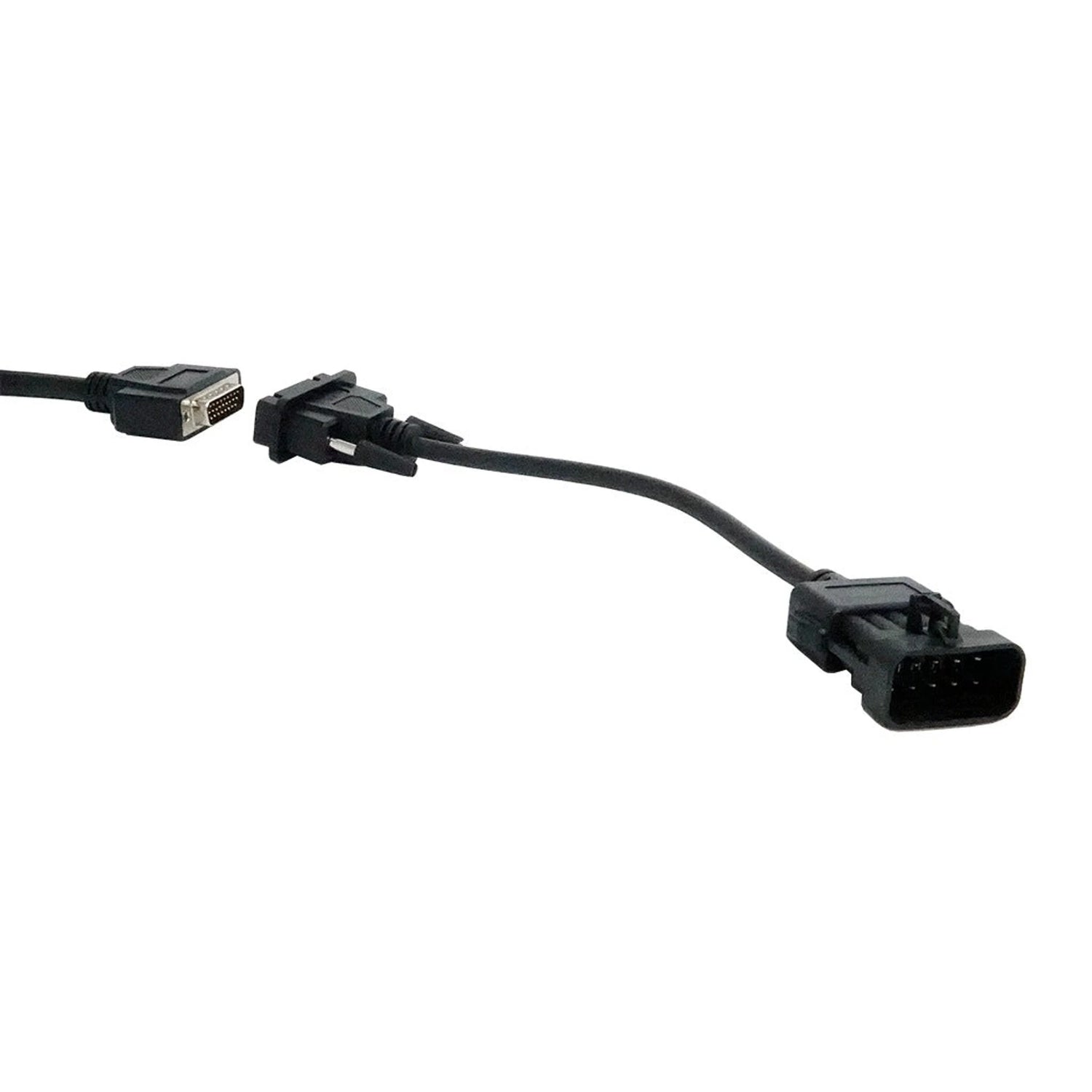

The Jaltest Marine adapter cable set Inboard (70002009) contains 8 cables that connect the proprietary diagnostic connector of an inboard marine engine to your Jaltest diagnostic cable. The set covers three brands: Volvo Penta with 3 connectors, Mercury with 4 and Yanmar with 1.
An inboard engine or sterndrive is installed in the hull. From Volvo Penta, the 6-pin, the EGCI and the 2-pin connector are included in this set. The 8-pin Volvo Penta connector (JDC528A) is included in the set for stationary engines, 70002006. For Mercury, the range runs from the older MEFI control system to SmartCraft G3. The cables fall under Jaltest Marine.
HIGHLIGHTS
POINTS TO NOTE
Applications and functionality
Each cable in this set converts a proprietary diagnostic connector to the standard connector of the Jaltest Link. What you can do afterwards is determined by the Jaltest software and the coverage table for that engine.

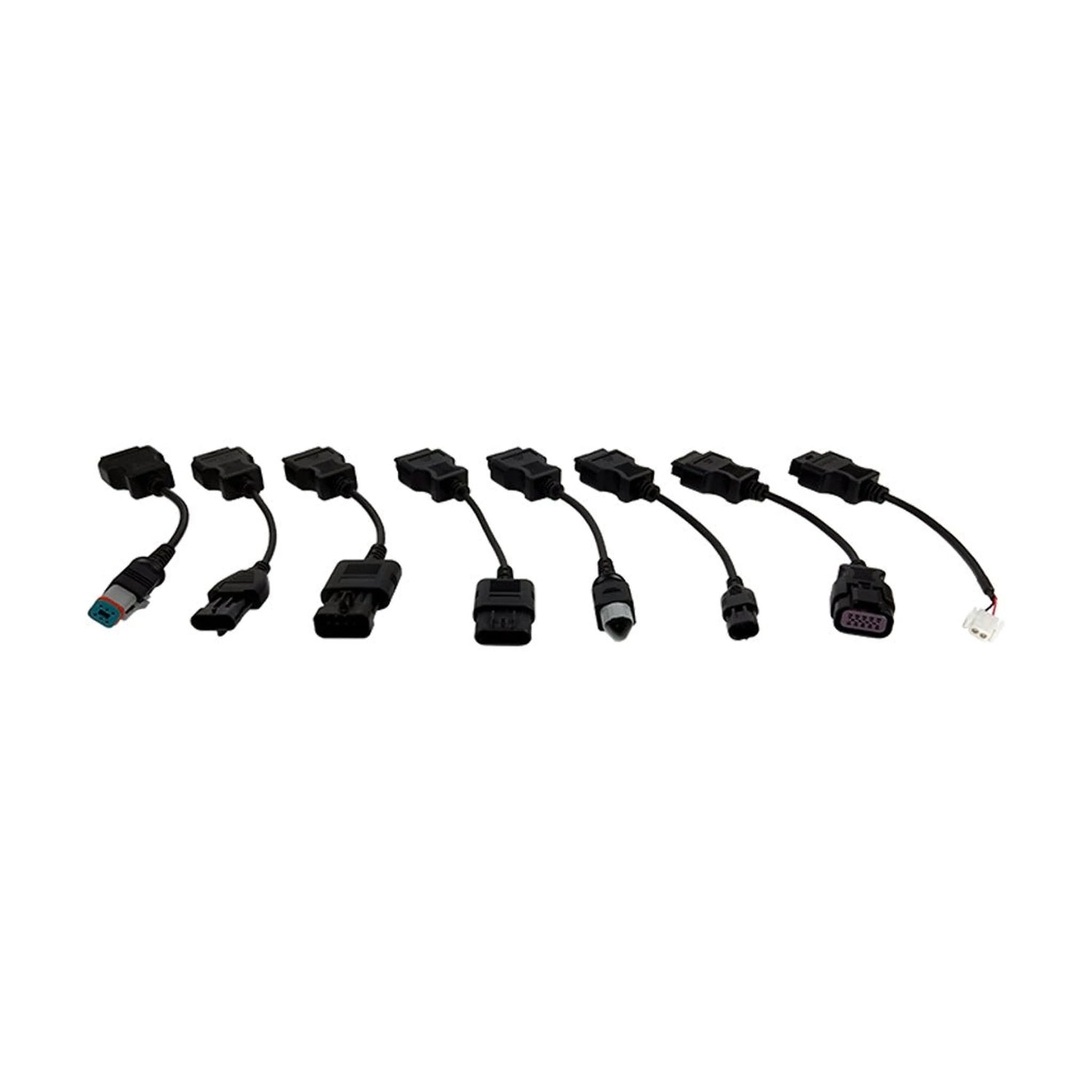

What is in the set
- JDC527A: Volvo Penta, 6-pin.
- JDC603A: Mercury, 4-pin.
- JDC604.9: Mercury MEFI 1 to 4, 10-pin.
- JDC611A: Volvo Penta EGCI, 6-pin.
- JDC612A: Yanmar, 3-pin.
- JDC614A: Mercury A9, 2-pin.
- JDC617A: Mercury SmartCraft G3, 10-pin.
- JDC618A9: Volvo Penta, 2-pin.
What you can do
- Fault codes: Read and clear after repair.
- Measured values: Live in figures and graph.
- Components: Actuation, where the coverage allows it.
- Settings: Configuration and maintenance.
How to use it
- Check the connector: Look at the engine to see which connector is fitted.
- Choose the cable: Take the cable that matches that connector.
- Connect: To your diagnostic cable, via the JDC100B if necessary.
- Start the software: Open Jaltest on the PC and connect the Link.
- Read out: Select brand and engine in Jaltest Marine.
Compatible vehicles and applications
What matters is the engine, not the boat. An inboard engine is installed as a separate drive, so the same diagnostic connector appears in hulls from various boatyards.
Volvo Penta:
- Inboard engines and sterndrives: With the 6-pin, EGCI and 2-pin connectors.
Mercury:
- Inboard engines: From the MEFI control system to SmartCraft G3.
Yanmar:
- Marine engines: Also as auxiliary engines in sailing boats.
Package contents
- 1x Jaltest (JDC527A) | Volvo Penta 6-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine
- 1x Jaltest (JDC603A) | Mercury 4-pin OBD – 16-pin OBD2 Adaptor Cable | Powerboat
- 1x Jaltest (JDC604.9) | Mercury (MEFI 1-4) 10-pin OBD – 16-pin OBD2 Adapter Cable | Motor boat
- 1x Jaltest (JDC611A) | Volvo Penta (EGCI) 6-pin OBD - 16-pin OBD2 Adapter Cable | Motor boat
- 1x Jaltest (JDC612A) | Yanmar 3-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine
- 1x Jaltest (JDC614A) | Mercury (A9) 2-pin OBD – 16-pin OBD2 Adapter Cable | Motor boat
- 1x Jaltest (JDC617A) | Mercury (SmartCraft G3) 10-pin ECU – 16-pin OBD2 Adapter Cable | Motor Boat
- 1x Jaltest (JDC618A9) | Volvo Penta 2-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- Jaltest
- The number of vehicle brands the cable is suitable for. Many adapter cables only fit one brand with its own connector.Number of vehicle brands
- 3 brands
Suitable for
- The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
- Jaltest
Size and weight
- Reference number
- 70,002,009
Other specifications
- Number of cables
- 8 stuks
- Contents
- JDC527A, JDC603A, JDC604.9, JDC611A, JDC612A, JDC614A, JDC617A and JDC618A9
- Application
- Brand-specific diagnostic connectors for inboard engines
- Interface
- Jaltest Link; for the JDC604.9 and JDC614A, the extension cable JDC100B is required with a Jaltest Link V9
- Part of
- Jaltest Marine
