Jaltest  |  SKU: 70002008

Jaltest (70002008) | Marine Adapter Cable Set Vessel (13 Cables) | Motor Boat

€941,95 incl.
€778,47 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Jaltest Marine adapter cable set Vessel (70002008) contains thirteen cables that connect the manufacturer-specific diagnostic connector of a marine engine to your Jaltest diagnostic cable. The set covers inboard engines from Volvo Penta, Mercury and Yanmar and outboard engines from Honda, Suzuki, Yamaha and Evinrude.

The set includes the cables of the inboard set and the outboard set, plus the 8-pin Suzuki connector (JDC613A). Only the Evinrude NMEA 2000 branch cable (JDC628A) from the outboard set is missing. Mercury is covered with four cables, as that brand has used various control systems over the years, from MEFI to SmartCraft G3. The cables fall under Jaltest Marine.

HIGHLIGHTS

✔With thirteen cables you are connected from the inboard engine to the outboard engine.
✔Mercury is included with four cables, from the older MEFI control system through to SmartCraft G3.
✔As the only Marine set, this one includes the 8-pin Suzuki connector (JDC613A) alongside the 4-pin.
✔Volvo Penta is covered with three connectors: the 6-pin, the EGCI and the 2-pin.

POINTS TO NOTE

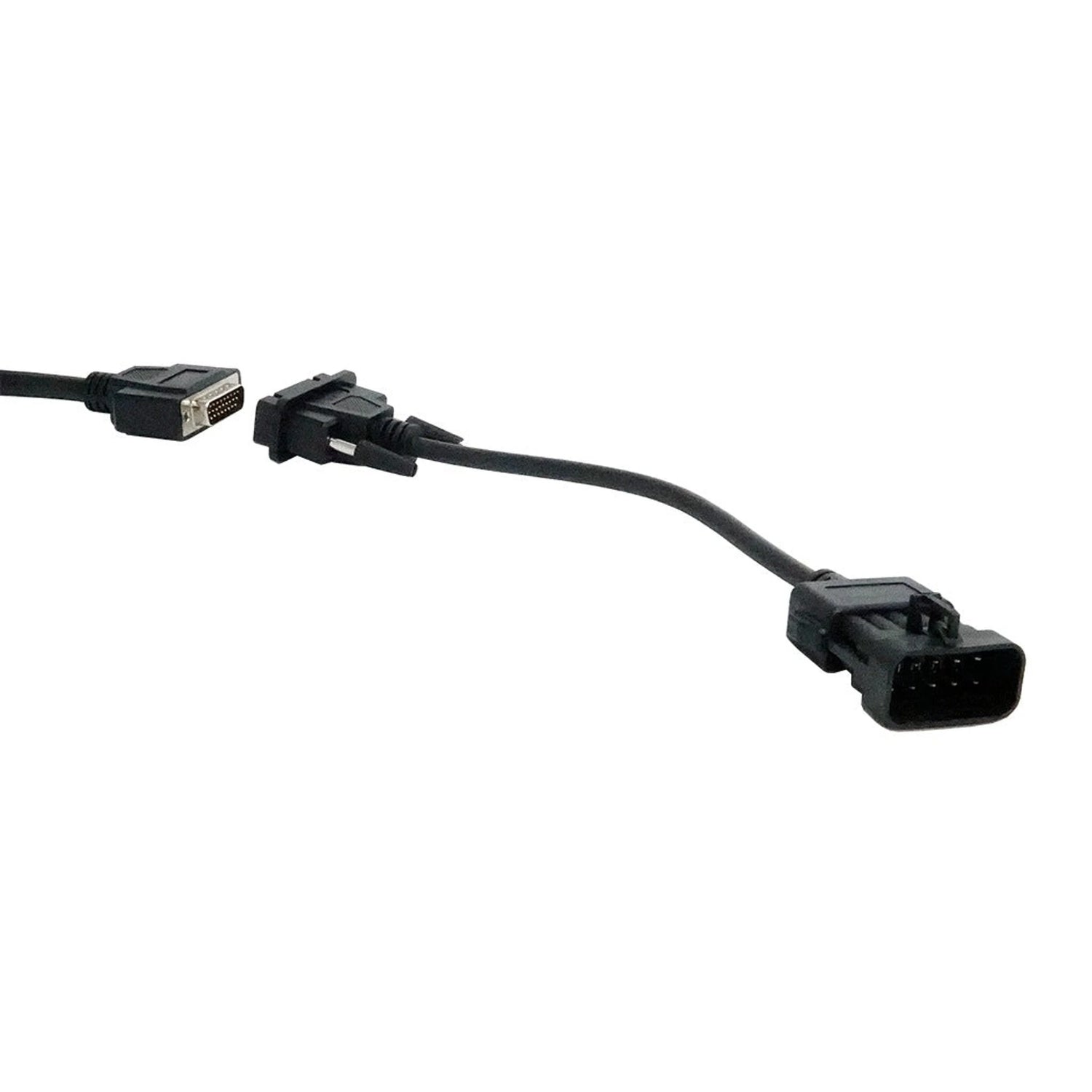

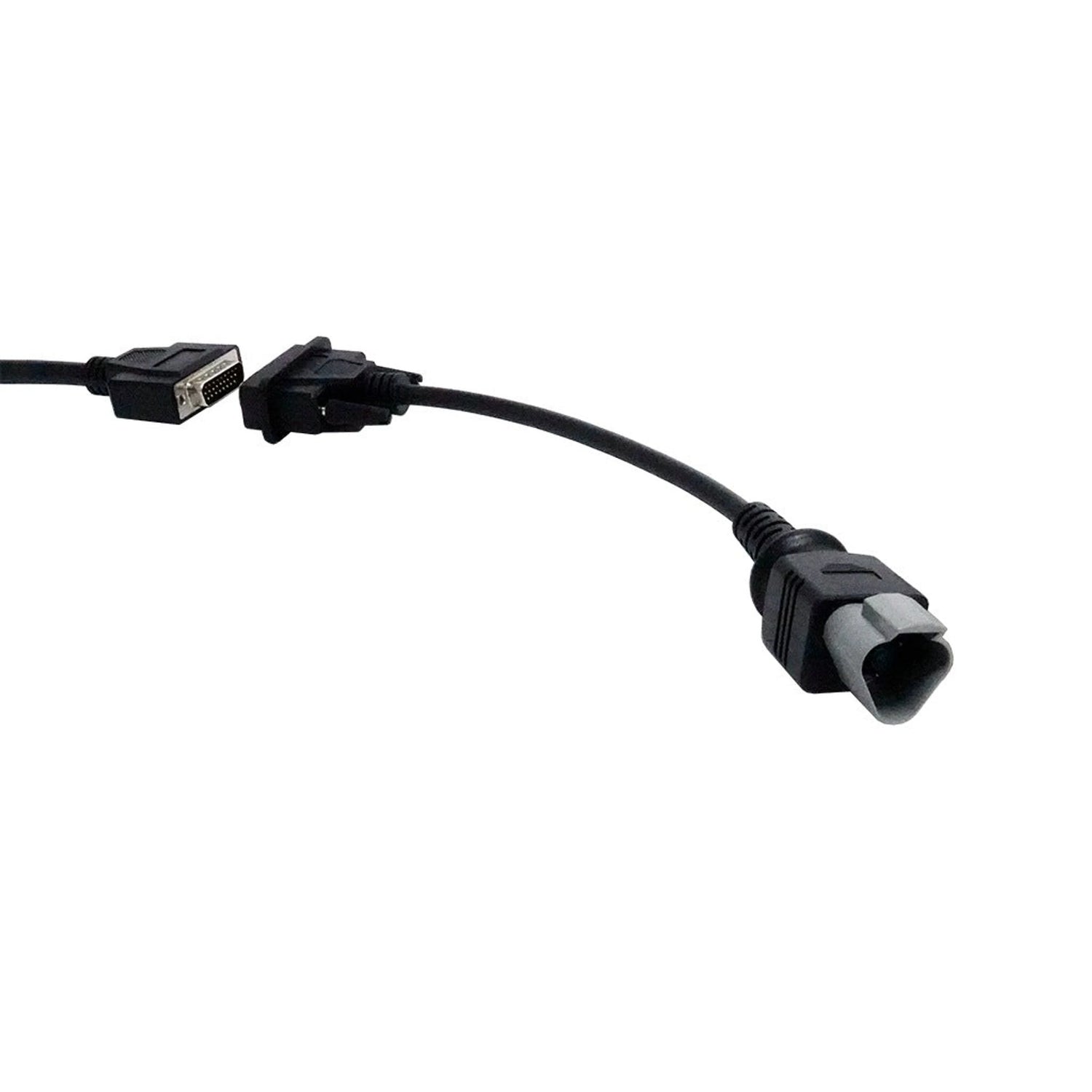

✕For the JDC604.9, the JDC609.9 and the JDC614A, you need the extension cable JDC100B with a Jaltest Link V9.
✕The JDC628A (Evinrude NMEA 2000) is not included in this set, but only in the outboard set 70002025.
✕Personal watercraft require their own cable set: 29985, which includes the connectors of BRP Sea-Doo and Kawasaki and the IMMO adapters.
✕The marine market has dozens of manufacturer-specific connectors and not every engine is covered by this set. Check the plug fitted to the engine itself before ordering.

Applications and functions

Each cable in this set converts a manufacturer-specific diagnostic connector to the standard connector of the Jaltest Link. What you can do next is determined by the Jaltest software and the coverage table for that engine. The set combines the inboard and outboard sides, so you do not have to choose between the two on a jobsite.

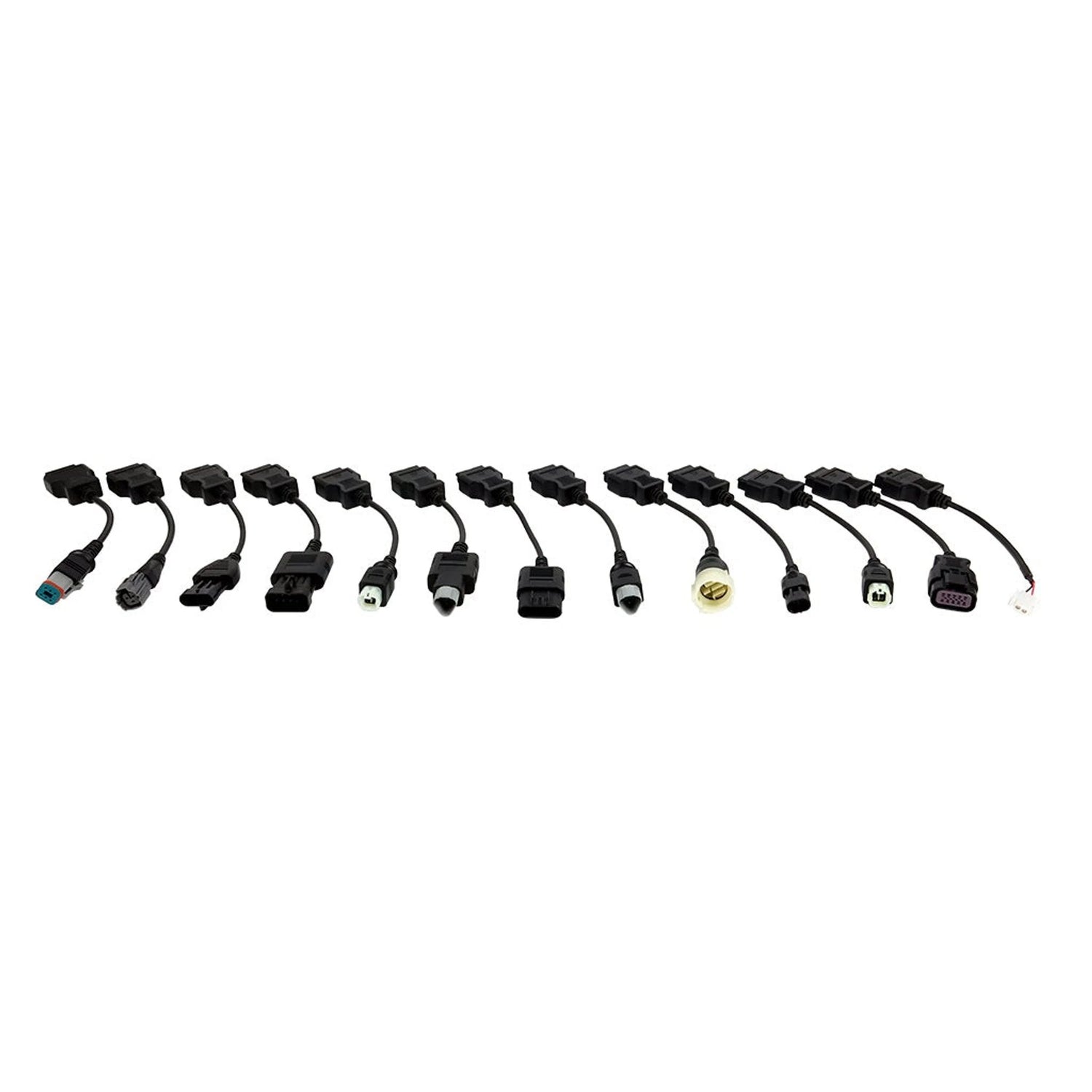

What is in the set

  • JDC527A: Volvo Penta, 6-pin.
  • JDC601A: Yamaha, 3-pin.
  • JDC603A: Mercury, 4-pin.
  • JDC604.9: Mercury MEFI 1 to 4, 10-pin.
  • JDC608A: Honda outboard, 4-pin.
  • JDC609.9: Evinrude outboard.
  • JDC611A: Volvo Penta EGCI, 6-pin.
  • JDC612A: Yanmar, 3-pin.
  • JDC613A: Suzuki outboard, 8-pin.
  • JDC614A: Mercury A9, 2-pin.
  • JDC616A: Suzuki outboard, 4-pin.
  • JDC617A: Mercury SmartCraft G3, 10-pin.
  • JDC618A9: Volvo Penta, 2-pin.

What you can do

  • Fault codes: Read and clear after repair.
  • Measured values: Live in figures and graph.
  • Components: Actuation, where the coverage provides it.
  • Settings: Configuration and maintenance.

How to use it

  1. Check the connector: Look at the engine to see which connector is fitted.
  2. Choose the cable: Select the cable that matches that connector.
  3. Connect: To your diagnostic cable, via the JDC100B if required.
  4. Start the software: Open Jaltest on the PC and connect the Link.
  5. Read out: Select brand and engine in Jaltest Marine.

Compatible vehicles and applications

The engine is what counts, not the boat. A marine engine is installed as a standalone drive, so the same diagnostic connector appears in hulls from different yards.

Inboard engines:

  • Volvo Penta: Inboard engines and sterndrives, with the 6-pin, EGCI and 2-pin connectors.
  • Mercury: Inboard and outboard engines, from MEFI control to SmartCraft G3.
  • Yanmar: Marine engines with the 3-pin connector.

Outboard engines:

  • Honda: With the 4-pin connector.
  • Suzuki: With the 4-pin and with the 8-pin connector.
  • Yamaha: With the 3-pin connection.
  • Evinrude: Outboard motors from Evinrude.
💡
Good to know: A boat may have several control units on board: the engine management, the instrument bus and sometimes a separate control module. Which cable you need depends on the system you want to read. Check on the engine itself which connector is fitted before ordering.

Package contents

  • 1x Jaltest (JDC527A) | Volvo Penta 6-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine
  • 1x Jaltest (JDC601A) | Yamaha 3-pin OBD – 16-pin OBD2 Adaptor Cable | Personal Watercraft
  • 1x Jaltest (JDC603A) | Mercury 4-pin OBD – 16-pin OBD2 Adaptor Cable | Powerboat
  • 1x Jaltest (JDC604.9) | Mercury (MEFI 1-4) 10-pin OBD – 16-pin OBD2 Adapter Cable | Motor boat
  • 1x Jaltest (JDC608A) | Honda 4-pin OBD – 16-pin OBD2 Adapter Cable | Motor boat
  • 1x Evinrude Adaptor Cable (JDC609.9)
  • 1x Jaltest (JDC611A) | Volvo Penta (EGCI) 6-pin OBD - 16-pin OBD2 Adapter Cable | Motor boat
  • 1x Jaltest (JDC612A) | Yanmar 3-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine
  • 1x Jaltest (JDC613A) | Suzuki 8-pin OBD - 16-pin OBD2 Adapter Cable | Motor boat
  • 1x Jaltest (JDC614A) | Mercury (A9) 2-pin OBD – 16-pin OBD2 Adapter Cable | Motor boat
  • 1x Jaltest (JDC616A) | Suzuki 4-pin OBD – 16-pin OBD2 Adapter Cable | Motor boat
  • 1x Jaltest (JDC617A) | Mercury (SmartCraft G3) 10-pin ECU – 16-pin OBD2 Adapter Cable | Motor Boat
  • 1x Jaltest (JDC618A9) | Volvo Penta 2-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
Jaltest (Cojali)
The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
Adapter cable
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
  • Marine vessels

Usage

Reference number
70,002,008

Other specifications

Number of cables
13 stuks
Contents
JDC527A, JDC601A, JDC603A, JDC604.9, JDC608A, JDC609.9, JDC611A, JDC612A, JDC613A, JDC614A, JDC616A, JDC617A and JDC618A9
Application
Brand-specific diagnostic connectors for marine engines
Interface
Jaltest Link; for the JDC604.9, JDC609.9 and JDC614A, the extension cable JDC100B is required with a Jaltest Link V9
