Jaltest  |  SKU: 70002006

Jaltest (70002006) | Marine Adapter Cable Set Stationary Engines (4 Cables) | Internal Combustion Engine

€606,95 incl.
€501,61 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Marine adapter cable set for Stationary Engines (70002006) contains four cables that connect the diagnostic connector of a fixed-installation engine to the Jaltest Link. The set covers Caterpillar and Perkins, Volvo Penta and Yanmar, as well as the standardised J1939 connector.

A stationary engine does not power a vehicle but a generator, a pump or another fixed installation. The same engine blocks are also fitted in boats and machines, with the same diagnostic connector. The JDC217.9 covers the 9-pin Deutsch connector according to J1939, which returns on newer blocks regardless of brand. The cables fall under Jaltest Marine.

HIGHLIGHTS

✔With four cables, you can service stationary engines from Caterpillar, Perkins, Volvo Penta and Yanmar.
✔The JDC217.9 connects directly to the Jaltest Link V9 via its 26-pin DB26, without an intermediate cable.
✔The same engine blocks are found in generator sets, pump installations and marine engines, so the cables are widely applicable.
✔The JDC528A covers the 8-pin connector of Volvo Penta, in addition to the 6-pin connector from the inboard set.

POINTS TO NOTE

✕The JDC217.9 is listed for the Jaltest Link V9; the other cables in this set also work with the V8.1.
✕For inboard engines, set 70002009 is required, and for outboard engines, set 70002025.
✕The 6-pin Volvo Penta connector (JDC527A) is not included in this set; it belongs to the inboard set.
✕Stationary engines are supplied by many manufacturers, and not every brand is included in this set. Check the connector fitted to the engine itself before ordering.

Applications and functionality

Each cable in this set converts a manufacturer-specific diagnostic connector to the standard connector of the Jaltest Link. What you can do afterwards is determined by the Jaltest software and the coverage table for that block, not by the cable. A stationary engine is read out in the same way as the same block in a vessel or a machine.

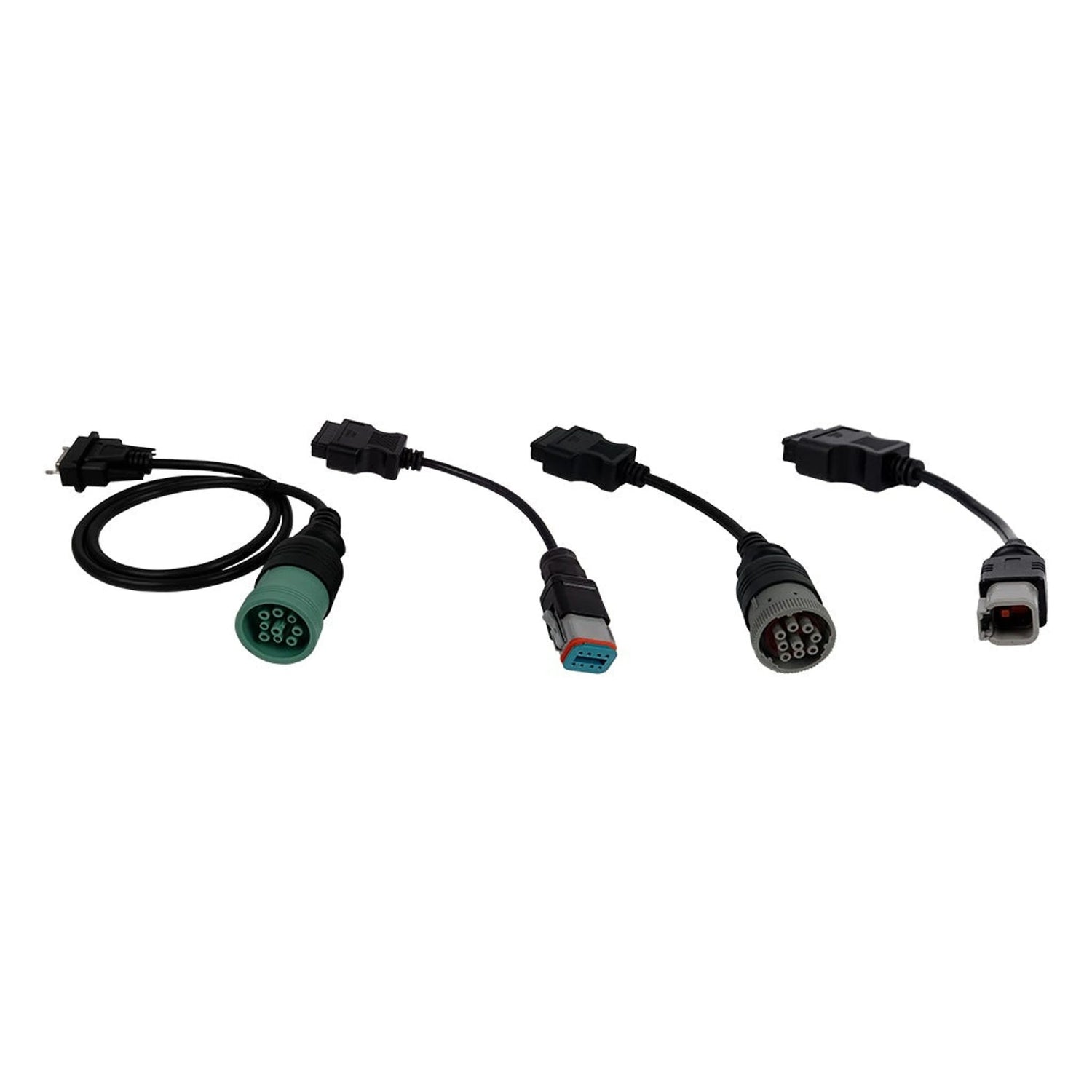

What is included in the set

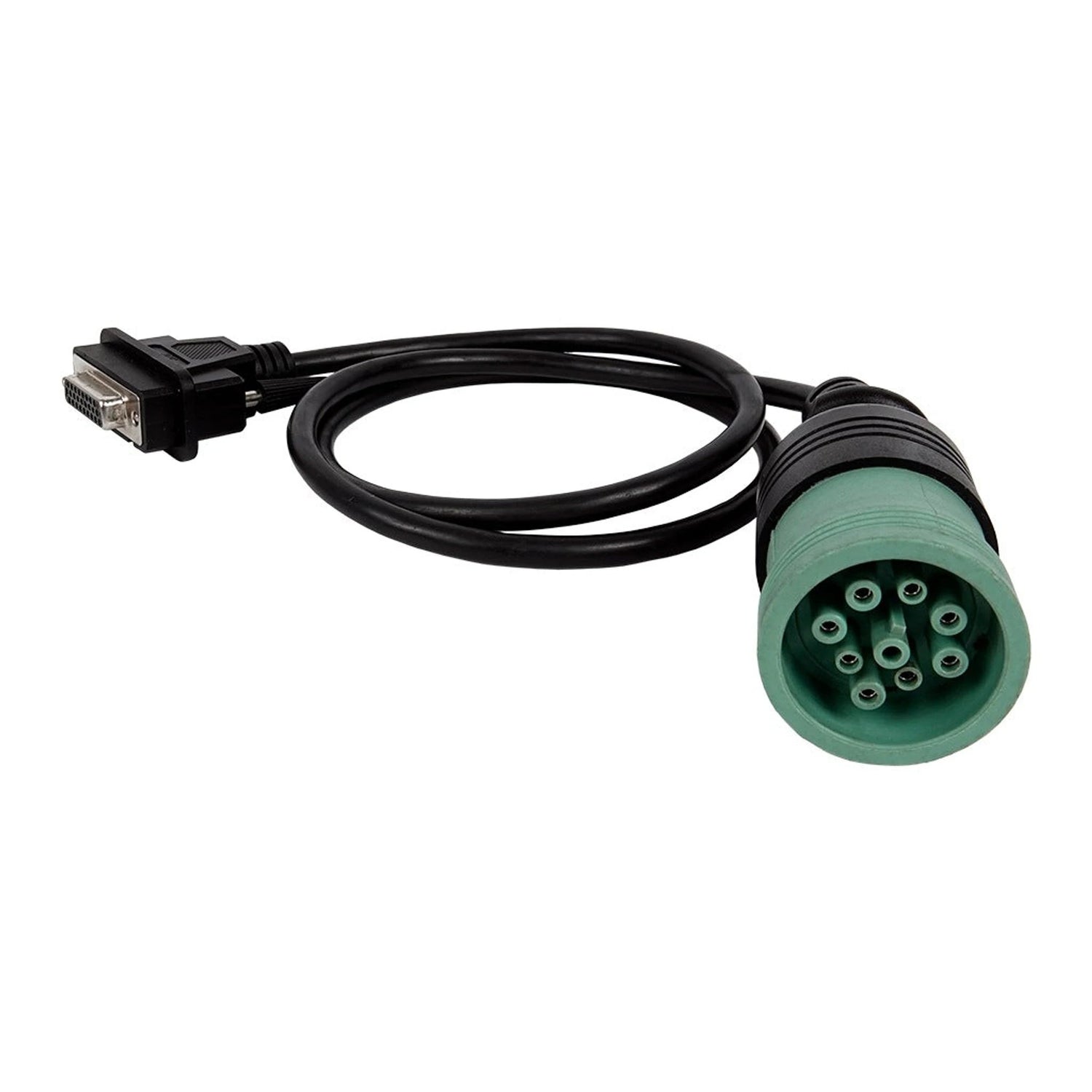

  • JDC217.9: Deutsch 9-pin green, J1939 to DB26.

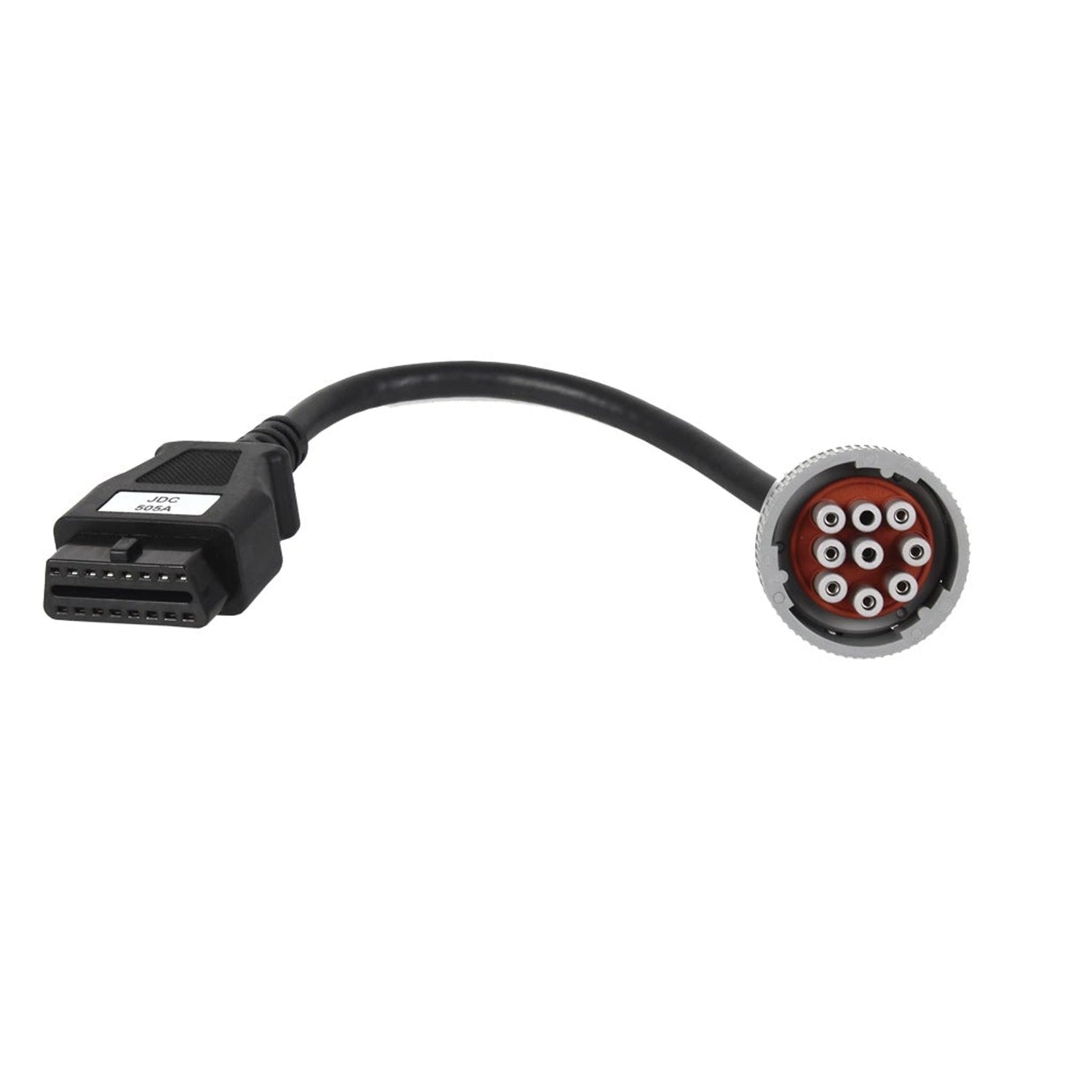

  • JDC505A: CAT and Perkins 9-pin to OBD2.

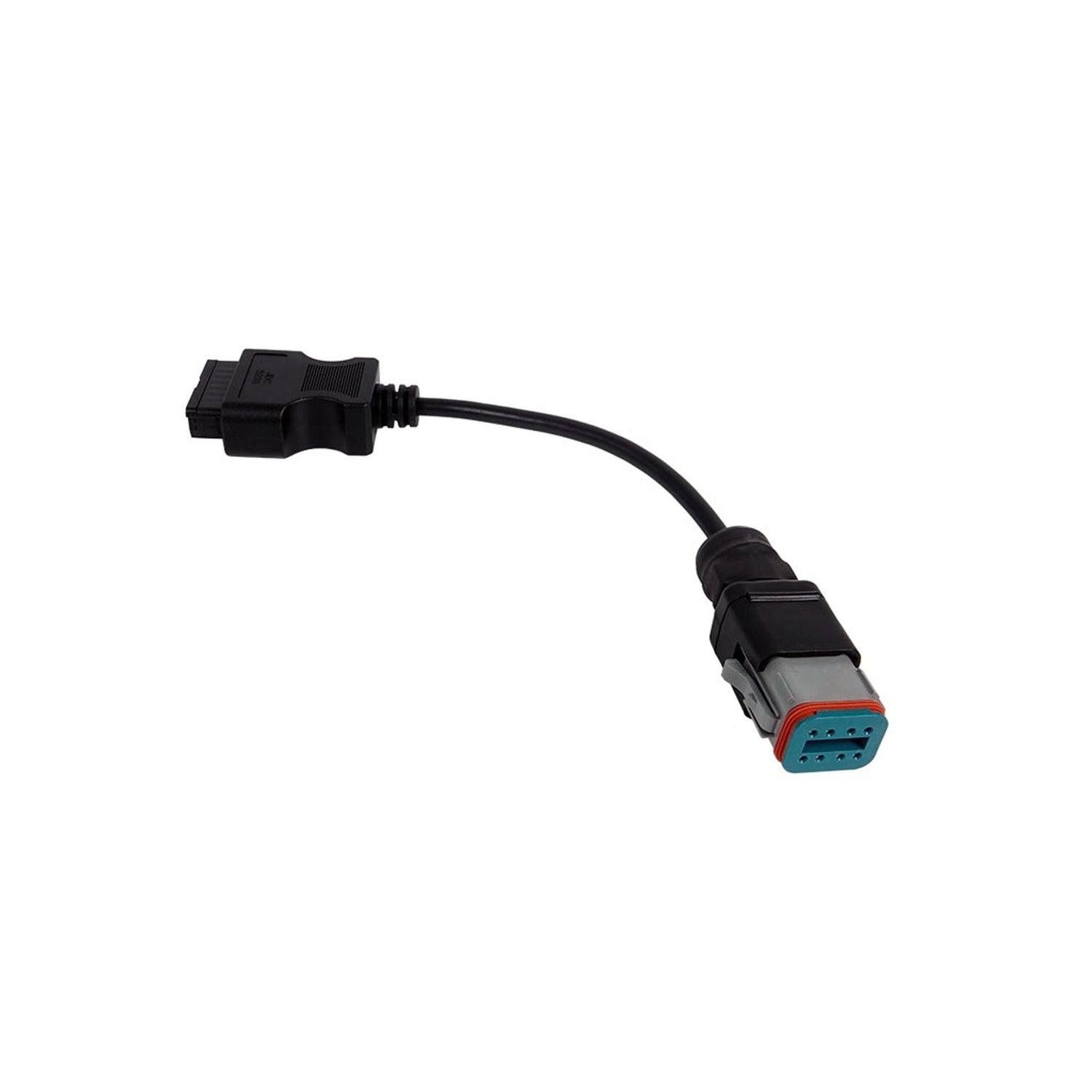

  • JDC528A: Volvo Penta 8-pin to OBD2.

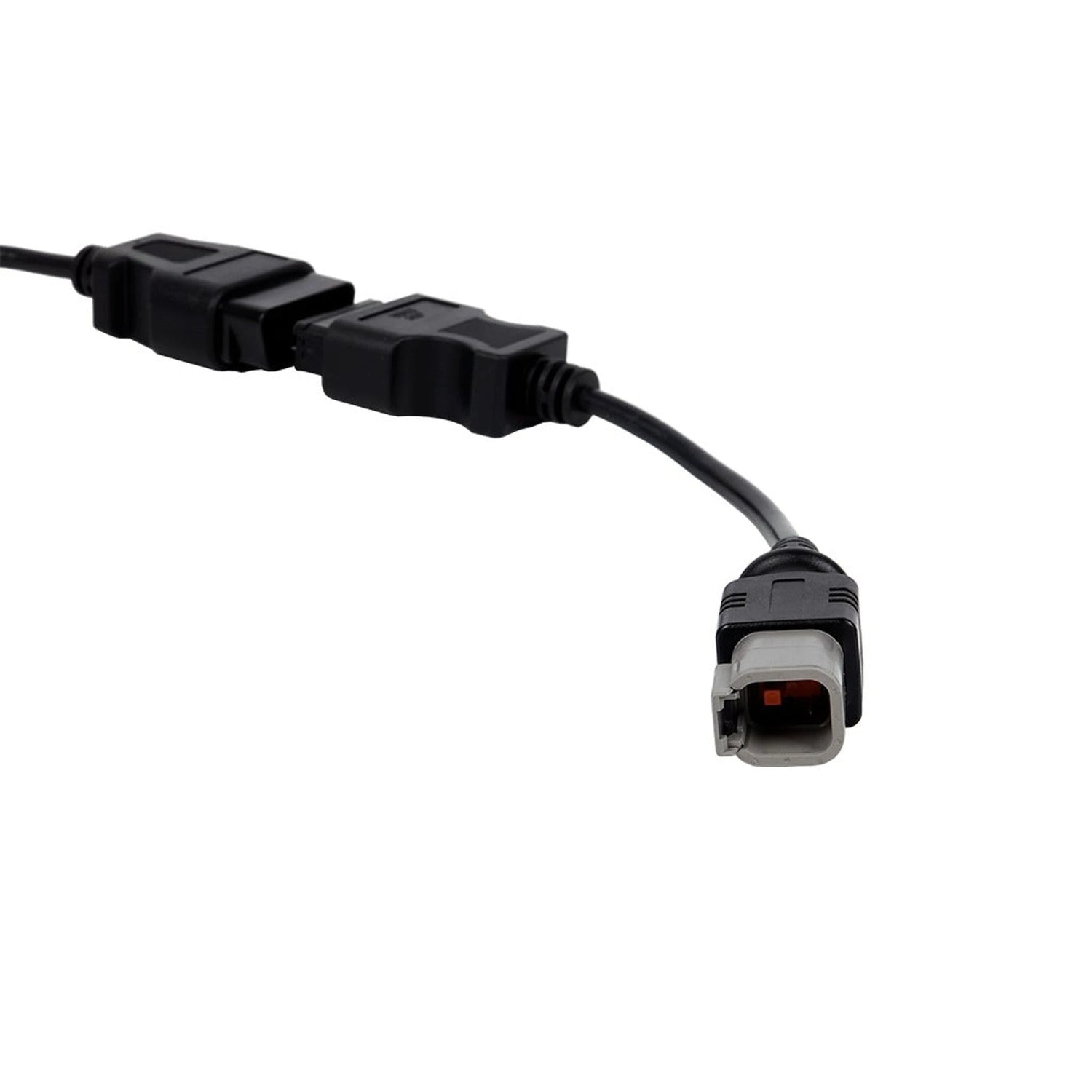

  • JDC538A: Yanmar 6-pin to OBD2.

What you can do

  • Fault codes: Read and clear.
  • Live data: Measured values in figures and graphs.
  • Components: Control components where coverage allows.
  • Settings: Configuration and maintenance functions.

How to use it

  1. Check connector: Check which connector is fitted to the engine.
  2. Select cable: Choose the JDC cable for that brand or J1939.
  3. Connect: Connect the cable to the Jaltest Link; the JDC217.9 directly to the V9.
  4. Start software: Open Jaltest on the PC.
  5. Read out: Select the brand and engine, and read out the control unit.

Compatible vehicles and applications

The engine block is what counts, not the installation. A stationary engine is supplied as a standalone drive unit and then built into a generator set, a pump installation or a vessel. The same diagnostic connector therefore appears in installations from various builders.

Deutsch 9-pin green (J1939):

  • Brand-independent: On newer blocks, JDC217.9.

Caterpillar and Perkins:

  • Stationary blocks: In generator sets and pump installations, JDC505A.

Volvo Penta:

  • Stationary and marine: 8-pin connector, JDC528A.

Yanmar:

  • Stationary and marine: 6-pin connector, JDC538A.
💡
Good to know: A stationary engine has the same diagnostic connector as the same block in a boat or a machine. Which cable that is depends on the engine manufacturer, not on the installation around it. Check the connector fitted to the engine itself before ordering.

Package contents

  • 1x Jaltest (JDC217.9) | 9-pin J1939 - 26-pin DB26 Adapter Cable | Commercial and Work Vehicle
  • 1x Jaltest (JDC505A) | CAT/Perkins 9-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine
  • 1x Jaltest (JDC528A) | Volvo Penta 8-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine
  • 1x Jaltest (JDC538A) | Yanmar 6-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Jaltest

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • Jaltest

Size and weight

Reference number
70,002,006

Other specifications

Number of cables
4 stuks
Contents
JDC217.9, JDC505A, JDC528A and JDC538A
Application
Manufacturer-specific diagnostic connectors on stationary engines
Interface
Jaltest Link V8.1 and V9; the JDC217.9 only works on the V9
Part of
Jaltest Marine
