Jaltest  |  SKU: 70002005

Jaltest (70002005) | Multi-Purpose Adapter Cable Set (5 Cables) | Commercial and Work Vehicles

€579,95 incl.
€479,30 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Multi-Purpose adapter cable set (70002005) contains five cables for sweepers and implement carriers. It lets you connect the diagnostic connector of multi-purpose equipment to the Jaltest Link. The set combines the chassis connectors of Mercedes-Benz and Iveco with the engine connectors for Kubota and FPT.

A sweeper or winter service vehicle is often a body built on an existing chassis. The chassis side then comes from a commercial vehicle brand, and the drive from a separate engine supplier. The JDC217.9 also serves the standardised J1939 connector, which appears across brands on newer equipment. The cables fall under Jaltest Multi-Purpose Vehicle.

HIGHLIGHTS

✔The set covers the chassis side and the engine side of the equipment, so that on a sweeper you do not have to choose between the two.
✔You get the chassis connectors for bodied equipment for Mercedes-Benz (JDC203A) and Iveco (JDC206A).
✔The engine cables for Kubota and FPT work independently of the machine builder, because those engines are fitted in equipment from various builders.
✔The JDC217.9 connects directly to the Jaltest Link V9 via its 26-pin DB26, without an intermediate cable.

POINTS TO NOTE

✕The JDC217.9 is listed for the Jaltest Link V9; the other cables in this set also work with the V8.1.
✕The set covers the chassis and the engine. The body itself, such as the brush drive or the spreader control, has its own system that is not covered here.
✕Chassis from MAN and DAF require their own cables, including the JDC207A, JDC210A and JDC209A; these are not included in this set.
✕For Deutz engines, Jaltest supplies its own cables, the JDC570A (19-pin) and the JDC504A (12-pin), which are not included in this set. Check the connector fitted to the machine itself before ordering.

Applications and functionality

Each cable in this set converts a proprietary diagnostic connector to the standard Jaltest Link connector. What you can do afterwards is determined by the Jaltest software and the machine's coverage table, not by the cable. The set combines chassis connectors and engine connectors.

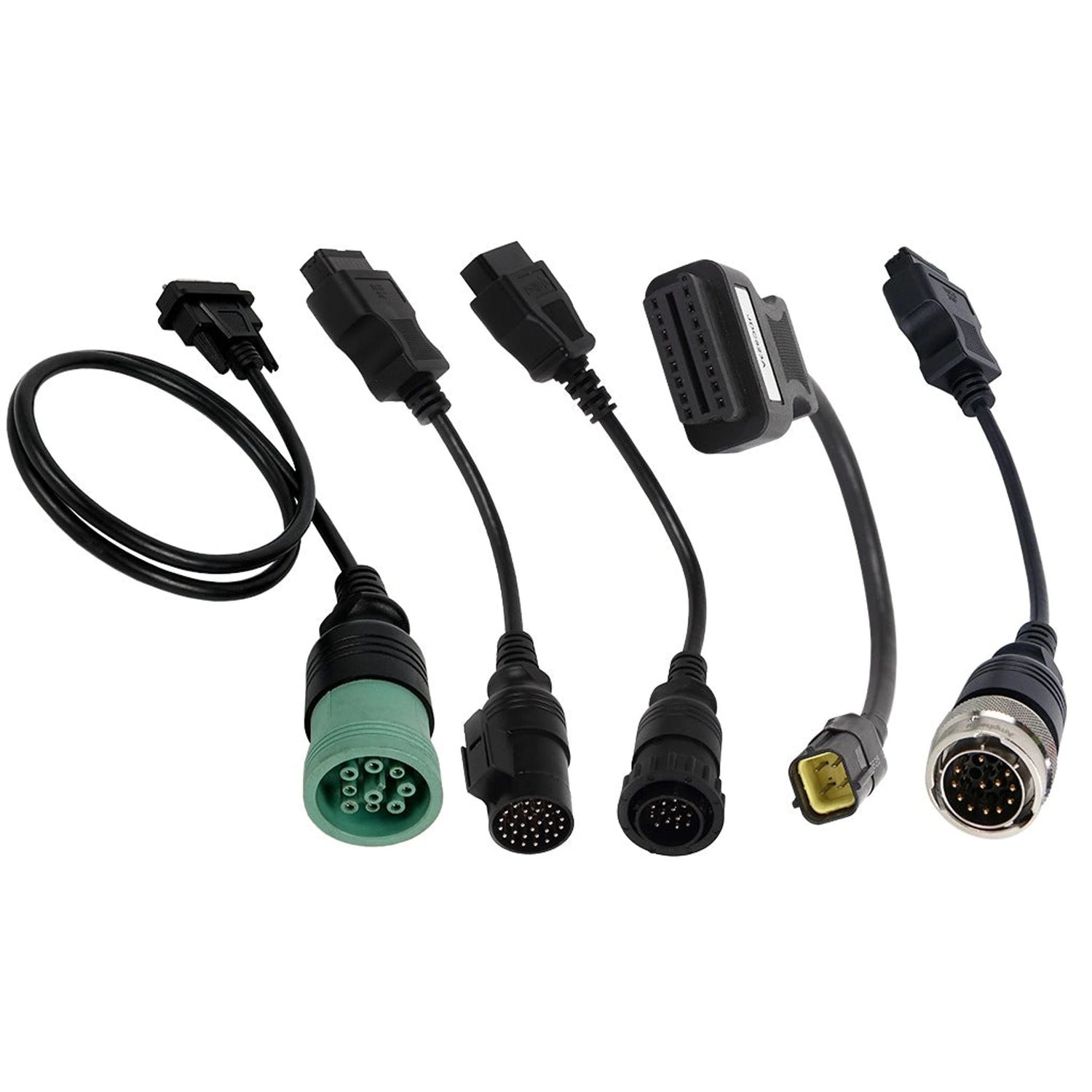

What is included in the set

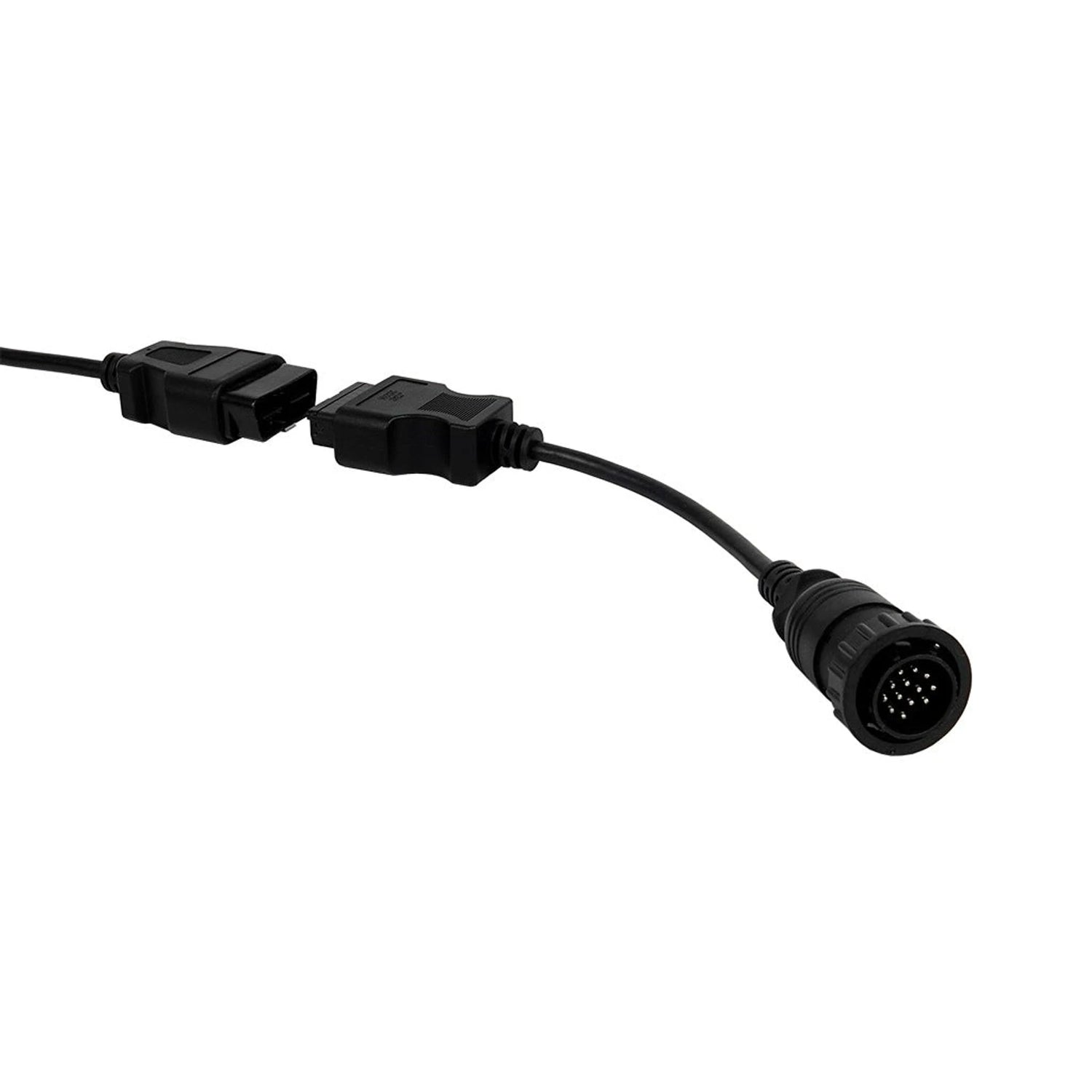

  • JDC203A: Mercedes-Benz and MTU, round 14-pin.

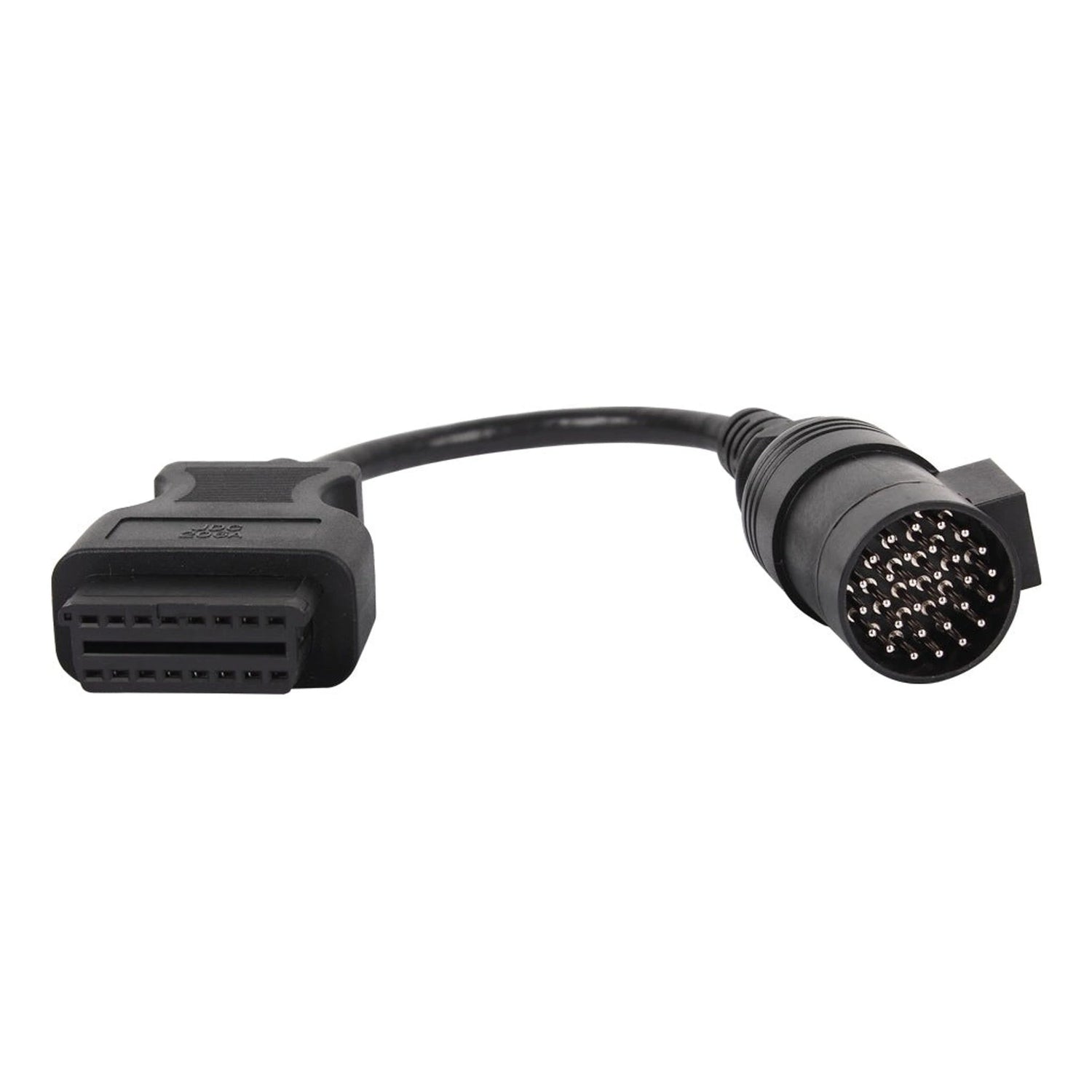

  • JDC206A: Iveco 30-pin to OBD2.

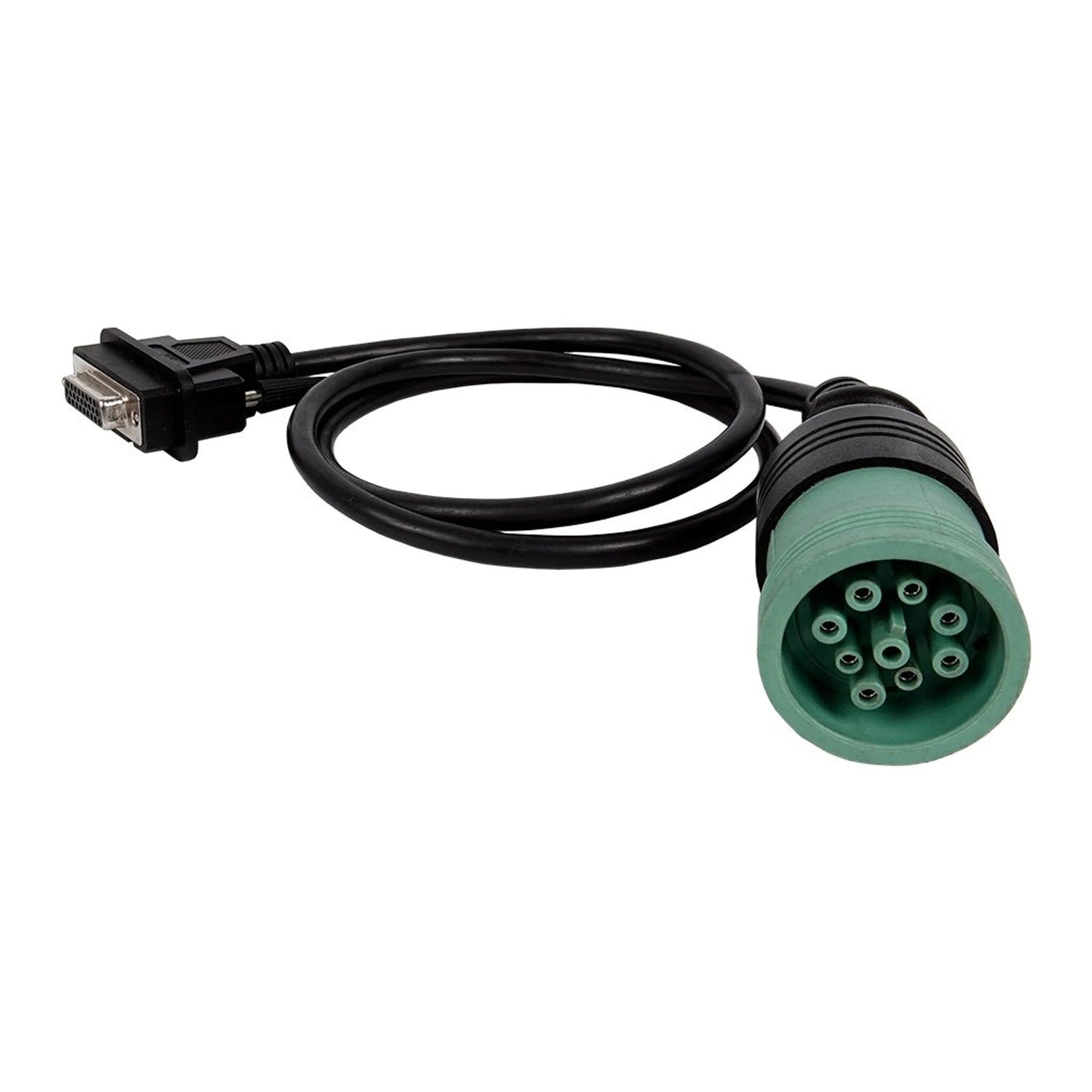

  • JDC217.9: Deutsch 9-pin green, J1939 to DB26.

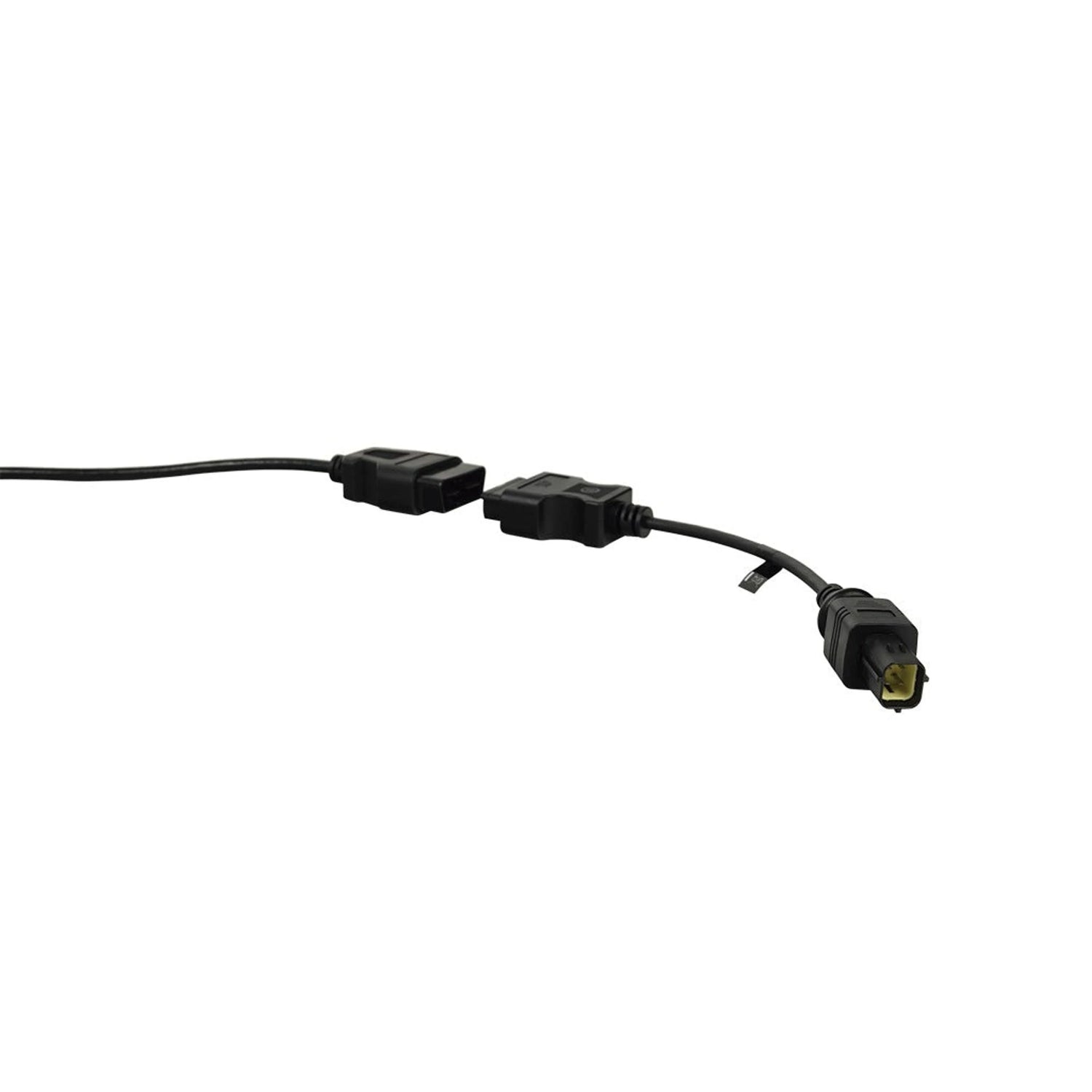

  • JDC523A: Kubota 4-pin to OBD2.

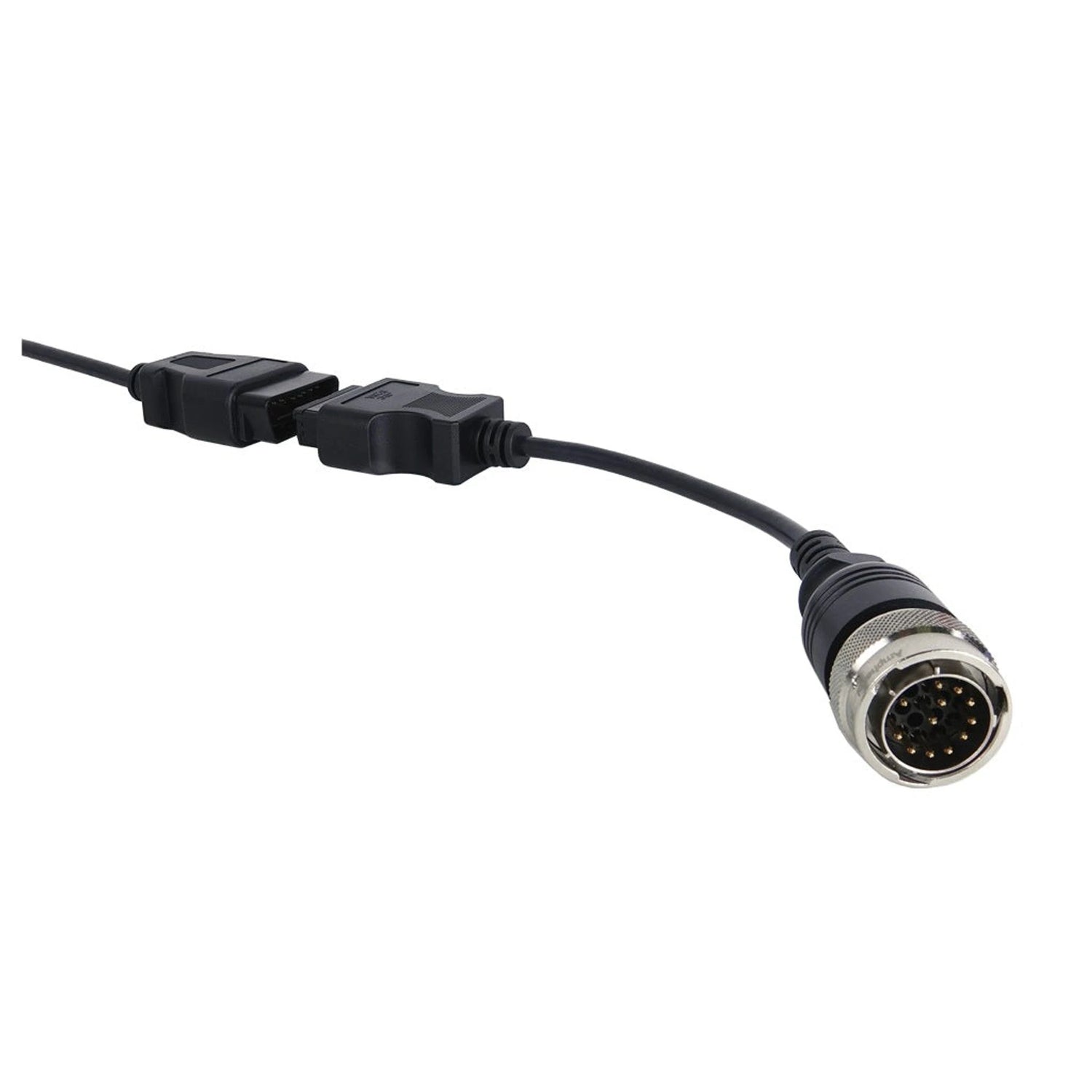

  • JDC526A: FPT 19-pin to OBD2.

What you can do

  • Fault codes: Read and clear.
  • Live data: Readings in figures and graphs.
  • Components: Actuation where coverage allows.
  • Settings: Configuration and maintenance functions.

How to use it

  1. Select system: Read chassis or engine?
  2. Check connection: Check which connector is fitted.
  3. Choose cable: Select the JDC cable for that brand or J1939.
  4. Connect: Connect the cable to the Jaltest Link; the JDC217.9 directly to the V9.
  5. Read out: Open Jaltest, select make and model and read out.

Compatible vehicles and applications

The connector determines it, not the machine. A sweeper is often a body built on an existing chassis, so the chassis connector comes from a commercial vehicle brand and the engine connector from a separate engine supplier. As a result, Kubota and FPT engines appear in equipment from various builders.

Chassis:

  • Mercedes-Benz and MTU: Chassis and engines in bodied equipment, JDC203A.
  • Iveco: Sweepers and winter service vehicles, JDC206A.

Engines:

  • Kubota: Compact sweepers and implement carriers, JDC523A.
  • FPT: Engines with the 19-pin connector, JDC526A.

Standardised connector:

  • Deutsch 9-pin green: J1939 on newer equipment, JDC217.9.
💡
Good to know: A sweeper often has two sides: the chassis on which the machine is built and the engine that drives the body. Which cable you need depends on the system you want to read. Check the connector fitted to the machine itself before ordering.

Package contents

  • 1x Jaltest (JDC203A) | Mercedes 14-pin OBD1 - 16-pin OBD2 adapter cable | Commercial & Work Vehicle
  • 1x Jaltest (JDC206A) | Iveco 30-pin OBD1 – 16-pin OBD2 adapter cable | Commercial & Work Vehicle
  • 1x Jaltest (JDC217.9) | 9-pin J1939 - 26-pin DB26 adapter cable | Commercial & Work Vehicle
  • 1x Jaltest (JDC523A) | Kubota 4-pin OBD – 16-pin OBD2 adapter cable | Internal combustion engine
  • 1x Jaltest (JDC526A) | FPT 19-pin OBD - 16-pin OBD2 adapter cable | Internal combustion engine

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
Jaltest (Cojali)
The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
Adapter cable
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
  • Multi-purpose Vehicle

Usage

Reference number
70,002,005

Other specifications

Number of cables
5 stuks
Contents
JDC203A, JDC206A, JDC217.9, JDC523A and JDC526A
Application
Brand-specific diagnostic connectors on sweepers and implement carriers
Interface
Jaltest Link V8.1 and V9; the JDC217.9 only works on the V9
