Jaltest  |  SKU: 70001052

Jaltest (70001052) | CV/OHW Kit Hardware Compact Case

€1.572,95 incl.
€1.299,96 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

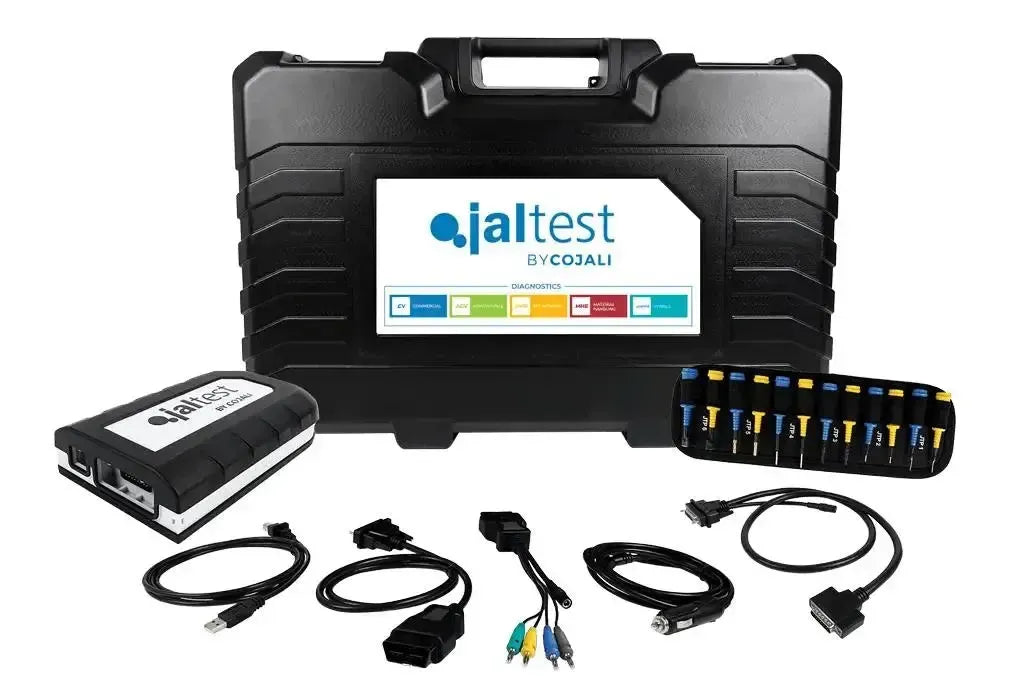

The Jaltest CV/OHW Kit (70001052) is the hardware base for diagnostics on commercial vehicles and on off-road and construction machinery. The case contains the Jaltest Link V9 (70001015), the Multipin Kit 70002001, the OBD2 cable JDC213.9, the connection cable JDC107.9B to the PC and the extension cable JDC100 of 100 cm. Everything is housed in the Compact Hardcase 70003015 measuring 505 × 381 × 146 mm.

The same hardware works with two software modules: Jaltest CV for trucks, buses, trailers and vans, and Jaltest OHW for off-road and construction machinery. The multipin kit 70002001 contains twenty multipins, the JTP101 connection cable and the power supply cables for the battery and cigarette lighter socket. The diagnostics themselves are performed by the Jaltest software on a Windows PC.

ADVANTAGES

✔One set of hardware for two software modules: the same case works with Jaltest CV for commercial vehicles and Jaltest OHW for off-road and construction machinery.
✔With the twenty multipins (JTP01 to JTP10 in blue and yellow) and the JTP101 connection cable, you can also connect to a connector for which no ready-made cable exists.
✔With the JDC213.9 you connect directly to the 16-pin OBD2 connector, the standard on trucks and buses from Euro IV onwards.
✔The JDC100 extension cable of 100 cm keeps the Jaltest Link V9 out of the way while you work under the dashboard or at the engine.

POINTS TO NOTE

✕There are no manufacturer-specific adapter cables in the case. For a manufacturer's own diagnostic connector you need separate JDC cables or a cable set.
✕The hardware does not perform diagnostics itself. You need the Jaltest software with a licence for Jaltest CV or Jaltest OHW on a Windows PC.
✕The compact case has room for approximately twelve cables in addition to this set; for a larger cable collection it is too small.
✕If you also work on agricultural machinery, internal transport or vessels, the kits 70001060, 70301001 and 70001053 belong to that.

Applications and functions

This kit connects a Windows PC with Jaltest software to the control units of trucks, buses, trailers, vans and construction machinery. The Jaltest Link V9 passes the vehicle signal on to the PC; the cables determine where you connect, to the 16-pin OBD2 connector or via the multipins to a non-standard connector.

What is in the case

  • Link V9 (70001015): Interface, DB26 and USB-C.
  • Multipin Kit (70002001): Multipins and power supply.
  • JDC213.9: DB26 to 16-pin OBD2.
  • JDC107.9B: Link V9 to USB-C.
  • JDC100: Extension cable, 100 cm.
  • 70003015: Compact case.

What you can do

  • Fault codes: Read and clear.
  • Live data: Monitoring during work.
  • Components: Driving valves and relays.
  • Multipins: Probing a non-standard connector.
  • Power supply: Voltage to the interface.

How to use it

  1. Starting the software: Open Jaltest on the Windows PC.
  2. Linking the Link: Connect the Link V9 via the JDC107.9B.
  3. Choosing a cable: Use the JDC213.9 or the multipins.
  4. Connecting: Connect, if necessary via the JDC100.
  5. Reading out: Select make and model in Jaltest CV or OHW.

Compatible vehicles and applications

The software module determines what you can do, not the case. This hardware works with Jaltest CV and with Jaltest OHW. Which vehicles and machines you can read out depends on the module you use; on a manufacturer-specific connector, the multipins or a separate JDC cable are useful.

Jaltest CV (commercial vehicles):

  • Trucks: Tractor units and box trucks.
  • Buses: City, regional and touring coaches.
  • Trailers and semi-trailers: Brake and air suspension systems.
  • Light commercial vehicles: Vans and pick-ups.

Jaltest OHW (off-road and construction machinery):

  • Heavy equipment: Excavators, cranes and dumpers.
  • Compact equipment: Mini excavators, skid steers and wheel loaders.
  • Stationary engines: Generators and pump sets.
  • Sweepers and road maintenance: Via the separate module 29348.
💡
Good to know: Jaltest's compact hardware cases all use the same Compact Hardcase 70003015 and look the same on the outside. You recognise this CV/OHW version by the multipin kit 70002001. Choose the case that suits your work: 70001052 for commercial vehicles and earthmoving, 70001060 for agriculture, 70301001 for internal transport and 70001053 for vessels.

Package contents

  • 1x Jaltest Link V9 interface (70001015)
  • 1x Multipin Kit (70002001)
  • 1x Jaltest (JDC213.9) | Link V9 26-pin DB26 – 16-pin OBD2 adapter cable | Interface
  • 1x Jaltest (JDC107.9B) | Link V9 – USB-C adapter cable | Interface
  • 1x Jaltest (JDC100) | Link V9 26-pin DB26 extension cable (100 cm) | Interface
  • 1x Jaltest (70003015) | Compact Hardcase

Technical specifications

General

The manufacturer of the diagnostic set. This shows which software and components are compatible.Brand
Jaltest (Cojali)
The type of product, for example a complete hardware set for reading out vehicle data.Set type
Hardware set for vehicle diagnostics
The types of vehicles and machinery the set is intended for. Choose the set that suits the work you carry out in your workshop.Vehicle types
  • Commercial vehicles
  • Construction machinery

Contents

The number of separate components in the set, such as the interface, cables and the case.Number of components
6 components
The length of the extension cable supplied. A longer cable makes it easier to reach the connector in large vehicles.Extension cable length
100 cm
Whether a cable is included to power the interface separately, useful if the vehicle itself supplies no power.Separate power cable

Case

Length, width and height of the storage case. Useful for checking whether it fits in your workshop or service van.Case dimensions
505 x 381 x 146 mm
The type of case in which the set is supplied and stored.Case type
Compact case
Reference number
70,001,052

Other specifications

Contents
Jaltest Link V9 (70001015), Multipin Kit 70002001, JDC213.9, JDC107.9B, JDC100, case 70003015
Interface
Jaltest Link V9, 26-pin DB26 to cable, USB-C to PC
Multipin kit
70002001: Twenty multipins JTP01 to JTP10, JTP101, JDC10AM2, JDC20AM2
Required to use
Jaltest software with licence for Jaltest CV or Jaltest OHW, Windows PC
Application
Commercial vehicles (CV) and off-road & construction machinery (OHW)
Part of
The CV, OHW, Truck, Bus, Trailer, LCV and Sweeper diagnostic tools
