The Jaltest Adapter Cable Set 29989 is intended for refrigeration units. With the three cables you connect the diagnostic port of the refrigeration unit on a refrigerated trailer to your Jaltest diagnostic cable. The set works with Thermo King and Carrier, with a 5-pin and two 3-pin connections.
A refrigerated trailer has two separate systems: the braking system of the semi-trailer and the refrigeration unit fitted on top of it. That refrigeration unit has its own control unit and its own diagnostic port, and this set is for that. For Carrier, the set contains two 3-pin cables. The JDC115.9 terminates in the 26-pin DB26, and the JDC121A9 is the CAN version that terminates in a 16-pin OBD2. The cables fall under Jaltest CV (Commercial Vehicles).
KEY BENEFITS
POINTS TO NOTE
Applications and functions
Each cable in this set converts the diagnostic port of the refrigeration unit to the standard connector of the Jaltest Link. What you can do afterwards is determined by the Jaltest software and the coverage table for that cooling unit, not by the cable. The refrigeration unit operates independently of the trailer's braking system and is read out separately.

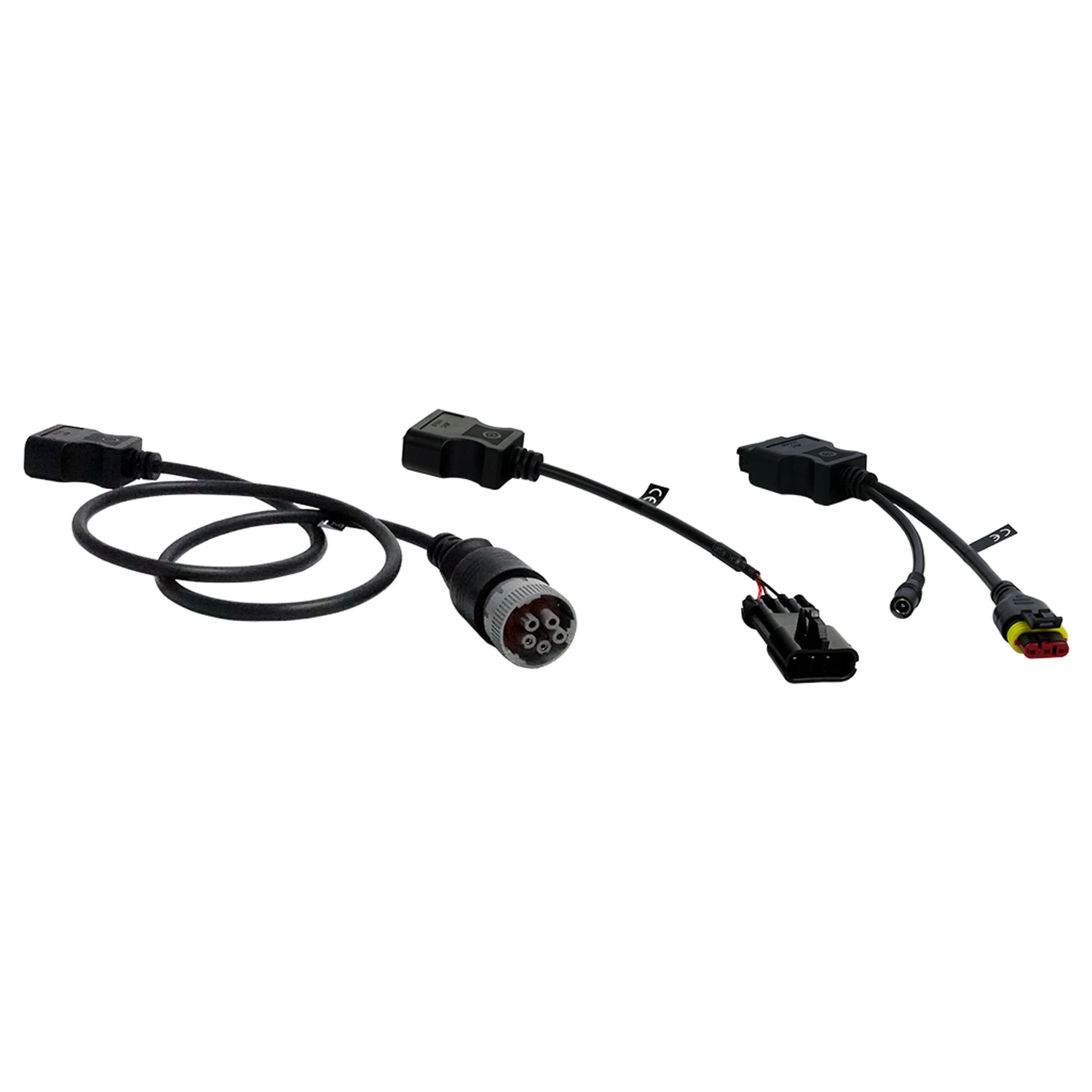

What is in the set

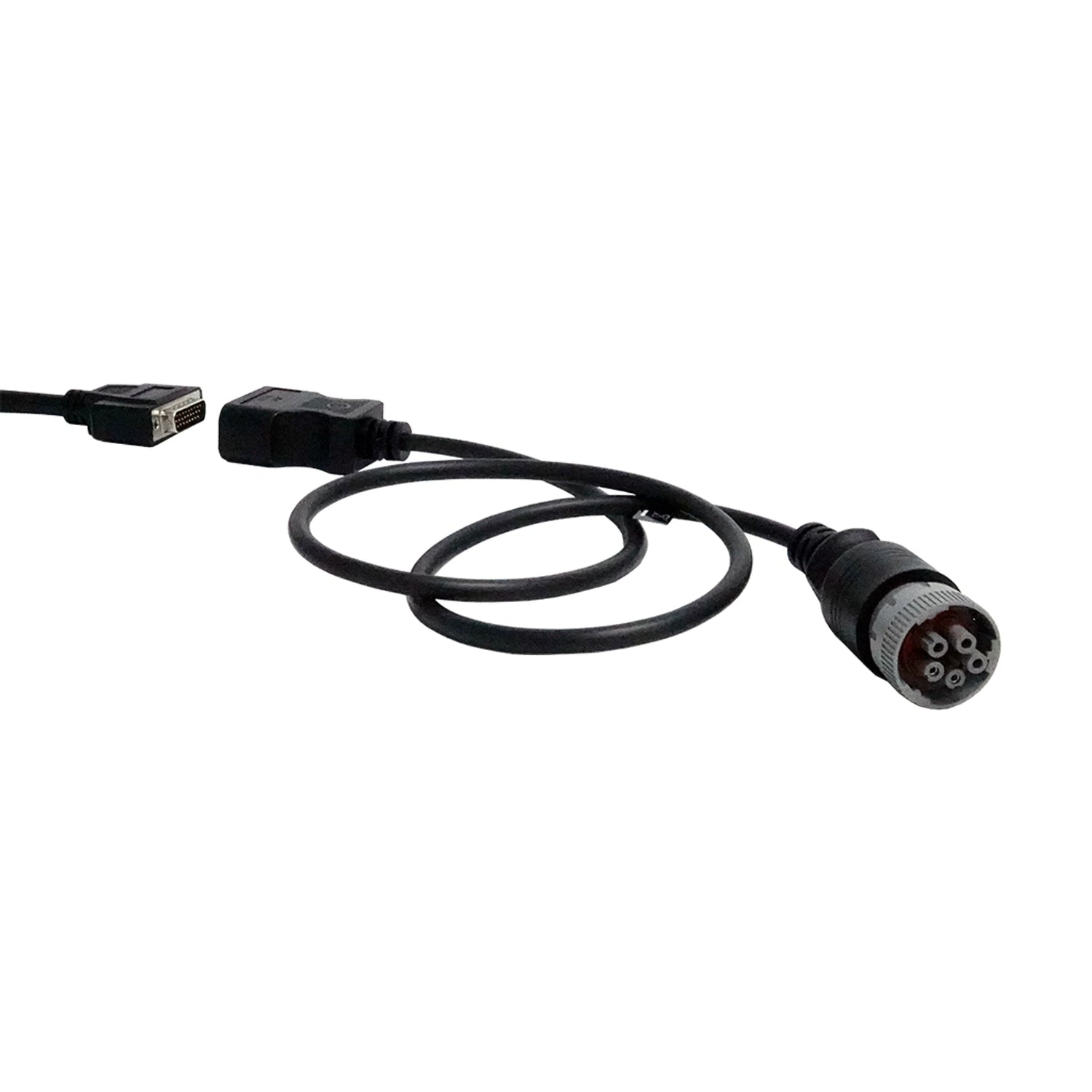

- JDC113.9: Thermo King/Carrier 5-pin round.

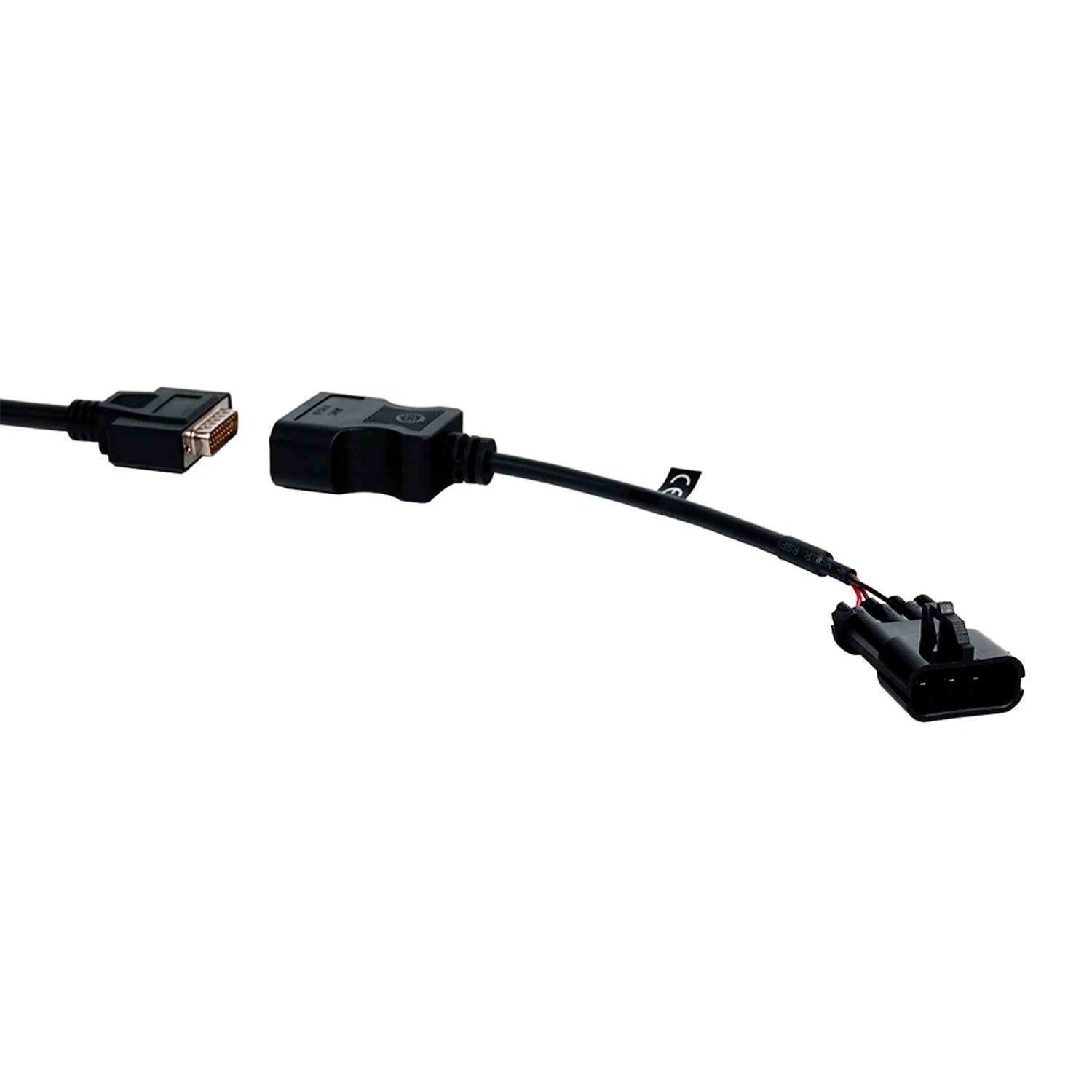

- JDC115.9: Carrier 3-pin flat, to DB26.

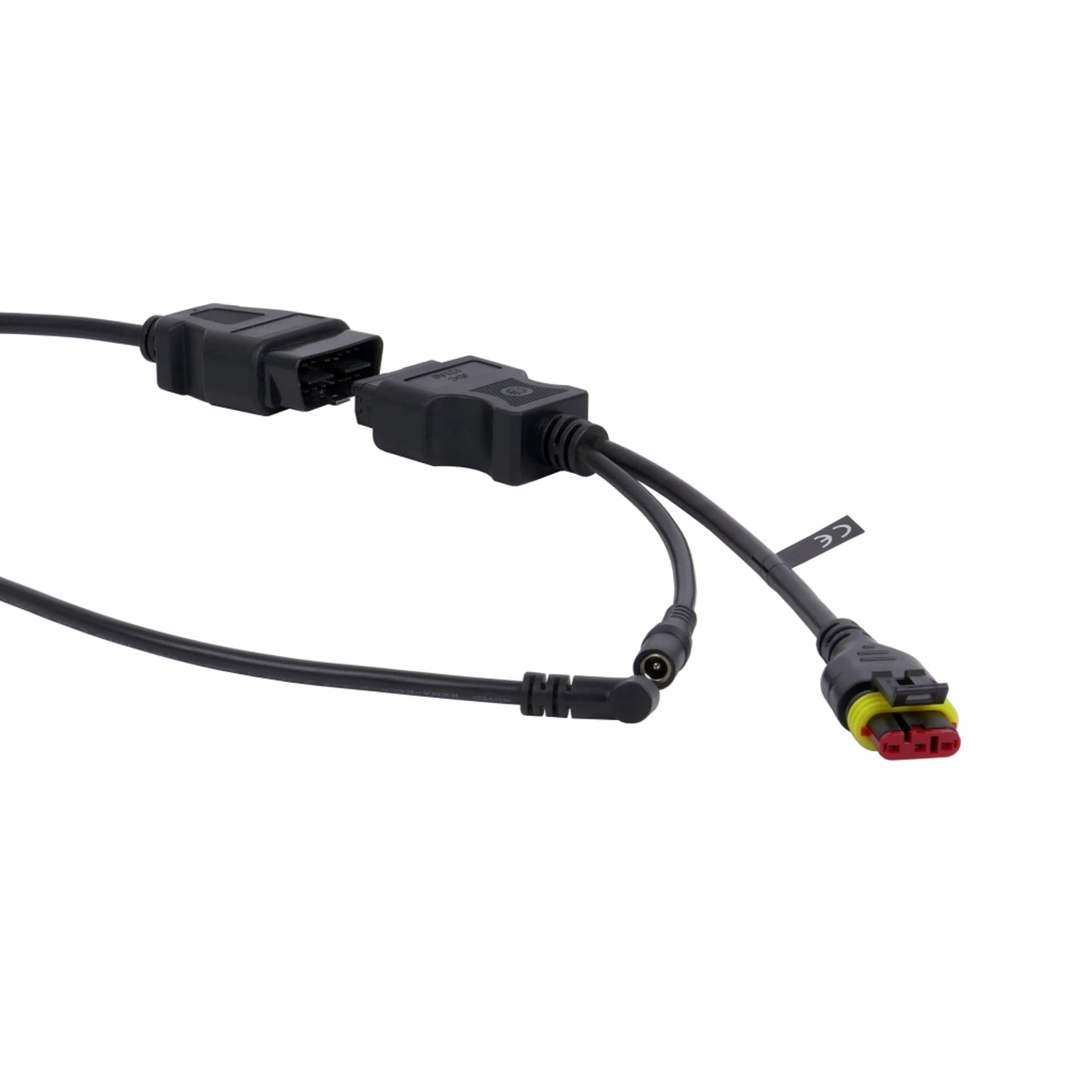

- JDC121A9: Carrier 3-pin CAN, to OBD2.
What you can do
- Fault codes: Read and clear.
- Measured values: Live in figures and graph.
- Components: Targeted actuation.
- Settings: Configuration and maintenance.
How to use it
- Locate the connection: Check whether the refrigeration unit is 5-pin or 3-pin.
- Choose the cable: JDC113.9, JDC115.9 or JDC121A9.
- Connect: Plug it into the Jaltest Link.
- Start the software: Open Jaltest CV on the PC.
- Read out: Select the refrigeration unit and read out.
Compatible vehicles and applications
The refrigeration unit is what matters, not the semi-trailer. A refrigeration unit is built as a separate installation on the trailer, so the same diagnostic port is found on semi-trailers from various manufacturers.
Thermo King:
- 5-pin connection: Thermo King refrigeration units with the 5-pin diagnostic port.
Carrier:
- 5-pin connection: Carrier refrigeration units with the 5-pin connection.
- Flat 3-pin connection: Carrier refrigeration units with the 3-pin connection, including the CAN version.
Package contents
- 1x Jaltest (JDC113.9) | Thermo King/Carrier 5-pin OBD - 26-pin DB26 Adapter Cable | Refrigerated Trailer
- 1x Jaltest (JDC115.9) | Carrier 3-pin OBD - 26-pin DB26 Adapter Cable | Refrigerated Trailer
- 1x Jaltest (JDC121A9) | Carrier 3-pin OBD - 16-pin OBD2 Adapter Cable | Refrigerated Trailer
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- Jaltest
- The number of vehicle brands the cable is suitable for. Many adapter cables only fit one brand with its own connector.Number of vehicle brands
- 2 brands
- The cable set that also includes this cable. If you already own that set, you do not need to buy the cable separately.Part of cable set
- Jaltest CV (Commercial Vehicles)
Suitable for
- The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
- Jaltest
- The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module
- CV commercial vehicles
Size and weight
- Reference number
- 29,989
Other specifications
- Number of cables
- 3 stuks
- Contents
- JDC113.9, JDC115.9 and JDC121A9
- Application
- Diagnostic connectors for refrigeration units on refrigerated trailers
- Interface
- Jaltest Link; the JDC113.9 and JDC115.9 terminate in the 26-pin DB26, the JDC121A9 in 16-pin OBD2
