Jaltest  |  SKU: 29985

Jaltest (29985) | Marine Adapter Cable Set Personal Watercraft (6 Cables) | Watercraft

€621,95 incl.
€514,01 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Watercraft cable set (29985) contains six cables that connect the diagnostic and immobiliser connection of a personal watercraft to the Jaltest Link. Two of them are diagnostic cables for BRP Sea-Doo and Kawasaki, three are IMMO adapters, and the sixth is a power cable.

Alongside engine diagnostics, the immobiliser plays a key role on a personal watercraft, because keys and start interrupters must be connected to the vessel. The set therefore includes separate IMMO adapters for BRP Sea-Doo, Yamaha and Kawasaki. The JDC641M is a power cable that supplies power to the Kawasaki control unit during operation. The cables fall under Jaltest Marine.

ADVANTAGES

✔The set brings together the engine diagnostics and the immobiliser of a personal watercraft in six cables.
✔With the IMMO adapters JDC660M, JDC661M and JDC662M, you can access the starter cut-off of BRP Sea-Doo, Yamaha and Kawasaki.
✔The JDC641M powers the Kawasaki control unit during work.
✔The JDC602A connects to the 6-pin diagnostic connector of BRP Sea-Doo, and the JDC610A to the 4-pin connector of Kawasaki.

POINTS TO NOTE

✕This is the version without Yamaha diagnostic cable. The IMMO adapter for Yamaha (JDC661M) is included, but the diagnostic cable JDC601A must be ordered separately.
✕The JDC601A is included in the vessel set 70002008 and the outboard set 70002025.
✕The JDC641M is a power supply cable and does not read anything itself; it is used alongside a diagnostic cable.
✕Check the connection on the personal watercraft itself and whether you need the diagnostics or the immobiliser before you order.

Applications and functions

The cables in this set do two different things. The diagnostic cables convert the proprietary connector to the standard connector of the Jaltest Link; the IMMO adapters give access to the starter cut-off for key programming. What you can do afterwards is determined by the Jaltest software and the coverage table for that vessel, not by the cable.

What is in the set

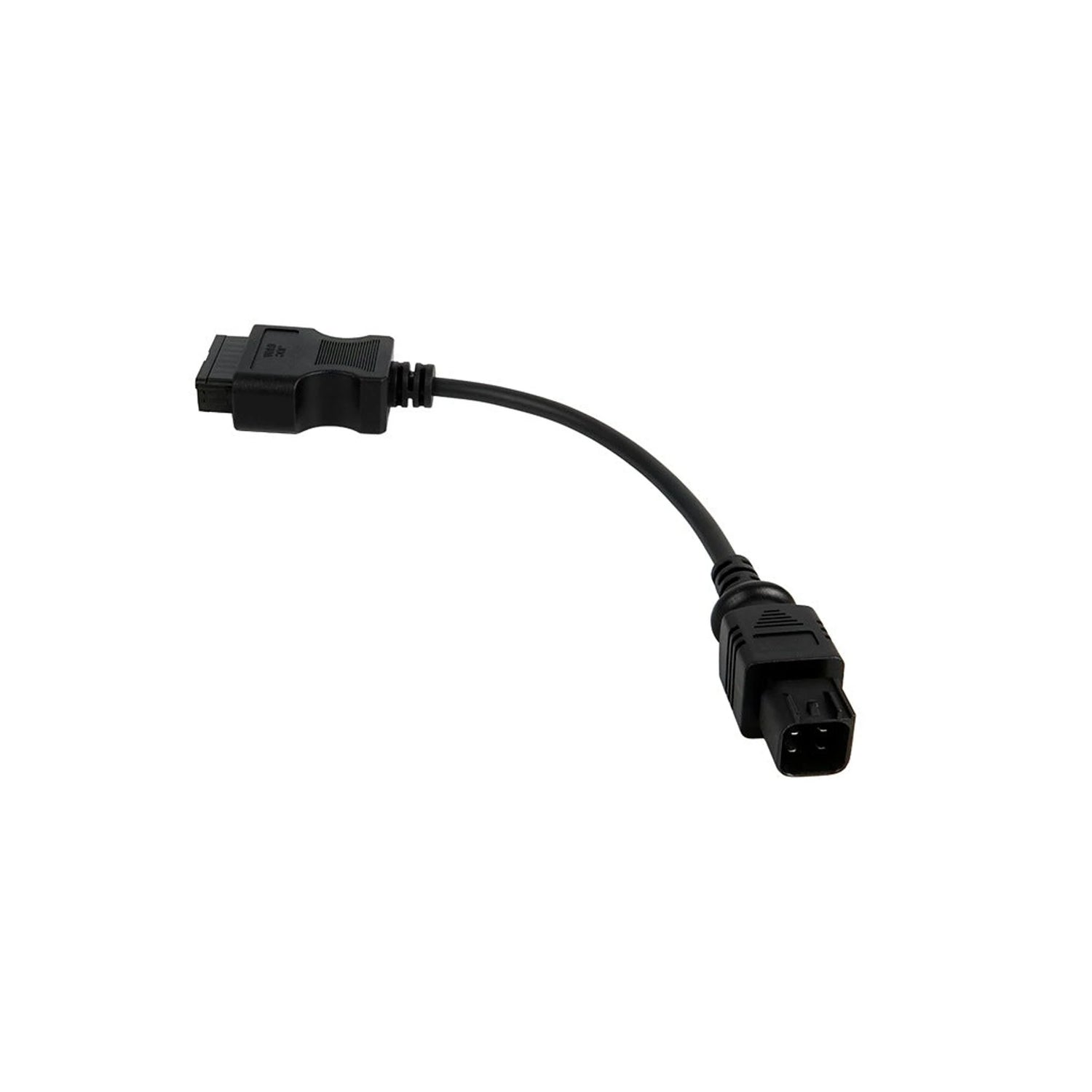

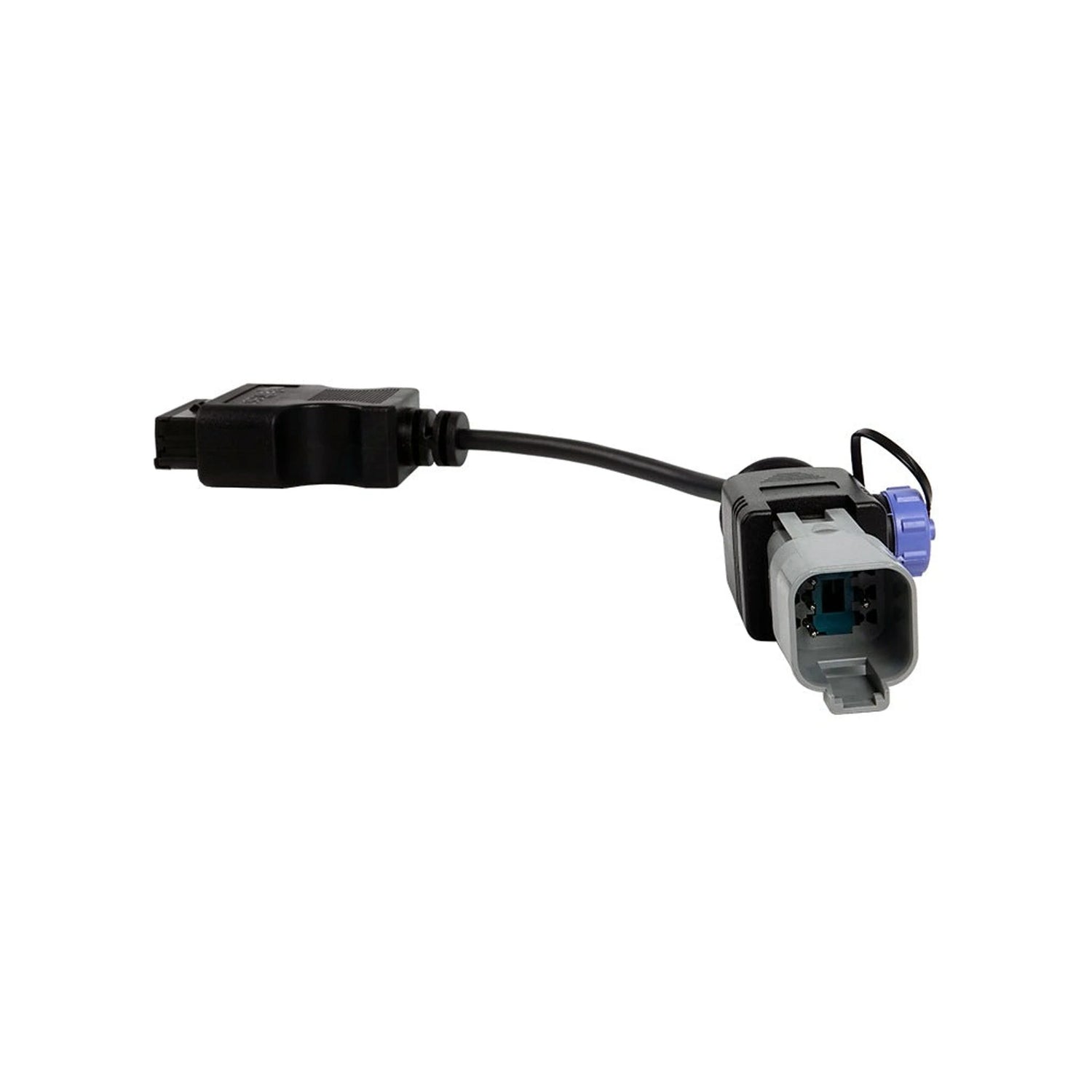

  • JDC602A: BRP Sea-Doo 6-pin to OBD2.
  • JDC610A: Kawasaki 4-pin to OBD2.

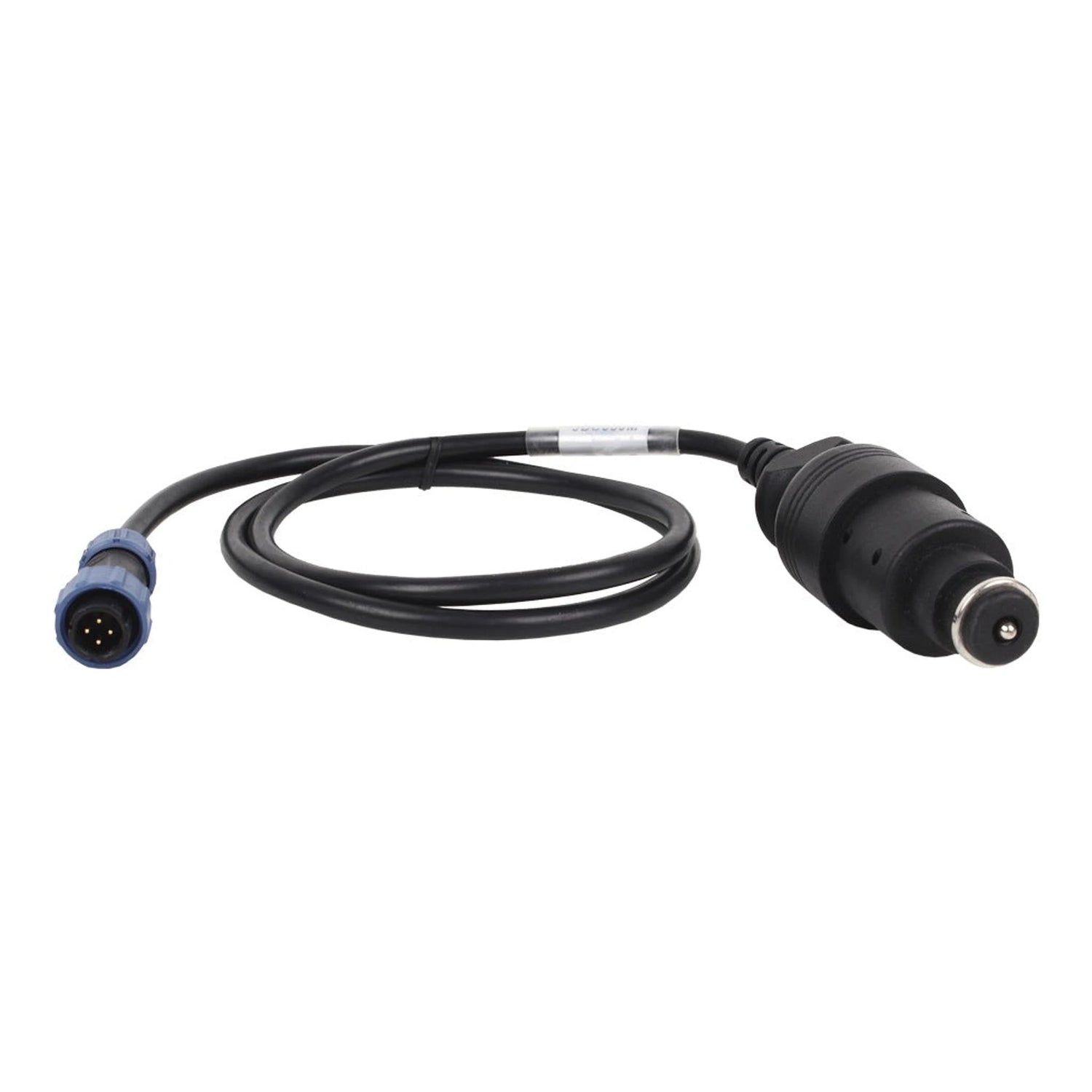

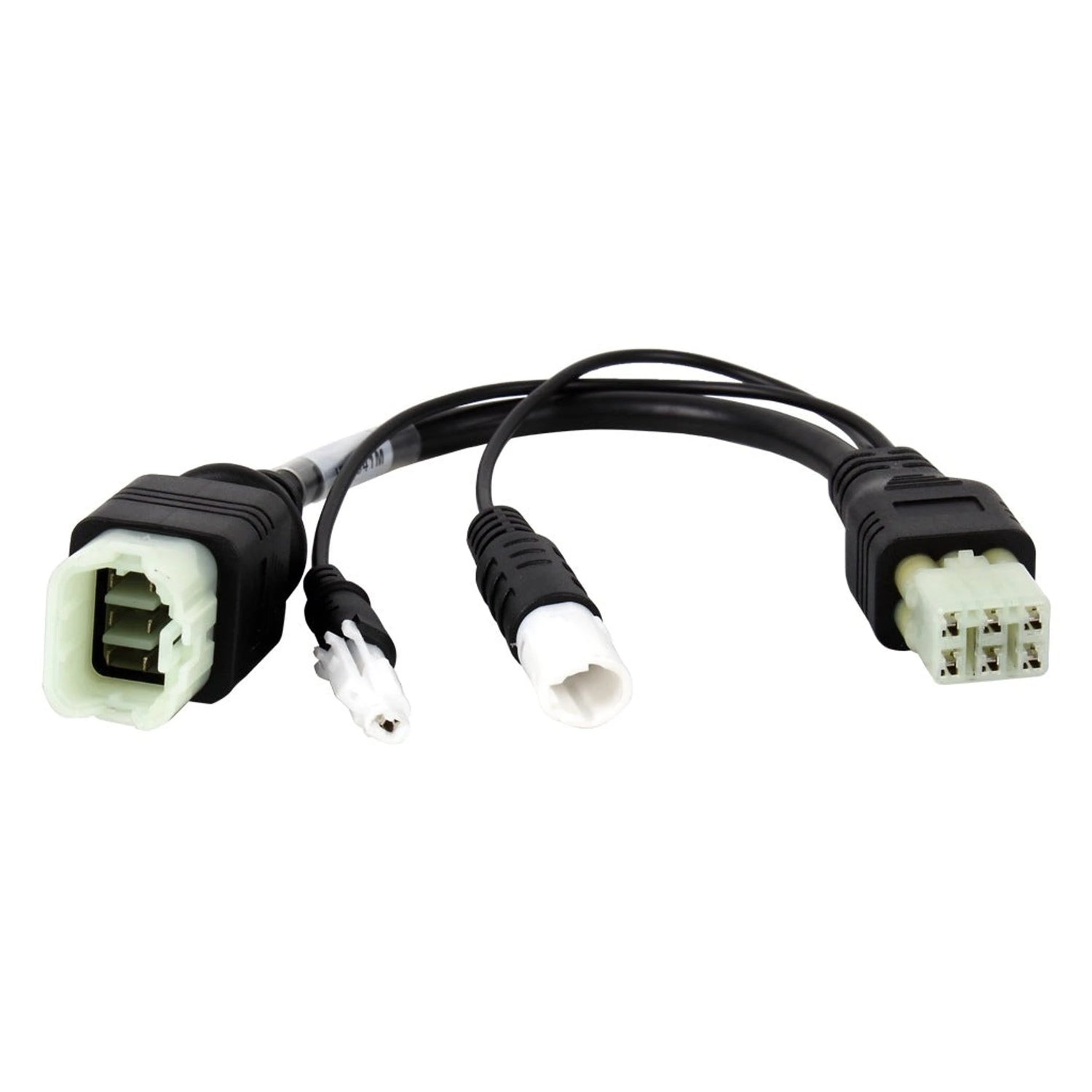

  • JDC641M: Kawasaki power supply, dual 6-pin.

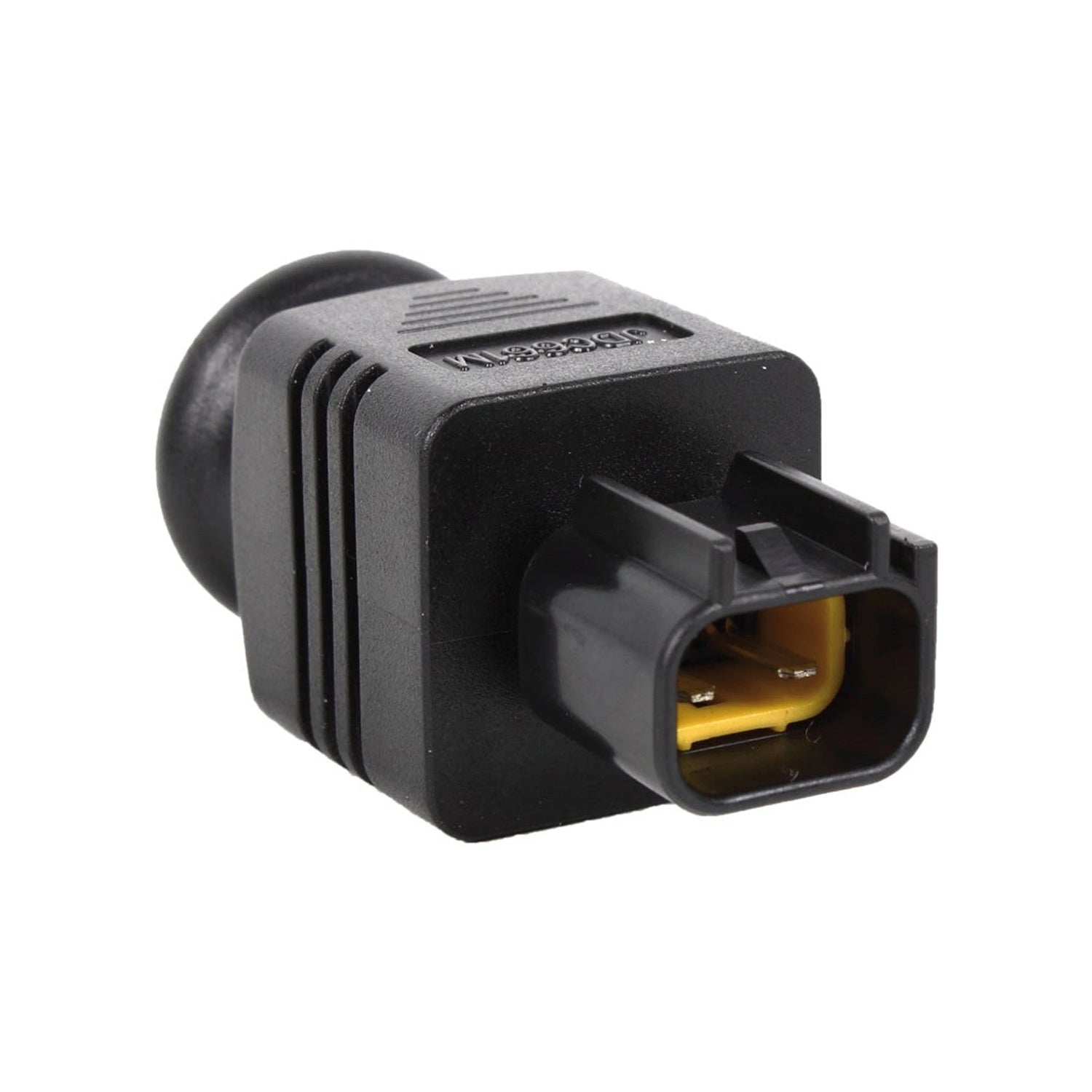

  • JDC660M: BRP Sea-Doo IMMO, 4-pin.
  • JDC661M: Yamaha IMMO, 2-pin.

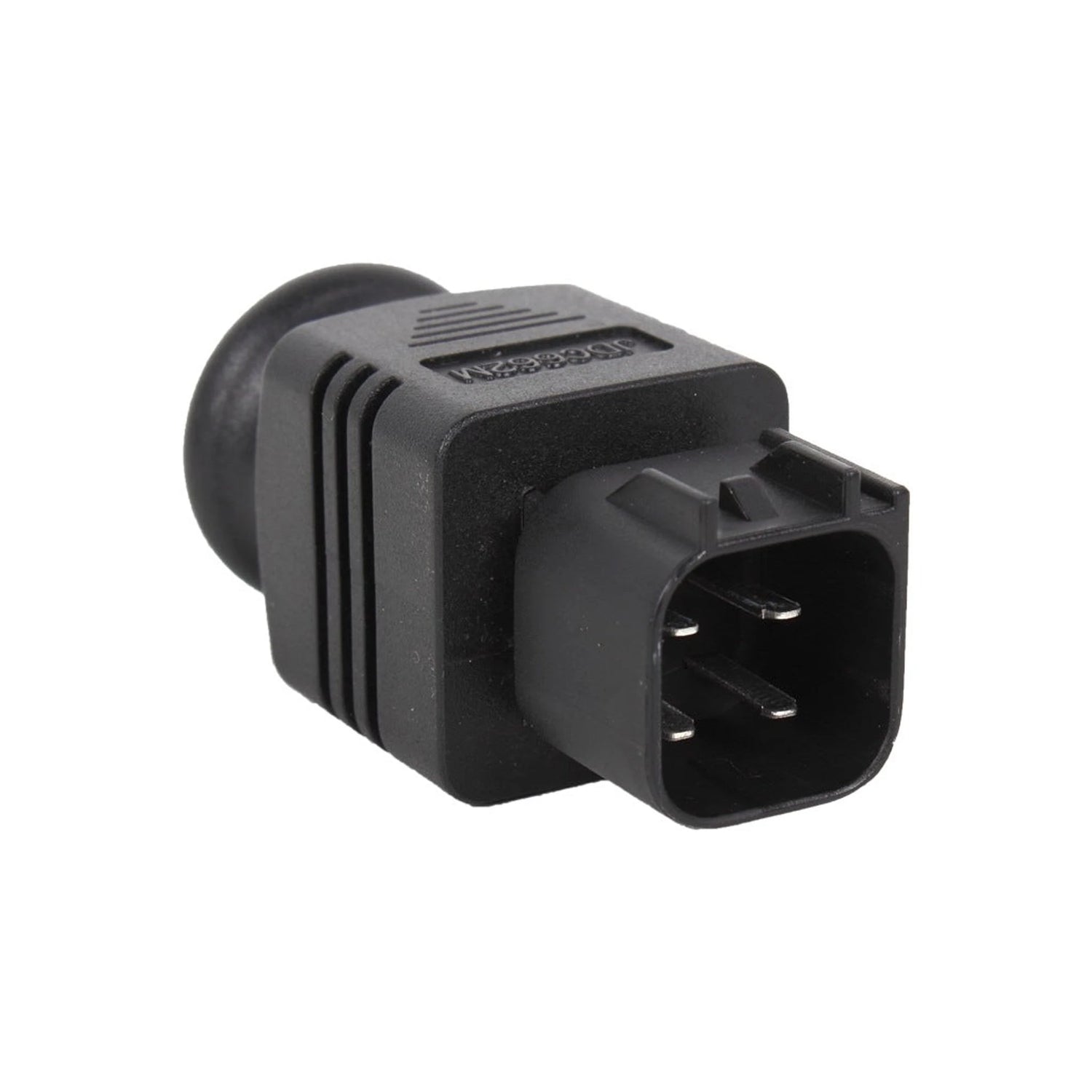

  • JDC662M: Kawasaki IMMO, 4-pin.

What you can do

  • Fault codes: Read and clear.
  • Live data: Measured values in figures and graphs.
  • Components: Activate where coverage allows.
  • Immobiliser: Link keys to the vessel.

How to use it

  1. Define your purpose: Choose between diagnostics and immobiliser.
  2. Check the connector: See which plug is fitted to the vessel.
  3. Choose the cable: Diagnostic cable or IMMO adapter for that brand.
  4. Connect: Attach the cable to the Jaltest Link; for Kawasaki, use the JDC641M alongside if required.
  5. Read out: Open Jaltest Marine and select brand and model.

Compatible vehicles and applications

The make of the vessel is decisive. On a personal watercraft the control unit is located under the engine cover, and the connection belongs to the manufacturer itself, not to a separately fitted engine. Alongside reading out, the immobiliser has its own connection to the start interrupter.

BRP Sea-Doo:

  • Diagnostics: JDC602A.
  • Immobiliser: JDC660M.

Kawasaki:

  • Diagnostics: JDC610A.
  • Power supply: JDC641M.
  • Immobiliser: JDC662M.

Yamaha:

  • Immobiliser: JDC661M.
  • Diagnostics: Not included in this set; the JDC601A must be ordered separately.
💡
Good to know: This set is named in full as without Yamaha cable. The IMMO adapter for Yamaha is included, but the diagnostic cable JDC601A is not. If you work on Yamaha waterscooters, order that cable separately. Check the connector fitted to the vessel itself before you order.

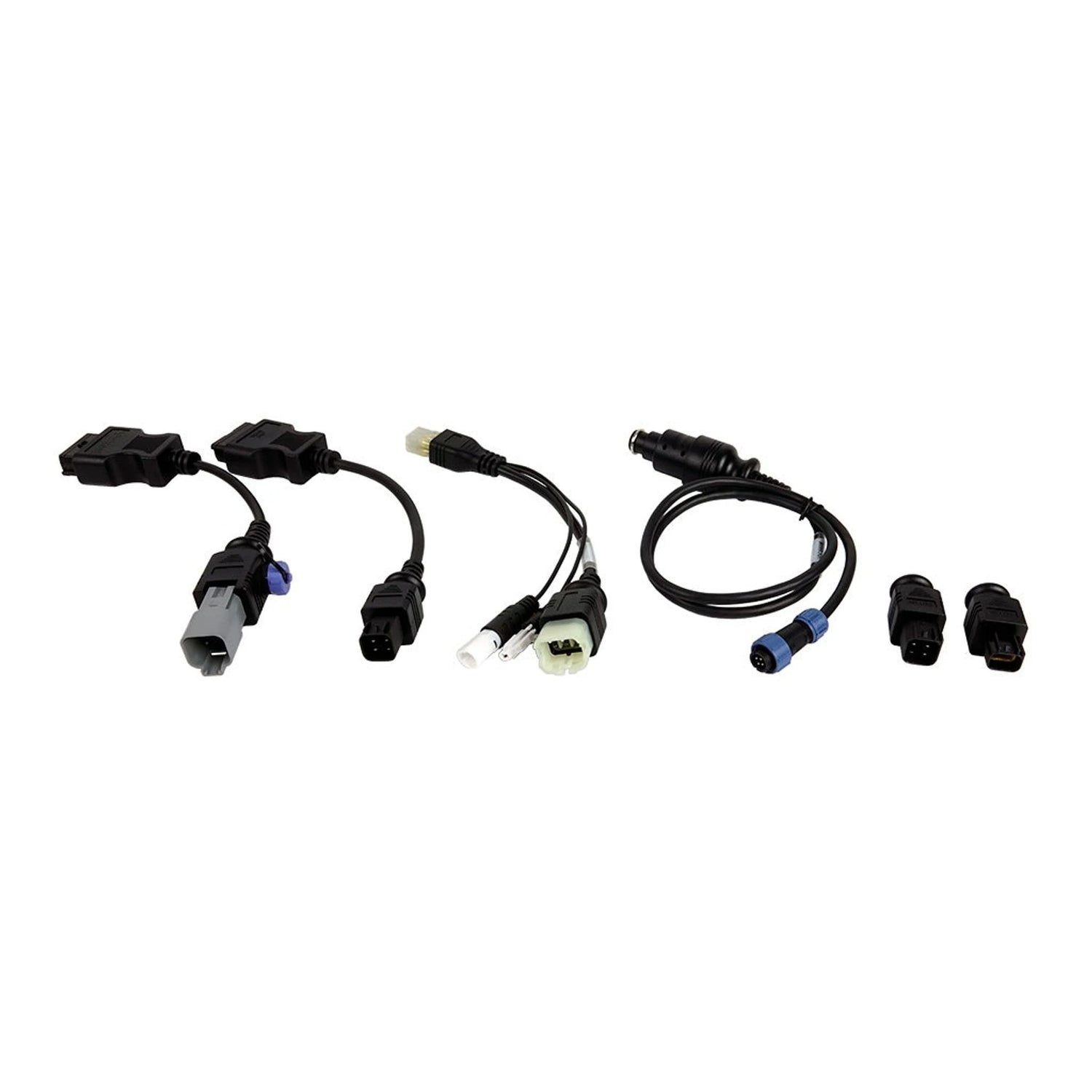

Package contents

  • 1x Jaltest (JDC602A) | BRP (Seadoo) 6-pin OBD - 16-pin OBD2 Adapter Cable | Personal Watercraft
  • 1x Jaltest (JDC610A) | Kawasaki 4-pin OBD – 16-pin OBD2 Adapter Cable | Watercraft
  • 1x Jaltest (JDC641M) | Kawasaki 6+6-pin OBD Power Supply Cable | Jet Ski
  • 1x Jaltest (JDC660M) | BRP (Seadoo) 4-pin OBD – IMMO adapter cable | Personal watercraft
  • 1x Jaltest (JDC661M) | Yamaha 2-pin OBD - IMMO Adapter | Personal watercraft
  • 1x Jaltest (JDC662M) | Kawasaki 4-pin OBD - IMMO Adapter | Jet ski

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
Jaltest (Cojali)
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
  • Marine vessels

Usage

Reference number
29,985

Other specifications

Number of cables
6 stuks
Contents
JDC602A, JDC610A, JDC641M, JDC660M, JDC661M and JDC662M
Application
Diagnostic and immobiliser connectors on personal watercraft
Interface
Jaltest Link; the JDC641M is a power cable, not a diagnostic cable
Segment
Jet ski
