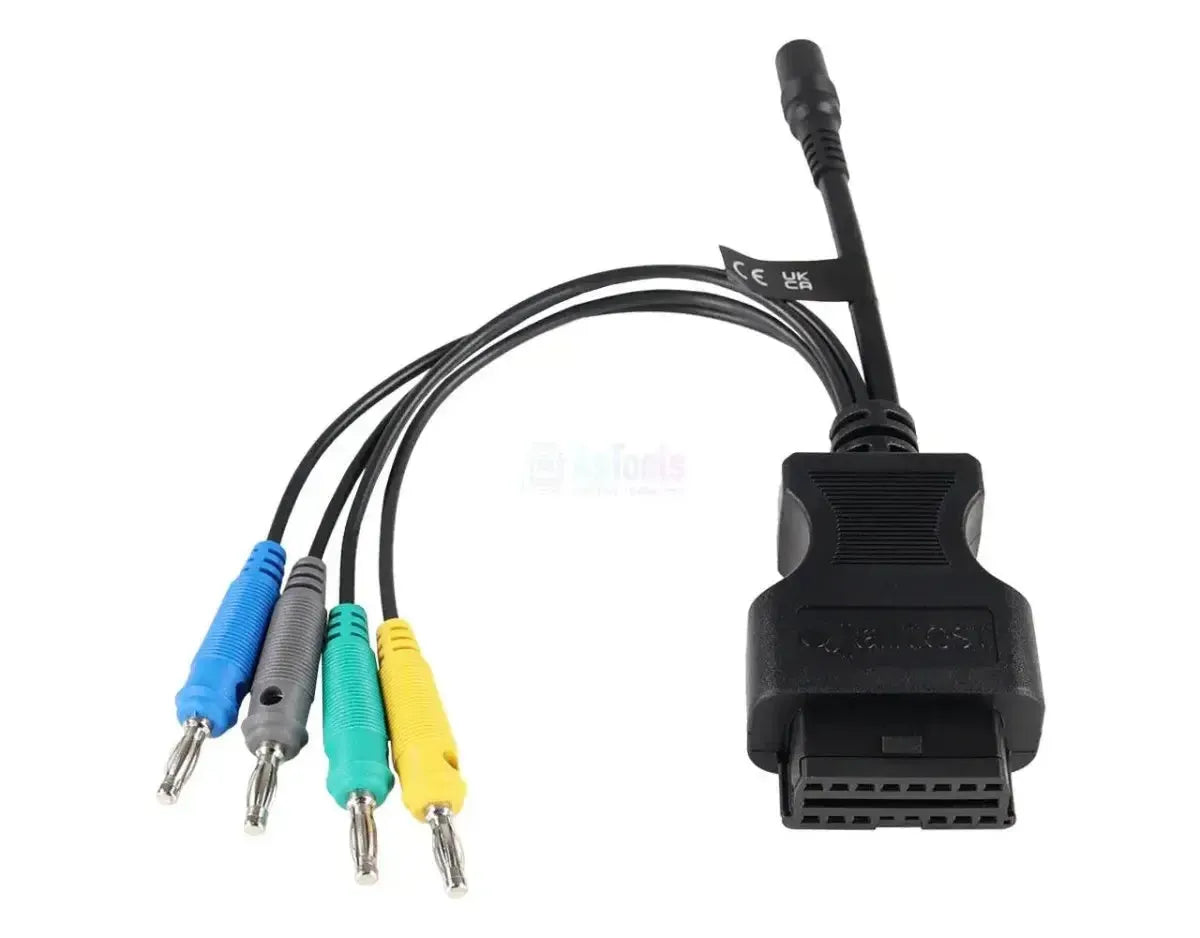

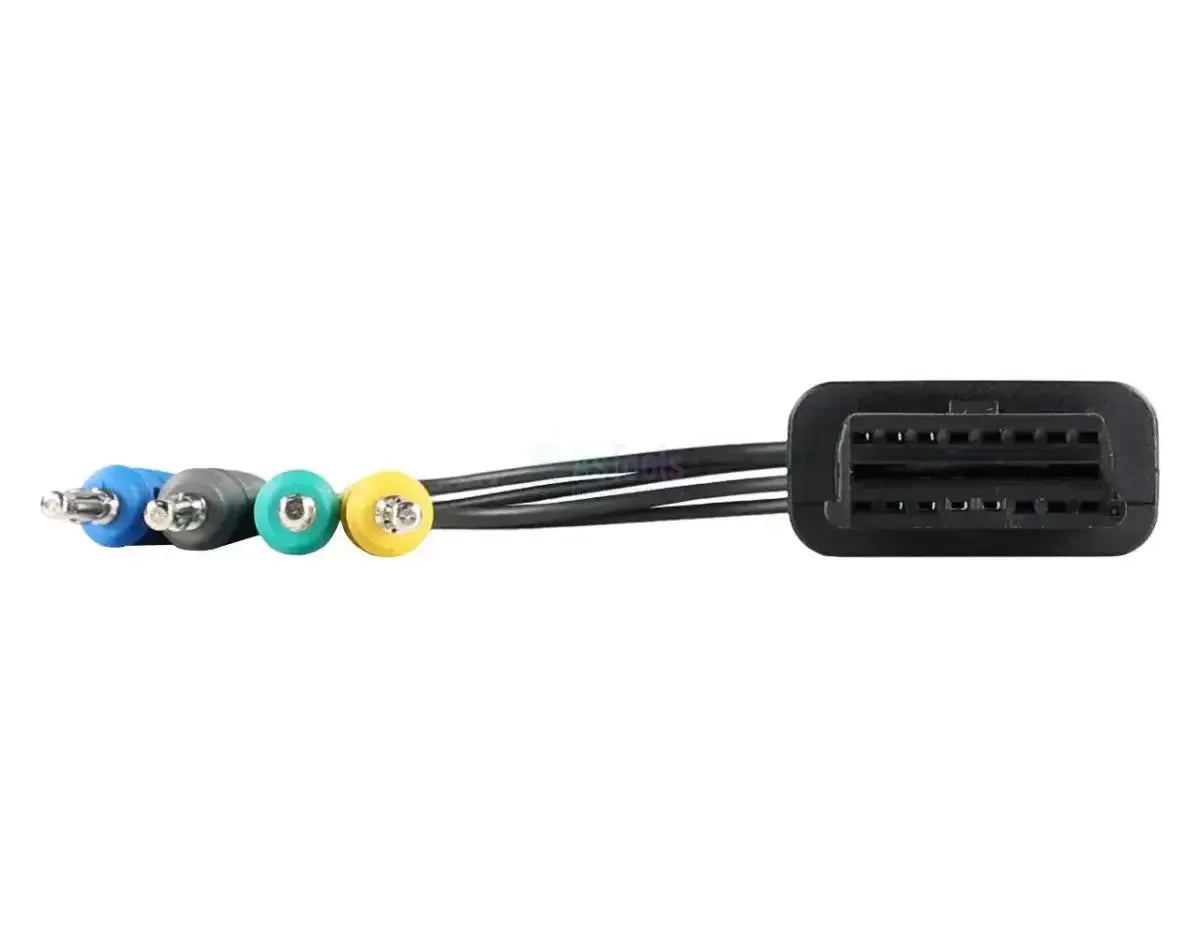

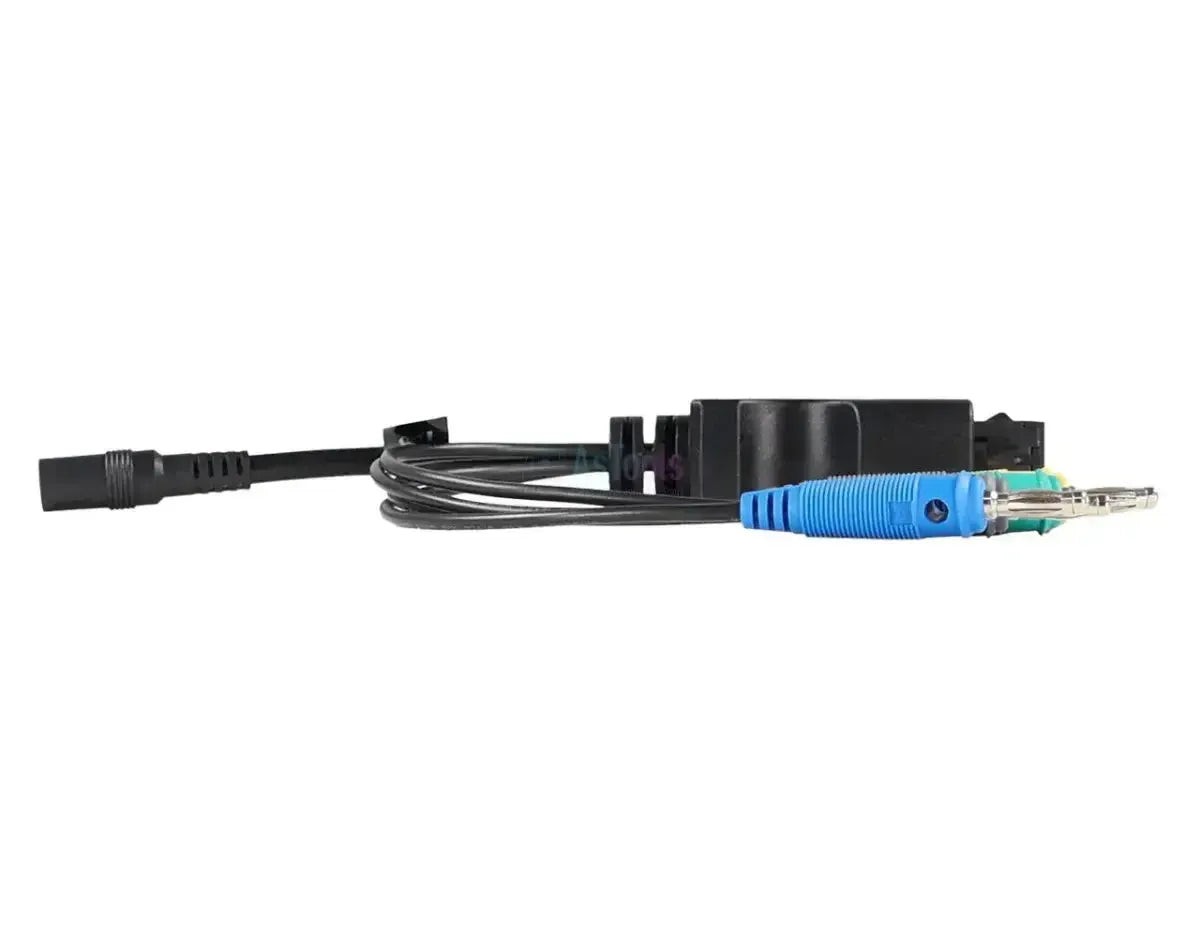

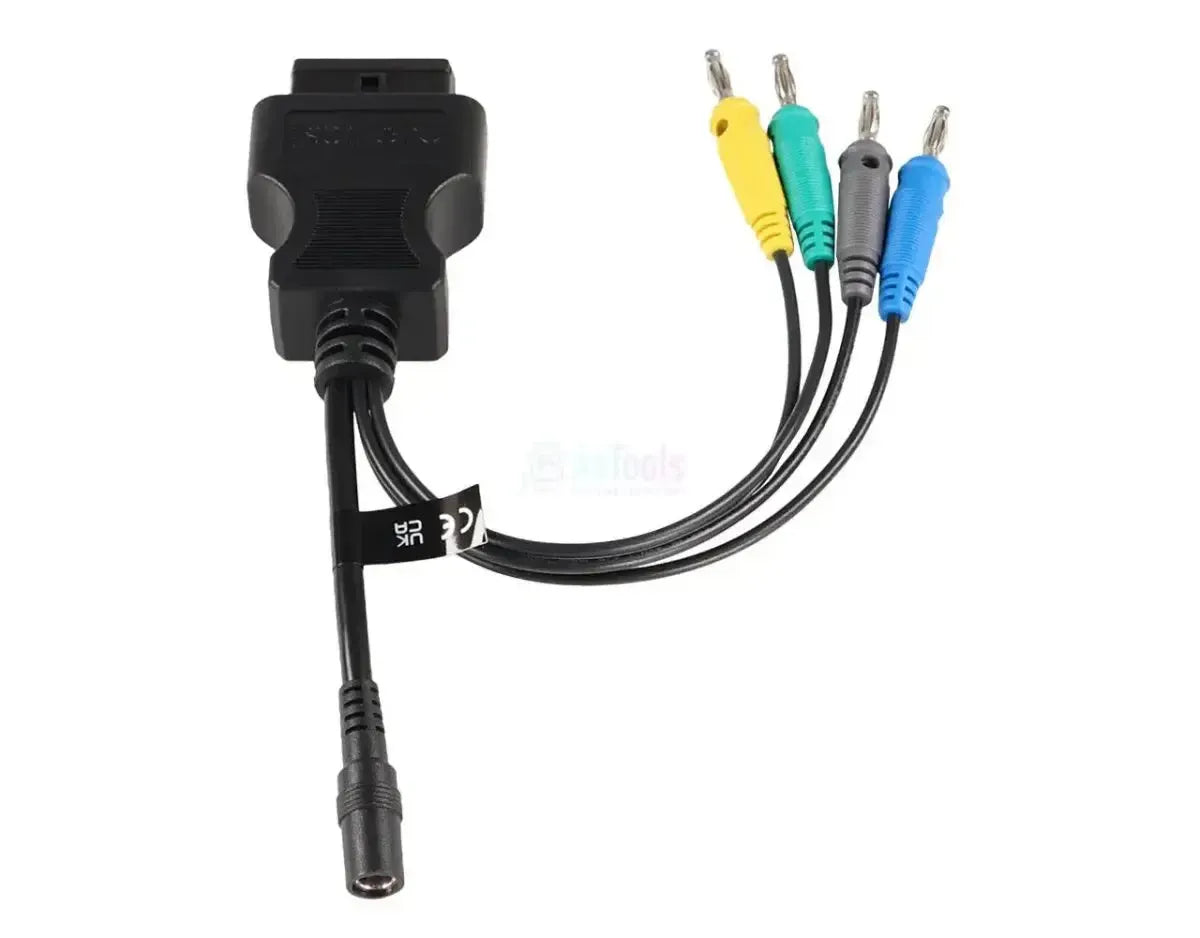

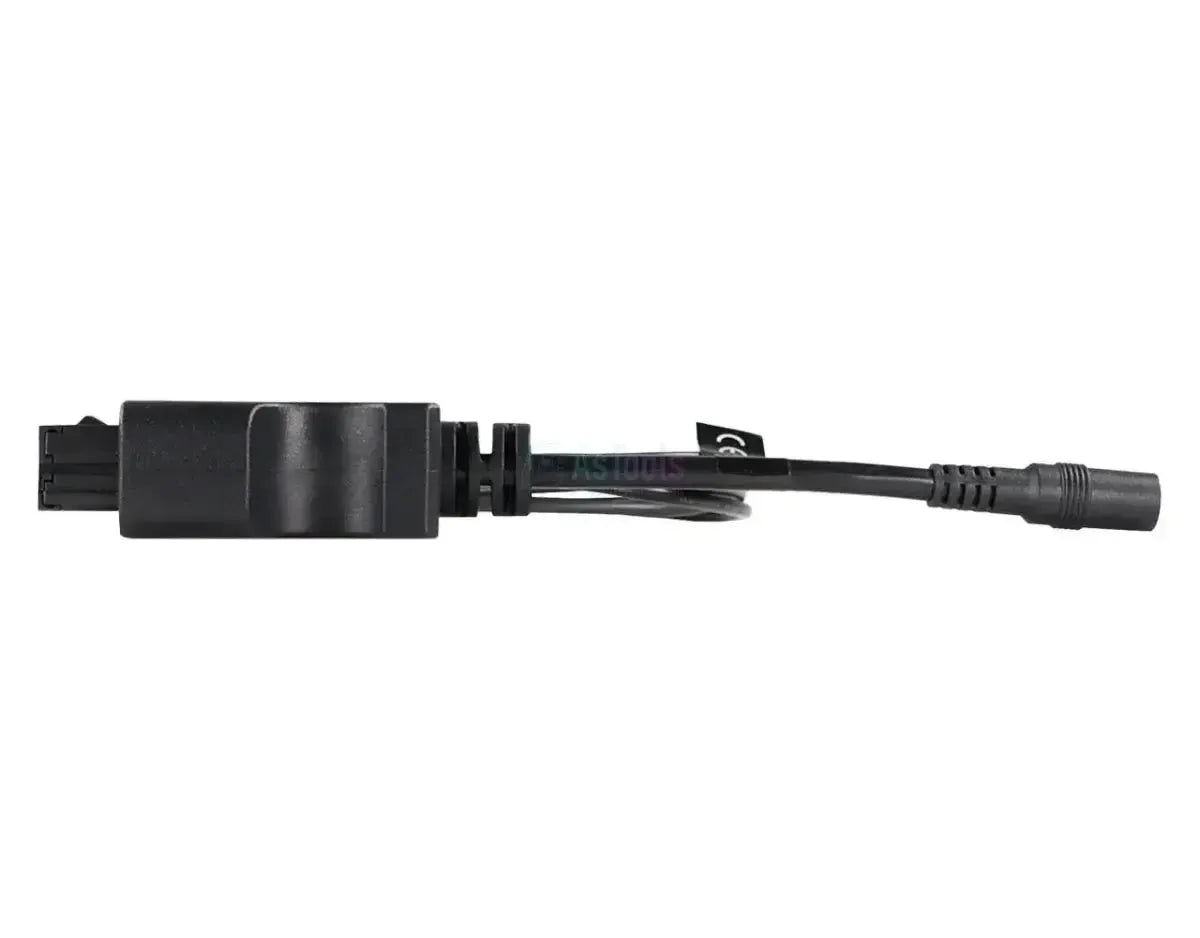

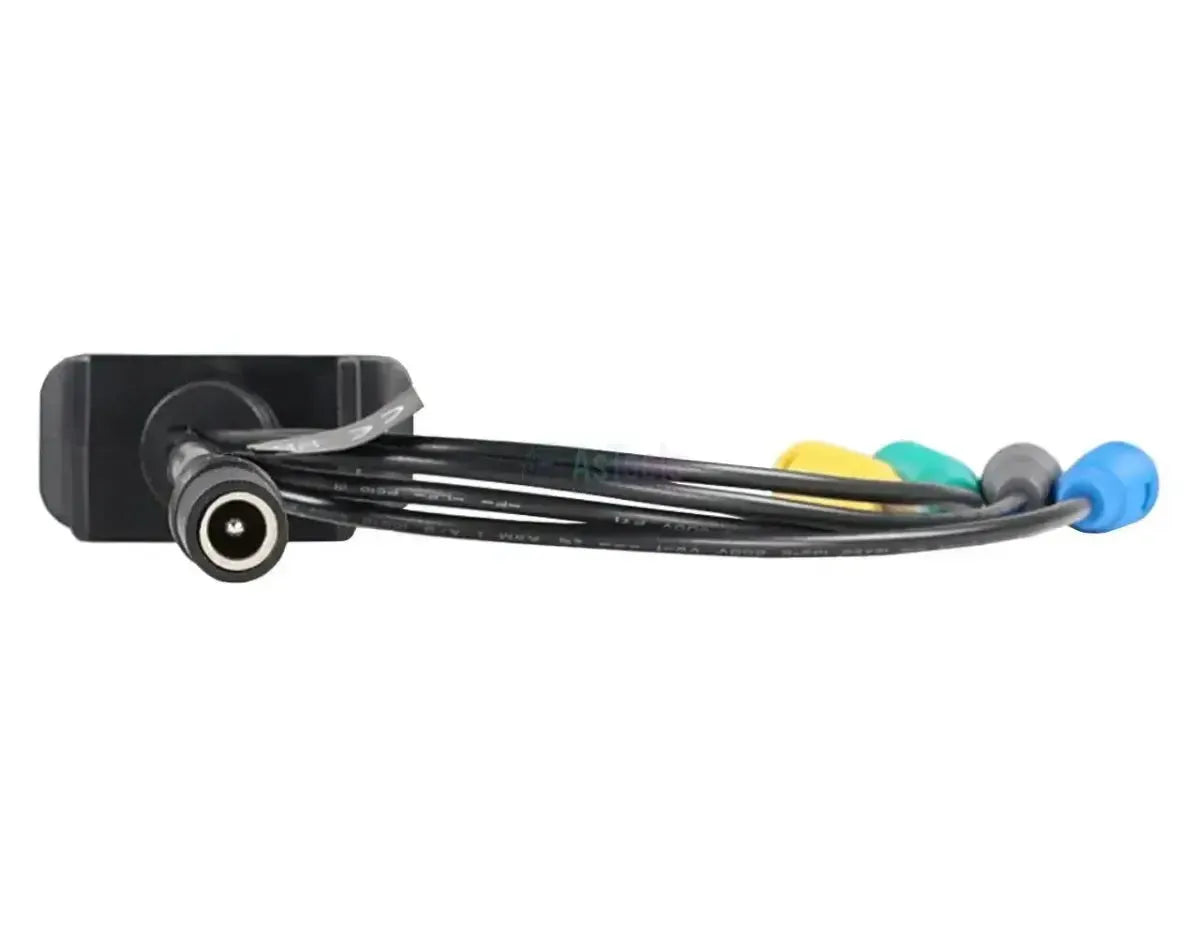

Jaltest (JTP101) | Multipins Connector Adapter Cable

The Jaltest (JTP101) Multipins Connector Adapter Cable is a specialized cable designed to facilitate flexible diagnostic connections with the Jaltest Link diagnostic interface. This cable enables communication with vehicles and machines that do not have a standard diagnostic port or for which a specific cable is missing. It provides technicians the ability to manually configure connections with various pin-outs.

This adapter cable features a universal multipin connector on the vehicle side, allowing manual configuration of individual data lines and power supply, and a specific connector on the adapter side compatible with the Jaltest Link interface. The cable is robustly constructed for durability in demanding workshop environments.

Application and functionality:

This adapter cable serves as an essential tool for diagnostics in situations where standard specific cables are not available, offering unprecedented flexibility in making diagnostic connections.

• Flexible diagnostics: Enables connection to older, non-standard, or unusual vehicle diagnostic ports through manual pin-out configuration.
• Compatibility with Jaltest Link: Specifically designed to seamlessly work with the Jaltest Link diagnostic interface, expanding the functionality of the Jaltest system.
• Universal connectivity: Provides the ability to establish connections for a wide range of systems, including engine management, transmission, and ABS, depending on the vehicle's pin-out information.
• Cable maintenance: Supports testing and diagnosing wiring harness issues through individual pin access.

Compatible vehicles and Application:

The Jaltest (JTP101) Multipins Connector Adapter Cable is a universal tool that extends connectivity for diagnostic tasks on a wide range of vehicles and machines, especially those lacking specific diagnostic cables. Compatibility depends on the availability of the electrical diagram of the respective Application.

• Agricultural vehicles: Tractors and harvesters of various brands and model years, where specific connectors are missing.
• Construction machinery: Excavators, bulldozers, and wheel loaders from various manufacturers, for manual diagnosis.
• Commercial vehicles: Trucks, buses, and vans with non-standard or older diagnostic connectors.
• Marine engines: Certain inboard and outboard engines requiring manual pin-out configuration.

Package Contents:

• 1x Jaltest (JTP101) | Multipins Connector Adapter Cable

Technical specifications:
