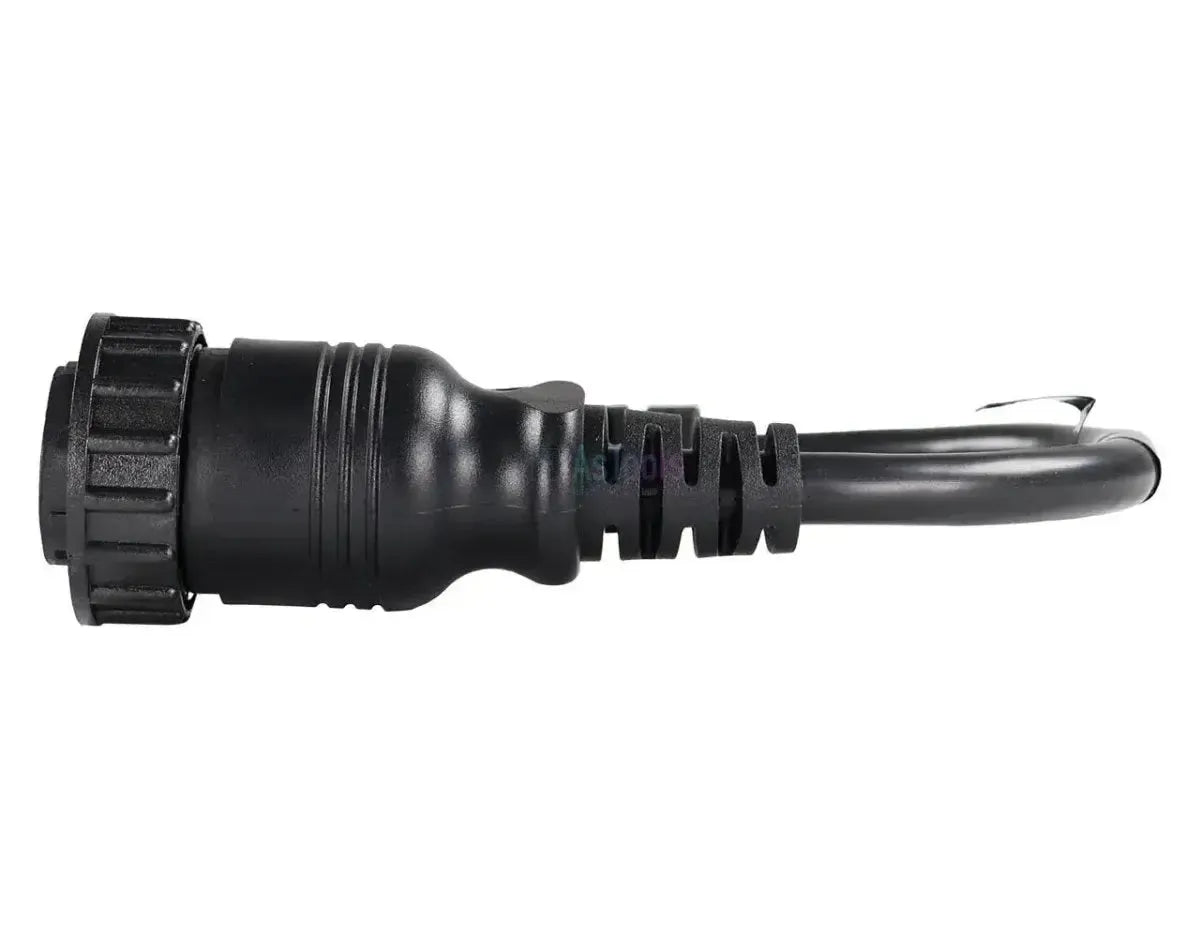

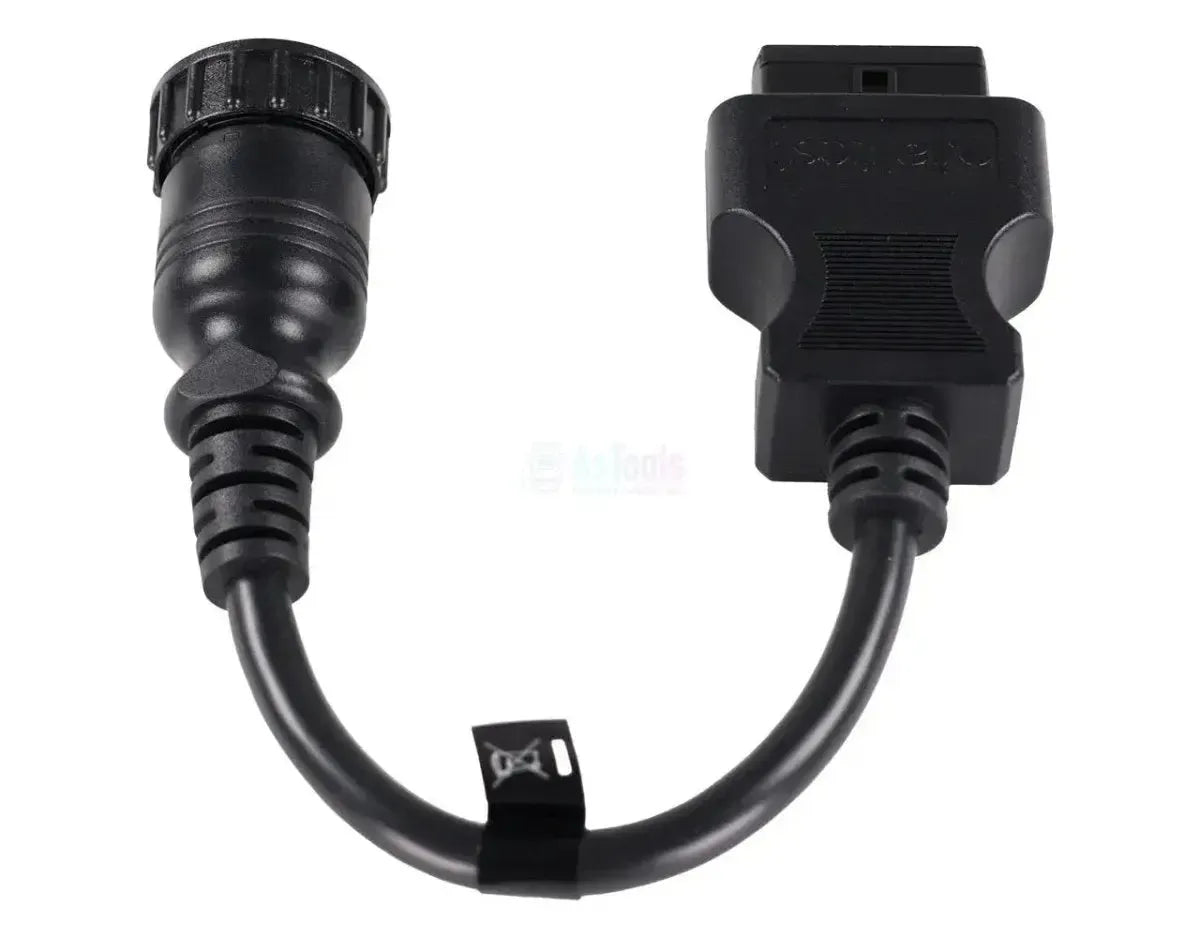

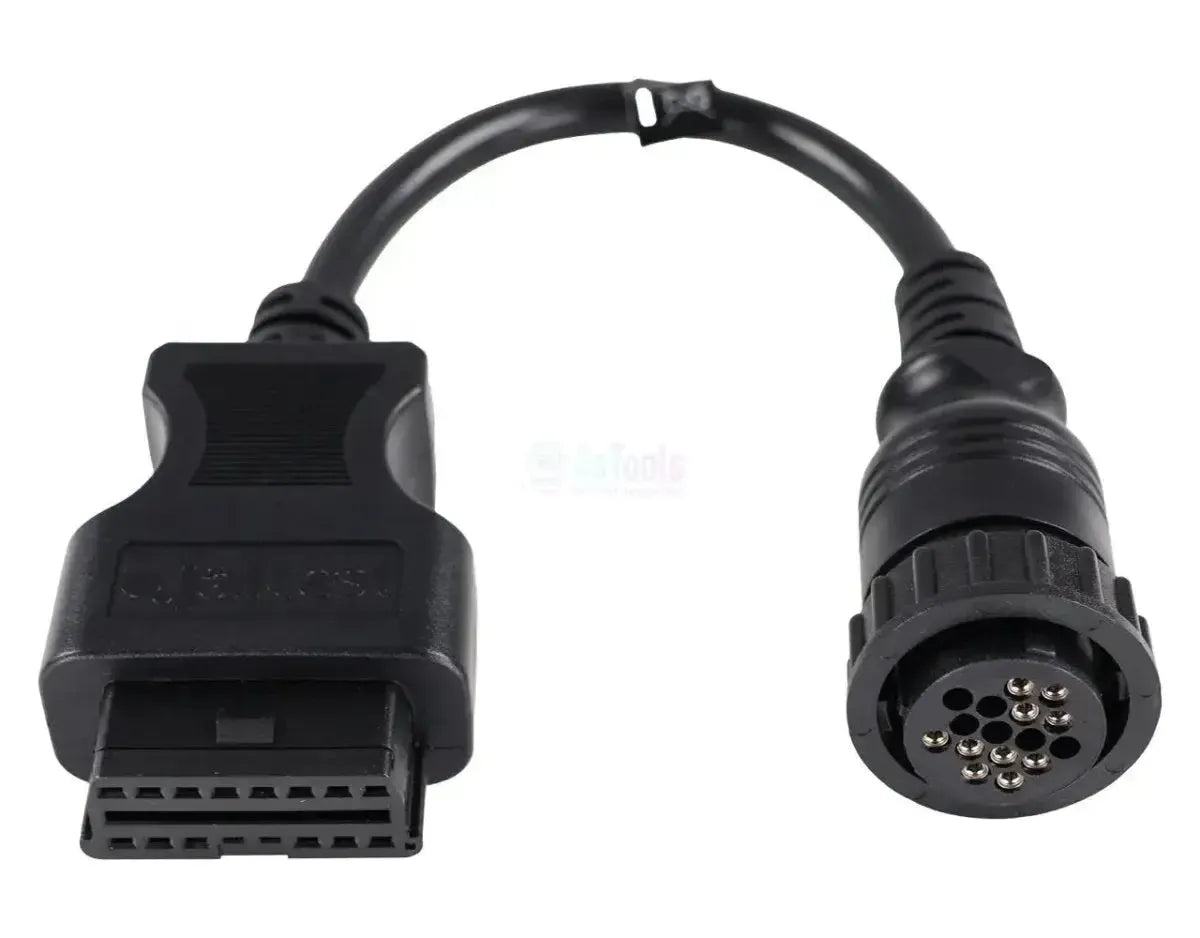

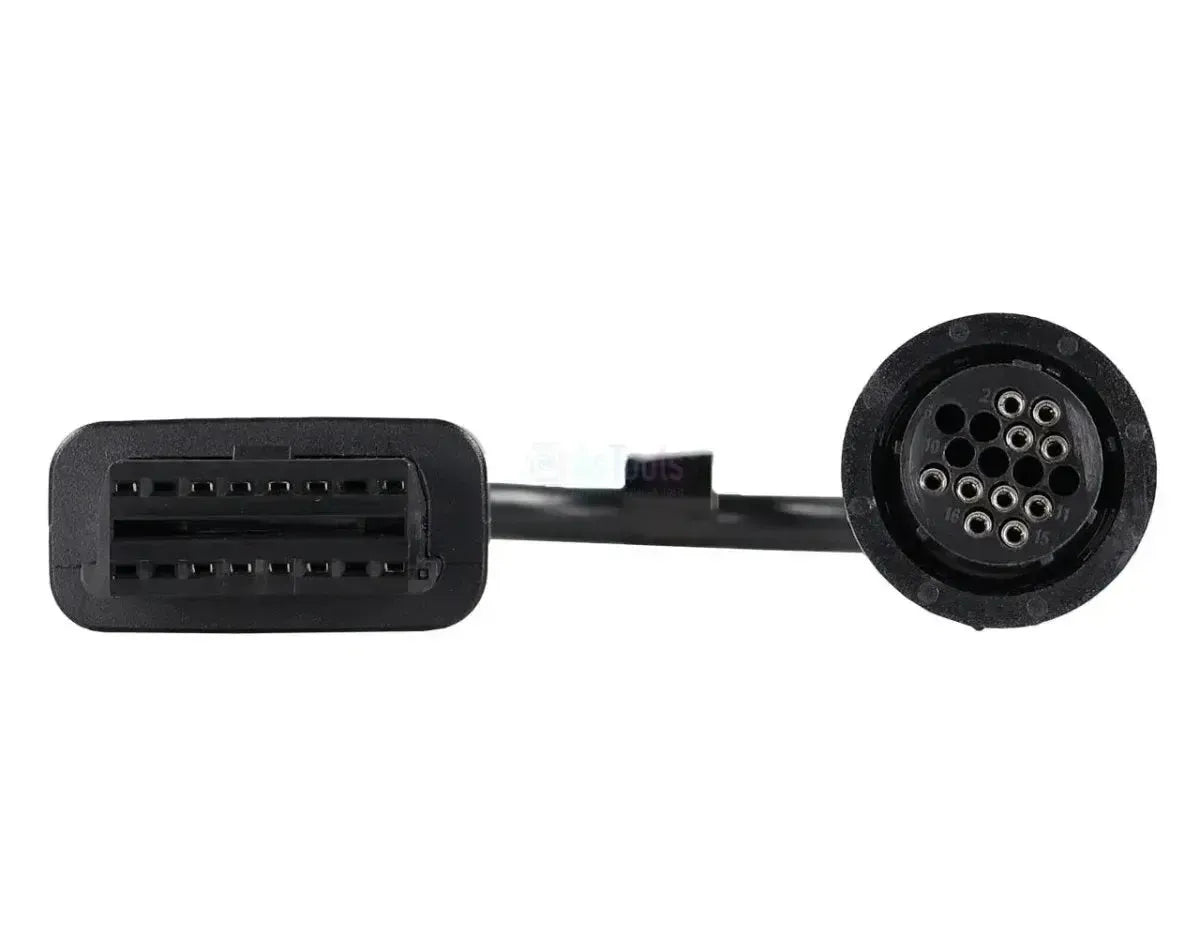

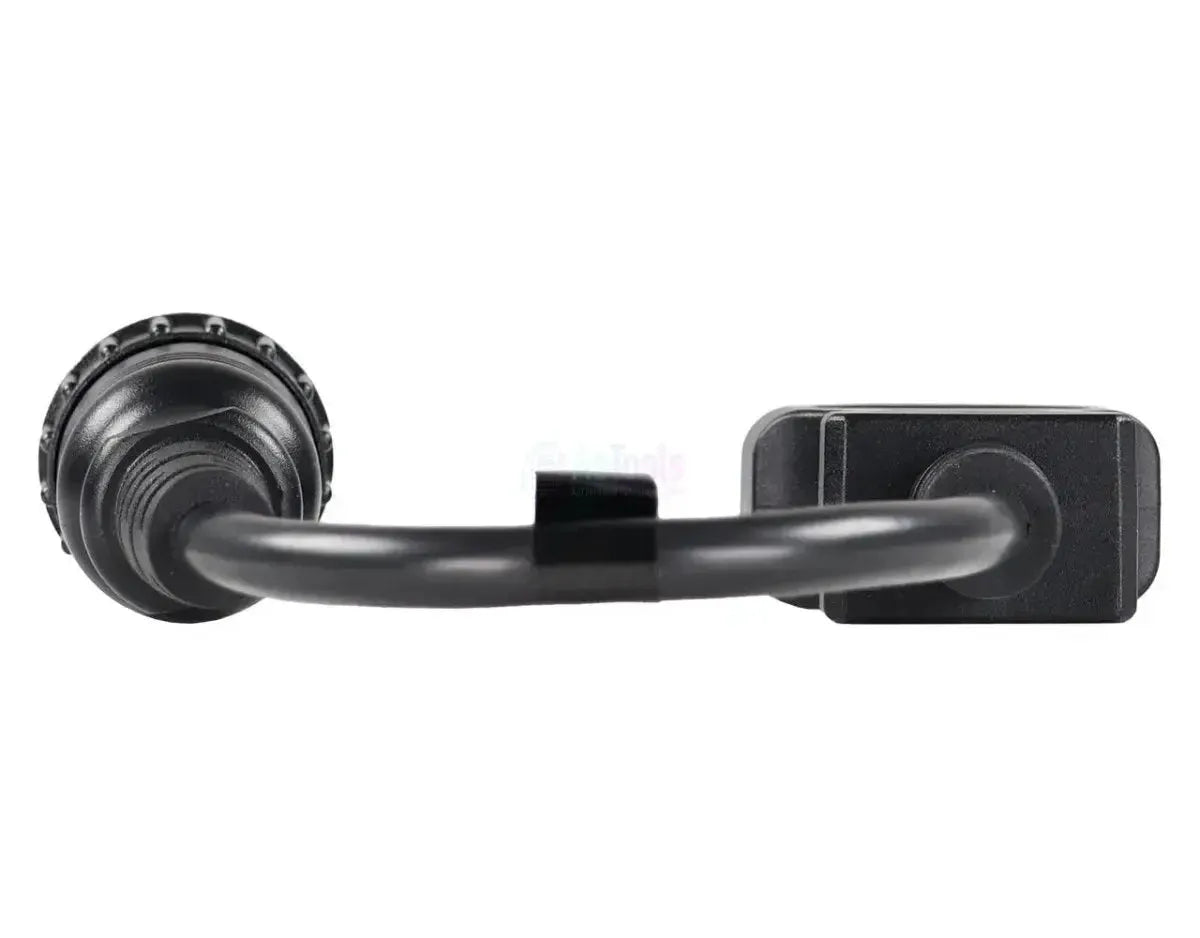

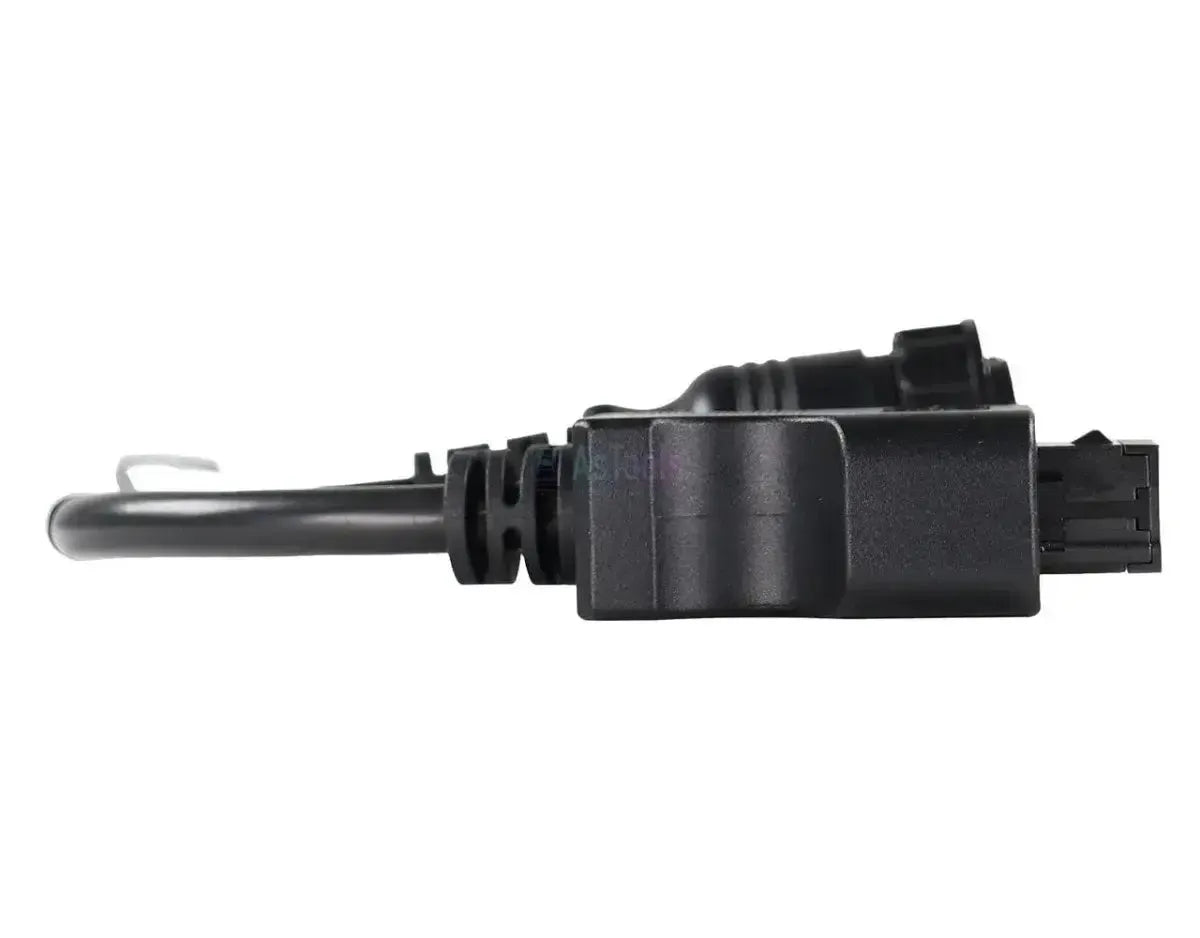

The Jaltest JDC520A is the cable that the brand-specific 16-pin diagnostic connector from Valtra-tractors converted to the standard 16-pin OBD2-connection. On the vehicle side, there's a 16-pin connector that plugs into the cab and has a different pin configuration than a standard OBD2 plug; on the interface side, there's a 16-pin OBD2 port for your Jaltest diagnostic cable. This connector is designed for the CAN-controlled generation with common-rail engines.
Once the connection is established, the Jaltest software accesses the engine control unit of the tractor. Jaltest performs two common-rail engine diagnostics here: The EEM3 - EDC 7 UC31 and the newer EEM4 - EDC 17 CV54, with additional actions also available on the EEM4. With both systems, maintenance intervals can be retrieved. Agricultural vehicles have never been required to use a standardized diagnostic connector, which is why this 16-pin plug remains in use alongside the older 8-pin version. The cable falls under Jaltest AGV (agricultural vehicles).
KEY BENEFITS
KEY POINTS
Applications and features
Through this 16-pin connection, you access the tractor's engine control unit with Jaltest software.
Control units you can access
- Engine management EEM3 - EDC 7 UC31, common rail: The first common-rail engine control of this Valtra generation.
- Engine management EEM4 - EDC 17 CV54, common rail: The newer electronic diesel control, with additional functions in Jaltest.
What you can do
- Read and clear fault codes: Access the control unit's fault memory, including descriptions of detected faults.
- View live data: Monitor current sensor values controlled by the control unit, with the ability to set alarm thresholds.
- Check service intervals: Review scheduled maintenance and required work, with a report for workshop records.
- Perform additional functions: Extra procedures available in Jaltest for this control unit. On Valtra, available on the EEM4 - EDC 17 CV54.
Compatible vehicles and applications
The connector type determines compatibility, not the model. This cable fits any Valtra tractor with the 16-pin diagnostic connector. Jaltest AGV covers the series listed below; check which connector is installed in your cab.
Valtra:
- Valtra N-series: (2005 - present)
- Valtra T-series: (2002 - present)
- Valtra S-series: (2001 - present)
- Valtra A-series: (2002 - present)
- Valtra M-series
Package Contents
- 1x Jaltest (JDC520A) | Valtra 16-pin OBD to 16-pin OBD2 Adapter Cable | Agricultural Vehicle
Technical Specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC520A |
| Type | Adapter Cable |
| Application | Valtra (16-pin connector) |
| Vehicle-Side Connector | 16-pin OBD |
| Interface-Side Connector | 16-pin OBD2 |
| Control Units | EEM3 - EDC 7 UC31 and EEM4 - EDC 17 CV54 (engine management) |
| Segment | Agricultural Vehicle |
| Jaltest Module | Jaltest AGV (agricultural vehicles) |
| Required to Use | Jaltest Link with valid software license |
