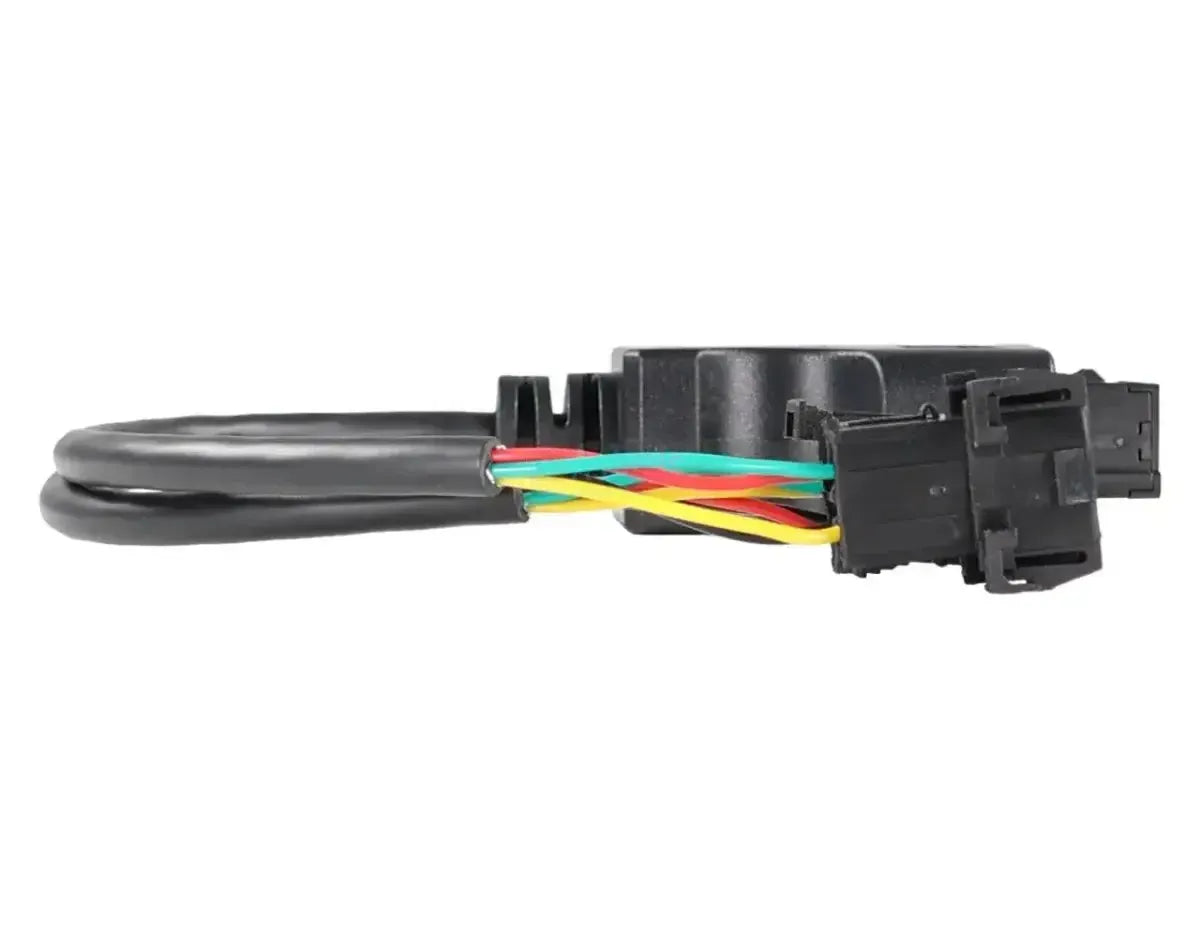

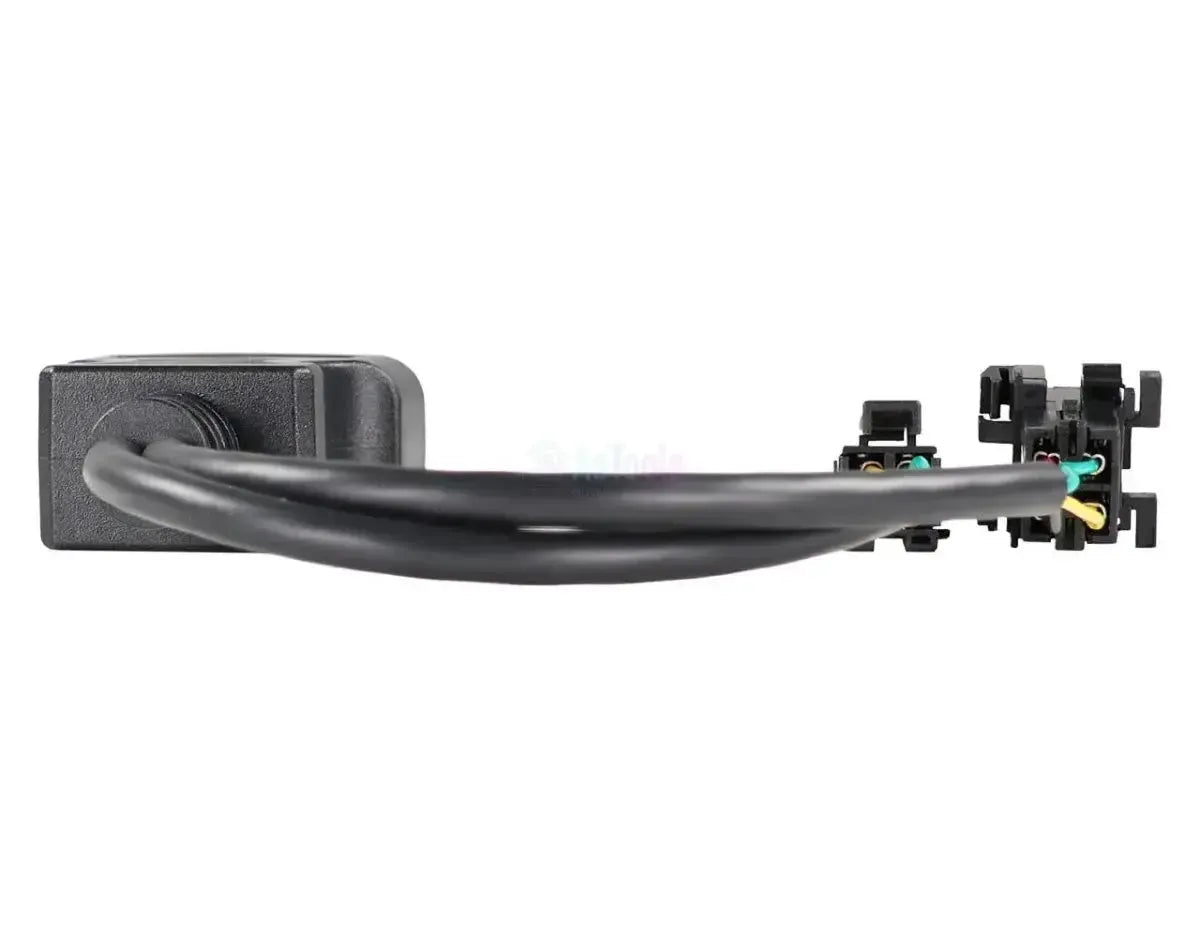

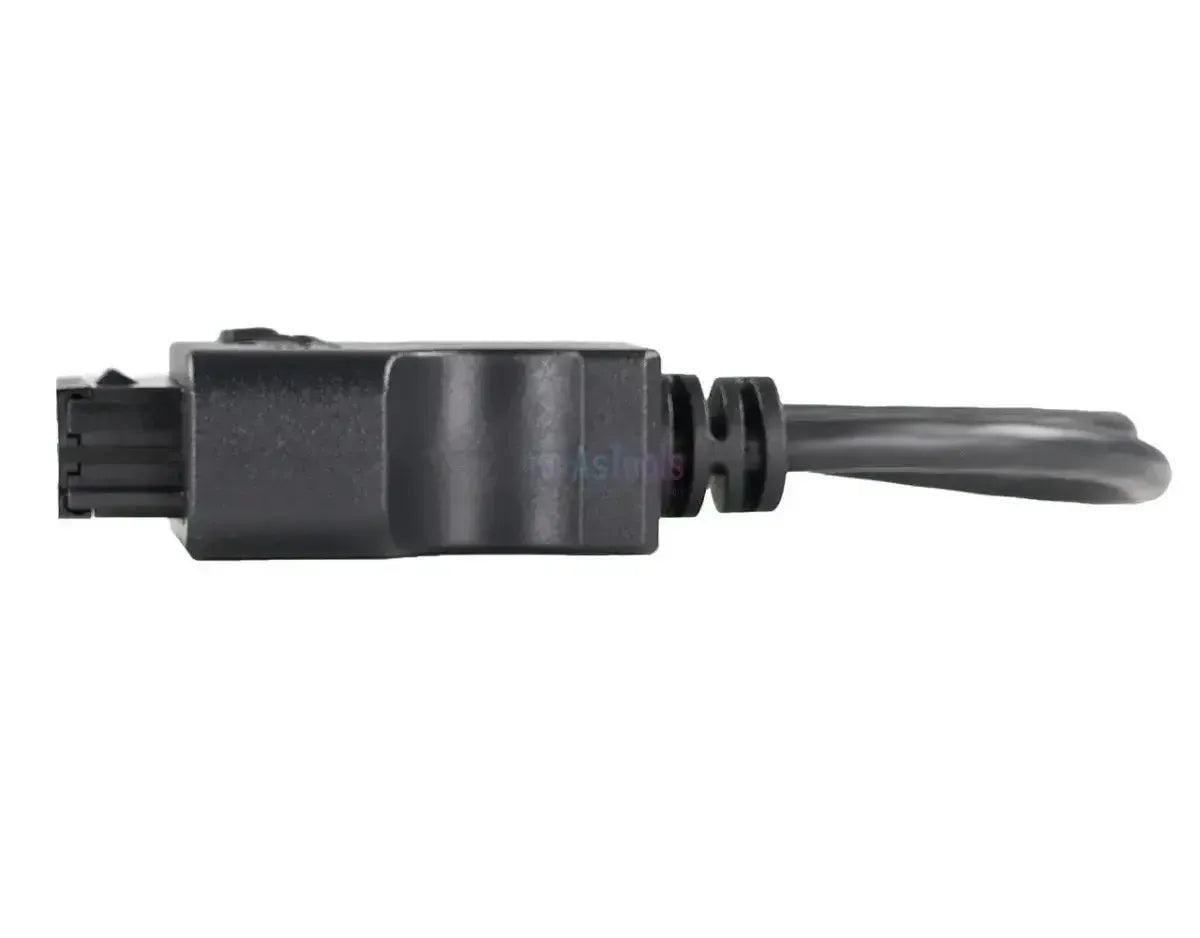

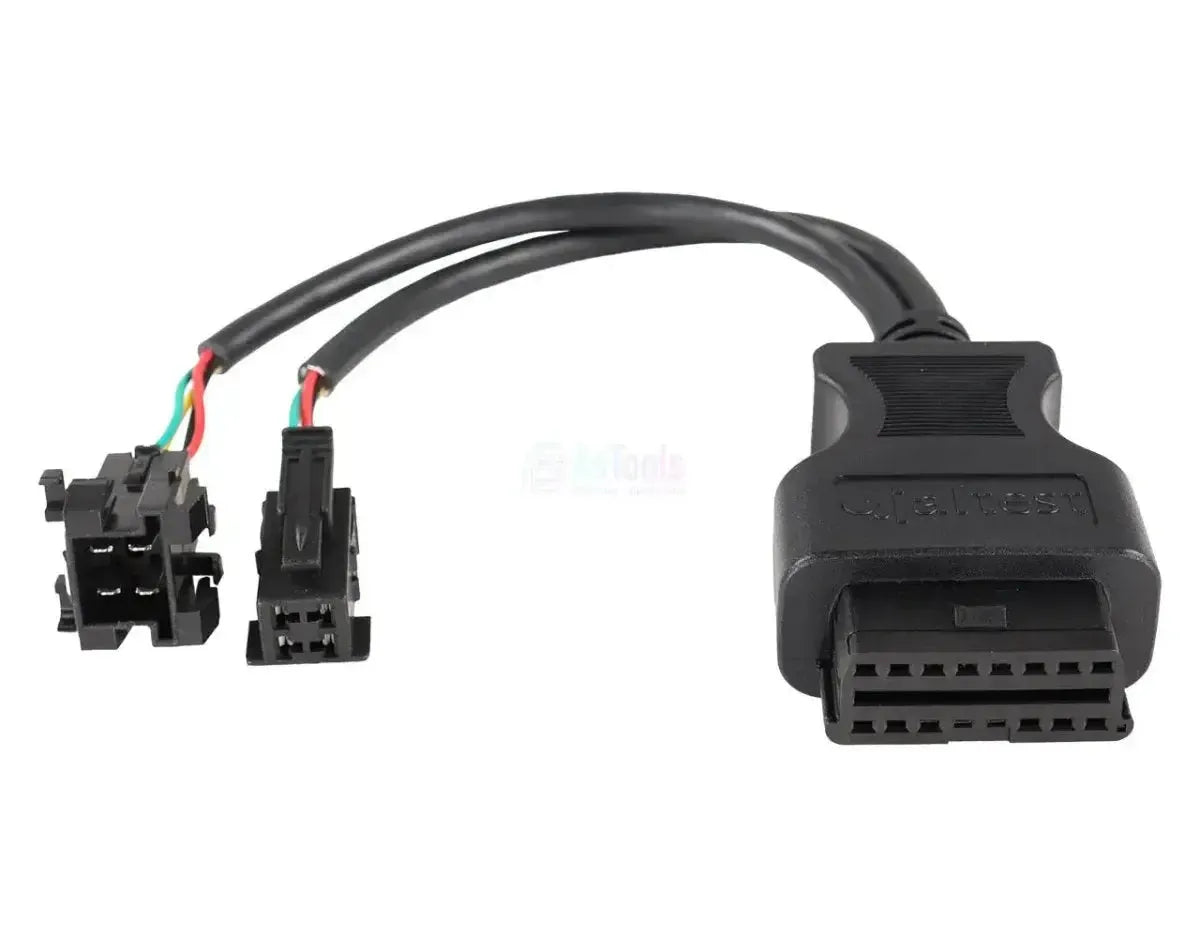

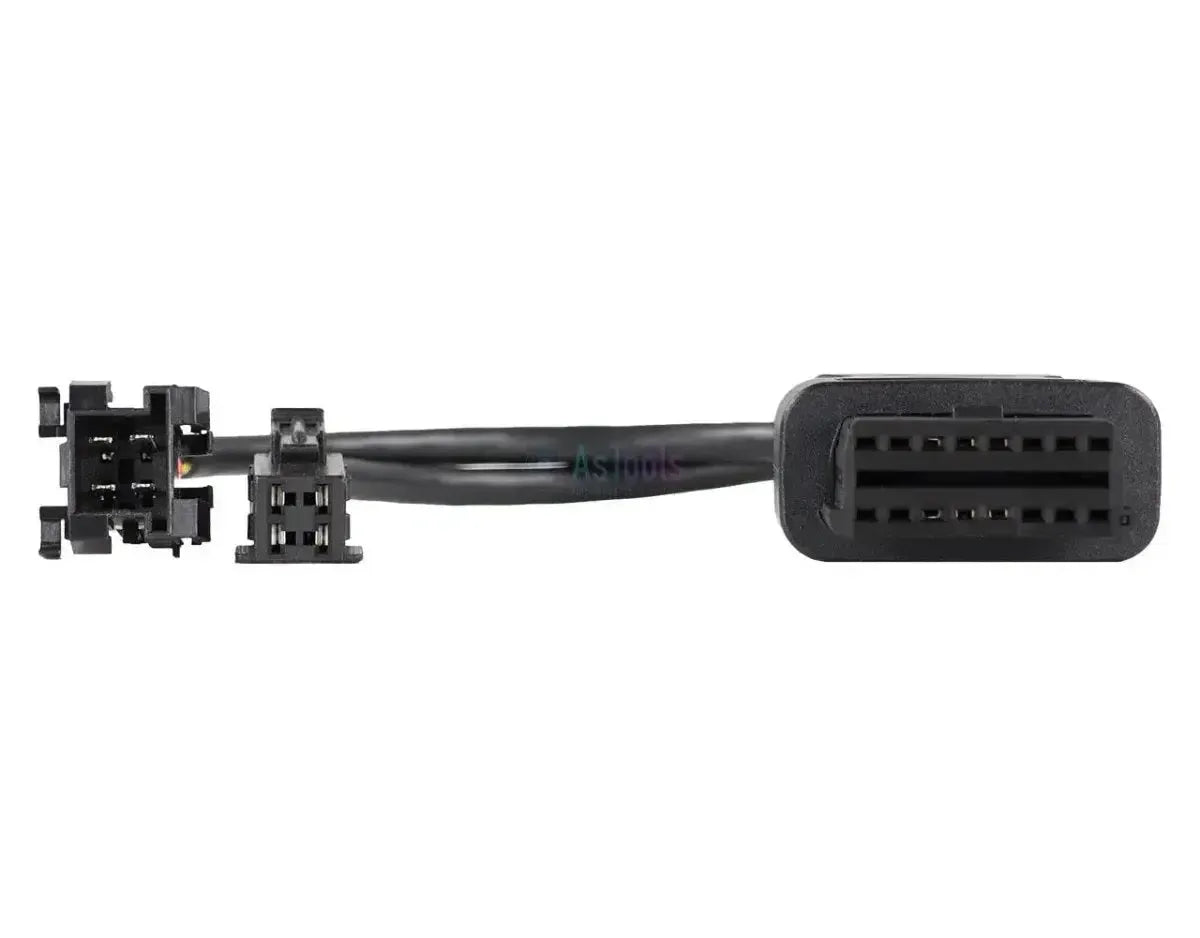

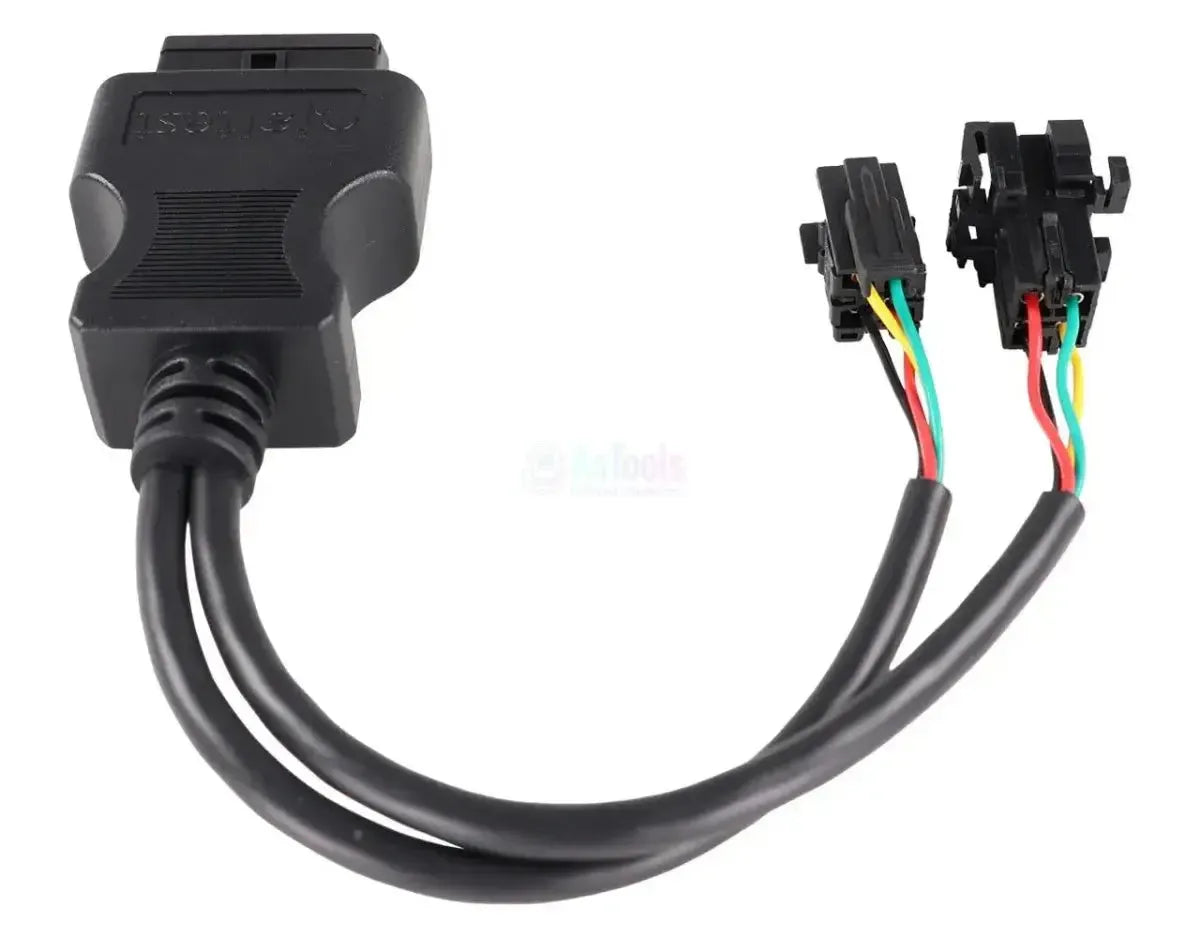

The Jaltest JDC304A is the adapter cable that converts the proprietary 4+4-pin diagnostic connector from Wabco bus systems ATC and MTS to the standard 16-pin OBD2 port on your Jaltest diagnostic device. The 4+4-pin connector is integrated into the climate control or door control unit itself, so it's not located at the vehicle's OBD port but rather in a control box in the cab or at the door. Climate control and door control share the same connector, so one cable serves both systems. The cable is system-specific rather than brand-specific: it works on any bus equipped with these Wabco modules.
With this connection, Jaltest equipment reads two control units that have their own electronics alongside the powertrain: The ATC / ATC Coach, the automatic climate control system, listed under Climate/HVAC coverage, and the MTS, the modular door control system, categorized under Electronic modules. This allows door and climate issues to be diagnosed using fault codes and live data rather than relying solely on a multimeter; however, for these two systems, coverage remains limited to reading only. The cable falls under Jaltest CV (commercial vehicles).
KEY BENEFITS
IMPORTANT NOTES
Applications and Features
Use this connection to access Wabco comfort and body control systems on your bus with Jaltest diagnostic software.
Control units you can access
- ATC / ATC Coach, Automatic Temperature Control: The bus's automatic climate control system, covered in Jaltest under Climate/HVAC.
- MTS, Modular Door Control System: The modular door control system, covered under Electronic modules.
What you can do
- Read and clear fault codes: Access the fault memory of the climate or door control unit and clear it after repairs.
- View live data: Monitor real-time sensor values connected to the control unit, such as temperature sensors and door positions.
- View system diagnostic messages: Jaltest displays the diagnostic message from the MTS control unit.
Compatible vehicles and applications
The system matters, not the bus brand. This cable is designed for Wabco ATC climate control and Wabco MTS door control systems with 4+4-pin connectors; check your control unit on-site to confirm which connector you have.
Application:
- Urban and regional buses with Wabco ATC climate control
- Buses with Wabco MTS door control, the modular door management system
- Bus brand doesn't matter: Jaltest covers both systems under various manufacturers including Solaris and Solbus
Package contents
- 1x Jaltest (JDC304A) | Wabco (ATC/MTS) 4+4-pin to OBD2 16-pin Adapter Cable | Bus
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC304A |
| Type | Adapter cable |
| Application | Wabco ATC climate control and Wabco MTS door control (bus) |
| System-side connector | 4+4-pin OBD |
| Interface connector side | 16-pin OBD2 |
| Control units | ATC / ATC Coach (climate control) and MTS (door control) |
| Segment | Bus |
| Jaltest module | Jaltest CV (commercial vehicles) |
| Required to use | Jaltest Link with valid software license |
