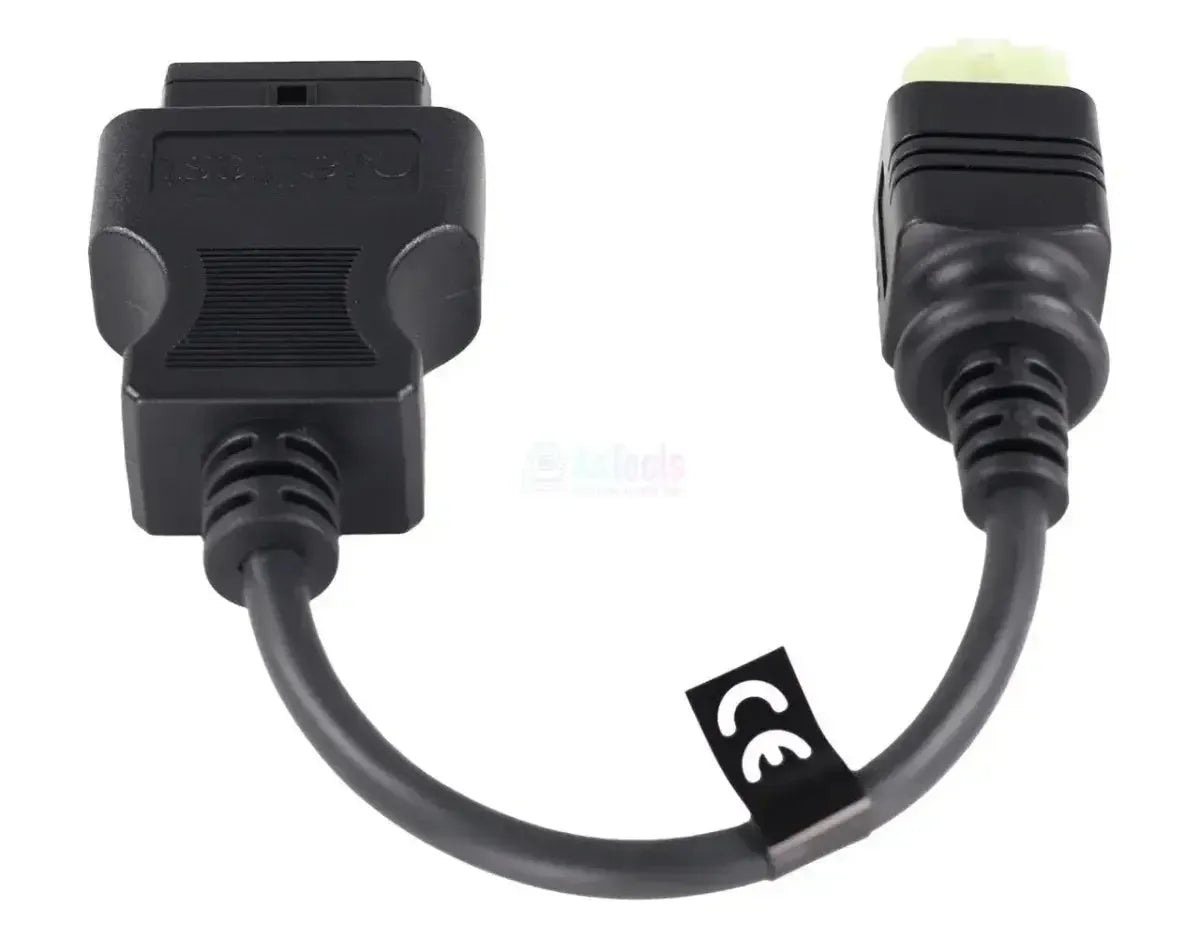

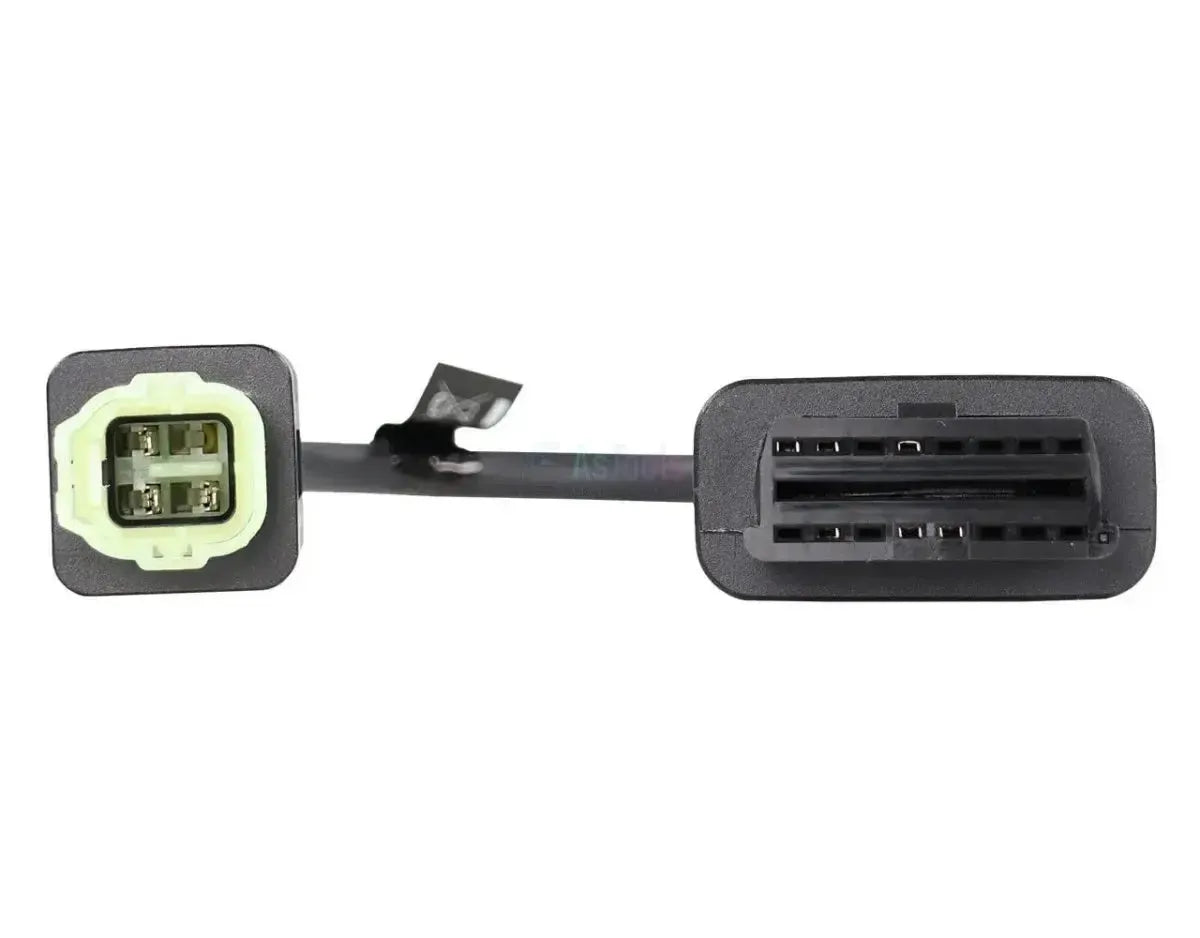

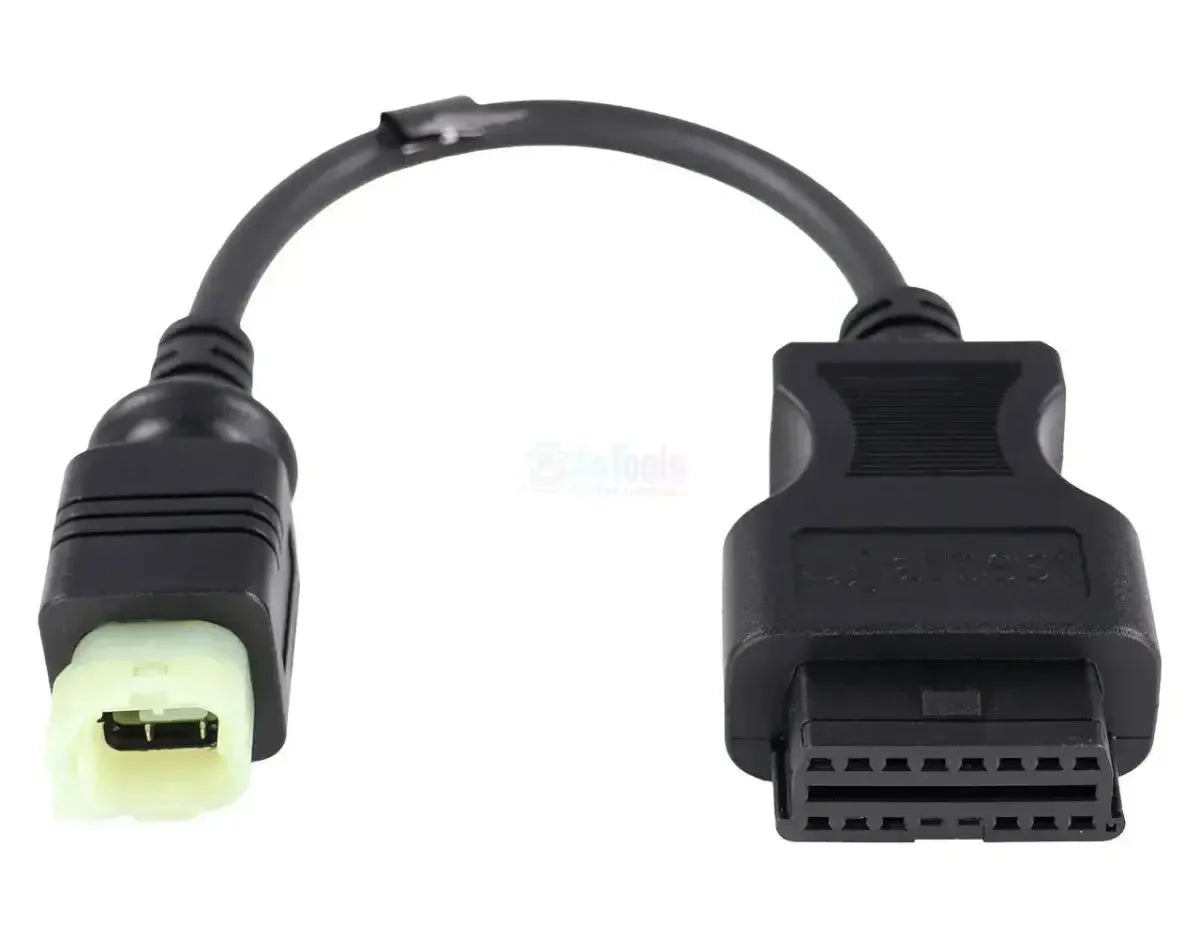

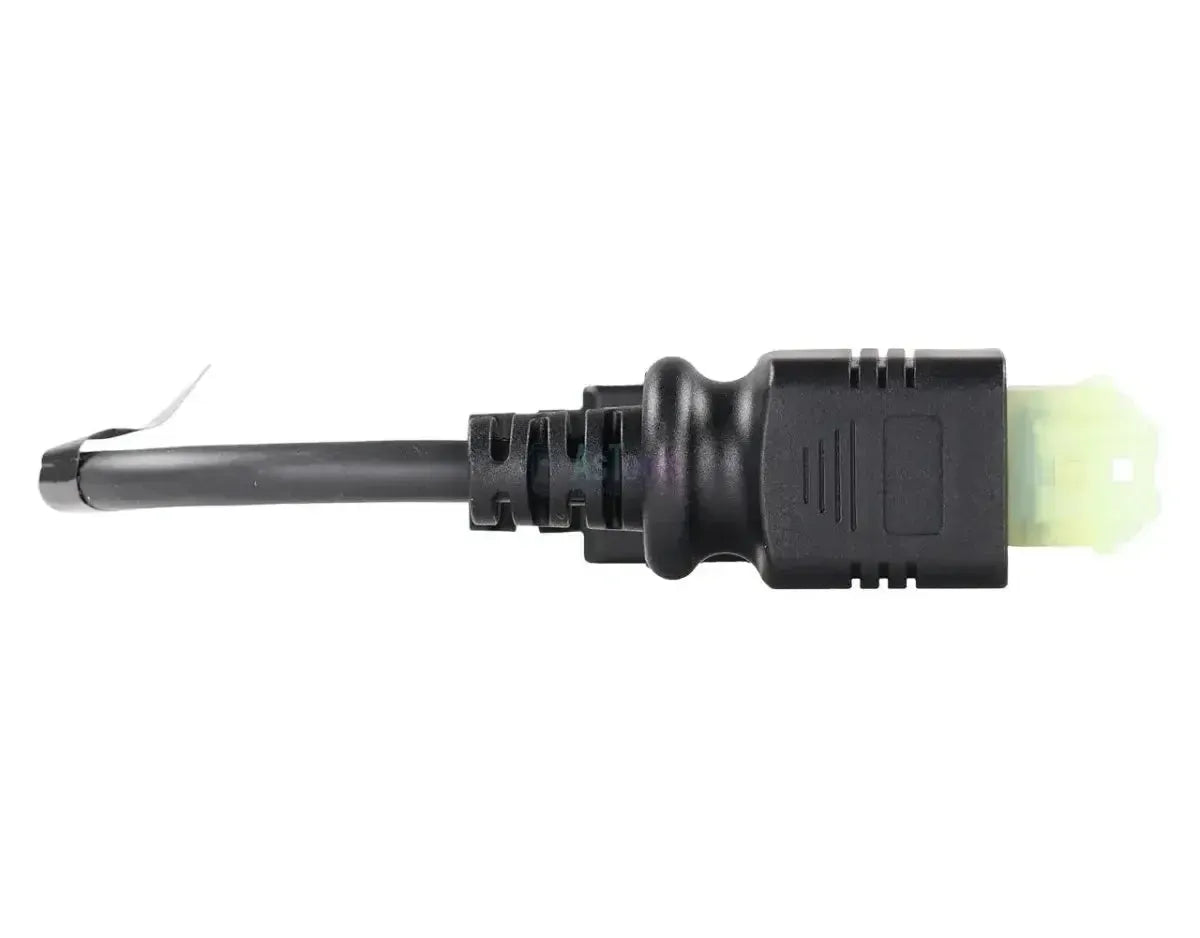

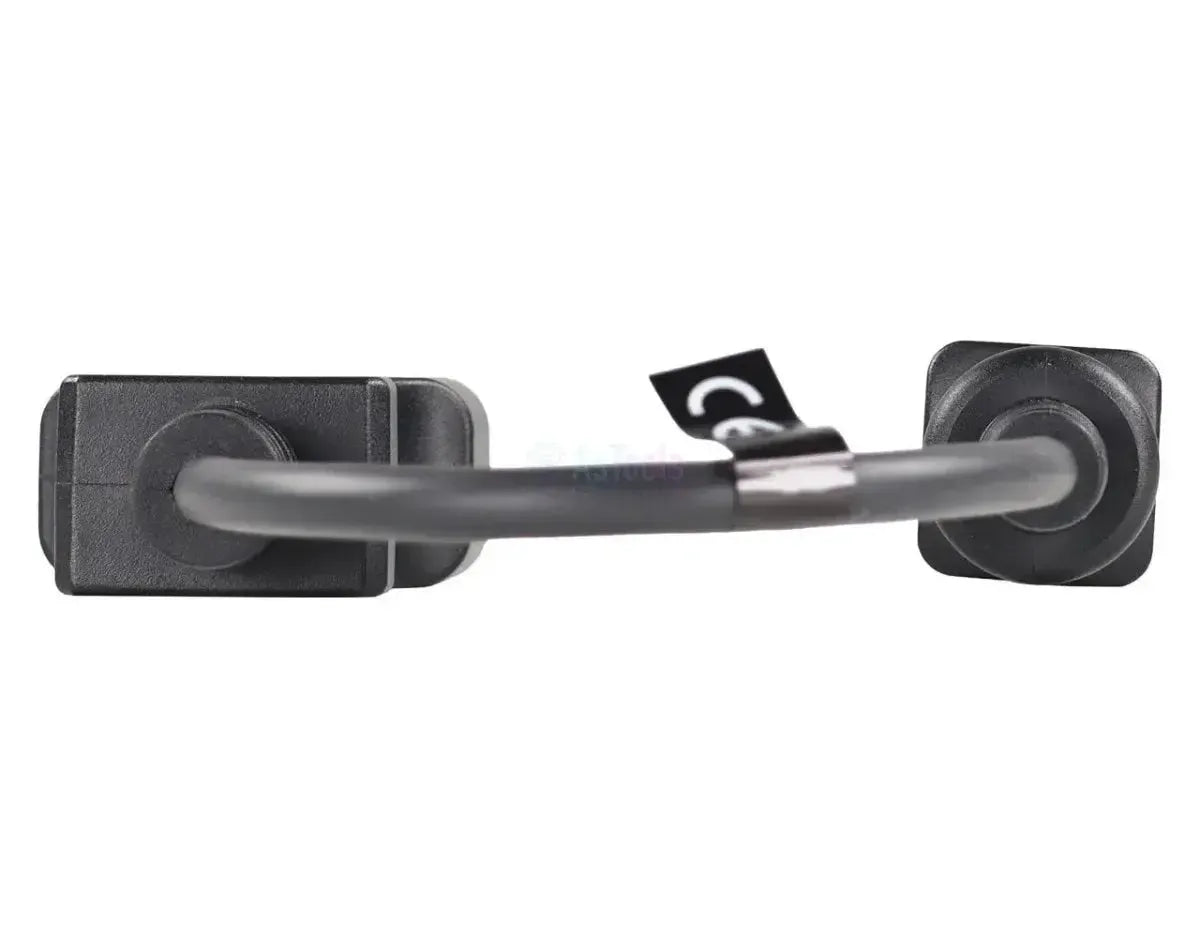

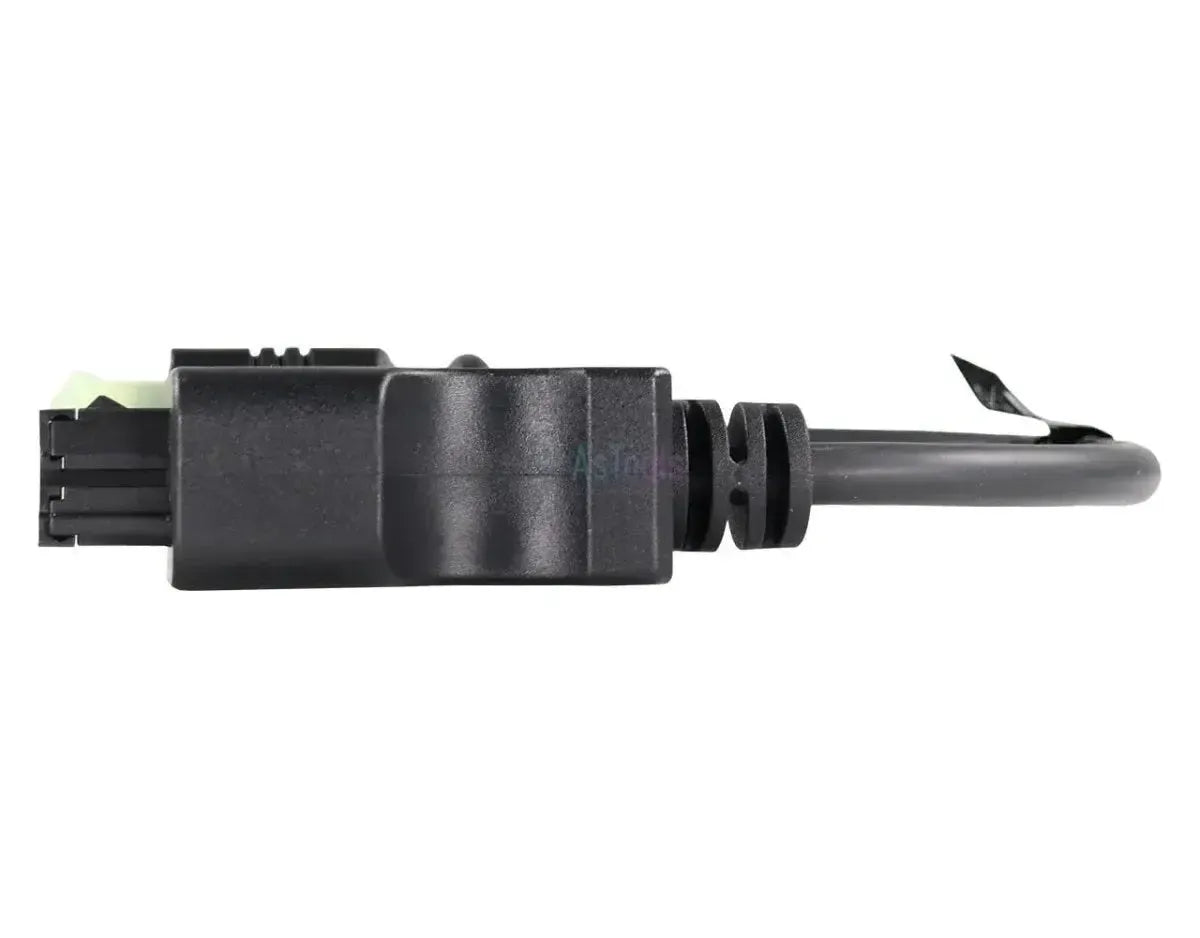

The Jaltest JDC608A is the adapter cable for Honda outboard motors equipped with the manufacturer's proprietary 4-pin diagnostic connector: the connector is located on the motor side, while the interface side features the 16-pin OBD2 connection for the Jaltest Link. The port is situated in the engine compartment, on or near the motor. Honda uses two versions of the PGM-FI engine control system — a 2-pin and a 4-pin configuration; this cable is designed for the 4-pin version.
Once connected, the Jaltest software accesses the ECM PGM-FI, the Programmed Fuel Injection system of the engine. The 4-pin version provides full diagnostic coverage: fault codes, live data, component actuation, parameters, calibration and reset. This is significantly more comprehensive than the 2-pin version, which only reads live data and calibration — no fault codes or sensor readings. This cable is part of the Jaltest Marine product line.
KEY BENEFITS
IMPORTANT NOTES
Applications and Features
Using this connection, you can access the engine control unit of your Honda outboard motor with Jaltest diagnostic software.
Control units you can access
- ECM PGM-FI (4-pin) — engine management:Honda's Programmed Fuel Injection system, including fault codes, live data, sensor readings, component actuation, parameters, calibration, reset functions and real-time monitoring.
What you can do
- Read fault codes:Retrieve stored diagnostic trouble codes from the engine control module, complete with detailed descriptions of detected faults.
- View sensor data and monitor live readings:Track actual sensor values in real-time while the engine is running.
- Control actuators:Directly command engine control actuators and components.
- Adjust parameters and perform calibration:Configure settings and execute calibration procedures.
- Reset maintenance data:Clear counters and reset values after service work.
Compatible vehicles and applications
The connector type determines compatibility, not the model.This cable works with any Honda outboard motor featuring the 4-pin PGM-FI connector. Jaltest Marine supports the engines listed below; verify which connector your motor has before ordering.
Honda:
- BF40 through BF100:BF40, BF40 JET, BF50, BF60, BFP60, BF65 JET, BF75, BF80, BF90 and BF100
- BF105 through BF150:BF105 JET, BF115, BF130, BF135, BF140 and BF150
- BF175 through BF350:BF175, BF200, BF225, BF250 and BF350
Package contents
- 1xJaltest (JDC608A) | Honda 4-pin OBD – 16-pin OBD2 Adapter Cable | Outboard Motor
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC608A |
| Type | Adapter cable |
| Application | Honda outboard engines |
| Engine-side connector | 4-pin OBD |
| Interface-side connector | 16-pin OBD2 |
| Control units | ECM PGM-FI (4-pin), engine control |
| Segment | Motorboat |
| Jaltest module | Jaltest Marine |
| Part of cable set | Marine cable set vessel (70002008) and outboard (70002025) |
| Required to use | Jaltest Link with valid software license |
