Jaltest (JDC101A) | Haldex ABS Modular 3+3-pins OBD – 16-pins OBD2 ...

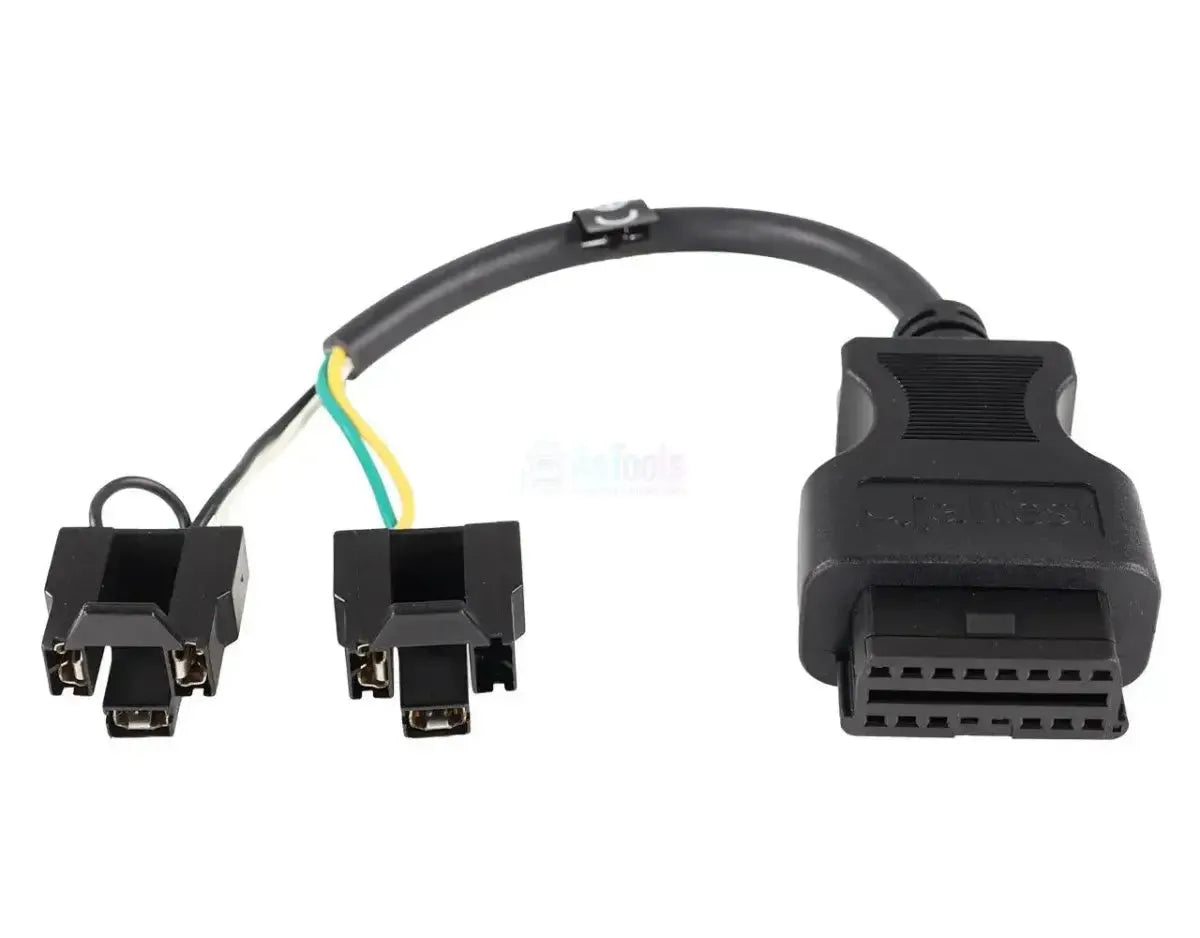

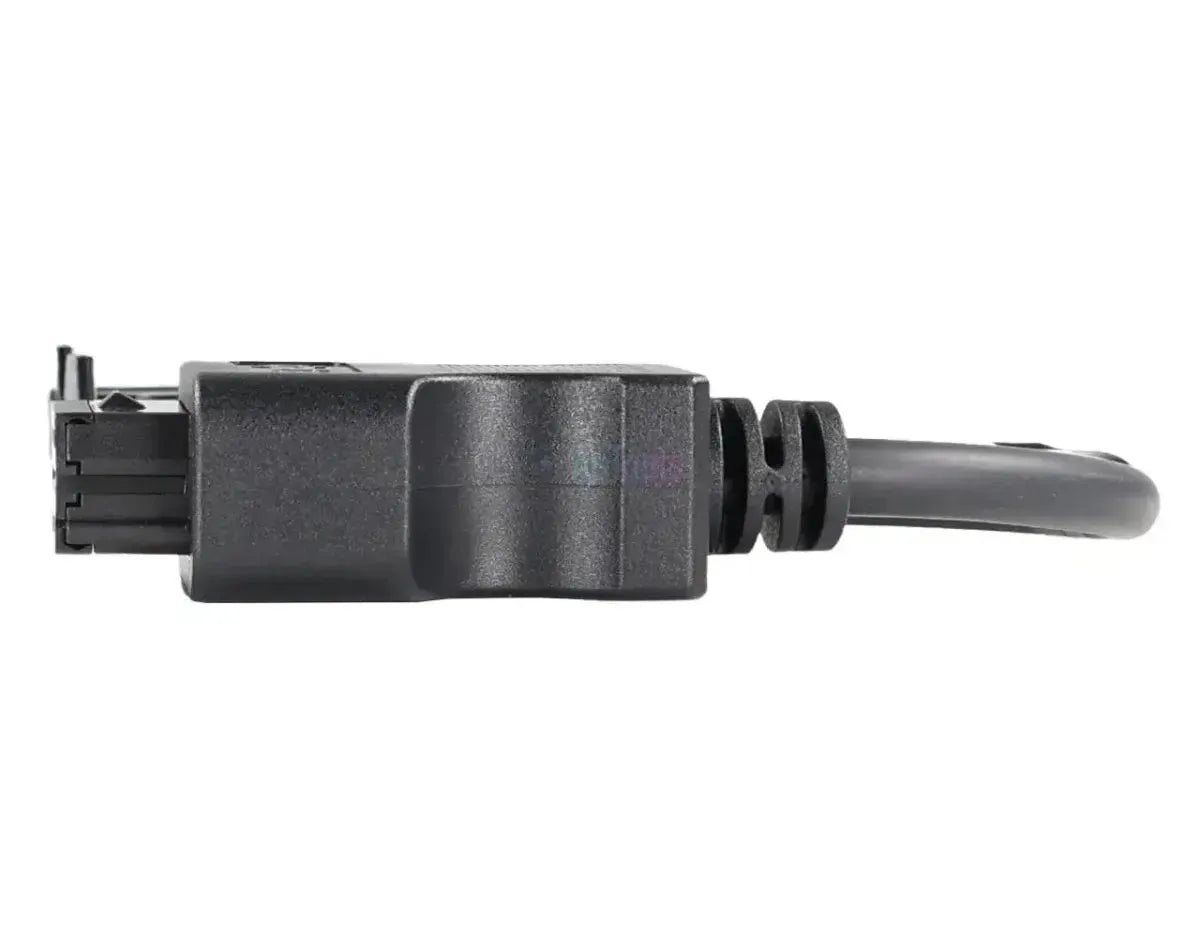

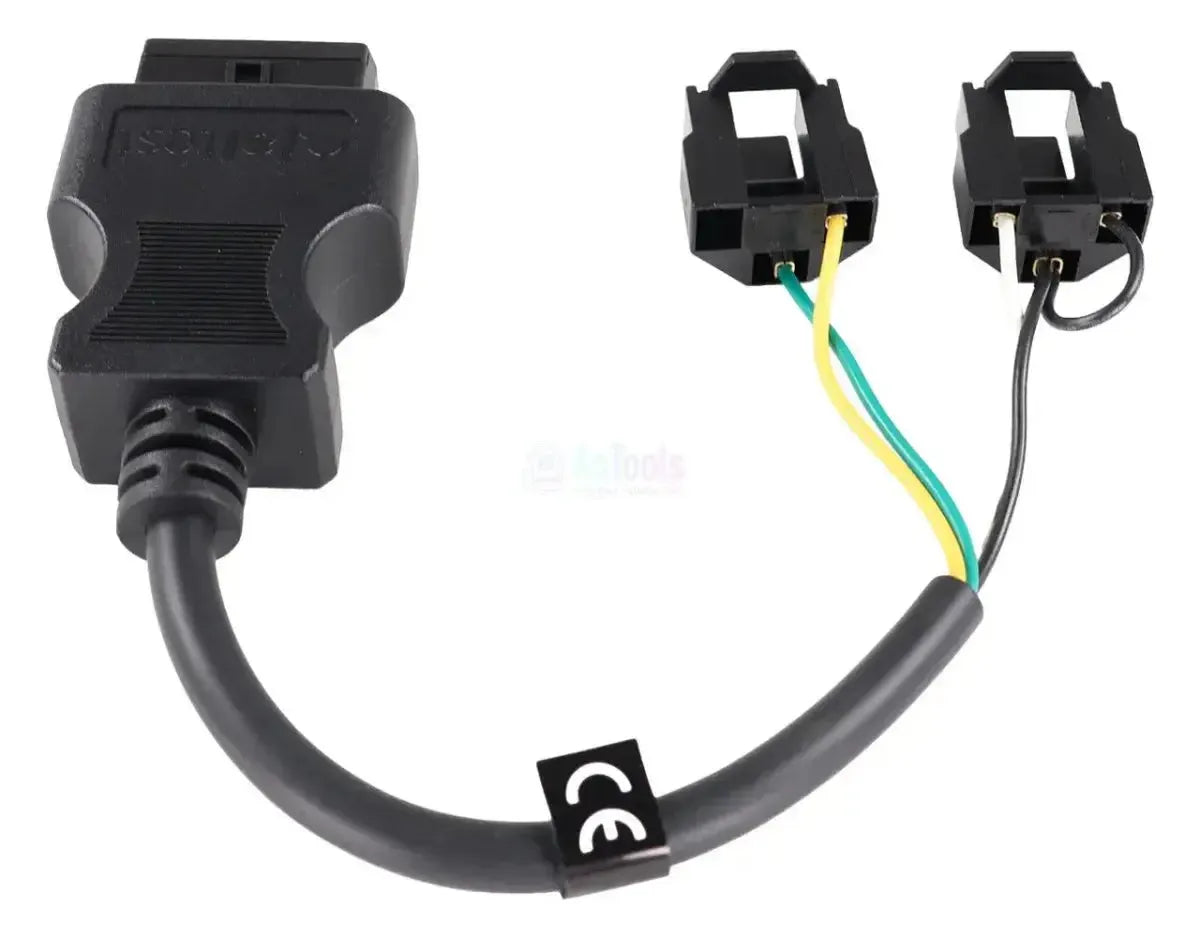

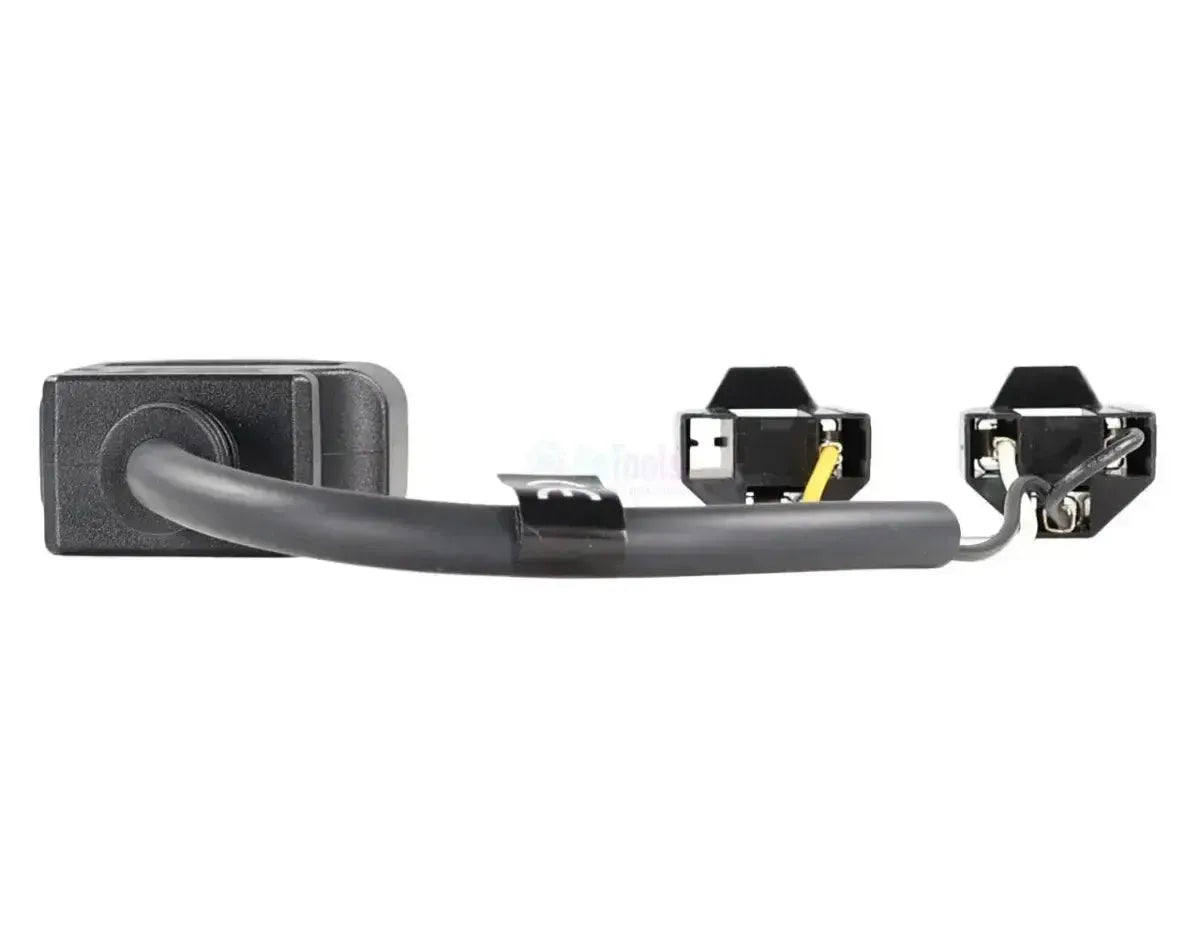

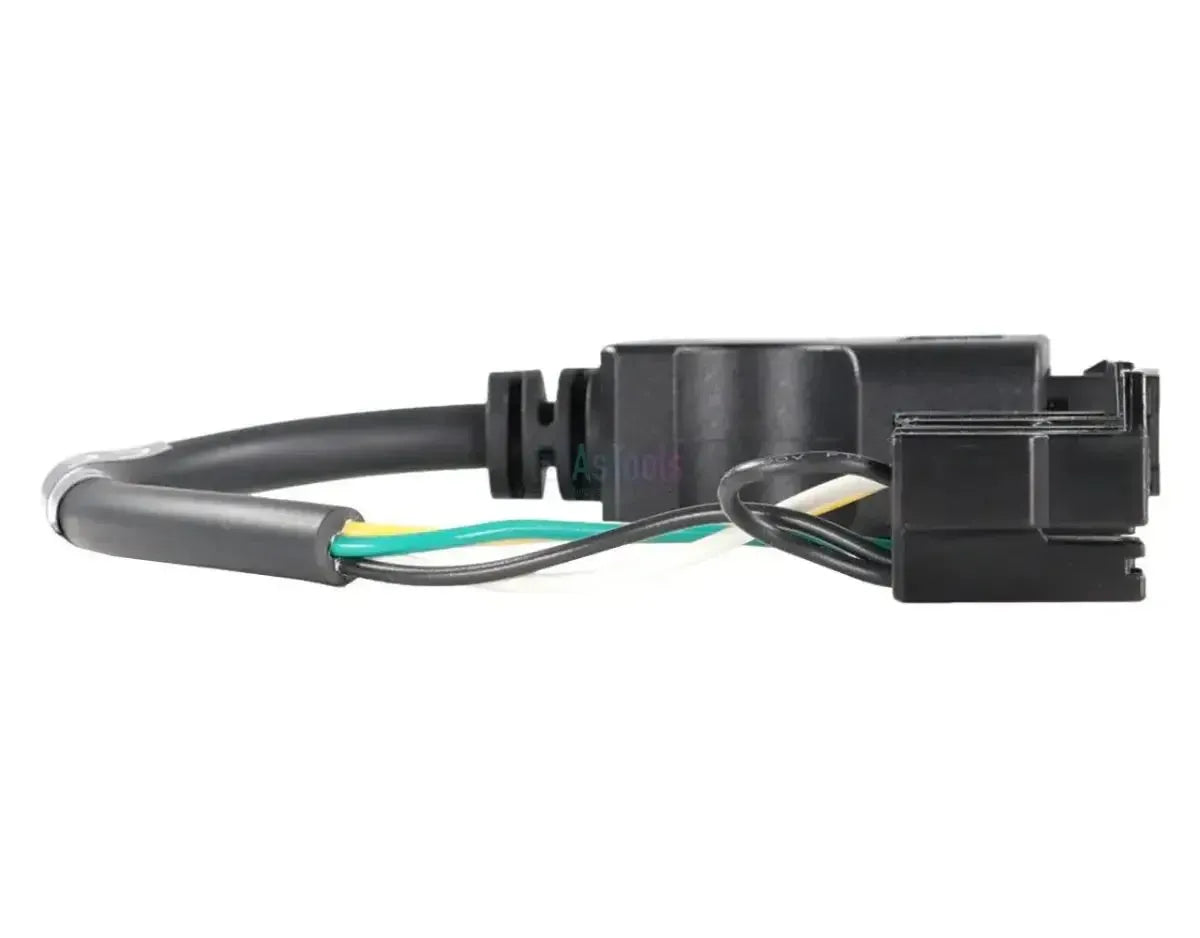

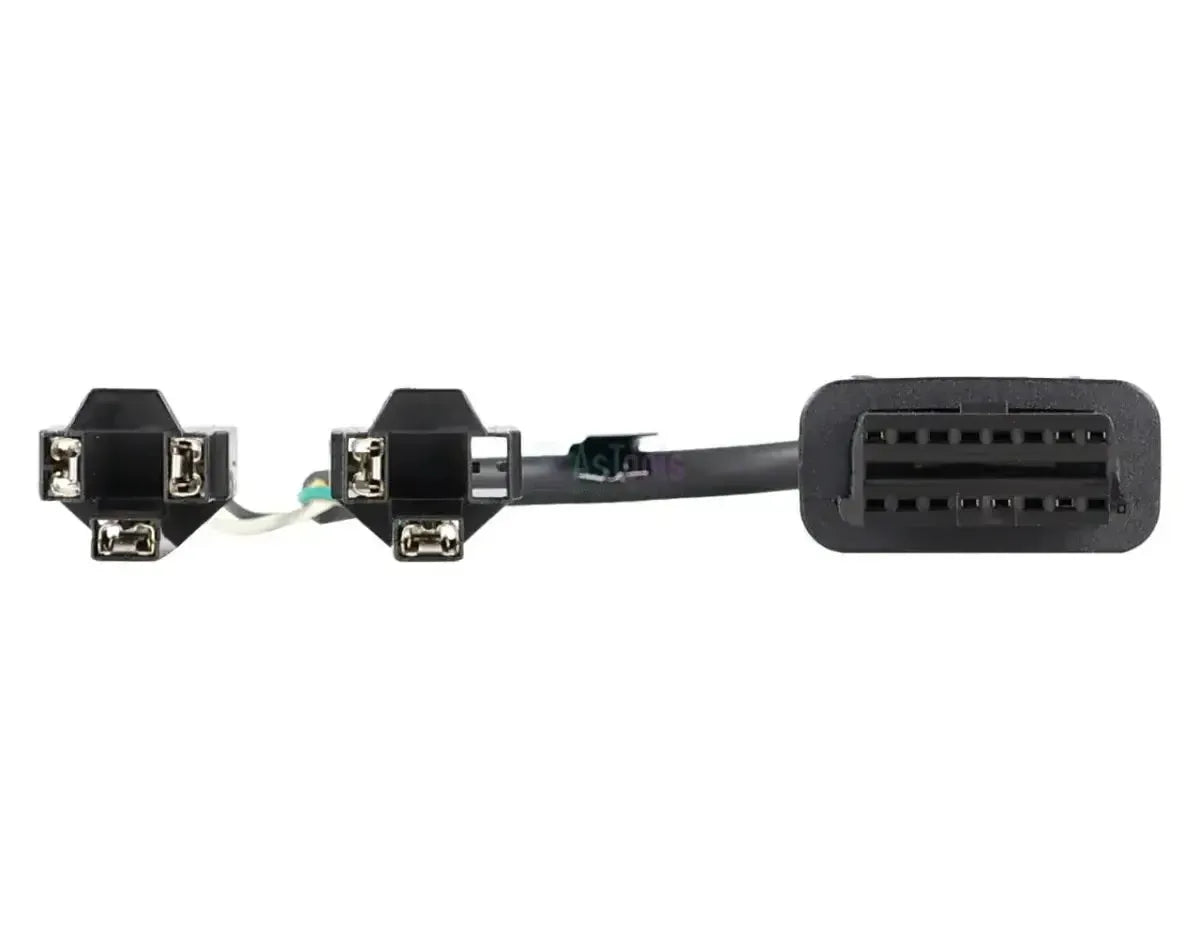

The Jaltest JDC101A is a diagnostic Adapter Cable specifically designed for trailers and semi-trailers. This cable forms the connection between the Haldex ABS Modular 3+3-pin diagnostic port on the vehicle and a standard 16-pin OBD2 connector of a diagnostic interface, such as the Jaltest Link. The cable enables direct communication with the electronic control unit (ECU) of the anti-lock braking system (ABS) for diagnostic purposes.
With the JDC101A, technicians can perform extensive diagnostic functions on Haldex ABS systems. This includes reading and clearing fault codes (DTCs), viewing live system parameters such as wheel speeds and system voltages, and performing actuator tests. The cable is part of the Jaltest diagnostic solution for commercial vehicles and is intended for professional use in the workshop.
Application and functionality:
The JDC101A Adapter Cable is used to connect a compatible diagnostic device to the ABS system of a trailer.
- ABS system diagnosis: Enables a direct and stable connection with the Haldex Modular ABS ECU.
- Error code analysis: Supports reading and clearing error codes to identify and resolve issues with the braking system.
- System parameters: Provides access to live data from the ABS system, which helps in analyzing the performance of components.
- Connectivity: Converts the vehicle-specific 3+3-pins connector to the universal 16-pins OBD2 standard for diagnostic equipment.
Compatible vehicles and Application:
This Adapter Cable is designed for use on trailers and semi-trailers equipped with a specific Haldex braking system.
System:
- Haldex: Modular ABS braking system with a 3+3-pins diagnostic port
The cable is compatible with various brands of trailers and semi-trailers that use this specific Haldex ABS system.
Important: Before purchasing the product, always check your vehicle's connection. This may vary by model and year.
Package Contents:
- 1x Jaltest (JDC101A) | Haldex ABS Modular 3+3-pins OBD – 16-pins OBD2 Adapter Cable | Trailer
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Jaltest |
| Product model | JDC101A |
| Vehicle side connection | Haldex ABS Modular 3+3-pins |
| Adapter side connection | 16-pins OBD2 (female) |
