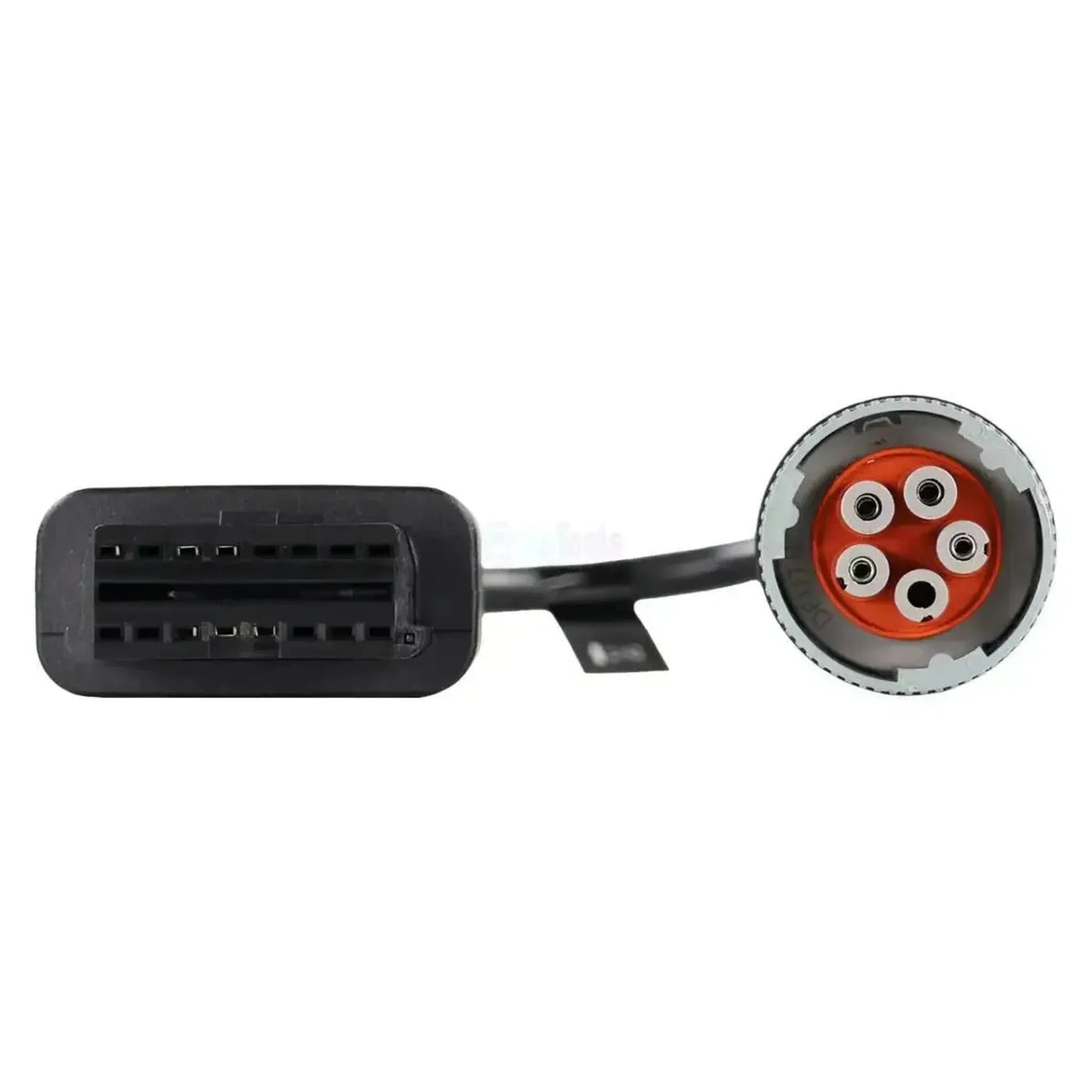

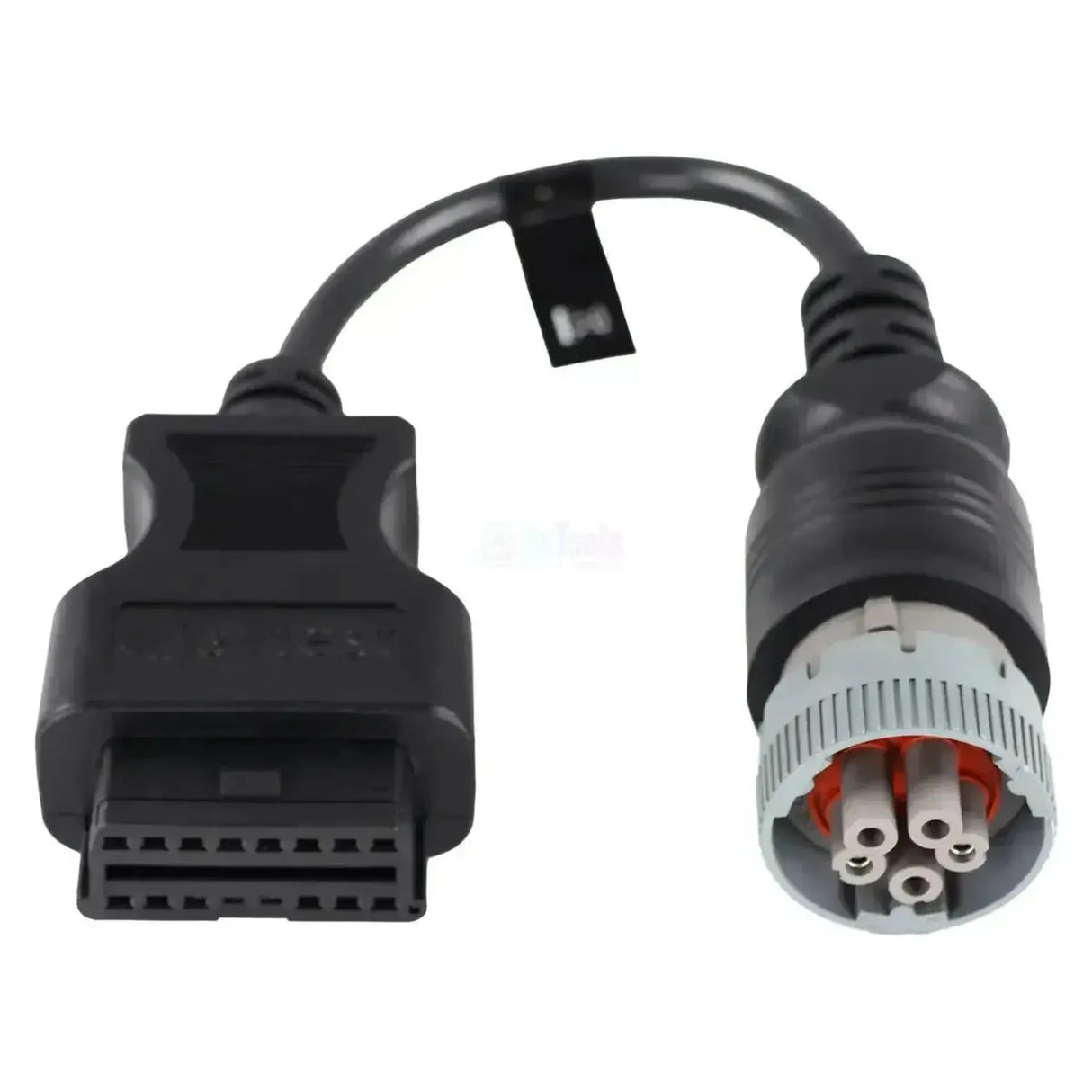

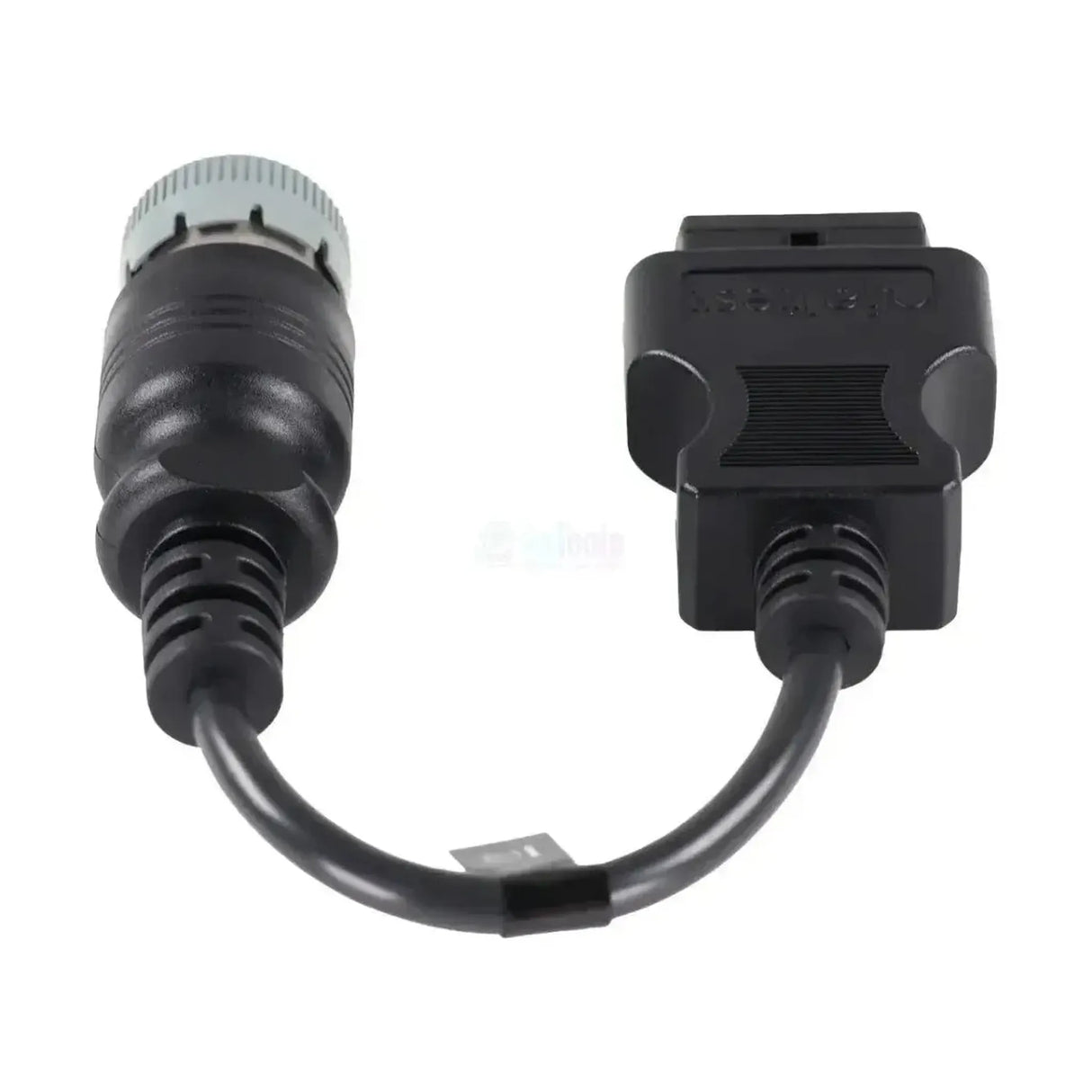

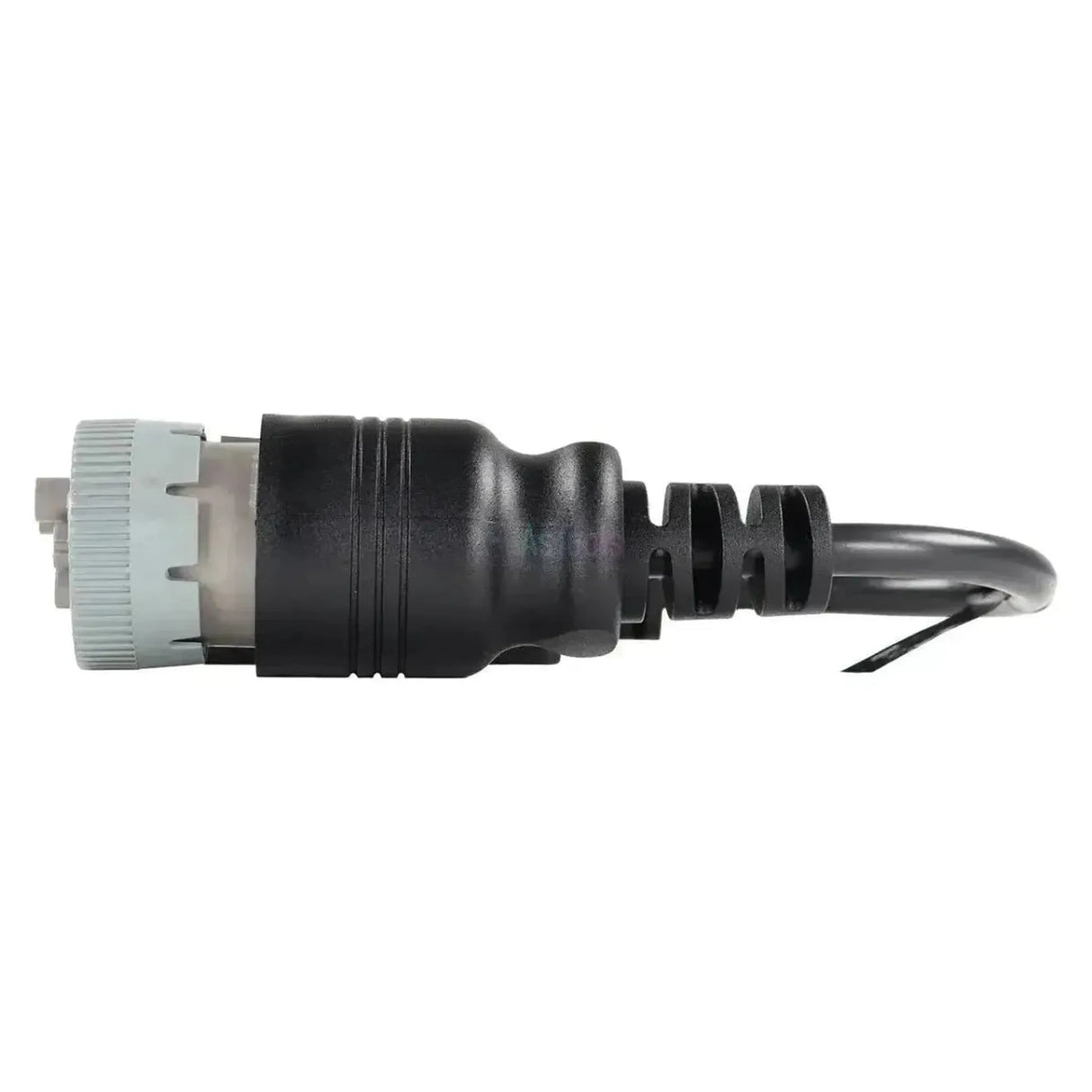

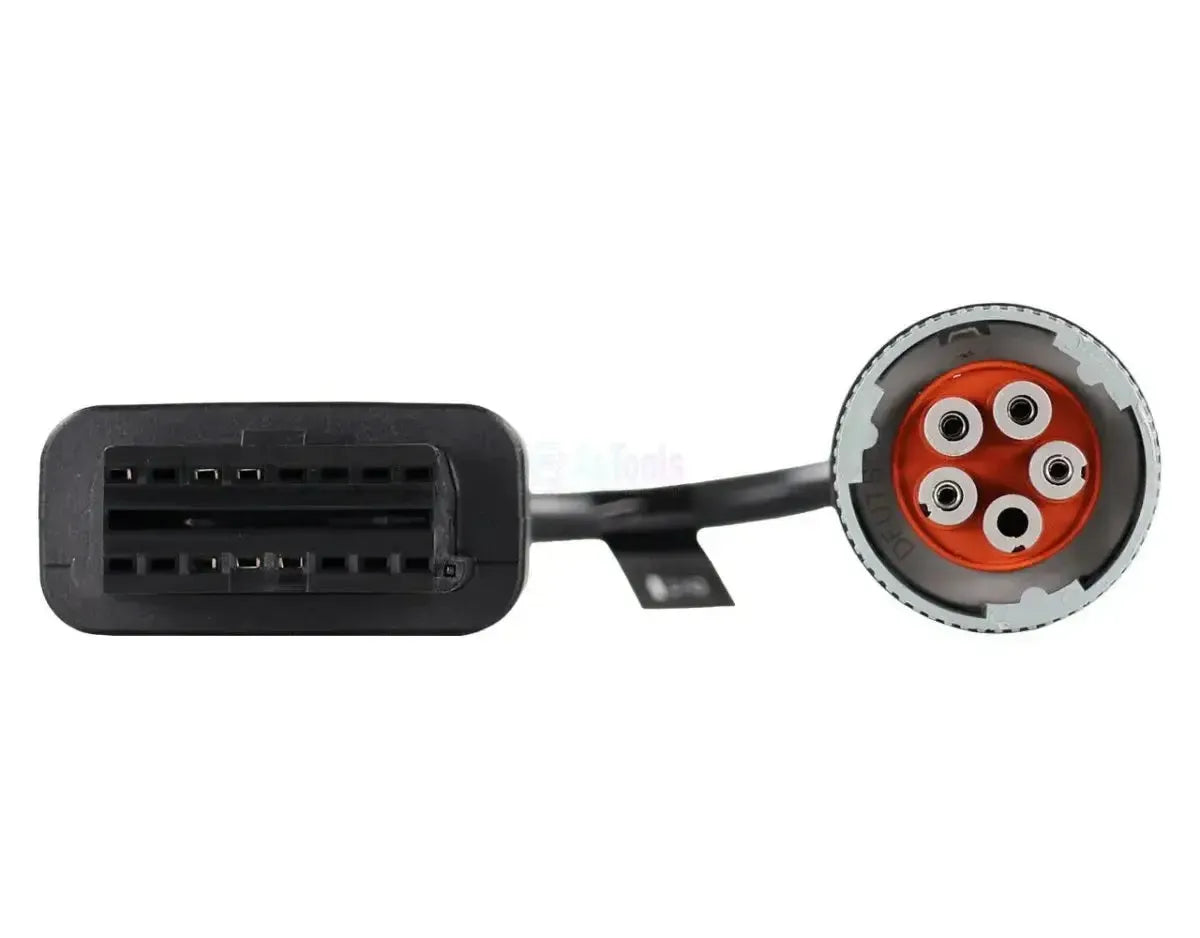

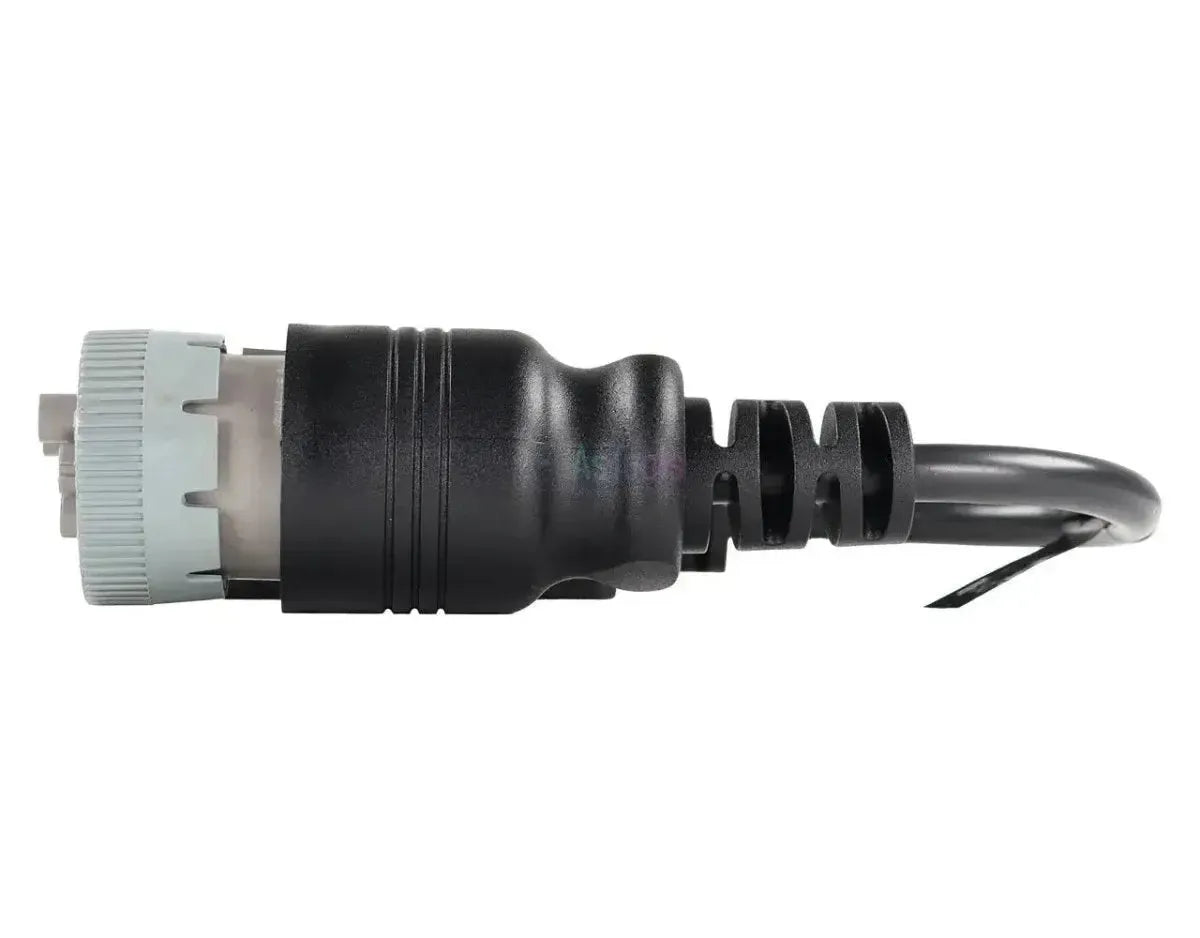

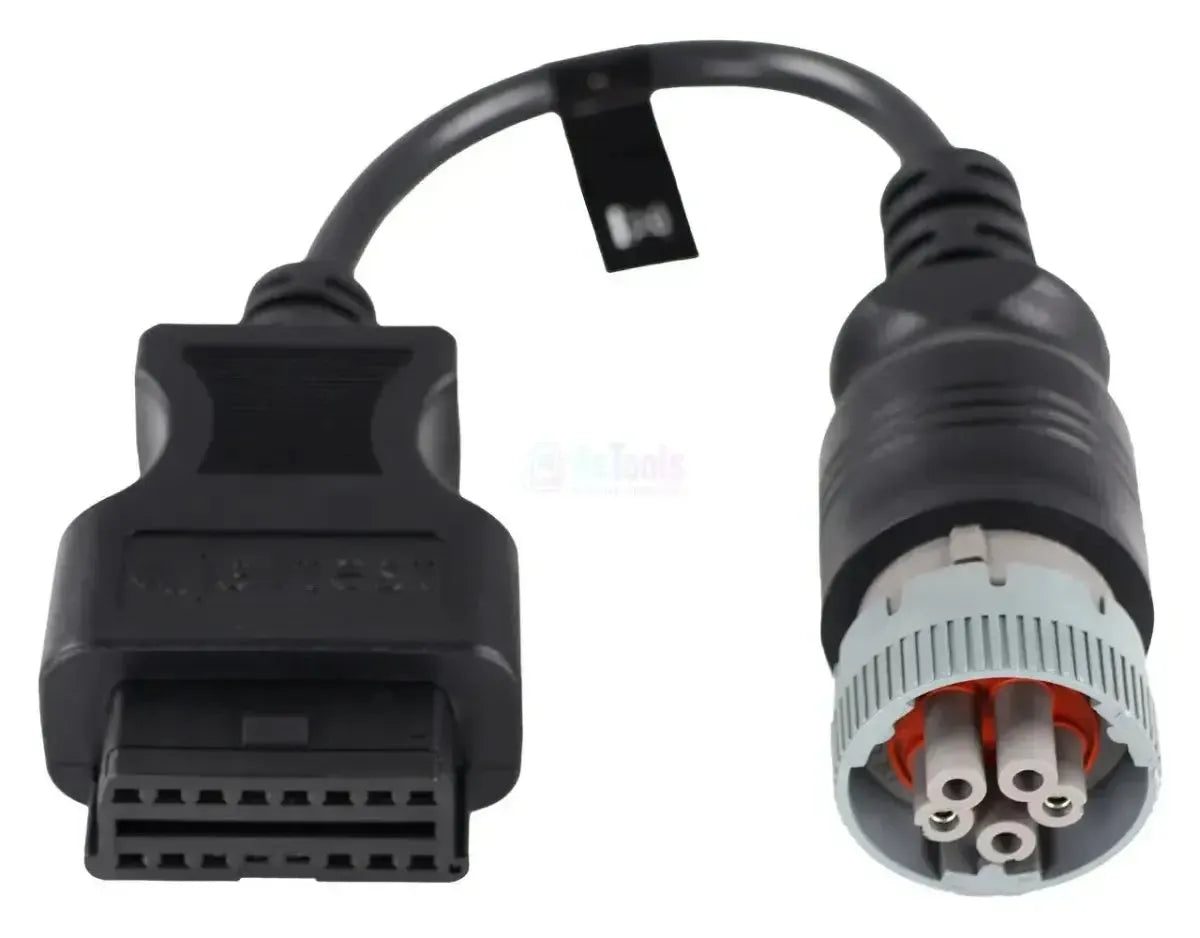

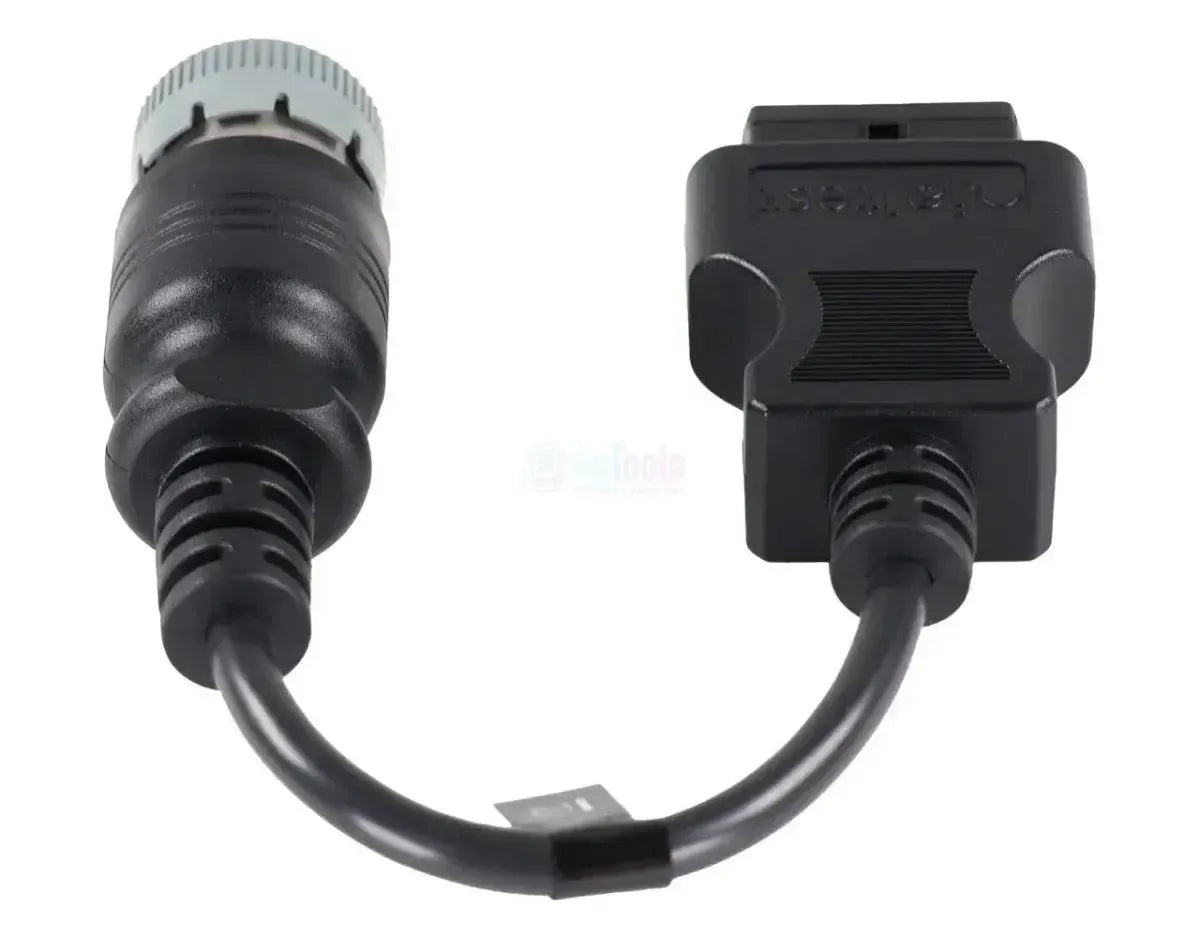

The Jaltest JDC558A is the diagnostic cable that connects the 5-pin diagnostic connector of Genie boom lifts, scissor lifts and telehandlers to the Jaltest Link. On the machine side, the 5-pin connector is located at the machine's control panel; the exact location varies by series. On the interface side, the cable converts that connector to the 16-pin OBD2 port of your Jaltest diagnostic cable.
This cable routes the machine's communication lines to the Jaltest Link, enabling direct communication with the onboard control units. This gives the diagnostic equipment access to the central machine computer MCM and to the engine control systems that Genie installs: 404D/404F and ECM Perkins, EMR4 (EDC 17 CV52/CV54) and EMR5 (EDC MD1) from Deutz, the E-CDIS from Kubota, the EControls ECM 4G for petrol and LPG models, and the 854E for heavier telehandlers. On the S-series, the instrument panel ALC-500 is also included. Which systems are present depends on the series and the installed engine. The cable falls under Jaltest MHE (Material Handling Equipment).
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Through this connection, you access the machine's control units with Jaltest software. Which systems are available depends on the series and the installed engine.
Control units you can access
- MCM, Body computer: The main machine computer of aerial work platforms and scissor lifts, with fault codes, measured values and ECU data.
- 404D/404F (J1939 and PDL), Engine Control Module: The Perkins engine control of smaller diesel engines.
- ECM Perkins (Tier 3 / Stage III A), Electronic Diesel Control, Common Rail: The Perkins common-rail control of telehandlers.
- EMR4 - EDC 17 CV52 and CV54 and EMR5 - EDC MD1, Electronic Diesel Control, Common Rail: The Deutz engine controls.
- E-CDIS, Electronic Diesel Control, Common Rail: The common-rail engine control of Kubota engines.
- EControls ECM 4G, Engine Control Module: The engine control of petrol and LPG versions.
- 854E, J1939, Electronic Diesel Control, Common Rail: The engine control of heavier telehandlers.
- ALC-500, Instrument cluster: The instrument cluster of the S-series.
What you can do
- Read and clear fault codes: Read the fault memory of the control unit with detailed descriptions of detected faults.
- View live data: Real-time sensor values connected to the control unit, displayed as numbers and graphs.
- Track maintenance: Service intervals and completed work, including a service report.
- Perform additional functions: Extra procedures that Jaltest offers per control unit, where available for your system.
Compatible vehicles and applications
The connector type determines compatibility, not the model. This cable works with any Genie machine equipped with the 5-pin diagnostic connector. Jaltest MHE covers the series listed below; check which connector your machine has on-site.
Genie:
- S-60 Series (telescopic boom lift)
- S-80 Series (telescopic boom lift)
- S-120 Series (telescopic boom lift)
- Z-40 Series (articulating boom lift)
- Z-60 Series (articulating boom lift)
- Z-80 Series (articulating boom lift)
- GS-3200 Series (scissor lift)
- GTH-4000 Series (telehandler)
Package contents
- 1x Jaltest (JDC558A) | Genie 5-pin OBD – 16-pin OBD2 Adapter Cable | Lifting and Material Handling Equipment
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC558A |
| Type | Adapter Cable |
| Application | Genie boom lifts, scissor lifts and telehandlers |
| Vehicle-side Connection | 5-pin OBD |
| Interface-side Connection | 16-pin OBD2 |
| Control Units | MCM (body computer), 404D/404F and ECM Perkins, EMR4 - EDC 17 CV52/CV54 and EMR5 - EDC MD1, E-CDIS, EControls ECM 4G, 854E (engine controls) and ALC-500 (instrument cluster) |
| Segment | Lifting and Material Handling Equipment |
| Jaltest Module | Jaltest MHE (Material Handling Equipment) |
| Part of Cable Set | MHE cable set for boom lifts and telehandlers (70002028) |
| Required to Use | Jaltest Link with valid software license |
