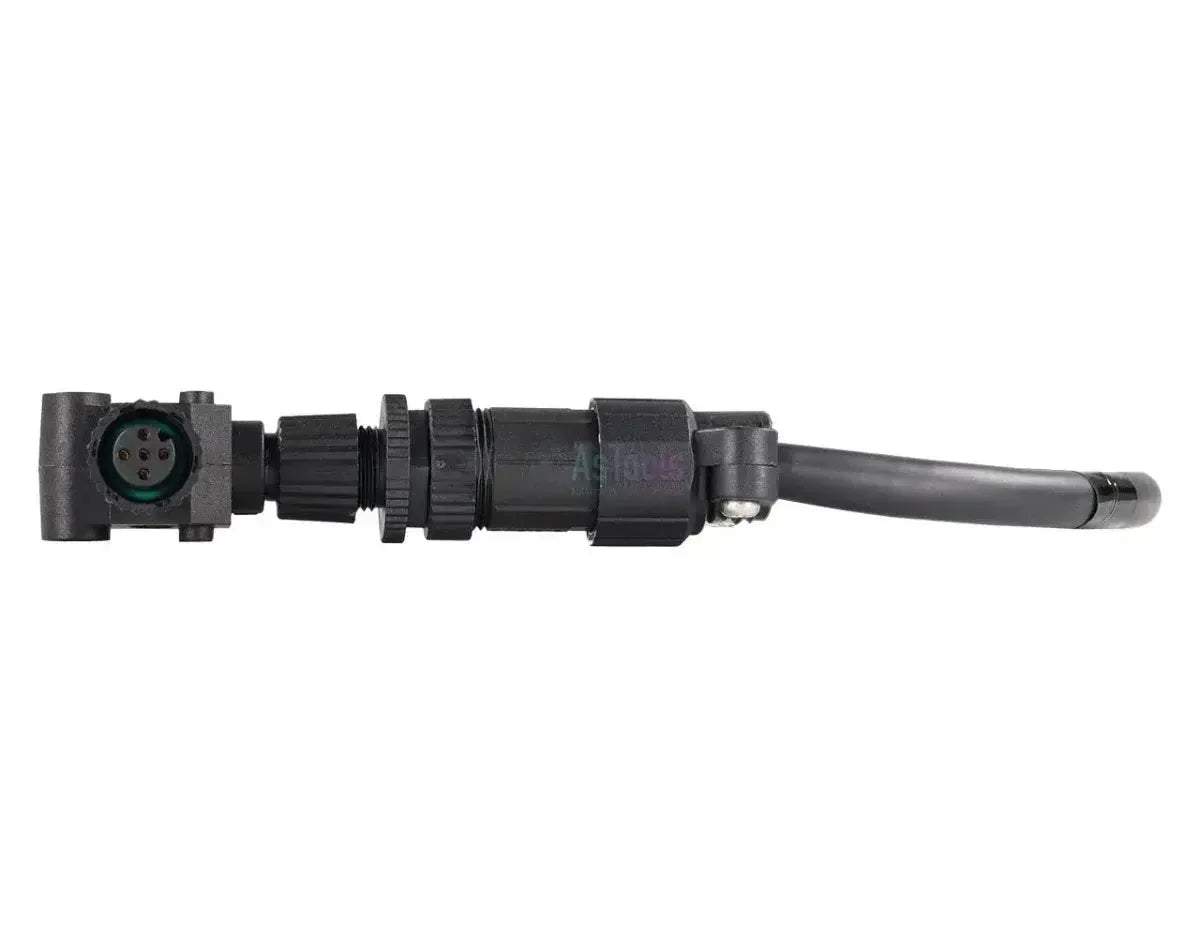

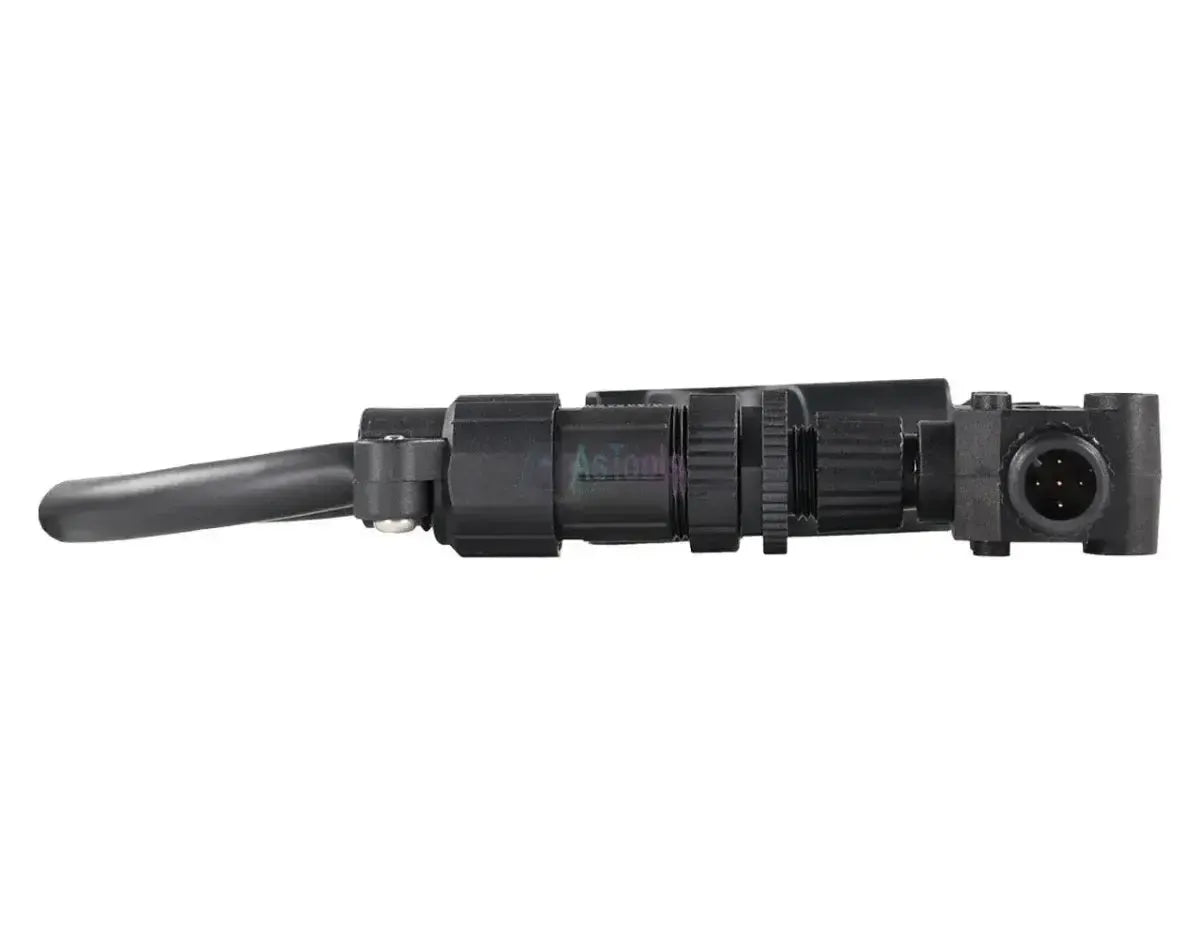

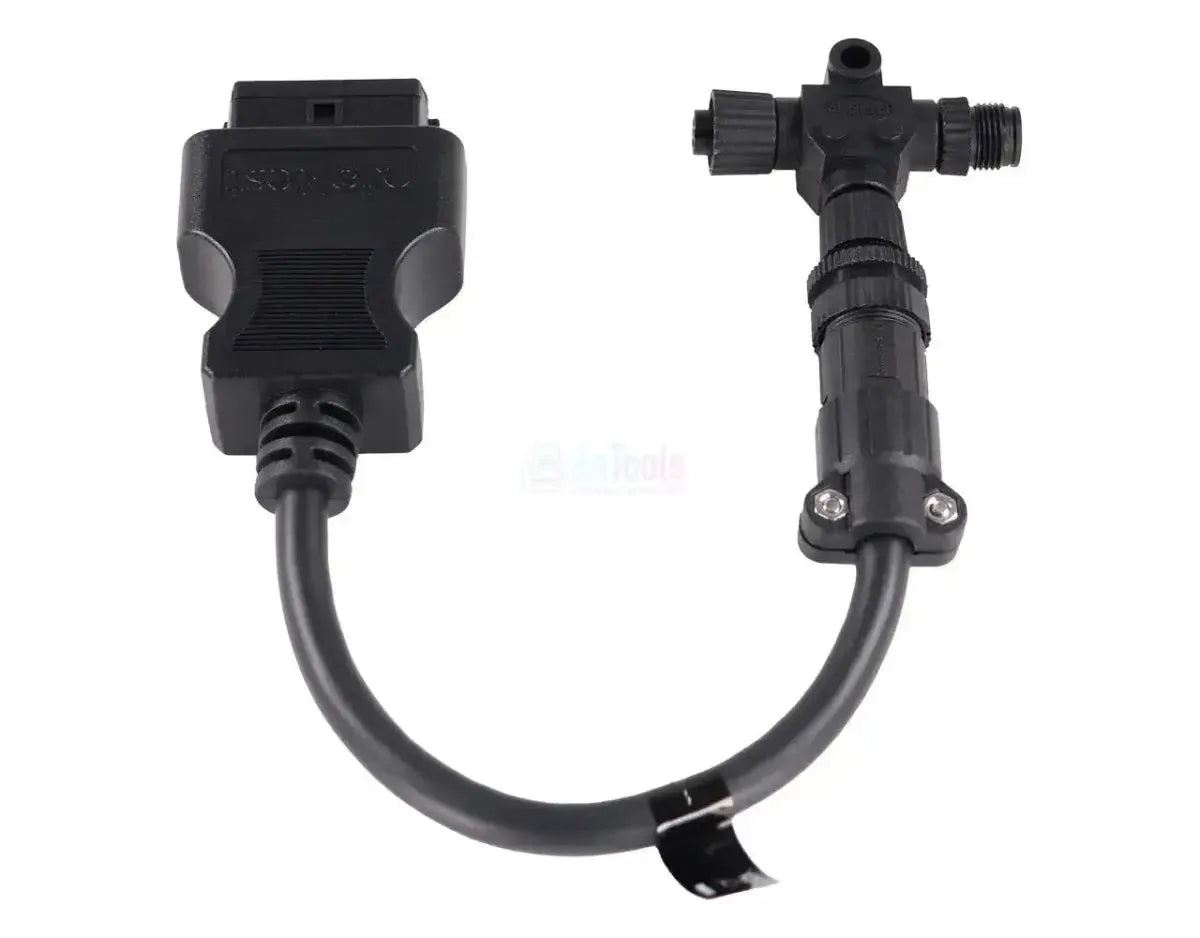

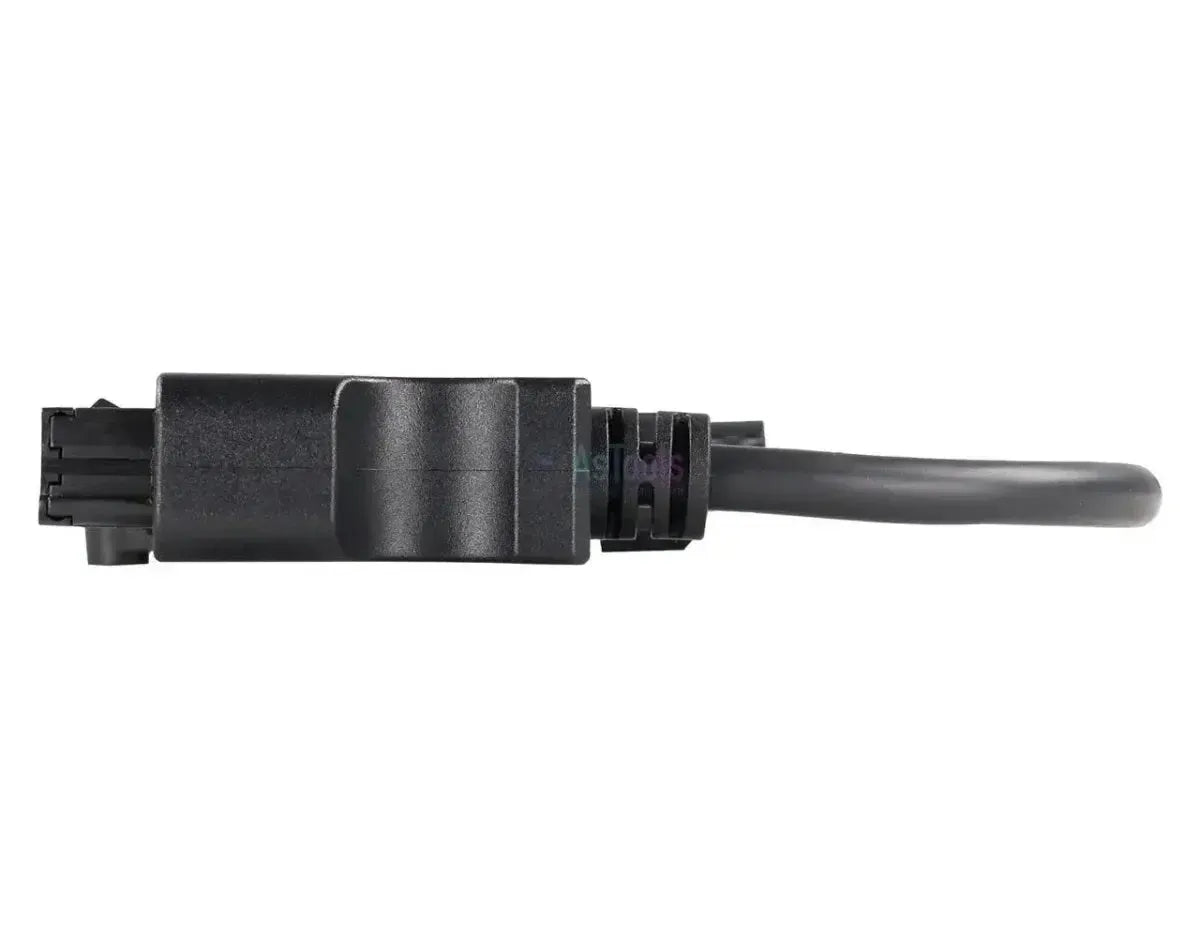

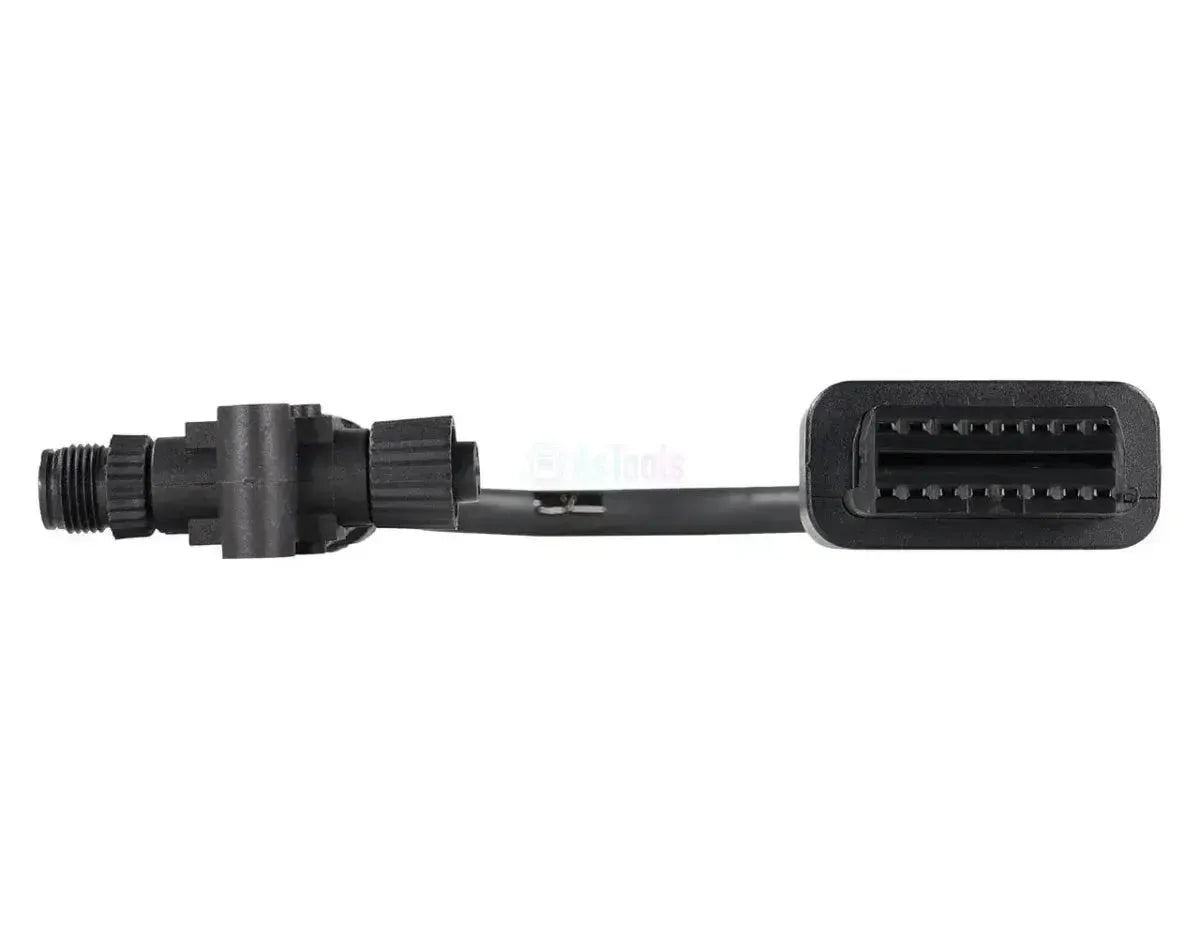

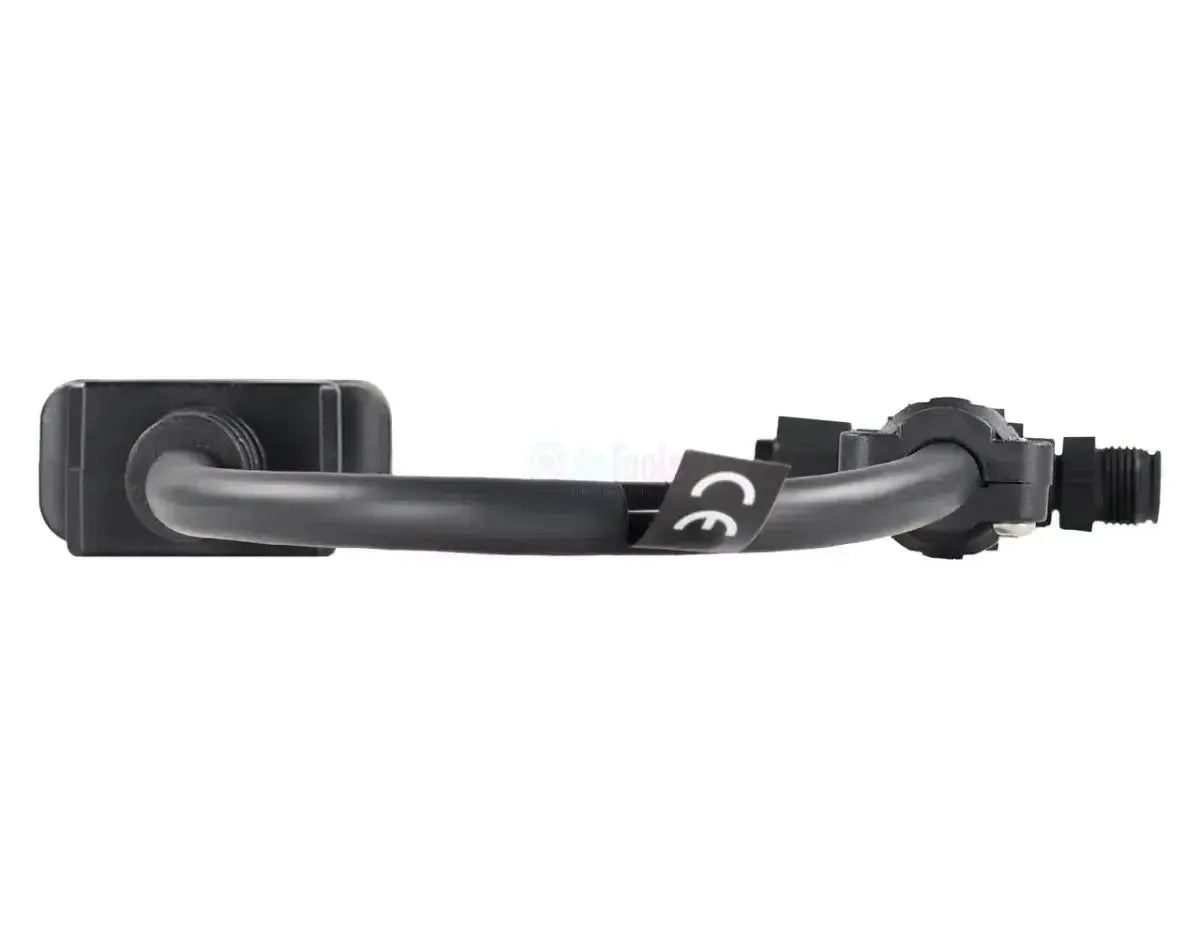

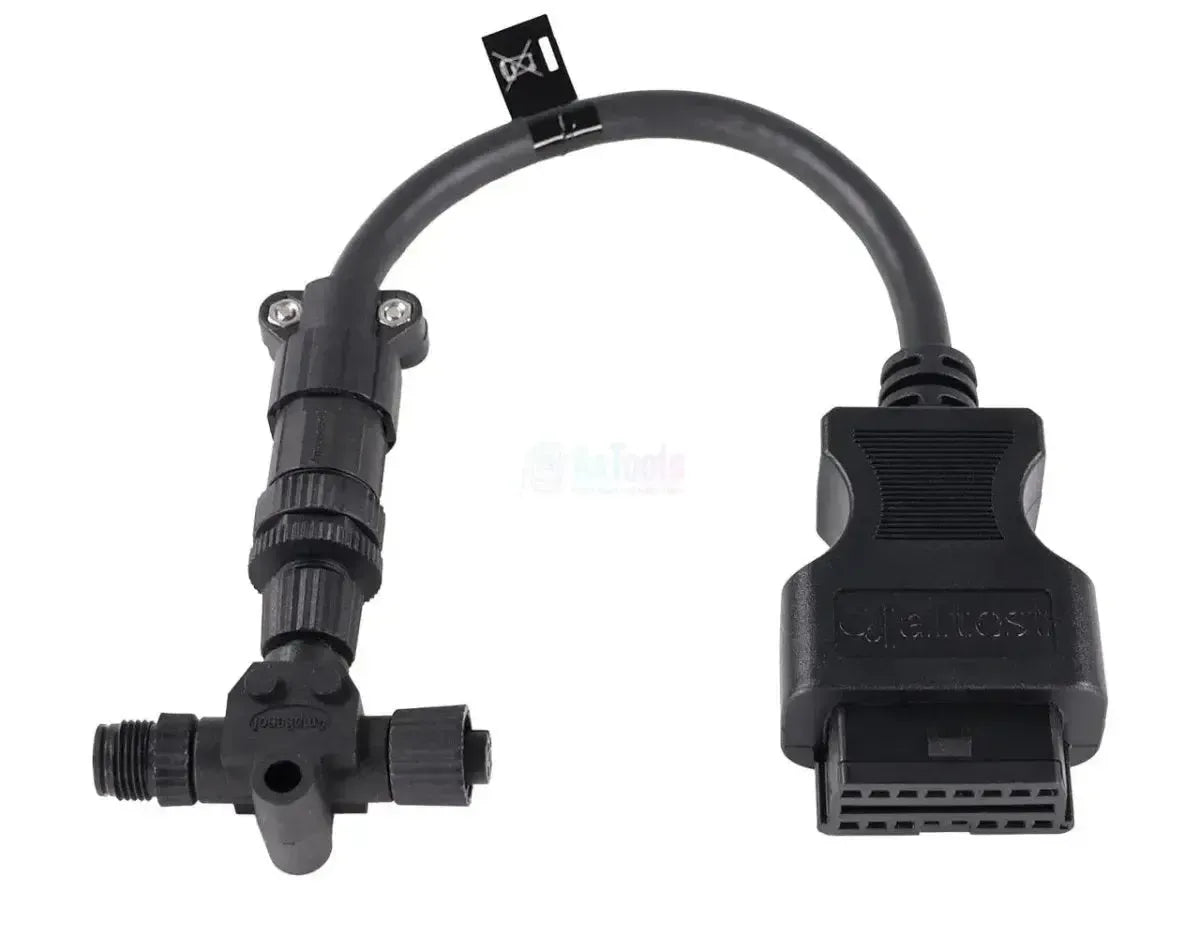

The Jaltest JDC628A is the adapter cable that connects the 5+5-pin diagnostic connector for Evinrude-outboard motors with NMEA 2000 network connects to a standard 16-pin OBD2-interface. On the engine side, you'll find the 5+5-pin connector from the NMEA 2000 network, while the interface side features the 16-pin OBD2 port for the Jaltest Link. The same engine control unit for the E-TEC G2 is also available in a serial version with its own proprietary connector.
Behind this single connector lie the control units of the Evinrude E-TEC G2-installation. This cable supports the NMEA 2000 interface and provides access to EMM G2, the Engine Management Module, with the complete feature set, and up to the EST, the electronic throttle control module. The EST has a shorter list: Reset and live data are missing there. The G2 engines communicate with the rest of the onboard system via the NMEA 2000 network. The cable falls under Jaltest Marine.
KEY FEATURES
IMPORTANT NOTES
Applications and features
Through this connection, you can access the control units of your Evinrude G2 system using Jaltest software.
Control units you can access
- EMM G2 (NMEA 2000) — Engine Management Module: The networked engine control unit, with fault codes, live readings, component activation, ECU data, parameters, calibration, service reset and real-time data.
- EST — Electronic throttle control module: The electronic throttle lever module, with fault codes, live readings, component activation, ECU data, parameters and calibration; no reset or real-time data.
What you can do
- Read fault codes: Access the fault memory of both the engine control unit and throttle module.
- View live readings: Monitor current sensor values in real time.
- Activate components: Run active tests on both the engine control and throttle modules.
- Parameters and calibration: Adjust settings and set reference values on both control units.
- Service reset: Reset the service counter on the engine control unit.
- Live monitoring: Track engine control values in real time while the motor is running.
Compatible vehicles and applications
The connector type determines compatibility, not the model. This cable fits Evinrude E-TEC G2 outboard motors with the 5+5-pin NMEA 2000 connector. Jaltest Marine covers the models listed below; check your motor's connector type on site to confirm.
Evinrude (E-TEC G2, NMEA 2000):
- E-TEC G2 150 and 150 HO
- E-TEC G2 175
- E-TEC G2 200 and 200 HO
- E-TEC G2 225 and 225 HO
- E-TEC G2 250 and 250 HO
- E-TEC G2 300
Package Contents
- 1x Jaltest (JDC628A) | Evinrude (NMEA 2000) 5+5-pin OBD – 16-pin OBD2 Adapter Cable | Outboard Motor
Technical Specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC628A |
| Type | Adapter Cable |
| Application | Evinrude E-TEC G2 with NMEA 2000 Connection |
| Engine-Side Connector | 5+5-pin OBD (NMEA 2000) |
| Interface-Side Connector | 16-pin OBD2 |
| Control Units | EMM G2 (NMEA 2000) and EST |
| Segment | Outboard Motor (Marine) |
| Jaltest Module | Jaltest Marine |
| Part of Cable Set | Marine Outboard Cable Set (70002025) |
| Required to Use | Jaltest Link with Valid Software License |
