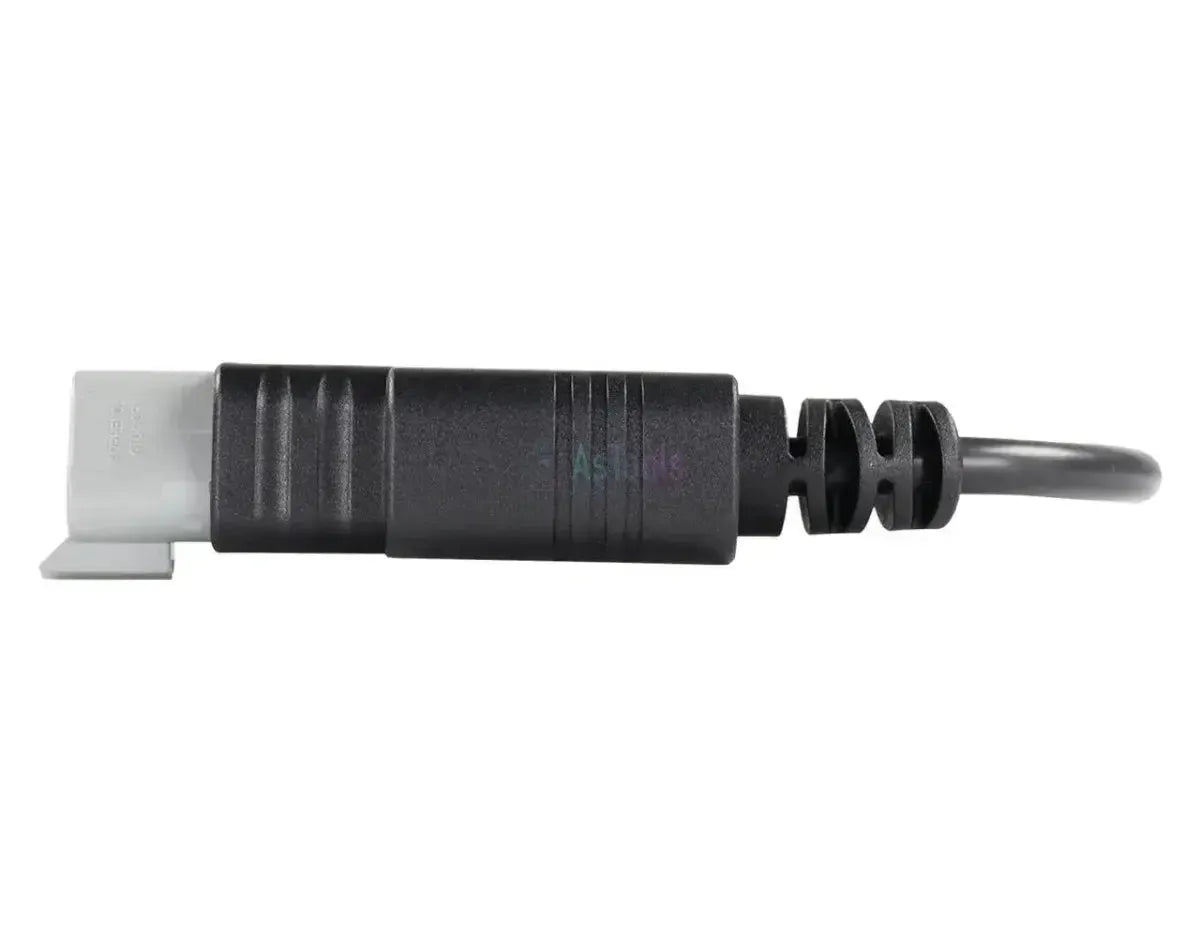

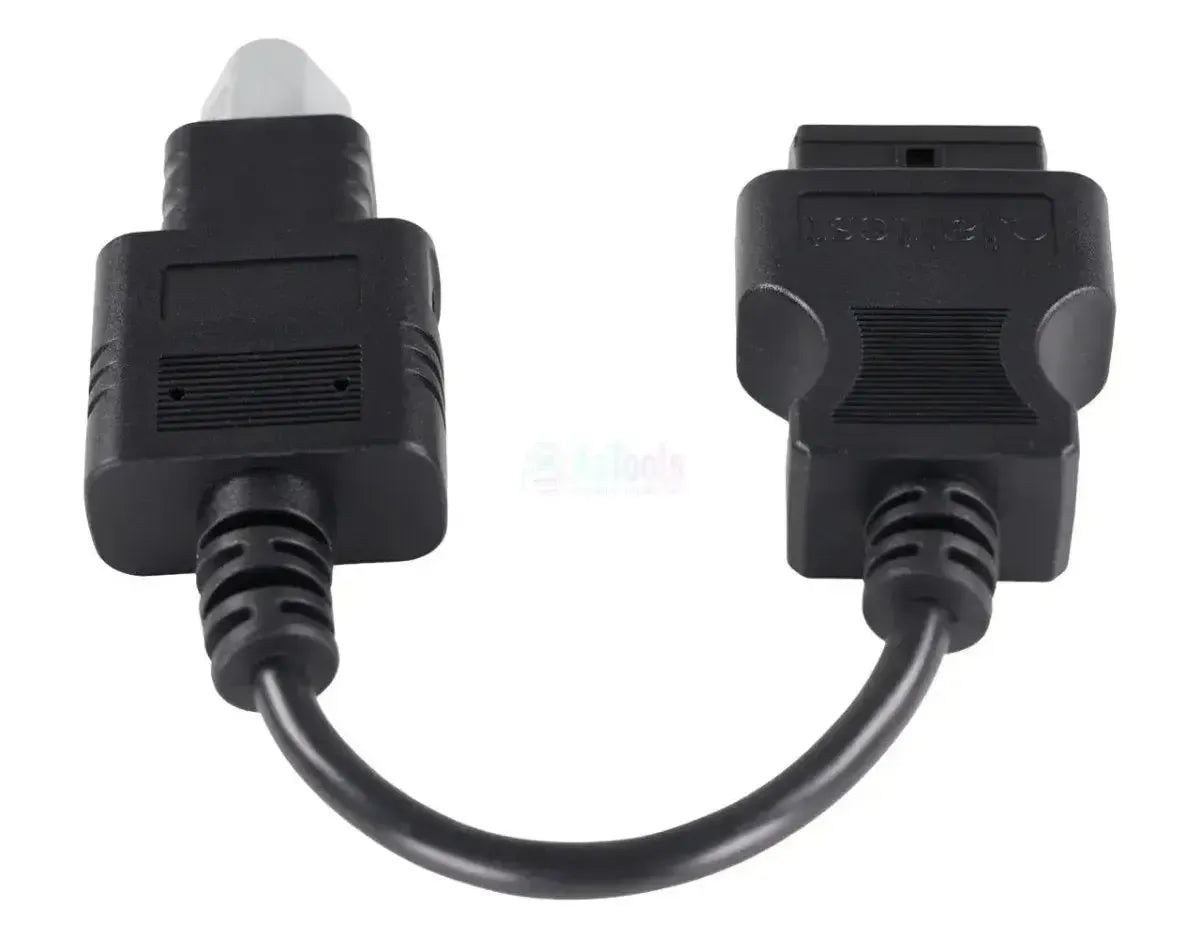

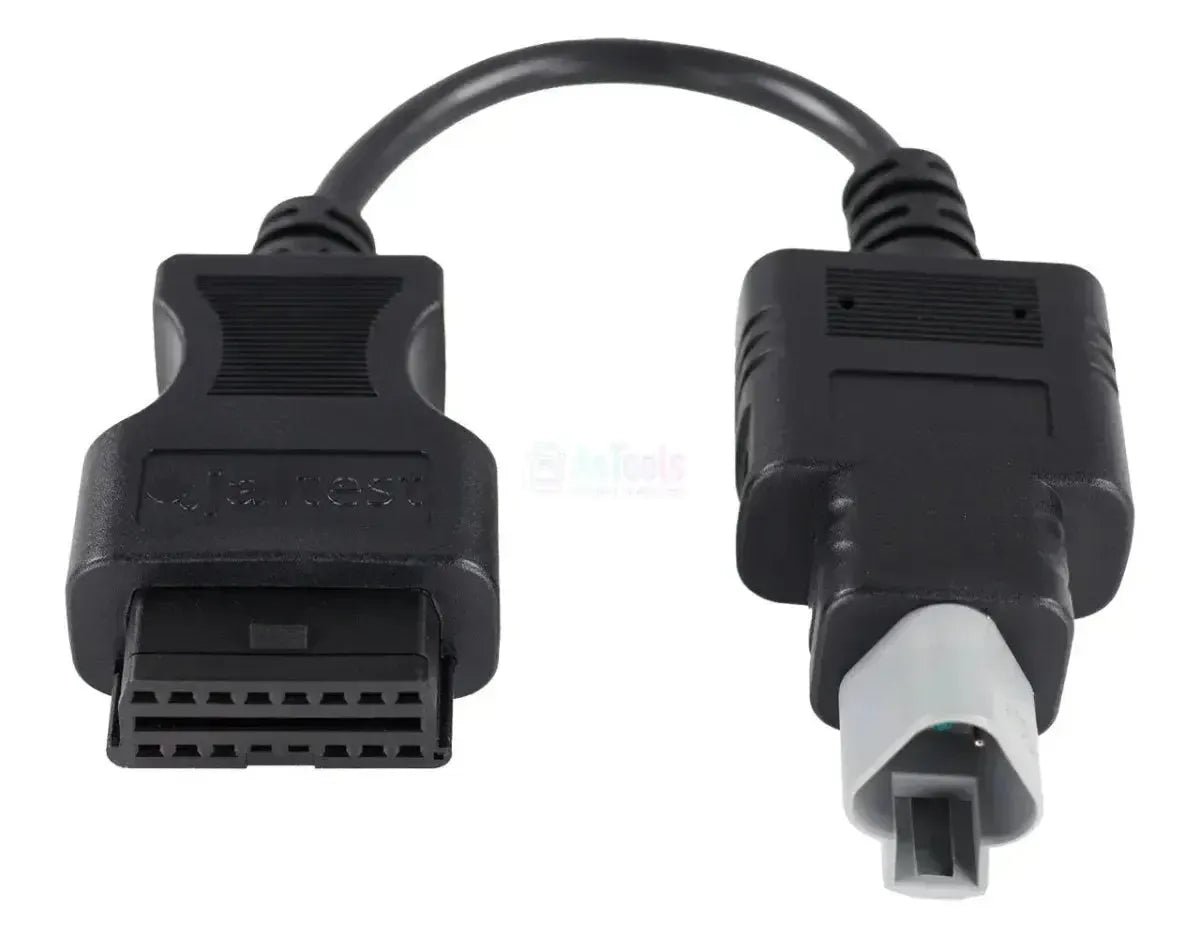

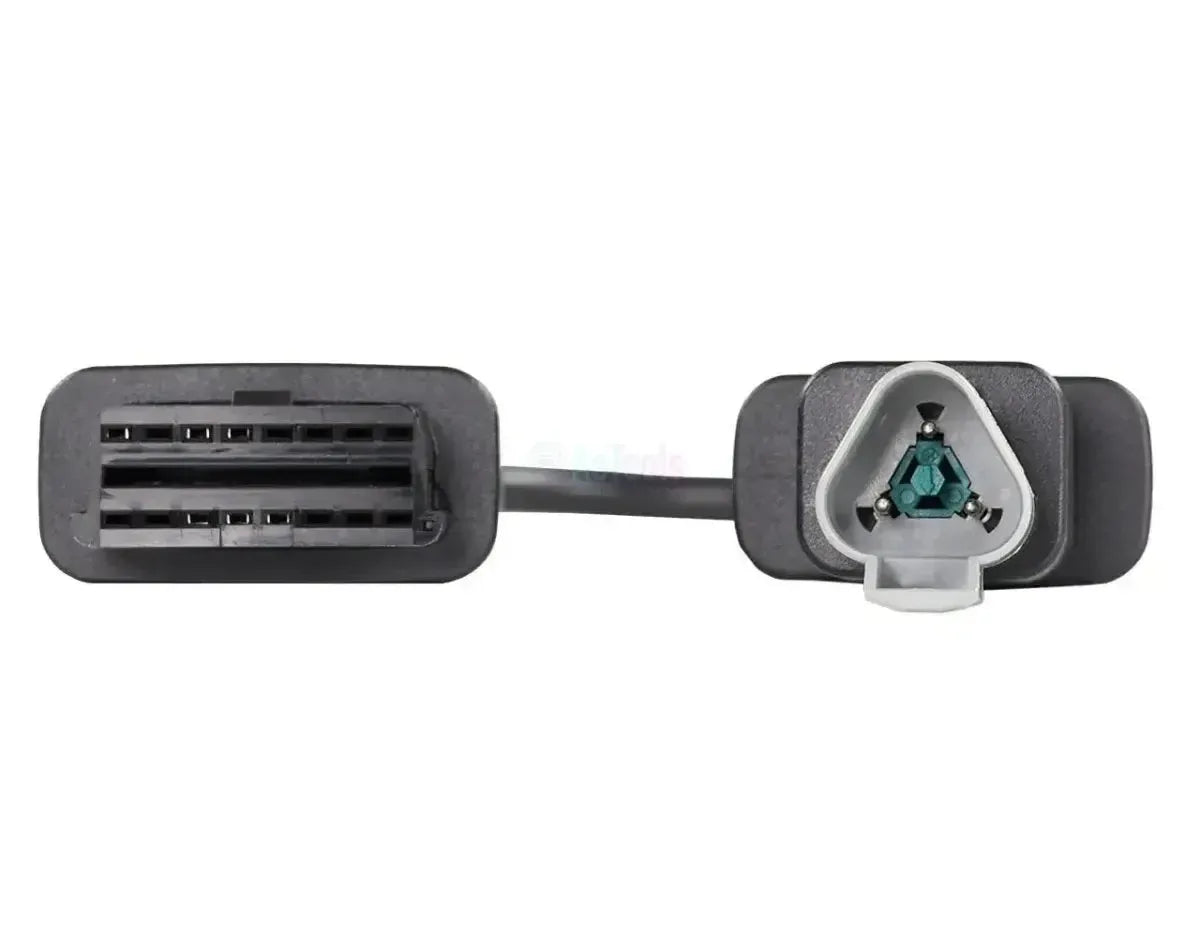

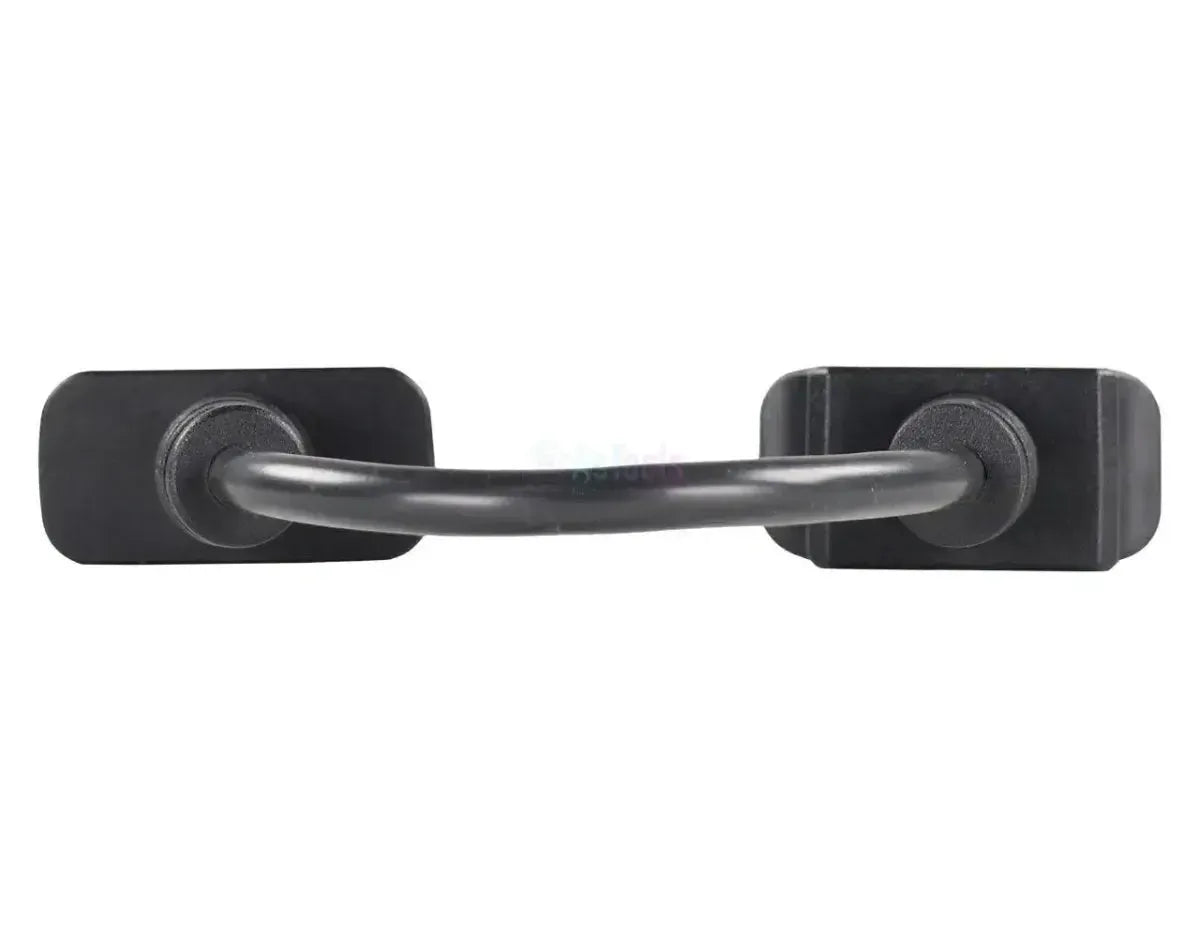

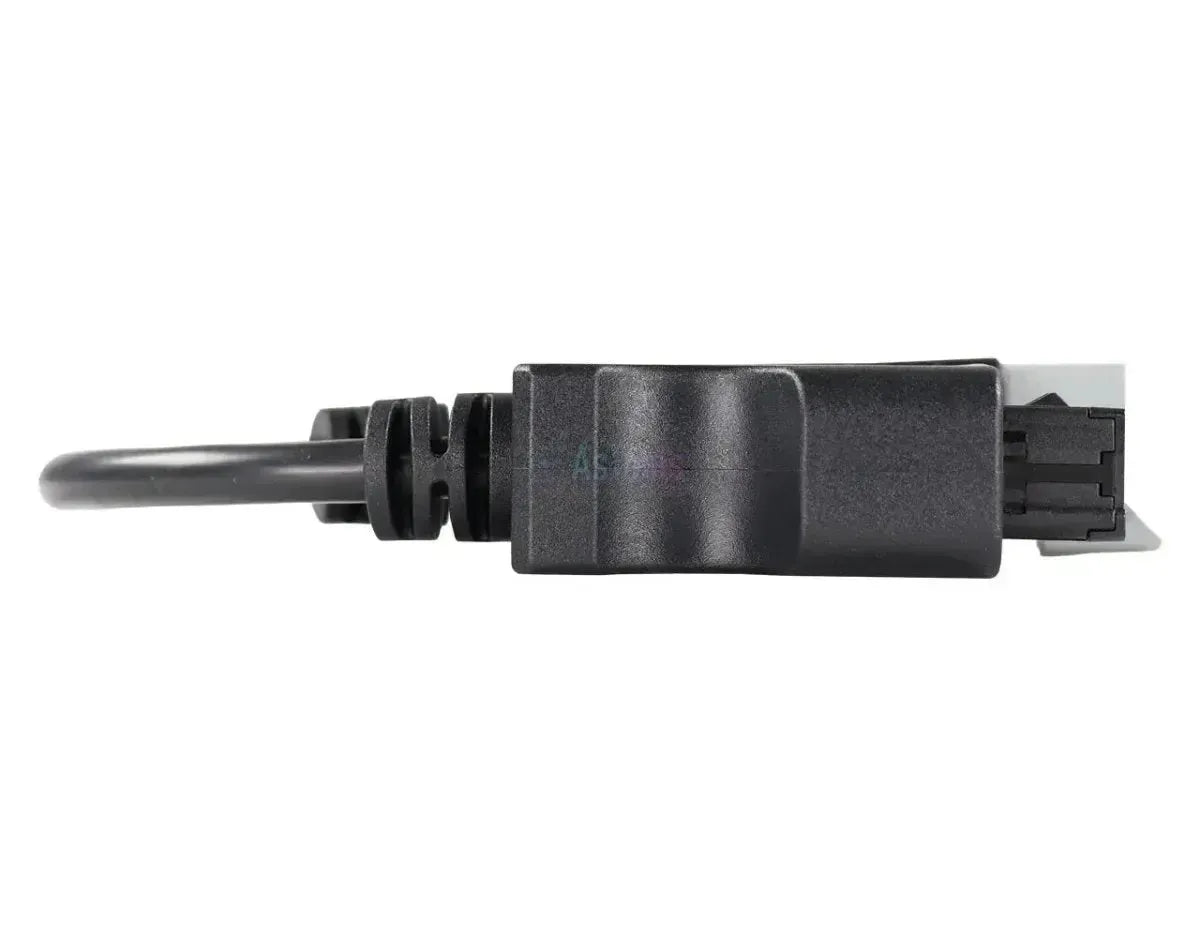

The Jaltest JDC609A is the adapter cable for Evinrude outboard motors with the manufacturer's proprietary 3-pin connector; the connector sits on the motor side, while the interface side features the 16-pin OBD2 connection for the Jaltest Link. The connection is located in the engine compartment, on or next to the motor. Evinrude used the same diagnostic line across three motor generations, so a single connector works for EFI, FICHT RAM, and E-TEC engines.
With this connection, Jaltest diagnostic equipment reads the engine control and operating electronics: The ECM from EFI engines from 1999-2001, the EMM from FICHT RAM and E-TEC engines, the EMM G2 from E-TEC G2, and the EST, the throttle and shift control unit from the G2. The engine control units display the complete function list, including parameters, calibration, and reset; the EST lacks live data. The cable falls under Jaltest Marine.
KEY BENEFITS
IMPORTANT NOTES
Applications and Features
Using this connection, you can access the Evinrude engine control units with Jaltest software.
Control Units You Can Access
- EMM — engine management: The Engine Management Module for FICHT RAM and E-TEC engines, including fault codes, live data, sensor readings, component control, ECU data, parameters, calibration, and reset functions.
- EMM G2 — engine management: The Engine Management Module for E-TEC G2, with the same comprehensive feature set.
- ECM — engine management: The Engine Control Module for EFI engines from 1999-2001, also featuring fault codes, sensor readings, component control, parameters, calibration, and reset.
- EST — throttle and shift control: The electronic lever control module for E-TEC G2, with fault codes, sensor readings, component control, ECU data, parameters, and calibration.
What You Can Do
- Read fault codes: Access the engine control unit's fault memory and view detailed descriptions of detected issues.
- View sensor data and monitor live: Track real-time sensor values while the engine is running.
- Control components: Operate actuators directly, including cylinder balance testing.
- Adjust parameters and calibrate: Configure settings and perform calibration procedures.
- Reset maintenance: Clear counters and values after service on the engine control units.
Compatible Vehicles and Applications
The connector type determines compatibility, not the model. This cable works with any Evinrude outboard motor featuring the 3-pin diagnostic connection. Jaltest Marine covers the series listed below; check your motor's connector type on-site to confirm.
Evinrude:
- EFI series: 40 EFI, 50 EFI, and 70 EFI [1999-2001]
- FICHT RAM series: FICHT RAM 75, 90, 115, 135, 150, 175, 200, 225 and 250
- E-TEC Series: E-TEC 15 through E-TEC 300, including HO versions (15 HO, 90 HO, 115 HO, 135 HO, 150 HO, 200 HO, 225 HO and 250 HO)
- E-TEC G2 Series: E-TEC G2 150 through G2 300, including HO versions
Package Contents
- 1x Jaltest (JDC609A) | Evinrude 3-pin OBD – 16-pin OBD2 Adapter Cable | Outboard Motor
Technical Specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC609A |
| Type | Adapter Cable |
| Application | Evinrude Outboard Motors |
| Engine-Side Connector | 3-pin OBD |
| Interface-Side Connector | 16-pin OBD2 |
| Control Units | EMM, EMM G2 and ECM (engine control), EST (throttle and shift control) |
| Category | Outboard Motor |
| Jaltest Module | Jaltest Marine |
| Part of Cable Set | Marine cable set vessel (70002008) and outboard (70002025) |
| Required Extension Cable | JDC100B (2.5 m SUBD-26) when used with Jaltest Link V9 |
| Required to Use | Jaltest Link with valid software license |
