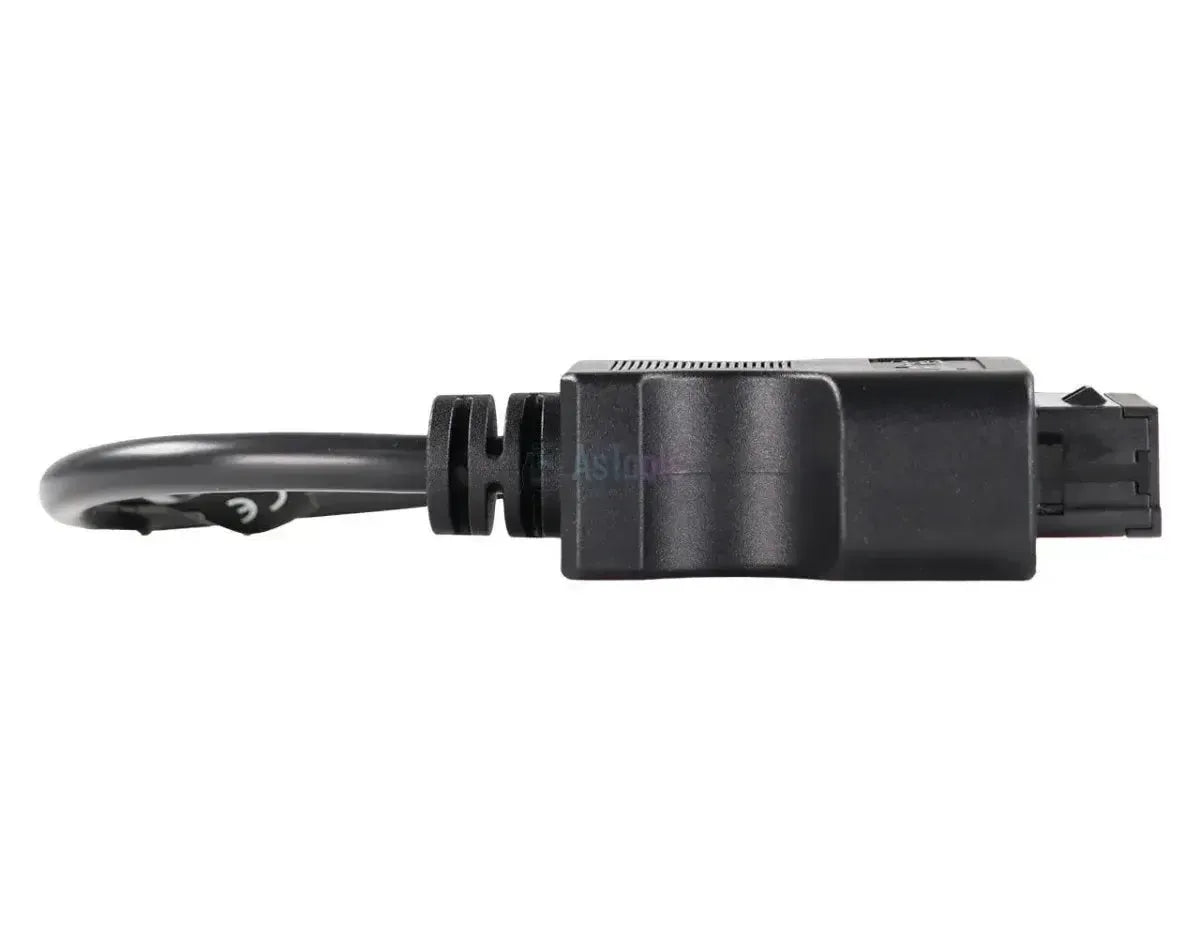

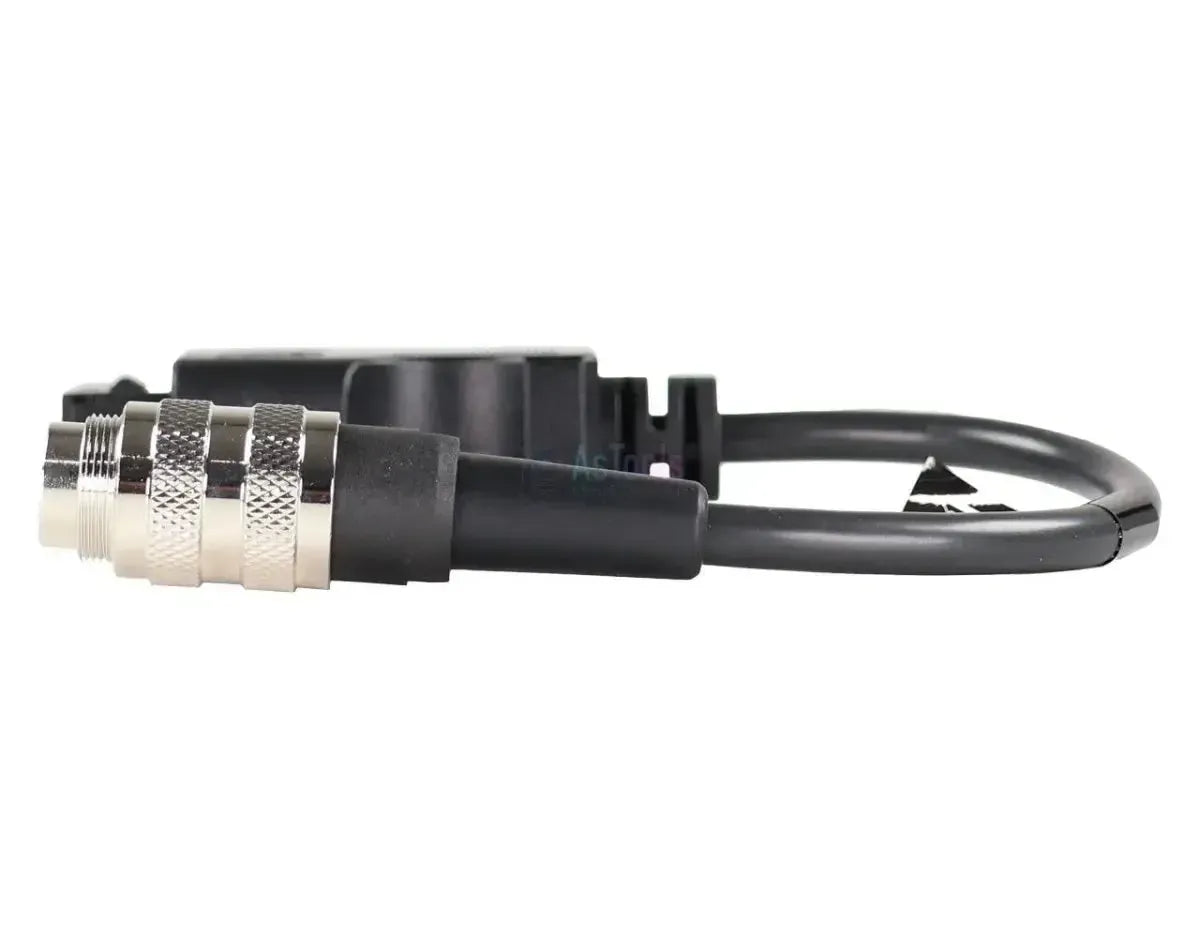

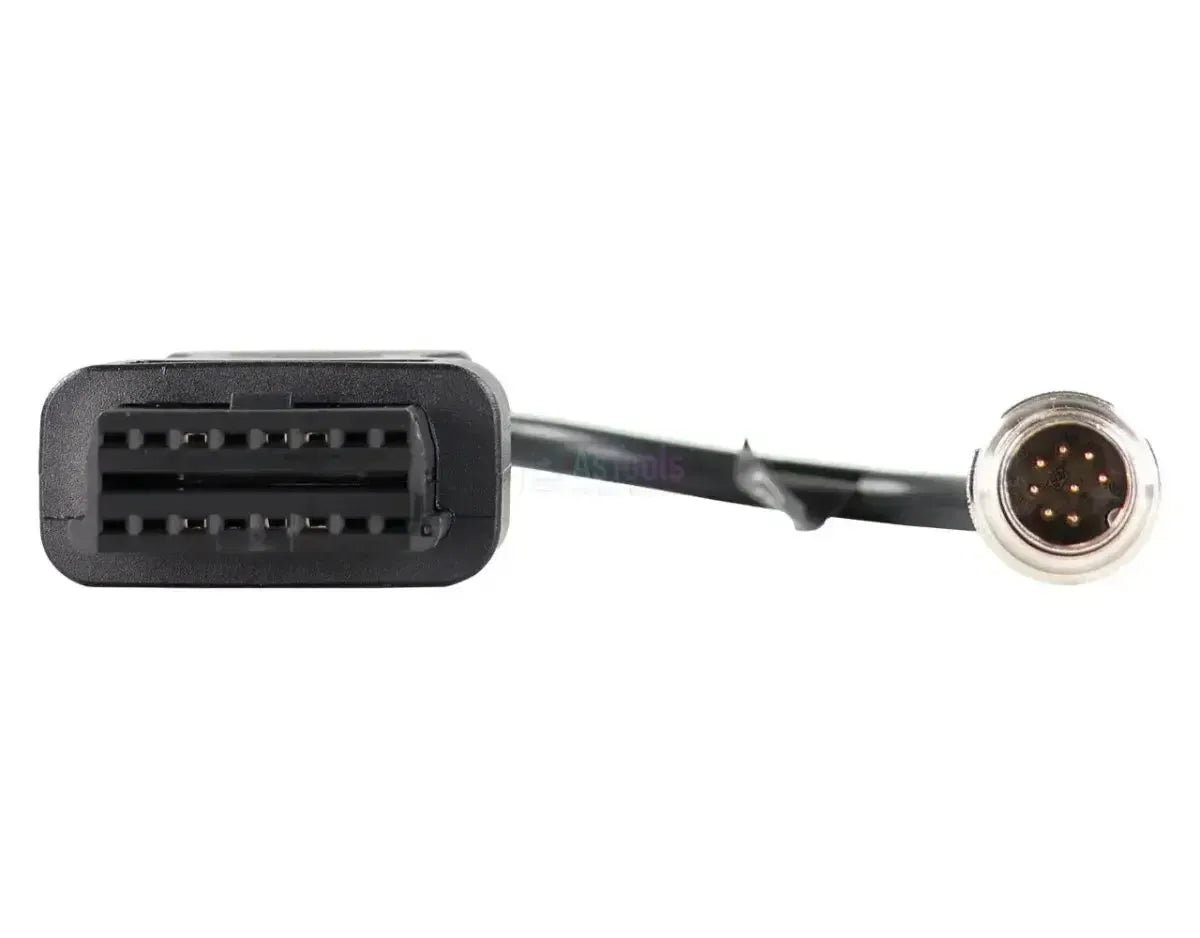

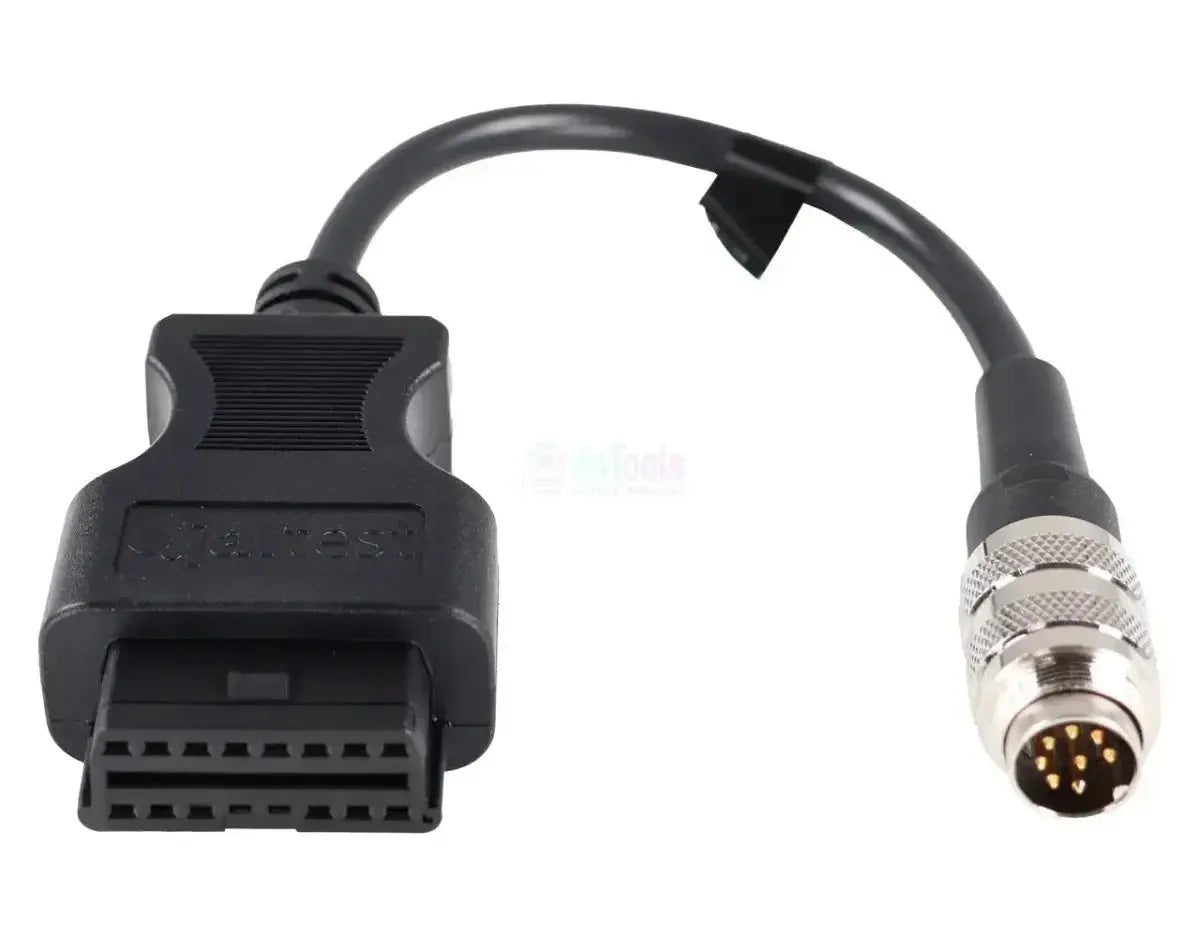

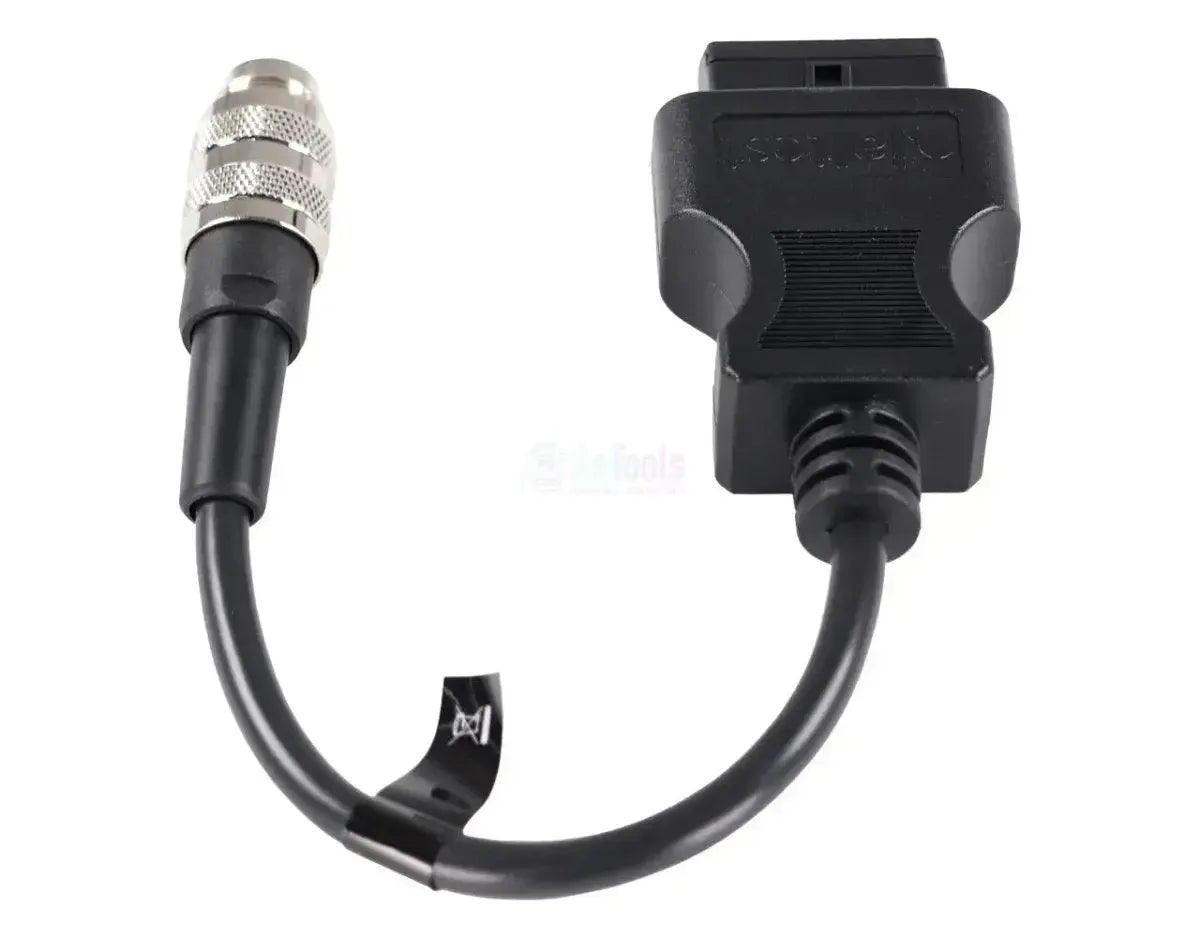

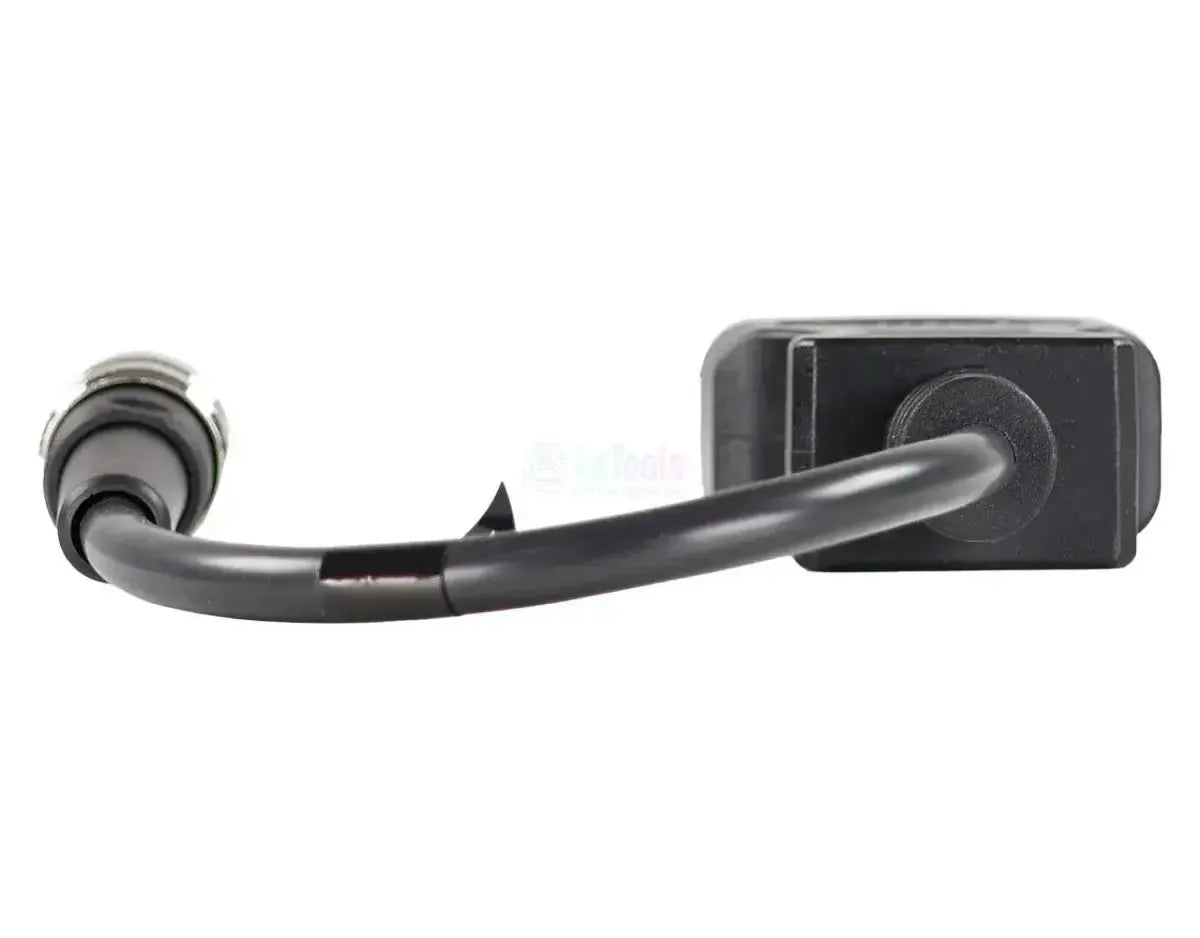

Jaltest (JDC530A) | Claas 8-pins OBD - 16-pins OBD2 Adapter Cable | Landbouwvoertuig

The Jaltest JDC530A is a diagnostic Adapter Cable specifically developed for agricultural vehicles of the Claas brand. This cable forms the connection between the vehicle-specific 8-pin OBD connector and the standardized 16-pin OBD2 (J1962F) connector of a diagnostic interface, such as the Jaltest Link. The cable is designed for performing diagnostics, maintenance, and configurations on the vehicle's electronic systems.

Thanks to its construction, the cable ensures stable communication with the various control units (ECUs) in the vehicle. This makes it possible to access systems such as engine management, transmission, hydraulics, and other vehicle-specific modules. The design is tailored for use in a workshop environment or on-site.

Application and functionality:

This Adapter Cable enables a direct connection to the diagnostic port of compatible Claas vehicles, allowing the following functions to be performed with a suitable diagnostic device:

• Diagnosis: Reading and clearing fault codes from the various electronic systems.
• Live data: Displaying current sensor values and system parameters in real-time.
• Actuators testing: Activating components to check correct operation.
• Calibration and configuration: Adjusting system settings and calibrating components.

Compatible vehicles and Application:

This adapter cable is designed for use with specific agricultural vehicles from the Claas brand equipped with the 8-pins diagnostic connection.

Claas:

• Combines: Various models, including certain versions of the Lexion and Tucano series.
• Xerion: Various models from the Xerion series.

Important: Before purchasing the product, always check your vehicle's connection. This may vary by model and year.

Package Contents:

• 1x Jaltest (JDC530A) | Claas 8-pins OBD - 16-pins OBD2 Adapter Cable | Agricultural vehicle

Technical specifications:
