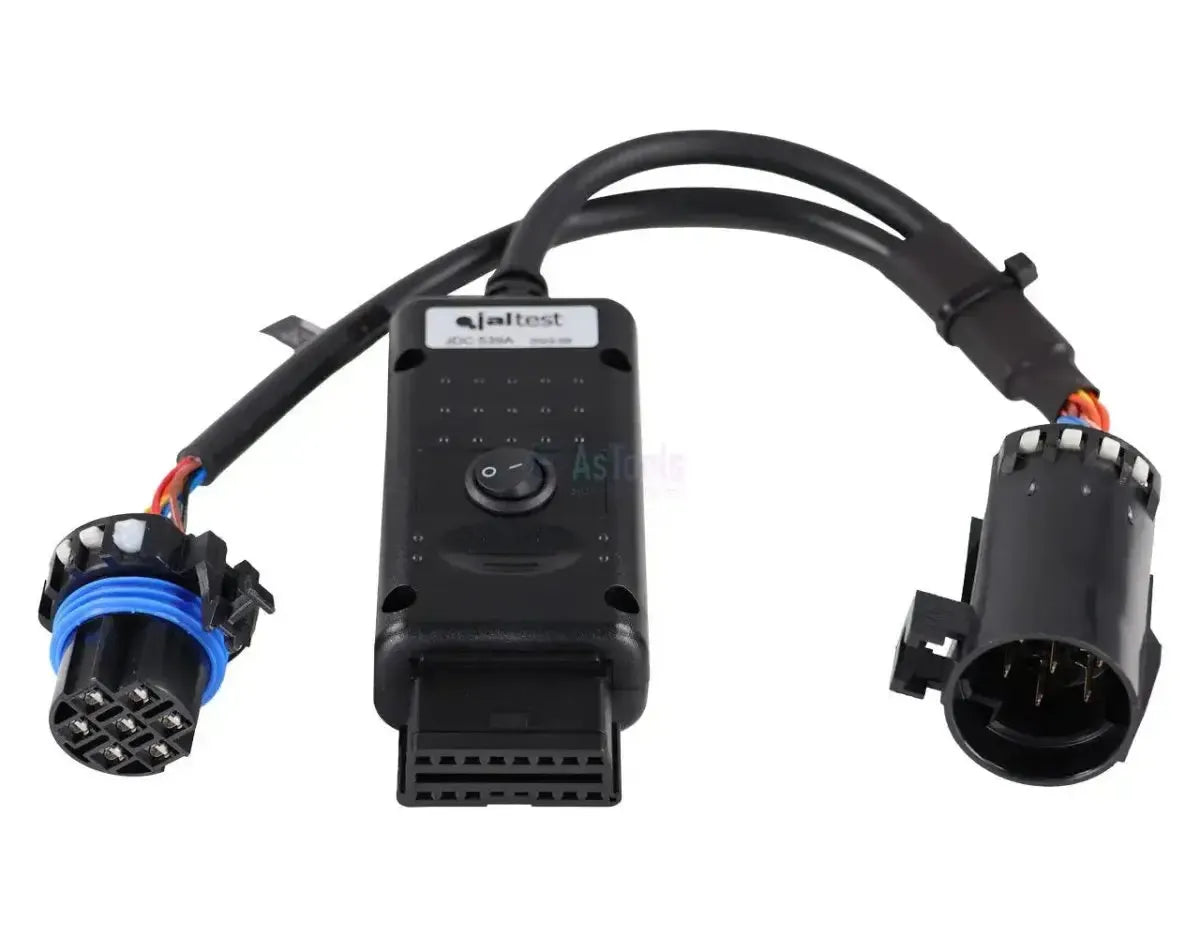

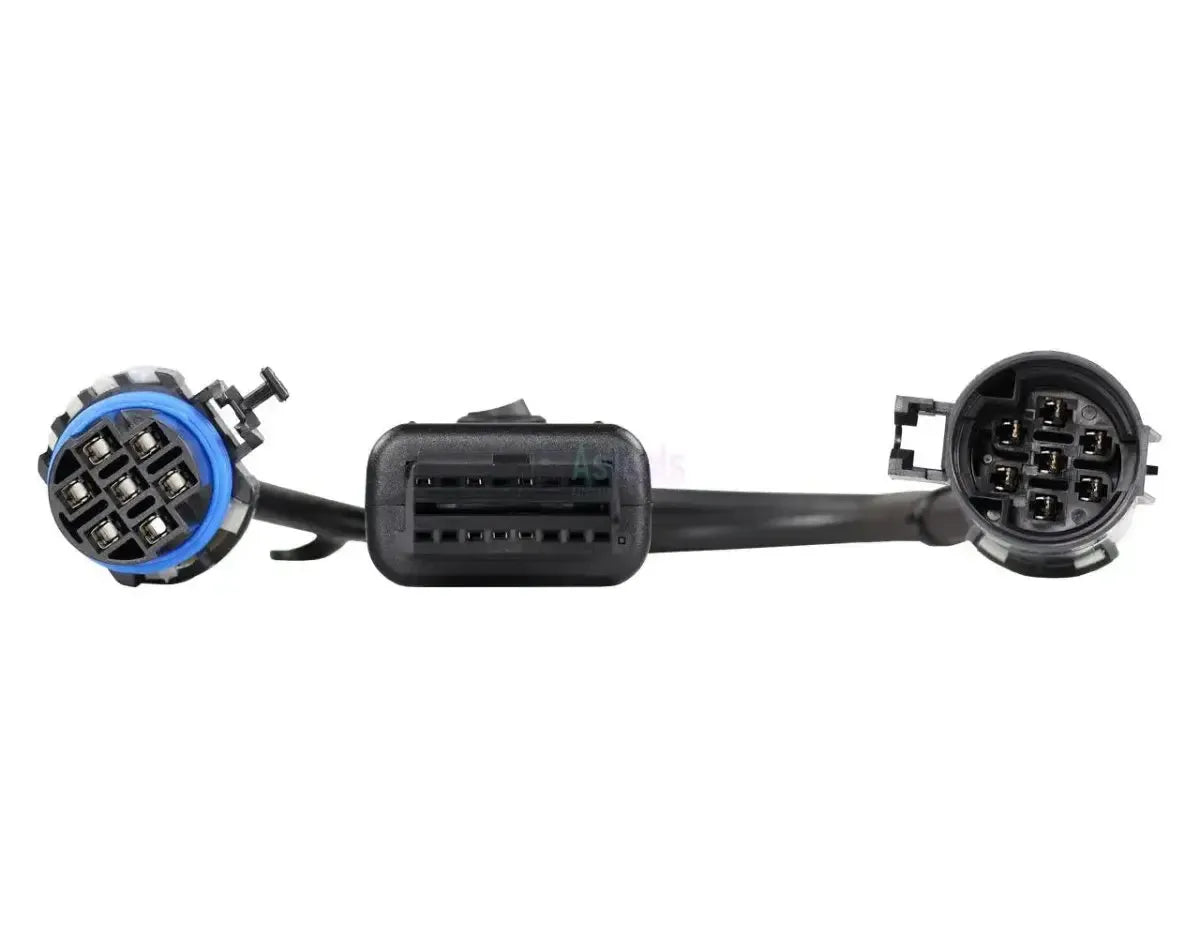

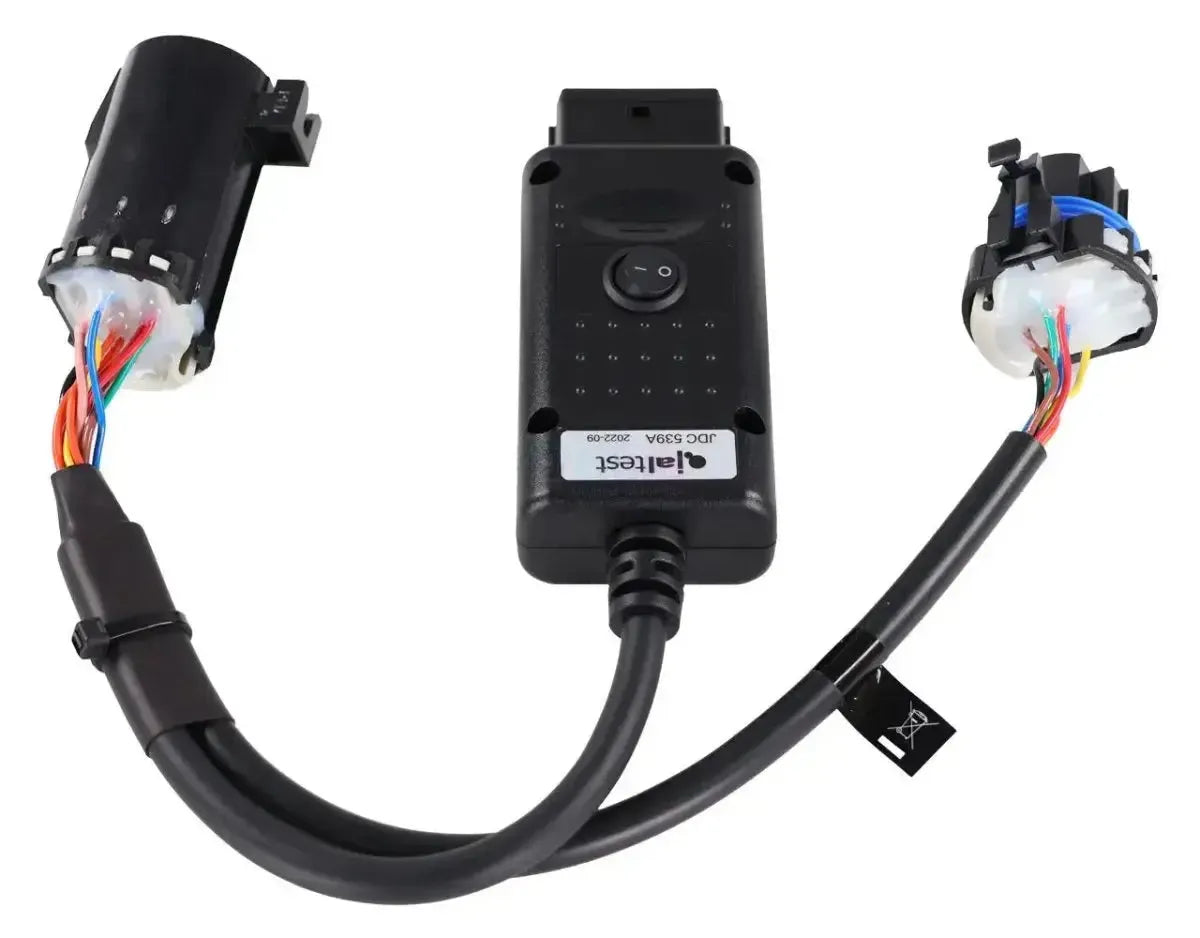

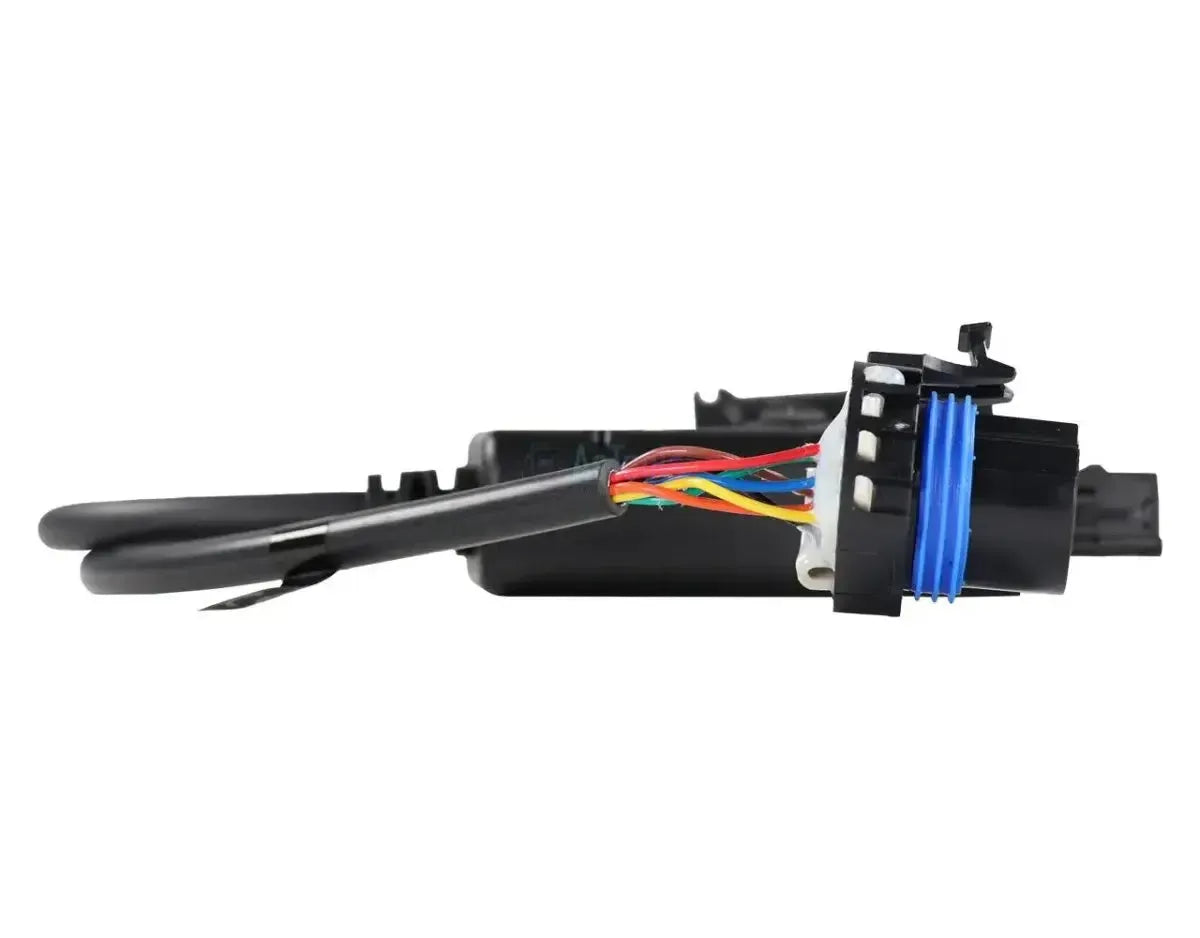

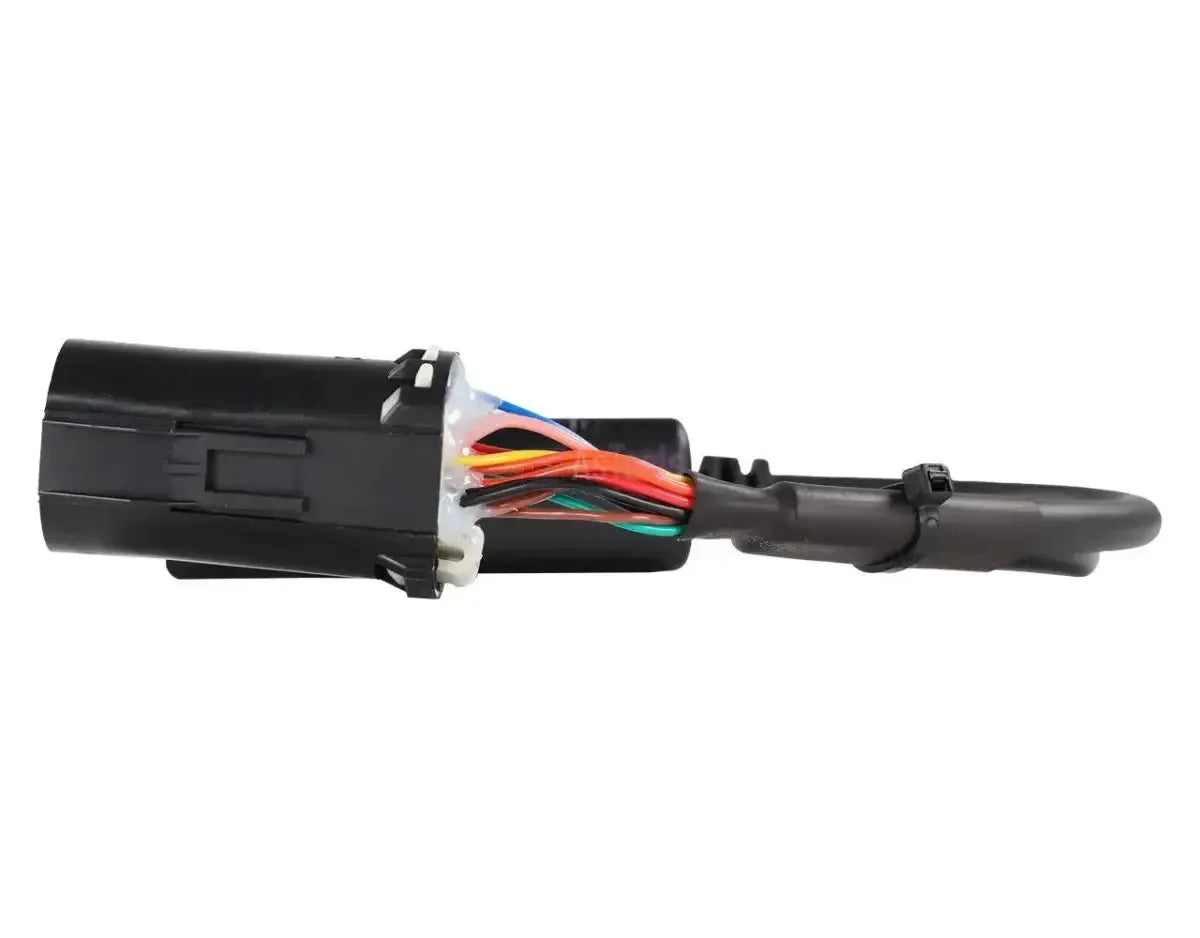

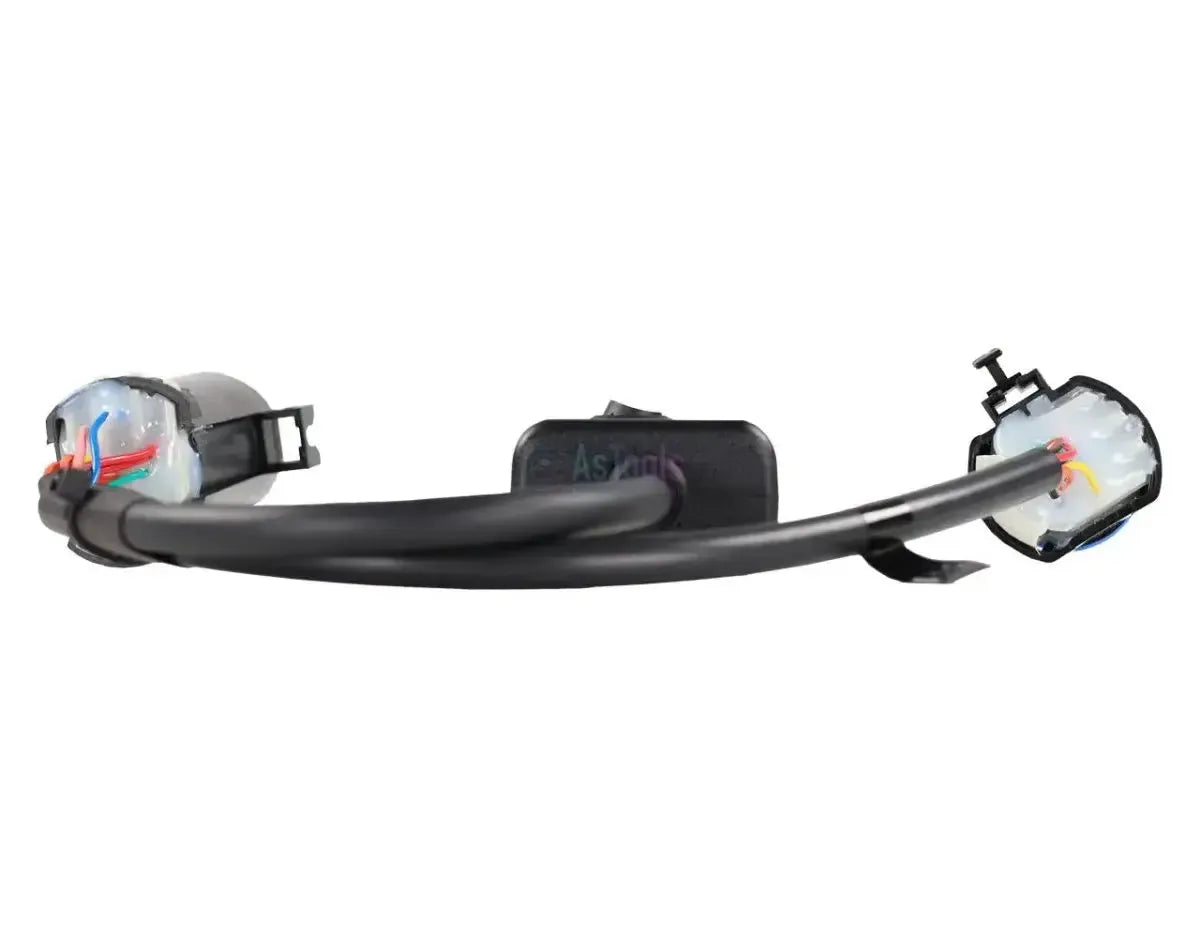

The Jaltest JDC539A is the adapter cable connecting the dual 6+6-pin diagnostic connectors on compact Bobcat machines to the 16-pin OBD2 port of your Jaltest diagnostic cable. Bobcat installs two connectors side-by-side on these machines: one for machine diagnostics and one for engine diagnostics. That's why this cable has two 6-pin connectors on the vehicle side, which converge into a single 16-pin OBD2 input; the exact location of both connectors varies by model.
This cable routes the communication lines through to the Jaltest Link, enabling direct communication with the control units. This allows the diagnostic equipment to access in a single session the machine computer GATEWAY, the electronic modules ACS and SJC, the drivetrain DRIVE, the hydraulic control AUX, the engine controls DL02, DM02 and E-CDIS Kubota, the aftertreatment control DCU, and the instrument cluster LHP. The coverage difference lies with that instrument cluster: Jaltest reads only measured values and ECU data there, not fault codes. Since compact machines have never had a standardized diagnostic connector requirement, this setup remains in use on newer Bobcats as well. The cable falls under Jaltest OHW (Off-Highway machines).
KEY BENEFITS
IMPORTANT NOTES
Applications and Features
Through this dual connection, you access the machine's control units using Jaltest software. Which systems are available varies by model series and configuration.
Control Units You Can Access
- GATEWAY, Body Computer: The central machine computer of the skid steer and track loaders.
- ACS, Electronic Module and SJC, Electronic Module: The electronic modules for operation and joystick control.
- DRIVE, Transmission: The drive control unit.
- AUX, Remote Hydraulic Controller: Controls auxiliary hydraulics for attachments.
- DL02, CAN, Engine Control Module and DM02, CAN, Electronic Diesel Control: Bobcat's own engine management systems.
- E-CDIS Kubota, Electronic Diesel Control, Common Rail: Kubota engine common-rail management with additional functions.
- DCU, Exhaust gas treatment system: Manages exhaust aftertreatment on equipped machines.
- LHP, Instrument cluster: The instrument panel, where you read measurement values and ECU data.
What you can do
- Read and clear fault codes: Access the control unit's fault memory with detailed descriptions of detected faults.
- View live data: Real-time sensor values connected to the control unit, displayed as numbers and graphs.
- Check service history: Review maintenance intervals and completed service work on the machine, with service reports.
- Perform additional functions: Available with E-CDIS Kubota engine management.
Compatible vehicles and applications
The connector type determines compatibility, not the model. This cable works with any compact Bobcat machine featuring the dual 6+6-pin diagnostic connector. The Jaltest OHW coverage includes the series listed below; check your machine's connector type on-site.
Bobcat:
- S500 Series (skid steer loader)
- S600 Series (skid steer loader)
- S700 Series (skid steer loader)
- T500 Series (track loader)
- T600 Series (track loader)
- T700 Series (track loader)
- E50 Series (mini excavator)
- E85 Series (mini excavator)
Package contents
- 1x Jaltest (JDC539A) | Bobcat 6+6-pins OBD - 16-pins OBD2 Adapter Cable | Internal Combustion Engine
Technical Specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC539A |
| Type | Adapter Cable |
| Application | Bobcat skid steer loaders, track loaders and mini excavators |
| Vehicle-Side Connection | 6+6-pins OBD (two 6-pin connectors) |
| Interface-Side Connection | 16-pin OBD2 |
| Control Units | GATEWAY, ACS, SJC, DRIVE, AUX, DL02, DM02, E-CDIS Kubota, DCU and LHP |
| Segment | Internal Combustion Engine |
| Jaltest Module | Jaltest OHW (Off-Highway Machines) |
| Required to Use | Jaltest Link with valid software license |
